S2OADRFTECH005Duo-i6525 RF Repeater
Advanced RF Technologies, Inc.
Click to zoom
Application Details
- Equipment Class
- TNB - Licensed Non-Broadcast Station Transmitter
- Date of Grant
- Feb 08, 2007
- Application Purpose
- Original Equipment
- Date of Application
- Feb 08, 2007
- Equipment Note
- Duo-i6525 RF Repeater
- Frequency Range
- 935.00000000 - 940.00000000
- Country
- United States
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Duo-i6525 U SER MANUAL Version 1.2 2607 Colorado Blvd. Los Angeles, CA 90041 USA Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com Duo-i6525 RF Repeater User Manual V1.2 Advanced RF Technologies, Inc. Proprietary Document Page 2 of 32 Glossary The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control AROMS ADRFβ Repeater Operation and Management System BTS Base Transceiver Station CDMA Code Division Multiple Access CFE Compact Front End CW Continuous Wave (un-modulated signal) DAS Distributed Antenna System DL Downlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscribers service area via the repeater HPA High Power Amplifier HW Hardware iDEN Integrated Digital Enhanced Network IF Intermediate Frequency LNA Low Noise Amplifier MS Mobile Station PLL Phased Locked Loop PS Power Supply RF Radio Frequency SQE Signal Quality Estimate SW Software UL Uplink Uplink The path covered from the subscribers service area to the Base Transceiver Station(BTS) via the repeater VSWR Voltage Standing Wave Ratio Duo-i6525 RF Repeater User Manual V1.2 Advanced RF Technologies, Inc. Proprietary Document Page 3 of 32 Version 1.2 (Released January 19, 2007) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2007. All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (323) 254-8131 Fax: (323) 254-4928 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 2607 Colorado Blvd., 1 st Floor Los Angeles, CA 90041 USA www.adrftech.com Duo-i6525 RF Repeater User Manual V1.2 Advanced RF Technologies, Inc. Proprietary Document Page 4 of 32 TABLE OF CONTENTS 1. Duo-i6525 ............................................................................................................... 5 1.1 Introduction ....................................................................................................... 5 1.1.1 Highlights ........................................................................................... 6 1.1.2 Parts List ............................................................................................ 7 1.1.3 Repeater Quick View ......................................................................... 7 1.2 Warnings and Hazards ...................................................................................... 8 2 Duo-i6525 Overview .............................................................................................. 9 2.1 Block Diagram .................................................................................................. 9 2.2 Operation Modes ............................................................................................ 10 2.2.1 Local Web GUI ................................................................................ 10 2.2.2 Remote NMS (Modem Option) ....................................................... 10 2.3 Components .................................................................................................... 10 2.3.1 Power Supply ................................................................................... 10 2.3.2 Controller ......................................................................................... 10 2.3.3 Down Converter Module ................................................................. 10 2.3.4 Up Converter Module ...................................................................... 10 2.3.5 Quad-Plexer ..................................................................................... 11 2.3.6 Digital Filter ..................................................................................... 11 2.4 Switches & Indicators ..................................................................................... 12 2.4.1 LEDs ................................................................................................ 12 2.4.2 Power Switch ................................................................................... 13 2.4.3 Mode Selection Switch .................................................................... 13 2.5 Installation....................................................................................................... 14 2.5.1 Tools ................................................................................................ 14 2.5.2 Procedure ......................................................................................... 14 2.5.3 Grounding ........................................................................................ 16 2.5.4 Antenna Separation/Isolation ........................................................... 16 2.5.5 Line of Sight .................................................................................... 18 3 Duo-i6525 AROMS Setup ..................................................................................... 19 4 Maintenance Guide for Duo-i6525 ........................................................................ 27 4.1 Periodic Inspection Checklist ......................................................................... 27 4.2 Preventive Measures for Optimal Operation .................................................. 27 4.2.1 Recommendations ............................................................................ 27 4.2.2 Precautions ....................................................................................... 27 5 Warranty and Repair Policy ................................................................................... 28 5.1 General Warranty ............................................................................................ 28 5.2 Limitations of Warranty .................................................................................. 28 5.3 Limitation of Damages ................................................................................... 28 5.4 No Consequential β¦
Text truncated - open the document above for the full version.
Cover Letter(s)
Advanced RF Technologies, Inc. Proprietary Document 2607 Colorado Blvd. Los Angeles, CA 90041 TEL: (323) 254-8131 FAX: (323) 254-4928 www.adrftech.com ________________________________________________________________________ MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Sadat Chowdhury 01-19-07
Cover Letter(s)
Advanced RF Technologies, Inc. Proprietary Document 2607 Colorado Blvd. Los Angeles, CA 90041 TEL: (323) 254-8131 FAX: (323) 254-4928 www.adrftech.com ________________________________________________________________________ January 19, 2007 MET Laboratories, Inc. 914 West Patapsco Ave, Baltimore, MD 21230 Confidentiality request regarding application for certification of FCC ID: S2OADRFTECH005 Pursuant to Sections 0.457 and 0.459 of the Commissionβs Rules, we hereby request confidential treatment accompanying this application as outlined below: 1. Block Diagram 4. Operational Description 2. Schematic/Circuit Diagrams 3. Mechanical Drawing The above materials contain proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sadat Chowdhury Director, Sales Engineering Advanced RF Technologies, Inc. 2607 Colorado Blvd., Suite 100 Los Angeles, CA 90041 www.adrftech.com Tel: (323) 254-8131 ext. 702 Fax: (323) 254-4928
External Photos

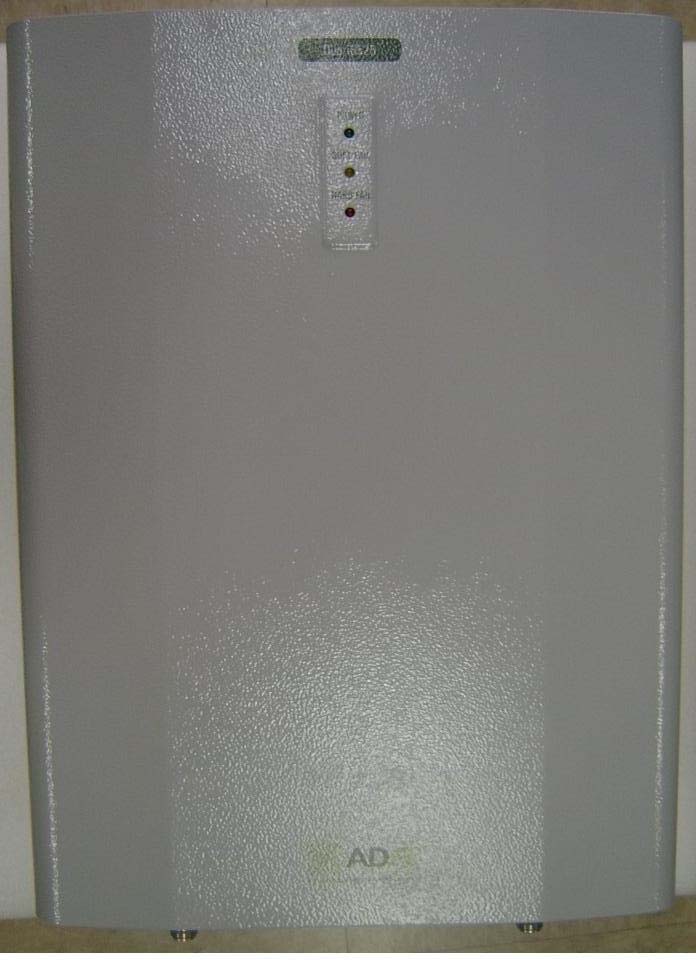

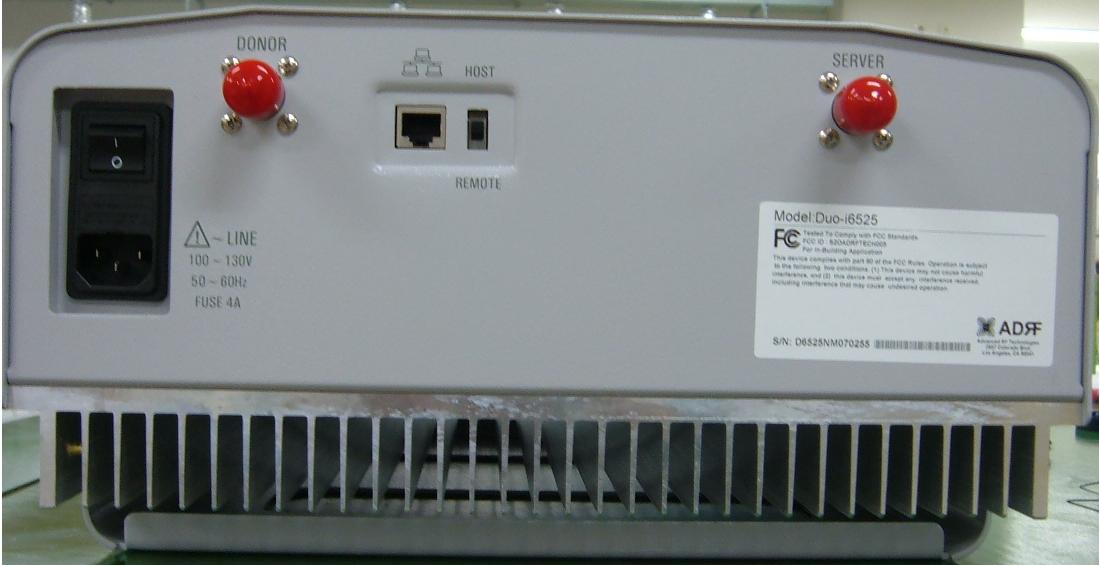

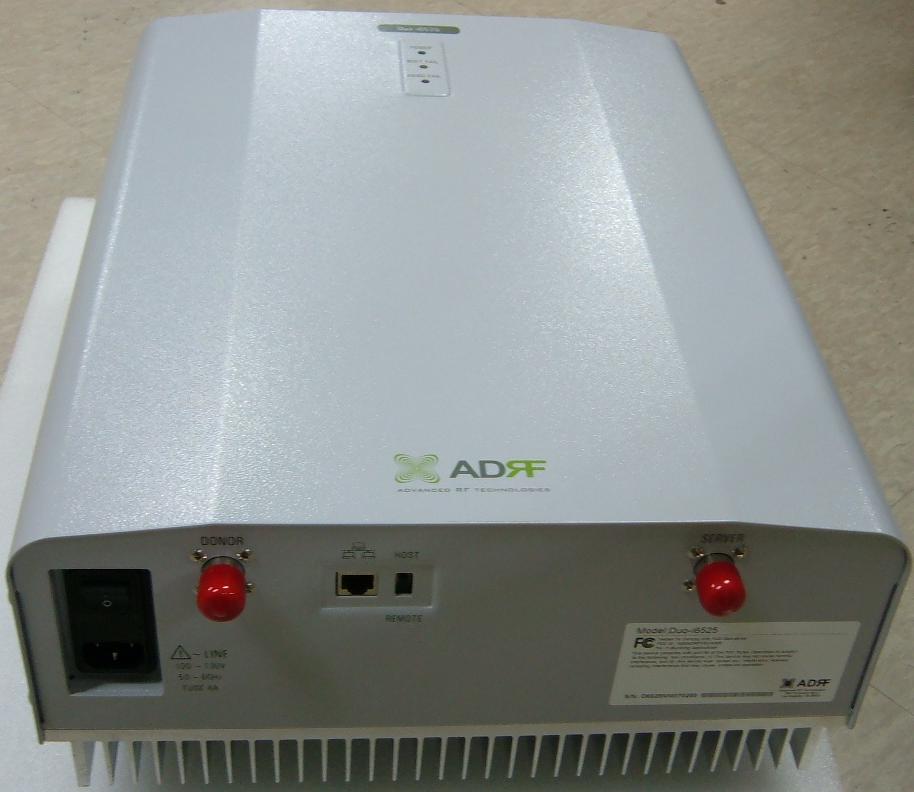

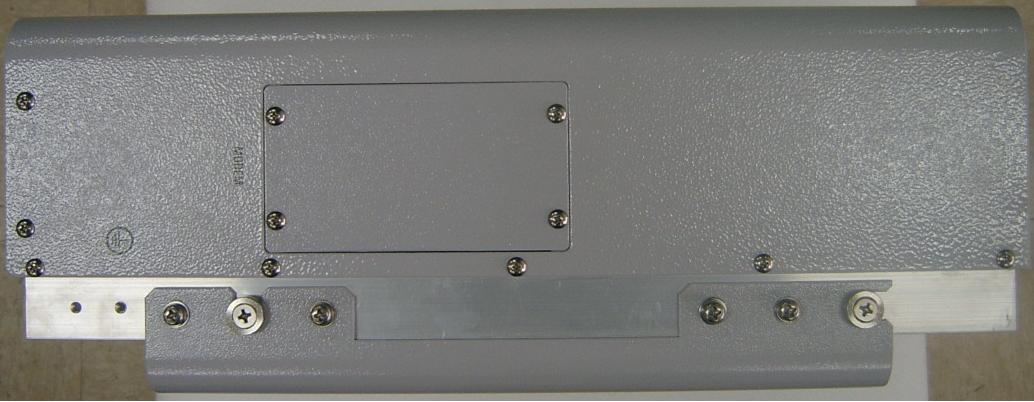

External Photos Repeater
Internal Photos
Internal Photos βAC/DC Adaptor
Internal Photos
Internal Photos PCB Board
Internal Photos

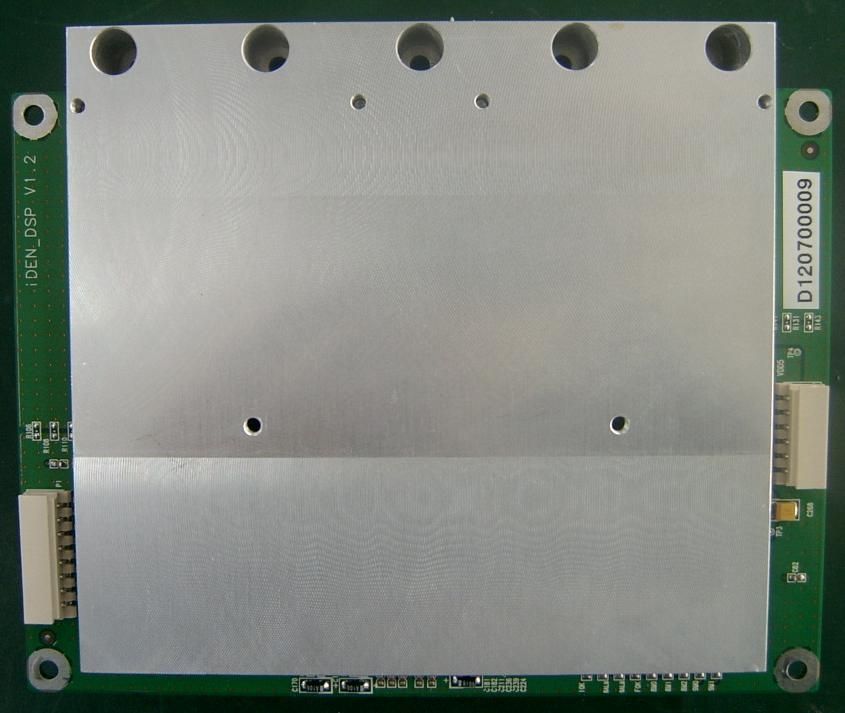

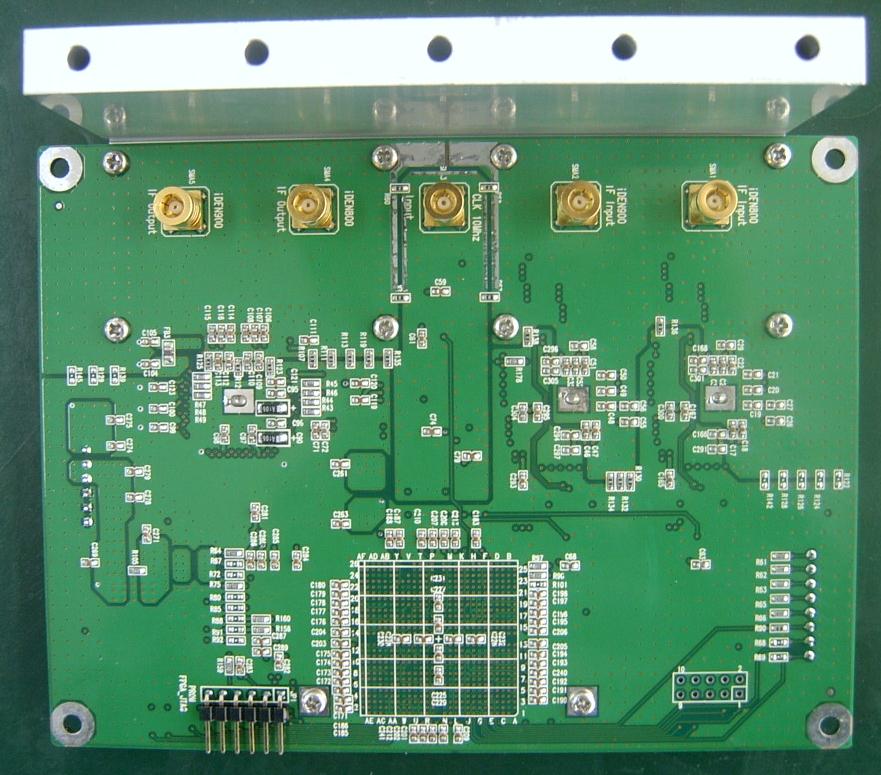

Internal Photos β DSP Filter Module
Internal Photos
Internal Photos - Repeater
Internal Photos
Internal Photos PCB Board
Internal Photos
Internal Photos β DUO-i6525_CONTROL BOARD BLANK PCB Internal Photos β DUO-i6525_CONTROL BOARD PCB Internal Photos β DUO-i6525_DHCP_SUB_BOARD Internal Photos β DUO-i6525_LED_SUB_BOARD Internal Photos β DUO-i6525_XSCALE BOARD
Parts List/Tune Up Info
NHF-1205-4 MAIN PARTS LIST REV : B 2006. 12.12 NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 1 CAP ELECT 680uF/250V KMH 105 (25.4*50) C6 1 EA SAMYOUNG 2 CAP ELECT 2200uF/25V KMG 105 C28,29 2 EA SAMYOUNG 3 CAP ELECT 4700uF/10V KMG 105 C32,33 2 EA SAMYOUNG 4 CAP ELECT 2200uF/10V KMG 105 C43,45 2 EA SAMYOUNG 5 CAP ELECT 1000uF/25V KMG 105 C30 1 EA SAMYOUNG 6 CAP ELECT 3300uF/6.3V KMG 105 C24 1 EA SAMYOUNG 7 CAP ELECT 330uF/25V KMG 105 C41 1 EA SAMYOUNG 8 CAP ELECT 470uF/16V KMG 105 C40 1 EA SAMYOUNG 9 10 CAP FILM 104/63V C25,31,36,44,46,38 6 EA PILKOR 11 CAP FILM 224/63V C37,54 2 EA PILKOR 12 CAP Y-CAP SD222M/250V (10mm) C2,3,18,39 4 EA SAMHWA SEC 13 CAP CERAMIC 222/1KV C34,35,48,49 4 EA SAMHWA 14 CAP CERAMIC 103/1KV (10mm) C19,47 2 EA SAMHWA 15 CAP X-CAP 220nM/275V~X2 PCX2 337M C4 1 EA PILKOR SUNIL 16 CAP X-CAP 470nM/275V~X2 PCX2 335M C1 1 EA PILKOR SUNIL 17 18 RES CARBON 10 β¦ - F 1/4W R14,77 2 EA JEIL KOUNGIL 19 RES CARBON 470 β¦ - F 1/4W R26 1 EA JEIL KOUNGIL 20 RES CARBON 1K β¦ - F 1/4W R13,76 2 EA JEIL KOUNGIL 21 RES CARBON 2.4K β¦ - F 1/4W R28,34,35 3 EA JEIL KOUNGIL 22 RES CARBON 6.2K β¦ - F 1/4W R27 1 EA JEIL KOUNGIL 23 RES CARBON 10K β¦ - F 1/4W R15,78 2 EA JEIL KOUNGIL 24 RES CARBON 39K β¦ - F 1/4W R25 1 EA JEIL KOUNGIL 25 RES METAL FILM 10 β¦ - J 1W R23,24,30,31 4 EA JEIL KOUNGIL 26 RES METAL FILM 390K β¦ - J 1W R1 1 EA JEIL KOUNGIL 27 RES METAL FILM 100K β¦ - J 3W R12,29 2 EA JEIL KOUNGIL 28 RES METAL FILM 390K β¦ - J 3W R8 1 EA JEIL KOUNGIL 29 RES CEMENT 0.01 β¦ - J 5W SH2 1 EA JEIL KOUNGIL NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 30 RES CEMENT 10 β¦ - J 5W R2 1 EA JEIL KOUNGIL 31 32 SHUNT Mn2phi-10mm SH1,3 2 EA 33 34 ZN-DIODE 1N4746 ZD1,7 2 EA ON SEMI 35 DIODE UF4007 D8,9,13,19,25 5 EA RECTRON D10,11,12,16,17,26, 27 36 DIODE 1N4148 D20,28,29 10 EA RECTRON 37 DIODE S20SC9M D15 1 EA SHINDENGEN 38 DIODE S30SC4M D18 1 EA SHINDENGEN 39 DIODE D10SC4M D24 1 EA SHINDENGEN 40 DIODE-BRIDGE D15XB60B BD1 1 EA SHINDENGEN 41 FET FQPF12N60 Q1,3 2 EA FAIRCHILD 42 SW-REGULATOR LM2576-5T IC6 1 EA NATIONAL ONSEMI 43 TR 2907A Q2,7 2 EA FAIRCHILD 44 IC INA169 IC5 1 EA T.I 45 HIC NT-01 HIC1,2 2 EA IREH 46 47 TRANSFORMER EER3541-V (+12V) T2 1 EA YONGSEUNG CHUNGJU 48 TRANSFORMER EER2834-V (+6V) T4 1 EA YONGSEUNG CHUNGJU 49 DR-TRANSFORMER EE1625(DRIVE) DT1,2 2 EA YONGSEUNG CHUNGJU 50 INDUCTOR CS229125 PEW1.2 26T L3 1 EA YONGSEUNG CHUNGJU 51 INDUCTOR CS229125 PEW1.5 20T L6 1 EA YONGSEUNG CHUNGJU 52 INDUCTOR CM127125 UEW0.7 25T L9 1 EA YONGSEUNG CHUNGJU 53 INDUCTOR BAR 6*30 UEW1.5 10.5T L2,4,7 3 EA YONGSEUNG CHUNGJU 54 INDUCTOR BAR 5*20 UEW1.0 16.5T L5,8 2 EA YONGSEUNG CHUNGJU 55 LINE FILTER CV505180BS LF1 1 EA TNC 56 57 RELAY HR-CR7DC12 RY1 1 EA HAN KUK 58 VARISTOR 14D471 TNR1 1 EA ILJIN NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 59 VARISTOR 14D821 TNR2,3 2 EA ILJIN 60 61 FUSE 51NM 100H 10A F1 1 EA SAVE FUSE SLOW BALL 62 FUSE HOLDER GF-205B F1 1 EA 63 FUSE CAP GF-205C FOR F1 1 EA 64 65 VR 3266W-501 VR2,5 2 EA BOURNS 66 VR 3266W-202 VR4 1 EA BOURNS 67 VR 3266W-502 VR1 1 EA BOURNS 68 VR 3296W-203 VR3 1 EA BOURNS 69 70 CONNECTOR 42002-3P CN1 1 EA MOLEX 71 CONNECTOR LWD-1140-18P CN2 1 EA HANLIM 72 CONNECTOR LWD-1140-6P CN3 1 EA HANLIM 73 CONNECTOR TSS254-18P CN4 1 EA GEO YOUNG 74 CONNECTOR TSS254-26P CN5 1 EA GEO YOUNG 75 76 HEAT SINK NHF-1205-4-HS2 HS2 1 EA 77 TOP CASE NHF-1205-4-CASE1 CASE1 1 EA 78 79 SCREW M3*6 NIKEL 2 FOR PCB 4 EA ANY 80 SCREW M3*10 NIKEL 2 Q1,Q3,IC6 3 EA ANY 81 SCREW M3*12 NIKEL 2 BD1,D15,D18,D24 4 EA ANY 82 SCREW M3*8 NIKEL TOP CASE 3 EA ANY 83 SCREW M3*6 NIKEL TOP CASE 2 EA ANY 84 SILICONE RUBBER TO-3P FOR D15,18 2 EA APEX 85 86 PCB 230*90 1.6t 1 EA DONGSUNG 87 TOTAL 135
Parts List/Tune Up Info
REV : A 2006. 12. 12 NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'TY UNIT VENDOR1 VENDOR2 REMARK 1 CAP ELECT 3300uF/6.3V KMG 105 C20,21,22,23 4 EA SAMYOUNG 2 CAP ELECT 330uF/25V KMG 105 C7 1 EA SAMYOUNG 3 CAP ELECT 4.7uF/350V KMG 105 (10 * C5 1 EA SAMYOUNG 4 CAP ELECT 47uF/50V KMG 105 C10,11,12,17,51 5 EA SAMYOUNG 5 CAP ELECT 1uF/50V KMG 105 C26 1 EA SAMYOUNG 6 CAP FILM 104/63V C8,9,13,16,50,52 6 EA PILKOR 7 CAP CERAMIC 222/1KV C27 1 EA SAMHWA 8 CAP CERAMIC 103/1KV(10mm) C15 1 EA SAMHWA 9 CAP Y-CAP SC222M(10mm) 250V C14 1 EA SAMHWA SEC 1011 RES CARBON 10 β¦ - F 1/8W R7 1 EA JEIL KOUNGIL 12 RES CARBON 100 β¦ - F 1/8W R16 1 EA JEIL KOUNGIL 13 RES CARBON 240 β¦ - F 1/8W R50 1 EA JEIL KOUNGIL 14 RES CARBON 470 β¦ - F 1/8W R3,45,60,71,72,75 6 EA JEIL KOUNGIL 15 RES CARBON 750 β¦ - F 1/8W R18 1 EA JEIL KOUNGIL 16 RES CARBON 1K β¦ - F 1/8W R17,20,33,41 4 EA JEIL KOUNGIL 17 RES CARBON 1.5K β¦ - F 1/8W R48 1 EA JEIL KOUNGIL 18 RES CARBON 1.8K β¦ - F 1/8W R61 1 EA JEIL KOUNGIL 19 RES CARBON 2K β¦ - F 1/8W R19 1 EA JEIL KOUNGIL 20 RES CARBON 2.2K β¦ - F 1/8W R52 1 EA JEIL KOUNGIL R5,43,47,49,51,53 R55,58,62,64,66,68 22 RES CARBON 3.3K β¦ - F 1/8W R40,63 2 EA JEIL KOUNGIL 23 RES CARBON 4.7K β¦ - F 1/8W R54,67,69,70,73 5 EA JEIL KOUNGIL 24 RES CARBON 6.8K β¦ - F 1/8W R46 1 EA JEIL KOUNGIL 25 RES CARBON 9.1K β¦ - F 1/8W R6 1 EA JEIL KOUNGIL 26 RES CARBON 10K β¦ - F 1/8W R4,42,74 3 EA JEIL KOUNGIL 12 EA RES CARBON 21 2.4K β¦ - F 1/8W NHF-1205-4-SUB PARTS LIST JEIL KOUNGIL NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'TY UNIT VENDOR1 VENDOR2 REMARK 27 RES CARBON 12K β¦ - F 1/8W R65 1 EA JEIL KOUNGIL 28 RES CARBON 20K β¦ - F 1/8W R57 1 EA JEIL KOUNGIL 29 RES CARBON 47K β¦ - F 1/8W R32 1 EA JEIL KOUNGIL 30 RES CARBON 33 β¦ - F 1/4W R10 1 EA JEIL KOUNGIL 31 RES CARBON 4.7K β¦ - F 1/4W R39 1 EA JEIL KOUNGIL 32 RES CARBON 1.5K β¦ - F 1/4W R36 1 EA JEIL KOUNGIL 33 RES CARBON 2.4K β¦ - F 1/4W R44 1 EA JEIL KOUNGIL 34 RES CARBON 27K β¦ - F 1/4W R38 1 EA JEIL KOUNGIL 35 RES CARBON 1.5M β¦ - F 1/4W R37 1 EA JEIL KOUNGIL 36 RES METAL FILM 10 β¦ - J 1W R22 1 EA JEIL KOUNGIL 37 RES METAL FILM 100 β¦ - J 3W R21 1 EA JEIL KOUNGIL 38 RES METAL FILM 100K β¦ - J 3W R11 1 EA JEIL KOUNGIL 39 RES METAL FILM 150K β¦ - J 3W R9 1 EA JEIL KOUNGIL 4041 ZN-DIODE 1N4733A ZD3,4,5,6,8 5 EA ONSEMI 42 DIODE EGP20D D1 1 EA RECTRON GI 43 DIODE UF4007 D2,3,5,6,7 5 EA RECTRON GI 44 DIODE P6KE220A D4 1 EA RECTRON GI 45 DIODE 1N4148 D23 1 EA RECTRON GI 46 DIODE SF20SC6 D14 1 EA SHINDENGEN 47 DIODE-BRIDGE DF06G BD2 1 EA JGD 48 TR 2907A Q6 1 EA FAIRCHILD 49 TR 2222A Q4,5,8 3 EA FAIRCHILD 50 SCR MCR100-8 SCR1 1 EA MOTOROLA 51 IC KA431 AZ TO-92 TYPE C1,4,7,9,10,11,12,1 8 EA FAIRCHILD 52 IC VIPer12A IC2 1 EA ST 53 IC 5M0380R-TU IC3 1 EA FAIRCHILD 54 IC KA2901 DIP14PIN IC8 1 EA FAIRCHILD 55 PHOTO COUPLER PC817B PC1,2,3,4 4 EA SHARP 5657 INDUCTOR- DRUM 6.5*7.5 0.5PAI 15.5T 1 0 L1 1 EA YONGSEUNG CHUNGJU NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'TY UNIT VENDOR1 VENDOR2 REMARK 58 TRANSFORMER AUX-T1(EE2218) T1 1 EA YONGSEUNG CHUNGJU 59 TRANSFORMER EER2828-V(+3.4V) T3 1 EA YONGSEUNG CHUNGJU 6061 LED YELLOW 3PAI LED1 1 EA KEC BRIGHT 62 LED RED 3PAI LED2 1 EA KEC BRIGHT 6364 CONNECTOR TPHA03-15-1419-18P CN4-1 1 EA GEO YOUNG 65 CONNECTOR TPHA03-15-1419-26P CN5-1 1 EA GEO YOUNG 6667 SCREW M3*6 NIKEL FOR PCB 4 EA ANY 68 SCREW M3*10 NIKEL FOR D14,IC3 2 EA ANY 6973 HEAT SINK NHF-1205-4-HS1 HS1 1 EA 7470 PCB-BARE 57 * 200 * 1.6t 2oz 1 EA DONGSUNG TOTAL 126 EA
Parts List/Tune Up Info
NHF-1205-4-SUB PARTS LIST REV : A 2006. 12. 12 NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 1 CAP ELECT 3300uF/6.3V KMG 105 C20,21,22,23 4 EA SAMYOUNG 2 CAP ELECT 330uF/25V KMG 105 C7 1 EA SAMYOUNG 3 CAP ELECT 4.7uF/350V KMG 105 (10*13) C5 1 EA SAMYOUNG 4 CAP ELECT 47uF/50V KMG 105 C10,11,12,17,51 5 EA SAMYOUNG 5 CAP ELECT 1uF/50V KMG 105 C26 1 EA SAMYOUNG 6 CAP FILM 104/63V C8,9,13,16,50,52 6 EA PILKOR 7 CAP CERAMIC 222/1KV C27 1 EA SAMHWA 8 CAP CERAMIC 103/1KV(10mm) C15 1 EA SAMHWA 9 CAP Y-CAP SC222M(10mm) 250V C14 1 EA SAMHWA SEC 10 11 RES CARBON 10 β¦ - F 1/8W R7 1 EA JEIL KOUNGIL 12 RES CARBON 100 β¦ - F 1/8W R16 1 EA JEIL KOUNGIL 13 RES CARBON 240 β¦ - F 1/8W R50 1 EA JEIL KOUNGIL 14 RES CARBON 470 β¦ - F 1/8W R3,45,60,71,72,75 6 EA JEIL KOUNGIL 15 RES CARBON 750 β¦ - F 1/8W R18 1 EA JEIL KOUNGIL 16 RES CARBON 1K β¦ - F 1/8W R17,20,33,41 4 EA JEIL KOUNGIL 17 RES CARBON 1.5K β¦ - F 1/8W R48 1 EA JEIL KOUNGIL 18 RES CARBON 1.8K β¦ - F 1/8W R61 1 EA JEIL KOUNGIL 19 RES CARBON 2K β¦ - F 1/8W R19 1 EA JEIL KOUNGIL 20 RES CARBON 2.2K β¦ - F 1/8W R52 1 EA JEIL KOUNGIL R5,43,47,49,51,53 21 RES CARBON 2.4K β¦ - F 1/8W R55,58,62,64,66,68 12 EA JEIL KOUNGIL 22 RES CARBON 3.3K β¦ - F 1/8W R40,63 2 EA JEIL KOUNGIL 23 RES CARBON 4.7K β¦ - F 1/8W R54,67,69,70,73 5 EA JEIL KOUNGIL 24 RES CARBON 6.8K β¦ - F 1/8W R46 1 EA JEIL KOUNGIL 25 RES CARBON 9.1K β¦ - F 1/8W R6 1 EA JEIL KOUNGIL 26 RES CARBON 10K β¦ - F 1/8W R4,42,74 3 EA JEIL KOUNGIL NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 27 RES CARBON 12K β¦ - F 1/8W R65 1 EA JEIL KOUNGIL 28 RES CARBON 20K β¦ - F 1/8W R57 1 EA JEIL KOUNGIL 29 RES CARBON 47K β¦ - F 1/8W R32 1 EA JEIL KOUNGIL 30 RES CARBON 33 β¦ - F 1/4W R10 1 EA JEIL KOUNGIL 31 RES CARBON 4.7K β¦ - F 1/4W R39 1 EA JEIL KOUNGIL 32 RES CARBON 1.5K β¦ - F 1/4W R36 1 EA JEIL KOUNGIL 33 RES CARBON 2.4K β¦ - F 1/4W R44 1 EA JEIL KOUNGIL 34 RES CARBON 27K β¦ - F 1/4W R38 1 EA JEIL KOUNGIL 35 RES CARBON 1.5M β¦ - F 1/4W R37 1 EA JEIL KOUNGIL 36 RES METAL FILM 10 β¦ - J 1W R22 1 EA JEIL KOUNGIL 37 RES METAL FILM 100 β¦ - J 3W R21 1 EA JEIL KOUNGIL 38 RES METAL FILM 100K β¦ - J 3W R11 1 EA JEIL KOUNGIL 39 RES METAL FILM 150K β¦ - J 3W R9 1 EA JEIL KOUNGIL 40 41 ZN-DIODE 1N4733A ZD3,4,5,6,8 5 EA ONSEMI 42 DIODE EGP20D D1 1 EA RECTRON GI 43 DIODE UF4007 D2,3,5,6,7 5 EA RECTRON GI 44 DIODE P6KE220A D4 1 EA RECTRON GI 45 DIODE 1N4148 D23 1 EA RECTRON GI 46 DIODE SF20SC6 D14 1 EA SHINDENGEN 47 DIODE-BRIDGE DF06G BD2 1 EA JGD 48 TR 2907A Q6 1 EA FAIRCHILD 49 TR 2222A Q4,5,8 3 EA FAIRCHILD 50 SCR MCR100-8 SCR1 1 EA MOTOROLA 51 IC KA431 AZ TO-92 TYPE IC1,4,7,9,10,11,12, 13 8 EA FAIRCHILD 52 IC VIPer12A IC2 1 EA ST 53 IC 5M0380R-TU IC3 1 EA FAIRCHILD 54 IC KA2901 DIP14PIN IC8 1 EA FAIRCHILD 55 PHOTO COUPLER PC817B PC1,2,3,4 4 EA SHARP 56 57 INDUCTOR- DRUM 6.5*7.5 0.5PAI 15.5T 10uH L1 1 EA YONGSEUNG CHUNGJU NO P/NO PART NAME SPEC & DISCRIPTION LOCATION Q'T Y UNI T VENDOR1 VENDOR2 REMARK 58 TRANSFORMER AUX-T1(EE2218) T1 1 EA YONGSEUNG CHUNGJU 59 TRANSFORMER EER2828-V(+3.4V) T3 1 EA YONGSEUNG CHUNGJU 60 61 LED YELLOW 3PAI LED1 1 EA KEC BRIGHT 62 LED RED 3PAI LED2 1 EA KEC BRIGHT 63 64 CONNECTOR TPHA03-15-1419-18P CN4-1 1 EA GEO YOUNG 65 CONNECTOR TPHA03-15-1419-26P CN5-1 1 EA GEO YOUNG 66 67 SCREW M3*6 NIKEL FOR PCB 4 EA ANY 68 SCREW M3*10 NIKEL FOR D14,IC3 2 EA ANY 69 73 HEAT SINK NHF-1205-4-HS1 HS1 1 EA 74 70 PCB-BARE 57 * 200 * 1.6t 2oz 1 EA DONGSUNG TOTAL 126 EA
Parts List/Tune Up Info
iDEN800 & 900 Downlink Converter Part List 1. Mechanical Part Specification Name S I z e Comment material Quantity BODY 200.0 x 145.0 x 33.0 KSD6701-A6061P 1 TOP COVER 200.0 x 145.0 x 2.0 KSD6701-A6061P 1 BOTTOM COVER 200.0 x 145.0 x 2.0 KSD6701-A6061P 1 BLOCK_1 22.0 x 11.4 x 5.0 KSD6701-A6061P 3 BLOCK_2 19.0 x 6.4 x 5.0 KSD6701-A6061P 1 BLOCK_3 19.0 x 6.4 x 5.0(CUT) KSD6701-A6061P 1 BLOCK_4 6.0 x 6.4 x 5.0 KSD6701-A6061P 1 BLOCK_5 26.0 x 6.4 x 5.0(CUT) KSD6701-A6061P 1 BLOCK_6 23.5 x 6.2 x 5.0 KSD6701-A6061P 1 RF CONNECTOR SMA-4HOLE RIGHTANGLE FEMALE 2 Screw M2.0 x 0.4 x 5.0 KSD3706-STS304 14 Screw M2.6 x 0.45 x 5.0 KSD3706-STS304 96 Screw M2.6 x 0.45 x 8.0 KSD3706-STS304 8 Screw M2.6 x 0.45 x 5.0 KSD3706-STS304 76 Screw M3 x 0.5 x 5.0 KSD3706-STS304 1 2. Board Assβy Patt No Q'ty Unit No Spec Remark 1 3 BPF1, BPF4, BPF8 4R3-860/937.5-DUAL 2 2 BPF2, BPF9 4R3-860-18M 3 2 BPF3, BPF7 4R3-800-8M(MONO) 4 2 BPF5, BPF12 4R3-937.5-5M 5 2 BPF11, BPF6 4R3-1000-3M(MONO) 6 1 BPF10 6R3-62.5-20M 7 1 COUP1 RCP890Q10 C1, C24, C25, C34, C35, C36, C40, C41, C46, C47, C84, C85, C97, C106, C107, C108, C113, 8 54 C128, C148, C150, C152, C163, 1uF/35V C169, C170, C175, C179, C193, C215, C226, C233, C234, C236, C304, C311, C324, C328, C329, C336, C344, C361, C371, C372, C373, C375, C385, C400, C415, C419, C424 C2, C6, C7, C8, C9, C15, C16, C17, C18, C21, C28, C29, C30, C93, C100, C105, C118, C123, C132, C136, C140, R141, C146, C153, C164, C165, C174, C176, C177, C185, C188, C189, C190, C191, C192, C194, C205, C211, C212, C219, C221, C228, C229, C232, C237, C245, C249, C253, C254, C256, C258, C263, C265, C268, C270, C275, C276, C277, C282, C283, C285, C290, C297, C298, C302, C303, C306, C310, C313, C316, C322, C323, C325, C326, C330, C331, C334, C335, C339, C340, C342, C348, C353, C357, C358, C359, C362, C363, C365, C376, C388, C414, C416, 9 96 C421, C422, C423 0.1uF C3, C27, C31, C38, C54, C56, C57, C58, C91, C94, C104, C124, C127, C137, C141, C142, C144, C145, C173, C181, C186, 10 56 C195, C200, C201, C202, C203, 10nF C204, C216, C217, C220, C225, C231, C244, C248, C259, C262, C291, C296, C332, C333, C345, C346, C347, C356, C374, C377, C379, C392, C393, C394, C395, C396, C397, C411, C412, C413 C4, C14, C67, C73, C157, C238, 11 10 C281, C315, C378, C402 5.6pF C5, C26, C32, C44, C87, C92, C103, C125, C131, C135, C138, C172, C196, C213, C230, C243, C252, C260, C284, C292, C295, C327, C341, C343, C349, C355, 12 31 C360, C370, C387, C399, C401 1nF C10, C12, C13, C22, C23, C33, C43, C50, C51, C52, C53, C60, C74, C75, C76, C79, C82, C90, C96, C98, C99, C102, C119, C120, C121, C122, C129, C130, C133, C134, C139, C147, C149, C151, C166, C168, C171, C180, C182, C184, C207, C209, C235, C246, C247, C267, C271, C279, C280, C308, C309, C317, C318, C319, C320, C321, C337, C350, C366, C367, C368, C369, C389, 13 67 C390, C391, C404, C420 100pF 14 5 C11, C37, C293, C312, C338 5pF C19, C20, L50, L53, R59, C61, C62, R63, C63, R64, R71, C80, C81, R87, L94, R100, R101, L107, R109, R112, R114, C115, R116, C116, C117, R122, R123, R127, R128, R135, R137, R151, 15 51 R156, R157, R160, R162, R164, BLANK R173, R174, R183, R184, R187, R188, C208, C241, C242, C250, C264, C278, C406, C407 C39, C42, C45, C48, C83, C86, 16 8 C178, C403 10uF/35V 17 3 C49, C223, C273 0.1uF(2012) 18 4 L7, L31, C55, C143 68nH 19 1 C59 10nF(2012) 20 4 R40, C64, R72, C154 10pF 21 4 C65, C66, C155, C156 36pF C68, C72, C158, C162, C199, 22 8 C218, C408, C410 43pF C69, C70, C71, C159, C160, 23 8 C161, C210, C409 82pF C77, C78, C88, C89, C167, 24 10 C197, C261, C301, C351, C352 56pF 25 2 C95, C126 3pF 26 4 C101, C114, C382, C383 6pF 27 2 C109, C112 4pF 28 2 C111, C110 9pF L39, L44, L45, L46, L83, L102, 29 8 R143, C183 1.2uH R140, R149, C187, C224, C272, 30 9 C300, C307, C354, C405 100pF(2012) 31 2 C386, C198 12pF 32 5 L98, C206, C222, C227, C251 330pF 33 2 C239, C214 560pF 34 2 C257, C299 470pF 35 4 C274, C286, C305, C314 220pF 36 5 C287, C289, C364, C398, C417 0.5pF 37 3 C288, C380, C418 1.5pF 38 2 C381, C384 3.5pF 39 1 C425 3.3pF 40 1 C426 9pF(2012) 41 2 C430, C427 1pF(2012) 42 2 C429, C428 2.5pF(2012) 43 1 DUPL1 8R4-860/937.5-18/5M 44 1 ISO1 IL07BL(R)0881AAE 45 6 L1, L3, L41, L69, L78, L93 22nH 46 5 L2, L4, L74, L75, L80 15nH L5, L14, L16, L18, L22, L23, 47 12 L24, L25, L42, L73, L87, L89 12nH 48 12 L6, L9, L11, L12, L29, L33, 180nH L35, L36, L57, L62, L101, L104 49 3 L8, L20, L32 100nH 50 5 L10, L13, L34, L37, L54 150nH 51 1 L15 1.2nH 52 5 L17, L19, L47, L66, L90 47nH 53 4 L21, L26, L86, L88 10nH 54 3 L27, L38, L85 33nH 55 4 L28, L40, L43, L84 6.8nH 56 5 L30, L70, L79, L82, L91 TCFD4516(BEAD) 57 4 L48, L61, L65, L97 220nH 58 1 L49 82nH 59 4 L51, L56, L95, L96 120nH 60 2 L52, L100 330nH L55, L58, L60, L63, L67, L68 61 8 L76,L77 1uH 62 1 L59 100nH(2012) 63 2 L81, L64 820nH 64 6 L71, L72, L92, L99, L105, L106 4.7nH 65 1 L103 27nH 66 4 MIX1, MIX2, MIX3 , MIX4 HMC399MS8 67 1 PLL1 797.5/803MHz 68 1 PLL2 1000MHz 69 5 Q1, Q4, Q20, Q21, Q24 MGA53543 70 2 Q2, Q3 MMBT2222A 71 1 Q5 BT05CV Q6, Q10, Q11, Q13, Q16, Q17, 72 8 Q25, Q27 AM-1 73 5 Q7, Q8, Q14, Q19, Q23 CMM6004-SC 74 1 Q9 AH-1 75 1 Q12 AH102 76 2 Q15, Q26 AH31 77 2 Q22, Q18 AG604-89 78 1 REG1 NJM7805A 79 2 RG2, RG1 TK11250A 80 1 RG3 IRF4905 81 1 RG4 1P1117-33 82 1 RG5 MIC29303BT R1, R2, R3, R5, R6, R11, R12, R13, R14, R16, R17, R28, R29, R30, R60, R61, R62, R142, 83 20 R144, R146 10kohm 84 5 R4, R23, R126, R129, R150 10ohm(2012) 85 6 R7, R9, R38, R39, R53, R54 470ohm 86 3 R8, R33, R56 12ohm 87 4 R10, R20, R21, R35 47kohm R15, R18, R19, R22, R52, R55, R66, R95, R96, R97, R98, R111, R117, R132, R136, R147, R148, 88 23 R159, R177, R178, R179, R180, R181 0ohm 89 1 R24 5.6ohm(2012) 90 4 R25, R37, R46, R48 300ohm R26, R57, R58, R68, R107, 91 8 R110, R154, R175 12ohm(2012) 92 1 R27 1Mohm(2012) 93 2 R31, R47 18ohm R32, R69, R118, R134, R138, 94 8 R145, R152, R155 51ohm 95 4 R34, R67, R89, R168 5.1ohm 96 1 R36 4.7kohm 97 2 R73, R41 820ohm 98 1 R42 1.2kohm 99 14 R43, R44, R70, R74, R102, 180ohm R105, R124, R125, R131, R139, R1β¦
Text truncated - open the document above for the full version.
Parts List/Tune Up Info
< IDEN_DSP PARTLIST > NO LIST SPEC1 SPEC2 EA 1 CAP 1pF 0603 C Ceramic Chip 1 2 CAP 1nF(0.001uF) 0603 C Ceramic Chip 6 3 CAP 10nF(0.01uF) 0603 C Ceramic Chip 28 4 CAP 100nF(0.1uF) 0603 C Ceramic Chip 157 5 CAP 1uF 0603 C Ceramic Chip 1 6 T-CAP 10uF/10V C T/T SMD 3216 26 7 T-CAP 10uF/16V C T/T SMD 3528 6 8 RES 0ohm 0603 5% R Chip 37 9 RES 24.9ohm 1% 0603 R Chip 6 10 RES 33ohm 5% 0603 R Chip 36 11 RES 49.9ohm 0603 1% R Chip 5 12 RES 82ohm 0603 5% R Chip 8 13 RES 100ohm 0603 1% R Chip 2 14 RES 130ohm 0603 5% R Chip 6 15 RES 470ohm 0603 1% Chip 4 16 RES 1Kohm 0603 1% R Chip 16 17 RES 4.7Kohm 0603 1% R Chip 7 18 RES 5.1Kohm 0603 1% R Chip 2 19 RES 680Kohm 0603 5% R Chip 2 20 RES 820Kohm 0603 5% R Chip 2 21 BEAD 220ohm BEAD SMD 0805 6 22 LED SMD LED 0805 ,GREEN / 2 23 CONN Molex_5268_8P YMAW025-08R / YEONHO 1 24 CONN Molex_5268_6P YMAW025-06R / YEONHO 1 25 CONN RA_TYPE, HEADER1X6 2.54mm / 1 26 CONN SMB-SP-PC / 5 27 TRANS ADT4-1WT / Mini-Circuits 2 28 TRANS ADT1-1 / Mini-Circuits 2 29 VCXO MV03-50Mhz / Mctron 1 30 LDO SC1566I5M_2.5 / semtech 1 31 LDO SC1565IS_2.5 / semtech 1 32 IC 74FCT38074DCGI / IDT 1 33 IC MC33202D / Onsemi TLC272 / TI 1 34 IC SY100EPT20VZI / MICREL MC100EPT20DR2 / Onsemi 3 35 IC AD8561AR / Analog Devices 1 36 AD AD6645ASQ-80 / Analog Devices 2 37 DA AD9777BSV / Analog Devices 1 38 S-PROM XCF16P_VO48/Xilinx 1 39 FPGA XC4VSX25_FF668 /Xilinx 1 40 PCB 105mm X 140mm X 2T, 6Layer IDEN_DSP_V1.2 1
Parts List/Tune Up Info
NO Part Name Spec & Discription Q'TY Remark 1 Controller Duo-i6525 Ver 0.9 EA 12 LED Board LED-Sub Board EA 13 DHCP&S/W B'd DHCP-Sub Board EA 14 iDEN DL UDC Modul e iDEN DL UDC EA 1 5 iDEN UL UDC Modul e iDEN UL UDC EA 1 6 DSP Module iDEN_DSP_V1.2 EA 27 DSP B'd CAN DSP CAN EA 2 0.5T (10 * 10 mm) EA 80.3T (27 * 27 mm) EA 2 9 Quad-plexer MP-815/860/898.5/937.5-00F EA 2 10 Power Supply NHFβ1205-4 EA 1 11 Adaptor N(F) to N(F) EA 212 RF Cable IDEN Dual (Medium) SET 113 Harness Cable IDEN Dual (Medium) SET 1 Include AC Cable14 Noise Filter IQ-0422-H2 EA 115 n stallation Materi a Anchor Bolt (3/8) SET 4 Include G round Cable 16 Chassis Duo-i6525 SET 117 Packing Box Duo-i6525 SET 1 8 Duo-i6525 Part List DSP Thermal PAD
Parts List/Tune Up Info
< IDEN_DSP PARTLIST > NO LIST SPEC1 SPEC2 EA 1 CAP 1pF 0603 C Ceramic Chip 1 2 CAP 1nF(0.001uF) 0603 C Ceramic Chip 6 3 CAP 10nF(0.01uF) 0603 C Ceramic Chip 28 4 CAP 100nF(0.1uF) 0603 C Ceramic Chip 157 5 CAP 1uF 0603 C Ceramic Chip 1 6 T-CAP 10uF/10V C T/T SMD 3216 26 7 T-CAP 10uF/16V C T/T SMD 3528 6 8 RES 0ohm 0603 5% R Chip 37 9 RES 24.9ohm 1% 0603 R Chip 6 10 RES 33ohm 5% 0603 R Chip 36 11 RES 49.9ohm 0603 1% R Chip 5 12 RES 82ohm 0603 5% R Chip 8 13 RES 100ohm 0603 1% R Chip 2 14 RES 130ohm 0603 5% R Chip 6 15 RES 470ohm 0603 1% Chip 4 16 RES 1Kohm 0603 1% R Chip 16 17 RES 4.7Kohm 0603 1% R Chip 7 18 RES 5.1Kohm 0603 1% R Chip 2 19 RES 680Kohm 0603 5% R Chip 2 20 RES 820Kohm 0603 5% R Chip 2 21 BEAD 220ohm BEAD SMD 0805 6 22 LED SMD LED 0805 ,GREEN / 2 23 CONN Molex_5268_8P YMAW025-08R / YEONHO 1 24 CONN Molex_5268_6P YMAW025-06R / YEONHO 1 25 CONN RA_TYPE, HEADER1X6 2.54mm / 1 26 CONN SMB-SP-PC / 5 27 TRANS ADT4-1WT / Mini-Circuits 2 28 TRANS ADT1-1 / Mini-Circuits 2 29 VCXO MV03-50Mhz / Mctron 1 30 LDO SC1566I5M_2.5 / semtech 1 31 LDO SC1565IS_2.5 / semtech 1 32 IC 74FCT38074DCGI / IDT 1 33 IC MC33202D / Onsemi TLC272 / TI 1 34 IC SY100EPT20VZI / MICREL MC100EPT20DR2 / Onsemi 3 35 IC AD8561AR / Analog Devices 1 36 AD AD6645ASQ-80 / Analog Devices 2 37 DA AD9777BSV / Analog Devices 1 38 S-PROM XCF16P_VO48/Xilinx 1 39 FPGA XC4VSX25_FF668 /Xilinx 1 40 PCB 105mm X 140mm X 2T, 6Layer IDEN_DSP_V1.2 1
Parts List/Tune Up Info
NO Quentity Part Position Part Name 32 BC1,BC2,BC3,BC4,BC5,BC6, CHIP CERAMIC 0.1uF 5% 0603 BC7,BC8,BC9,BC10,BC11, BC12,BC13,BC14,BC15,BC16, BC17,BC18,BC19,BC20,BC21, BC22,BC23,BC24,BC25,BC26, BC27,BC28,BC29,BC30,BC31, BC32 2 1 BT1 CR1/2AA-TP(3V) 3 2 CON1, CON8 HIF3FBA-20PA-2.54DS 4 1 CON2 MOLEX 6P/ R/A MALE 5 2 CON3, CON4 MOLEX 4P/ S/T MALE 6 2 CON5, CON9 HIF3FC-10PA-2.54DS 7 1 CON6 MOLEX 3P/ S/T MALE 8 1 CON7 MOLEX 5P/ S/T MALE 9 1 CON10 HIF3FC-16PA-2.54DS 10 1 CON11 177983_4 11 1 CON12 HIF3FC 10PA2.54DS 12 1 CON13 HIF3FC 26PA2.54DSA 34 C1,C2,C3,C4,C5,C6,C7,C8, CHIP CERAMIC 56pF 5% 0603 C9,C10,C11,C12,C13,C14, C15,C16,C17,C18,C19,C20, C21,C22,C23,C24,C25,C26, C27,C28,C29,C30,C31,C32, C33,C34 14 4 C35,C36,C37,C38 CHIP CERAMIC 10nF 5% 0603 15 1 D1 SLG162/3Ξ¦ GREEN 16 8 D2,D3,D4,D5,D6,D7,D8,D9 RSX101VA 17 7 L1,L2,L3,L4,L5,L6,L7 HH-132JT/1M4532 18 1 R1 CHIP THICK FILM 220 Ohm 5% 0603 10 R2,R5,R141,R142,R153,R154, CHIP THICK FILM 100 Ohm 5% 0603 R165,R166,R185,R187 20 1 R3 CHIP THICK FILM 120 Ohm 5% 0603 26 R4,R190,R191,R192,R193,R194, CHIP THICK FILM 1K Ohm 5% 0603 R195,R196,R197,R198,R140, R143,R145,R151,R152,R169, R155,R157,R163,R164,R167, R175,R176,R178,R184,R186, 30 R6,R8,R9,R20,R21,R22,R27, CHIP 0603 10K R41,R42,R43,R44,R45β¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Julie Song(C.E.O)
Test Firm
MET LaboratoriesAlvin Ilarina
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 4 | 9 | 935 MHz - 940 MHz | 240.00 mW | GXW | Amp |
