S2OPSR78IDEN Band Repeater

PSR78 Public Safety Repeater USER MANUAL Version 0.1 3116 Vanowen St. Burbank, CA 91505 Tel: 818-840-8131 Fax: 818-840-8138 www.adrftech.com PSR78 Repeater User Manual V0.1 Page | 2 Glossary The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control AROMS ADRF’ Repeater Operation and Management System BTS Base Transceiver Station CDMA Code Division Multiple Access CFE Compact Front End CW Continuous Wave (un-modulated signal) DAS Distributed Antenna System DL Downlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscribers service area via the repeater HPA High Power Amplifier HW Hardware IF Intermediate Frequency LNA LTE Low Noise Amplifier Long Term Evolution MS Mobile Station PLL Phased Locked Loop PS Power Supply RF Radio Frequency SQE Signal Quality Estimate SW Software UL Uplink Uplink The path covered from the subscribers service area to the Base Transceiver Station(BTS) via the repeater VSWR Voltage Standing Wave Ratio PSR78 Repeater User Manual V0.1 Page | 3 Released version: 0.1 Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2011. All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (818) 840-8131 (800) 313-9345 Fax: (818) 840-8138 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 3116 Vanowen St. Burbank, CA 91505 USA www.adrftech.com Revision History Version Author Description Date 0.1 Sun Kim Initial Release March 16, 2011 PSR78 Repeater User Manual V0.1 Page | 4 TABLE OF CONTENTS 1. PSR78 REPEATER .......................................................................................................... 6 1.1 Introduction ................................................................................................................ 6 1.1.1 Highlights ......................................................................................................... 6 1.1.2 Parts List ........................................................................................................... 7 1.1.3 Repeater Quick View........................................................................................ 7 2. WARNINGS AND HAZARDS ........................................................................................ 9 3. PSR78 OVERVIEW ....................................................................................................... 11 3.1 Switches & Fault Indicators ..................................................................................... 11 3.1.1 LEDs............................................................................................................... 11 3.1.2 Message Board Alarms and Notification ....................................................... 11 3.2 Switches and Ports ................................................................................................... 12 3.2.1 AC In Port....................................................................................................... 12 3.2.2 Battery Port .................................................................................................... 12 3.2.3 Power Switch.................................................................................................. 12 3.2.3 Ethernet Port and Host/Remote Switch .......................................................... 13 3.2.4 RF Ports .......................................................................................................... 13 3.2.5 Ext. ALARM Port .......................................................................................... 13 3.5 Installation ............................................................................................................... 14 3.5.1 Wall Mount Procedure .................................................................................... 14 3.5.3 Grounding......................................................................................................... 1 3.5.4 Antenna Separation/Isolation ........................................................................... 2 3.5.5 Line of Sight ..................................................................................................... 3 4. PSR78 WEB-GUI SETUP ................................................................................................ 4 4.1 Repeater/PC Connection Using Web-GUI ................................................................. 4 4.2 Status Tab ................................................................................................................... 5 4.2.1 Status- 700 MHz ............................................................................................... 5 4.2.2 Status- 800 MHz ............................................................................................... 5 4.2.3 Side Navigation Bar ......................................................................................... 6 4.2.4 SMR700 Band / SMR800 Band ....................................................................... 6 4.2.5 Power & Gain ................................................................................................... 6 4.2.6 Alarm ................................................................................................................ 6 4.2.7 AAI ................................................................................................................... 7 4.2.8 Message Board ................................................................................................. 7 4.2.9 Repeater Info / Modem Info / Technical Support / Installer Contact Info ....... 7 4.2.10 Install, Modem, and Power Status .................................................................. 8 4.3 Control Tab ................................................................................................................ 8 4.3.1 Control ....…

Text truncated - open the document above for the full version.

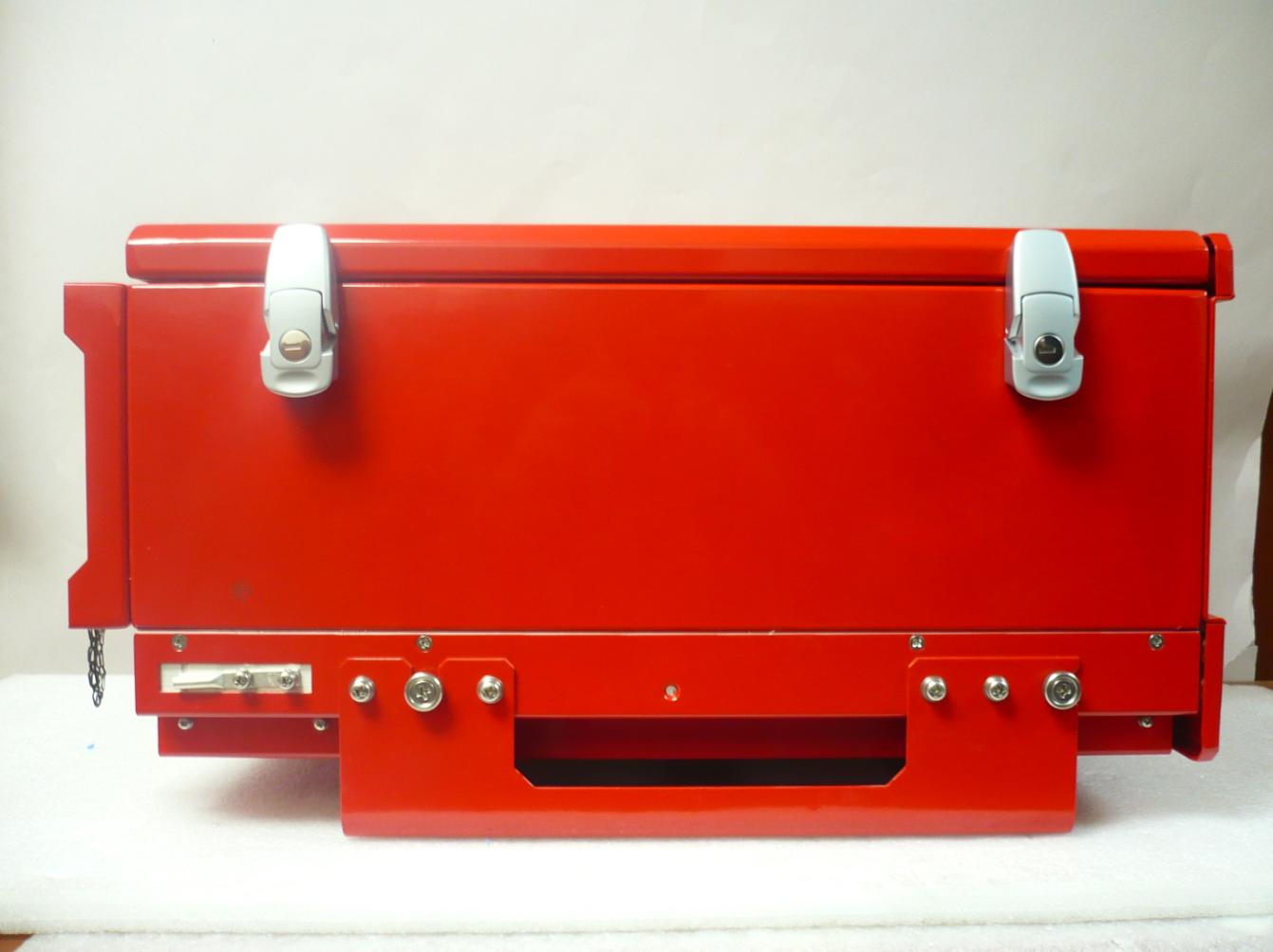

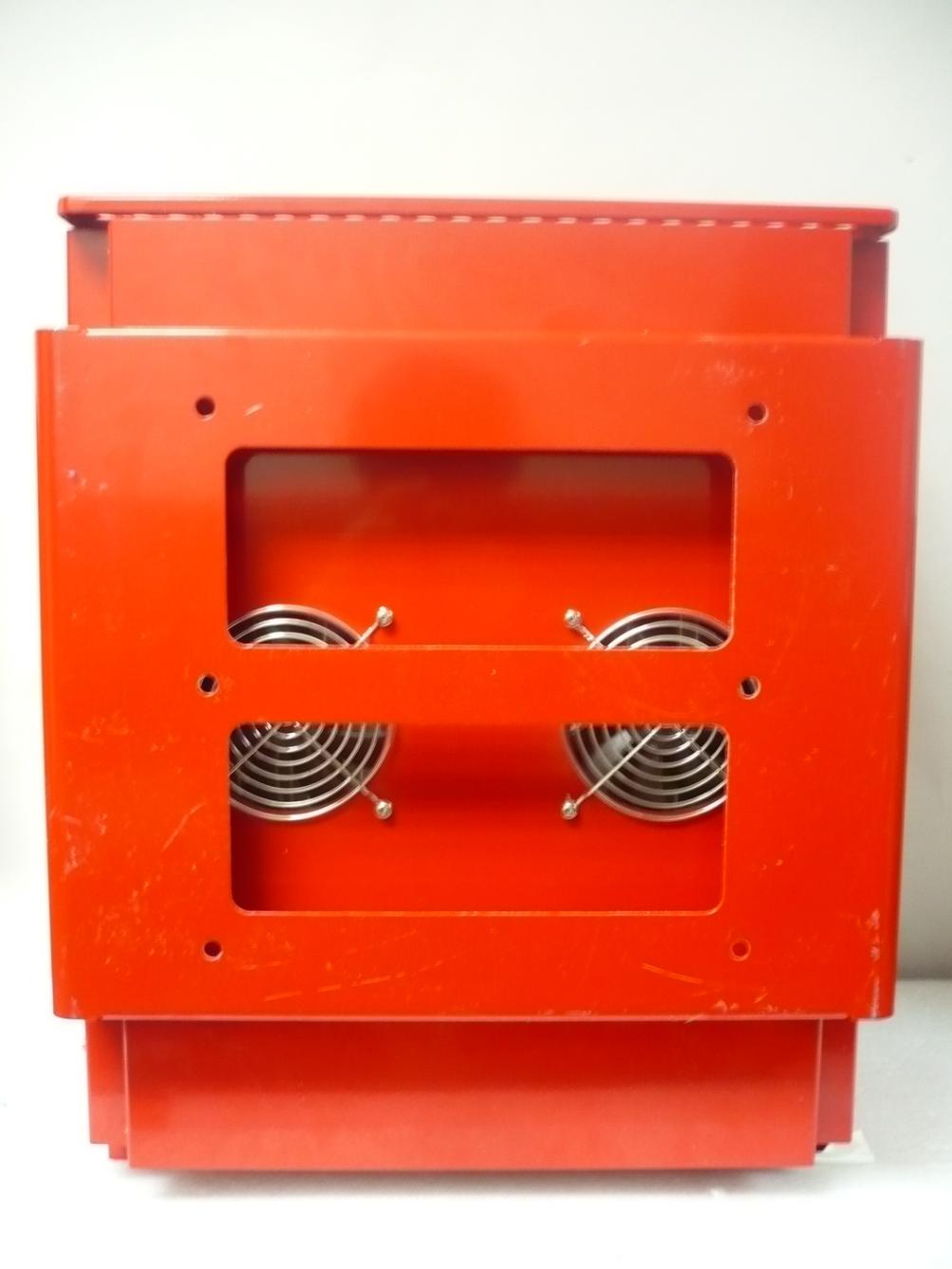

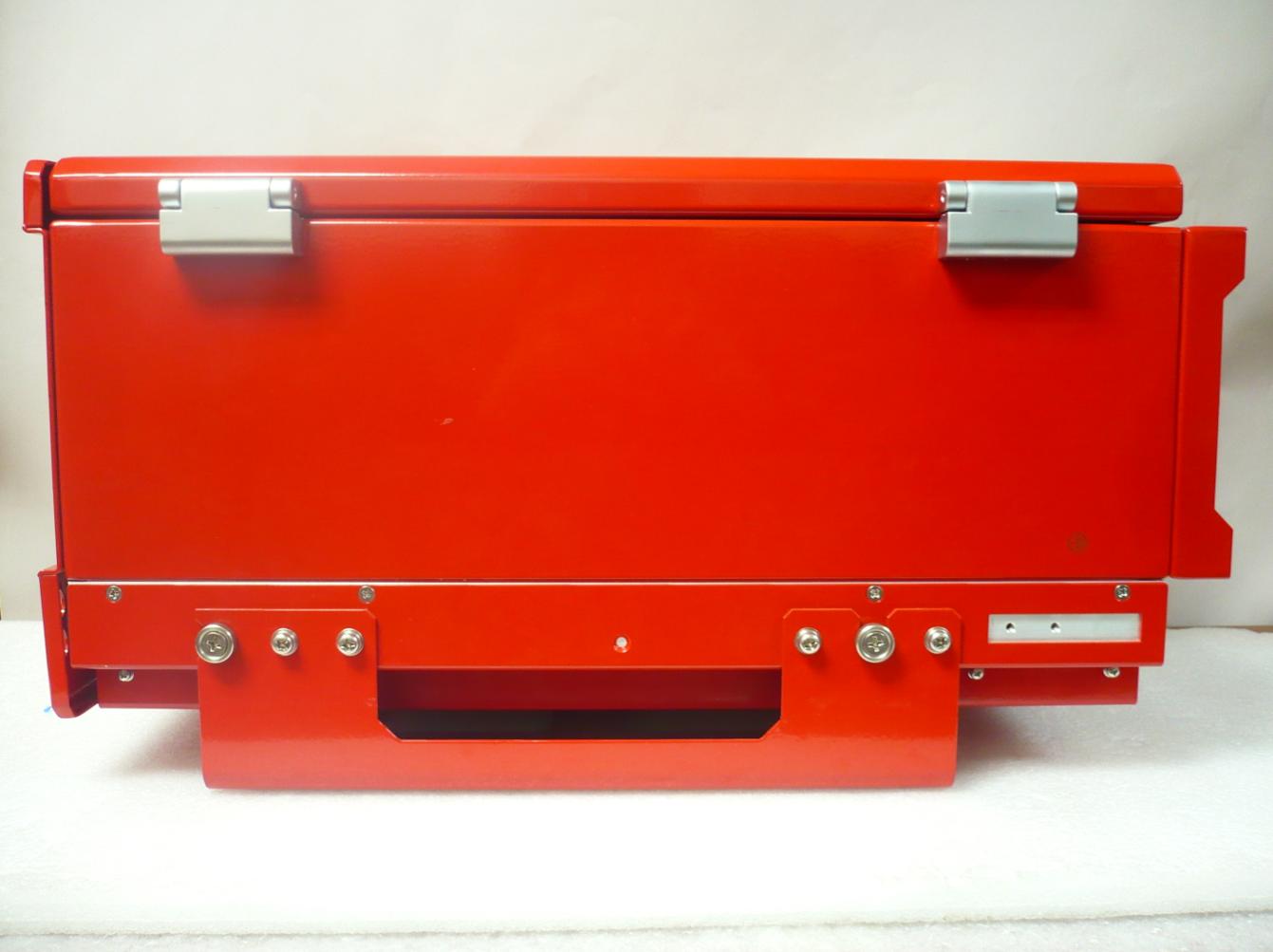

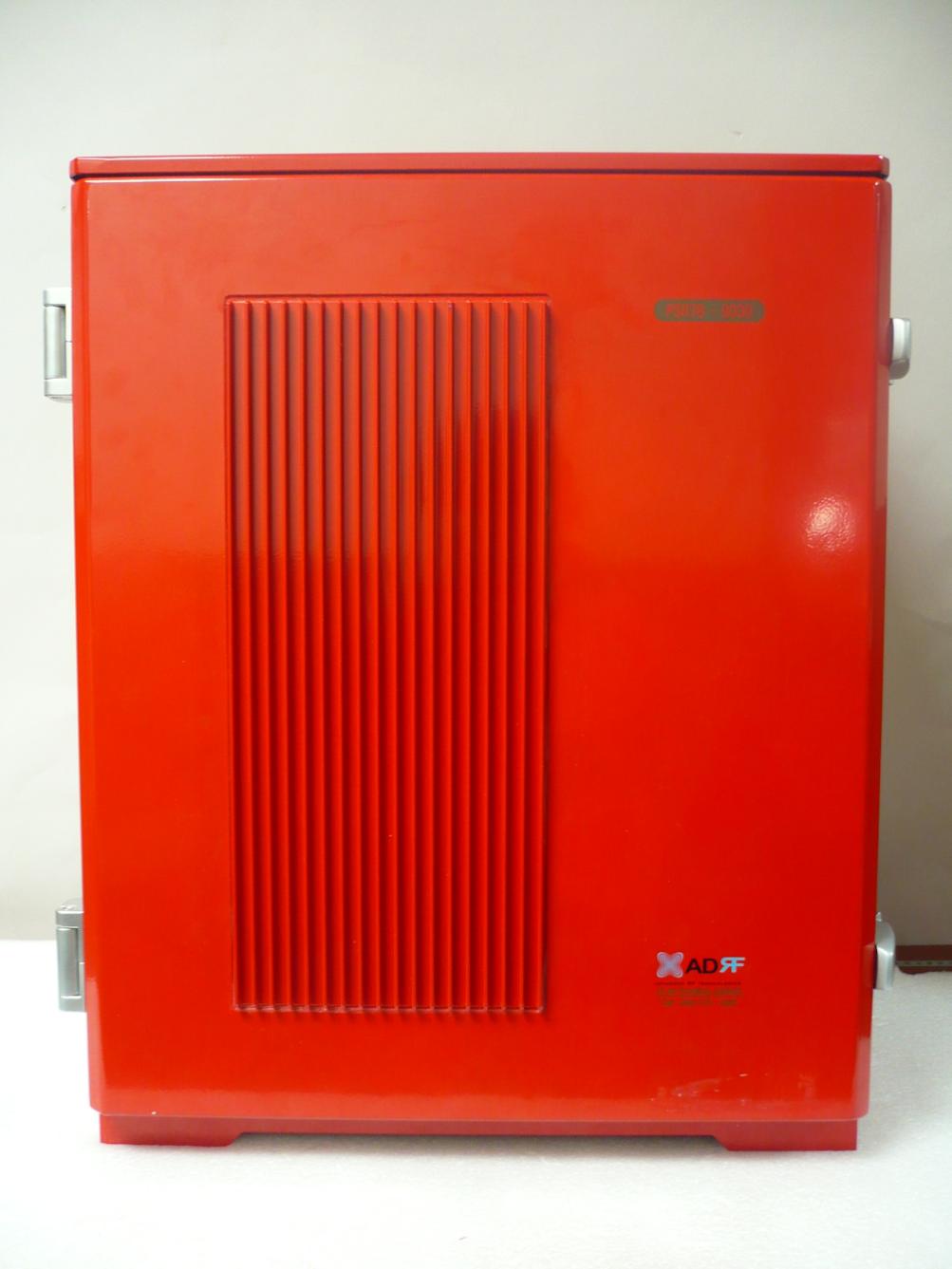

FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 1 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 1. Front FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 2 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 2. Back FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 3 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 3. Left Side FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 4 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 4. Right Side FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 5 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 5. Top FCC ID : S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 3. External Photographs Page Number : Page 6 to 6 BWS TECH Inc. Issue Date : March 28, 2011 Appendix 3. External Photographs of EUT 6. Bottom

FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 BWS TECH Inc. Advanced RF Technologies Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Advanced RF Technologies, Inc. iDEN Band Repeater Model : PSR78 FCC ID : S2O-PSR78 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC LABEL

■ADRF-2410 <Top> <Bottom> ■Control Board <ToP> <Bottom> ■DSP Board <Top> <Bottom> ■CPU Board <Top> <Bottom> ■DHCP Board <Top> <Bottom> ■Cellular UDC <Up Link Top> <Up Link Bottom> <Down Link Top> <Down Link Bottom> ■Cellular Down Link HPA <Top> <Bottom> ■Cellular Up Link HPA <Top> <Bottom> ■PCS Down Link HPA <Top> <Bottom> ■PCS Up Link HPA <Top> <Bottom> ■Power Supply

FCC ID:S2O Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 BWS TECH Inc. Appendix. RF Exposure Requirement Page Number : 1 of 1 1.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/ Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f= frequency in MHz *= Plane-wave equivalent power density 1.2 MPE Prediction Prediction of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4R² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 700 MHz Downlink (763 – 775 MHz) Maximum peak output power at antenna input terminal (dBm): 29.84 Maximum peak output power at antenna input terminal (mW): 964 Prediction distance (cm):50 Prediction frequency (MHz):769 Antenna Gain, typical (dBi):11 Power density at predication frequency and distance (mW/cm²):0.386 MPE limit for uncontrolled exposure at predication frequency (mW/cm²): 0.513 700 MHz Uplink (793 – 805 MHz) Maximum peak output power at antenna input terminal (dBm): 29.34 Maximum peak output power at antenna input terminal (mW): 859 Prediction distance (cm):50 Prediction frequency (MHz):799 Antenna Gain, typical (dBi):2 FCC ID:S2O Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 BWS TECH Inc. Appendix. RF Exposure Requirement Page Number : 2 of 1 Power density at predication frequency and distance (mW/cm²):0.043 MPE limit for uncontrolled exposure at predication frequency (mW/cm²): 0.533 800 MHz Downlink ( 851 – 869 MHz) Maximum peak output power at antenna input terminal (dBm): 28.42 Maximum peak output power at antenna input terminal (mW): 695 Prediction distance (cm):50 Prediction frequency (MHz):860 Antenna Gain, typical (dBi):11 Power density at predication frequency and distance (mW/cm²):0.279 MPE limit for uncontrolled exposure at predication frequency (mW/cm²): 0.573 800 MHz Uplink (806 – 824 MHz) Maximum peak output power at antenna input terminal (dBm): 28.03 Maximum peak output power at antenna input terminal (mW): 635 Prediction distance (cm):50 Prediction frequency (MHz):815 Antenna Gain, typical (dBi):2 Power density at predication frequency and distance (mW/cm²):0.03 MPE limit for uncontrolled exposure at predication frequency (mW/cm²): 0.543 Test Result For downlink, the outdoor antenna with 11dBi gain should have at least 50 cm prediction distance to meet the MPE limit, the highest power density level at 50 cm is 0.338 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm². For uplink, the indoor antenna with 2dBi gain should have at least 50 cm prediction distance to meet the MPE limit, the highest power density level at 50 cm is 0.055 mW/cm², which is below the uncontrolled exposure limit of 1.0 mW/cm².

FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 2 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Test Specifications & Standards Environmental Test Conditions 6 5. Test Summary 7 6. Test Equipment 8 7. Conducted Emissions Limits 9 8. Radiated Emissions Limits 12 9. RF Power Output 14 10. Occupied Bnadwidth 16 11. Radiated Spurious Emissions 30 12. Spurious Emissions at Antenna Terminals 32 13. Frequency Stability Over Temperature And Voltage Variations 46 14. Out Band Rejection Test 48 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. Part List Appendix 9. User Manual Appendix 10. Turn-up Procedure Appendix 11. MPE Test Report Appendix 12. Antenna Specification FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 3 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 1. General Information Applicant Manufacturer  EUT Type :iDEN Band Repeater  Model Name :PSR78  FCC ID :S2O-PSR78  S/N :Prototype  Freq. Range SMR700 : 763 ~ 775 MHz(Downlink) , 793 ~ 805 MHz(Uplink)  SMR800 : 851 ~ 869 MHz(Downlink) , 806 ~ 824 MHz(Uplink)  FCC Rule Part(s) :CFR 47,Part 90 Subpart I  Test Procedure :ANSI C63.4-2009, EIA/TIA-603-Edition C 2004  Dates of Tests :March 8 to March 31, 2011  Place of Tests :BWS TECH Inc.(FCC Registration Number : 553281) #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017  Test Report No. :BWS-11-RF-0001 Company Name :Advanced RF Technologies, Inc. Company Address :3116 WEST VANOWEN STREERT BURBANK, CA 91505, USA Phone/Fax :Phone : 800-313-9345 Fax : 818-840-8138 Company Name :ADRF KOREA Inc. Company Address :5-5, Mojeon-Ri, Backsa-Myun, Incheon-City, Kyunggi-Do, Korea. Phone/Fax :Phone : +82-31-637-4435 Fax : +82-31-638-7749 FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 4 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 5 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Advanced RF Technologies. Model : PSR78. (FCC ID :S2O-PSR78). 3.2 General Specification The system specifications are subject to change without notice. For detailed system specifications, refer to the product catalog. Parameters Specifications Remark Frequency SMR700 UL 793 ~ 805MHz (BW: 12MHz) SMR700 DL 763 ~ 775 MHz (BW: 12MHz) SMR800 DL 851 ~ 869 MHz (BW: 18MHz) SMR800 UL 806 ~ 824 MHz (BW: 18MHz) Port 2Donor, 2Server Composite Output Power +36 dBm 700 + 800 MHz Gain Ripple DL / UL ≤±1.5 dB p-p 700 + 800 MHz Gain (DL / UL) Maximum 90 dB Range 30 dB Step 0.5 dB Tolerance ≤1 dB Input SMR700 UL -60 ~ -30dBm SMR700 DL -60 ~ -30dBm SMR800 DL -60 ~ -30dBm SMR800 UL -60 ~ -30dBm Channel Type Public Safety Multiple Channel Modulation Type iDen Roll Offs DL / UL ≥65 dBc @ 0.5 MHz outside pass band Adjustable Band Edge SMR700 DL/UL Resolution: 250kHz (Filter Download function.) 250 kHz steps Size. SMR800 DL/UL OIP3 DL / UL ≥ 50 dB @ Gain 90 dB/60 dB IMD DL / UL ≥ 40 dBc @ +30dBm total. Max Output Power @ 2Tone/1MHz At least FCC Rule (-13dBm) VSWR DL / UL ≤ 1.5: 1 RF Spurious Emission DL / UL ≤ -13 dBm Noise Figure UL ≤ 5 dB @max gain ( UL-Only) Delay DL / UL ≤ 8 us@ Standard Product. Special Request It will be increase. Impedance 50 Ohms FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 6 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 4. Test Specifications & Standards Environmental Test Conditions The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 90 Subpart I in accordance with BWS TECH Inc. Reference Description Compliant Part 15 Subpart B §15.109(a) Conducted Emissions Yes Part 15 Subpart B §15.107(a) Radiated Emissions Yes §2.1046, §90.219 RF Power Output Yes §2.1049 Occupied Bandwidth Yes §2.1053, §2.1057, §90.210 Radiated Spurious Emissions Yes §2.2053, §2.1057, §90.210 Spurious Emissions at Antenna Terminals and Inter-Modulation Yes §2.1055, §90.213 Frequency Stability Yes Out Band Rejection Yes Temperature 15°C ~ 35°C Relative humidity 30% ~ 60% Air pressure 860 ~ 1060 mbar FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 FCC Test Report Page Number : 7 of 50 BWS TECH Inc. Data of Issue : March 31, 2011 5. Test Summary The results in this report apply only to sample tested Test Case Applied standard Results Conducted Emissions Part 15 Subpart B §15.1…

Text truncated - open the document above for the full version.

FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 1 to 3 BWS TECH Inc. Issue Date : March 31, 2011 Appendix 1. Test Setup Photos 1. Conducted Test FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 2 to 3 BWS TECH Inc. Issue Date : March 31, 2011 Appendix 1. Test Setup Photos 2. Radiated Test(30MHz~1GHz) FCC ID: S2O-PSR78 Advanced RF Technologies, Inc. iDEN Band Repeater / PSR78 Report No: BWS-11-RF-0001 Appendix 1. Test Setup Photos Page Number : Page 3 to 3 BWS TECH Inc. Issue Date : March 31, 2011 Radiated Test(above 1GHz)
