S3KSWC9200WIMAX/WIFI modem indoor/outdoor

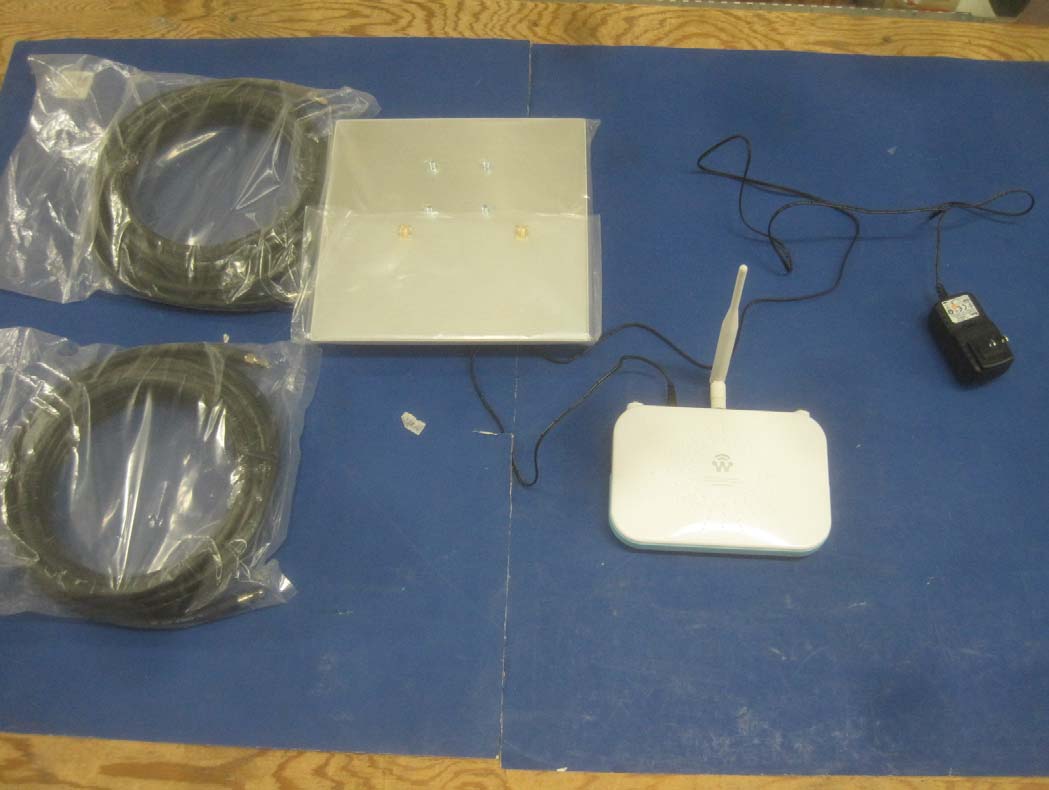

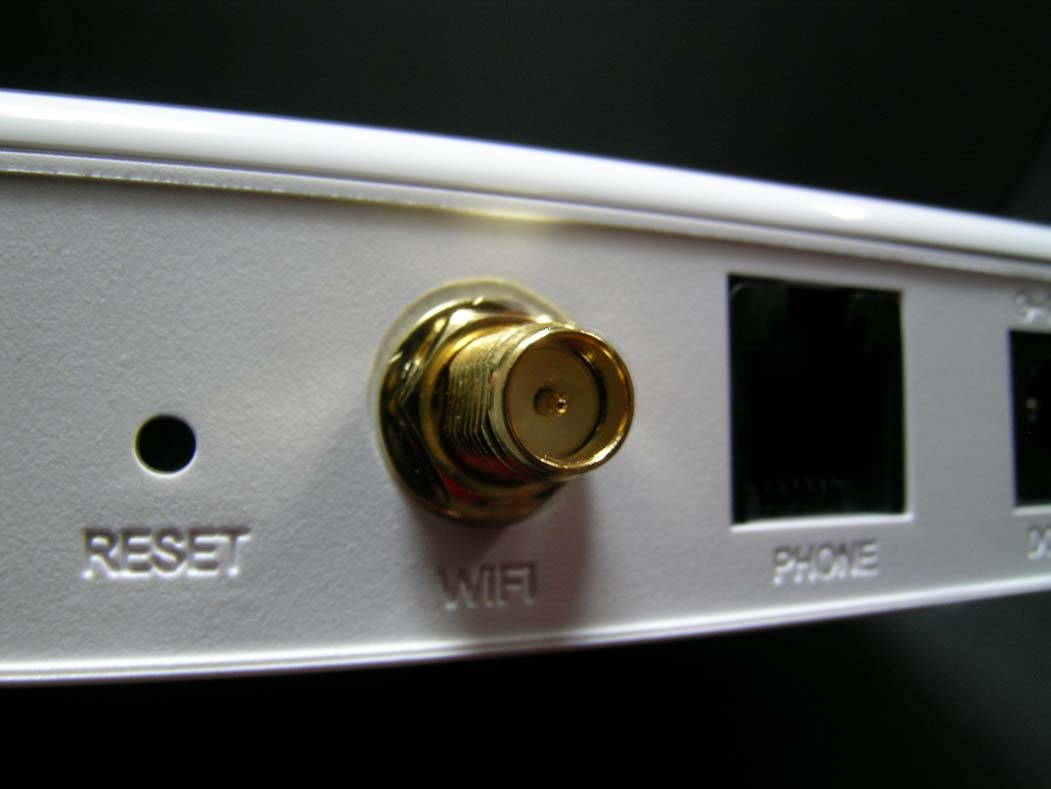

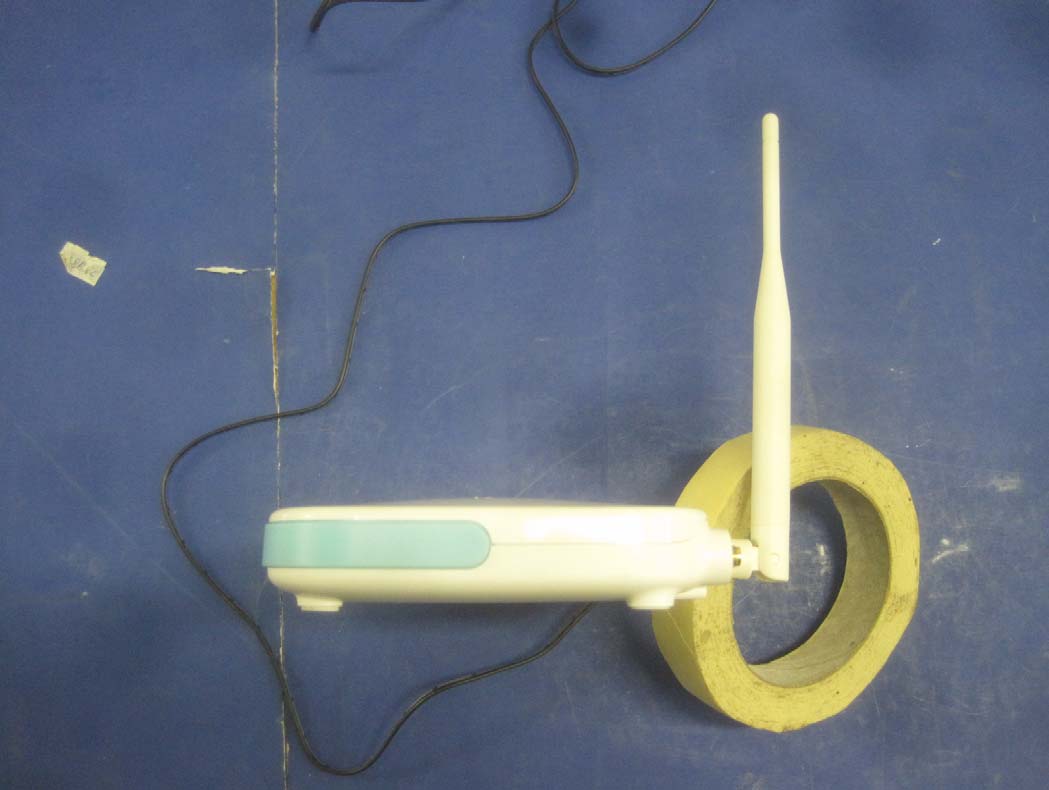

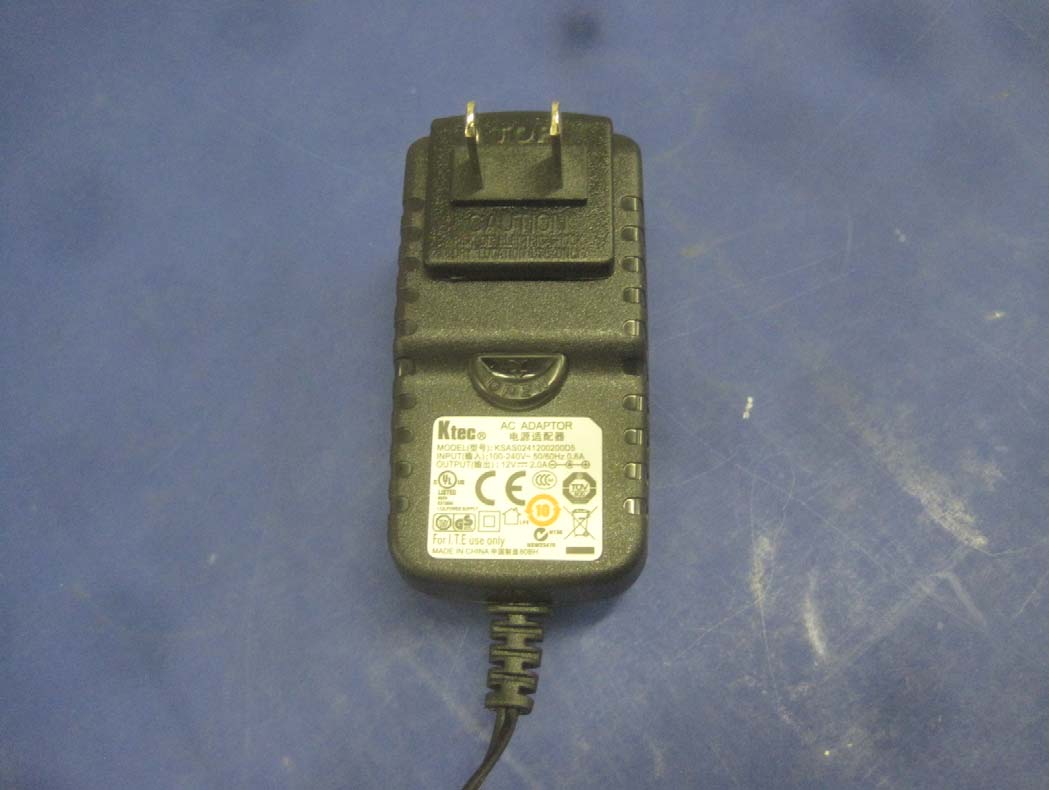

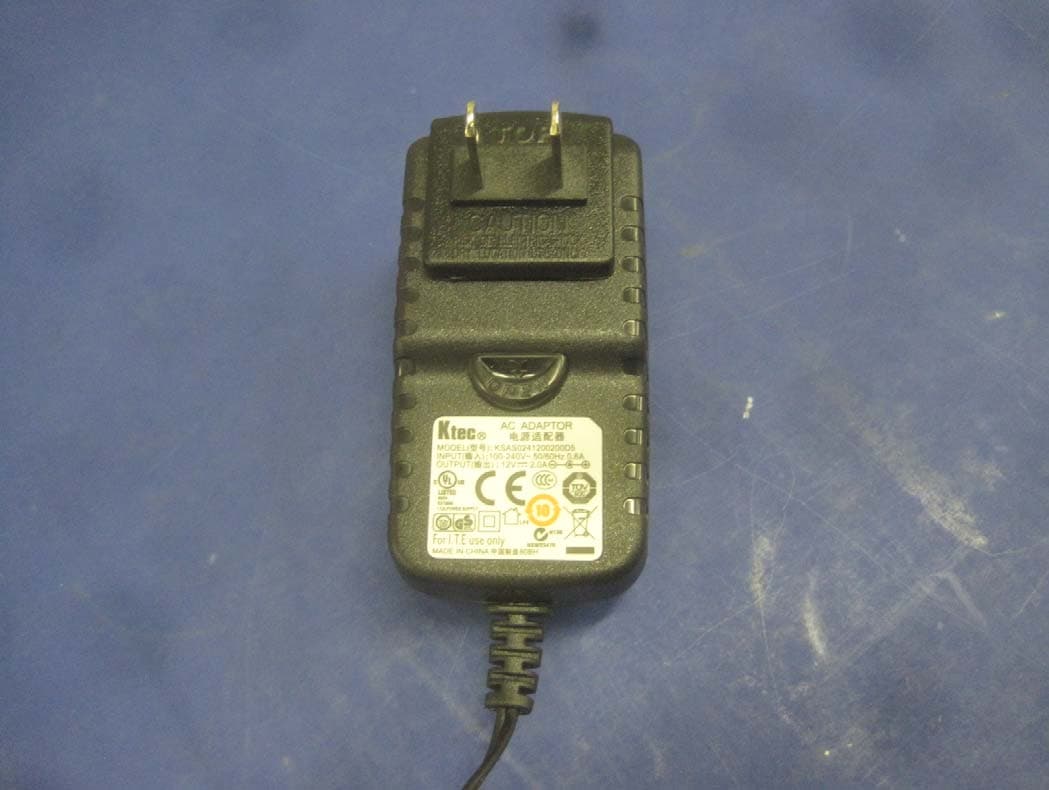

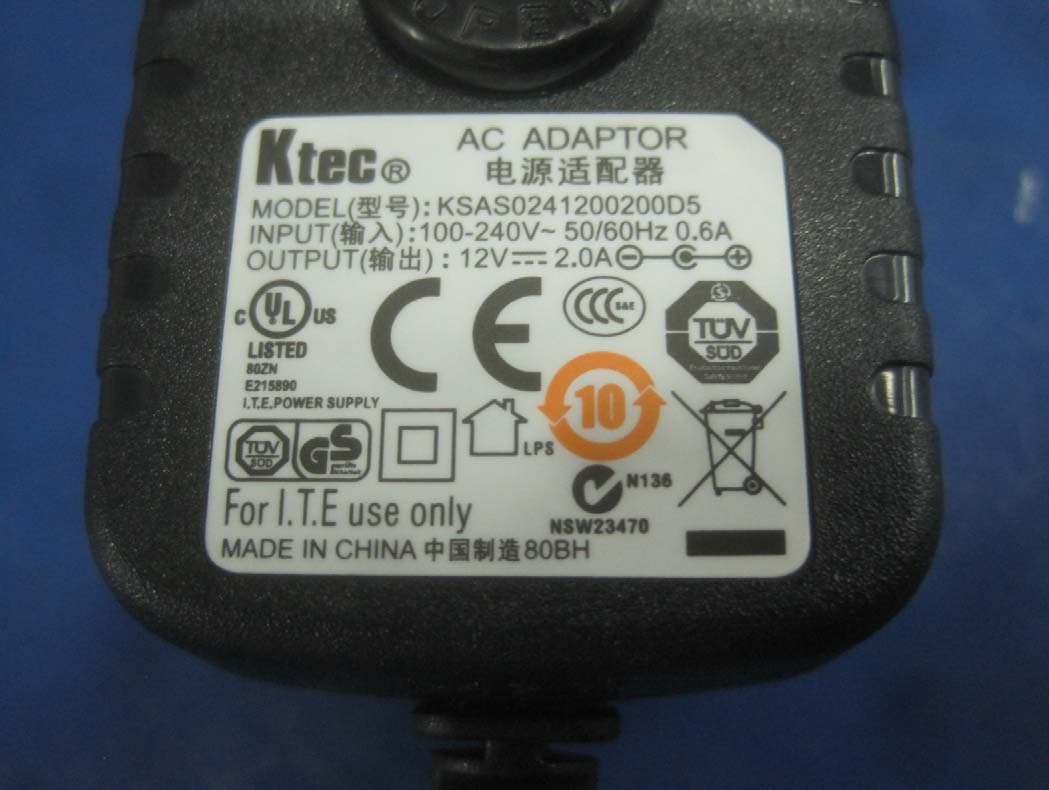

Outdoor antenna installation The outdoor antenna needs to be installed outside of the premises such that it should be clear of surroundings and obtain best alignment toward desired access point (AP). Installation to be performed by a professional to ensure proper alignment and optimum performance. Installation Instructions 1. Unpack the box. Contained elements a. Main Unit: CPE SWC-­‐200 b. Power supply c. Outdoor Antenna d. Coax cable: 2 coax cables with 15 feet length. Shipped with minimum coax loss of at least 4 dB. Should the distance between antenna and modem be larger than 15 feet, use a different coax with less loss such that the total loss is at least 4 dB. e. Indoor antennas: One WIFI antenna to be installed f. Phone cable g. Lan cable. 2. Place the outdoor antenna outside the premises in a location that has best signal from AP. 3. Connect the coax cables to the outdoor antenna. It is recommended to place weather proof around the connection of the antenna and coax. 4. Connect the other end of the coax cables to the SWC-­‐200 CPE that is placed inside the premises 5. Connect the WIFI antenna to the middle port of the CPE that shows WIFI 6. Connect the power supply to the CPE. 7. Use the LAN and phone cables as needed to connect to a phone or to network device.

SWC-9200 WiMAX Indoor CPE WiMAX WiMAX Indoor CPE SWC-9200 is a multi-talented device that serves your communication needs including data, voice and WiFi. Its intuitive operation provides high-quality wireless internet, and optimizes your performance at home and office. WiMAX (IEEE 802.16e-2005 Wave2) & VolP(SIP RFC3261) & WiFi(802. 11b/g/n) compliant MIMO support Gateway function between LAN and WiMAX Air Interface / Duplex : OFDMA / TDD Authentication : EAP-TLS / EAP-TTLS Connectivity : - 1 x FXS port(VolP) - 2 x 10/100 Base-T port (LAN) - 802. 11b/g/n (WiFi) Management : TR069, SNMP V2 Speci cation Items Speci cation Model name SWC - 9200 Frequency band 3.6GHz (3.65 ~ 3.7GHz) Channel bandwidth 5, 7 & 10MHz Modulation Max. data throughput MIMO Transmit power Receiving sensitivity Antenna Voice code Voice quality Call features WiFi Security Dimension / Weight DL : QPSK, 16QAM, 64QAM, UL : QPSK, 16QAM, 64QAM DL : 40Mbps, UL : 8Mbps Matrix A (STC) & Matrix B Max. 27dBm -95dBm @ QPSK 1/2 CTC 14dBi Gain (directional antenna) G. 711 a/u, G. 729 a/b, G. 723.1, G. 726 VAD, CNG, Echo cancellation, Jitter bu er, DTMF Call Waiting, Call Transfer, Call Forward, Caller ID, DTMF, Fax (T.38) WPA / WPA2, WEP64 / WEP128 180mm × 124.5mm × 32mm / 300g Global Telecom Corp 5000 Birch Street, Suite 3000, Newport Beach, CA 92660 web www.aimws.com / email [email protected] / Phone 1-818-665-2068 / Fax 1-949-204-3943

User manual SWC-9200 VolP CPE GLOBAL TELECOM CORP User manual SWC-9200 VolP CPE Global Telecom Corp HIGH ANTENNA GAIN Contents Introduction to the Product 4.8 Feature 30 1. Functional Features 04 4.9 Dialing 33 2. Front side of CPE 04 4.10 Speed Dial 34 3. Back of CPE 05 4.11 FAX 35 4.12 RTP 36 Configuration 4.13 Phone 37 1. Network Configuration 06 4.14 Voice 39 2. Package Contents 07 4.15 Profile 41 3. PC Configuration (Windows XP) 08 5. Application Setup 4. How to check your IP address 09 5.1 Firewall 42 5.2 DMZ & Port Forwarding 43 Logging in to the Built-in Web 10 5.3 VPN pass through 45 Interface 5.4 UPnP 46 5.5 QoS 47 CPE Setup on the web page 11 5.6 DDNS 49 5.7 MTU 50 1. WiMAX Status 11 5.8 NTP 51 2. LAN Setup 5.9 Remote Control 52 2.1 LAN Configuration 13 6. Admin Setup 2.2 Status 14 6.1 Version 53 3. WLAN 6.2 Password 53 3.1 WiFi(Wireless LAN) Setup 15 6.3 CPE Upgrade 54 3.2 WiFi Filter 16 6.4 Reboot/Default Setting 55 3.3 WiFi Status 17 6.5 Diagnostic 56 4. VolP 4.1 System 18 Troubleshooting 57 4.2 Media 20 Operating Information 60 4.3 QoS 22 4.4 Provision 23 Safety Information 60 4.5 Status 24 Legal Information 4.6 Server 25 61 4.7 User 27 Warranty Information 62 03 Introduction to the Product Thank you for choosing SWC-9200 , Indoor VolP CPE. SWC-9200 allows you to share a superior data communication via an Ethernet and WiFi network. It offers easy installation, reliable network connection, advanced security & authentication features, and more. Please read this User Manual carefully to learn about the SWC-9200. It will help you to meet your diverse communication needs, at home and at the office. 1. Functional Features Function IEEE802.16e WiMAX Support IEEE802.11 b/g/n WiFi Support IEEE802.3u Ethernet Support VoIP Support LAN Port NAT function Firewall function 2. Front side of CPE Features Wave2 = DL : 40Mbps / UL : 8Mbps 802.11b CCK MODE / 802.11n OFDM MODE 802.11g OFDM MODE 10/100Mbps wired LAN connectable 1 x RJ-11 for Analog Telephone Service 2 x Ports 10/100Mbps Ethernet Switch built-in Supports up to 253 wired and wireless connections and internet routers Manages basic firewall and IP/Port/based access LED Indicator WiFi PHONE LAN1 / LAN2 WiMAX PWR RSSI Function 802.11b/g/n ON when connected to Telephone ON when connected to PC, Flashing during communication IEEE 802.16e-2005 Wave 2 Power Supply status WiMAX RSSI ( Received Signal Strength Indication) Status 04 3. Back of CPE Hardware Reset Power Switch PC Power Adapter Antenna1 Antenna3 WiFi Antenna2 WiMAX Main Telephone/Fax WiMAX Diversity Item Details External Antenna LAN1 / LAN2 PHONE DC 12V Antenna1 : WiMAX Main Antenna2 : WiMAX Diversity Antenna3 : WiFi Detachable external antenna User external antenna (attachable) * Antenna Classification - 2.3G : M23 - 2.5G : M25 - 3.5G : M35 - WiFi : WiFi PC or Hub connection Telephone connection Power Adapter connection(DC 12V 2.0A) POWER Power On/Off Switch (Switch On/Off by pressing up or down) RESET Restore CPE Factory Default Settings NOTE : If you forget the LOGIN password for the CPE or IP address after marking changes, use the Reset switch to restore the CPE to its original Factory Default settings. 05 Configuration 1. Network Configuration Local Network Gateway External Network PC WiMAX Internet Telephone To verify that the CPE is operating normally, check the following LEDs after connecting the CPE, modem and PC with a LAN cable, as follows: LED PWR LAN1 / LAN2 PHONE WiMAX RSSI Normal Operation When power switch On ON when cable is connected normally On when Phone cable is connected normally The number of the lighting LEDs increases depending on WiMAX received signal strength(1~5) Action to take if not illuminated Check for adapter power failure Check cable connection and PC power supply Check cable connection and Telephone Check WiMAX connection status If one or more of the LED lights is not in"normal operation,"refer to the actions specified in the table. If there is a normal connection between CPE and PC, you have to set up the PC and CPE. The purpose of PC setup is to control network configuration for Windows 98, Windows 2000, Windows XP, Vista, Windows 7 or Mac OS X to use the Internet while the PC is connected to a CPE. The purpose of CPE setup is to connect the CPE to the Internet. 06 2. Package Contents Main Unit WIFI Antenna X 1 User Manual LAN Cable Tel. Line Adapter 07 Outdoor Antenna 3. PC Configuration (Windows XP) Most computers already have TCP/IP configuration enabled. For your computer to support CPE, please verify that the IP address and DNS settings are automatically generated in the Local Area connection of your Internet Protocol (TCP/IP) properties. • In the Windows environment : - Click "Start" >> Settings >>Select "Control Panel" >> Click "Network and Internet Connection" >> Click "Network Connection" >> Right-click "Local Area Connection" and Select "Properties" >> Select "Internet Protocol (TCP/IP)" and click "Properties" >> Select "obtain an IP address automatically" >> Click the "OK" button. - The "Wireless Network Connection" is the same as above step. 08 4. How to check your IP address • Open the Command Prompt window by clicking the "Start" button and selecting "Run". Enter "cmd", and click the "OK" button. <Run cmd> • When the Command Prompt window opens, enter the "ipconfig" command to verify the IP address, Subnet mask, and Gateway, which are automatically assigned to your PC. NOTE : All PCs connected to CPE will receive their own assigned IP address. <Verify IP address> NOTE : If an IP address is not assigned, check the following. Then restart the PC and check whether an IP address is assigned. - LAN cable connection between PC and CPE - Check TCP/IP setup details 09 Logging in to the built-in Web Interface The Web Interface allows you to manage the CPE and to view. In the Address Bar : • Type http://192.168.1.1 and press ENTER to access the login screen. • When the login screen appears, it prompts you for a password. • Default user…
