S3O-CEL-BPVITEC CellCom 10 Digital Wireless Intercom

DIGITAL WIRELESS INTERCOM PRODUCT GUIDE CellCom 10 CellCom 10 Product Guide ©2004, 2005 Vitec Group Communications, Inc. All Rights Reserved Part Number 000000 Rev. 1 Vitec Group Communications, Inc. 4065 Hollis Street Emeryville, CA 94608-3505 U.S.A Clear-Com is a registered trademark of Vitec Group Communications, Inc. The Clear-Com Logo is a registered trademark of Vitec Group Communications, Inc. CellCom 10 is a registered trademark of Vitec Group Communications, Inc. Eclipse is a registered trademark of Vitec Group Communications, Inc. CELLCOM 10 WIRELESS COMMUNICATION SYSTEM i CONTENTS IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .2-V GETTING STARTED: AN INTRODUCTION TO CELLCOM 10 . . . . . . . . . . . . . . 1-1 CellCom 10 Basic Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 CellCom 10 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 DECT Transmission Theory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 THE CELLCOM 10 BASE STATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Base Station (CEL-BASE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Base Station Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Headset Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Channel A Talk Switch and Light/Listen Level Knob . . . . . . . . . . . . . . 2-2 A/B Call Switch (Reserved for Future Use) . . . . . . . . . . . . . . . . . . . . . . 2-2 Channel B Talk Switch and Light/Listen Level Knob . . . . . . . . . . . . . . 2-2 Enable Switch and Lights for Channels A and B . . . . . . . . . . . . . . . . . . 2-2 Enable Switch and Light for Program Audio . . . . . . . . . . . . . . . . . . . . . 2-2 Wireless Beltpack Light Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Scroll/Enter Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Power Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Base Station Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 IEC Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Party Line Channel A Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Party Line Channel B Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Program Input Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Stage Announce Output Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Stage Announce Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 4-Wire Matrix Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Base Loop Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 LAN Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 PC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Transceiver Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Connecting the Base Station to Party-Line Intercom Systems . . . . . . . . . . . . 2-6 Clear-Com and Compatible Party-Line . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Connecting Clear-Com Party-Line Beltpacks Directly to FreeSpeak Lite . . 2-7 Connecting to an RTS™ Wired Beltpack . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 CELLCOM 10 WIRELESS COMMUNICATION SYSTEM ii THE CELLCOM 10 BASE STATION (CONTINUED) Front-Panel Adjustments for Party-Line Connections . . . . . . . . . . . . . . . . 2-8 Connecting the Base Station to 4-Wire and Digital Matrix Intercom . . . . . . 2-8 Connecting with Clear-Com Matrix Plus . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 Connecting with Clear-Com Eclipse Digital Matrix . . . . . . . . . . . . . . . . . 2-9 Connecting with Other Digital Matrix Intercom Systems . . . . . . . . . . . . . 2-9 Connecting with Other 4-Wire Devices . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Connecting to a Program Audio Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Connecting to the Stage Announce Output. . . . . . . . . . . . . . . . . . . . . . . . . 2-11 Base Station Data Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Connecting Via the Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Connecting Via the LAN Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Linking Two Base Stations to Form Larger Systems . . . . . . . . . . . . . . . . . . . 2-12 Transceiver/Antenna (CEL-TA) Connections . . . . . . . . . . . . . . . . . . . . . . . 2-13 Connecting One Transceiver/Antenna (CEL-TA) Directly to A Transceiver Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 Connecting Transceiver/Antennas with a Splitter (CEL-SP) . . . . . . . . . . 2-14 THE CELLCOM 10 WIRELESS BELTPACK . . . . . . . . . . . . . . . . . . . . . . . 3-1 Wireless Beltpack (CEL-BP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Beltpack Top Control Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Channel A and Channel B Rotary Encoders . . . . . . . . . . . . . . . . . . . . . 3-1 Channel A and Channel B Level-Control Lights . . . . . . . . . . . . . . . . . . 3-2 C…

Text truncated - open the document above for the full version.

AA BB CC DD EE 4 4 3 3 2 2 1 1


    !" The Kirk module is the DECT RF part which is controlled by a National SC14425 processor. This synchronises the 10.368MHz crystal which is the main clock device used for driving the bus & audio codec. The H8 processor handles the local i/o (switches & display) functions & communicates to the SC14425 through an interrupt driven mailbox within a Xilinx FPGA. The audio is passed from the SC14425 (8 bit parallel) to a separate mailbox within the FPGA to an AD2185 DSP (PCM30) which handles G722 compression/decompression & passes the audio data back to the FPGA where it it configured into a serial datastream suitable for the audio codec sampling at 16KHz. 37.5MHz PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 1 of 11 Product description for KRM1800 V2.0 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 2 of 11 1. Related Documents ............................................................................................................... 3 2. Introduction.......................................................................................................................... 3 3. Features................................................................................................................................ 3 4. Pin connection...................................................................................................................... 4 5. Pin description...................................................................................................................... 5 6. Programming description ..................................................................................................... 6 7. Mechanical dimensions ........................................................................................................ 8 8. PCB integration.................................................................................................................... 9 8.1. Recommended copper pad and solder mask opening ( NSMD ) .................................................. 9 8.2. Recommended stencil design........................................................................................................... 9 8.3. Solder ball alloy composition and flux type .................................................................................. 10 8.4. Recommended reflow profile ......................................................................................................... 10 9. Revisions historie................................................................................................................ 11 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 3 of 11 1. Related Documents Test specifications: K:\PROJEKTJOURNAL\KRM 1800 AVANTEC\Pre_spec\141008XX_QT_000.doc Generisk testspecifikation : G:\Arbejdsgrupper\HF_teknologi_gruppe\Generisk_test_spec\Dect1G8_001_QS.doc 2. Introduction KIRK Radio Modul As a spin-off from our R&D efforts, we have created a new radio module for DECT. The module is intended for use in KIRK telecom products, but at the request of our business partners we now offer the module for sale. The KIRK radio module (KRM) represents frontline technology, and is unique in several ways: ∑ They are smaller than any existing radio modules with the same facilities ∑ They have outstanding performance ∑ They are mounted with the use of Ball Grid Array technology ∑ They are priced lower than existing, larger and less performing modules The DECT module comply with ETSI (ETS 300 175) requirements and meet the Generic Access Profile (GAP) requirements. KRM 1800 V2 is based on DECT technology from National Semiconductor (NSC) and PA technology from MURATA. 3. Features RF range 1870 – 1930 MHz Radio receiver sensitivity Typ.-95 dBm [BER 10-3] Transmit Power (NTP) Typ. 24 dBm (VCCLMX=2.6V, VCCPA=3.6V) Power supply range 2.5-2.7V (VCCLMX), 3.24-4.50V (VCCPA) Temp. range 0C to +40C Reference clock freq. 10.368 MHz Programming NSC timing concept for LMX 4169 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 4 of 11 4. Pin connection B C D E F G H J K KRM 1800 V2.0 1D 1J 2H 2J 2K 3K 4J 4K RFPORT 1 VCCLMX PORT 0n PORT 0 RSSI REFCLK LE DATA ALL OTHER BGA: GND PAON (RESERVED PIN) VCCOPA OPAO PORT 4 RXDATA CLOCK VCCPA TXDATA RST 5D 5E 5F 5H 5J 5K 6A 6H 6J 1 A 2 3 4 5 6 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 5 of 11 5. Pin description Detailed information about all Pin’s except for the under need mentioned Pins see Data sheet for LMX4169 version 0.5 All pins are decoupled by 10 pF except for the RFPORT. RFPORT VCCLMX VCCPA VCCOPA OPA PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 6 of 11 6. Programming description In reference to the programming description in the datasheet version 0.50 for LMX4169 the following TX/RX timing is used to obtain the specifications for the module. TX-mode timing diagram RX-mode timing diagram 000 (000H) ------------------------------------------------------------------------ 016 (010H) ----------------------------------------------------- 117 (0 75H) ------------------------------------------------------ 248 (0F8H) ---------------------------------------------- 257 (101H) 281 (119H) --------------------------------------------------------- 293 (125H) -------------------------------------------------- 297 (129H) ------------------- 301 (12DH) --------- 312 (138H) ------------------------------------------------------------------------ 320 (140H) 328 (148H) 736 (2E0H) --------- 740 (2E4H) ------------------ 750 (2EEH) ------------------------------------------------------------------------ DCF Reg. BIAS 28H …

Text truncated - open the document above for the full version.

For attention Ray LaForge Today, 30 Jan 06 I have uploaded the required affidavit from UTAM. I apologise for the error, which stemmed from miss-interpretation of the notice DA05-1005. Also dealt with on that notice was the question of the special labelling. Am I correct in assuming that the labelling is no longer required. Regards Paul Harris TRL Compliance Ltd [email protected]

Part No TITLE SCALE DRG No Issue Cellcom Beltpack Assembly - Screws 760096_2A5 5 760096 A4 DO NOT SCALE DRAWN BY THC Please refer to 760096 / 760108 Bill of Materials for part descriptions APPROVED BY Notes
  760096/xxxx Serial Number label 280440 #4 3/4 Plastite 60 screw 280455 #4 5/16 Plastite 60 screw 280439 #6 1/4 P/H Machine 280442 #4 3/16 Plastite 60 Flat screw 740111 Belt Clip Torque Settings 280439 280455 280440 280442 251063 Encoder knob 1. Fit front button foam seal onto PCB. 2. Fit front cover to rear cover assembly, ensuring top cover and foam seal are located correctly 3. Fit eight plastite screws. Ensure all switch actions are positive. 4. Attach Belt Clip to rear cover. Secure with screw. 5. Affix rear cover label to rear cover. 6. Affix Serial number label to rear cover label. 7. Fix encoder spacers to end of encoder spindles, ensuring the backing paper is removed. 8. Fit Encoder knobs to encoder spindles, pushing firmly home. Confirm correct encoder switch action and ability to turn. 9. Fit Cellcom logo label to circular indent on the lower part of the front cover. Fit in orientation as shown above. Assembly 50cNm 30cNm 50cNm 30cNm 251103 Cellcom logo label Spacer Knob Spindle Top Bottom 251164 Rear cover label (Product name is FS-BP) or 251245 Rear cover label for U.S. Version (Product name is CEL-BP) 760108/xxxx (FS-BP) (CEL-BP) 251271 FCC label Only fit on 760108 (Product name is CEL-BP) 30-09-05

Page 1 of 23 SAR Test Report Report Number: M050632 Test Sample: Vitec Group Communications UPCS radio belt pack Model Number: CEL-BP FCC ID: S30-CEL-BP Tested For: TRL Compliance Services Date of Issue: 26 th October 2005 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. EMC Technologies is a NATA Accredited Laboratory complying with the requirements specified in ISO/IEC 17025 and results produced are traceable to national standards of measurement. This document shall not be reproduced, except in full. Nata Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: S30-CEL-BP Report No.: M050632 Page 2 of 23 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au CONTENTS 1.0 General Information ............................................................................................................... 3 2.0 Description of Device ............................................................................................................ 4 2.1 Description of Test Sample ................................................................................................. 4 2.2 Test sample Accessories .................................................................................................... 4 2.2.1 Battery Types ...................................................................................................................................... 4 2.2.2 Belt Clip.............................................................................................................................................. 4 2.3 Test Signal, Frequency and Output Power.......................................................................... 5 2.4 Battery Status...................................................................................................................... 5 2.5 Details of Test Laboratory .....................................................................................................6 2.5.1 Location.............................................................................................................................................. 6 2.5.2 Accreditations..................................................................................................................................... 6 2.5.3 Environmental Factors ...................................................................................................................... 6 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM.............................................................. 7 3.1 Probe Positioning System ................................................................................................... 7 3.2 E-Field Probe Type and Performance ................................................................................. 7 3.3 Data Acquisition Electronics ................................................................................................ 7 3.4 Calibration and Validation Procedures and Data ................................................................. 7 3.4.1 Validation Results @ 1800 MHz........................................................................................................ 7 3.4.2 Deviation from reference validation values ......................................................................................8 3.4.3 Liquid Depth 15cm ............................................................................................................................. 8 3.5 Phantom Properties (Size, Shape, Shell Thickness) ........................................................... 9 3.6 Tissue Material Properties................................................................................................. 10 3.6.1 Liquid Temperature and Humidity .................................................................................................. 10 3.7 Simulated Tissue Composition Used for SAR Test ........................................................... 10 3.8 Device Holder for DASY4.................................................................................................. 10 4.0 SAR Measurement Procedure Using DASY4 ..................................................................... 11 5.0 MEASUREMENT UNCERTAINTY ........................................................................................ 12 6.0 Equipment List and Calibration Details.............................................................................. 14 7.0 SAR Test Method .................................................................................................................15 7.1 Description of the Test Positions ....................................................................................... 15 7.1.2 “Belt Clip” Position......................................................................................................................... 15 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes)........................... 15 7.3 FCC RF Exposure Limits for Occupational/ Controlled Exposure...................................... 15 7.4 FCC RF Exposure Limits for Un-controlled/Non–occupational .......................................... 15 8.0 SAR measurement RESULTS.......…

Text truncated - open the document above for the full version.

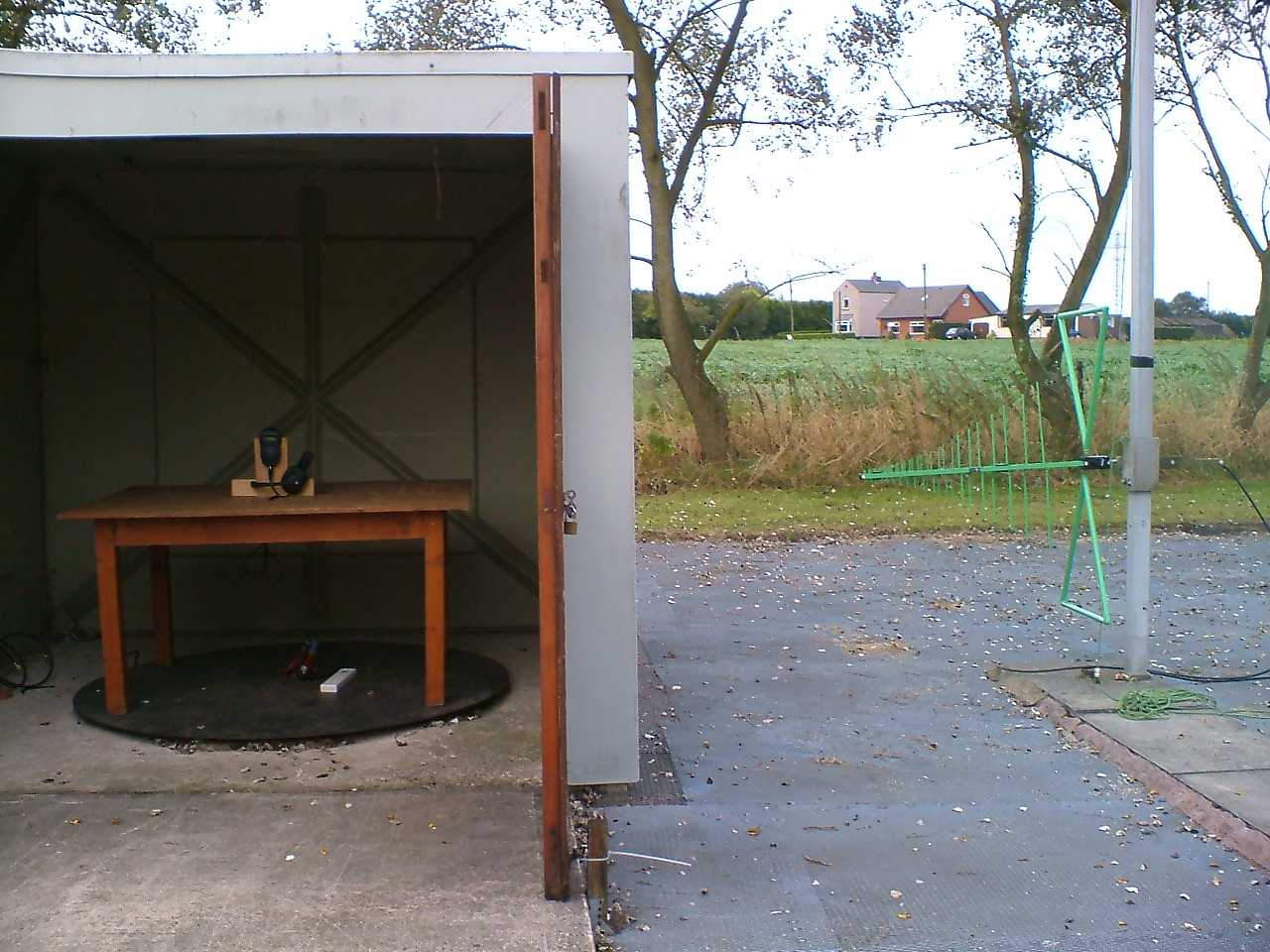

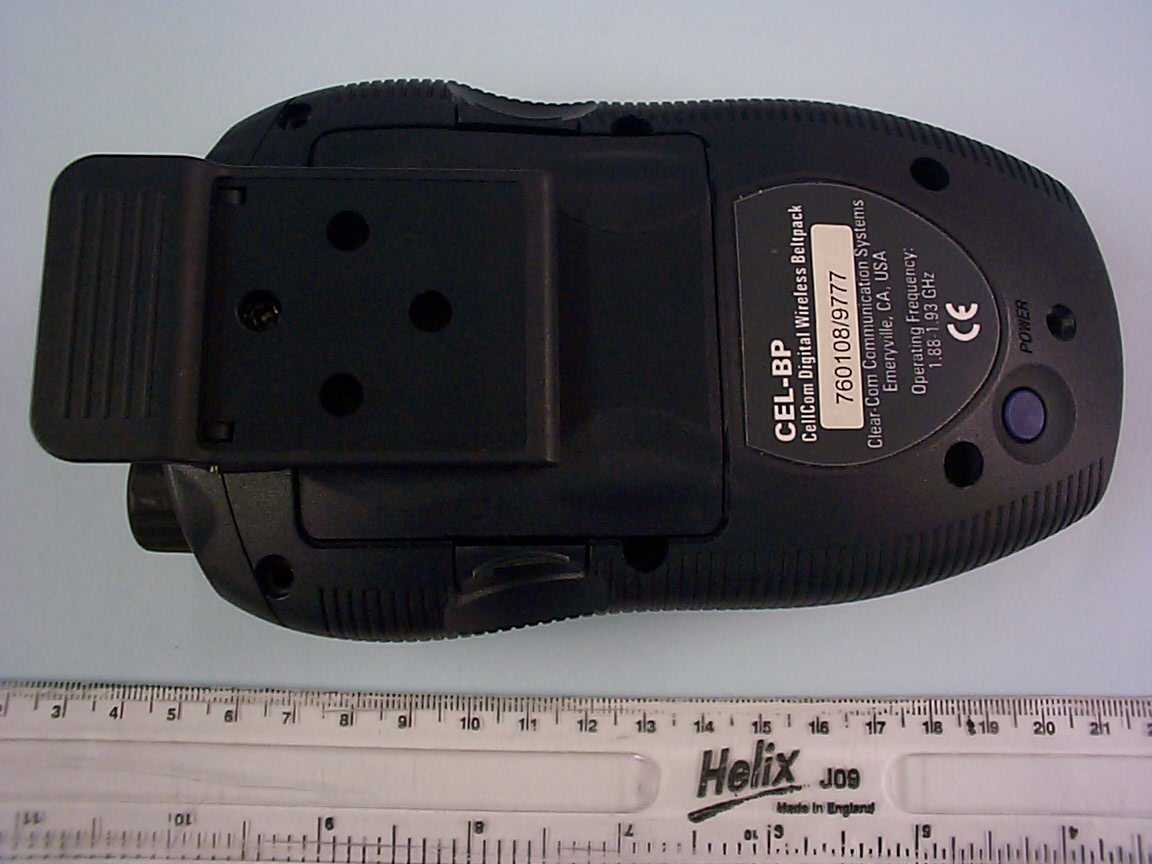

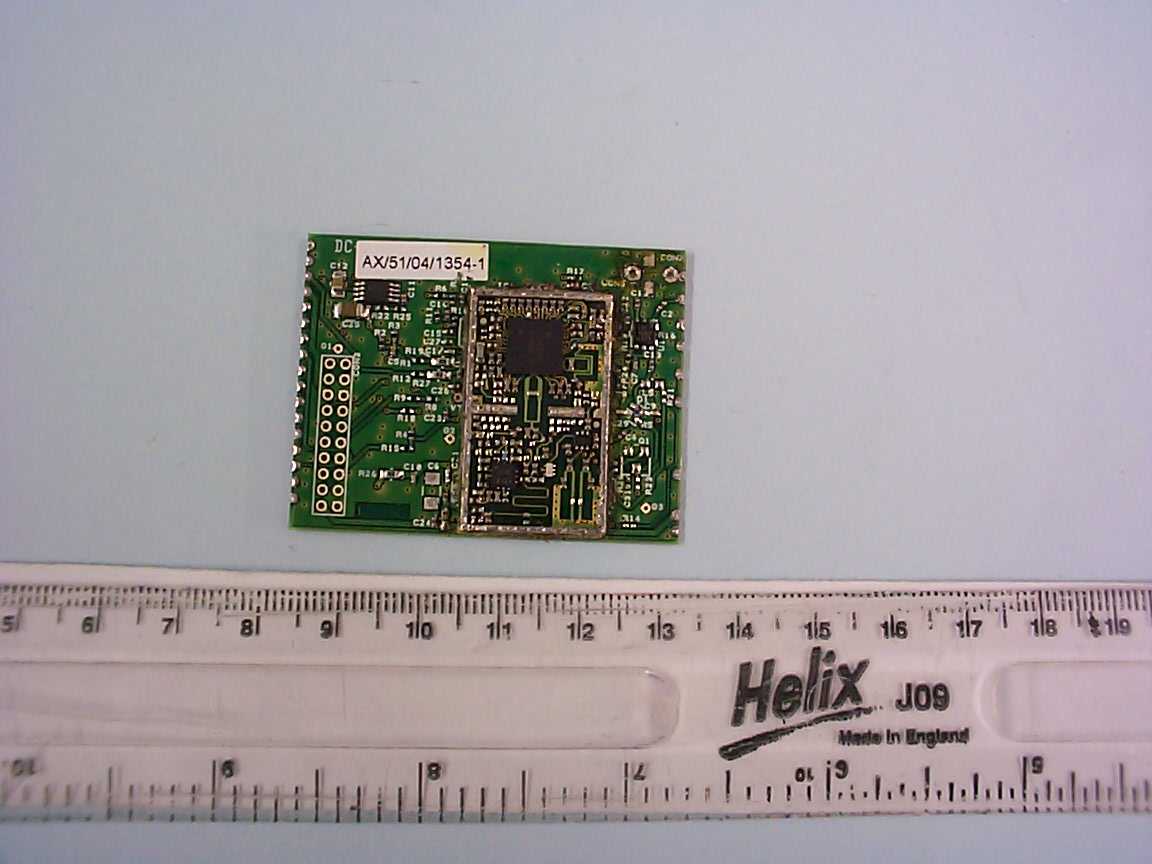

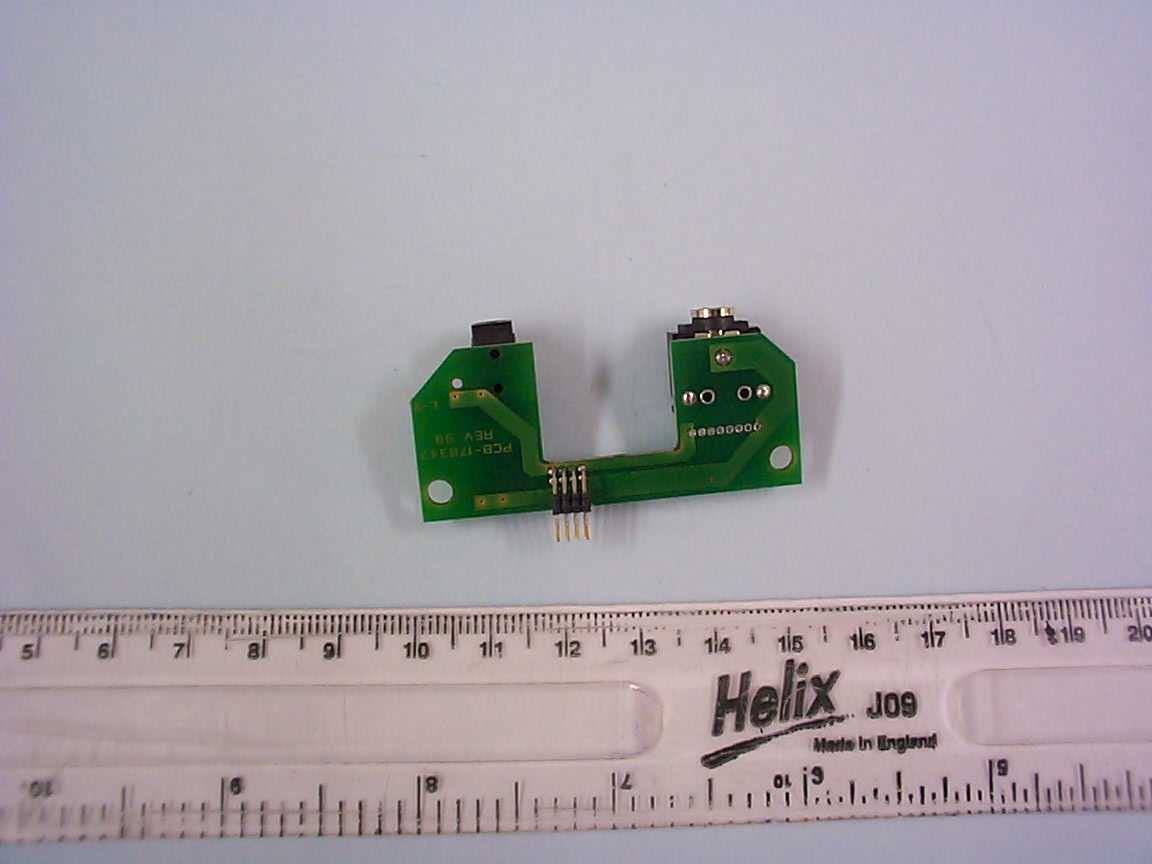

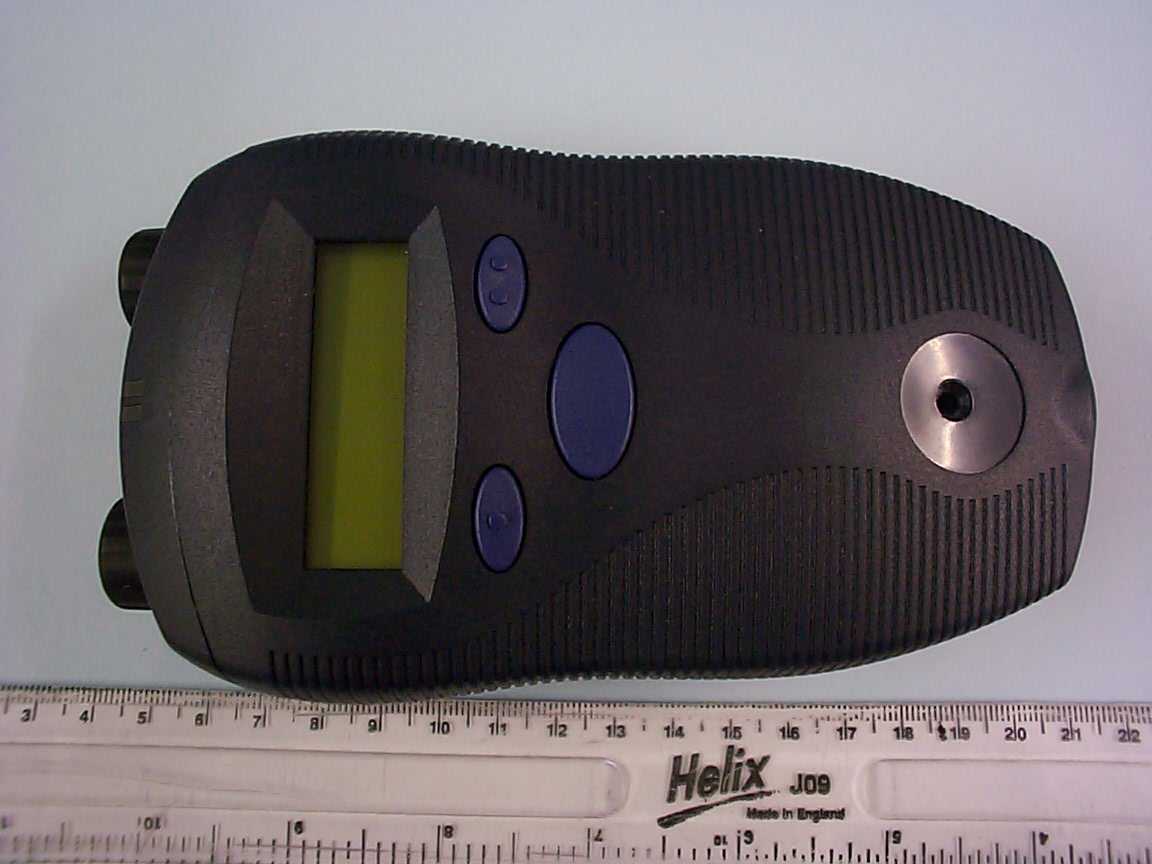

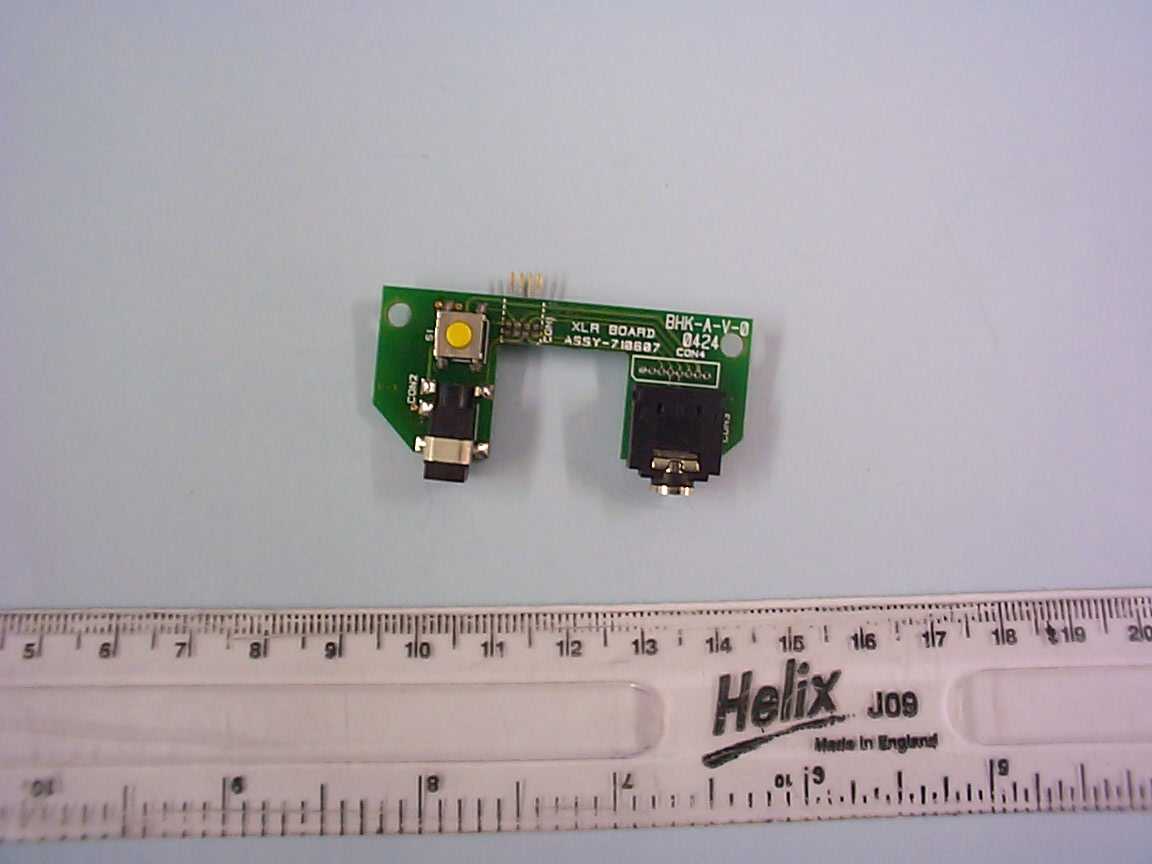

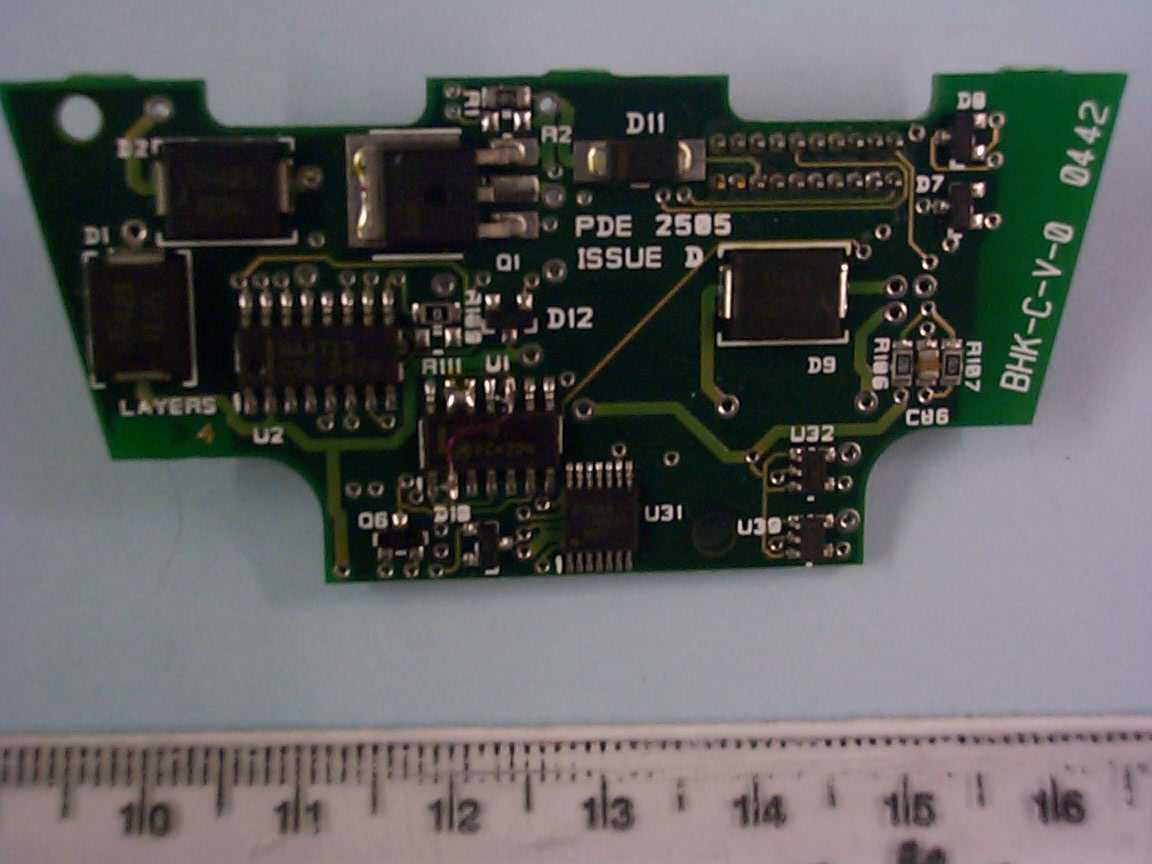

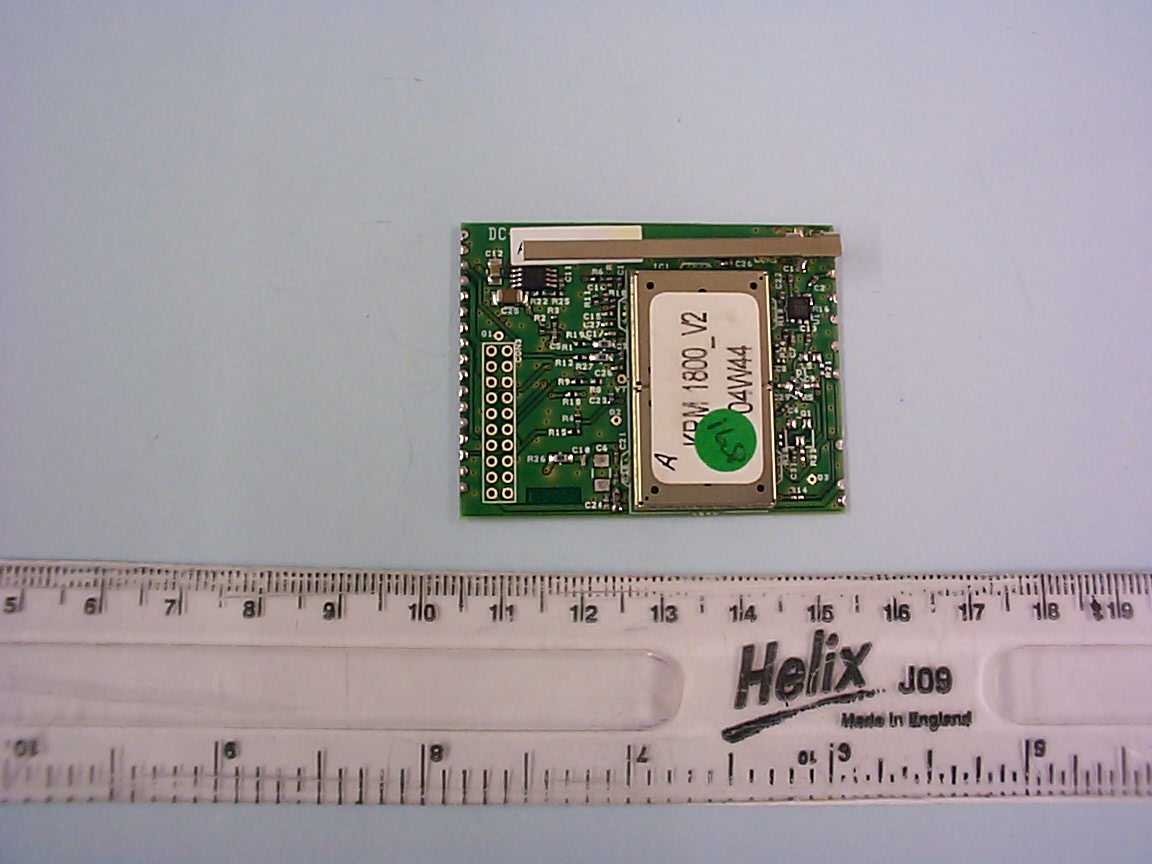

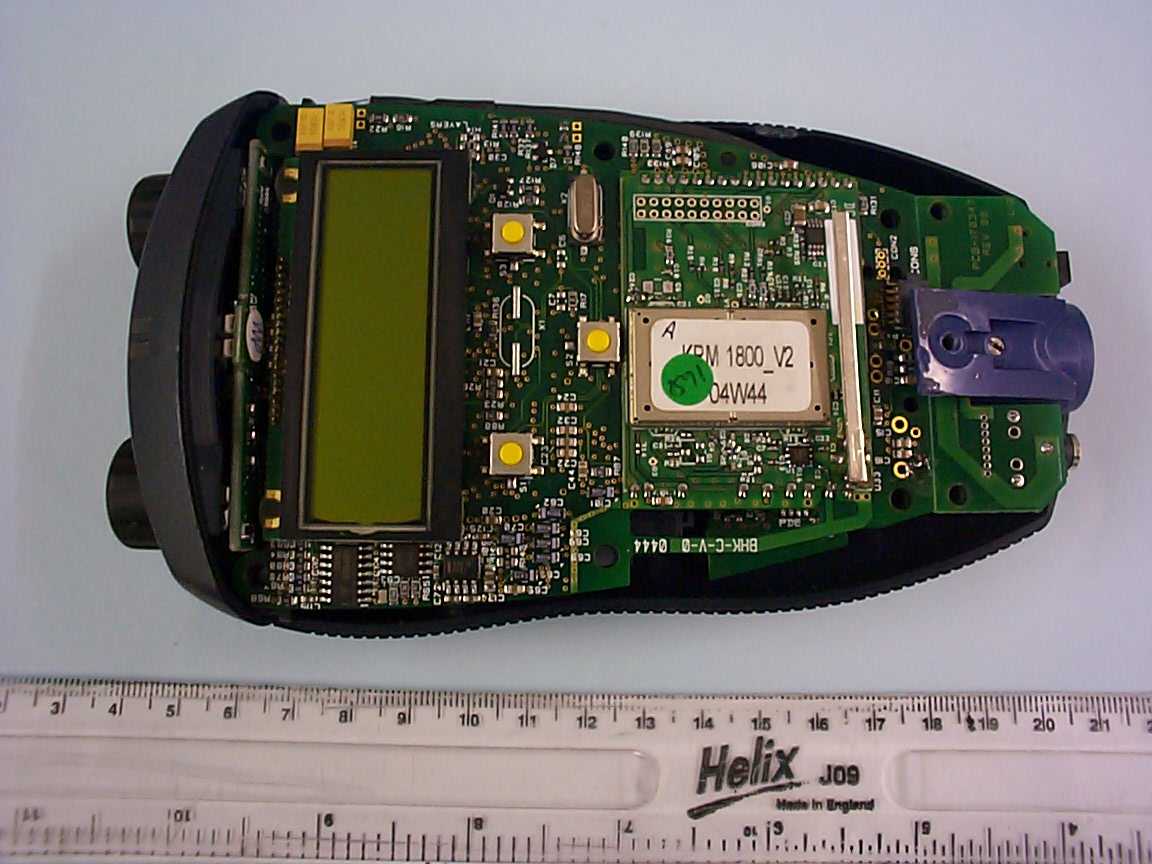

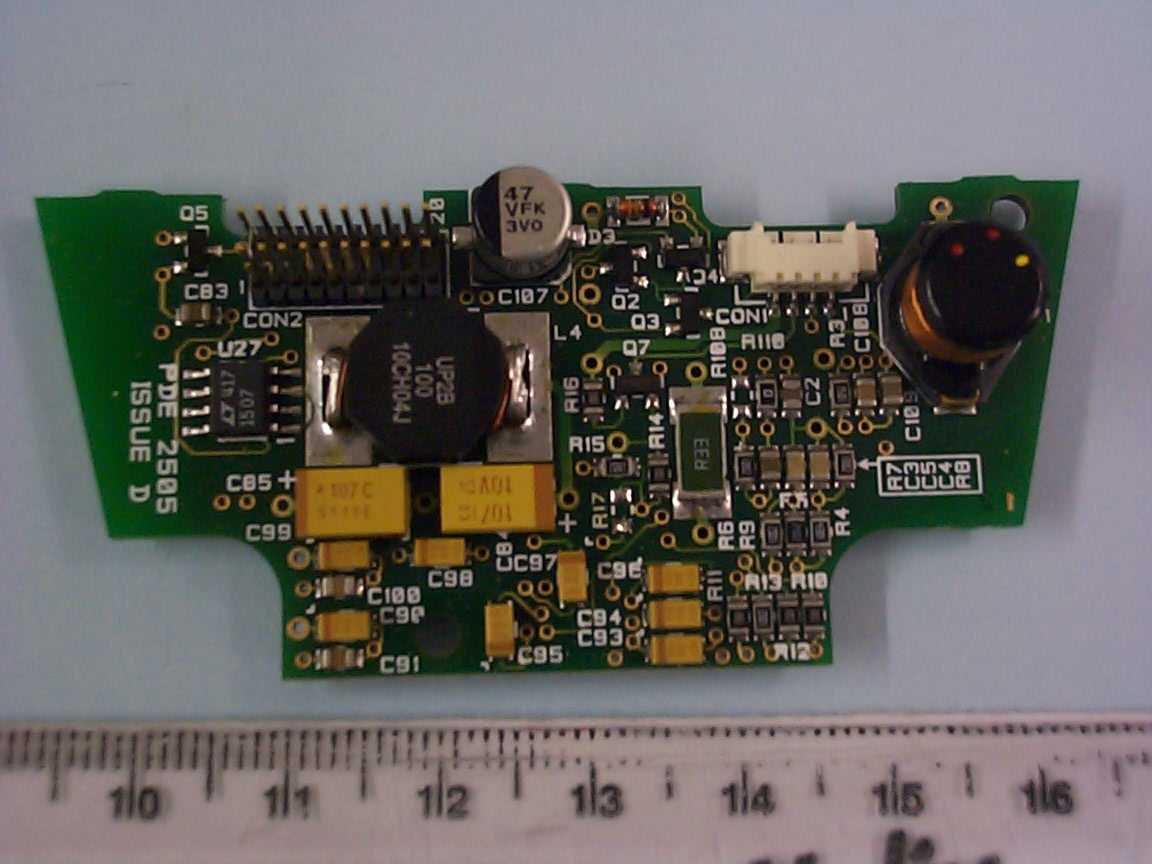

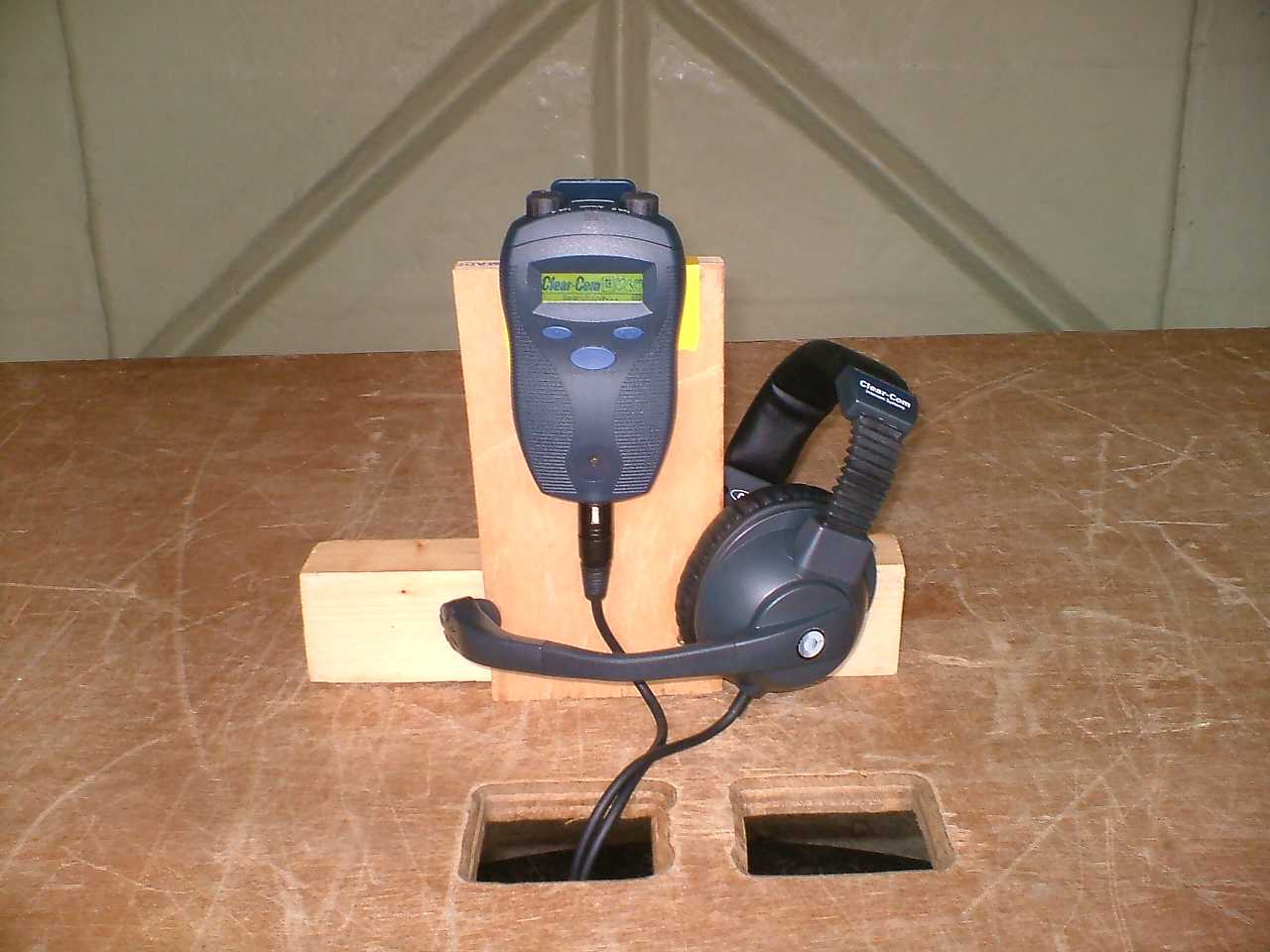

TRL COMPLIANCE SERVICES LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1175/6574 COPY NO: 2 ISSUE NO: 1 FCC ID: S30-CEL-BP REPORT ON THE CERTIFICATION TESTING OF A VITEC GROUP COMMUNICATIONS CELLCOM BELTPACK WITH RESPECT TO THE FCC RULES CFR 47, PART 15D June 2005 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 6 th June 2005 – 30 th September 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 17 th October 2005 Distribution: Copy Nos: 1. VITEC GROUP COMMUNICATIONS 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1175/6574 Page 2 of 60 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 SYSTEM DESCRIPTION 6 TEST RESULTS 7-23 PHOTOGRAPHS ANNEX A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter rear view battery removed PHOTOGRAPH No. 5: Main PCB LCD & RF module side PHOTOGRAPH No. 6: Main PCB component side PHOTOGRAPH No. 7: Main PCB LCD side RF module removed PHOTOGRAPH No. 8: RF module track side PHOTOGRAPH No. 9: RF module component side PHOTOGRAPH No. 10: RF module component side can removed PHOTOGRAPH No. 11: Volume control PCB track side PHOTOGRAPH No. 12: Volume control component side PHOTOGRAPH No. 13: Power supply PCB track side PHOTOGRAPH No. 14: Power supply PCB component side APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B AC POWERLINE CONDUCTION C EMISSION BANDWIDTH D PEAK TRANSMIT POWER E POWER SPECTRAL DENSITY F CONNECTION ACKNOWLEDGEMENT G EMISSIONS INSIDE AND OUTSIDE THE SUB-BAND - RADIATED H BANDEDGE COMPLIANCE – CONDUCTED I FRAME PERIOD J EQUIPMENT CALIBRATION K Notes: 1. Component failure during test YES [ ] NO [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1175/6574 Page 3 of 60 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: S30-CEL-BP PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15D June 2005 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: CellCom Beltpack EQUIPMENT SERIAL No: 9638 EQUIPMENT TYPE: UPCS Transceiver PRODUCT USE: Personal communications CARRIER POWER: 17.79 dBm ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 1920 MHz – 1930 MHz CHANNEL SPACING: Not Applicable NUMBER OF CHANNELS: 5 Frequencies, 6 double time slots per frequency giving 30 channels FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): 4.8 Vdc TEST DATE(s): 6 th June 2005 – 30 th September 2005 ORDER No(s): 90482 APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RU1175/6574 Page 4 of 60 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): CellCom Beltpack EQUIPMENT TYPE: UPCS Transceiver SERIAL NUMBER OF EUT: 9638 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15D June 2005 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 90482 APPLICANT’S CONTACT PERSON(s): Mr Jiou-pahn Lee E-mail address: [email protected] APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TEL: +44 (0) 1223 815 000 FAX: +44 (0) 1223 815 001 TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 6 th June 2005 – 30 th September 2005 TEST REPORT No: RU1175/6574 RU1175/6574 Page 5 of 60 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY Coordination with Fixed Microwave Service 15.307 (b) No note 1 Cross reference to Subpart B 15.309 (b) Yes Labelling Requirements 15.311 15.19 (a)(3) Yes Measurement Procedures 15.313 Yes Antenna Requirement 15.317 15.203 Yes Modulation Techniques 15.319 (b) Yes Conducted AC Powerline 15.315 15.207 Yes Emission Bandwidth 15.323 (a) Yes Peak Transmit Power 15.319 (c) Yes Power Spectral Density 15.319 (d) Yes Antenna Gain 15.319 (e) Yes Automatic Discontinuation of Transmission 15.319 (f) Yes Radio Frequency Radiation Exposure 15.319 (i) Yes Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) Yes Monitoring of Intended Transmit Window and Maximum Reaction Time 15.323 (c)(1) Yes Monitoring Bandwidth 15.323 (c)(7) Yes Random Waiting Interval 15.323 (c)(6) No Note 2 Duration of Transmission 15.323 (c)(3) Yes Connection Acknowledgement 15.323 (c)(4) Yes Lower threshold Selected Channel, Power Accuracy, Segment Occupancy 15.323 (c)(5) Yes Monitoring Antenna 15.323 (c)(8) Yes Duplex Connections 15.323 (c)(10) Yes Alternative Monitoring Interval for Co-located Devices 15.323 (c)(11) No Note 3 Fair Access to Spectrum Related to (c)(10) & (c)(11) 15.323 (c)(12) Yes Emission Inside and Outside the Sub-band 15.323 (d) Yes Frame Period 15.323 (e) Yes Frequency Stability 15.323 (f) Yes Note: 1. Requirement removed April 4 th 2005 see public notice DX 05-1005. 2. Only applicable to EUTs capable of transmitting control and signalling information. 3. Not utilized by this EUT as devices will not be co-located within 1m of each other. RU1175/6574 Page 6 of 60 2. Product Use: Personal Communications 3. Duty Cycle: 8.33% 4. Transmitter bit or pulse rate and level: 2Mbps 5. Temperatures: Ambient (Tnom) 20 o C 6. Supply Voltages: Vnom +4.8 Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test…
