S3O-CEL-TAVITEC CellCom 10 Digital Wireless Intercom

DIGITAL WIRELESS INTERCOM PRODUCT GUIDE CellCom 10 CellCom 10 Product Guide ©2004, 2005 Vitec Group Communications, Inc. All Rights Reserved Part Number 000000 Rev. 1 Vitec Group Communications, Inc. 4065 Hollis Street Emeryville, CA 94608-3505 U.S.A Clear-Com is a registered trademark of Vitec Group Communications, Inc. The Clear-Com Logo is a registered trademark of Vitec Group Communications, Inc. CellCom 10 is a registered trademark of Vitec Group Communications, Inc. Eclipse is a registered trademark of Vitec Group Communications, Inc. CELLCOM 10 WIRELESS COMMUNICATION SYSTEM i CONTENTS IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .2-V GETTING STARTED: AN INTRODUCTION TO CELLCOM 10 . . . . . . . . . . . . . . 1-1 CellCom 10 Basic Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 CellCom 10 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 DECT Transmission Theory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 THE CELLCOM 10 BASE STATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Base Station (CEL-BASE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Base Station Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Headset Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Channel A Talk Switch and Light/Listen Level Knob . . . . . . . . . . . . . . 2-2 A/B Call Switch (Reserved for Future Use) . . . . . . . . . . . . . . . . . . . . . . 2-2 Channel B Talk Switch and Light/Listen Level Knob . . . . . . . . . . . . . . 2-2 Enable Switch and Lights for Channels A and B . . . . . . . . . . . . . . . . . . 2-2 Enable Switch and Light for Program Audio . . . . . . . . . . . . . . . . . . . . . 2-2 Wireless Beltpack Light Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Scroll/Enter Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Power Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Base Station Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 IEC Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Party Line Channel A Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Party Line Channel B Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Program Input Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Stage Announce Output Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 Stage Announce Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 4-Wire Matrix Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Base Loop Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 LAN Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 PC Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Transceiver Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5 Connecting the Base Station to Party-Line Intercom Systems . . . . . . . . . . . . 2-6 Clear-Com and Compatible Party-Line . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Connecting Clear-Com Party-Line Beltpacks Directly to FreeSpeak Lite . . 2-7 Connecting to an RTS™ Wired Beltpack . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 CELLCOM 10 WIRELESS COMMUNICATION SYSTEM ii THE CELLCOM 10 BASE STATION (CONTINUED) Front-Panel Adjustments for Party-Line Connections . . . . . . . . . . . . . . . . 2-8 Connecting the Base Station to 4-Wire and Digital Matrix Intercom . . . . . . 2-8 Connecting with Clear-Com Matrix Plus . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 Connecting with Clear-Com Eclipse Digital Matrix . . . . . . . . . . . . . . . . . 2-9 Connecting with Other Digital Matrix Intercom Systems . . . . . . . . . . . . . 2-9 Connecting with Other 4-Wire Devices . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Connecting to a Program Audio Source. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10 Connecting to the Stage Announce Output. . . . . . . . . . . . . . . . . . . . . . . . . 2-11 Base Station Data Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Connecting Via the Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Connecting Via the LAN Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 Linking Two Base Stations to Form Larger Systems . . . . . . . . . . . . . . . . . . . 2-12 Transceiver/Antenna (CEL-TA) Connections . . . . . . . . . . . . . . . . . . . . . . . 2-13 Connecting One Transceiver/Antenna (CEL-TA) Directly to A Transceiver Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 Connecting Transceiver/Antennas with a Splitter (CEL-SP) . . . . . . . . . . 2-14 THE CELLCOM 10 WIRELESS BELTPACK . . . . . . . . . . . . . . . . . . . . . . . 3-1 Wireless Beltpack (CEL-BP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Beltpack Top Control Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Channel A and Channel B Rotary Encoders . . . . . . . . . . . . . . . . . . . . . 3-1 Channel A and Channel B Level-Control Lights . . . . . . . . . . . . . . . . . . 3-2 C…

Text truncated - open the document above for the full version.

119 (j) Thermal noise power . The noise power in watts defined by the formula N=kTB where N is the noise power in watts, k is Boltzmann's constant, T is the absolute temperature in degrees Kelvin (e.g., 295 o K) and B is the emission bandwidth of the device in hertz. (k) Time window . An interval of time in which transmission is desired. Section 15.305 Equipment authorization requirement . PCS devices operating under this subpart shall be certificated by the Commission under the procedures in Subpart J of Part 2 of this Chapter before marketing. The application for certification must contain sufficient information to demonstrate compliance with the requirements of this subpart. Section 15.307 Coordination with fixed microwave service . (a) UTAM, Inc., is designated to coordinate and manage the transition of the 1910-1930 MHz band from Private Operational-Fixed Microwave Service (OFS) operating under Part 94 of this Chapter to unlicensed PCS operations, conditioned upon submittal to and acceptance by the Commission of: (1) A funding plan that is equitable to all prospective manufacturers of unlicensed PCS devices; and (2) A plan for "band clearing" that will permit the implementation of noncoordinatable (nomadic) devices and, in particular, noncoordinatable data PCS devices, as promptly as possible. The responsibilities of UTAM, Inc. include, but are not limited to, relocation of existing OFS microwave stations pursuant to requirements established in ET Docket No. 92-9, negotiating costs of relocation, ensuring that comparable facilities are provided, and resolving any disputes of interference to OFS microwave operations from unlicensed PCS operations. These responsibilities shall terminate upon a determination by the Commission that interference to OFS microwave operations from unlicensed PCS operations is no longer a concern. (b) Each application for certification of equipment operating under the provisions of this Subpart must be accompanied by an affidavit from UTAM, Inc. certifying that the applicant is a participating member of UTAM, Inc. In the event a grantee fails to fulfill the obligations attendant to participation in UTAM, Inc., the Commission may invoke administrative sanctions as necessary to preclude continued marketing and installation of devices covered by the grant of certification, including but not limited to revoking certification. (c) An application for certification of a PCS device that is deemed by UTAM, Inc. to be noncoordinatable will not be accepted until the Commission announces that a need for coordination no longer exists. [This was announced by Public Notice, DA 05-1005, April 4, 2005.] (d) A coordinatable PCS device is required to incorporate means that ensure that it cannot be activated until its location has been coordinated by UTAM, Inc. The application for certification shall contain an explanation of all measures taken to prevent unauthorized operation. This explanation shall

AA BB CC DD EE 4 4 3 3 2 2 1 1

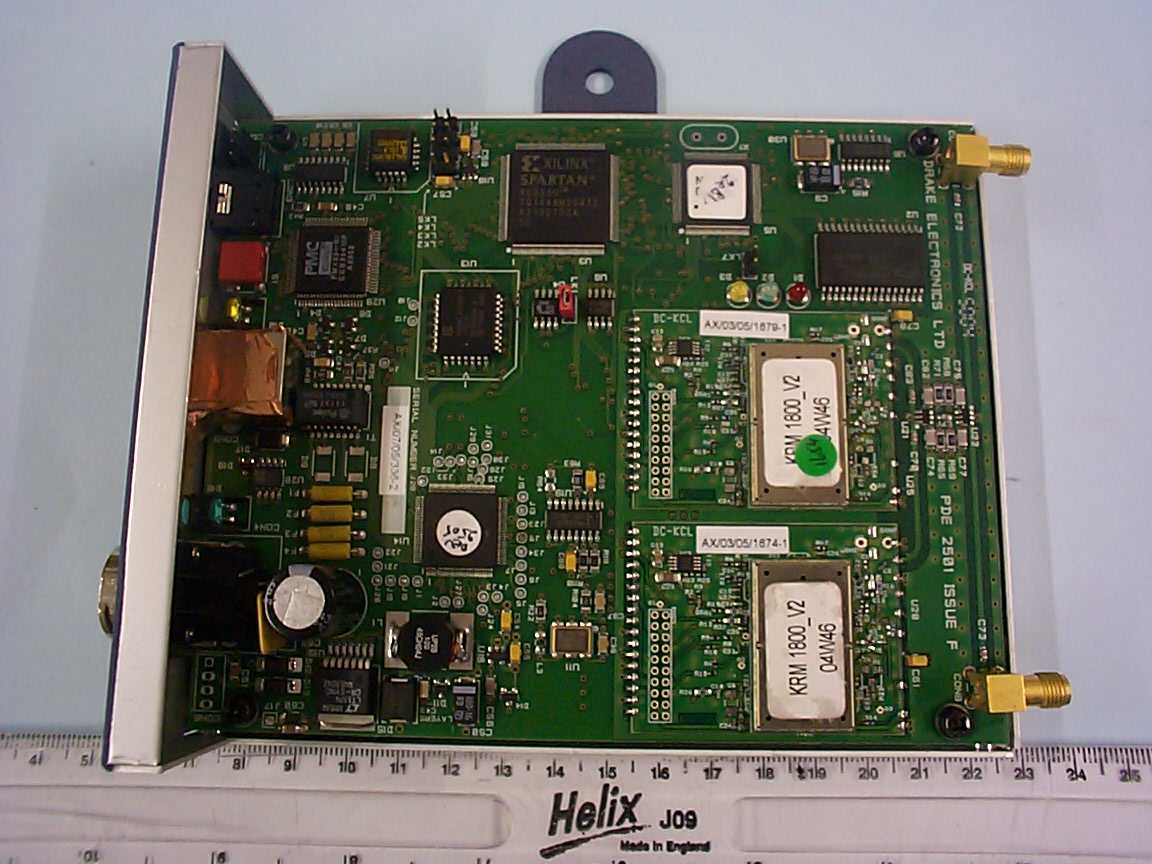

                  The Kirk module is the DECT RF part which is controlled by a National SC14425 processor. This synchronises the 10.368MHz crystal which is the main clock device used for driving the bus & audio codec. It does this by using a 100Hz DECT sync waveform which is distributed centrally from the basestation via one of the unused pairs in the E1 cable. The H8 processor handles the E1 communication with the basestation via a PCM4351 transceiver & communicates to the SC14425 through an interrupt driven mailbox within a Xilinx FPGA. The audio is passed from the E1 transceiver (PCM30) to a separate mailbox within the FPGA to the SC14425. PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 1 of 11 Product description for KRM1800 V2.0 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 2 of 11 1. Related Documents ............................................................................................................... 3 2. Introduction.......................................................................................................................... 3 3. Features................................................................................................................................ 3 4. Pin connection...................................................................................................................... 4 5. Pin description...................................................................................................................... 5 6. Programming description ..................................................................................................... 6 7. Mechanical dimensions ........................................................................................................ 8 8. PCB integration.................................................................................................................... 9 8.1. Recommended copper pad and solder mask opening ( NSMD ) .................................................. 9 8.2. Recommended stencil design........................................................................................................... 9 8.3. Solder ball alloy composition and flux type .................................................................................. 10 8.4. Recommended reflow profile ......................................................................................................... 10 9. Revisions historie................................................................................................................ 11 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 3 of 11 1. Related Documents Test specifications: K:\PROJEKTJOURNAL\KRM 1800 AVANTEC\Pre_spec\141008XX_QT_000.doc Generisk testspecifikation : G:\Arbejdsgrupper\HF_teknologi_gruppe\Generisk_test_spec\Dect1G8_001_QS.doc 2. Introduction KIRK Radio Modul As a spin-off from our R&D efforts, we have created a new radio module for DECT. The module is intended for use in KIRK telecom products, but at the request of our business partners we now offer the module for sale. The KIRK radio module (KRM) represents frontline technology, and is unique in several ways: ∑ They are smaller than any existing radio modules with the same facilities ∑ They have outstanding performance ∑ They are mounted with the use of Ball Grid Array technology ∑ They are priced lower than existing, larger and less performing modules The DECT module comply with ETSI (ETS 300 175) requirements and meet the Generic Access Profile (GAP) requirements. KRM 1800 V2 is based on DECT technology from National Semiconductor (NSC) and PA technology from MURATA. 3. Features RF range 1870 – 1930 MHz Radio receiver sensitivity Typ.-95 dBm [BER 10-3] Transmit Power (NTP) Typ. 24 dBm (VCCLMX=2.6V, VCCPA=3.6V) Power supply range 2.5-2.7V (VCCLMX), 3.24-4.50V (VCCPA) Temp. range 0C to +40C Reference clock freq. 10.368 MHz Programming NSC timing concept for LMX 4169 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 4 of 11 4. Pin connection B C D E F G H J K KRM 1800 V2.0 1D 1J 2H 2J 2K 3K 4J 4K RFPORT 1 VCCLMX PORT 0n PORT 0 RSSI REFCLK LE DATA ALL OTHER BGA: GND PAON (RESERVED PIN) VCCOPA OPAO PORT 4 RXDATA CLOCK VCCPA TXDATA RST 5D 5E 5F 5H 5J 5K 6A 6H 6J 1 A 2 3 4 5 6 PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 5 of 11 5. Pin description Detailed information about all Pin’s except for the under need mentioned Pins see Data sheet for LMX4169 version 0.5 All pins are decoupled by 10 pF except for the RFPORT. RFPORT VCCLMX VCCPA VCCOPA OPA PRODUCT SPECIFICATION ED 000 DATE 24-02-2004 SIGN HBR KIRK telecom KRM1800 V2 14115800-DS Page 6 of 11 6. Programming description In reference to the programming description in the datasheet version 0.50 for LMX4169 the following TX/RX timing is used to obtain the specifications for the module. TX-mode timing diagram RX-mode timing diagram 000 (000H) ------------------------------------------------------------------------ 016 (010H) ----------------------------------------------------- 117 (0 75H) ------------------------------------------------------ 248 (0F8H) ---------------------------------------------- 257 (101H) 281 (119H) --------------------------------------------------------- 293 (125H) -------------------------------------------------- 297 (129H) ------------------- 301 (12DH) --------- 312 (138H) ------------------------------------------------------------------------ 320 (140H) 328 (148H) 736 (2E0H) --------- 740 (2E4H) ------------------ 750 (2EEH) ------------------------------------------------------------------------ DCF Reg. BIAS 28H ------ VCO 29H ------ VCO core 2AH ------ VCO fil…

Text truncated - open the document above for the full version.

For attention Ray LaForge Today, 30 Jan 06 I have uploaded the required affidavit from UTAM. I apologise for the error, which stemmed from miss-interpretation of the notice DA05-1005. Also dealt with on that notice was the question of the special labelling. Am I correct in assuming that the labelling is no longer required. Regards Paul Harris TRL Compliance Ltd [email protected]

APPROVED Process Plan Report For : Thursday, Septemb PD E 2 5 0 9 A A F Freesp ea k K irk m o d u le ca rd A A v ersio n D rg :P D E 250 9/20 2 issu e 1 1 :34 P M D esig n Item N o C om ponent D escription D raw ing Q u antity C A P 10 72S M T C a p a cito r cera m ic 120 6 10 u F 10 V G eneric 1 C 25 M anu f/D istrib Info C A P 1124 S M T C a p a cito r C era m ic 0 4 0 2 10 p 50 V G eneric 13 C 3,8 ,14 ,15,16,20 ,21,22,23,24 ,27,28 ,31 M anu f/D istrib Info C A P 1125S M T C a p a cito r C era m ic 0 4 0 2 15p 50 V G eneric 1 C 17 M anu f/D istrib Info C A P 1126S M T C a p a cito r C era m ic 0 4 0 2 33p 50 V G eneric 3 C 2,4 ,13 M anu f/D istrib Info C A P 1128 S M T C a p a cito r C era m ic 0 4 0 2 4 70 p 50 V G eneric 1 C 26 M anu f/D istrib Info C A P 1129S M T C a p a cito r C era m ic 0 4 0 2 1n 50 V G eneric 3 C 9,10 ,29 M anu f/D istrib Info C A P 1130 S M T C a p a cito r C era m ic 0 4 0 2 2n2 50 V G eneric 1 C 5 M anu f/D istrib Info C A P 1131S M T C a p a cito r C era m ic 0 4 0 2 33n 50 V G eneric 1 C 11 M anu f/D istrib Info C A P 1132S M T C a p a cito r C era m ic 0 8 0 5 2u 2 10 V G eneric 1 C 12 M anu f/D istrib Info P ag e 1 o f 3 P D E 250 9A A F Freesp ea k K irk m o d u le ca rd A A v ersio n D rg :P D E 250 9/20 2 issu e 1 C A D D C h eck ed E N G A pprov ed APPROVED Item No Component Description Drawing Quantity NOT FITTED These components unpopulated 10 C1,C6,C7,D1,R 13,R 20,R 21,R 23,Q 1,U 1,L 5 Manuf/Distrib Info PCB 2509PC2 PCB PDE 2509 KM V2 1 Manuf/Distrib Info R ES7000SMT R esistor 0R 0 0603 1% 0.063W 100ppm Generic 4 R 16,19,26,27 Manuf/Distrib Info R ES72R 2SMT R esistor 2R 2 0603 5% 0.063W 500ppm Generic 1 R 28 Manuf/Distrib Info R ES8000SMT R esistor 0R 0 0402 1% Generic 2 R 5,14 Manuf/Distrib Info R ES8102SMT R esistor 1K 0402 1% Generic 2 R 10,12 Manuf/Distrib Info R ES8103SMT R esistor 10K 0402 1% Generic 3 R 4,7,8 Manuf/Distrib Info R ES8104SMT R esistor 100K 0402 1% Generic 1 R 25 Manuf/Distrib Info R ES8114SMT R esistor 110K 0402 1% Generic 1 R 22 Manuf/Distrib Info R ES8222SMT R esistor 2K2 0402 1% Generic 3 R 6,9,15 Manuf/Distrib Info Page 2 of 3 PDE2509AAF Freespeak Kirk module card AA version Drg:PDE2509/202 issue 1 CADD Checked ENG Approved APPROVED Item No Component Description Drawing Quantity RES8223SMT Resistor 22K 0402 1% Generic 2 R2,3 Manuf/Distrib Info RES8271SMT Resistor 270R 0402 1% Generic 3 R17,18,24 Manuf/Distrib Info RES8512SMT Resistor 5K1 0402 1% Generic 1 R11 Manuf/Distrib Info RES8820SMT Resistor 82R 0402 1% Generic 1 R1 Manuf/Distrib Info SCN2115SMT KIRK module 1 IC1 KRM1800-V2IRK KIRK Manuf/Distrib Info SCN2117SMT LP3982 voltage regulator 1 IC3 LP3982IMM-ADJ National Manuf/Distrib Info Page 3 of 3 PDE2509AAF Freespeak Kirk module card AA version Drg:PDE2509/202 issue 1 CADD Checked ENG Approved

TRL COMPLIANCE LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1175/6640 COPY NO: ISSUE NO: 1 FCC ID: S30-CEL-TA REPORT ON THE CERTIFICATION TESTING OF A VITEC GROUP COMMUNICATIONS CELLCOM TRANSCEIVER/ANTENNA WITH RESPECT TO THE FCC OET BULLETIN 65 August 1997 SUPPLEMENT C January 2001 EVALUATION COMPLIANCE WITH FCC GUIDELINES FOR HUMAN EXPOSURE TO RADIOFREQUENCY ELECTROMAGNETIC FIELDS. TEST DATE: 6 th June 2005 – 30 th September 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 30 th September 2005 Distribution: Copy Nos: 1. VITEC GROUP COMMUNICATIONS 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1175/6640 Page 2 of 10 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 SYSTEM DESCRIPTION 6 TEST RESULTS 7 ANNEX PEAK TRANSMIT POWER A EQUIPMENT CALIBRATION B Notes: 1. Component failure during test YES [ ] NO [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1175/6640 Page 3 of 10 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: S30-CEL-TA PURPOSE OF TEST: Certification TEST SPECIFICATION: OET Bulletin 65 Supplement C : January 2001 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: CellCom Transceiver/Antenna EQUIPMENT SERIAL No: 359AX/12/05/370-2 EQUIPMENT TYPE: UPCS Transceiver PRODUCT USE: Personal communications CARRIER POWER: 19.00 dBm ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 1920 MHz – 1930 MHz CHANNEL SPACING: Not Applicable NUMBER OF CHANNELS: 5 Frequencies, 6 double time slots per frequency giving 30 channels FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): 24 Vdc or 110 Vac TEST DATE(s): 6 th June 2005 – 30 th September 2005 ORDER No(s): 90482 APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TESTED BY: J CHARTERS APPROVED BY: P GREEN EMC PRODUCT MANAGER RU1175/6640 Page 4 of 10 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): CellCom Transceiver/Antenna EQUIPMENT TYPE: UPCS Transceiver SERIAL NUMBER OF EUT: 359AX/12/05/370-2 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): OET Bulletin 65 Supplement C : January 2001 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 90482 APPLICANT’S CONTACT PERSON(s): Mr Jiou-pahn Lee E-mail address: [email protected] APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TEL: +44 (0) 1223 815 000 FAX: +44 (0) 1223 815 001 TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 6 th June 2005 – 30 th September 2005 TEST REPORT No: RU1175/6640 RU1175/6640 Page 5 of 10 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY Radio Frequency Radiation Exposure 15.319 (i) Yes note 2 Note: 1. EUT is not used within 20 cm of the body. MEP calculation performed for information. 2. This report should be read in conjunction with TRL Compliance Services test report RU1175/6573 for results. 2. Product Use: Personal Communications 3. Duty Cycle: 8.33% 4. Transmitter bit or pulse rate and level: 2Mbps 5. Temperatures: Ambient (Tnom) 20 o C 6. Supply Voltages: Vnom +24 Vdc or +110 Vac Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 7. Equipment Category: Multi-channel [X] Narrowband [ ] Wideband [X] 8. Channel spacing: 9. System Description: The system is made up of two parts, a fixed part and a portable part. The portable part is a beltpack worn about the body. The fixed part constitutes two parts, an active antenna and a base unit. The base unit is rack mounted and is connected to the active antenna via a CAT-5 cable. This cable carries the data stream between the two units. It can also provide power from the base unit to the active antenna. The active antenna can also be powered from an additional power source. The system operates in the 1920MHz -1930MHz band. The system use 5 different frequency channels 1.728MHz apart using MC/TDMA/TDD (Multi Carrier / Time Division Multiple Access / Time Division Duplex) using QPSK modulation. The system employs a 10ms frame, divided into 24 equal timeslots, numbered 0-23. The system uses double- slots only, where a double-slot always begins on an even-numbered slot. The Base station always transmits in the first half of the frame, and the Portable always transmits on the duplex mate in the second half. A physical bearer is composed of a transmit double-slot and a receive double-slot. The two halves of a given bearer are always exactly half a frame (5ms, 12 slots) apart. During the testing the belt pack was frequency administered to allow operation on only certain channels during the test. The frequency administration was performed using software. RU1175/6640 Page 6 of 10 RADIO FREQUENCY RADIATION EXPOSURE - PART15.319 (i) Consideration of radio frequency exposure: SAR testing Portable Part(PP) Not applicable MPE Calculation Fixed Part (FP Applicable MPE calculation: Test setup 1: EUT Attenuator Combiner TRL479 / Splitter or TRL630 Companion Device Attenuator Formula: S=EIRP /4πR 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S = 79.43/4 π20 2 = 0.015mW/cm 2 Notes: 1. The unit will be mounted more 20c…

Text truncated - open the document above for the full version.

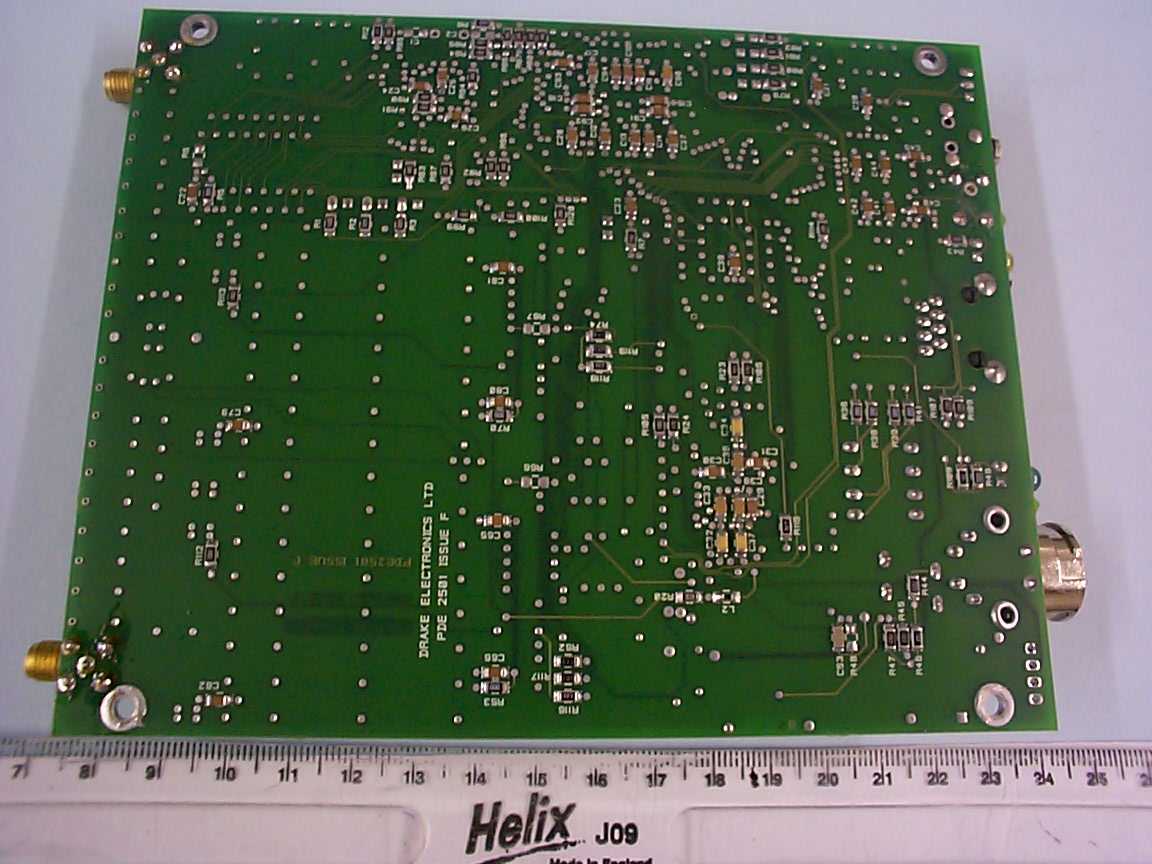

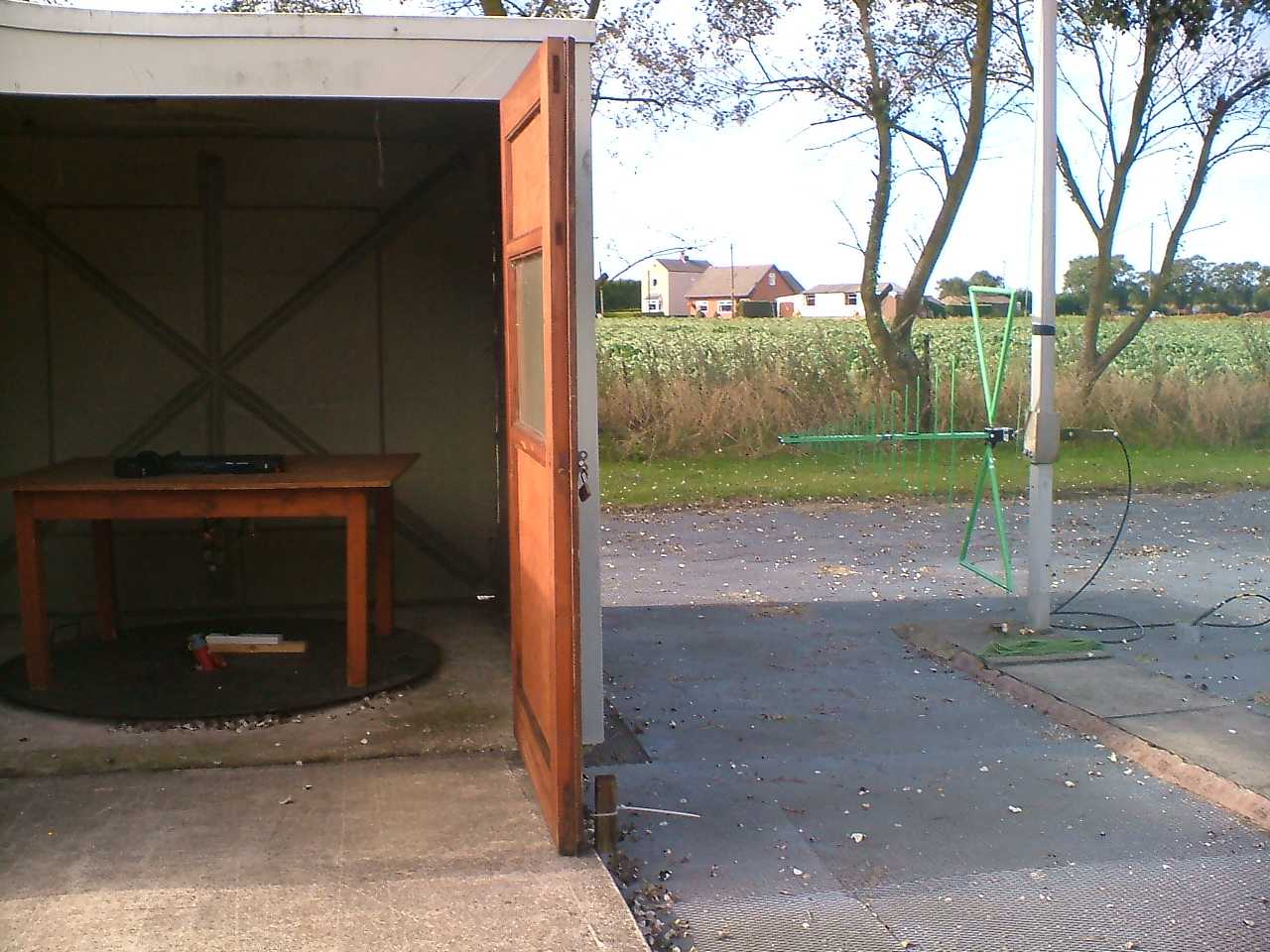

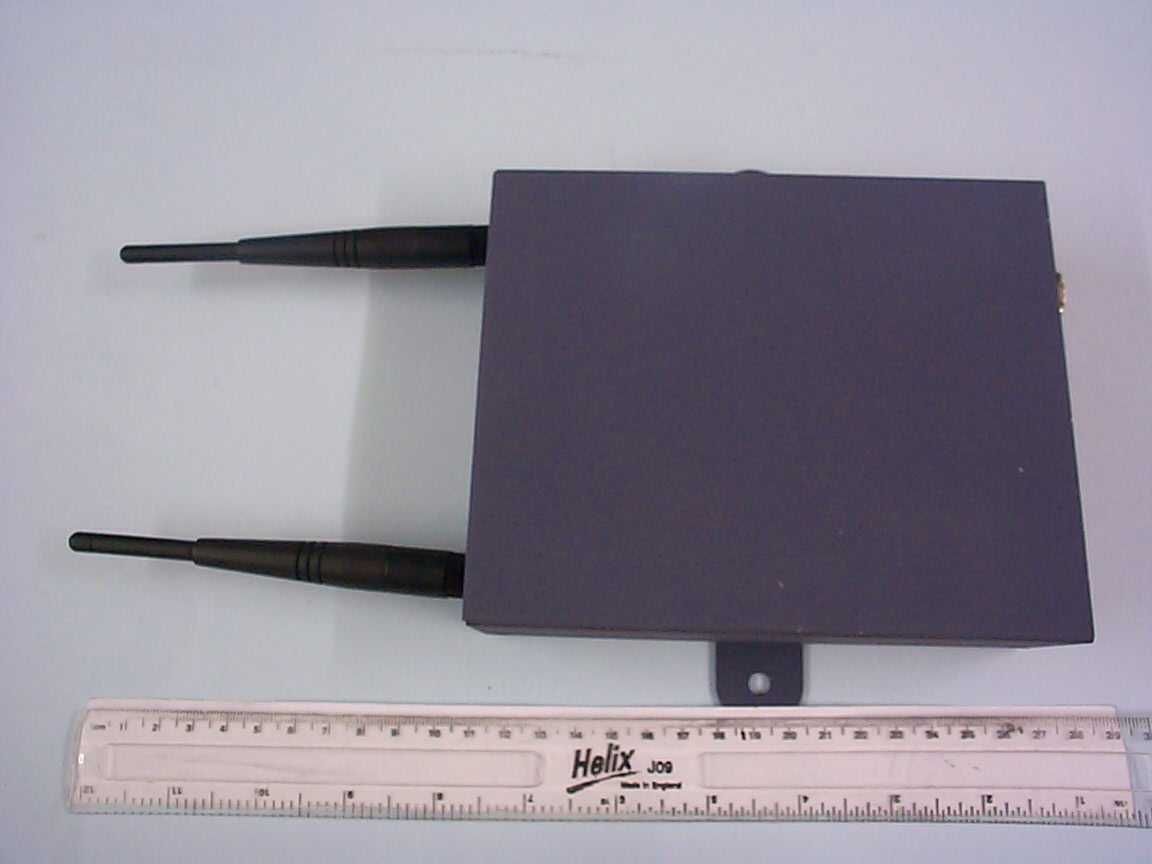

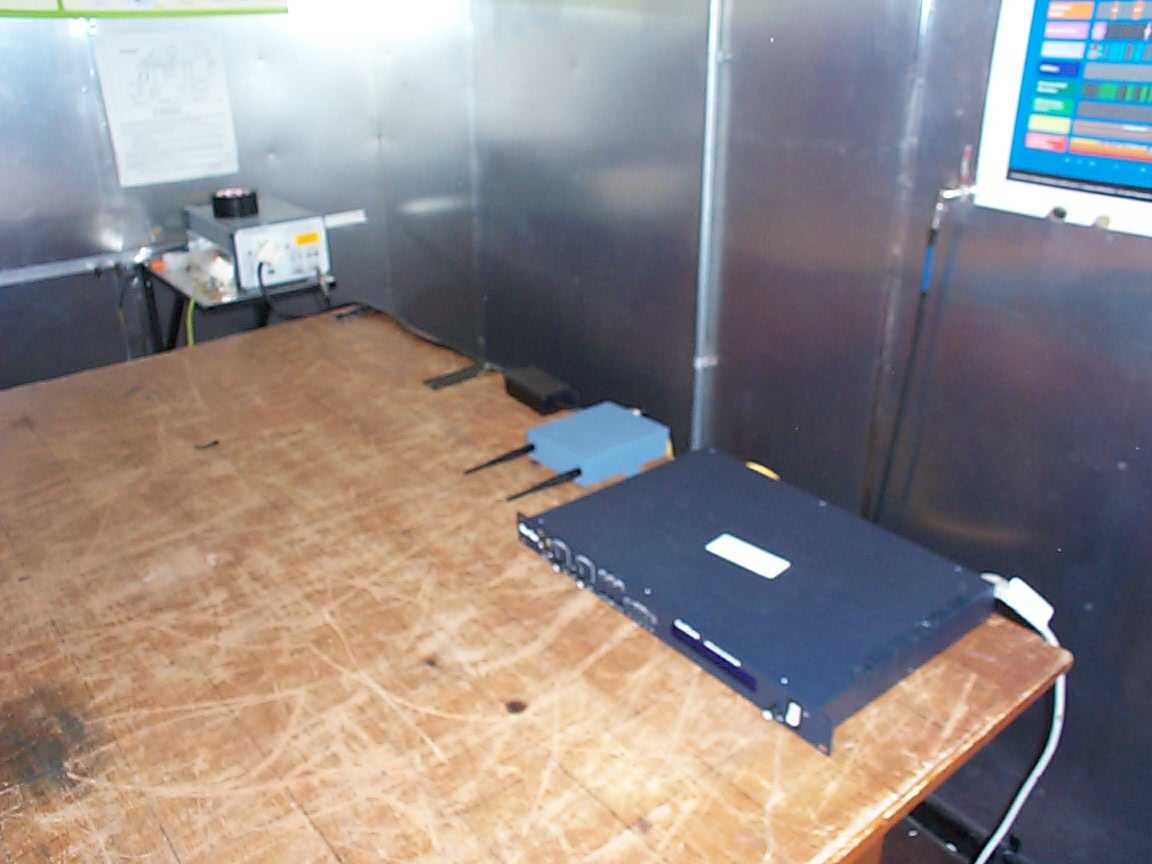

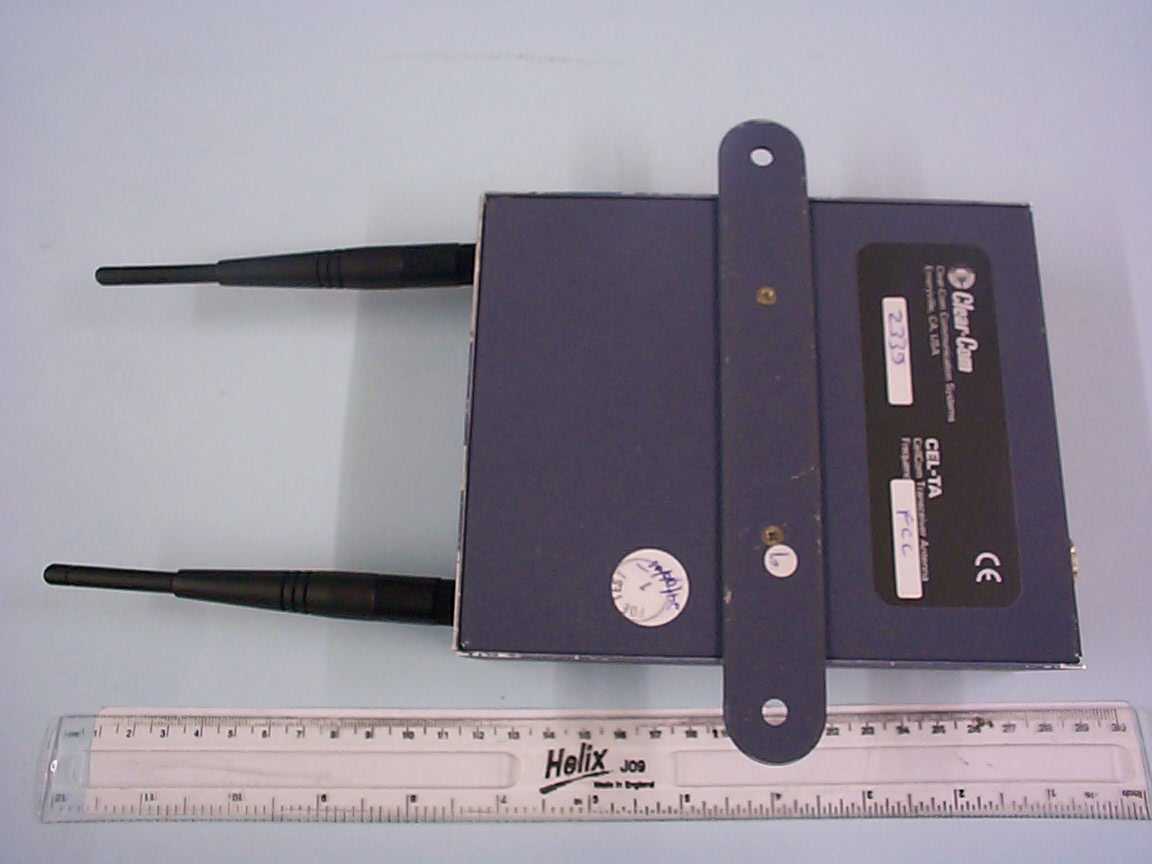

TRL COMPLIANCE SERVICES LTD EMC DIVISION M OSS VIEW NIPE LANE UP HOLLAND WEST LANCASHIRE WN8 9PY UNITED KINGDOM T ELEPHONE +44 (0)1695 556666 FAX +44 (0)1695 557077 E-MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1175/6575 COPY NO: 2 ISSUE NO: 1 FCC ID: S30-CEL-TA REPORT ON THE CERTIFICATION TESTING OF A VITEC GROUP COMMUNICATIONS CELLCOM TRANSCEIVER/ANTENNA WITH RESPECT TO THE FCC RULES CFR 47, PART 15D June 2005 INTENTIONAL RADIATOR SPECIFICATION TEST DATE: 6 th June 2005 – 30 th September 2005 TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER DATE: 17 th September 2005 Distribution: Copy Nos: 1. VITEC GROUP COMMUNICATIONS 2. FCC EVALUATION LABORATORIES 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1175/6575 Page 2 of 63 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 6 SYSTEM DESCRIPTION 6 TEST RESULTS 7-28 PHOTOGRAPHS ANNEX A PHOTOGRAPH No. 1: Test setup PHOTOGRAPH No. 2: Transmitter front view PHOTOGRAPH No. 3: Transmitter rear view PHOTOGRAPH No. 4: Transmitter rear view battery removed PHOTOGRAPH No. 5: Main PCB component & RF module side PHOTOGRAPH No. 6: Main PCB track side PHOTOGRAPH No. 7: Main PCB component side RF module removed PHOTOGRAPH No. 8: RF module track side PHOTOGRAPH No. 9: RF module component side PHOTOGRAPH No. 10: RF module component side can removed PHOTOGRAPH No. 11: Base unit overview PHOTOGRAPH No. 12: Base unit top removed APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B AC POWERLINE CONDUCTION C EMISSION BANDWIDTH D PEAK TRANSMIT POWER E POWER SPECTRAL DENSITY F RANDOM WAITING INTERVAL G EMISSIONS INSIDE AND OUTSIDE THE SUB-BAND - RADIATED H BANDEDGE COMPLIANCE – CONDUCTED I FRAME PERIOD J EQUIPMENT CALIBRATION K Notes: 1. Component failure during test YES [ ] NO [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. 4. The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RU1175/6575 Page 3 of 63 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: S30-CEL-TA PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC RULES CFR 47, Part 15D June 2005 TEST RESULT: Compliant to Specification EQUIPMENT UNDER TEST: CellCom Transceiver/Antenna EQUIPMENT SERIAL No: 359AX/12/05/370-2 EQUIPMENT TYPE: UPCS Transceiver PRODUCT USE: Personal communications CARRIER POWER: 19.00 dBm ANTENNA TYPE: Integral ALTERNATIVE ANTENNA: Not Applicable BAND OF OPERATION: 1920 MHz – 1930 MHz CHANNEL SPACING: Not Applicable NUMBER OF CHANNELS: 5 Frequencies, 6 double time slots per frequency giving 30 channels FREQUENCY GENERATION: SAW Resonator [ ] Crystal [ ] Synthesiser [X] MODULATION METHOD: Amplitude [ ] Digital [X] Angle [ ] POWER SOURCE(s): 24 Vdc or 110 Vac TEST DATE(s): 6 th June 2005 – 30 th September 2005 ORDER No(s): 90482 APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TESTED BY: D WINSTANLEY APPROVED BY: P GREEN EMC PRODUCT MANAGER RU1175/6575 Page 4 of 63 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): CellCom Transceiver/Antenna EQUIPMENT TYPE: UPCS Transceiver SERIAL NUMBER OF EUT: 359AX/12/05/370-2 PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC RULES CFR 47, Part 15D June 2005 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S ORDER No(s): 90482 APPLICANT’S CONTACT PERSON(s): Mr Jiou-pahn Lee E-mail address: [email protected] APPLICANT: Vitec Group Communications ADDRESS: 7400 Beach Drive Cambridge Research Park Cambridge CB5 9TP TEL: +44 (0) 1223 815 000 FAX: +44 (0) 1223 815 001 TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 6 th June 2005 – 30 th September 2005 TEST REPORT No: RU1175/6575 RU1175/6575 Page 5 of 63 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION RULE PART APPLICABILITY Coordination with Fixed Microwave Service 15.307 (b) Yes Cross reference to Subpart B 15.309 (b) Yes Labelling Requirements 15.311 15.19 (a)(3) Yes Measurement Procedures 15.313 Yes Antenna Requirement 15.317 15.203 Yes Modulation Techniques 15.319 (b) Yes Conducted AC Powerline 15.315 15.207 Yes Emission Bandwidth 15.323 (a) Yes Peak Transmit Power 15.319 (c) Yes Power Spectral Density 15.319 (d) Yes Antenna Gain 15.319 (e) Yes Automatic Discontinuation of Transmission 15.319 (f) Yes Radio Frequency Radiation Exposure 15.319 (i) No note 2 Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) Yes Monitoring of Intended Transmit Window and Maximum Reaction Time 15.323 (c)(1) Yes Monitoring Bandwidth 15.323 (c)(7) Yes Random Waiting Interval 15.323 (c)(6) Yes Duration of Transmission 15.323 (c)(3) Yes Connection Acknowledgement 15.323 (c)(4) Yes Lower threshold Selected Channel, Power Accuracy, Segment Occupancy 15.323 (c)(5) Yes Monitoring Antenna 15.323 (c)(8) Yes Duplex Connections 15.323 (c)(10) No note 3 Alternative Monitoring Interval for Co-located Devices 15.323 (c)(11) No note 4 Fair Access to Spectrum Related to (c)(10) & (c)(11) 15.323 (c)(12) Yes Emission Inside and Outside the Sub-band 15.323 (d) Yes Frame Period 15.323 (e) Yes Frequency Stability 15.323 (f) Yes note: 1. Requirement removed April 4 th 2005 see public notice DX 05-1005 2. EUT is not used within 20 cm of the body 3. The EUT is the responding device; see TRL report RU1175/6574 for results. 4. Not utilized by this EUT as devices will not be co-located within 1m of each other. RU1175/6575 Page 6 of 63 2. Product Use: Personal Communications 3. Duty Cycle: 8.33% 4. Transmitter bit or pulse rate and level: 2M…

Text truncated - open the document above for the full version.
