S4CKC9512FM Transmitter with Auto Power Adapter

KC-9512/P-25 Digital FM Transmitter with Auto Power Adaptor Instruction Manual FM Transmitter with Car Adapter is designed for the iPod/mini iPod/iPod Photo/iPod nano/iPod Video consoles to use on the road. The Car Adapter not only charges your iPod, but also broadcast music through the FM radio channels in automobile. FM Transmitter can memorize the channel for easier search. It enables iPod playing music without earphone and let everyone inside automobile could share the joy of listening hot songs together. Features 1. Listening and Charging iPod at the same time 2. Safe placement to your iPod by 6 plates for different models of iPod. 3. Car Adaptor can move up and down with 5 different angles for large extent of flexibility 4. The clear blue bar 5. Lcd display the frequency 6. Easy Operation by Up and Down buttons to select radio frequency 7. Digital frequency selection allows stable and clear broadcast of the FM Transmitter 8. LED lights up on the top of Car Adapter for indication of connection 9. Memorize your channel, keep away interference from other FM signals Operation 1. Turn off iPod console before connecting FM Transmitter with Car Adapter 2. Select the appropriate tray (shown under the tray) to match up with your corresponding iPod console. 3. Plug the Car Adapter into the cigarette socket of your car, the LED on the top of Car Adapter will then light on and the FM transmitter will then display the channel 4. Plug the power cable into the iPod console which will indicates charging status if connected properly 5. Turn on the iPod 6. Press the Up or Down button of FM transmitter to select the frequency 7. Make sure to match the FM Transmitter with your car radio on the same frequency, and then car’s FM stereo could broadcast the music of iPod if succeed. 8. Pressing MEM(M) button to memorize the desired radio channel 9. Turn off iPod before unplug FM transmitter with Car Adapter or when not in use 10. Store and overwrite the channel: l Choose the desired frequency by pressing UP or Down button l Press the MEM continuously until the “M” appears on the screen and the unit of frequency flashes below. l When the unit of frequency flashes 3 times, it represents for success of storage. Release the button and select the other desired frequency. Specification 1. Input Voltage: DC12 V 0.8A 2. Output Voltage: DC11.3 V 0.8A 3. Safety fuse: 1A 4. High-stability crystal oscillator 5. Phase-lock loop control 6. Radio Frequency Range: 88.1MHz-107.9MHz 7. Frequency Response: 150Hz to 20KHz 8. Stereo separation:-25dB at 25cm 9. Signal distortion: less than 5% 10. Station Memory Presets: 10 Channels 11. Maximum receivable range: 19.5 feet Precautions l When iPod is in use with FM transmitter with Car Adaptor, avoid using it with any devices simultaneously. "NOTE:Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment." NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC ID: S4CKC9512 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Date:25/11/2005

KC-9502/P-25 logic drawing describe： 1. Audio input is dealt the impedance, then it be sent to BH 1415 transmitter module. The transmitter module transmit the FM any one signal form 88.1 to 107.9 according require of the transmitter conctroller. The audio signal be transmitted via the transmit antenna. 2. Power input and power step-down, the 12v voltage is step down to 5v, the transmitter, the transmitter conctroller and the memory operation voltage is 5v, it makes three parts working good. 3. Operation key, operating the transmitting frequency and memory the frequency. 4. Power output: the input power 12 or 24 be output 11.3 or 23.3v to recharge to ipod. Transmit antenna Audio input Audio impedance match net FM transmit module FM transmit controller & LCD display controller Channel memory Key controller Power input Power output Power Step-down

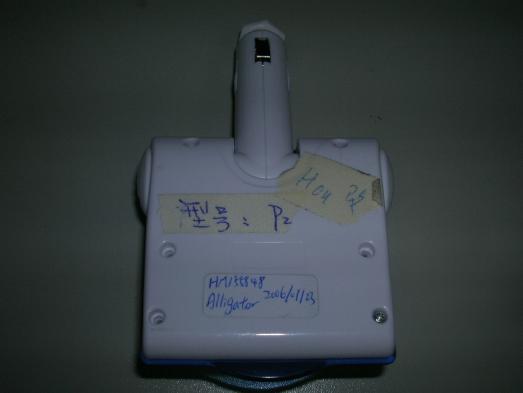

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: S4CKC9512 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Circuit Describe： 1. Audio input is dealt the impedance, then it be sent to BH 1415 transmitter module. The transmitter module transmit the FM any one signal form 88.1 to 107.9 according require of the transmitter conctroller. The audio signal be transmitted via the transmit antenna. 2. Power input and power step-down, the 12v voltage is step down to 5v, the transmitter, the transmitter conctroller and the memory operation voltage is 5v, it makes three parts working good. 3. Operation key, operating the transmitting frequency and memory the frequency. 4. Power output: the input power 12 or 24 be output 11.3 or 23.3v to recharge to ipod.

<Drawn By> <Checked By> <QC By> <Released By> <Drawn Date><Checked Date><QC Date><Release Date> <Company Name> <Title> <Code> B <Drawing Number> <Revision> <Scale> 1 1 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED:DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR D1 1N4001 R30 1R /1W + C1 47uF/16V + C2 47uF/16V D2 1.5KE27A

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 1 of 21 No. : HM155848 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Alligator Game Company Limited Flat 4, 10 th floor, GoodLuck Industrial Centre, 808 Lai Chi Kok Road, Cheung Sha Wan, Kowloon, Hong Kong Description of Samples: Model name: FM Transmitter with Auto Power Adaptor Model no.: KC-9512/P-25 Brand name: MAXELL FCC ID: S4CKC9512 Date Samples Received: 2006-01-11 Date Tested: 2006-02-08 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- LEE Kam Chuen, EMD For and on behalf of The Hong Kong Standards and Testing Centre Ltd. 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 2 of 21 No. : HM155848 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 21 Content Page 2-3 of 21 1.0 General Details 1.1 Test Laboratory Page 4 of 21 1.2 Applicant Details Page 4 of 21 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 21 Description of EUT operation 1.4 Date of Order Page 5 of 21 1.5 Submitted Samples Page 5 of 21 1.6 Test Duration Page 5 of 21 1.7 Country of Origin Page 5 of 21 2.0 Technical Details 2.1 Investigations Requested Page 6 of 21 2.2 Test Standards and Results Summary Page 6 of 21 3.0 Test Results 3.1 Emission Page 7-16 of 21 3.2 Bandwidth Measurement Page 17-18 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 3 of 21 No. : HM155848 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 19 of 21 Appendix B Photographs Page 20-21 of 21 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 4 of 21 No. : HM155848 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Alligator Game Company Limited. Flat 4, 10/FL., Goodluck Industrial Centre, 808 Lai Chi Kok Rd., Cheung Sha Wan, Kowloon, Hong Kong. Manufacturer Shenzhen King Chuang Tech & Electronic Co., Ltd. Block A, Mountain Top, fuyuan Industrial Zone, Jiuwei , Xixiang Town, BaoAn District Shenzhen Guangdong Province P.R.China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 5 of 21 No. : HM155848 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: FM Transmitter with Auto Power Adaptor Manufacturer: Shenzhen King Chuang Tech & Electronic Co., Ltd. Brand Name: MAXELL Model Number: KC-9512/P-25 Input Voltage: 12Vd.c. 0.8A 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is an Alligator Game Company Limited., The transmitter is a 3 button transmitter. The EUT continues to transmit while trigger is being pressed. It is voice transmitter, modulation by I-Pod and type is frequency modulation. 1.4 Date of Order 2006-01-11 1.5 Submitted Sample(s): 1 Sample per model 1.6 Test Duration 2006-02-08 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2006-02-18 TEST REPORT Page 6 of 21 No. : HM155848 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4: 2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.239 ANSI C63.4:2003 N/A Radiated…
