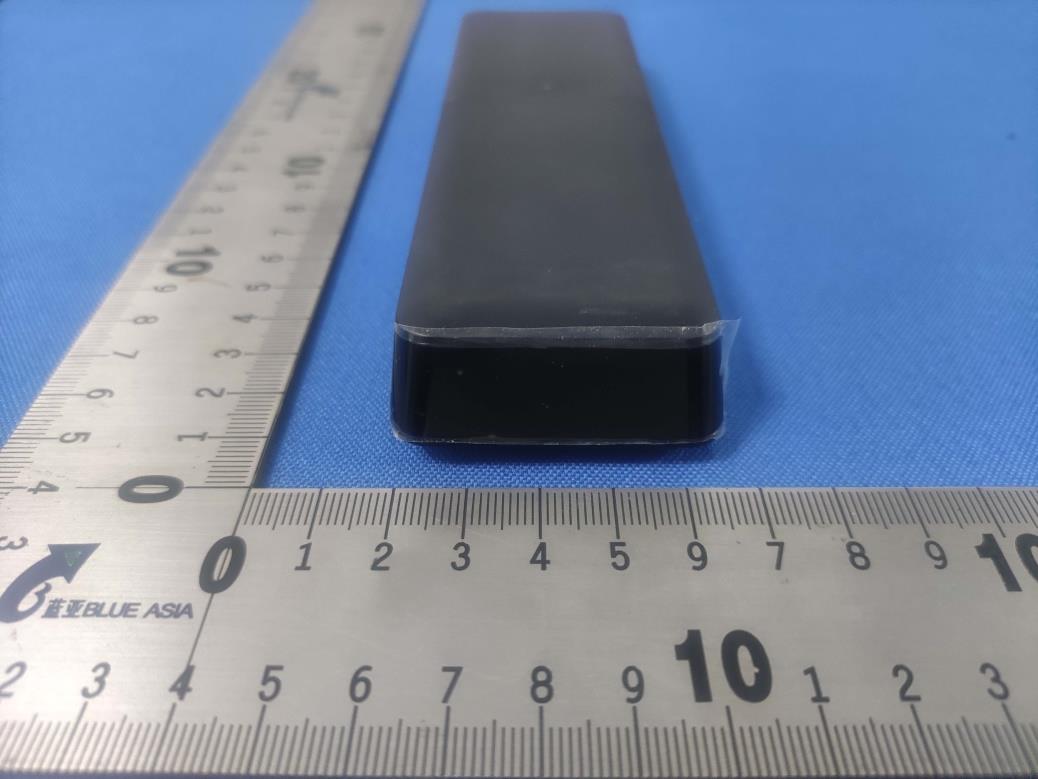

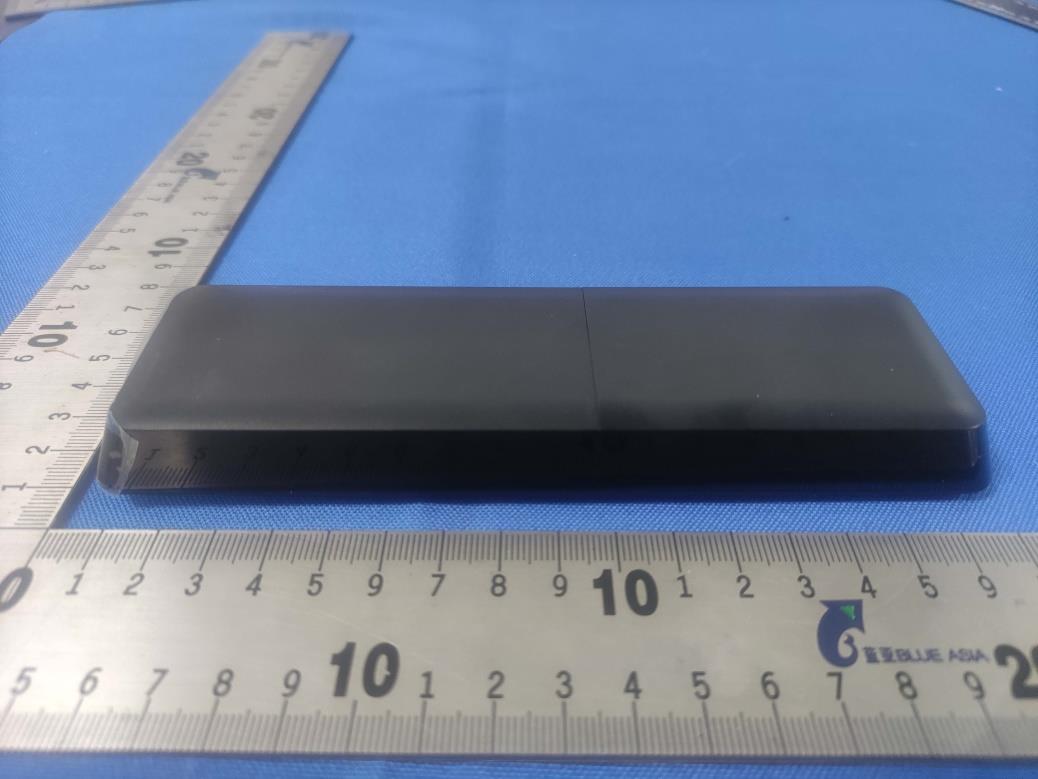

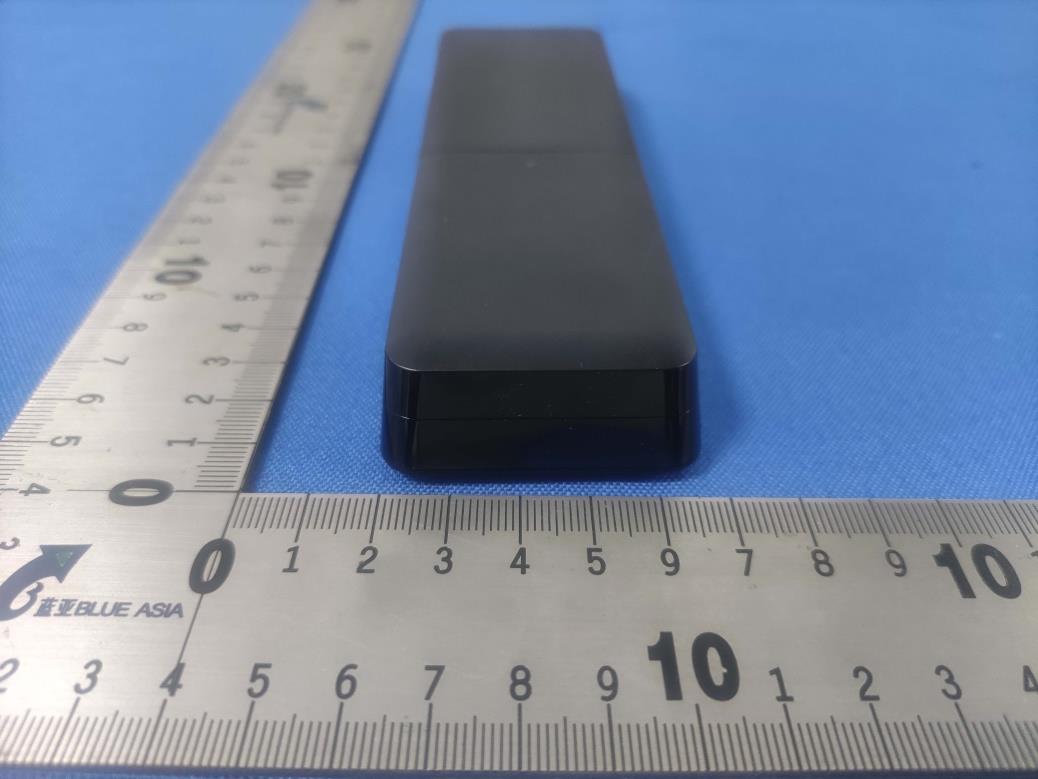

S4X-RF439ARemote Control

深圳市创荣发电子有限公司 SHENZHEN C&D ELECTRONICS CO., LTD. 遥控器产品规格书 Remote control Specification 文件编号： 客户确认（盖章） 客户名称 审核 批准 产品名称 Product name RF439A IR/BLE Voice Remote Control C&D产品型号Part NO 135439A0001 客户型号Funai Part No URMT26CND001 生产厂家Production factory Shenzhen C&D Electronics Co., Ltd. 生产商地址Production factory address 9/F, Tower 9A, Baoneng Science & Technology Park, 1Qingxiang Road, Longhua District, Shenzhen 批准 Beiqi Li 审核 Chunhe Tan 拟制 Yanling Fu If any matter related to these specifications needs to be clarified, discussions shall be hold promptly the two parties concerned the to determine the issue. 如规格书中的任何内容需要解释，需双方讨论定夺. 版本记录Version： 版本 Version 日期Date 姓名Name 备注Notes V1.0 2021-2-2 Yanling Fu Draft V1.1 2021-3-22 Yanling Fu 2、目录Index NO. appellation 1 规格书封面 (Approval Sheet Cover) 2 目录 (Index) 3 检验内容及要求 (Verification content & Requirement) 4 产品效果图 (Product Cosmetics drawing) 5 按键码值 (Code table) 6 产品功能（software function） 7 遥控器原理图(Schematic diagram) 8 PCB图 Board diagram (2Layer) 9 产品BOM清单 BOM Material list 10 产品结构尺寸图纸(product structure views) 11 产品包装示意图(Packing drawing) 12 QC流程图QC Flow Chart 深圳市创荣发电子有限公司 SHENZHEN C&D ELECTRONICS CO., LTD. Page 3/42 三、检验内容及要求 (Verification content & Requirement) 1、 一般项目(General Items) 1.1、 适用范围Apply for: RF439A Remote Control 1.2、 工作环境Working Environment: 0°C~45°C、5﹪~80﹪RH 1.3、 存储温度Storage Environment:-20°C~60°C，5﹪~90﹪RH 1.4、 试验环境Test Environment:5°C~35°C、45﹪~75﹪RH、86~106Kpa 1.5、 额定电压Rating Voltage:DC3.0V 1.6、 适用电池Battery: R03/AAA x2pcs 1.7、 重量范围Weight：77g(Without battery) 1.8、 产品尺寸：165.30*48.00*20.00mm 2、 可视检测项目Visible Test Item 测试条件Test Conditions A:正面在标准光源下30CM距离10秒以内目测Put the top face under the standard light source and test by sight from the 30cm distance for 10 seconds B:其余面标准光源下50CM距离5秒以内目测Put other sides under the standard light source and test by sight from the 50cm distance for 5 seconds 序号 No. 项目Item 测试要求Test Requirements 2.1 划伤、沾污、割裂、变形 Scratches, Stain and distortion of the Unit 无上述各种现象No described situations 2.2 印刷图形及文字 Hot Stamped Graphics and Letters 内容正确、清晰、均匀、整齐 Correct, in focus and comply with the drawing 2.3 壳体配合Match of top case and bottom case 无翘起、变形、开裂、断差。（离缝: 0.1mm; 刮手: 底 刮<0.1mm, 无面刮，电池盖与后盖弧面断差小于 0.05mm，只允许顺差，不允许逆差） No distortion and Crack between the twoparts 2.4 表面Appearance 材质正确、顔色一致Correct material and color 深圳市创荣发电子有限公司 SHENZHEN C&D ELECTRONICS CO., LTD. Page 4/42 3、 电气性能Electric Capability 序号 项目 测试要求Test Requirements 3.0 主控芯片IC Airoha AB1613 3.1 软件版本 FW Version RF439A-V06 3.2 蓝牙版本Bluetooth version Bluetooth LE 4.2 3.3 按键数量 Number of Keys 26 Keys (including Mic. Key) 3.4 遥控器设备名称 Remote control device name Philips TV Voice RC_6 3.5 载波频率Carrier frequency 2402MHz ~ 2480MHz跳频 3.6 工作电压Working Voltage 2.0v ~3.3v 3.7 待机电流Static Current ≤10uA 在3.0V 电压下，配对后的遥控器静置30秒后（进入深度睡眠状态） 后测量其电流.At 3.0v, the paired remote is left to rest for 30 sec (deep sleep) before the current is measured. 3.8 工作电流Working Current RF按键工作电流RF Key working current≤15mA 红外IR<40mA 语音 voice <20mA 3.9 IR发射距离IR distance （工作电压3.0V）Working Voltage(3V) IR方案一：用船井电视机测试遥控器 Use the funai TV to Test the remote control: 1. Long distance长距离 - Front（前） : 7m - LR（左右） 30°: 5m - Up（上） 15°: 5m- Down （下）30°:5m IR方案二：用接收治具测试遥控器 Use the receive to Test the remote control: 1. Long distance 长距离 - Front（前） : 10m - LR 30°（左右）: 8m - Up 15°（上）: 8m - Down 30°（下）:8m 3.10 RF发射距离RF distance （工作电压3.0V）Working Voltage(3V) Measure the distance that Voice transmitting function can be guaranteed for the TV set or the PC in the specified place(the test site) 测试语音是否可以到达的指定位置的电视机/PC的位置。 ->Distance ≧10m google的要求是±30°，＞10m. 3.11 蓝牙输出功率 RF transmission power 1dbm~5dbm 3.12 初始频率偏移 Carrier frequency offset, drift -75KHz≤fo≤75KHz 深圳市创荣发电子有限公司 SHENZHEN C&D ELECTRONICS CO., LTD. Page 5/42 3.13 语音采样率Audio feature Google ATV Voice On-air data rate: 64kbps [16kHz/16bit/4:1 ADPCM Compression]and 32kbps [8kHz/16bit/4:1 ADPCM Compression] Press & Release Talk Voice timeout: 30sec 3.14 语音信噪比Audio SNR Evaluate the SNR of Voice data(wav.) that be captured 评估所评估语音的信噪比如下： [Google ATV Help] THD MUST be less than 5% @1kHz, (94dB SPL as referenceAudio input sensitivity: 94dB SPL as refrence sound pressure level). 3.15 低电压提示 Battery Level - Battery Level is sent to TV by NOTIFY. Format : UINT8, Unit : percent。电视机上以%显示当前电池电量. 3.16 性能测试Key functional test Each key must be operated effectively.每个按键需操作有效. 3.17 睡眠 Sleep After any button of the remote control is released, if there is no button within 60s, it will sleep completely.遥控器任一按键松开后，如果60s 内 无按键则彻底睡眠. MIC key released : RCU enter to sleep after 30s. (Exception : During the period of OTA, the wake up will be allowed for up to 15minutes.) 3.18 唤醒 Awake ≤500mS. Remote control in sleep, trigger any button, wake up the remote control 遥控器在睡眠状况下，触发任一按键，启动遥控器. 3.19 OTA功能 支持OTA功能; Support OTA. 3.20 支持操作系统 Android version of TV Android9.0及以上版本 Android 9 Pie (Supports updates to Android 12)。 深圳市创荣发电子有限公司 SHENZHEN C&D ELECTRONICS CO., LTD. Page 6/42 4、 机械性能Mechanical Capacity S/N 项目 Item 需求 Requirement 测试条件 Test Condition 4.1 外观检查 Appearance inspection 没有明显缺点. No obvious defect 50 厘米检查外观. Distance 50 cm to check appearance 4.2 按键行程Key stroke 0.4mm±0.3m，The keys bounce well.具体要求 手感清脆，无卡键. 力点在键中心 时测量. The point of force is measured at the center of the bond 4.3 按键力Button strength 带锅仔片按键With metal dome:300±100g其余 键按键力Without metal dome:200±60g 产品按放在测试平台上，用直径 4 毫米针状物按 压按键，并测力的大小。Put the product on the test platform, press the button with a 4mm diameter needle and test the pressure. 4.4 耐温水测试Warm water test 检查遥控器的表面色调有无变化,字符,标志是否 被擦掉. Check whether the surface color of the 用滴管将 60°C的温水,滴在遥控器的表面的三个 不同部位(包括字符,图形符号部位),每部位滴 3.21 Battery life test 电池寿命测试 Target 36 months -Idle 理想的状态是36个月 ● Calculate based on quiescent current Target 12 months -Active 基于静止与工作电流计算，目前是12个月 ● Calculate based on daily key presses and BLE voice usage 基于日常按键使用和语音使用计算 ○ Example usage:示例使用： ■ # of Key presses over BLE per day#按键每天使用次数超过语音按键 ● 200 ■ Total duration of BLE voice per day每日语音使用总时长 ● 140 seconds ● 20 activities wit…

Text truncated - open the document above for the full version.

Model No.: RF439A

Model No. : RF439A FCC ID : S4X-RF439A IC : 6733A-RF439A Shenzhen C&D Elec tronics Co., Ltd.

Model No.: RF439A

RF Exposure Evaluation Statement Product Name: Remote control Model No.：RF439A FCC ID：S4X-RF439A 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode: LE Channel Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2402 3.55 ±1 4.55 2.85 0.88 3 2442 3.56 ±1 4.56 2.85 0.89 2480 3.99 ±1 4.99 3.16 0.99 Conclusion: the calculated value ≤3.0, SAR is exempted.

Page 1 of56 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Remote control Brand Mark : N/A Model No. : RF439A FCC ID : S4X-RF439A Report Number : BLA-EMC-202103-A11301 Date of Sample Receipt : 2021/3/26 Date of Test : 2021/3/26 to 2021/4/9 Date of Issue : 2021/4/9 Test Standard : 47 CFR Part 15, Subpart C 15.247 Test Result : Pass Prepared for: Shenzhen C&D Electronics Co., Ltd. Building 2, Xia You Song Mountaintop Industrial Di YouSong Village, Longhua Town, Bao'an District Shenzhen Guangdong China Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/4/9 Report No.: BLA-EMC-202103-A11301 Page 2 of56 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/4/9 Original 01 2021/4/14 Change the model Report No.: BLA-EMC-202103-A11301 Page 3 of56 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 RADIATED SPURIOUS EMISSIONS ....................................................................................................... 12 1.1 LIMITS ................................................................................................................................................................... 12 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 13 1.3 PROCEDURE .......................................................................................................................................................... 13 1.4 TEST DATA .............................................................................................................................................................. 15 3 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 23 3.1 LIMITS ................................................................................................................................................................... 23 3.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 24 3.3 PROCEDURE .......................................................................................................................................................... 24 3.4 TEST DATA .............................................................................................................................................................. 26 4 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 30 4.1 LIMITS ................................................................................................................................................................... 30 4.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 30 4.3 TEST DATA .............................................................................................................................................................. 30 5 CONDUCTED BAND EDGES MEASUREMENT ..................................................................................... 31 5.1 LIMITS ................................................................................................................................................................... 31 5.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 31 5.3 TEST DATA .............................................................................................................................................................. 31 6 POWER SPECTRUM DENSITY ............................................................................................................... 32 6.1 LIMITS ................................................................................................................................................................... 32 6.2 BLOCK DIAGRAM OF TEST SETUP .........................…

Text truncated - open the document above for the full version.

Model No.: RF439A
