S52-1-07-00-00-1iCell� Compact Macro 1xRTT IP‐RAN

800MHz 1X Compact BTS 3U-2U Front Back One Side The other side

iCell BTS FCC ID / IC Label Part Number: 88194445GS Rev A3 FCC ID: S52-1-07-00-00-1 IC: 8076A-10700001 Product Serial # iCell 1X Indoor Compact BTS, Macro, 800MHz FB Please refer to Pantone ̈ Color Specier for exact colors. ood white SIZE: 1.20” x 1.60” (SQUARE CORNERS) MATERIAL: 5 mil VELVET MATTE LEXAN WITH 3M 468MP TRANSFER ADHESIVE FLAMMABILITY CLASS: UL HB75 IS ACCEPTABLE HOWEVER UL 94V0 IS PREFERRED THIS PART MUST BE RoHS COMPLIANT DIE LINE DOES NOT PRINT WHITE FLOODS BEHIND THE ENTIRE PIECE ALL TEXT IN PANTONE BLACK 88194445GS_A3 LABEL, FCC Part 15, COMPACT MACRO BTS, 1”x4", RoHS Part Number: 88194472GS Rev A0 Please refer to Pantone ̈ Color Specier for exact colors. ood white SIZE: 1.00” x 4.00” (SQUARE CORNERS) MATERIAL: 5 mil VELVET MATTE LEXAN WITH 3M 468MP TRANSFER ADHESIVE FLAMMABILITY CLASS: UL HB75 IS ACCEPTABLE HOWEVER UL 94V0 IS PREFERRED THIS PART MUST BE RoHS COMPLIANT DIE LINE DOES NOT PRINT WHITE FLOODS BEHIND THE ENTIRE PIECE ALL TEXT IN PANTONE BLACK 88194472GS Rev A0 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appreil numberique de la class A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada. This Class A digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations. FILE NAME: ABCDE 123 45 ABCDE 23 4 5 1 THIRD ANGLE PROJECTION DESCRIPTION DWG NO. REV. SCALE SIZE SHEET MATERIAL APPLIED FINISH 2 OF 14 0.750 B THIS DRAWING AND DESIGN ARETHE PROPERTY OF STAR SOLUTIONSINTERNATIONAL ULC. THEY ARE SUBMITTED WITH THE CONDITIONTHAT THEY ARE NOT TO BE REPRODUCED OR COPIED; IN PARTOR IN WHOLE, USED TO FURNISH INFORMATION TO OTHERS, OR FOR ANY OTHER PURPOSE THAT MAY BEDEEMED DETRIMENTAL TO THE INTERESTS OF STAR SOLUTIONS INTERNATIONAL ULC. INDEX DESCRIPTION QTY PART NO. 12 iCELL 1X COMPACT MACRO BTS, SECTOR 1 MAIN, 800MHz CABLES AND ACCESSORIES KIT 1 24246629GS 13 THERMALLY CONDUCTIVE COMPOUND 1mL NXX07308GS 14 LABELS, 3U FRONT PANEL, 800MHz 1 88194455GS 15 LBL,iCELL 1x Indoor Compact BTS,Macro,800MHz FB 1 88194445GS 16 RTV GLASS AND METAL SEALANT, CLEAR, -57 TO 177C, ONE PART SILICONE 2mL NXX04429GS 17 STANDOFF, PCB SUPPORT, 1/4", NYLON 4 KXX01810GS 18 RESOLUTION T EMBEDDED GPS MODULE 1 QXX04471GS 19 LABEL, SECURITY, TAMPER EVIDENT 1"x2.5" 2 88191347GS 20 LBL, UL, COMPACT BTS TOP, 1"x 8" 1 88193085GS 21 LBL,"MADE IN CANADA" 1 88193086GS 22 LBL, POWER RATINGS, COMPACT BTS, 1"x0.5" 1 88193265GS 23 LBL, FAN CAUTION, COMPACT BTS TOP, 1"x1.7" 1 88193264GS 24 INSULATOR PAD FOR 3U POWER SUPPLY 1 89400242GS 25 FCC PART 15 LABEL 1 88194472GS INDEX DESCRIPTION QTY PART NO. 1 iCELL COMPACT BTS,SECTOR 1 MAIN,AC,2F MECH SUB ASSY 1 41061200GS 2 3U COMPACT BTS FAN ASSEMBLY 1 24244746GS 3 PSU, 63W, AC/DC, OPFR, DUAL, 5V/12V, iBTS 1 PXX00292GS 4 iCELL SCPA 800MHz, 54dB, 27VDC (Rev 2) 1 QXX05000GS 5 3U 800MHz FULL BAND DUPLEXER/FILTER 1 QXX11461GS 6 1X BTS MODULE, MACRO 3S, 800MHz, ASSEMBLY 1 24242836GS 7 POWER SUPPLY, AC/DC, 85-264Vin, 24Vout, 648W, 3.94x3.23x6.5", -10/70C 1 PXX00936GS 8 3U ACMJ BOARD ASSEMBLY 1 29904762GS 9 LNA/SPLITTER ASSEMBLY FOR 3U, 800MHz 1 24241797GS 10 CIRCUIT BREAKER, 1 POLE, 10A, 250VAC, PUSH TO RESET, SERIES TRIP, PANEL MOUNT, 0/+60C 1 NXX06300GS 11 CONN POWER ENTRY MODULE, 10A, FILTERED W/SWITCH REAR, PANEL MOUNT 1-2 POLE 1 HXX07658GS 24246626DWGS_A3 24246626DWGS N/A 24246626DWGS A3 iCELL 1X COMPACT BTS,MACRO,1F, SECTOR 1 MAIN,800MHz FULLBAND,SCPA,AC ASSY DWG N/A DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE SPECIFIED TOLERANCES:2 PL DECIMALS ± 3 PL DECIMALS ± ANGLES ± SURFACE ROUGHNESS (Ra): 1.6um SIGNATURES DATE DRAWN M.K. 08-Apr-10 DESIGNED H.C. BOS 08-Apr-10 REAR VIEW 10 22 11 21 15 1 FILE NAME: ABCDE 123 45 ABCDE 23 4 5 1 THIRD ANGLE PROJECTION DESCRIPTION DWG NO. REV. SCALE SIZE SHEET MATERIAL APPLIED FINISH 2 OF 13 0.750 B THIS DRAWING AND DESIGN ARETHE PROPERTY OF STAR SOLUTIONSINTERNATIONAL ULC. THEY ARE SUBMITTED WITH THE CONDITIONTHAT THEY ARE NOT TO BE REPRODUCED OR COPIED; IN PARTOR IN WHOLE, USED TO FURNISH INFORMATION TO OTHERS, OR FOR ANY OTHER PURPOSE THAT MAY BEDEEMED DETRIMENTAL TO THE INTERESTS OF STAR SOLUTIONS INTERNATIONAL ULC. INDEX DESCRIPTION QTY PART NO. 11* iCELL COMPACT MACRO BTS 1F, SECTOR 2/3, CABLES AND ACCESSORIES KIT 1 24245123GS 12 THERMALLY CONDUCTIVE COMPOUND 1mL NXX07308GS 13 LABELS, 3U FRONT PANEL, 800MHz 1 88194455GS 14 LBL, FCC, COMPACT BTS TOP, 1"x8" 1 88193085GS 15 LABEL, SECURITY, TAMPER EVIDENT, 1"x2.5" 2 88191347GS 16 LBL, "MADE IN CANADA" 1 88193086GS 17 LBL,FCC,iCELL 1x Indoor Compact BTS,Macro,800MHz FULLBAND, 1 88194445GS 18 LBL, POWER RATINGS, COMPACT BTS, 1"x0.5" 1 88193265GS 19 LBL,FAN CAUTION,COMPACT BTS TOP, 1"x1.7" 1 88193264GS 20 RTV GLASS AND METAL SEALANT, CLEAR, -57 TO 177C, ONE PART SILICONE 2mL NXX04429GS 21 INSULATOR PAD FOR 3U POWER SUPPLY 1 89400242GS 22 CONN, JUMPER, CAP STRIP, 2.54PITCH, WHITE, HEIGHT:5.1mm 1 HXX02331GS 23 FCC PART 15 LABEL 1 88194472GS INDEX DESCRIPTION QTY PART NO. 1 iCELL COMPACT BTS,SECTOR 2/3,AC,MECHANICAL SUB ASSY 1 41060840GS 2 2U COMPACT BTS FAN ASSEMBLY 1 24244745GS 3 POWER SUPPLY AC-DC 90/264VacIN DUAL 12V/12VdcOUT 12.5/0.5AOUT 125W or 150W 3"x5" 1 PXX01745GS 4 iCELL SCPA 800MHz, 54dB, 27VDC (Rev 2) 1 QXX05000GS 5 3U 800MHz FULL BAND DUPLEXER/FILTER 1 QXX11461GS 6 POWER SUPPLY, AC/DC, 85-264Vin, 24Vout, 648W, 3.94x3.23x6.5", -10/70C 1 PXX00936GS 7 3U ACMJ BOARD ASSEMBLY 1 29904762GS 8 LNA/SPLITTER ASSEMBLY FOR 2U, 800MHz 1 24241929GS 9 CIRCUIT BREAKER,1 POLE,10A,250VAC,PUSH TO RESET SERIES TRIP PANEL MOUNT,0/+60C 1 NXX06300GS 10 CONN POWER ENTRY MODULE, 10A FILTERED W/SWITCH, REAR PANEL MOUNT, 1-2 POLE 1 HXX07658GS 24245903DWGS_A3 24245903DWGS N/A 24245903DWGS A3 iCELL COMPACT BTS,MACRO,1F, SECTOR 2/3,800MHz FB,SCPA,AC ASSY DWG N/A DIMENSIONS ARE IN MILLIMETERS UNL…

Text truncated - open the document above for the full version.

Confidentiality Statement: This report and the information contained herein represent the results of testing articles/products identified and selected by the client. The tests were performed to specifications and/or procedures approved by the client. National Technical Systems (“NTS”) makes no representations expressed or implied that such testing fully demonstrates efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article or similar products for a particular purpose. This document shall not be reproduced except in full without written approval from National Technical Systems (“NTS”) and the customer. Certification Test Report CFR 47 FCC Part 22, Subpart H CFR 47 FCC Part 2, Subpart J Industry Canada RSS 129 Star Solutions iCell 1xRTT Indoor Compact BTS 800MHz FCC ID # S52-1-07-00-00-1 IC ID # 8076A-10700001 Project Code CG-1243 Report CG-1243-RA-1-2 Revision: 2 (This report supersedes CG-1243-RA-1-1) April 22, 2010 Prepared for: Star Solutions Author: Daryl Therens Senior Test Specialist Approved by: Nick Kobrosly Director of Canadian Operations Star Solutions FCC ID: S52-1-07-00-00-1 IC ID: 8076A-10700001 Certification Test Report CG-1243-RA-1-2 iCell 1x Indoor Compact BTS 800MHz The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 2 of 35 April 22, 2010 Report Summary Test Facility: National Technical Systems, Canada Product Integrity Laboratory 5151-47 th Street, NE Calgary Alberta T3J 3R2 Accreditation Numbers: 0214.22 Electrical 0214.23 Mechanical Accredited by A2LA The American Association for Laboratory Accreditation CLIENTS SERVED: All interested parties FIELDS OF TESTING: Electrical/Electronic, Mechanical/Physical ACCREDITATION DATE: May 14, 2009 VALID TO: December 31, 2011 Star Solutions Applicant: 120 – 4600 Jacombs Road Richmond, BC, Canada V6V 3B1 Customer Representative: Name: Azadeh Farzin Phone #: (604) 276-0055, x244 Email Address: [email protected] EUT Description 1 EUT Description / Model ManufacturerRevision Serial Number iCell 1xRTT Indoor Compact BTS, Macro, 1F, Sector 1 Main, 800MHz, Fullband (3U Unit) 24246626GS Star SolutionsA3 17MUY4CKEI1H iCell Indoor Compact BTS, Macro, 1F, Sector 2/3, 800MHz FullBand (2, 2U Units) 24245903GS Star SolutionsA3 17NMY4CKEI1L 17NMY4CKEI1K 1 See section 2.1 for more detail. Star Solutions FCC ID: S52-1-07-00-00-1 IC ID: 8076A-10700001 Certification Test Report CG-1243-RA-1-2 iCell 1x Indoor Compact BTS 800MHz The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 3 of 35 April 22, 2010 Test Summary Deviations* from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable FCC Rule Parts Applicable Industry Canada Rule Parts A RF Power Output No No No PASS FCC 2.1046, 22.913, RSS-129 2 , 9.1, 9.2.3 B Occupied Bandwidth (26dB emission bandwidth) No No No PASS FCC 2.1049, 22.917, N/A B Occupied Bandwidth (99% emission bandwidth) No No No PASS N/A RSS-Gen 3 , 4.6.1 C Conducted Spurious Emissions - Band Edge No No No PASS FCC 2.1051, 22.917, RSS-129, 8.1.2 C Unwanted Emissions (offset frequencies > ± 750 kHz and > ± 1.98 MHz) No No No PASS N/A RSS-129, 8.1.2 C Conducted Spurious Emissions No No No PASS FCC 2.1051, 22.917, RSS-129, 8.1.2 C Receiver Spurious Emissions No No No PASS N/A RSS-129, 10 D TX Frequency Stability No No No PASS FCC 2.1055, 22.355, RSS-129, 9.2.1 E Field Strength of Spurious Emissions No No No PASS FCC 2.1053, 22.917, RSS-Gen, RSS-129, 10 Test Result: The product presented for testing complied with test requirements as shown above. Prepared By: _______________________ Daryl Therens Senior Test Specialist Reviewed By: ______________________ Deniz Demirci Senior Wireless / EMC Technologist Approved By: ______________________ Alex Mathews Quality Management Representative 2 RSS-129, Issue 2, September 25, 1999 3 RSS-Gen, Issue 2, June, 2007 Star Solutions FCC ID: S52-1-07-00-00-1 IC ID: 8076A-10700001 Certification Test Report CG-1243-RA-1-2 iCell 1x Indoor Compact BTS 800MHz The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Product Integrity Laboratory, 5151-47 th Street N.E. Tel: 403-568-6605, Fax: 403-568-6970 Confidential Page 4 of 35 April 22, 2010 Table of Contents REPORT SUMMARY..................................................................................................................................................2 TEST SUMMARY........................................................................................................................................................3 REGISTER OF REVISIONS........................................................................................................................................5 1.0 INTRODUCTION..............................................................................…

Text truncated - open the document above for the full version.

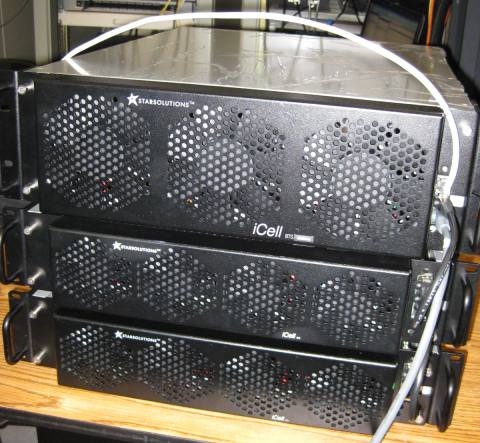

Star Solutions FCC ID: S52-1-07-00-00-1 IC ID: 8076A-10700001 FCC/IC Exhibit CG-1243-RA-1-1 iCell 1x Indoor Compact BTS 800MHz FB Date: April 21, 2010 Revision #: 0 Test Setup Photographs Front view Rear view
