S52-2-09-01-00-1iCell COMPAC DO IP-RAN 1900MHz CPU (/wo CPU) DC

American TCB 6731 Whittier Avenue, Suite C110 McLean, VA. 22101 To whom it may concern: This is a request to hold the internal photos and user manual for FCC ID: S52-2-09-01-00-1 under long term confidentiality. The transmitter is a Cell Base Station where access is controlled and only available to trained personnel. Please note that the internal photos are being asked to be confidential under the FCC guidelines that this is a non-consumer device (Base Station) and is inaccessible to the general public due to the location of the device and it is only serviceable by the licensee or his designated technicians. The user manual is being requested to be confidential under the FCC guidelines that the manual is very technical and is not provided to the general public. The user manual contains proprietary information required for trained installers to commission the base station. The user manual will be used by the licensee or his designated technicians only. Star Solutions has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to “competition” would negate the advantage they have achieved by developing this product. Not protecting the details of design will result in financial hardship. Sincerely, Deniz Demirci Senior Wireless / EMC Engineer Page 1 of 1

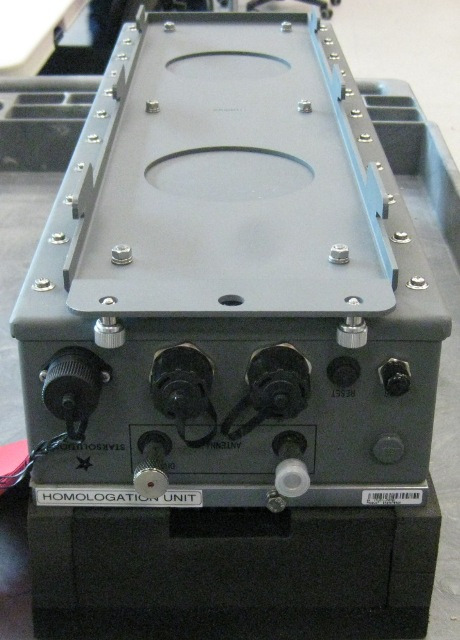

External pictures of iCell COMPAC DO IP-RAN 1900MHz CPU DC Compac front view Side view Front-side view (unit is placed on a table) Back-side view (unit is placed on a table) Bottom-back view Bottom-front view Top-back view

Location of the Compac FCC Label 1 2 3 4 1900 DO 1 FCC: S52-2-09-01-00-1 2 IC: 8076A-20901001 3 4 Part Number 24246729GS 5 6 7 Part Number 24246728GS 8 9 10 11

FCC/IC Exhibit Date: June 1, 2012 Revision #: 0 RF Exposure MPE Exhibit FCC ID: S52-2-09-01-00-1 IC: 8076A-20901001 This device operates at frequencies in the 1900 MHz PCS Band. Maximum permissible exposure in this band is specified under per FCC Part 1, Section 1.1310, Table 1, as 1 mW/cm ². FCC Part 1, Section 1.1307 states that Part 24E (Broadband PCS) devices are excluded from routine environmental evaluation when operating at power levels less than 3280 Watts EIRP. EIRP (Effective Isotropic Radiated Power) is the amount of power that a theoretical isotropic antenna (that evenly distributes power in all directions) would emit to produce the peak power density observed in the direction of maximum antenna gain. EIRP can take into account the losses in transmission line and connectors and includes the gain of the antenna. Where EIRP and P t (power of transmitter) are in dBm, cable losses (Lc) is in dB, and antenna gain (G a) is expressed in dBi, relative to a (theoretical) isotropic reference antenna. No antenna is supplied with this unit. Therefore, based on measured RF output power of 10.96 Watts at 1931.25 MHz and assumption of cable loss is zero, the maximum antenna gain that will allow the EIRP to remain under the environmental evaluation exclusion limit of 3280 Watts is 24.7 dB. MPE is determined by the following relationship: Power Density P d (mW/cm2) = EIRP/4πd² Where d = distance. 3280 Watts = 3.28x10 6 mW Therefore: d = (EIRP/4π P d )1/2 = (3.28x106 mW/ 4π(1 mW/cm²)) 1/2 = 510.89 = 5.1 m The minimum safe distance from a radiating structure exhibiting a maximum gain of 24.7 dB connected to the BTS when installed and transmitting at full output power is 5.1 m. The antenna(s) used for this transmitter must be fixed-mounted on permanent outdoor structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of Section 1.1037(b)(3). .

Radio Test Report FCC Part 24 and RSS 133 Issue 5 (1932.25 MHz to 1988.75 MHz) iCell COMPAC DO IP – RAN 1900MHz CPU DC COMPANY: Star Solutions 4600 Jacombs Road, Suite 120 Richmond, BC V6V 3B1 TEST SITE(S): Elliott Laboratories 41039 Boyce Road. Fremont, CA. 94538-2435 REPORT DATE: May 24, 2012 FINAL TEST DATES: April 3, 10 and 12 and May 3 and 7, 2012 TOTAL NUMBER OF PAGES: 43 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Deniz Demirci David Guidotti Senior Wireless / EMC Engineer Senior Technical Writer Elliott Laboratories is accredited by the A2LA, certificate number 0214.26, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full File: R87648 Page 1 Elliott Laboratories -- EMC Department Test Report Report Date: May 24, 2012 File: R87648 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 05-24-2012 First release Elliott Laboratories -- EMC Department Test Report Report Date: May 24, 2012 File: R87648 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS .......................................................................................................................................................... 6 FCC PART 24 AND RSS 133 ISSUE 5 ..................................................................................................................... 6 EXTREME CONDITIONS ...................................................................................................................................... 6 MEASUREMENT UNCERTAINTIES .................................................................................................................... 7 EQUIPMENT UNDER TEST (EUT) DETAILS ...................................................................................................... 8 GENERAL ................................................................................................................................................................ 8 OTHER EUT DETAILS ........................................................................................................................................... 8 ENCLOSURE ........................................................................................................................................................... 8 MODIFICATIONS ................................................................................................................................................... 8 SUPPORT EQUIPMENT ......................................................................................................................................... 8 EUT INTERFACE PORTS ...................................................................................................................................... 9 EUT OPERATION ................................................................................................................................................... 9 TESTING ................................................................................................................................................................... 10 GENERAL INFORMATION ................................................................................................................................. 10 RF PORT MEASUREMENT PROCEDURES ...................................................................................................... 11 OUTPUT POWER .................................................................................................................................................. 11 BANDWIDTH MEASUREMENTS ...................................................................................................................... 12 CONDUCTED SPURIOUS EMISSIONS .............................................................................................................. 12 TRANSMITTER MASK MEASUREMENTS ....................................................................................................... 13 FREQUENCY STABILITY ................................................................................................................................... 13 TRANSIENT FREQUENCY BEHAVIOR: ............................................…

Text truncated - open the document above for the full version.

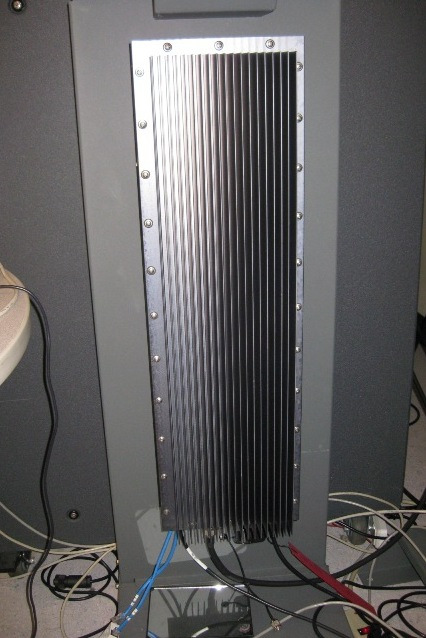

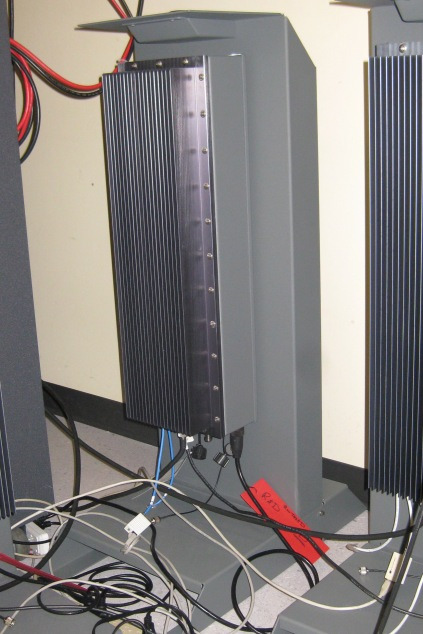

Star Solutions iCell COMPAC DO IP – RAN 1900MHz CPU DC Page 1 of 3 Radiated Emission Star Solutions iCell COMPAC DO IP – RAN 1900MHz CPU DC Page 2 of 3 RF Conducted Star Solutions iCell COMPAC DO IP – RAN 1900MHz CPU DC Page 3 of 3 Frequency Stability
