S53RC2013B27Toy RC Construction Vehicles Excavator

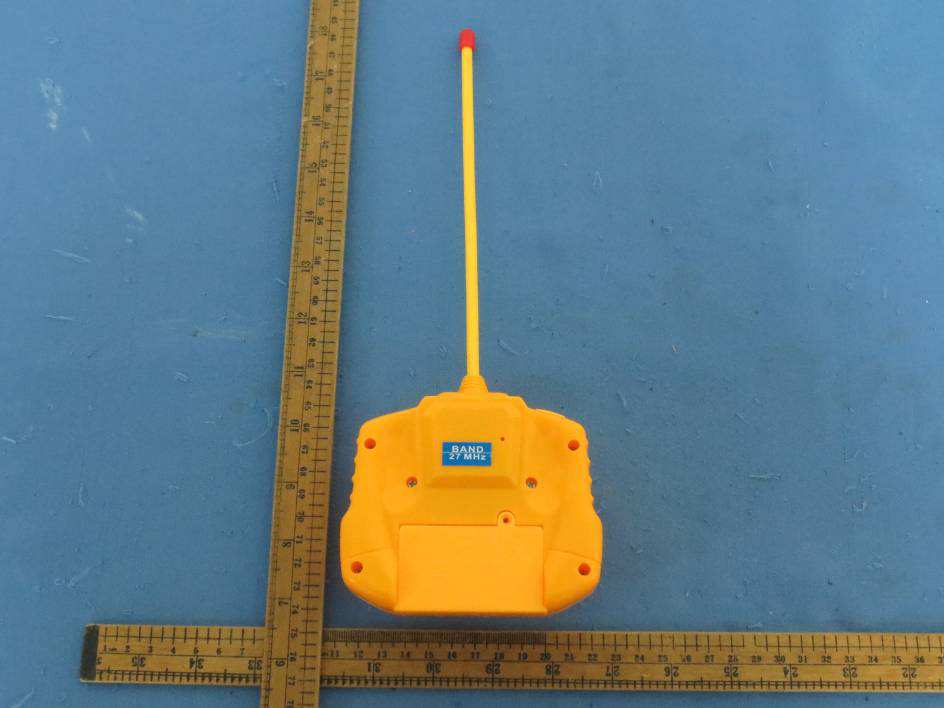

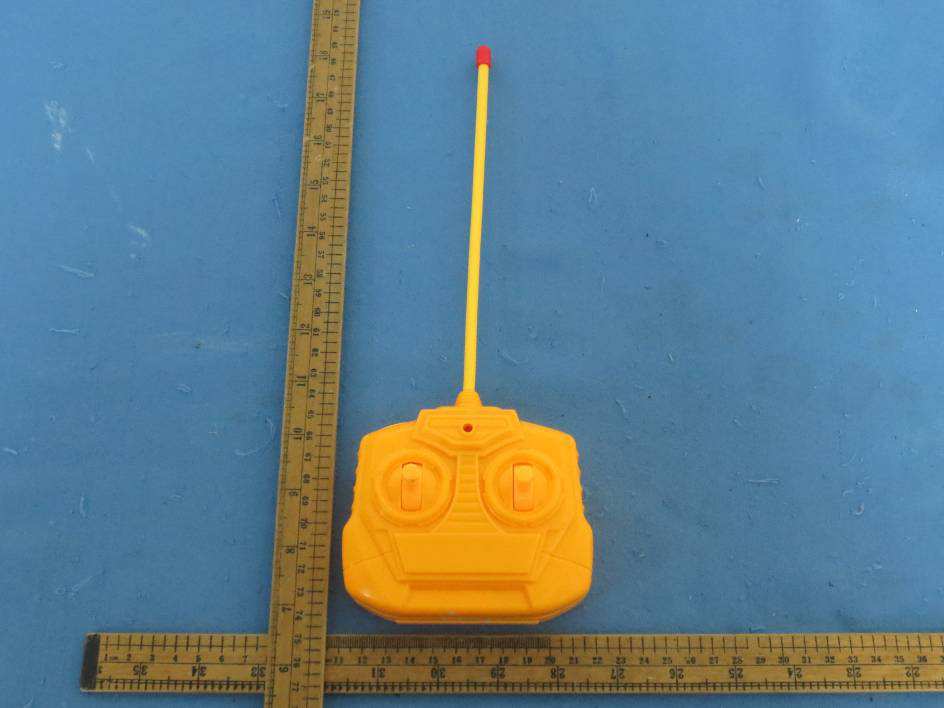

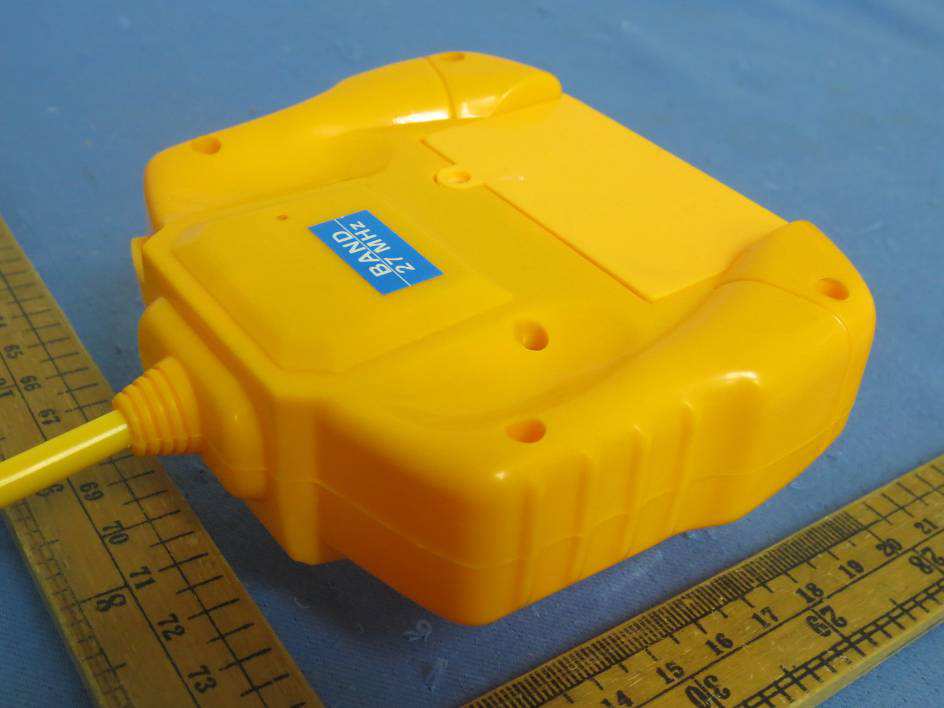

External Photos

Label Artwork and Location Label size: Label size: Label size: Label size: 20 2020 20* ** *20 2020 20 mm mm mm mm FCC ID： ：： ：S53RC2013B27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

1 Analysis Report The equipment under test (EUT) is a portable transmitter for a Toy RC Construction Vehicles Excavator operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by two 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -24.4dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -26.55dBm (+/- 3dB) M odulation Type: Pulse modulation According to the KDB 447498: The worst-case peak radiated emission for the EUT is 70. 3dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -24.93dBm The ERP = EIRP – 2.15 = -27.08 dBm which is within the production variation. The maximum conducted output power specified is -21.4dBm =0.007mW The source- based time-averaging conducted output power = 0.007 * Duty Cycle mW= 0.0031 mW < 0.1 mW The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 32.4ms Effective period of the cycle = 0.5ms x 10 + 1.5ms x 6 = 14.0ms DC = 14.0ms / 32.4ms = 0.432 or 43.2% FCC ID: S53RC2013B27
