S5EBB02158BLUBAND

BluBand™ Installation Guide (DRAFT INSTRUCTIONS – FEB08) BluBand™ FCC ID: S5EBB02158 For body worn operation this device has been tested and meets the FCC RF exposure guidelines. The highest reported SAR value is: 0.0068(W/kg) FCC regulatory statement for Part 15 devices ‐ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. VeriTracks™, BluTag®, BluHome™, BluDrive™, BluBand™ and various software icons are worldwide registered trademarks of Satellite Tracking of People LLC (STOP). Software and Hardware described herein has U.S. and Foreign Patents Pending. STOP provides this publication as is without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information contained herein; these changes will be incorporated in new editions of the publication. STOP may make improvements and/or changes to the products described in this publication at any time. Reproduction of this document is expressly forbidden. © 2007 Satellite Tracking of People LLC. All rights reserved. Before You Begin The BluBand™ will normally be supplied in SLEEP mode. This mode reduces power consumption to a minimum and allows the device to be stored between initial manufacture and first use for up to 6 months. The BluBand™ is activated by light and will enter normal monitoring mode by removing from its box. Once activated the BluBand™ device will operate for at least one year under normal operating conditions The BluBand™ does not have a field replaceable or rechargeable battery. All units should be returned to Satellite Tracking of People (STOP) once the device indicates low battery. The device will last at least two weeks from first notification of low battery until it will cease operating. Please ensure a replacement is fitted during this period The BluBand™ device operates in conjunction with the BluHome™ Device. For optimal performance locate the BluHome™ in the center of the home on the ground floor. It should be placed approximately two to three feet off the floor and away from electronics that may cause interference. • Please refer to the BluDrive operating instruction on how to identify the device and confirm its operating mode and any alarm status being transmitted • Please refer to the BluHome™ installation manual on how to install a BluHome™ in the offenders home • Please refer to the Veritracks operating instructions on how to enter an offender details and to link the BluBand™ device to the offender via a BluHome. To install the BluBand™ device onto the leg you will require a strap, strap cutter and two clips Quick Installation Install one end of the supplied strap into the BluBand™ device ensuring the strap is cut exactly along the guides lines marked (Illustration 1) Illustration 1 Insert the clip into the slot, lining up the clip with the two guide holes in the strap. Press firmly on the clip until the clip clicks into place, sitting just below the main case of the BluBand™ (Illustration 2) Illustration 2 Put the device round the ankle and cut the other end of the strap to fit ensuring the strap is cut along one of the guide lines marked. Insert the strap into the other side of the BluBand™ (Illustration 3) Illustration 3 Insert the second clip into the slot, lining up the clip with the two guide holes in the strap. (Illustration 4) Illustration 4 Press firmly on the clip until the clip clicks into place, sitting just below the main case of the BluBand™. (Illustration 5) Illustration 5 Ensure the BluBand™ is a snug fit by inserting a finger between the BluBand™ and the leg. (Illustration 6) Installation is complete. To ensure the Bluband is transmitting correctly and to confirm no alarms please refer to the DriveBy operating instructions

29th February 2008 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom To whom it may concern This is to certify that Satellite Tracking of People LLC authorises RFI Global Services Ltd to act on our behalf for the application of the BluBand™ to RFI Global Services Ltd. Telecommunication Certification Body. We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Stephen Freathy VP Engineering STOP LLC Satellite Tracking of People LLC 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 832-553.9503 • Fax 832-553-9530 • www.stopllc.com

Date: 29th February 2008 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: S5EBB02158 It is requested that the following information is to be held confidential on behalf of Satellite Tracking of People LLC (STOP LLC) 1212 North Post Oak Road Suite 100, Houston, Texas 77055 FCC Rules Part 0.459 refers. Internal Photos (Number of files (photos) = 4) Block Diagram (Number of files = 1) Schematics (Number of files = 1) Assembly drawings (Number of files = 1) Parts List (Number of files = 1) The reasons for withholding the above materials is that they are commercially confidential and their disclosure could result in competitive harm if they became public as they contain sufficient technical information to allow the construction of a replica device. None of the above information is available to the public and disclosure has been limited to those parties who require the information in order to provide a necessary service. We would require this confidentiality to be maintained for the life of the product. Yours sincerely Stephen Freathy VP Engineering Satellite Tracking of People LLC 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 832-553.9503 • Fax 832-553-9530 • www.stopllc.com

SATELLITE TRACKING OF PEOPLE LLC (STOP) Labelling for BluHome® (Version 1 – Feb 2008) LABEL DETAILS (NOT TO SCALE) LABEL & TEXT DIMENSIONS (MM) Height = 13 Width = 24

Bluband Information and Frequencies General The BluBand employs a Micrel RF505 transceiver chip designed to operate in the 902 – 928 MHz ISM band. The transceiver is configured with 25 channels of 1 MHZ spacing starting at 903MHZ. The application only uses channel 13 at 915 MHz for all communications. In normal use the BluBand is used in transmit mode only Processor Clock – 19.0668 MHz (processor driven directly at this frequency – no PLL) RF Clock – 16 MHz (915 MHz generated using VCO and phase detector) Receiver uses zero IF type architecture. Summary TX/RX Frequency – 915 MHz Max. TX Power - 0dBm (Transceiver RF output) limited by Firmware Max. TX Duty Cycle - 0.041% Min. TX Interval - 27 seconds TX duration - 11ms

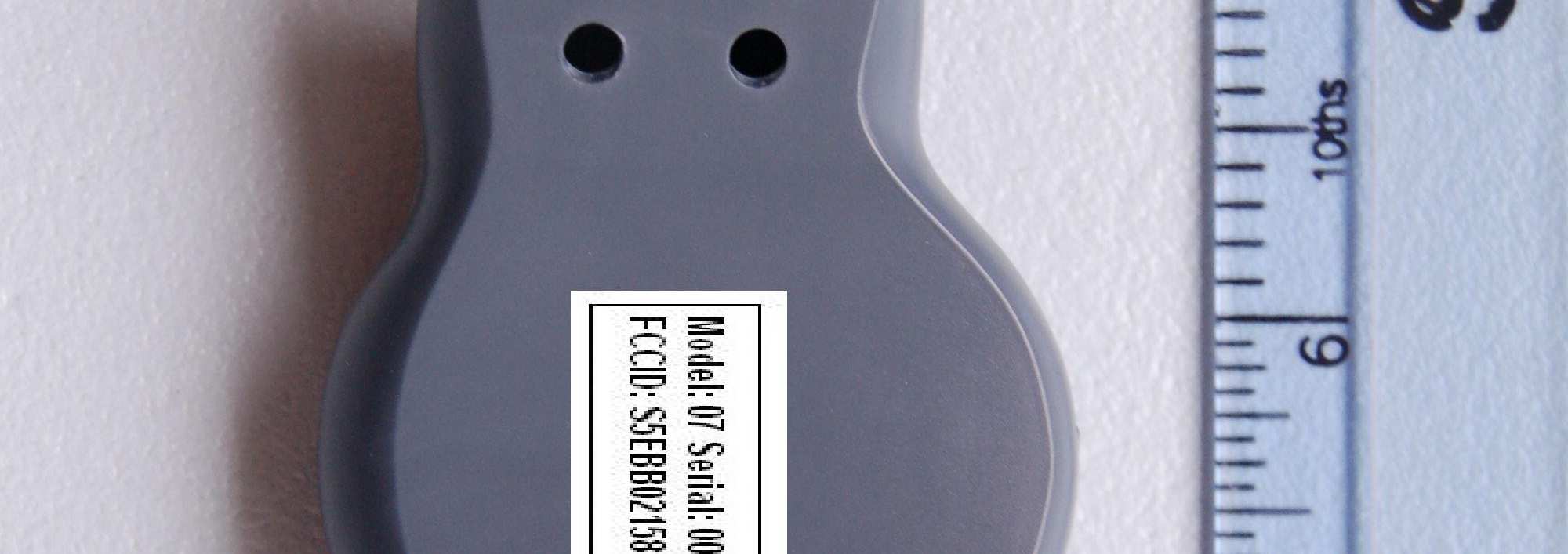

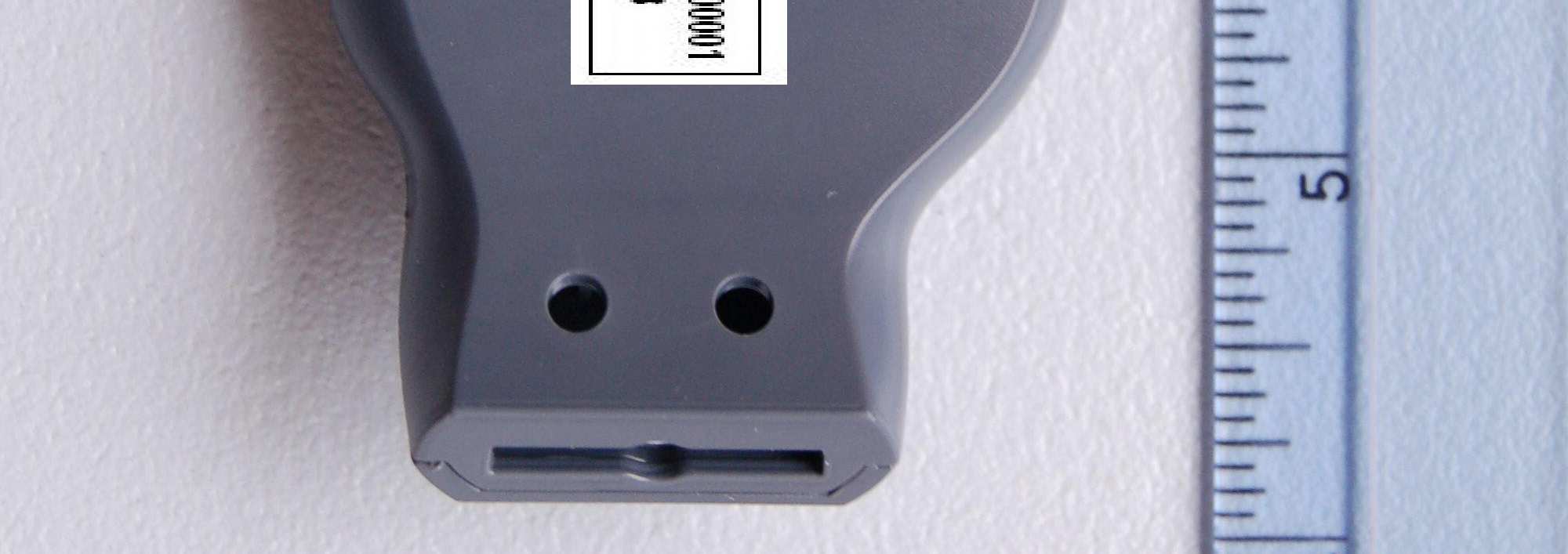

SATELLITE TRACKING OF PEOPLE LLC (STOP) Operational Description of BluBand™ BluBand™ The Bluband™ is an RF device housed within a small body worn case. It is normally worn round the ankle and attached with a strap and two clips. It is powered by an internal 3.6V lithium wafer cell battery that is designed to operate in excess of a year. The cell is not rechargeable. The normal function of a BluBand™ unit is to confirm its presence to a BluHome™ using RF transmissions at random intervals on an approved frequency for the country of operation. A typical use for the product will be to confirm the presence of a person wearing a BluBand™ within the confines of their home. Using a received signal strength indicator (RSSI) and unique ID from the BluBand™ device the BluHome™ can confirm the presence and its approximate distance. BluHome™ is an existing product FCC No. S5EBH0107A The BluBand™ using a transceiver transmits RF pings to a BluHome™ and in response to the ping received back from the BluHome™, the BluBand™ will behave in accordance with its configured set-up. The BluBand™ transmits a unique I.D. as well as any prevailing alarm conditions such as tamper status and low battery. Main Components Main Processor The main processor is a low power microchip enhanced flash type. RF Transceiver The Micrel RF505 transceiver is optimized for use in the ISM 903-928 US frequency band. RF Antenna A 915Mhz PCB mounted antenna. Battery A 3.6V 1Ah Lithium wafer Cell type non-rechargeable Tamper Detect A high sensitivity photodiode and amplifier circuitry together with an infrared emitter is used to detect ambient light levels and signals from the tamper transmit circuitry.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) Test Report Serial No: RFI/RPTE1/RP73051JD01A This Test Report Is Issued Under The Authority Of Steve Flooks, Service Leader Radio Performance Group: Checked By: Steve Flooks Report Copy No: PDF01 Issue Date: 20 March 2008 Test Dates: 20 February 2008 to 27 February 2008 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 2 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 3 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) Table of Contents 1. Client Information ............................................................................................................................4 2. Equipment Under Test (EUT) ..........................................................................................................5 3. Test Specification, Methods and Procedures ...............................................................................7 4. Deviations from the Test Specification..........................................................................................8 5. Operation of the EUT During Testing.............................................................................................9 6. Summary of Test Results ..............................................................................................................10 7. Measurements, Examinations and Derived Results ...................................................................11 8. Measurement Methods ..................................................................................................................20 9. Measurement Uncertainty .............................................................................................................22 Appendix 1. Test Equipment Used ...................................................................................................23 Appendix 2. Test Configuration Drawings.......................................................................................25 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 4 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) 1. Client Information Company Name: Satellite Tracking of People LLC Address: 4801 Woodway Drive Suite 110W Houston Texas 77056 Contact Name: Mr S Freathy RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 5 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Description: RF ankle worn transmitter Brand Name: BluBand Model Name or Number: 07 Serial Number: Sample 2 – SCJ0805 Hardware Version Number: DD27 Issue 2 Software Version Number: 13 FCC ID: S5EBB02158 Country of Manufacture: USA Date of Receipt: 20 February 2008 Description: Lithium Inorganic Battery Brand Name: TADIRAN Model Name or Number: None Stated Serial Number: None Stated Country of Manufacture: USA Date of Receipt: 20 February 2008 2.2. Accessories No accessories were supplied with the EUT. 2.3. Description of EUT The equipment under test is a tracking device. 2.4. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 6 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) 2.5. Additional Information Related to Testing Power Supply Requirement: Internal battery of 3.6 V Intended Operating Environment: Residential Equipment Category: Short Range (902MHz to 928MHz) Type of Unit: Portable (Standalone battery powered device) Transmitter Frequency Range: Not Applicable (Single Channel) Channel ID Channel Frequency (MHz) Transmitter Channels Tested: Single 915 Receiver Frequency Range: Not Applicable (Single Channel) Channel ID Channel Frequency (MHz) Receiver Channels Tested: Single 915 RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/RPTE1/RP73051JD01A Page 7 of 26 Issue Date: 20 March 2008 Test of: Satellite Tracking of People LLC BluBand To: FCC Part 15 Subpart C: 2007 (Sections 15.249) 3. Test Specification, Methods and Procedures 3.1. Test Specifications Reference: FCC Part 15 Subpart C: 2007 (Sections 15.249). Title: Code of Federal Regulations, Part 15 (47CFR215) Radio Frequency Devices. Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the requirements of the specification for the purposes of certification. 3.2. Methods and Procedures The methods and procedures used were as detailed in: ANSI C63.2 (1996) Title: American National Standard for Instrumentation - Electromagnetic noise and field strength. ANSI C63.4 (2003) Title: American National Standard Methods of Measurement of Electromagnetic Emissions from Low Voltage Electrical and Electronic Equipment in the…
