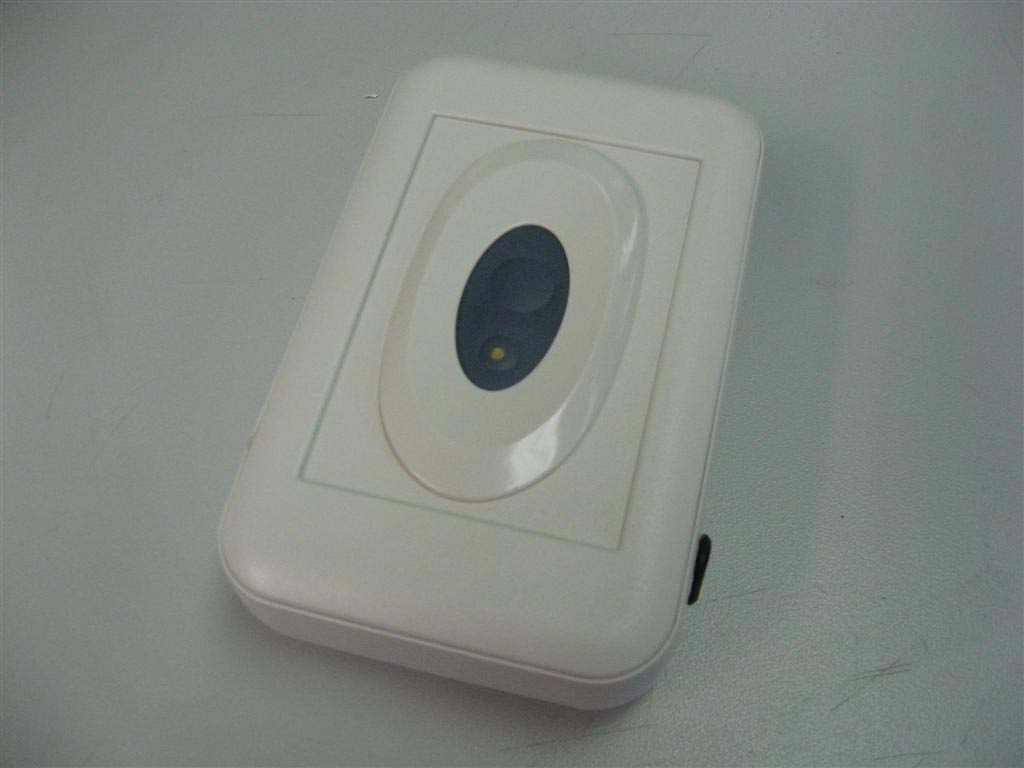

S5EBTV0909BluTag Stalker Alert

Stalker Alert and Stalker Alert and Victim Feature Victim Feature Users GuideUsers Guide https://www.veritracks.comUsername:__________________________ For 24/7 assistance, contact the STOP ® Solutions Center 1-866-703-STOP (7867) | [email protected] Stalker Alert ® and VeriTracks ® Training, Page 2 V e riTr ac k s 1 0 .4 , Bl u T ag v4 & v 5, F eb r ua r y 2 0 1 0 VeriTracks 10.4, BluTag v4 & v5, February 2010 BluTag® complies with Part 15 of the FCC Rules. Op eration is subject to the following two conditions: This device may not cause harmful interference, andThis device must accept any interference received, including interferen ce that may cause undesired operation. RF Exposure (SAR) Statement for BluTag®: (FCC ID S5EAA90048, FCC ID S5EAA70038 & S5E0906BT5)This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. It was tested as an an kle worn device in accordance with OET Bulletin 65 Supplement C. The maximum SAR value reported is 0.572W/Kg (S5E0906BT5 ) and 0.967 W/kg (S5EAA90048) and 0.967 W/kg (S5EAA70038) The GSM and ISM transmitters used in BluT ag are not co-located. The ISM transmitter is operational only when it is required to communicate with the associated equipment. The BluTag is set up automatically to prevent simultaneous tran smission between the GSM and ISM transmitters” RF Exposure Statement for BluBox™ (FCC ID S5EAA90548) and BluHome™ (FCC ID S5EBH0107A) This equipment complies with FCC RF radiation exposure limits se t forth for an uncontrolled environment. The antenna(s) used fo r this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. RF Exposure (SAR) Statement for Stalker Alert®: ( FCC ID S5EBTV0909 ) This equipment complies with FCC RF radiation exposure limits se t forth for an uncontrolled environment. The maximum SAR value reported is 0.389W/Kg The GSM and ISM transmitters used in Stalker Alert are not co -located. The ISM transmitter is operational only when it is required to communicate with the associated equipment. The Stalker Alert is set up automatically to prevent simultaneous tran smission between the GSM and ISM transmitters” WARNING – Changes or modifications to this unit not expressly approved by the party responsib le for compliance could void the user’s au t hority to operate the equipment. Battery SafetyThe Blutag Device contains a non-removable lithium-Ion battery. Do not attempt to remove the battery. Do not dispose of The Blu tag or the lithium-Ion battery in a fire . Please return the Device to Satellite Tracking of People LLC for disposal otherwise only dispose of th e battery or Blutag device in accordance with the laws and regu lations in your area governing disposal of this type of battery. The lithium-Ion battery might present a fire or chemical burn h azard if mistreated. Do not disassemble, crush, or puncture the lithium-Ion battery or the Blutag Device. Do not heat the battery or Blutag ib ( ) Dev i ce a b ove 140°F ( 60°C ) . Copyright Notice© 2008 Satellite Tracking of People LLC. All rights reserved.Reproduction of this document is expre ssly forbidden without wr itten approval from Satellite Tracking of People LLC. VeriTracks®, BluBox™, BluTag®, Bl uHome™ and various software icons are worldwid e registered trademarks of Satellite Tracking of People LLC (STOP). The software described herein ha s U.S. and Foreign Patents Pending. STOP provides this publication as is without warranty of any kind, expressed or imp lied, including, but not limited to, the imp lied warranties of merchantability or fitness for a particular purpose. This publication could include technical in accuracies or typographical errors. Changes are periodically made to the information contained herein; these changes will be incorporated in new editions of the publication. STOP may make improvements and/or changes to the products descri bed in this publication at any time. Stalker Alert ® and VeriTracks ® Training, Page 3 Ob j ectives Ob j ectives jj What will we cover in this Doument? Oi Slid 4 5 O verv i ew Slid es 4 - 5 Victim Enrollment Slides 6 - 19 Proximity Settings Slides 20 24 Proximity Settings Slides 20 - 24 Supervision Slides 25 - 33 Unenrollment Slides 34 – 35 Unenrollment Slides 34 – 35 Stalker Alert ® and VeriTracks ® Training, Page 4 Overview Overview – – Stalker Alert GPS Trackin g Device Stalker Alert GPS Trackin g Device gg • Small compact device easily fits inside a han dbag or briefcase or attaches to a belt or i tb d W i h l th d it di i 4 7” 3” 1 1” wa i s tb an d . W e igh s l ess th an seven ounces an d it s di mens i ons are 4 . 7” x 3” x 1 . 1” . • Operates for 60 hours on a single charge and recharging takes about one hour. • T-Mobile or AT&T cellular service • A charging indicator light assures the wearer that the device is charging. • Low battery indicator vibrates tw ice every 10 minutes for 3-5 hours • Contact Stalker Alert via vibrate and audible alerts Stalker Alert ® and VeriTracks ® Training, Page 5 Overview Overview – – Stalker Alert GPS Trackin g Device ( cont’d ) Stalker Alert GPS Trackin g Device ( cont’d ) g()g() How Stalker Alert works with BluTag• Stalker Alert is assigned to a victim profile similar to the way a BluT ag is assigned to an enrollee profile. • The victim profile and enrollee profile are linked in VeriTracks • Both BluTag and Stalker Alert determine and record their position on Earth once every minute. • VeriTracks stores three concentric zones that “travel” with the Stalker Alert. • When each device reports its GPS, VeriTracks compares the points. If a comparison of BluTag and Stalker Alert points determines th at the enrollee is inside any of the three zones, VeriTracks immediately records the event. • VeriTracks sends immediate notifications to th e supervising agency as well as the victim. • For added safety, …

Text truncated - open the document above for the full version.

Satellite Tracking of People LLC 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 832-553.9500 • Fax 832-553-9530 • www.stopllc.com 15 th October 2009 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: BluTag Stalker Alert FCC Certification, FCC ID: S5EBTV0909 To whom it may concern This is to certify that Satellite Tracking of People LLC authorises RFI Global Services Ltd to act on our behalf for the FCC application of the BluTag Stalker Alert™ (FCC ID: S5EBTV0909). We certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Yours sincerely Stephen Freathy VP Engineering STOP LLC

Satellite Tracking of People LLC 1212 North Post Oak Road, Suite 100, Houston, TX 77055 832-553.9500  Fax 832-553-9530  www.stopllc.com Date: 21 st April 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: S5EBTV0909 It is requested that the following information is to be held confidential on behalf of STOP LLC of 1212 North Post Oak Road, Suite 100, Houston, TX 77055 FCC Rules Part 0.459 refers. Block Diagram (Number of files = 2) Schematics (Number of files = 3) Parts List & Drawings (Number of files = 2) Operational Description (Number of files=1) The reasons for withholding the above materials is that they are commercially confidential and their disclosure could result in competitive harm if they became public as they contain sufficient technical information to allow the construction of a replica device. None of the above information is available to the public and disclosure has been limited to those parties who require the information in order to provide a necessary service. We would require this confidentiality to be maintained for the life of the product. Yours sincerely Stephen Freathy

Satellite Tracking of People LLC 1212 North Post Oak Road, Suite 100, Houston, Texas 77055 832-553.9500  Fax 832-553-9530  www.stopllc.com 5 th May 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: BluTag 5 FCC Certification, FCC ID: S5EBTV0909 To whom it may concern This is to certify that the results of ERP Testing on the 850 MHz are as expected. STOP uses its own dual band antenna that has been optimized for the 1900 MHz network of our preferred provider in the US. We can confirm that our own testing of further samples show a similar performance in that frequency and is due to losses in the antenna. It is also noted that our previous version of Blutag (similar design) showed a similar difference in the performance of the 850MHz and 1900 MHz frequency. Yours sincerely Stephen Freathy VP Engineering STOP LLC

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR2/RP76131JD06A Supersedes Test Report Serial No: RFI/SAR1/RP76131JD06A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals Checked By: Richelieu Quoi Report Copy No: PDF01 Issue Date: 05 May 2010 Test Dates: 12 October 2009 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 2 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 3 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 7 4. Deviations from the Test Specification .......................................................................... 8 5. Operation and Configuration of the EUT during Testing .............................................. 9 6. Summary of Test Results............................................................................................... 10 7. Measurements, Examinations and Derived Results.................................................... 11 8. Measurement Uncertainty.............................................................................................. 15 Appendix 1. Test Equipment Used.................................................................................... 18 Appendix 2. Measurement Methods ................................................................................. 21 Appendix 3. SAR Distribution Scans ................................................................................ 23 Appendix 4. Photographs .................................................................................................. 30 Appendix 5. Validation of System ..................................................................................... 39 Appendix 6. Simulated Tissues......................................................................................... 40 Appendix 7. DASY4 System Details .................................................................................. 41 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 4 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Satellite Tracking of People LLC Address: 1212 North Post Oak Road Suite 100 Houston Texas 77055 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 5 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: GPRS/GPS Tracker Brand Name: Blutag Model Name or Number: Blutag Victim (Model 08) Serial Number: 000015 Hardware Version Number: BB11_V Software Version Number: 4_603 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: S5EBTV0909 Country of Manufacture: None Stated Date of Receipt: 12 October 2009 2.2. Description of EUT The equipment under test was a body worn GPRS/GPS tracker fitted with an inductive transmitter and an ISM 915 MHz transmitter. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT during the course of testing. 2.4. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~1.5m Utiflex Cable Connected to Port: RF Input/Output Port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 6 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Additional Information Related to Testing Equipment Category GPRS850/ GPRS1900 / ISM915 MHz Type of Unit Short Range Device Intended Operating Environment: Within GSM coverage and 915 MHz frequency range GPRS850 Wireless Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 33dBm. GPRS1900 Wireless Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 30dBm. Transmitter Maximum Output Power Characteristics: ISM 915 Class 3 (<10mW) GPRS850 (824 to 850 ) MHz GPRS1900 (1850 to 1910 ) MHz Transmitter Frequency Range: ISM 915 ( 915 ) MHz Channel Number Channel Description Frequency (MHz) 128 Low 824.2 189 Middle 836.4 251 High 848.8 512 Low 1850.2 660 Middle 1879.8 810 High 1909.8 Transmitter Frequency Allocation of EUT When Under Test: 915 Fixed 915.0 Modulation(s): GMSK: 217 Hz Modulation Scheme (Crest Factor): GPRS: 4 Antenna Type: Internal Antenna Length: Unknown Number of Antenna Positions: 1 Fixed Power Supply Requirement: 3.7 V Battery Type(s): Li-ion RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP76131JD06A Page: 7 of 43 Issue Date: 05 May 2010 Test of: Blutag Victim To: OET Bulletin 65 Supplement C: (2001-01) 3. Test Specification, Methods and Procedures 3.1. Test Specification Referenc…

Text truncated - open the document above for the full version.

21 st April 2010 Operational Description The device does not transmit simultaneously. The device has a 915MHz and GSM module the supports only GPRS Class 10 operations just as in KDB tracking number 563910. The SRD 915MHz ISM RF transmitter transmits for a maximum of 11ms, this is the maximum transmission time for the 915 MHz transmitter and not the MC56 module. For the Short Range Device (SRD) transceiver a Micrel RF505 multichannel FSK transceiver IC is employed and designed to operate in the 902‐928 MHz ISM band. It has a conducted average power of <10mW which is < 60/f (GHz). Because of the extremely low averaged conducted output power of the SRD transmitter being less than 60/f, SAR evaluation was not required for the SRD 915 MHz transmitter. The RF application uses a single channel (# 13) at 915 MHz for all half duplex communications. The SRD 915 MHz transceiver functionality is primarily designed to listen for broadcasts from BluTag accessories and periodically broadcast its own ID. The accessories are primarily designed to assist in areas of poor GPS signal to provide an alternative method of ensuring The BluTag Stalker Alert location. There are 2 types of accessories that work with the device. The maximum average output power of the accessories is <10mW. The accessories is used at more than 20 cm from the user and the maximum average output power of the accessories is less than 60/f. Under normal operation the SRD 915 MHz transceiver is in receive mode and will periodically (random period between 57 and 63 seconds), or in response to a particular received broadcast, switch on the 915 MHz transceiver and transmit a short message before switching back to receive mode. The periodic transmit duty cycle of the SRD 915 MHz transceiver is 0.017 ‐ 0.020%. The duration of the 915 MHz transceiver message is 11ms as is any reply. The MC56 module use for the GPRS class‐10 functionality has a conducted average output power of 2watts and transmits a GPRS data burst worst‐case every 60 second. The MC56 transmits for 10 second. As a single GPRS time slot takes 570microsecond. The MC56 uses 17544 time slots to in its transmission that is 17544 in 105264 time slots. In normal operation the MC56 module transmits a GPRS data burst every 600 seconds and the transmission last for 20 seconds. Calculations: The Worst‐case Duty factor = worst‐case transmission time / repetition interval = 10/60 = 0.167 Average out power in the MC56 transmission = 2watts (worst‐case conducted output power from the MC56 module GPRS Class 10)* 0.167 (Duty factor) = 0.33watts Yours sincerely Stephen Freathy VP Engineering STOP LLC

TEST REPORT FROM RFI GLOBAL SERVICES LTD Partial Test of: Blutag Victim To: FCC Part 22.913(a) and FCC Part 24.232 Test Report Serial No: RFI-RPT-RP76131JD04A Version 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: Checked By: Nigel Davison Signature: pp Date of Issue: 14 May 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A VERSION NO. 2.0 ISSUE DATE: 14 MAY 2010 Page 2 of 12 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A ISSUE DATE: 14 MAY 2010 RFI Global Services Ltd Page 3 of 12 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 7 5. Measurements, Examinations and Derived Results .................................................................. 8 6. Measurement Uncertainty .......................................................................................................... 11 Appendix 1. Test Equipment Used ................................................................................................12 TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A VERSION NO. 2.0 ISSUE DATE: 14 MAY 2010 Page 4 of 12 RFI Global Services Ltd 1. Customer Information Company Name: Satellite Tracking of People LLC Address: 1212 North Post Oak Road Suite 100 Houston Texas 77055 USA TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A ISSUE DATE: 14 MAY 2010 RFI Global Services Ltd Page 5 of 12 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 24 Subpart E (Personal Communication Services) Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH Test Dates: 18 October 2009 to 20 November 2009 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result FCC 22.913(a) Transmitter Effective Radiated Power (ERP) FCC 24.232 Transmitter Equivalent Isotropic Radiated Power (EIRP) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile FM or PM - Communications Equipment - Measurement and Performance Standards Reference: ANSI C63.10 (2009) Title: American National Standard Methods for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification ERP and EIRP tests requested only. TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A VERSION NO. 2.0 ISSUE DATE: 14 MAY 2010 Page 6 of 12 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Blutag Model Name or Number: Victim Serial Number: 000015 Hardware Version Number: BB11_V Software Version Number: 4_603 FCC ID Number: S5EBTV0909 3.2. Description of EUT The equipment under test was a body worn GPRS/GPS tracker fitted with an inductive transmitter. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Equipment Category GPRS850 / GPRS1900 Type of Radio Device: Short Range Device Antenna Type: Internal Antenna Gain: <0 dBi Power Supply Requirement(s): 3.7 V 3.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~1.5m Utiflex Cable Connected to Port: RF Input/Output Port TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A ISSUE DATE: 14 MAY 2010 RFI Global Services Ltd Page 7 of 12 4. Operation and Monitoring of the EUT during Testing 4.1. Operating Modes The EUT was tested in the following operating mode(s): • GPRS - Constantly transmitting at full power on bottom, centre and top channels as required. 4.2. Configuration and Peripherals The EUT was tested in the following configuration(s): • The EUT was put into GSM or SRD modes by following the Client’s instructions. The main button was pressed until the Light Emitting Diodes indicated the required mode. • Connected to a calibrated GSM / GPRS system simulator, operating in transceiver mode. • A GSM test SIM was fitted during the GPRS measurements. • The battery was fully charged before testing commenced and recharged as required during the testing. TEST REPORT SERIAL NO: RFI-RPT-RP76131JD04A VERSION NO. 2.0 ISSUE DATE: 14 MAY 2010 Page 8 of 12 RFI Global Services Ltd 5. Measurements, Examinations and Derived Results 5.1. General Comments Measurement uncertainties are evaluated in accordance with current best practice. Our reported expanded uncertainties are based on standard uncertainties, which are multiplied by an appropriate coverage factor to provide a statistical confidence level of approximately 95%. Please refer to Section 6. Measurement Uncertainty for det…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11Issued test report consists of 97 pagesPage 1 (97) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3450-01-01/03 FCC Part 24/22/15 MC56 FCC ID: QIPMC56 IC: 267W-MC56 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 2 (97) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 3 (97) 1.3Details of applicant Name : Siemens AG Street : Siemensdamm 50 City : D-13629 Berlin Country : Germany Telephone : +49 (0)30 386-0 Telefax : +49 (0)30 386-366-56 Contact : Mr. Hussein Halawi Telephone : +49 (0)30 386-302-11 e-mail: [email protected] 1.4Application details Date of receipt of application : 2003-12-03 Date of receipt of test item : 2003-12-03 Date of test : 2003-12-03 1.5Test item Type of equipment : Tripple Band GSM/PCS Module (850/1800/1900 MHz) Type designation:MC56 Manufacturer:applicant Street: City: Country: Serial numbers:IMEI :004999.00.273656.01, Ser Nr. 273056 Additional information: : Frequency:1850.2 – 1909.8 MHz and 824.2 – 848.8 MHz Type of modulation:300KGXW / 300KG7W Number of channels :300 (PCS1900) and 125 (PCS850) Antenna:Coax adapter for use with external antennas, here a standard car magnet antenna Power supply:3,8V DC via connector Output power GSM 850:cond.: 33.0 dBm Peak , ERP: 24.8 dBm (Burst); EIRP: 26.9 dBm (Burst) Output power GSM 1900 :cond : 28.7 dBm Peak , ERP: 25.3 dBm (Burst); EIRP: 27.4 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID:QIPMC56 IC :267W-MC56 Hardware:S30880-S8365-A100(B1) Software:026 1.6Test standards: FCC Part 24, 22 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 4 (97) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link (GPRS mode 10)). Remarks: Test setup :The sample was tested in a special test board to bring power to the card and connect RF over a special coax connector to a standard coax adapter. For radiated measurements we used a standard magnetic dualband mobile antenna mounted on a metal plate to get comparative results. No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-12-15RSC 8414 Ames H. DateSectionNameSignature Technical responsibility for area of testing : 2003-12-15RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 5 (97) 2.2Test report TEST REPORT Test report no. : 2_3450-01-01/03 CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 6 (97) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2328 FREQUENCY STABILITY SUBCLAUSE § 24.23510 AFC FREQ ERROR vs. VOLTAGE11 AFC FREQ ERROR vs. TEMPERATURE11 EMISSIONS LIMITS SUBCLAUSE §24.23813 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.10922 CONDUCTED SPURIOUS EMISSIONS27 BLOCK EDGE COMPLIANCE FOR BLOCK A AND C36 OCCUPIED BANDWIDTH SUBCLAUSE §2.98938 PART PCS 850 POWER OUTPUT SUBCLAUSE § 22.91345 FREQUENCY STABILITY SUBCLAUSE § 22.35547 AFC FREQ ERROR vs. VOLTAGE48 AFC FREQ ERROR vs. TEMPERATURE48 EMISSIONS LIMITS SUBCLAUSE §22.91750 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.10959 CONDUCTED SPURIOUS EMISSIONS63 BLOCK EDGE REQUIREMENTS72 OCCUPIED BANDWIDTH SUBCLAUSE §2.98974 EMISSION LIMITATIONS FOR CELLULAR SUBCLAUSE §22.917(F)81 CETECOM ICT Services GmbH Test report no..: 2_3450-01-01/03Issue Date: 2003-12-12Page 7 (97) TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS90 Test site92 CETECOM ICT Services Gmb…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Satellite Tracking of People LLC, Blutag Victim Unit To: CFR47 Parts 15.207 and 15.209 Test Report Serial No: RFI-EMC-RP76131JD02A Version 2.0 Supersedes all previous Versions This test report is is…
