S5Z116049Remote Control Toy Transmitter

ROOM 418-20, TOWER A, NEW MANDARIN PLAZA, 14 SCIENCE MUSEUM ROAD, TSIM SHA TSUI EAST, KOWLOON, HK TEL: (852) 27211171 FAX: (852) 2721 1172 User Manual Read this manual carefully before getting started on your car. 1) 2) 3) Make sure the ON/ OFF switch is in the " OFF" position on toy. Open the battery lid and place the battery pack inside properly. Plug the jack of the battery pack into the socket of the battery compartment. Close the battery lid. Turn on the "ON" switch to play. Unscrew battery lid and place 9V battery with correct polarity (+/ -) into radio control unit. Screw battery lid. Plug the charger into standard wall outlet. Connect the battery pack and charger by snapping together the jack and the socket tightly. After 4 hours, the battery pack will be warm. This condition is normal for fully charged batteries. To disconnect cables, press down on the clip and pull apart. Battery pack is ready for use. After use the battery pack will be hot! Wait until it cools before recharging. Recharging a warm or hot battery pack will greatly shorten battery life. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

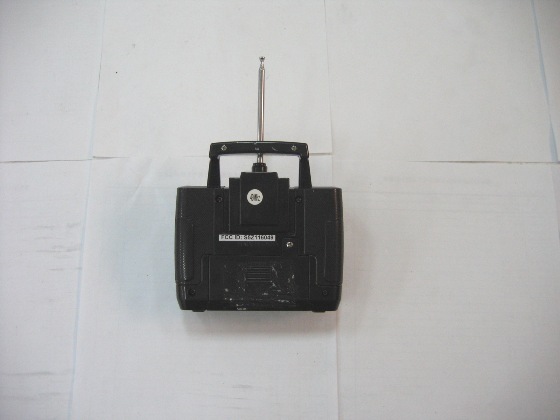

FCC ID Label Sample FCC ID: S5Z116049 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Location

Report No.: GLEMO050401057RFF Page : 1 of 11 FCC ID : S5Z116049 Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO050401057RF (SGS HK NO.: 2009795/EL) Applicant : MEGA TOYS (HK) LTD. FCC ID : S5Z116049 Fundamental Frequency : 49.865MHz Equipment under Test (EUT): Name : R/C CAR 49MHZ Model : 1160 Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 19 April 2005 Date of Test : 21 and 25 April 2005 Date of Issue : 24 May 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: S5Z116049 Report No.: GLEMO050401057RFF Page : 2 of 11 FCC ID : S5Z116049 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.235 PASS Occupied Bandwidth FCC PART 15 :2004 Section 15.235 PASS FCC ID.: S5Z116049 Report No.: GLEMO050401057RFF Page : 3 of 11 FCC ID : S5Z116049 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY ....................................................................................................................................... 2 3 CONTENTS ................................................................................................................................................ 3 4 GENERAL INFORMATION........................................................................................................................ 4 4.1 CLIENT INFORMATION........................................................................................................................... 4 4.2 DETAILS OF E.U.T. ............................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS......................................................................................................... 4 4.4 TEST LOCATION.................................................................................................................................... 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER........................................................................... 4 4.6 TEST FACILITY...................................................................................................................................... 5 5 TEST RESULTS ......................................................................................................................................... 6 5.1 TEST INSTRUMENTS.............................................................................................................................. 6 5.2 E.U.T. OPERATION...............................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA............................................................................................ 6 5.3.1 Radiated Emissions ....................................................................................................................... 6 5.3.2 Occupied Bandwidth...................................................................................................................... 8 5.3.3 Photographs - Radiated Emission Test Setup in Chamber........................................................... 9 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS...................................................................10-11 FCC ID.: S5Z116049 Report No.: GLEMO050401057RFF Page : 4 of 11 FCC ID : S5Z116049 SGS-CSTC Standards Technical Services Ltd. 4 General Information 4.1 Client Information Applicant: MEGA TOYS (HK) LTD. Address of Applicant: RM 418, TOWER A, NEW MANDARIN PLAZA 14 SCIENCE MUSUEM ROAD TSIM SHA TSUI EAST, KOWLOON, HONG KONG. 4.2 Details of E.U.T. Product Name: R/C CAR 49MHZ Model: 1160 Power Supply: 9V DC (1 x ‘6F22’ Battery) Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as an independent unit: a 49MHz radio transmitter. 4.4 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Ltd., Guangzhou EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District,…
