S5Z2120027Single Function R/C Car � 27MHz

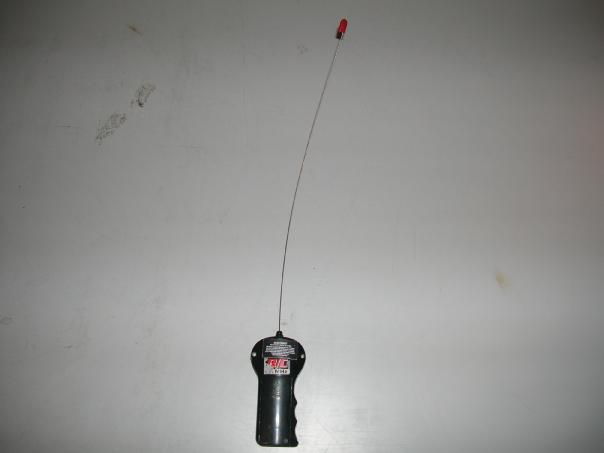

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT REAR VIEW OF THE PRODUCT

Following are the transmitter of 27 MHz with FCC labels & position : - 1) 27mhz Transmitter

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW

Description of Operation for RC Vehicles : The Equipment-Under-Test (EUT) is a battery-operated hand-held / portable RF transmitter for remote controlling the movements of an electric toy vehicle. Left paddle on the remote is responsible for the forward/backward of rear wheel in full speed. Right paddle on remote is responsible for the left / right direction of the front wheels. For the circuit function of the device, the integrated circuit determines inputs (connected to switches S1 and S2 and gives encoded signal which super-imposed with the local crystal oscillator (27.145 MHZ). The modulated signals is subsequently magnified and transmitted through the antenna E1. The antenna of the transmitter is a retractile metal rod.

Part TypeDesignator 1KR3 1KR5 1N4148D1 2.2uHL2 2.2uHL3 10KR1 10PFC7 10uHL1 15PC1 27.145MHzY1 33KR6 33KR2 33KR7 33KR8 33nFC4 33nFC5 47PC2 47PC3 56KR4 82PC8 104PC6 330KR9 560RR10 945Q5 945Q4 945Q1 9014Q3 9014Q2 ANT27M SW-PBS1 SW-PBS2 两通27M发射元件清单

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:13-Sep-2007Sheet of File:D:\埻燴芞\ 痐盄繚.DdbDrawn By: Q3 9014 Q2 9014 R8 33K C533nF R7 33K C433nF R2 33K R6 33K R4 56K D1 1N4148 S1 SW-PB S2 SW-PB B+ R5 1K R3 1K ANT Y1 27.145MHz L1 10uH L2 2.2uH L3 2.2uH Q5 945 Q4 945 Q1 945 R10 560R R1 10K R9 330K C1 15P C2 47P C3 47P VCC C6 104P LICHONGFA 1of1 :011 27MHz C8 82PC7 10P

STC Test Report Date : 2007-08-30 Page 1 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (BUV001): Megatoys 905 E 2 nd Street, Los Angeles, CA 90012 Manufacturer: N/A ` Description of Samples: Product: Single Function R/C Car – 27MHz Brand Name: N/A Model Number: 21200 FCC ID: S5Z2120027 Date Samples Received: 2007-06-18 Date Tested: 2007-07-07 to 2007-07-31 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Dr. LEE Kam Chuen, ElectroMagnetic Compatibility Department For and on behalf of The Hong Kong Standards and Testing Centre Ltd. STC Test Report Date : 2007-08-30 Page 2 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 16 Content Page 2-3 of 16 1.0 General Details 1.1 Test Laboratory Page 4 of 16 1.2 Applicant Details Page 4 of 16 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 16 Description of EUT operation 1.4 Date of Order Page 5 of 16 1.5 Submitted Samples Page 5 of 16 1.6 Test Duration Page 5 of 16 1.7 Country of Origin Page 5 of 16 2.0 Technical Details 2.1 Investigations Requested Page 6 of 16 2.2 Test Standards and Results Summary Page 6 of 16 3.0 Test Results 3.1 Emission Page 7-9 of 16 3.2 Bandwidth Measurement Page 10-11 of 16 STC Test Report Date : 2007-08-30 Page 3 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Appendix A List of Measurement Equipment Page 12 of 16 Appendix B Duty Cycle Correction During 100 msec Page 13-14 of 16 Appendix C Photographs Page 15-16 of 16 STC Test Report Date : 2007-08-30 Page 4 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Megatoys 905 E 2 nd Street, Los Angeles, CA 90012 Manufacturer N/A STC Test Report Date : 2007-08-30 Page 5 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.3 Equipment Under Test [EUT] Description of Sample Product: Single Function R/C Car – 27MHz Manufacturer: N/A Brand Name: N/A Model Number: 21200 Rating: 9Vd.c (“6F22” size battery x 1) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Megatoys, Single Function R/C Car – 27MHz. The transmitter is a 2 button transmitter. The EUT continues to transmit while button is being pressed, It is pulse transmitter, Modulation by IC, and type is pulse modulation. 1.4 Date of Order 2007-06-18 1.5 Submitted Sample(s): 1 Sample 1.6 Test Duration 2007-07-07 to 2007-07-31 1.7 Country of Origin China STC Test Report Date : 2007-08-30 Page 6 of 16 No. : HM159779 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4:2003 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Failed N/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.227 ANSI C63.4:2003 N/A Radiated Emissions FCC 47CFR 15.209 ANSI C63.4:2003 N/A Note: N/A - Not Applicable STC…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
