S63BP118GSM 850/1900 Mobile Phone

BP118 User Manual Disclaimer Statement This manual is published by the manufacturer without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to programs and/ or equipment, may be made by the manufacturer at any time and without notice. Notice Some services mentioned here are network dependent and may be unsupported by user’s network operator and service provider. Contact your network operator and service provider to check if a service is supported. 1 SAFETY INFORMATION Please read this information for safe and efficient use of your mobile phone and its accessories. ƒ Keep your phone away from children, dust, excessive moisture and humidity, extreme high or low temperatures, open flames or lit tobacco products. ƒ Obey instructions pertaining to phone use especially near medical equipment, in hospitals, in an aircraft, or in areas of potentially explosive atmosphere. ƒ Do not attempt to disassemble the phone yourself. Only manufacturer authorised personnel should perform the service. ƒ Do not place your phone near a car’s airbag. ƒ Do not use your phone while driving. If you must, please use it with a hands-free device. ƒ Please check local regulations for disposal of batteries and electronic products. ƒ Use only original batteries and chargers with your phone. ƒ Failure to comply with safety instructions will void the product warranty. SAR INFORMATION The SAR limit of USA (FCC) and Canada (IC) is 1.6 W/kg averaged over one gram of tissue. Device types M1211 has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use at the ear is 0.212 W/kg and when properly worn on the body is 0.297 W/kg. This device was tested for typical body-worn operations with the back of the handset kept 1.5cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5cm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. ACCESSORIES The M1211 phone support headset, but they are only optional, you can buy from your vendor. 2 TABLE OF CONTENTS PAGE Disclaimer Statement................................................................................................................. 1 Notice....................................................................................................................................... 1 SAFETY INFORMATION........................................................................................................... 2 TABLE OF CONTENTS............................................................................................................. 3 1. Getting started.................................................................................................................... 5 1.1 Assembly...............................................................................................................................................5 1.2 Insert SIM Card....................................................................................................................................5 1.3 Charge battery......................................................................................................................................5 1.4 Switching phone on/ off.......................................................................................................................5 2. Navigating the menus.......................................................................................................... 5 3. Phone Layout..................................................................................................................... 6 4. Quick keys and Menu Tree................................................................................................... 6 4.1 Quick keys.............................................................................................................................................6 4.2 Menu Trees...........................................................................................................................................7 5. Icon Description.................................................................................................................. 9 6. Making a call....................................................................................................................... 9 6.1 Making calls..........................................................................................................................................9 6.2 Call last outgoing number...................................................................................................................9 6.3 International calls.................................................................................................................................9 6.4 Emergency call...................................................................................................................................10 7. Answering call....................................................................................................................10 7.1 Call received.......................................................................................................................................10 7.2 Missed Calls........................................................................................................................................10 8. Phone book........................................................................................................................10 9. Messaging...........................................................................................…

Text truncated - open the document above for the full version.

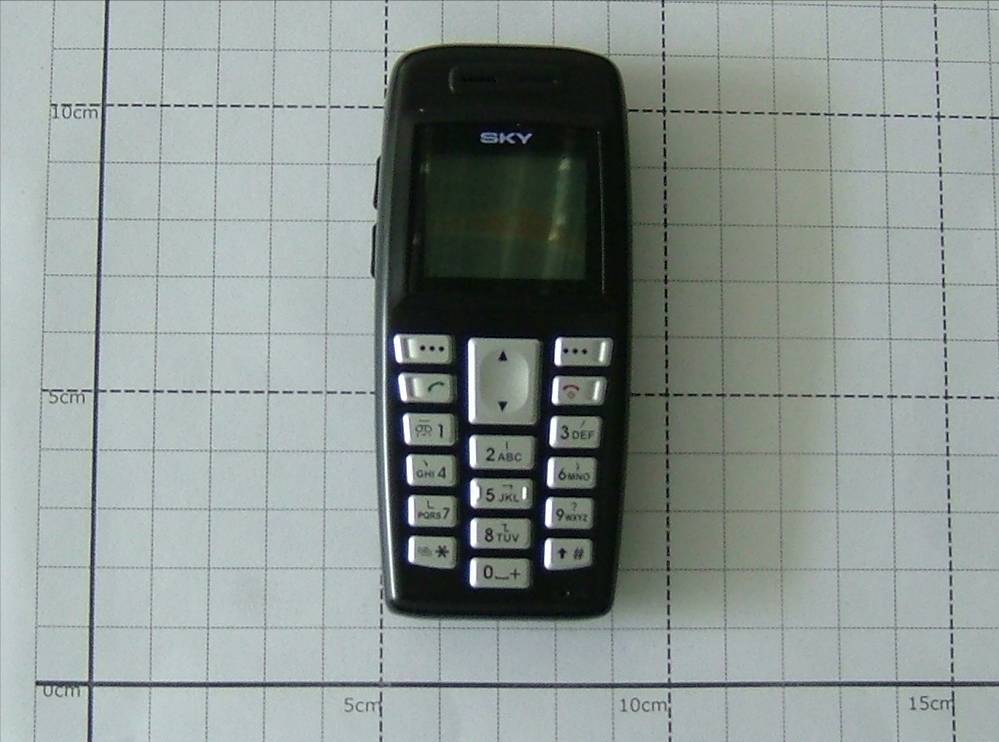

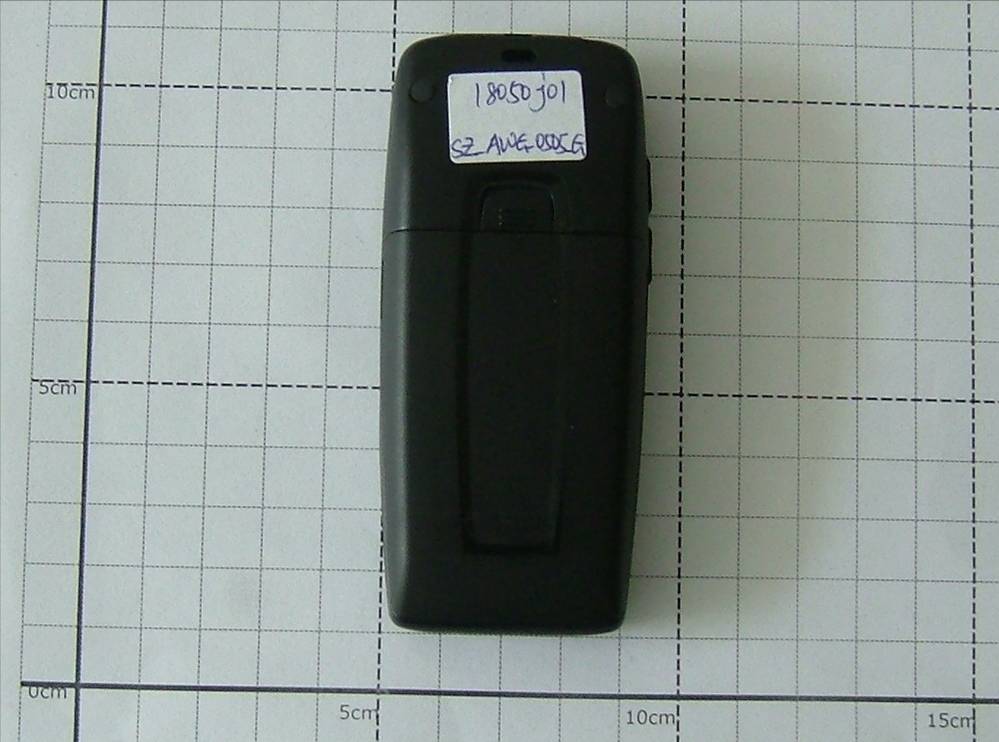

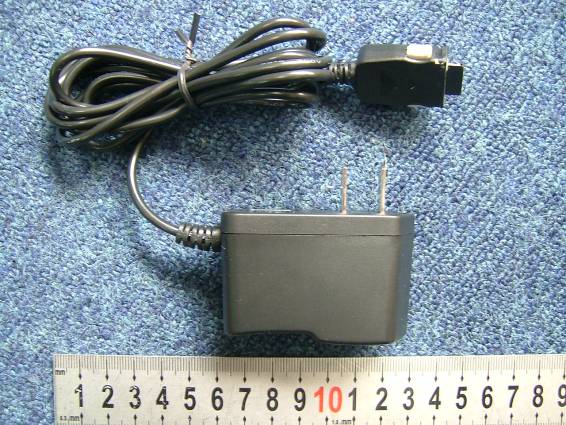

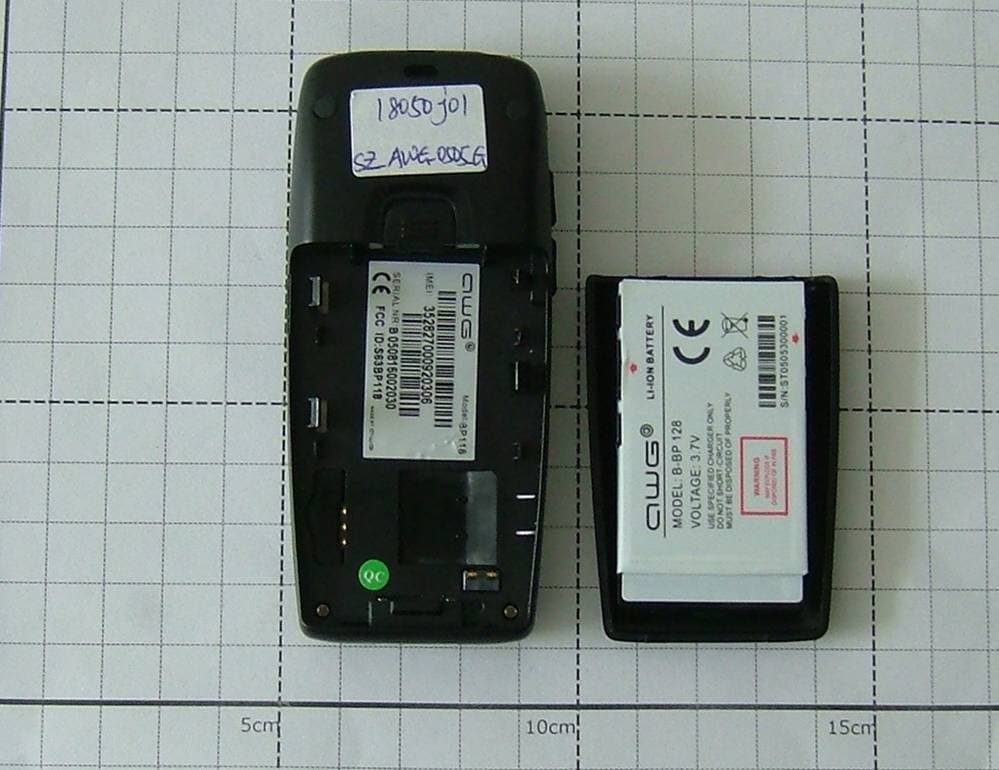

External Photos 1. Front View of EUT 2. Back View of EUT 3. Back Open 4. With AC adapter

Label Label Location

Internal Photos

No. SAR05-010 Page 3 of 63 Contents 1. GENERAL CONDITIONS 2. ADMINISTRATIVE DATA 2.1. Identification of the Responsible Testing Laboratory 2.2. Identification of the Responsible Testing Location(s) 2.3. Organization Item 2.4. Identification of Applicant 2.5. Identification of Manufacture 3. EQUIPMENT UNDER TEST (EUT) 3.1. Identification of the Equipment under Test 3.2. Identification of all used Test Sample of the Equipment under Test 4. OPERATIONAL CONDITIONS DURING TEST 4.1. Schematic Test Configuration 4.2. SAR Measurement System 5. CHARACTERISTICS OF THE TEST 5.1. Applicable Limit Regulations 5.2. Applicable Measurement Standards 6. LABORATORY ENVIRONMENT 7. TEST RESULTS 7.1. Dielectric Performance 7.2. Summary of Measurement Results 7.3. Conclusion 8. MEASUREMENT UNCERTAINTY 9. MAIN TEST INSTRUMENTS This Test Report consists of the following Annexes: Annex A: Accreditation Certificate Annex B: Test Layout Annex C: Sample Photographs Annex D: Graph Test Results No. SAR05-010 Page 4 of 63 1．GENERAL CONDITIONS 1.1 This report only refers to the item that has undergone the test. 1.2 This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. 1.3 This document is only valid if complete; no partial reproduction can be made without written approval of Shenzhen Electronic Product Quality Testing Center. 1.4 This report cannot be used partially or in full for publicity and/or promotional purposes without previous written approval of Shenzhen Electronic Product Quality Testing Center and the Accreditation Bodies, if it applies. No. SAR05-010 Page 5 of 63 2. Administrative Date 2.1. Identification of the Responsible Testing Laboratory Company Name: ShenZhen Electronic Product Quality Testing Center Department: Testing Department Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China Telephone: +86-0755-26628676 Fax: +86-0755-26627238 Responsible Test Lab Managers: Mr. Wang Keqin 2.2. Identification of the Responsible Testing Location(s) Company Name: ShenZhen Electronic Product Quality Testing Center Address: Electronic Testing Building, ShaHe Road, NanShan District, ShenZhen, P. R. China 2.3. Organization Item S.E.T Report No.: SAR05_010 S.E.T Project Leader: Mr. Li Sixiong S.E.T Responsible for accreditation scope: Mr. Wang Keqin Start of Testing: 2005-8-8 End of Testing: 2005-8-11 2.4. Identification of Applicant Company Name: Advanced Wireless Group Limited Address: Suite 2013, 20F., West Wing Grandtech Centre, 8 On Ping Street, Shaitin, N.T. Hong Kong Contact person: Stephen HO Telephone: (+86)755-2794 2851 Fax: (+86)755-2794 2555 2.5. Identification of Manufacture Company Name: Advanced Wireless Group Limited Address: Blk B, 4/F Qian Jin Road 2, District 75, Liu Tang, Xi Xiang Bao An, ShenZhen. 518102 Contact person: Stephen HO Telephone: (+86)755-2794 2851 Fax: (+86)755-2794 2555 Notes: This data is based on the information by the applicant. No. SAR05-010 Page 6 of 63 3. Equipment Under Test (EUT) 3.1. Identification of the Equipment under Test Brand Name: AWG Type Name: BP118 Marking Name: BP118 Test frequency GSM 850MHz PCS 1900MHz Battery type LI-ON Antenna type Build inside Operation mode Call established Modulation mode GSM; no GPRS; no Bluetooth General description: Max. Power(EIRP) 0.568w(27.54dBm) 0.356w(25.52dBm) 3.2. Identification of all used Test Sample of the Equipment under Test EUT Code Serial Number Hardware Version Software Version IMEI 18050f01 N.A. BP138 rev.0.1 150405 E1ESPZ0108002 135790246811222 No. SAR05-010 4 OPERATIONAL CONDITIONS DURING TEST 4.1 Schematic Test Configuration During SAR test, EUT is in Traffic Mode (Channel Allocated) at Normal Voltage Condition. A communication link is set up with a System Simulator (SS) by air link, and a call is established. The TCH is allocated to 128, 190 and 251 respectively in the case of GSM 850 MHz, or to 512, 661 and 810 respectively in the case of PCS 1900 MHz. The EUT is commanded to operate at maximum transmitting power. The EUT shall use its internal transmitter. The antenna(s), battery and accessories shall be those specified by the manufacturer. The EUT battery must be fully charged and checked periodically during the test to ascertain uniform power output. If a wireless link is used, the antenna connected to the output of the base station simulator shall be placed at least 50 cm away from the handset. The signal transmitted by the simulator to the antenna feeding point shall be lower than the output power level of the handset by at least 35 dB. 4.2 SAR Measurement System The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Figure1. SAR Lab Test Measurement Set-up Page 7 of 63 No. SAR05-010 Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom Head Shape. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. In operation, the system first does an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level. 4.2.1 Robot system specification The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the DUT. 4.2.2 Probe and amplifier specification IXP-050 Indexsar isotropic immersible SAR probe The probes are constructed using three orthogonal dipole sensors arranged on an interlocking, triangular Page 8 of 63 No. SAR05-010 prism core. The probes have built-in shielding against static charges and are contained within a PEEK cylindrical enclosure material at the tip (showed in figure 2). The system uses diode compression potential (DCP) to determine SAR values for …

Text truncated - open the document above for the full version.

Report No. FCC05-8021 Page 2 of 52 Table of Contents 1 Test Report Certification ...............................................................................................................5 2 General Information ......................................................................................................................6 2.1 Description of EUT ...............................................................................................................6 2.2 Objective ...............................................................................................................................7 2.3 Test Standards and Results ....................................................................................................7 2.4 List of Equipments Used .......................................................................................................8 2.5 Test Facility ...........................................................................................................................8 2.6 Environmental conditions .....................................................................................................8 3 Conducted Emission Measurement...............................................................................................9 3.1 Limits of Conducted Emission..............................................................................................9 3.2 Test Procedure .......................................................................................................................9 3.3 Test Setup ............................................................................................................................10 3.4 EUT Setup and Operating Conditions.................................................................................10 3.5 Test Results .........................................................................................................................10 4 Radiated Emission Test ...............................................................................................................12 4.1 Limits of Radiated Emission ...............................................................................................12 4.2 Test Procedure .....................................................................................................................12 4.3 Test Setup ............................................................................................................................13 4.4 EUT Setup and Operating Conditions.................................................................................13 4.5 Test Results .........................................................................................................................13 5 Frequencies .................................................................................................................................15 5.1 Frequency Blocks Available for Cellular Service ...............................................................15 5.2 Frequency Blocks Available for Broadband PCS ...............................................................15 5.3 Test Procedure .....................................................................................................................15 5.4 Test Setup ............................................................................................................................16 5.5 EUT Setup and Operating Conditions.................................................................................16 5.6 Test Results .........................................................................................................................17 6 Transmitter Radiated Power (EIRP/ERP) Test ...........................................................................19 Report No. FCC05-8021 Page 3 of 52 6.1 Limits of EIRP ....................................................................................................................19 6.2 Test Procedure .....................................................................................................................19 6.3 Test Setup ............................................................................................................................19 6.4 EUT Setup and Operating Conditions.................................................................................19 6.5 Test Results .........................................................................................................................20 7 Occupied Bandwidth ...................................................................................................................21 7.1 Definition ............................................................................................................................21 7.2 Test Procedure .....................................................................................................................21 7.3 Test Setup ............................................................................................................................21 7.4 EUT Setup and Operating Conditions.................................................................................21 7.5 Test Results .........................................................................................................................22 8 Conducted Spurious Emission Test.............................................................................................24 8.1 Limits of Conducted Spurious Emission.............................................................................24 8.2 Test Procedure .....................................................................................................................24 8.3 Test Setup ............................................................................................................................24 8.4 EUT Setup and Operating Conditions.......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2. CSE 3. RE 4. RSE
