S67-EC19W01IEEE 802.11 b/g/n Wireless LAN Module

Rev. 16 Issued: 25-Nov-2014 Datasheet WiSmart™ EC19W01 Revision History WiSmart™ EC19W01 Datasheet REV 16, 25-Nov-14, ©2013-2014 Econais Inc., All Rights Reserved 2 Revision History Rev Date Comments 1 20-Jan-2014 Initial document release 2 23-Jan-2014 Added antenna area and pad dimensions 3 28-Jan-2014 Added information about MSL and height 4 23-May-2014 Operational Temperature range clarification 5 2-June-2014 Add Reference Design 6 10-June-2014 Updated the module footprint 7 19-June-2014 Updated Antenna Keep-Out area. Add “Output Power vs. Temperature” graph. 8 4-July-2014 Updated footprint and mechanical dimensions 9 21-July-2014 Updated Schematic and EXT_LFC 10 04-Aug-2014 Updated information on operational temperature range 11 22-Aug-2014 Updates for VDD_LDO and DCDC inductor 12 03-Sep-2014 Misc. Updates & Corrections 13 1-Oct-2014 Misc. Corrections 14 21-Oct-2014 Updates for Output power and current consumption 15 21-Nov-2014 Misc. Updates & Corrections 16 25-Nov-2014 Misc. Updates & Corrections Disclaimer and Copyright Notice WiSmart™ EC19W01 Datasheet REV 16, 25-Nov-14, ©2013-2014 Econais Inc., All Rights Reserved 3 Disclaimer and Copyright Notice Information in this document, including URL references, is subject to change without notice. THIS DOCUMENT IS PROVIDED "AS IS" WITH NO WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF MERCHANTABILITY, NONINFRINGEMENT, FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION OR SAMPLE. All liability, including liability for infringement of any proprietary rights, relating to use of information in this document is disclaimed. No licenses express or implied, by estoppels or otherwise, to any intellectual property rights are granted herein. • WiSmart is a trademark owned by Econais inc • WiCReal is a trademark owned by Econais inc • ProbMe is a trademark owned by Econais Inc. • Wi-Fi is a trademark owned by Wi-Fi Alliance, U.S.A. • Exynos, Exynos4210, FlexOneNAND, and OneNAND are trademarks of Samsung Electronics. • ARM, Jazelle, TrustZone, and Thumb are registered trademarks of ARM Limited. Cortex, ETM, ETB, Coresight, ISA, and Neon are trademarks of ARM Limited. • Java is a trademark of Sun Microsystems, Inc. • SD is a registered trademark of Toshiba Corporation. • MMC and eMMC are trademarks of MultiMediaCard Association. • JTAG is a registered trademark of JTAG Technologies, Inc. • Synopsys is a registered trademark of Synopsys, Inc. • I2S is a trademark of Phillips Electronics. • I2C is a trademark of Phillips Semiconductor Corp. • MIPI and Slimbus are registered trademarks of the Mobile Industry Processor Interface (MIPI) Alliance All other trade names, trademarks and registered trademarks are property of their respective owners Copyright ©2013-2014 Econais Inc., All Rights Reserved Table of Contents WiSmart™ EC19W01 Datasheet REV 16, 25-Nov-14, ©2013-2014 Econais Inc., All Rights Reserved 4 Table of Contents Revision History.................................................................................................................................... 2 Disclaimer and Copyright Notice ......................................................................................................... 3 Table of Contents ................................................................................................................................. 4 1 Module Handling Guide ................................................................................................................ 6 2 List of Acronyms ........................................................................................................................... 8 3 Device Details ............................................................................................................................... 9 4 Electrical Data ............................................................................................................................. 10 4.1 Absolute Maximum Ratings ............................................................................................... 10 4.2 ESD ..................................................................................................................................... 10 4.3 Recommended Operating Conditions ............................................................................... 10 4.4 Current Consumption......................................................................................................... 11 4.5 Channel Frequencies .......................................................................................................... 11 4.6 Receiver Performance ........................................................................................................ 12 4.7 Receiver sensitivity............................................................................................................. 13 4.8 Transmitter Performance ................................................................................................... 14 4.8.1 Performance for FCC regions ....................................................................................... 14 4.9 Output Power vs. Supply Voltage ...................................................................................... 14 4.10 Output Power vs. Temperature ......................................................................................... 15 5 I/O Characteristics ...................................................................................................................... 16 5.1 SDIO timing characteristics ................................................................................................ 16 5.2 SPI Timing Characteristics .................................................................................................. 17 5.3 Digital I/O pad .................................................................................................................... 18 5.4 Protection Digital Pins ..…

Text truncated - open the document above for the full version.

Date: 2014/11/5 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: S67-EC19W01 Product name: IEEE802.11b/g/n Wireless LAN module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model WSDE-708GN, EC19W01 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : eConais SA Address : Pavlou Nirvana 8, Patra 26443, Greece Signature : Name and Job Title. : DIMITRIS LEONARDOS / VP Product Management E-mail [email protected] Tel. +302610463004

Confidentiality Request Letter Date: 2014/11/5 Federal Communications Commission Authorization and Evaluation Division FCC ID：S67-EC19W01 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant : eConais SA Address : Pavlou Nirvana 8, Patra 26443, Greece Signature : Name and Job Title. : DIMITRIS LEONARDOS/ VP Product Manager E-mail [email protected] Tel. +302610463004

eConais SA Patras, Science Park, Stadioy Str, Platani, PATRAS, 26504 Date: November 5, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: S67-EC19W01 IC ID: 11069A-EC19W01 To Whom it may concern, We, eConais SA declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. Regards, Applicant : eConais SA Address : Pavlou Nirvana 8, Patras 26443, Greece Signature : Name and Job Title. : DIMITRIS LEONARDOS / VP Product Management E-mail [email protected] Tel. +302610463004

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: S67-EC19W01 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is S5N2120X02 3. The modular transmitter must have its own power supply regulation. The component number is S5N2120X02 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The device has no antenna Connector. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___01 December 2014____ Signature: ___________________________

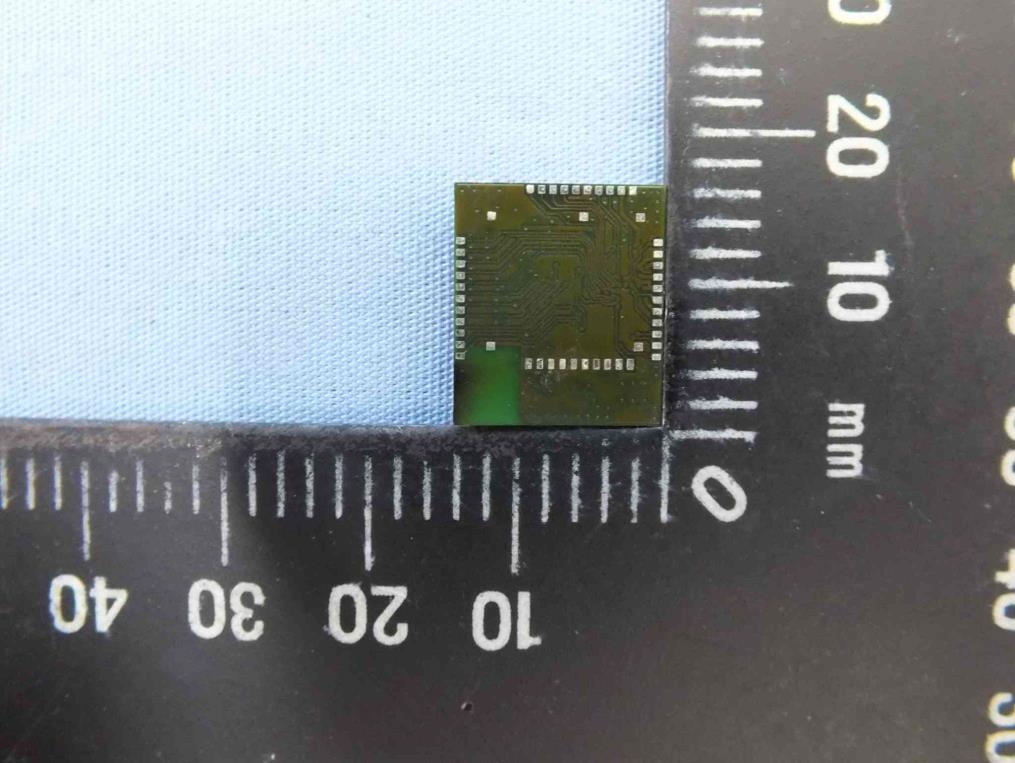

Project No.: EP4O2901 Page No. : 1 of 2 Photographs of EUT

Label Location

Project No.: EP4O2901 Page No. : 2 of 2

Report No.: FA4O2901 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : S67-EC19W01 Equipment : IEEE 802.11 b/g/n Wireless LAN Module Model No. : EC19W01, WSDN-708GN (Please refer to section 1.1.1 for more details.) Brand Name : eConais, Ampak (Please refer to section 1.1.1 for more details.) Applicant : eConais SA Address : Pavlou Nirvana 8, Patras, 26443, Greece Standard : 47 CFR FCC Part 2.1091 Received Date : Oct. 29, 2014 Tested Date : Nov. 12,~Nov.13,2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA4O2901 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA4O2901 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA4O2901 Rev. 01 Initial issue Dec. 01, 2014 Report No.: FA4O2901 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 17.91 0.5 20 0.012 1 Report No.: FA4O2901 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR4O2901AC Page : 1 of 53 Report Version: Rev. 01 FCC Test Report FCC ID : S67-EC19W01 Equipment : IEEE 802.11 b/g/n Wireless LAN Module Model No. : EC19W01, WSDN-708GN (Please refer to section 1.1.1 for more details.) Brand Name : eConais, Ampak (Please refer to section 1.1.1 for more details.) Applicant : eConais SA Address : Pavlou Nirvana 8, Patras, 26443, Greece Standard : 47 CFR FCC Part 15.247 Received Date : Oct. 29, 2014 Tested Date : Nov. 12 ~ Nov.13, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR4O2901AC Page : 2 of 53 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 6dB and Occupied Bandwidth .............................................................................................................. 14 3.3 RF Output Power .................................................................................................................................. 17 3.4 Power Spectral Density ........................................................................................................................ 19 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 21 3.6 Emissions in Non-Restricted Frequency Bands ................................................................................... 43 4 TEST LABORATORY INFORMATION ............................................................................................... 53 Report No.: FR4O2901AC Page : 3 of 53 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR4O2901AC Rev. 01 Initial issue Dec. 01, 2014 Report No.: FR4O2901AC Page : 4 of 53 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.485MHz 32.75 (Margin -13.5dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 4874.00MHz 53.48 (Margin -0.52dB) - AV Pass 15.247(b)(3) Maximum Output Power Max Power [dBm]: 21.76 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR4O2901AC Page : 5 of 53 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Description eConais EC19W01 IEEE 802.11 b/g/n Wireless LAN Module Marketing Purpose Ampak WSDN-708GN  All models are electrically identical, different model names are for marketing purpose.  The above models, model EC19W01 was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11] 1 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11] 1 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 MCS 0-7 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.3 Antenna Details Ant. No. Model Type Gain (dBi) Remark 1 WSDE-708GN Multilayer Chip Antenna 0.5 2400~2483.5MHz 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.6 Vdc from host 1.1.5 Accessories NA Report No.: FR4O2901AC Page : 6 of 53 Report Version: Rev. 01 1.1.6 Channel List Channel Frequency(MHz) 1 2412 2 2417 3 2422 4 2427 5 2432 6 2437 7 2442 8 2447 9 2452 10 2457 11 2462 1.1.7 Test Tool and Duty Cycle Test Tool ProdTestGui, Version: 1.6.2_RC1 Duty Cycle and Duty Factor Mode Duty cycle (%) Du…

Text truncated - open the document above for the full version.

Report No.: FR4O2901 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR4O2901 Page: : 2 of 4 Report Version: Rev. 01 Conducted Emission Test Report No.: FR4O2901 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Test Report No.: FR4O2901 Page: : 4 of 4 Report Version: Rev. 01 Radiated Emission Test
