S6J11531153 Bluetooth Wearable UHF RFID Reader

USER GUIDE: 1153 WEARABLE BLUETOOTH ® UHF RFID READER www.tsl.uk.com Design • Development • Manufacture 1153 UHF Reader User Guide V1.23© Technology Solutions (UK) Ltd 2014 2 TERMS & CONDITIONS © 2014 TSL. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from Technology Solutions (UK) Ltd. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. Technology Solutions (UK) Ltd (TSL) reserves the right to make changes to any product to improve reliability, function, or design. TSL does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which TSL products might be used. An implied license exists only for equipment, circuits, and subsystems contained in TSL products. TSL and the TSL logo are registered trademarks of TSL. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All software is provided strictly on an “as is” basis. All software, including firmware, furnished to the user is on a licensed basis. TSL grants to the user a non-transferable and non-exclusive license to use each software or firmware program delivered hereunder (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of TSL. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from TSL. The user agrees to maintain TSL’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes, in whole or in part. The user agrees not to decompile, disassemble, decode, or reverse engineer any licensed program delivered to the user or any portion thereof. TSL reserves the right to make changes to any software or product to improve reliability, function, or design. TSL does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a registered trademark of Apple Inc. “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Technology Solutions (UK) Ltd is under license. Other trademarks and trade names are those of their respective owners. www.tsl.uk.com 1153 UHF Reader User Guide V1.23© Technology Solutions (UK) Ltd 2014 3 History Version Date Modifications 1.0 05/08/2014 Document creation 1.1 28/08/2014 iOS 5/6 sections removed and replaced with iOS7 1.2 30/09/2014 iOS compatibility list updated 1.22 17/10/2014 Regulatory information updated 1.23 27/10/2014 Regulatory information updated CONTENT Introduction 4 Parts of the 1153 UHF Reader 4 Using the 1153 UHF Reader 5 Battery Installation or Removal 5 Locking the Battery Cover (Optional) 9 Charging and Micro USB Connection 10 Connecting the Micro USB cable 10 Button Operation 11 Primary button action 11 Secondary Button action 11 Reading Transponders 12 Status LED 13 Connections 14 Bluetooth ® wireless technology connection 14 Compatible Apple product models 14 Other compatible products 14 Setting up a Bluetooth ® connection with an Apple product 14 View list of Bluetooth ® Devices (iOS 7) 15 Pair with TSL Bluetooth ® device 16 Micro SD Card 20 Location and Installation 20 Auto Run File (AUTO.TXT) 21 Log File (LOG.TXT) 21 Software Development 22 Troubleshooting and Maintenance 23 Maintenance 23 Troubleshooting 23 Regulatory information 24 Information to the user – FCC 24 RF Exposure Guidelines 24 Laser Warning 24 Health and Safety Recommendations 25 Waste Electrical and Electronic Equipment (wEEE) 26 Warranty 26 About TSL 28 About 28 Contact 28 www.tsl.uk.com 1153 UHF Reader User Guide V1.23© Technology Solutions (UK) Ltd 2014 4 Technology Solutions’ 1153 UHF Reader provides Ultra High Frequency (UHF) Radio Frequency Identification (RFID), with optional barcode scanning functionality. The unit can be used stand alone or paired with a Bluetooth ® wireless technology enabled host device. It can be used with UHF transponders including the EPC Global Class 1 Generation 2 transponders. INTRODUCTION PARTS OF THE 1153 UHF READER Micro USB connector Status LEDsTrigger Button UHF Antenna FIGURE 1: Parts of the 1153 UHF Reader WARNING LASER LIGHT. DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT. LASERSTRAHLUNG NICHT IN DEN STRAHL BLICKEN. LASER KLASSE 2. LUMIÈRE LASER NE PAS REGARDER DANS LE FAISCEAU. APPAREIL À LASER DE CLASSE 2. 630-670nm 1mW www.tsl.uk.com 1153 UHF Reader User Guide V1.23© Technology Solutions (UK) Ltd 2014 5 USING THE 1153 UH…

Text truncated - open the document above for the full version.

Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE Letter of Agency 4 th September 2014 TRaC Global Ltd 100 Frobisher Business Park Malvern Worcestershire WR14 1BX To Whom It May Concern: We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to these matters. Yours faithfully Dr David Corder Design Engineer Technology Solutions (UK) Ltd

Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 04 September 2014 TRaC Global 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: S6J1153 To Whom It May Concern: Please be advised that the following information is to be held confidential on behalf of Technology Solutions (UK) Ltd  Parts list / Bill of Materials  Schematic Diagrams  Operational Description  Radio RF Block Diagram The application contains technical information which Technology Solutions (UK) Ltd deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully Technology Solutions (UK) Ltd Full Name: Dr David Corder

Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3EG TECHNIQUE FOR ACHIEVING PSEUDO RANDOM HOPPING SEQUENCE 27 October 2014 TRaC Global 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: FCC Pseudo Random Hop Sequence requirements FCC ID: S6J1153 To Whom It May Concern: The firmware in the RFID reader follows a pre-programmed hop sequence in which the 50 available channel frequencies are randomly ordered. Channels are spaced at 200 kHz intervals. The maximum dwell time on any channel is 0.4s. All channels are used once during the complete hop sequence. The hopping is controlled entirely by the firmware in the reader. Yours faithfully Technology Solutions (UK) Ltd David Corder

Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE DECLARATION OF SIMILARITY 29 October 2014 TRaC Global 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Declaration of Similarity FCC ID: S6J1153 To Whom It May Concern: Please be advised that models 1153-US-BT-UHF-IMG and 1153-US-BT-UHF-A1 are electronically identical in terms of the RF components, all RF measurements and test results for the 1153-US-BT-UHF-IMG (report: TRA-022433WUS1) are applicable to the 1153-US-BT-UHF-A1. The differences are that the 1153-US-BT-UHF-IMG contains a 2D barcode reader engine whereas the 1153- US-BT-UHF-A1 does not. There are no component changes apart from the removal of the 2D barcode reader engine in the –A1 version. Thank you for your attention to this matter. Yours faithfully Technology Solutions (UK) Ltd Full Name: Dr David Corder

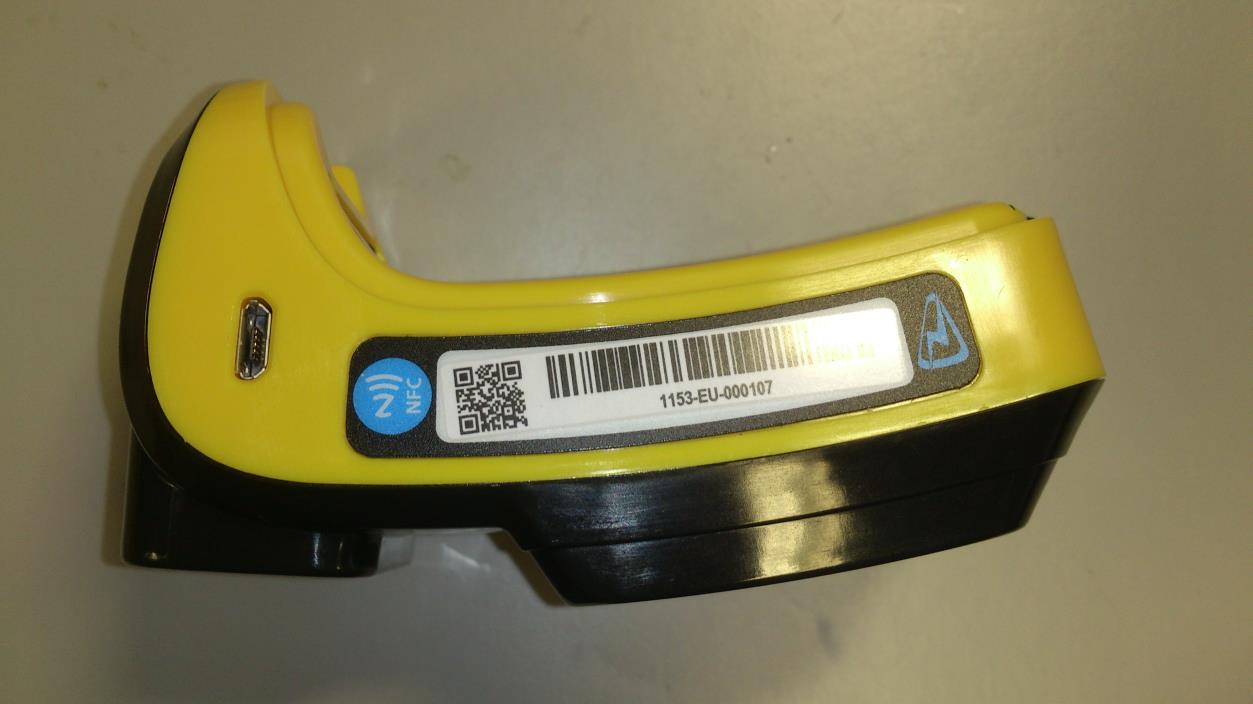

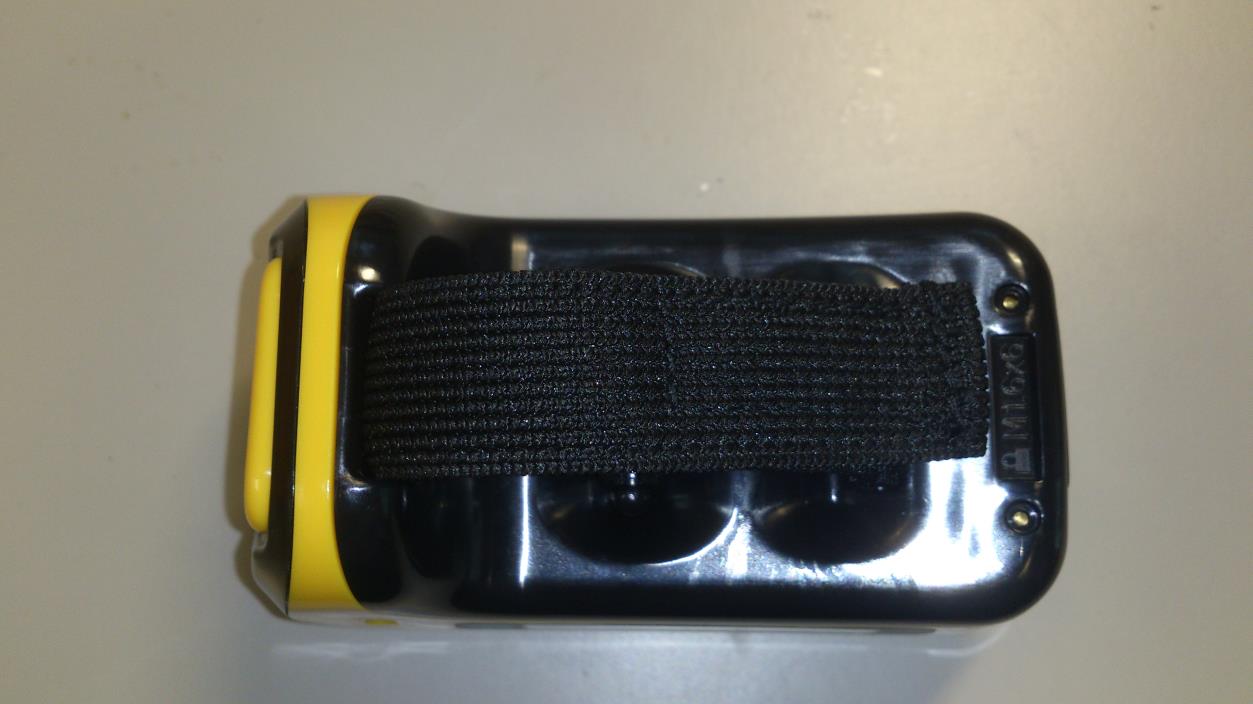

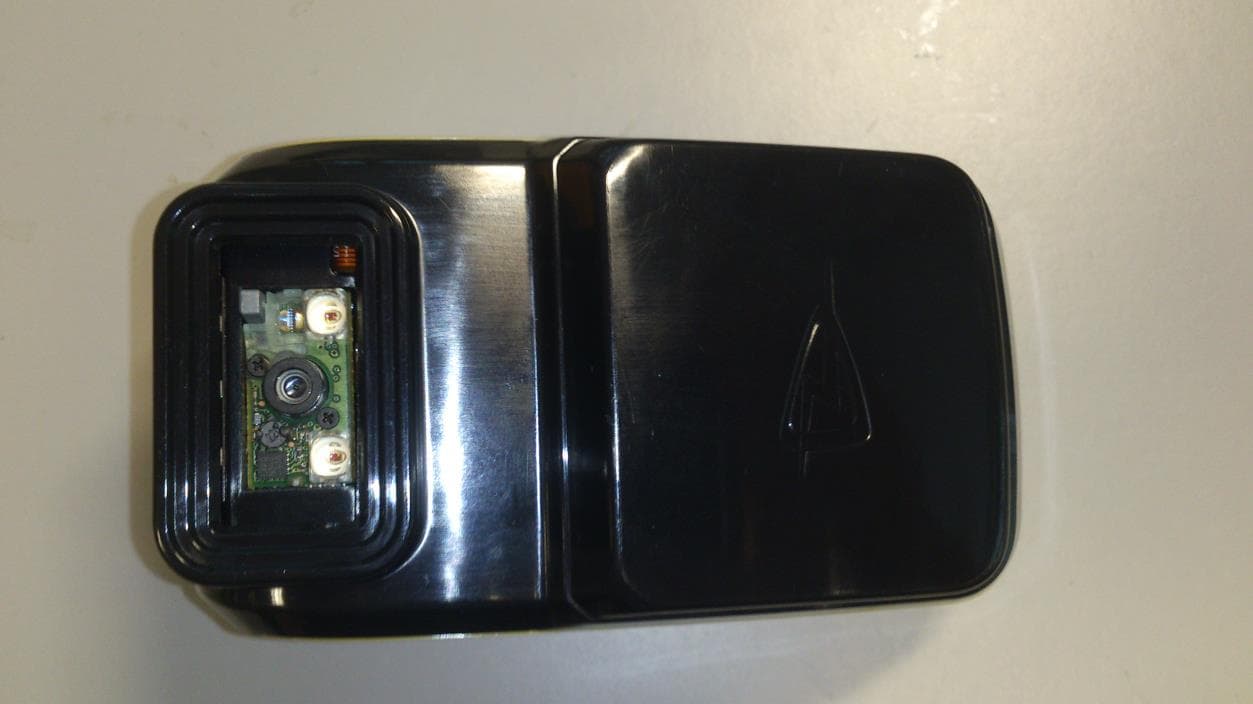

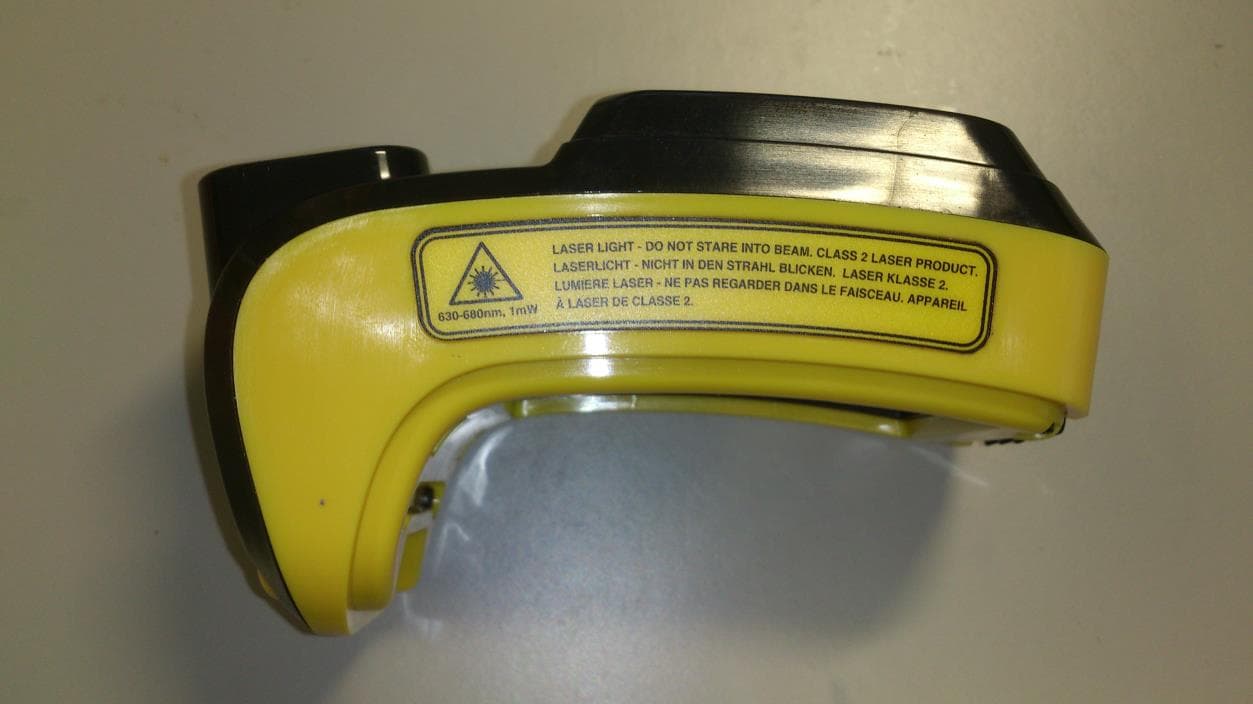

1153 External photos Battery cover removed

Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE FCC LABELLING REQUIREMENTS AND INFORMATION 15 September 2014 TRaC Global 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: FCC Labelling Requirements FCC ID: S6J1153 To Whom It May Concern: The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Yours faithfully Technology Solutions (UK) Ltd David Corder Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE Label Design The ID label is printed on paper and contains the reader serial number, the reader part number, the Bluetooth MAC address, the date of manufacture, the country of manufacture and the FCC ID. An example of this label design is shown below: This label is fitted behind a Polyester Autotex F207 label secured to the reader body with 3M 468 adhesive and is visible through a transparent window. The main self adhesive label contains the following text: Contains FCC ID: QOQWT12 Contains IC ID: 5123A-BGTWT12A Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE Company No. 02777518 Loughborough [email protected] Loughborough Technology Centre Fax: +44 1509 220020 VAT No. GB 620030611 Leicestershire www.tsl.uk.com UNITED KINGDOM design - develop - manufacture TECHNOLOGY SOLUTIONS UK LTD Suite C Tel: +44 1509 238248 LE11 3GE Label Location The label is located in the battery compartment of the reader: Self-adhesive polyester label ID label behind window in polyester label.

Radio Test Report: TRA-022433WUS1 As per KDB 447498 47 CFR §§1.1307 and 2.1091 2.1091 Radio frequency radiation exposure evaluation: Portable devices. For purposes of these requirements mobile devices are defined by the FCC as transmitters designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimetres is normally maintained between radiating structures and the body of the user or nearby persons. These devices are normally evaluated for exposure potential with relation to the MPE limits. As the 20cm separation specified under FCC rules may not be achievable under normal operation of the EUT, an RF exposure calculation is needed to show the minimum distance required to be less than 0.6mW/cm 2 power density limit, as required under FCC rules Prediction of MPE limit at a given distance Equation from KDB 447498 D01 where: S = power density R = distance to the centre of radiation of the antenna ERP = EUT Maximum power Result: Prediction Frequency (MHz) Maximum ERP (mW) Power density limit (S) (mW/cm 2 ) Distance (R) cm required to be less than 0.6mW/cm 2 (cm) 917.1159.270.65.9 S S 4 64.1 arranged-re 4 64.1 2 S ERP R R ERP S 75

RADIO TEST REPORT FOR Technology Solutions (UK) Ltd ON 1153 UHF RFID Reader DOCUMENT NO. TRA-022433WUS1 TRaC Wireless Test Report : TRA-022433WUS1 Applicant : Technology Solutions Ltd Apparatus : 1153 UHF RFID Reader Specification(s) : CFR47 Part 15 IC RSS210 Issue 8 FCCID : S6J1153 ICID : 8948A-1153 Purpose of Test : Certification Authorised by : : Radio Product Manager Issue Date : 9 th October 2014 Authorised Copy Number : PDF Total number of pages : 77 TRaC Global Test Report: TRA-022433WUS1 Contents Section 1: Introduction 4 1.1 General 4 1.2 Tests Requested By 5 1.3 Manufacturer 5 1.4 Apparatus Assessed 6 1.5 Test Result Summary 7 1.6 Notes Relating To The Assessment 8 1.7 Deviations from Test Standards 8 Section 2: Measurement Uncertainty 9 2.1 Measurement Uncertainty Values 9 Section 3: Modifications 10 3.1 Modifications Performed During Assessment 10 Section 4 General Test Procedures 11 4.1 Radiated Test Setup and Procedures 11 4.2 AC Powerline Conducted Emissions Test Setup and Procedures 12 4.3 Antenna Port Conducted Emissions 12 4.4 Power Supply Variation 13 4.5 Thermal Variation 13 4.6 Time Domain Measurements 13 Appendix A: Formal Emission Test Results 14 A1 Transmitter Peak Output Power 15 A2 RF Antenna Radiated Spurious Emissions 16 A3 Radiated Electric Field Emissions Within The Restricted Bands of 15.205 18 A4 Power Line Conducted Emissions 21 A5 20 dB Bandwidth and Carrier Frequency Separation 23 A6 Hopping frequencies 24 A7 Channel Occupancy 25 A8 Antenna Gain 26 A9 Unintentional Radiated Electric Field Emissions - 15.109 27 A10 Co-located Transmitter Radiated Electric Field Emissions 28 A11 Barcode Reader Radiated Electric Field Emissions 31 Appendix B: Supporting Graphical Data 34 Appendix C: Additional Test and Sample Details 59 Appendix D: Additional Information 65 Appendix E: Calculation of the duty cycle correction factor 66 Appendix F: Photographs and Figures 67 Appendix G: General SAR test reduction and exclusion guidance and MPE calculation 73 Appendix H: FCC 47CFR Part 15 to RSS210 Cross Reference 76 3 Radio Test Report: TRA-022433WUS1 Section 1: Introduction 1.1 General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by: TRaC Global [ X ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone: +44 (0) 1482 801801 Fax: +44 (0) 1482 801806 TRaC Global [ ] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone: +44 (0) 1695 556666 Fax: +44 (0) 1695 577077 Email: [email protected] Web site: http://www.tracglobal.com Tests performed by: A Longley Report author: A Longley This report must not be reproduced except in full without prior written permission from TRaC Global. 4 Radio Test Report: TRA-022433WUS1 1.2 Tests Requested By This testing in this report was requested by : Technology Solutions (UK) Ltd Suite C Loughborough Technology Centre Epinal Way Loughborough Leicestershire LE11 3GE United Kingdom 1.3 Manufacturer As Above 5 Radio Test Report: TRA-022433WUS1 1.4 Apparatus Assessed The following apparatus was assessed between: 03/09/14 and 15/09/14 1153 RFID/Barcode Reader The EUT is a handheld reader for UHF Radio Frequency Identification (RFID) tags and optionally barcodes. It connects to the host computer using a Bluetooth or USB connection. The 1153 Bluetooth UHF RFID reader is powered by an internal rechargeable lithium polymer battery. The battery is recharged using a standard USB power supply. The Bluetooth connection has not been assessed apart from the co-located transmitters test. 6 Radio Test Report: TRA-022433WUS1 1.5 Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. Test Type Regulation Measurement standard Result Radiated spurious emissions (Restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass Radiated spurious emissions (Non-restricted bands) Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass AC Power conducted emissions Title 47 of the CFR: Part 15 Subpart (c) 15.207 ANSI C63.10:2009 Pass 20dB Bandwidth and Channel Spacing Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Conducted Carrier Power Title 47 of the CFR : Part 15 Subpart (c) 15.247(b)(2) ANSI C63.10:2009 Pass Hopping Frequencies Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1) ANSI C63.10:2009 Pass Channel Occupancy Title 47 of the CFR : Part 15 Subpart (c) 15.247(a)(1)(i) ANSI C63.10:2009 Pass Unintentional Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (b) 15.109 ANSI C63.10:2009 Pass Co-located transmitter Radiated Spurious Emissions Title 47 of the CFR: Part 15 Subpart (c) 15.247 ANSI C63.10:2009 Pass Abbreviations used in the above table: Mod : Modification CFR : Code of Federal Regulations ANSI : American National Standards Institution REFE : Radiated Electric Field Emissions PLCE : Power Line Conducted Emissions 7 Radio Test Report: TRA-022433WUS1 1.6 Notes Relating To The Assessment With regard to this assessment, the following points should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised using the configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed e…
