S6SAXSAFESHINEApple Lover

SafeShine·Apple Lover User Manual Please read this manual before using Apple Lover, and keep it for future reference. Apple Lover is a protection device, which protects your iPhone/iPad in term of pairing your iPhone/iPad with it. Key function On/Off Button: on the left side of the device. Alarm speaker. on the left side of the device, down below the "On/Off Button" . Micro USB charge port: on the bottom side of the device. Using Apple Lover Turn off Apple Lover: Press and hold the On/Off Button for 2 seconds until the device tick once Mute Apple Lover: When the device is under "Alarm State", press shortly the On/Off Button . Pairing Apple Lover with iPhone/iPad: press and hold the On/Off Button for 5 seconds until the device tick three times. 1. Normal Pairing and Connecting (1). Download and install "SafeShine Alert" from "App Store" on your iPhone/iPad. (2). Set Pairing Connection between iPhone/iPad and Apple Lover A. Turn on the "Bluetooth": Press "Home" Button, tap "Settings" and slide the "Bluetooth" button to turn it on. B. Run "SafeShine Alert" and tap "Add tag", the system will start searching for "Apple Lover". 1 C. Press and hold the On/Off button for 5 seconds, then the Apple Lover will tick for 3 times, which means the device is ready for pairing with iPhone/iPad. Meanwhile, on the iPhone/iPad, the "SafeShine"device can be found under scanning list shown as below, and a "Paring Request" message will automatically pop-up. Select "Pair" and tap SafeShine, the screen is shown as below: To settle the pairing connection between Apple Lover and your iPhone/iPad, you can tap"Find tag", the Apple Lover will start alarming continuously, and then tap "Silence tag", the Apple Lover will stop alarming, the pairing connection settled. 2. Software setting Set the Link Loss Alarm Level: Run "SafeShine Alert" , tap "SafeShine", and select Configure, the alarm level can be set under this page . On Tag: High (Beep+Vibrate); Low (Beep); Off(None) On Phone: High(Alarm+Message); Low(Message); Off(None) "Location Tracking" helps you locate the last "connection position" by GPS "Find tag" helps you locate your Apple Lover. 3. Repairing setting 2 Apple Lover may lose connection with its pairing iPhone/iPad normally because of misoperation, those cases will need repairing setting. One typical misoperation case is that under normal pairing state, you press and hold the On/Off Button for several seconds, the previous paired setting will be canceled.Therefore, the Apple Lover need be repaired For Repairing, you need to delete the previous paired setting. Follow the steps as below: (1) Turn on "Bluetooth", tap "Safeshine", and tap "Forget this device". (2) Run "SafeShine Alert" , go into Configure page, tap "Del Tag" and select Yes: Then repeat the steps Normal Pairing and Connecting . 4. FAQS A. Why the Apple Lover tick every 10 minutes when its battery level is less than 40%? It helps to remind you of charging the Apple Lover. B. How to turn on Apple Lover when it is automatically powered off in low battery? Please fully recharge your Apple Lover and turn it on C. How to turn off the prompt message on the iPhone/iPad because of losing connection with your Apple Lover? Run "SafeShine Alert" program, tap SafeShine, select Configure>On Phone > tap Off . 3 D. How to find the Apple Lover? Run"SafeShine Alert" program, select SafeShine>Configure>Find tag. E. Why sometimes the Apple Lover failed to pair with iPhone/iPad? Before re-pairing, make sure the Apple Lover is fully charged and the previous pairing setting has been deleted. F. What if you don’t want to use the device sometimes? Just turn it off . G. Why the Apple Lover keep alarming after abnormal restart of iPhone/iPad? Rerun the"SafeShine Alert" program. H. How to exit the alarm state after the device starting alarming? Press the On/Off Button shortly can change the device from alarm state to mute state. 5. Cautions A. Prohibit using in flight. B. Charge the battery regularly to extend battery life if long time no used. (Suggestion: one time every one or two months.) C. The maximum transmit power is 1 mW of our products, it will be no harm with body. To avoid wrong judgment, make sure distinguish between product alert tone and other tones. D. Keep away from moisture. E. Wide scope of application. Only be used by Children less than 3 of age under the monitor of parents. F. As there are kinds of disturb signals caused by complicated outside circumstances, it is normal that our products may alarm shortly sometimes. G.The company shall be irresponsible for what the personal valuables lost caused by automatically powered off or misoperate. H. Make sure to use the device where the temperature is between 0°Cand 35°C, otherwise the service life of battery will be shortened. Make sure to storage the device where the where the temperature is between -20°C and 45°C. I. USB Power Adapter(Optional): Input--100~240V 300mA, Output--DC 5V, 500mA 6. Product information A. Product name: Apple Lover B. Size: W27.8mm*H46.5mm*T9.0mm C. Weight: about 18g/pc D. Accessories: Micro USB Charging cable, fashion chain. 4 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the…

Text truncated - open the document above for the full version.

Hangzhou Safeshine Electronics Co., Ltd. Add: Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Tel: 0571-86883692 Fax: 0571-86883681 2013-02-26 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: S6SAXSAFESHINE We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Qianghua Teng /Manager Contact information / address : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Tel: 0571-86883692 Fax: 0571-86883681 E-Mail: [email protected]

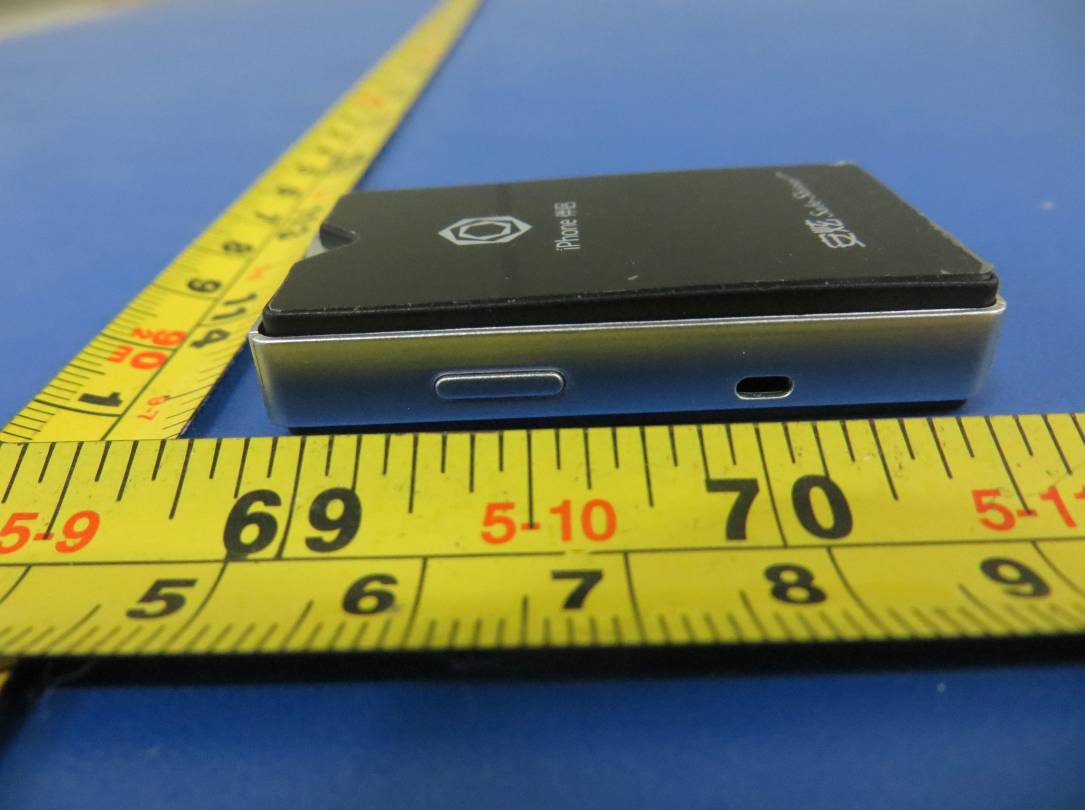

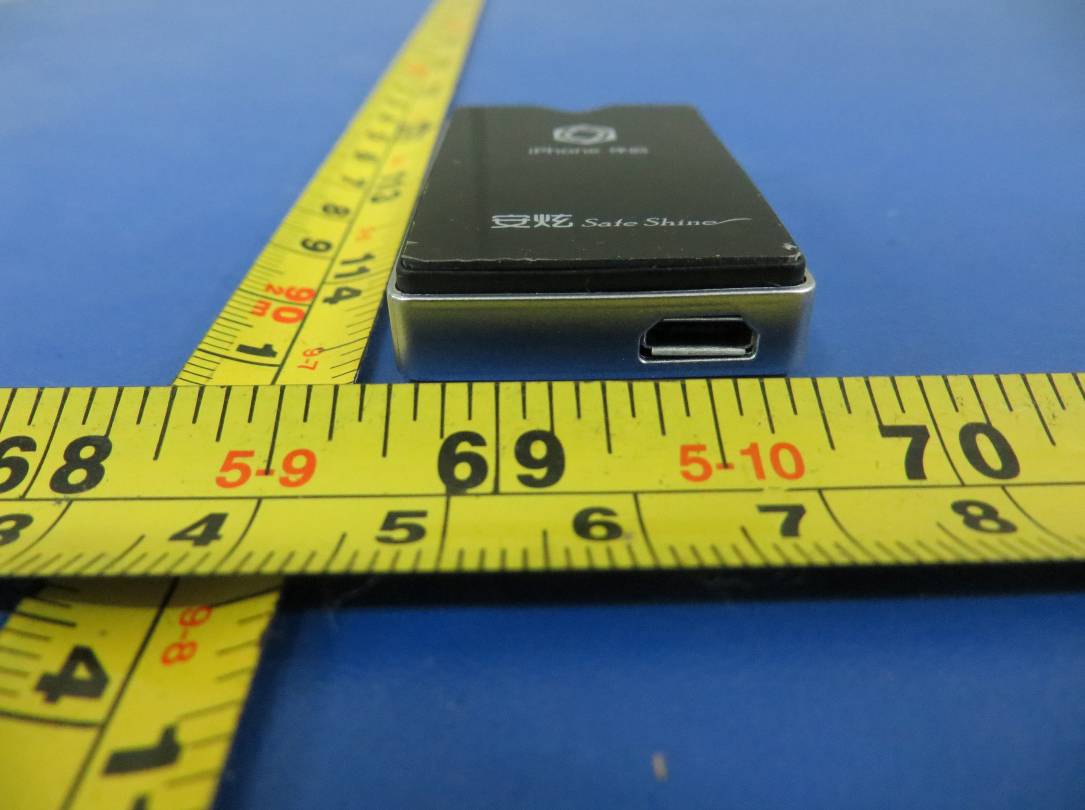

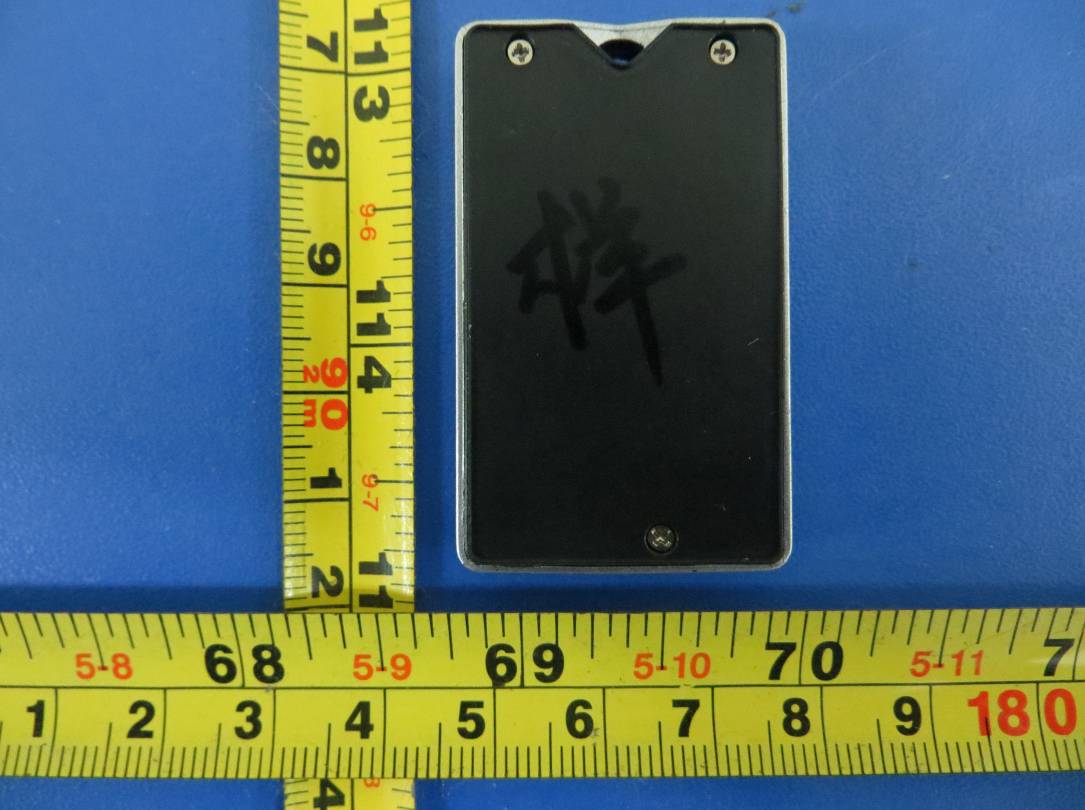

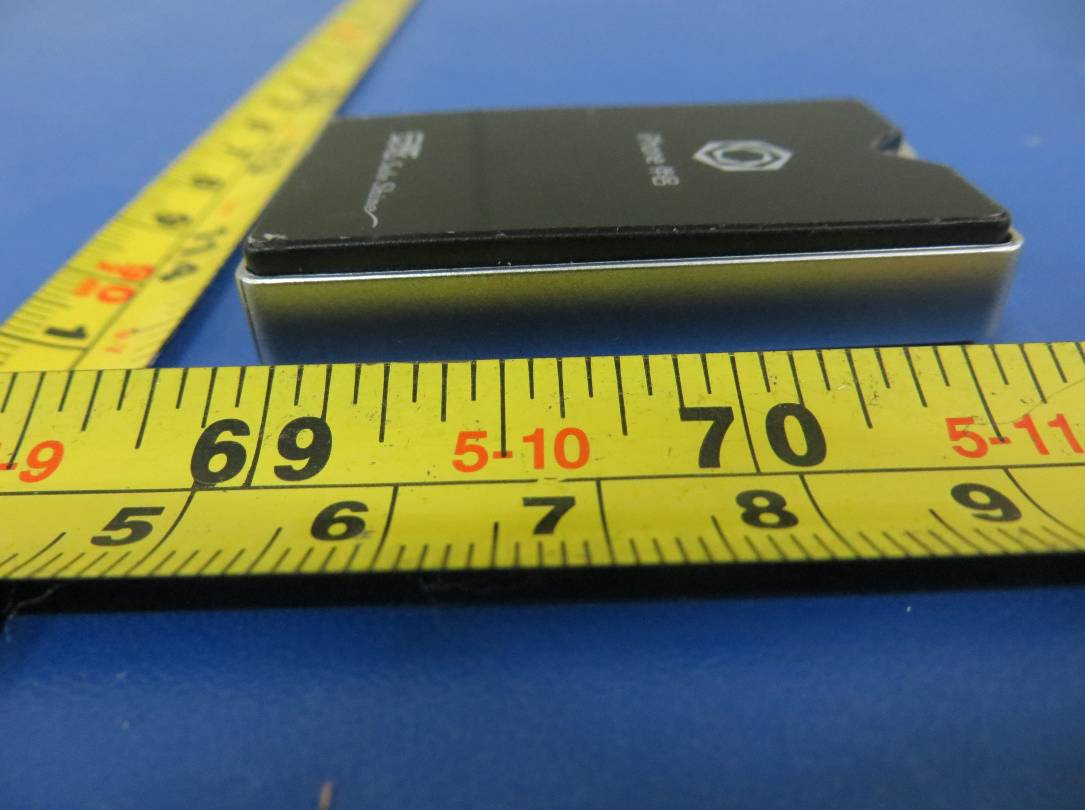

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L3.0cm*W2.0cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Hangzhou Safeshine Electronics Co., Ltd. Model Name: Apple Lover Model No.: SSAPPC-001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: S6SAXSAFESHINE Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.: LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 38 FCC TEST REPORT For Hangzhou Safeshine Electronics Co., Ltd. Apple Lover Model No.: SSAPPC-001, SSAPPC-002 Prepared for : Hangzhou Safeshine Electronics Co., Ltd. Address : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : January 28, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : January 28, 2013 - February 26, 2013 Date of Report : February 26, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.: LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 38 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) / RSS-210 Issue 8/RSS-Gen Issue 3 Report Reference No. .............. : LCS130128380TF Date of Issue ................................ : February 26, 2013 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Hangzhou Safeshine Electronics Co., Ltd. Address ........................................ : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247) / RSS-210 Issue 8/ RSS-Gen Issue 3 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Apple Lover Trade Mark .................................. : N/A Model/ Type reference................. : SSAPPC-001 Ratings ......................................... : DC 3.7V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang/ File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.: LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 38 FCC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130128380TF February 26, 2013 Date of issue Type / Model........................... : SSAPPC-001 EUT......................................... : Apple Lover Applicant............................... : Hangzhou Safeshine Electronics Co., Ltd. Address.................................. : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Hangzhou Safeshine Electronics Co., Ltd. Address................................... : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Telephone............................... : / Fax.......................................... : / Factory................................... : Hangzhou Safeshine Electronics Co., Ltd. Address................................... : Dengyun Rd., 518#, Saima Mall, Building1#, Floor 7, Room 702, Hangzhou, China. Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.: LCS130128380TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................5 1.1. DESCRIPTION OF DEVICE (EUT) .....................................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS.......................................................................................................5 1.3. EXTERNAL I/O ................................................................................................................................................................5 1.4. DESCRIPTION OF TEST FACILITY.....................................................................................................................................6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY......................................................................................................6 1.6. MEASUREMENT UNCERTAINTY...........................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement（X Position） Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: S6SAXSAFESHINE Report No.:LCS130128380TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Power Line Conducted Emission Measurement Fig.1
