i40e Datasheet February 20, 2014 Version 1.4 BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem i40e Datasheet 2 / 37 VERSION HISTORY REVISION AMENDMENT DATE AUTHOR 1.0 Initial version 2012-06-25 Wang Yuqiang Zhu Yong 1.1 Added certification, contact information, copyright 2012-08-06 Zhu Yong Huang Ruixue 1.2 Format update 2012-11-28 Li Li 1.3 Update package information. Refer to the chapter 11. 2012-12-12 Li Li 1.4 Add FCC & IC number 2014-2-20 Li Li BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem i40e Datasheet 3 / 37 Contents 1 Block Diagram and Descriptions ....................................................................................................... 6 2 Electrical Characteristics .................................................................................................................. 8 2.1 Absolute Maximum Ratings ................................................................................................. 8 2.2 Recommended Operating Conditions ................................................................................. 8 2.3 Terminal Characteristics ...................................................................................................... 8 2.4 Current Consumption .......................................................................................................... 9 2.5 Radio Characteristics ......................................................................................................... 10 2.5.1 Transmitter Radio Characteristics .............................................................................. 10 2.5.2 Receiver Radio Characteristics................................................................................... 10 3 Pin Description ............................................................................................................................... 11 4 Physical Interfaces .......................................................................................................................... 15 4.1 UART Interface ................................................................................................................... 15 4.1.1 UART Configuration While RESET is Active ................................................................ 16 4.2 SPI Interface ....................................................................................................................... 16 4.3 PCM Interface .................................................................................................................... 17 4.3.1 PCM Interface Master/Slave ...................................................................................... 17 4.3.2 Long Frame Sync ........................................................................................................ 18 4.3.3 Short Frame Sync ....................................................................................................... 19 4.3.4 Multi Slot Operation .................................................................................................. 19 4.3.5 GCI Interface .............................................................................................................. 20 4.3.6 Slots and Sample Formats ......................................................................................... 20 4.3.7 Additional Features ................................................................................................... 21 4.3.8 PCM Configuration .................................................................................................... 21 5 Software Stacks .............................................................................................................................. 23 5.1 BlueSoleil Stack .................................................................................................................. 23 6 Enhanced Data Rate ....................................................................................................................... 24 6.1 Enhanced Data Rate Baseband .......................................................................................... 24 6.2 Enhanced Data Rate _/4 DQPSK ........................................................................................ 24 6.3 8DQPSK .............................................................................................................................. 25 7 Re-flow Temperature-time profile .................................................................................................. 26 8 Reliability and Environmental Specification ................................................................................... 27 8.1 Temperature test ...................................................................................................................... 27 8.2 Vibration Test ............................................................................................................................ 27 8.3 Desquamation test .................................................................................................................... 27 8.4 Drop test ................................................................................................................................... 27 8.5 Packaging information .............................................................................................................. 28 9 Layout and Soldering Considerations ............................................................................................. 28 9.1 Soldering Recommendations ............................................................................................. 28 BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem BlueSoleil EcoSystem i40e Datasheet 4 / 37 9.2 Layout Guidelines .............................................................................................................. 28 10 Physical Dimensions .................…

Text truncated - open the document above for the full version.

IVT Corporation 2014-3-17 Dear Application Examiner, {IVT Corporation, model: i40e, FCC ID: S78-IVTI40E}, would like to have your authorization as a modular approval specific to Bluetooth module. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: {Device is equipped with metal shielding to cover RF section. Refer to photos. } 2. “The modular transmitter must have buffered modulation/data inputs.”: {All inputs to the modules are buffered through logic and microprocessor inputs(BC417143B-IQN-E4) } 3. “The modular transmitter must have its own power supply regulation.”: {Module chipset incorporates voltage regulation to transceiver circuitry } 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).”: { The device has a fixed PCB antenna. } 5. “The modular transmitter must be tested in a stand-alone configuration”: { Device is tested in a test fixture in a standalone configuration } 6. “The modular transmitter must be labeled with its own FCC ID number.”: {FCC ID label format will be included in the filling. Host ID label will be displayed on the host system.} 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.”: { Please refer to “User Manual” Exhibit } 8. “The modular transmitter must comply with any applicable RF exposure requirements.”: { RF exposure evaluation is exempted because of low output power (EIRP: 0.001W). } Please contact me if you have any further questions. Regards, Ivy Zhu Certification Manager

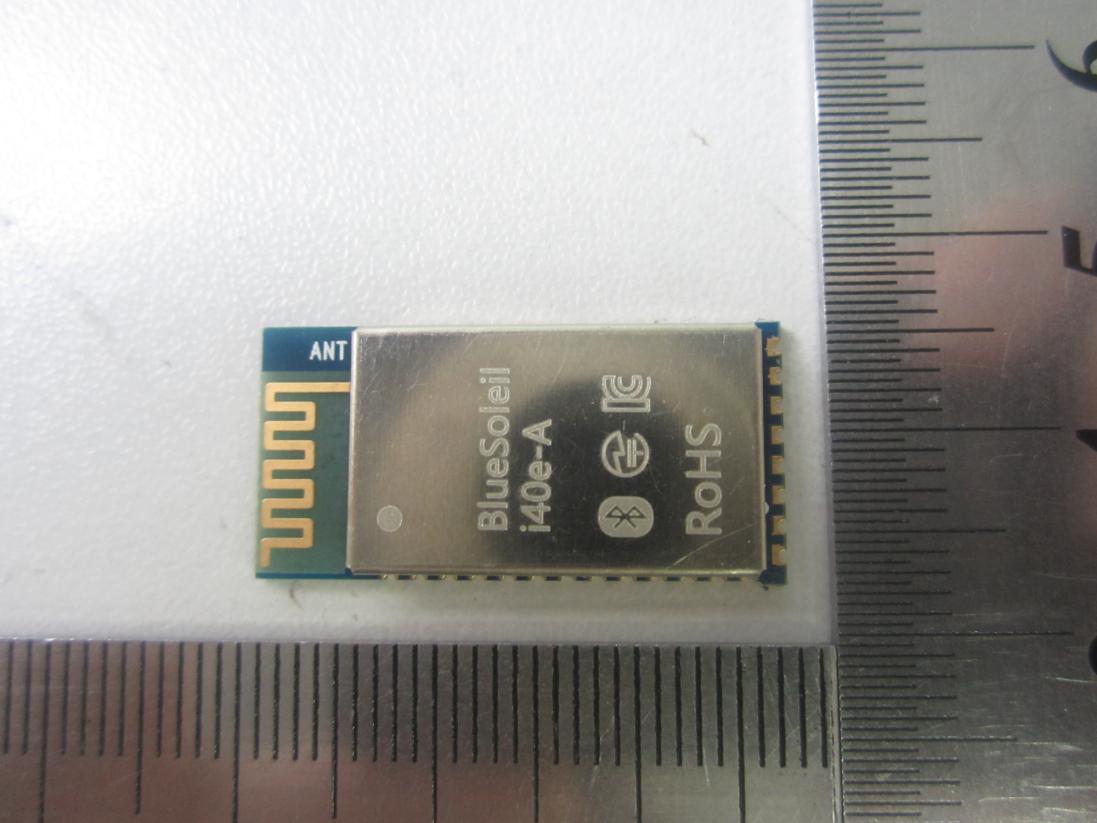

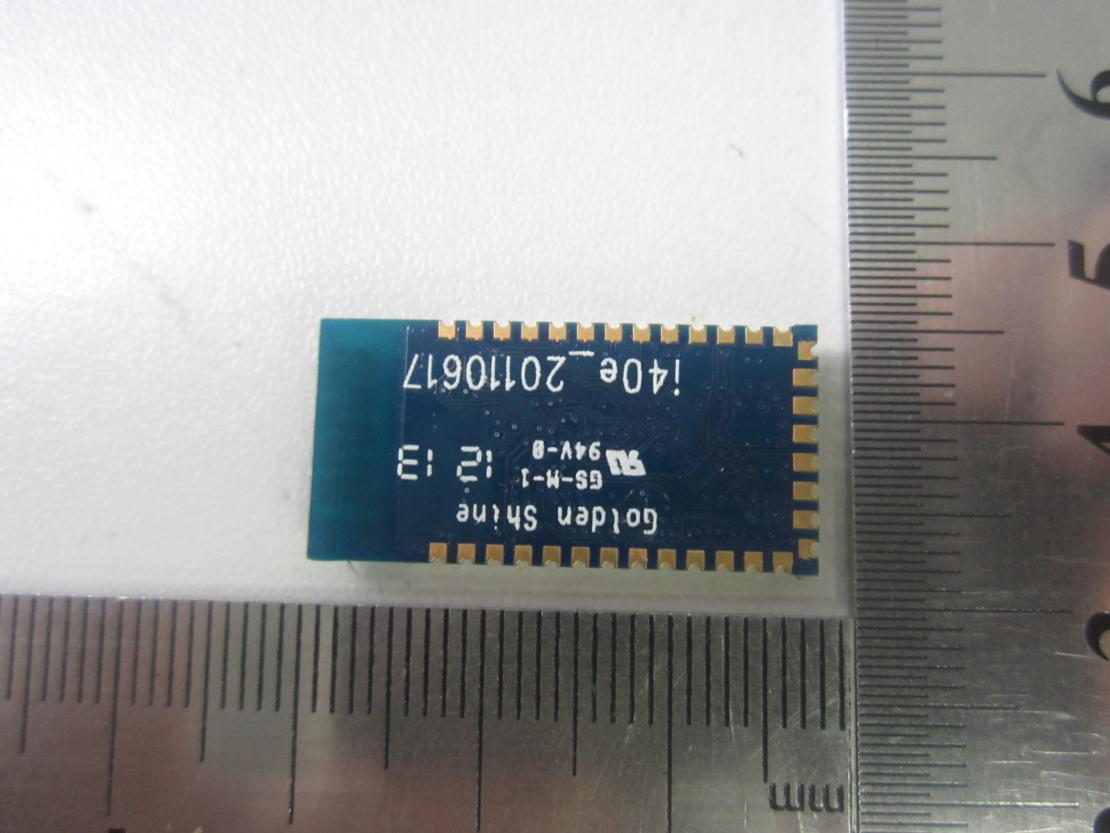

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view 7. EUT front view without shield
