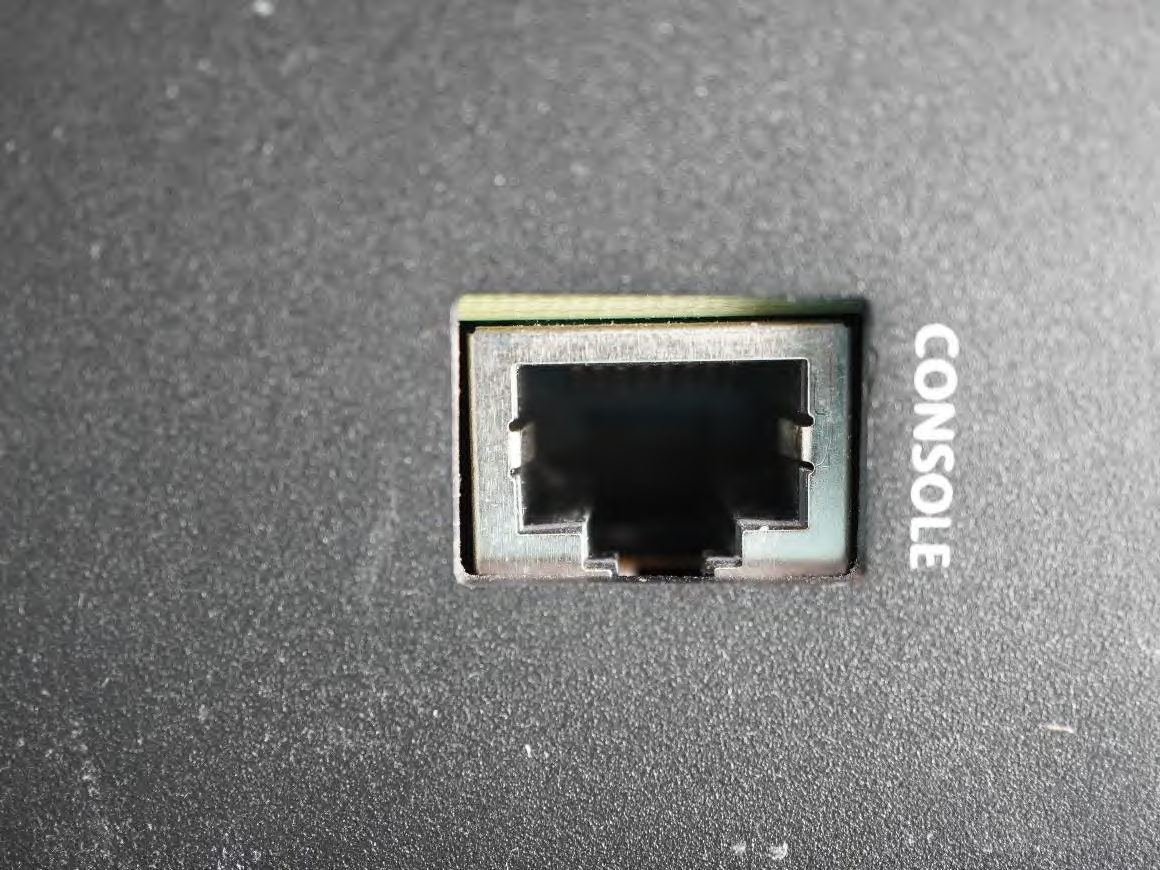

Quick Installation Guide 1 IW-3240H Wi-Fi 7/HaLow AP/Bridge/Client Quick Installation Guide Overview IW-3240H series Wi-Fi 7/HaLow AP/Bridge/Client solutions are designed for versatile industrial applications at harsh environment. The devices are equipped with high performance Wi-Fi 7 links and a Wi-Fi HaLow link for long distance/high penetration applications such as AIoT. Package Checklist Please verify the box contains the following items: Item Quantity IW-3240H device 1 DIN-RAIL mounting bracket kit 1 DC power male terminal block 1 Digital I/O male terminal block 1 DB9 female connector to RJ45 console cable 1 SFP Ethernet port Dust cover 2 Antennas Depends on models Technical Specifications Wi-Fi 7 RP SMA (Dipole) 2400 –2500 MHz / 1.45dBi, 5150 –7125 MHz / 3.89dBi RP SMA (PIFA) 2400 –2500 MHz / 1.87dBi, 5150 –7125 MHz / 1.53dBi (OPTION) IEEE 802.11ah SMA (Dipole) 902 –928 MHz / 0.8dBi SMA (PIFA) 902 –928 MHz / 2.9dBi (OPTION) Ethernet SFP (pluggable slots) 1000/10GBASE-X SFP+ slot, 2 slots in total Quick Installation Guide 2 Power Power input Redundant Input Terminals; Reverse power protection Typical power input ratings 9.6 - 60 VDC, max. 2.8A Maximum Power consumption 26 Watts Environmental and Compliances Operating temperature -40 to +70°C (cold startup at -40°C) Storage temperature -40 to +85°C Humidity 5 to 95% RH (non-condensing) Mechanical Ingress protection IP30 Dimension (unit: mm) (without DIN rail clip) 135 (H) x 108 (D) x 77 (W) mm Weight Net 1.745g (Max.) Installation option DIN-Rail mounting, Wall mounting (optional kit) Appearance IW-3240H series Quick Installation Guide 3 DIN-Rail Mounting Mounting steps: 1. Screw the din-clip with screws in the accessory kit. 2. Hook the unit onto the din-rail. 3. Push the bottom of the unit towards the din-rail until it locks in place. < This graph is for all series > Quick Installation Guide 4 Ethernet Interface (Fiber, SFP) For both 1G/10Gbps fiber speed connections, the SFP slots are available. The SFP slot complies with MSA standard and accepts the fiber or copper transceivers whose slot interface is serdes. The fiber transceivers have options of multimode, single mode, long-haul or special- application transceivers. DANGER: Never attempt to view optical connectors that might be emitting laser energy. Do not power up the laser product without connecting the laser to the optical fiber and putting the dust cover in position, as laser outputs will emit infrared laser light at this point. Connecting Power Terminal Block The device can be powered from two power inputs (input range 9.6V – 60V). Insert the positive and negative wires (AWG 18-22) into V+ and V- contacts on the terminal block respectively and tighten the wire-clamp screws to prevent the wires from being loosened. WARNING: The DC power should be connected to a well-fused power supply. Quick Installation Guide 5 Alarm Relay and Ground The alarm relay output contacts are in the middle of the DC terminal block connector as shown in the figure below. The alarm relay out is “Normal Open”, and it will be closed when detected any predefined failure such as power failures or Ethernet link failures. The relay output with current carrying capacity of 1.0A @ 24 VDC. And, the switch must be properly grounded for optimum system performance. Quick Installation Guide 6 Web Interface Initialization Web Browser Support IE 7 (or newer version) with the following default settings is recommended: Language script Latin based Web page font Times New Roman Plain text font Courier New Encoding Unicode (UTF-8) Text size Medium Firefox with the following default settings is recommended: Web page font Times New Roman Encoding Unicode (UTF-8) Text size 16 Google Chrome with the following default settings is recommended: Web page font Times New Roman Encoding Unicode (UTF-8) Text size Medium Connect & Login 1. Make sure that the network interface of the PC/laptop which will connect with IW-3240H is Quick Installation Guide 7 located in the 192.168.1.0 255.255.255.0 network. 2. Invoke any web browser introduced as above. Visit the Web GUI of IW-3240H with IP address 192.168.1.1 as below illustration. 3. Factory default IP of IW-3240H: 192.168.1.1 4. Login with default account and password. Username: admin Password: admin Quick Installation Guide 8 LED STATUS INDICATIONS LED Name Indicator /color Condition ALM On Orange A specified events occurs, such as power failure, port link down, ..., etc. Off No any event PWR1/PWR2 On Green There are rated power input at PWR1 or PWR2 Off Power line disconnected or does not have power supplied SYS On Green The device is ready to work Flashing Green The device is performing firmware update Off The device is not ready to work USB On Green An USB memory stick is detected Flashing Green Read/write USB memory stick Off No USB memory stick is detected RS485 Flashing Green RS485 is transmitting/receiving data Off RS485 is not transmitting/receiving data 2.4G On Green 2.4G Wi-Fi is ready Flashing Green 2.4G Wi-Fi links up and there is traffic detected Off 2.4G Wi-Fi is not ready 5G On Green 5G Wi-Fi is ready Flashing Green 5G Wi-Fi links up and there is traffic detected Off 5G Wi-Fi is not ready 11ah On still Green 11ah is ready Flashing Green 11ah links up and there is traffic detected Off 11ah is not ready ETH1 On Green Ethernet port 1 links up but no traffic is detected Flashing Green Ethernet port 1 links up and there is traffic detected Off No any link on Ethernet port 1 ETH2 On Green Ethernet port 2 links up but no traffic is detected Flashing Green Ethernet port 2 links up and there is traffic detected Off No any link on Ethernet port 2 Quick Installation Guide 9 Declaration of Conformity Manufacturers Federal Communication Comm. Declaration of Conformity Statement Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection aga…

Text truncated - open the document above for the full version.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant's agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii.Acknowledge the applicant's consent and the designated agent's obligation to accept service of process. iii.Provide a physical U.S. address and email for the designated agent. iv.Acknowledge the applicant's acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or t he agent who may interface with theTCB. � Quanta Storage Inc. ATTENTION: U.S. Agent Designation for Service of Process Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, }.,ID 21046 USA REGARDING: FCC Certification - Section 2.911( d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 tl , Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-24 7-1678 Email: [email protected] FRN #: 0027533835 This letter is to confirm that we ("the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.91 l(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Nathan Grinager / Co-President The Applicant confim1s its explicit consent and acknowledges that they must maintain an agent for no less than one year after te1minating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent infonnation above changes. Applicant Company name: Quanta Storage Inc. Grantee FRN: 0013304852 FCC ID: S7Q-P04 Contact Name: Keven Peng Street Address: 6F., No. 58-2, Huaya 2nd Rd., Guishan Dist., City/Province/Zip: Taoyuan City 333411, Taiwan Telephone No: + 886 3 328 8090 Email: [email protected] Applicant s;gnatu,e: t £IV Yi/ 'J> --""'1 Date: December 11, 2025 j .,,.. d Signed by (Printed Name/Title): Keven Peng, Associate VP December 11, 2025

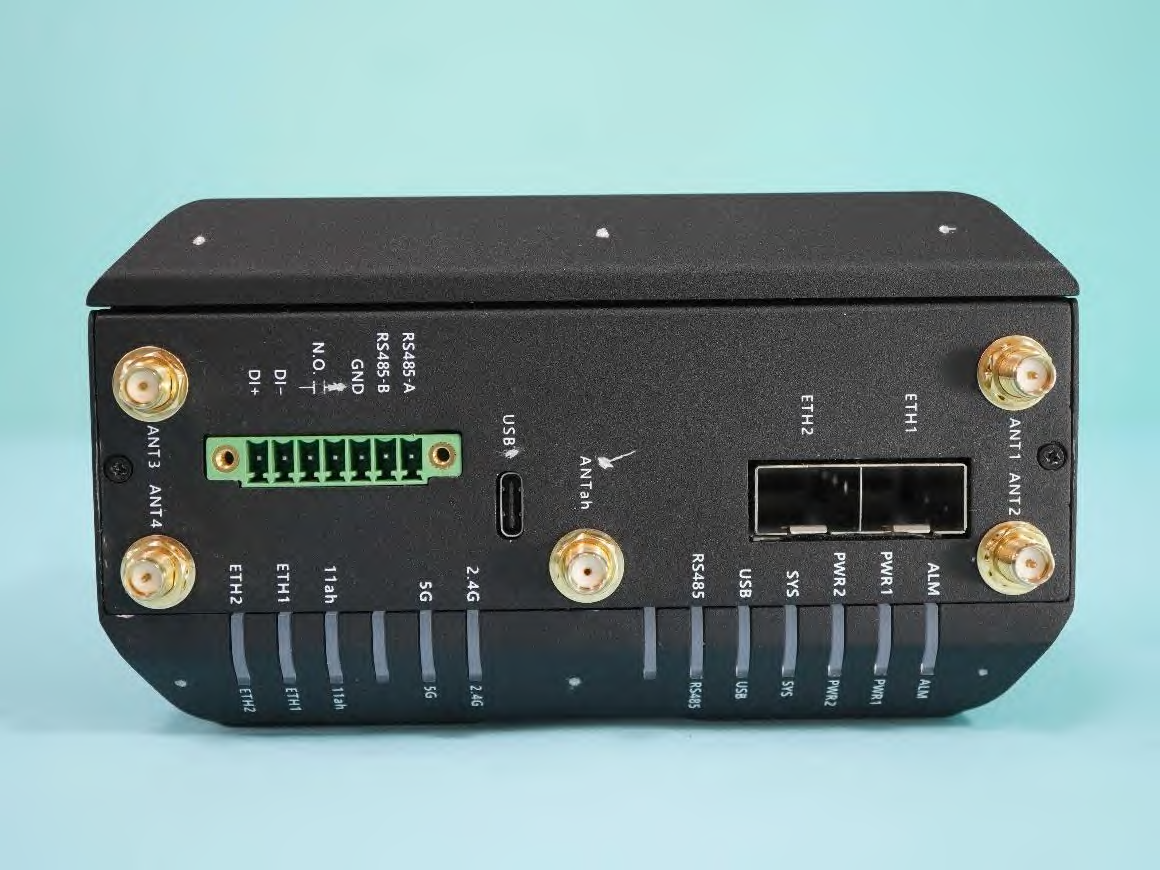

PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 1 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 Brand Name: TECHMAN Model Name: IW-3240H PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 2 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 3 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 4 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 5 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 2.4G/5G 2.4G/5G HaLow 5G 5G PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 37 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 DIN-RAIL mounting bracket kit You Chang Hardware Co., Ltd / 35mm Din Rail Clip PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 38 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 DC power male terminal block PHOENIX CONTACT / 1778014 (CONNECTOR,TERM BLOCK PLUG 5POS STR 5.08MM) PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 39 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 40 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 Digital I/O male terminal block PHOENIX CONTACT / 1847107 (CONNECTOR, TERM BLOCK PLUG 7POS STR 3.5MM) PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 41 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 42 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 DB9 female connector to RJ45 console cable JOIN TEK CORPORATION CO.,LTD. / DB9F-1204-D001 SFP Ethernet port Dust cover Hua Thai / SFP Dust Cover PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 43 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 Antennas Aristotle / RFA-27-C57-U-B70-1 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 44 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 45 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 Antennas Aristotle / RFA-S1-C57-U-B70-1 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 46 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 Antennas Aristotle / RFA-J15-T379-5-3M PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 47 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 48 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 ─────THE END─────

PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 6 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 7 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 8 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 9 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 10 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 11 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 12 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 13 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 14 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 15 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 16 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 17 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 18 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 19 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 20 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 21 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 22 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 23 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 24 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 25 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 26 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 27 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 28 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 29 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 30 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 31 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 32 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 33 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 34 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 35 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01 PHOTOGRAPHS OF EUT EP5O0134 Sporton International Inc. Page No. : 36 of 48 Report Template No.: SE Ver 1.0_EP Issued Date : 28/Nov/2025 Report Version : 01

Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 1 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 Radio Exposure Evaluation Report FCC ID : S7Q-P04 Contains FCC ID : S7Q-S04 Equipment : Gateway Brand Name : TECHMAN or Model Name : IW-3240H Applicant : Quanta Storage Inc. 6F., No. 58-2, Huaya 2nd Rd., Guishan Dist., Taoyuan City, Taiwan Manufacturer : TECHMAN ELECTRONICS (THAILAND) CO.,LTD 236 – 237 Moo.2, Tambon Nongchark, Banbung, Chonburi 20170 Thailand Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Oct. 07, 2025, and testing was started from Oct. 09, 2025 and completed on Oct. 23, 2025. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 2 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 8 1.3 Testing Location ..................................................................................................................................... 8 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 9 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 9 2.2 RF Exposure Exempt Measurement .................................................................................................... 10 2.3 Multiple RF Sources Exposure ............................................................................................................. 11 2.4 MPE Calculation Method ...................................................................................................................... 12 2.5 Calculated Result and Limit .................................................................................................................. 13 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 3 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA5O0134 01 Initial issue of report Nov. 28, 2025 Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 4 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Sam Tsai Report Producer: Amber Chiu Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 5 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11be: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM) SRD 902-928 903.5~926.5 OFDM Note: The HaLow transmitter is certified under separate FCC ID:S7Q-S04 Radio Exposure Evaluation Report Report No. : FA5O0134 TEL : 886-3-327-3456 Page Number : 6 of 15 FAX : 886-3-327-0973 Issued Date : Nov. 28, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Support Radio 1 Aristotle RFA-27-C57-U-B70-1 Dipole Reverse SMA 2.4G+5G Radio 1 2 Aristotle RFA-27-C57-U-B70-1 Dipole Reverse SMA 2.4G+5G Radio 1 3 Aristotle RFA-27-C57-U-B70-1 Dipole Reverse SMA 2.4G+5G Radio 1 4 Aristotle RFA-27-C57-U-B70-1 Dipole Reverse SMA 2.4G+5G Radio 1 5 Aristotle RFA-S1-C57-U-B70-1 Dipole SMA H…

Text truncated - open the document above for the full version.

5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna Type: Dipole RFA-S1-C57-U-B70-1 Specifications Frequency range 863 –928 MHz Peak gain 0.8 dBi Average gain -1.12 dBi VSWR 2.5 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Connector SMA PLUG Environment & Mechanical Characteristics Temperature -40°C to +85°C Humidity 95％ @ 25°C VSWR Revise3 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 863 MHz 867 MHz 870 MHz 902 MHz 915 MHz 928 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0° 90 ° ± 180° -90 ° -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0° 90 ° ±180 ° -90° -25 dB -15 dB -5 dB 5 dB ZX Plane (+Z = 0¢X, +X = +90¢X) / Azimuth = 0 ¢X 0 ° 90 ° ±180 ° -90° -25 dB -15 dB -5 dB 5 dB

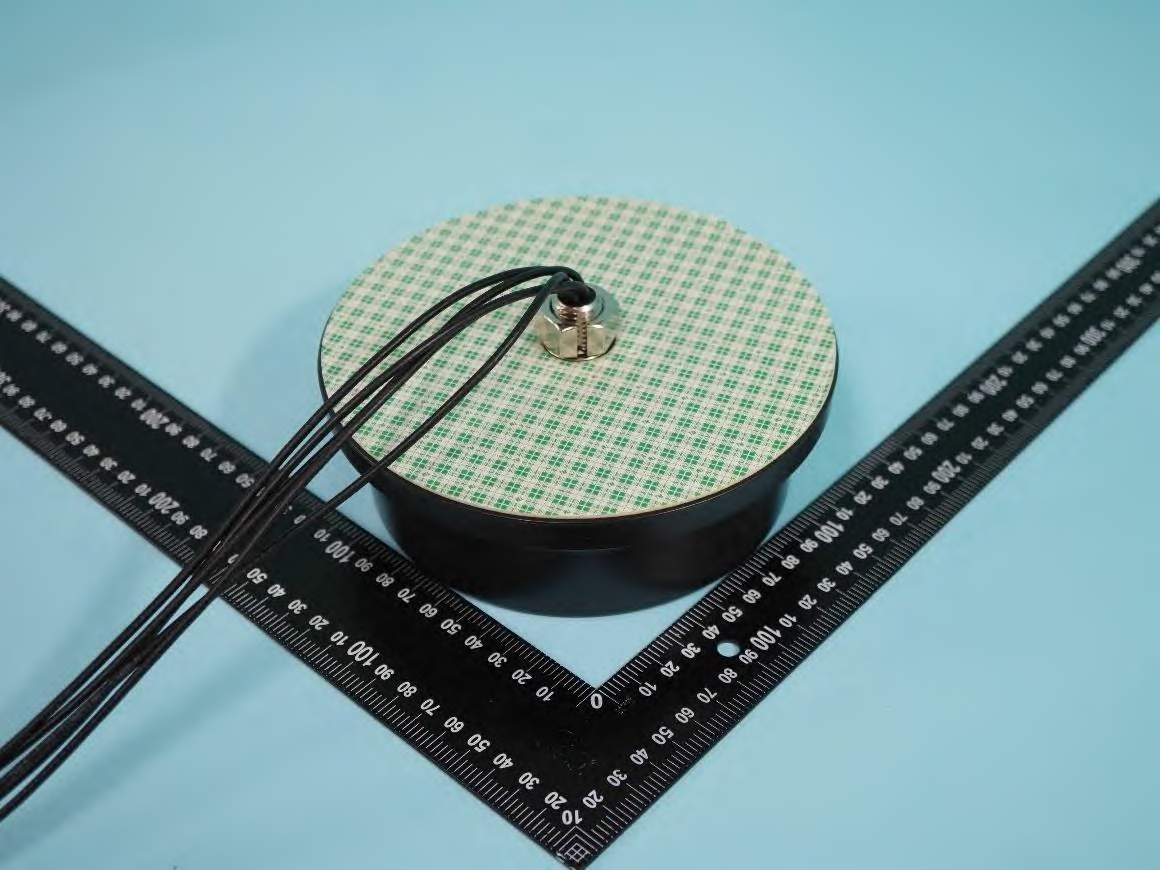

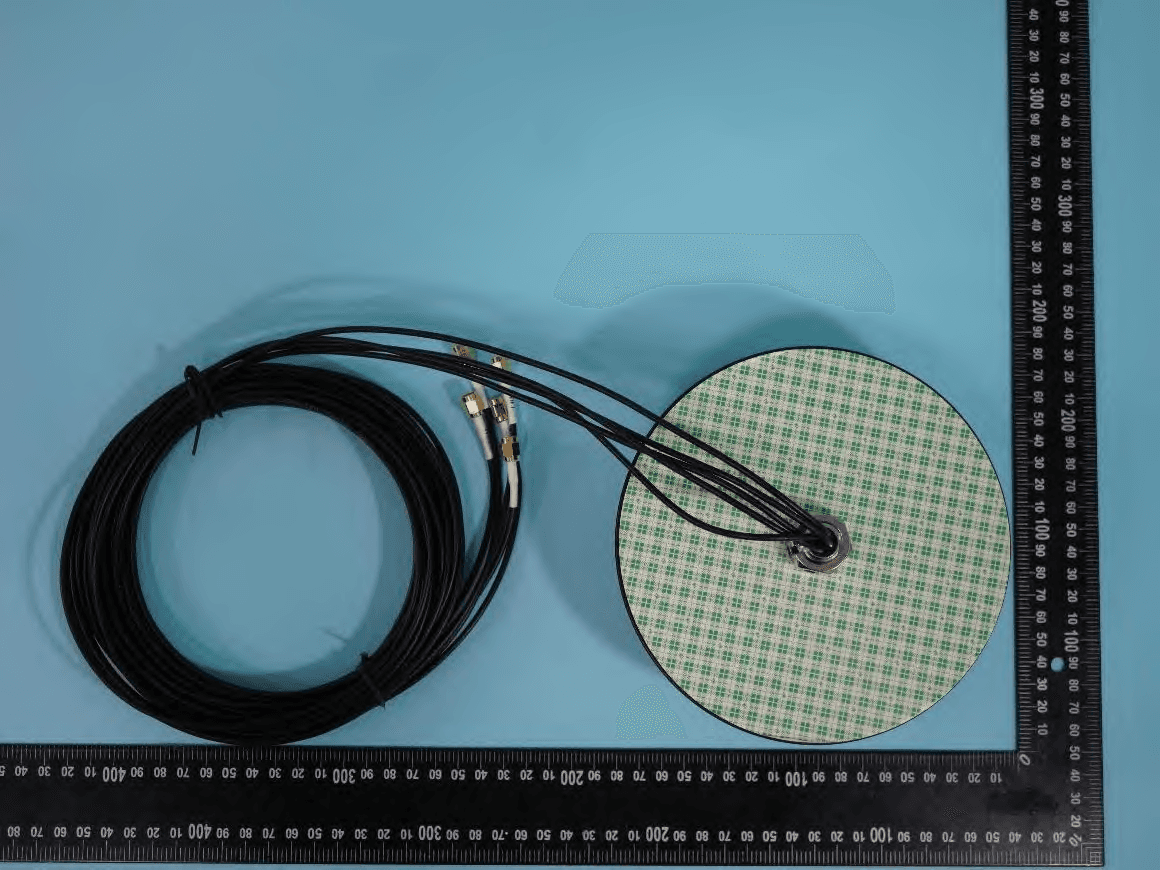

5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna Type: PIFA 13142 RFA-J15-T379-5- 3M Specifications Antenna Tri-band-Antenna 1 Tri-band-Antenna 2 Frequency (MHz) 2400-2500 5150-5925 6200-7125 2400-2500 5150-5925 6200-7125 Peak gain 1.11 dBi 0.26 dBi 0.41 dBi 1.87 dBi 1.53 dBi -0.58 dBi Average gain -4.08 dBi -6.32 dBi -7.79 dBi -4.02 dBi -6.36 dBi -7.91 dBi Efficiency 39.11 % 23.38 % 16.65 % 39.66 % 23.16 % 16.21 % VSWR 2.0： 1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max Antenna Tri-band-Antenna 3 Tri-band-Antenna 4 Frequency (MHz) 2400-2500 5150-5925 6200-7125 2400-2500 5150-5925 6200-7125 Peak gain 1.63 dBi 0.88 dBi -0.88 dBi 1.63 dBi 0.88 dBi -0.88 dBi Average gain -4.11 dBi -6.19 dBi -7.80 dBi -4.11 dBi -6.12 dBi -7.91 dBi Efficiency 38.85 % 24.08 % 16.63 % 38.85 % 24.44 % 16.20 % VSWR 2.0： 1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max 2.0：1 Max Connector RP SMA PLUG Impedance 50 Ω Cable / Length ULA100 / L=3M Antenna Sub1G-P1 Frequency (MHz) 863-928 Peak gain 2.9 dBi Average gain -3.14 dBi Efficiency 48.49 % VSWR 2.0：1 Max Connector SMA PLUG Impedance 50 Ω Cable / Length ULA100 / L=3M Ingress Protection IP65 Environment & Mechanical Characteristics Temperature - 40°C to +85°C Humidity 95％ @ 25°C 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 1 Tri-band-Antenna 2 Tri-band-Antenna 3 Tri-band-Antenna 4 VSWR 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Sub 1G-Antenna 1 VSWR 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 1 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 1 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 1 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 2 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 2 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 2 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 3 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 3 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 3 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 4 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 4 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Tri-band-Antenna 4 Radiation Pattern 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Sub 1G-Antenna 1 Radiation Pattern

5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Antenna Type: Dipole RFA-27-C57-U-B70-1 Specifications Frequency range 2400 –2500 MHz 5150 –7125 MHz Peak gain 1.45 dBi 3.89 dBi Average gain 0.77 dBi 1.73 dBi VSWR 2.5 : 1 Max. 3.5 : 1 Max. Polarization Linear, vertical Impedance 50 Ω Connector RP SMA PLUG Environment & Mechanical Characteristics Temperature - 40°C to +85°C Humidity 95％ @ 25°C VSWR Revise3 5F., No. 27, Xinmin St., Zhonghe Dist., New Taipei City, 235, Taiwan (R.O.C.) Tel : +886-2-2225-8209 Fax: +886-2-2225-7523 www.aristotle.com.tw Radiation Pattern 2400 MHz 2450 MHz 2483.5 MHz XY Plane (+X = 0¢X, +Y = +90¢X) / Elevation = 90 ¢X 0° 90° ± 180° -90° -25 dB -15 dB -5 dB 5 dB YZ Plane (+Z = 0¢X, +Y = +90¢X) / Azimuth = 90 ¢X 0° 90° ±…
