S7Q-WDR041Cine Trek ( Portable DVD Player)

- 1 - Copyright © Copyright 2004 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of our company. All brand and product names are trademarks and/or registered trademarks of their respective holders. Disclaimer We make no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed “as is”. Should the programs prove defective following their purchase, the buyer (and not our company., its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, we reserve the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. - 2 - Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a class B device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio / TV technician help. FCC Warning Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 LASER KLASSE 1 LOUKAN 1 LASERLAITE PRODUIT LASER CATEGORIE 1 Specification English - 3 - Table of Contents 1. Before You Start ...............................................................4 1.1. Safety Cautions ............................................................................................4 1.2. Things you must know of the player.............................................................5 1.3. Macrovision ..................................................................................................7 1.4. DOLBY DIGITAL ..........................................................................................7 2. Introduction.......................................................................8 2.1. Overview ......................................................................................................8 2.2. Main Features ..............................................................................................8 2.3. Format Compatibility ....................................................................................9 2.4. The Handling of Disc ....................................................................................9 3. Enjoy the movie with no pain ........................................10 3.1. First Contact ...............................................................................................10 3.2. Know more about your DVD player............................................................11 3.3. Remoter Control .........................................................................................16 4. Advanced Settings .........................................................18 4.1. System Setup .............................................................................................18 4.2. Language Setup .........................................................................................21 4.3. Audio Setup................................................................................................23 4.4. Karaoke Setup ...........................................................................................24 5. Accessory........................................................................25 5.1. Accessory Checklist ...................................................................................25 5.2. Accessory Installations...............................................................................26 6. Technical Support ..........................................................28 6.1. Specification ...............................................................................................28 6.2. Troubleshooting .........................................................................................29 Specification - 4 - 1. Before You Start Thank you very much for purchasing this portable DVD player. These precautions explain how to use the player correctly and safely, t…

Text truncated - open the document above for the full version.

- 1 - 2.4Ghz Head Phone 2.4Ghz Head Phone - 2 - Copyright © Copyright 2004 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of our company. All brand and product names are trademarks and/or registered trademarks of their respective holders. Disclaimer We make no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed “as is”. Should the programs prove defective following their purchase, the buyer (and not our company., its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, we reserve the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. - 3 - Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a class B device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: y Reorient or relocate the receiving antenna. y Increase the separation between the equipment and receiver. y Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. y Consult the dealer or an experienced radio / TV technician help. FCC Warning Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 LASER KLASSE 1 LOUKAN 1 LASERLAITE PRODUIT LASER CATEGORIE 1 - 4 - To avoid interference noises from outer environment, you may put on the wireless headset to enjoy your favorite movie or music. Afin d'éviter les bruits parasites causés par l'environnement extérieur, vous pouvez porter le casque audio sans fil pour pouvoir profiter confortablement de votre film ou de votre musique préféré. Wireless Headset (Optional) Turn ON the Headphone by toggle between ON/OFF. Turn ON the wireless output on the player by pressing the Adjust Key for several times. Mettez le casque audio en MARCHE en agissant sur le bouton MARCHE/ARRÊT. Activez la sortie sans fil du lecteur en appuyant sur la touche Ajuster plusieurs fois. Casque audio sans fil (Optionnel) - 5 - Um Störgeräusche von Außen zu umgehen, können Sie den drahtlosen Kopfsprechhörer aufsetzen und Filme oder Musik nach Ihrer Wahl genießen. Specification (English) Supply Voltage 2.4 VDC Current Consumption 130mA (Typical) Operating Temperature -10°C~ +60°C Frequency Band 2410 MHz Modulation FSK Channel Number 1 Channel Spacing 9MHz Channel Frequency 2410 MHz Frequency Stability +/- 100KHz RX Sensitivity -85 dBm Headphone Impedance 24 Ohm Output Power 2m WRMS Response 20~20KHz, -3dB Dynamic Range 92 dB (Typ.) Separation 80 dB (Typ.) SN Ratio 87 dB (Typ.) THD 0.1 %(Typ.) Drahtloser Kopfsprechhörer (Optional) Schalten Sie den Kopfhörer EIN durch Schalten von EIN/AUS. Schalten Sie die drahtlose Ausgabe des Players EIN, indem Sie mehrmals die Einstelltaste drücken.

Power of Attorney To whom it may concern: We, the undersigned Quanta Storage Inc. hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Steven Hsieh / Engineer Company name Quanta Storage Inc. Tel: 886-3-352-5555*1916 Fax: 886-3-270-5066 Email: [email protected]

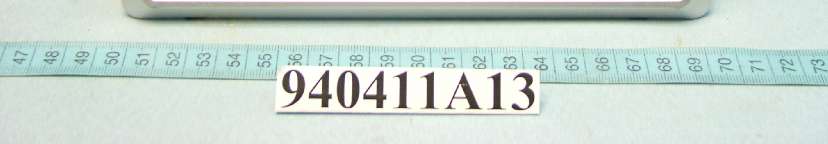

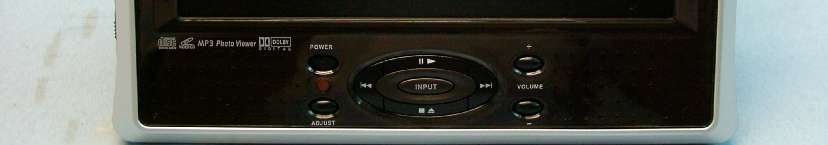

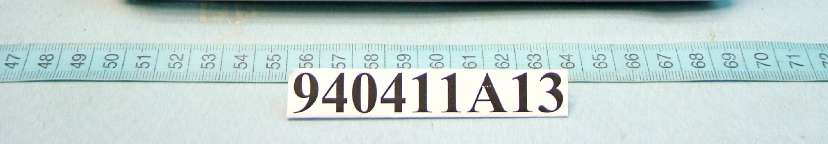

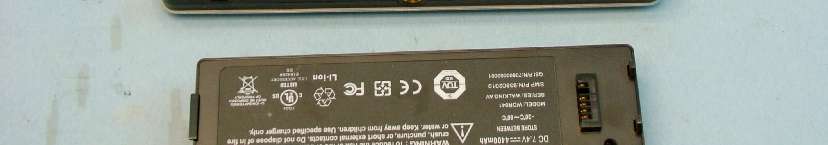

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID: S7Q-WDR041 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23

FCC ID: S7Q-WDR041 Report No.: RF940411A13 Operational Description This device(EUT) is a CineTrek(Protable DVD Player) (Brand: NU, Model: WDR041). The type of the antenna is PIFA antenna with –1dBi Gain. Under normal use condition, the user has to keep at least 2.5cm separation distance between radiator and the body of the user. The EUT is operates in 2410MHz (FSK technique) band. For more detailed instruction, please have a look at the user's manual.

FCC ID: S7Q-WDR041 Report No.: RF940411A131Report Format Version 2.0.2 FCC TEST REPORT REPORT NO. : RF940411A13 MODEL NO. : WDR041 RECEIVED : April 12, 2005 TESTED : April 16 ~ May 10, 2005 ISSUED : May 10, 2005 APPLICANT : Quanta Storage Inc. ADDRESS : 323, Section 2, Nankan Road, Luchu, Taoyuan hsien, Taiwan, R.O.C. ISSUED BY : Advance Data Technology Corporation LAB LOCATION : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: S7Q-WDR041 Report No.: RF940411A132Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION...........................................................................................3 2.SUMMARY OF TEST RESULTS...................................................................4 2.1MEASUREMENT UNCERTAINTY................................................................4 3.GENERAL INFORMATION............................................................................5 3.1GENERAL DESCRIPTION OF EUT..............................................................5 3.2DESCRIPTION OF TEST MODES................................................................6 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................6 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...............................9 3.4DESCRIPTION OF SUPPORT UNITS..........................................................9 4.TEST TYPES AND RESULTS.....................................................................10 4.1CONDUCTED EMISSION MEASUREMENT..............................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................10 4.1.2TEST INSTRUMENTS................................................................................10 4.1.3TEST PROCEDURES.................................................................................11 4.1.4DEVIATION FROM TEST STANDARD.......................................................11 4.1.5TEST SETUP..............................................................................................12 4.1.6EUT OPERATING CONDITIONS................................................................12 4.1.7TEST RESULTS..........................................................................................13 4.2RADIATED EMISSION MEASUREMENT...................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................15 4.2.2TEST INSTRUMENTS................................................................................16 4.2.3TEST PROCEDURES.................................................................................17 4.2.4DEVIATION FROM TEST STANDARD.......................................................17 4.2.5TEST SETUP..............................................................................................18 4.2.6EUT OPERATING CONDITIONS................................................................18 4.2.7TEST RESULTS (A)....................................................................................19 4.2.8TEST RESULTS (B)....................................................................................20 4.2.9TEST RESULTS (C)....................................................................................21 4.3BAND EDGES MEASUREMENT................................................................23 4.3.1LIMITS OF BAND EDGES MEASUREMENT..............................................23 4.3.2TEST INSTRUMENTS................................................................................23 4.3.3TEST PROCEDURE...................................................................................23 4.3.4DEVIATION FROM TEST STANDARD.......................................................23 4.3.5EUT OPERATING CONDITION..................................................................23 4.3.6TEST RESULTS..........................................................................................23 5.PHOTOGRAPHS OF THE TEST CONFIGURATION..................................26 6.INFORMATION ON THE TESTING LABORATORIES................................30 FCC ID: S7Q-WDR041 Report No.: RF940411A133Report Format Version 2.0.2 1. CERTIFICATION PRODUCT : CineTrek(Protable DVD Player) BRAND NAME : NU MODEL NO. : WDR041 TEST SAMPLE : R&D SAMPLE APPLICANT : Quanta Storage Inc. TESTED : April 16 ~ May 10, 2005 STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 10, 2005 ( Annie Chang ) TECHNICAL ACCEPTANCE :, DATE:May 10, 2005 Responsible for EMI( Jun Wu ) APPROVED BY:, DATE:May 10, 2005 ( Cody Chang, Deputy Manager ) FCC ID: S7Q-WDR041 Report No.: RF940411A134Report Format Version 2.0.2 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestPASS Minimum passing margin is -8.46dB at 23.387MHz 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing …

Text truncated - open the document above for the full version.

FCC ID: S7Q-WDR041 Report No.: RF940411A1326Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test FCC ID: S7Q-WDR041 Report No.: RF940411A1327Report Format Version 2.0.2 Radiated Emission Test (Adapter Mode) FCC ID: S7Q-WDR041 Report No.: RF940411A1328Report Format Version 2.0.2 Radiated Emission Test (Car Charger Mode) FCC ID: S7Q-WDR041 Report No.: RF940411A1329Report Format Version 2.0.2 Radiated Emission Test (Battery Mode)
