S7R-LORIKEET-HP1Lorikeet Model Number HP-1

Page 1 of 6 Taggle Systems Pty Ltd Suite 201 National Innovation Centre, Australian Technology Park 4 Cornwallis Street Eveleigh NSW 2015 Australia +61 2 8999 1919 www.taggle.com.au Lorikeet HP1 User Manual Revision History Revision Date Details 1.0 27-Feb-2013 Initial Draft Page 2 of 6 Overview The Lorikeet HP1 is a battery powered wireless telemetry unit designed for domestic and commercial water meters to support low cost utility scale automatic meter reading (AMR) deployments based on Taggle Systems proprietary 900MHz ISM band digital spread spectrum radio technology. Specifications Electrical Radio 922MHz license free DSSS transmit only Centre Frequency 922.00MHz , +/- 20ppm over temperature and lifetime Output Power 27 dBm Sensor type External reed switch with tamper loop Antenna Internal 0dBi monopole Burst interval 60 min Burst time 330ms Battery Single LSH20 (D size 3.6V LiThCl) non replaceable Lifetime Minimum 10 years Environmental Operating temperature -10C to 60C, battery lifetime guaranteed for operating environment where average temperature does not exceed 40C Water resistance IP68 (submersible to 1m) Shock Will survive drop from 1m height unattached and 100mm height when attached to water meter UV Capable of withstanding 15 year direct sun exposure Page 3 of 6 Wiring Instructions The LORIKEET HP1 is shipped preconfigured with a meter probe. Possible probes include: Refer to the Taggle Field Installation Manual for details on fitting the probe to the meter. The LORIKEET HP1 can also be supplied with an un-terminated 4 core cable for connection to probes from alternative meter manufacturers or connection directly to the pulse output from electronic meters. The wiring instructions are shown in the following table: Probe Name Elster Part No. Appropriate Meters T-probe MEB7454 V100 T140/PG100 45245-00 H4000, S2000, C4000, C4200 M160/V200 45250-00 V200, V210, V120, V140, Combination Meters PR6 2925M1221 V200 (replacement for M160) PR7 2925M1280 H4000 (replacement for PG100) Page 4 of 6 Conductor Function Connection Red Pulse circuit In Meter contact output Blue Pulse circuit Ground Meter contact output Ground Yellow Tamper circuit In Loop back to Tamper Ground (Black) Black Tamper circuit Ground Loop back to Tamper In (Yellow) Table 1. Lorikeet HP1 Wiring Diagram The pulse circuit (red/blue pair) should be connected to the pulse output of an electronic meter or the reed switch of a 3 rd party passive probe. The pulse counter input is designed to be connected to contact closure circuits only. Connection to meter pulse outputs which actively drive the output in the on and off state is possible, however the maximum recommended voltage on the pulse counter input (red wire) is 3.6V Warning: Never connect the pulse counter input to an active pulse output > 5V as this will permanently damage the LOROKEET HP1 and may damage the meter as well. The tamper loop should be enabled by connecting the yellow and black conductors together at far end of the cable. If the cable is cut for any reason a tamper alert will be transmitted. Warning: Do not leave the tamper circuit un-terminated as this may result in unwanted tamper alarms being triggered. Mounting Instructions The Lorikeet HP1 is suitable for both below ground installation in meter and irrigation pits, as well as above ground mounted on posts or other non-metallic structures such as fences. As with all radio devices superior range and reliability will be achieved with above ground deployments. When installing the device inside pits where possible the device should be mounted vertically with the cable at the bottom, as shown in the diagram below. Figure 1. Pit Installation Pits with plastic or concrete lids are preferable to metal lids to avoid excess radio signal attenuation. For above ground installations the device can be mounted directly to the meter using a metal bracket as shown below. Alternatively the device can be fixed to nearby walls or fences; however for best Page 5 of 6 results the device should be at least 15cm away from nearby solid objects to avoid de-tuning the antenna. Fixing directly to metal structures is not recommended. Figure 2. Meter Installation For long range rural applications the device can be mounted on 25mm PVC conduit attached to a star picket as shown below. Best results will be obtained if the device can be located away from local obstructions such as trees and bushes. Page 6 of 6 Figure 3. Long Range Installation

Letter of Authorization Company: Taggle Systems Pty Ltd Address: Suite 201, NIC Building, 4 Cornwallis St, Eveleigh NSW 2015. AUSTRALIA Product Name: Lorikeet Model Number: HP-1 We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications and procedures • Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Matthew Henderson Date: 20 Feb 2013 Title: Director Signature of applicant: Taggle Systems Pty Ltd ABN 64 126 467 847 Suite 201, NIC Building 4 Cornwallis St Eveleigh, NSW 2015 AUSTRALIA +61 2 8999-1919 www.taggle.com.au [email protected]

2/27/2013 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Taggle Systems Pty Ltd FCC ID: 0022333587 FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 Taggle Systems Pty Ltd hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type File Name Description Schematic Lorikeet.pdf Lorikeet HP1 schematic diagram BOM Lorikeet-BOM.pdf Lorikeet PCBA parts list Block Diagram Lorikeet-Block-Diagram.pdf Device block diagram Operational Description Lorikeet-Operational- Description.pdf High level product description Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Operational Descriptions, (4) Parts List / Tune UP Info. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. Reason why the material should be withheld from public inspection: These documents contain detailed system, equipment description and related information about the product which Taggle Systems considers to be proprietary, confidential, and a custom design otherwise not released to the general public. State why the information is a “trade secret;” Since the design is a basis from which future technological products will evolve, Taggle Systems considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Trade secret” information is information which is not generally known or reasonably ascertainable, by which a business can obtain an economic advantage over competitors. The information is not normally released to any party or person outside the company. State whether the information is publicly available anywhere else: The information described above is not publicly available anywhere else. Taggle Systems Pty Ltd ABN 64 126 467 847 Suite 201, NIC Building 4 Cornwallis St Eveleigh, NSW 2015 AUSTRALIA +61 2 8999-1919 www.taggle.com.au [email protected] Sincerely, Signature: Name: Matthew Henderson Title: Director Company: Taggle Systems Pty Ltd Address: Suite 201, NIC Building, 4 Cornwallis Street Eveleigh NSW 2015 Australia

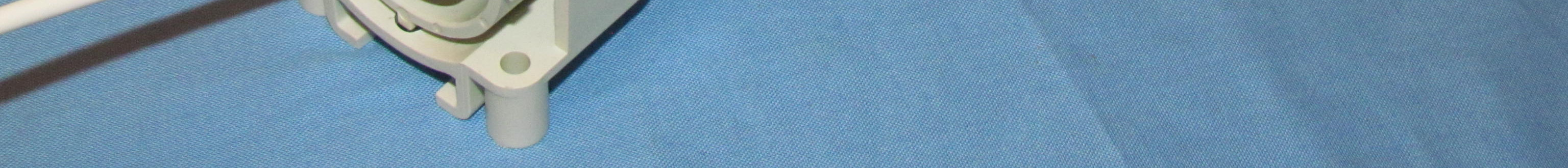

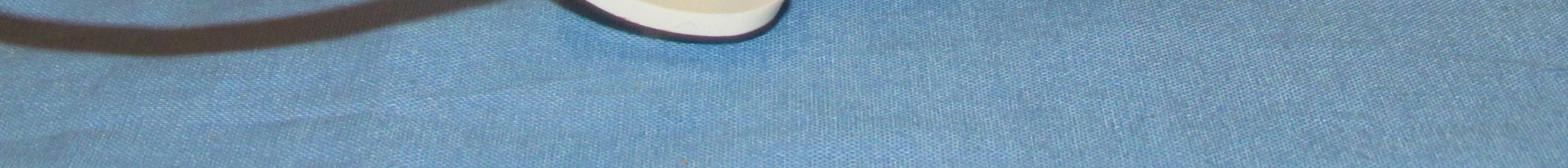

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 27 February 2013 Taggle Systems Pty Ltd EXTERNAL PHOTOGRAPHS Lorikeet-HP1 EUT Page 2 of 3 the wireless lab Side View Page 3 of 3 the wireless lab Bottom View

Taggle Systems Pty Ltd FCC ID: S7R-LORIKEET-HP1

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 6 March 2013 Taggle Systems Pty Ltd INTERNAL PHOTOGRAPHS Lorikeet-HP1 Page 2 of 4 the wireless lab Page 3 of 4 the wireless lab Main assy front Page 4 of 4 the wireless lab Main Assy back

COVER PAGE Test of Lorikeet HP-1 To: FCC 47 CFR Part 15.247 Test Report Serial No.: TAGG02-U1 Rev B TITLE PAGE TEST REPORT FROM Test of Lorikeet HP-1 to To FCC 47 CFR Part 15.247 Test Report Serial No.: TAGG02-U1 Rev B This report supersedes: TAGG02-U1 Rev A Applicant: Taggle Systems Pty Ltd Suite 201, NIC Building, 4 Cornwallis St Eveleigh Sydney, NSW 2015, Australia Product Function: Wireless Remote Meter Reading Copy No: pdf Issue Date: 7th March 2013 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0 304 Fax: +1 (925) 462-0306 TEST CERTIFICATE #2381.01 www.micomlabs.com This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: To: Lorikeet HP-1 FCC 47 CFR Part 15.247 Serial #: Issue Date: Page: TAGG02-U1 Rev B 7th March 2013 3 of 50 This page has been left intentionally blank This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Lorikeet HP-1 To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.247 TAGG02-U1 Rev B 7th March 2013 4 of 50 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com TABLE OF CONTENTS ACCREDITATION, LISTINGS & RECOGNITION ............................................................ 5 TESTING ACCREDITATION ............................................................................................ 5 RECOGNITION ................................................................................................................. 6 PRODUCT CERTIFICATION ............................................................................................ 7 1. TEST RESULT CERTIFICATE ................................................................................... 9 2. REFERENCES AND MEASUREMENT UNCERTAINTY ........................................ 10 2.1. Normative References ............................................................................................. 10 2.2. Test and Uncertainty Procedures ............................................................................ 11 3. PRODUCT DETAILS AND TEST CONFIGURATIONS .......................................... 12 3.1. Technical Details ..................................................................................................... 12 3.2. Scope of Test Program ............................................................................................ 13 3.3. Equipment Model(s) and Serial Number(s) ............................................................. 14 3.4. Antenna Details ....................................................................................................... 14 3.5. Cabling and I/O Ports .............................................................................................. 14 3.6. Test Configurations.................................................................................................. 14 3.7. Equipment Modifications.......................................................................................... 16 3.8. Deviations from the Test Standard .......................................................................... 16 4. TEST EQUIPMENT CONFIGURATION(S) .............................................................. 17 4.1. Conducted RF Emission Test Set-up ...................................................................... 17 4.2. Radiated Spurious Emission Test Set-up > 1 GHz.................................................. 18 4.3. Digital Emissions Test Set-up (0.03 – 1 GHz) ......................................................... 19 4.4. ac Wireline Emission Test Set-up ............................................................................ 20 5. TEST SUMMARY ...................................................................................................... 21 6. TEST RESULTS ........................................................................................................ 23 6.1. Device Characteristics ............................................................................................. 23 6.1.1. Conducted Testing ...................................................................................23 6.1.2. Radiated Emission Testing ......................................................................37 6.1.3. AC Wireline Conducted Emissions (150 kHz – 30 MHz)..........................44 7. PHOTOGRAPHS....................................................................................................... 46 7.1. Conducted Test Setup ............................................................................................. 46 7.2. Radiated Emissions Test Setup <1 GHz ................................................................. 47 7.3. Radiated Emissions Test Setup >1 GHz ................................................................. 48 8. TEST EQUIPMENT ................................................................................................... 49 Title: Lorikeet HP-1 To: Serial #: Issue Date: Page: FCC 47 CF R Part 15.247 TAGG02-U1 Rev B 7th March 2013 5 of 50 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs p ersonnel. Any changes will be noted in the Document History section of the report. MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 USA, Phone: 925.462.0304, Fax: 925.462.0306, www.micomlabs.com ACCREDITATION, LISTINGS & RECOGNITION TESTING ACCREDITATION MiCOM Labs, Inc. is an accredited Electrical te…

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab 27 February 2013 Taggle Systems Pty Ltd TEST SETUP PHOTOGRAPHS Lorikeet-HP1 Conducted Test Setup Page 2 of 3 the wireless lab Radiated Emissions Test Setup <1 GHz Page 3 of 3 the wireless lab Radiated Emissions Test Setup >1 GHz
