S8M441045TRemote Control

APEK SECURE-LITE CO LTD 13TH FL-2, 171 SUNGTEH RD, TAIPEI, TAIWAN Tel: 886-2-2727-3637 Fax: 886-2-2727-3078 製作： TENG 審核： 批准： 日期： 2008/01/29 日期： 日期： specification book No： Client： Model： A-01 Product Remote Control Date： 2008/01/29 APEK SECURE-LITE CO LTD 13TH FL-2, 171 SUNGTEH RD, TAIPEI, TAIWAN Tel: 886-2-2727-3637 Fax: 886-2-2727-3078 Product description: 1. This product is suitable for the indoors timer. 2. The product has the immediate clock demonstration function. 3. The product has the wireless teleswitch function. Characteristic: 1. Simple, is conveniently automatic and the hand controltimer 2. 433.92MHz wireless teleswitch SPEC. 1. Rating:12V, 433.92Hz,7.5mA 2. controlling is biggest :8M 3. battery: 23A Type 12V 1pc The operation explained 1. Remote control operation: First inspects the remote control password and the main engine password whether same, if same meets the main engine the power source (120V/60HZ), then according to remote control Manual the on/OFF key, triggers time of main engine ON, again triggers time of main engine OFF (to be effective in any time internal trigger) The main engine and the remote control password is different, key not triggers according to remote control Manual the on/OFF Caution This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. APEK SECURE-LITE CO LTD 13TH FL-2, 171 SUNGTEH RD, TAIPEI, TAIWAN Tel: 886-2-2727-3637 Fax: 886-2-2727-3078 Trande Name Apek Secure Lite Co Ltd

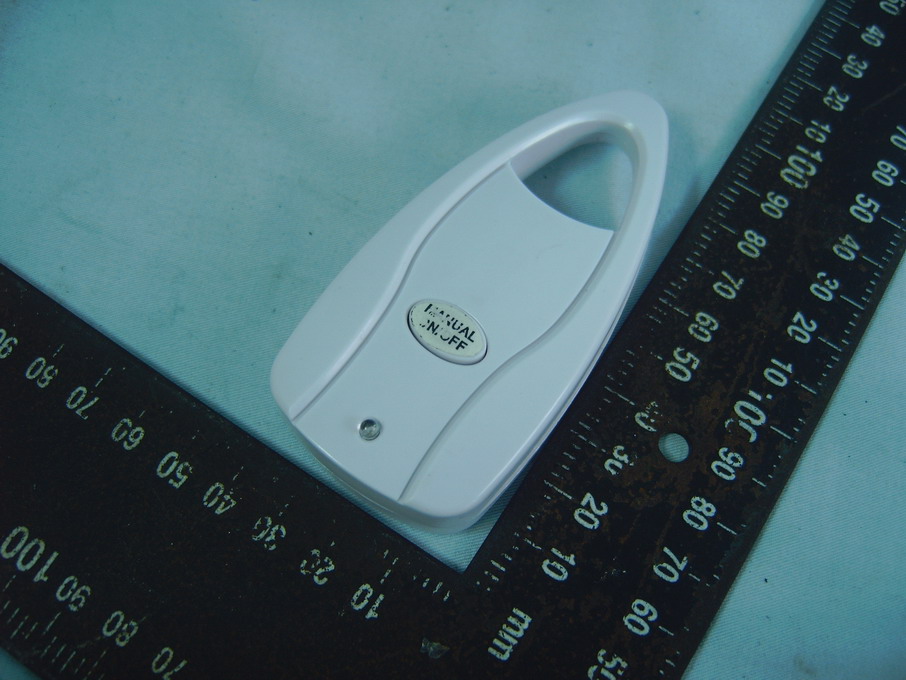

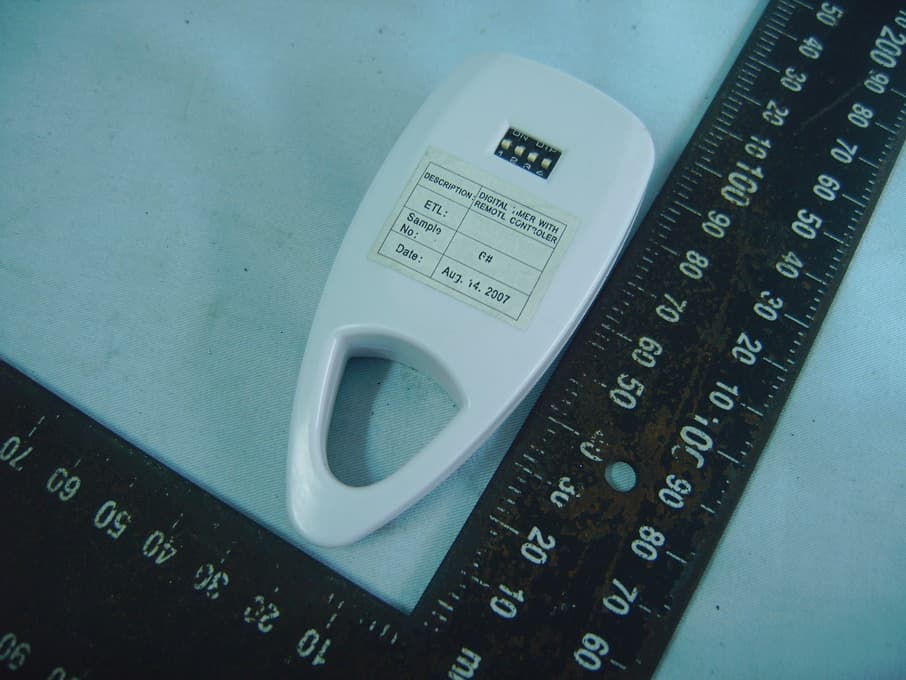

Report No.：7A113005FR1 FCC ID： S8M441045T Page 22 of 24 Interocean EMC Technology Corp. Test Report 7 Photographs of EUT Front View of EUT Rear View of EUT

Label & Label Location Label Size Length：25mm Width：15mm FCC ID:S8M441045T Model : A-01 Rating: 12Vac, 433.88Hz, 7.5mA Resistive, Please refer to the instruction manual for programming and operation information Label Location

Report No.：7A113005FR1 FCC ID： S8M441045T Page 23 of 24 Interocean EMC Technology Corp. Test Report Inner View of EUT Antenna Location Report No.：7A113005FR1 FCC ID： S8M441045T Page 24 of 24 Interocean EMC Technology Corp. Test Report Component View of PCB Board Solder View of PCB Board

Report No.：7A113005FR1 FCC ID： S8M441045T Page 1 of 24 Interocean EMC Technology Corp. Test Report CFR 47 FCC Part 15.231 TEST REPORT E.U.T.： Remote Control Trade Name： N/A Model Number： A-01 FCC ID： S8M441045T Prepared for Apek Secure Lite Co., Ltd. No. 171, 13F/2, Sungteh Road, Taipei, Taiwan TEL.： +886 2 2727 3637 FAX.： +886 2 2727 3078 Prepared by Interocean EMC Technology Corp. 244 No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL.: +886 2 2600 6861 FAX.: +886 2 2600 6859 Remark： 1. The test report consists of 24 pages in total. It shall not be reproduced except in full, without the written approval of IETC. This document may be altered or revised by IETC only, and shall be noted in the revision section of the document. The test results in the report only to the tested sample. 2. The report prohibit used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Report No.：7A113005FR1 FCC ID： S8M441045T Page 3 of 24 Interocean EMC Technology Corp. Test Report Table of Contents 1 Summary of Measurement 4 2 General Information 5 2.1 Description of Equipment Under Test 5 2.2 Details of tested peripheral equipment 6 2.3 Test Facility 7 3 Test specifications 8 3.1 Test standard 8 3.2 Operation mode 8 3.3 Test Equipment 9 4 Radiated emission test 10 4.1 Limit 10 4.2 Calculation of Average Factor 11 4.3 Configuration of Measurement 15 4.4 Test Procedure 15 4.5 Test Result 15 5 Emission bandwidth 18 5.1 Limit 18 5.2 Test Result 18 6 Photographs of Test 20 6.1 Radiated Emission Measurement 20 7 Photographs of EUT 22 Report No.：7A113005FR1 FCC ID： S8M441045T Page 4 of 24 Interocean EMC Technology Corp. Test Report 1 Summary of Measurement Report Clause Test Parameter Reference Document CFR47 Part15 Results 4 Radiated Emission §15.231(b), 15.209 Pass 5 Emission bandwidth §15.231(c) Pass Report No.：7A113005FR1 FCC ID： S8M441045T Page 5 of 24 Interocean EMC Technology Corp. Test Report 2 General Information 2.1 Description of Equipment Under Test Equipment Under Test : Remote Control Model Number : A-01 Serial Number : N/A Type of Sample Tested : Proto-type Pre-Production Mass Production Applicant : Apek Secure Lite Co., Ltd. No. 171, 13F/2, Sungteh Road, Taipei, Taiwan Manufacturer : Ningbo Luxpert Electronics Industrial Co., Ltd. Ninghai Technology Industry Park, Ningbo, Zhejiang, China Power Supply : 12Vdc Battery Operating Frequency : 433.92MHz Channel Number : 1 channel Type of Modulation : ASK Antenna description : This device uses PCB Printed antenna. Antenna Gain ： 0 dBi Connector type ： N/A Sample Receive date : Dec. 05, 2007 Date of Test : Dec. 06, 2007 ~ Jan. 25, 2008 Description of E.U.T. : 1) The EUT is Remote Control. 2) The Model Number “A-01” is representative selected in the test and included in this report. Report No.：7A113005FR1 FCC ID： S8M441045T Page 6 of 24 Interocean EMC Technology Corp. Test Report 2.2 Details of tested peripheral equipment N/A Report No.：7A113005FR1 FCC ID： S8M441045T Page 7 of 24 Interocean EMC Technology Corp. Test Report 2.3 Test Facility Site Description ： OATS 2 Conduction 1 Name of Firm ： Interocean EMC Technology Corp. Company web ： http://www.ietc.com.tw Site 1, 2 Location ： No.5-2, Lin 1, Tin-Fu Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site 3, 4 Location ： No. 12, Ruei-Shu Valley, Ruei-Ping Tsun, Lin-Kou Hsiang, Taipei County, Taiwan, R.O.C. Site Filing ： z Federal Communication Commissions – USA Registration No.: 96399 (OATS 1 & 2) Registration No.: 518958 (OATS 3 & 4) z Voluntary Control Council for Interference by Information Technology Equipment (VCCI) – Japan Registration No. (Conducted Room): C-1094 Registration No. (Conducted Room): T-271 Registration No. (OATS 1): R-1040 Registration No. (OATS 2): R-1041 z Industry Canada (IC) Submission: 113543 z Japan Electrical Safety & Environment Technology Laboratories (JET) Registration No.: 04S03-01 Site Accreditation ： z Bureau of Standards and Metrology and Inspection (BSMI) – Taiwan, R.O.C. Accreditation No.: SL2-IN-E-0026 for CNS13438 / CISPR22 SL2-R1-E-0026 for CNS13439 / CISPR13 SL2-R2-E-0026 for CNS13439 / CISPR13 SL2-A1-E-0026 for CNS13783-1 / CISPR14-1 z National Voluntary Laboratory Accreditation Program (NVLAP) - USA NVLAP LAB CODE 200458 z Nemko AS Authorization No.: ELA 181A Authorization No.: ELA 181B z Taiwan Accreditation Foundation (TAF) Accrditation No.: 1113 Report No.：7A113005FR1 FCC ID： S8M441045T Page 8 of 24 Interocean EMC Technology Corp. Test Report 3 Test specifications 3.1 Test standard The EUT was performed according to FCC Part 15 Subpart C Section 15.231 procedure and setup followed by ANSI C63.4, 2003 requirements. 3.2 Operation mode From preliminary test verifying three axis position (X, Y and Z) found the worse mode was “X axis mode”, then the final mode was executed under this condition and recorded in this report X axis mode Y axis mode Z axis mode The EUT operated in continuously transmitting signal during all of the tests. Report No.：7A113005FR1 FCC ID： S8M441045T Page 9 of 24 Interocean EMC Technology Corp. Test Report 3.3 Test Equipment Instrument Manufacturer Model Serial No. Last Calibration EMI Test Receiver Rohde & Schwarz ESCS 30 100135 2007/08/03 L.I.S.N. Schwarzbeck NNLK8121 8121417 2007/07/17 L.I.S.N. Rohde & Schwarz ESH3-Z5 100176 2007/02/14 Pulse Limiter Rohde & Schwarz ESH3-Z2 843602/02 2007/09/10 RF Cable HARBOUR RG400 CBL04 2007/08/09 Spectrum Analyzer Agilent 8564EC 4046A00331 2007/03/29 Spectrum Analyzer R&S FSQ 200406 2007/03/29 Biconical Antenna Schwarzbeck VHA 9103 2484 2007/09/06 Log Antenna Schwarzbeck UHALP 9108 A 0765 2007/09/06 Pre-Amplifier HP 8447D 2944A10321 2007/07/17 Preamplifier Agilent 8449B 3008A01434 2007/04/03 RF Cable Ultra Link CBL02 CBL02 2007/05/04 Cable IETC CBL07 CBL07 2007/05/08 Power Meter Anritsu ML2495A 0736010 2007/10/29 Wide Bandwidth Sensor Anritsu MA2491A 0728133 2007/10/29 Note: All instrument upon which …

Text truncated - open the document above for the full version.

Report No.：7A113005FR1 FCC ID： S8M441045T Page 20 of 24 Interocean EMC Technology Corp. Test Report 6 Photographs of Test 6.1 Radiated Emission Measurement Front View Rear View Report No.：7A113005FR1 FCC ID： S8M441045T Page 21 of 24 Interocean EMC Technology Corp. Test Report Front View (Frequency above 1GHz) Rear View (Frequency above 1GHz)
