S8M9N10000AMOTION SENSOR WITH RF REMOTE

7948T Operation Manual Brief Account THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONIS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. The Device Data Product: Motion sensor with RF remote Frequency: 433.92MHz Power: DC 4.5V General Description: The RF module can be operated with 100 feet in open field. The unit can work in normal mode or in override mode. In normal work mode, three kinds of lamping time can be selected: 30/60/180 seconds. When power is on, the device will be in the case of initialization showed below: 1. Lamp is off 2. Time: green led is lighting 3. Time: red led is off TIME When receive signals from the RF sensor, the light could be turned on for the chosen time. Pushing the switch will change the status of time indicated by LED. Red means 3 minute, green means 30 seconds and both on means 1 minute. Manual Override Turn off the wall switch and then on immediately within 2 seconds will turn the sensor into manual override status, which means the light will be turned on and remain on until the wall switch is turned off or until morning. Turn off the switch for at least 5 seconds and then on again will resume the sensor back to automatic status . Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Be sure not to let it close to any metal object or expose it to rains.

Block Diagram MCU Data Out Low Battery LED Home Code 1 Home Code 2 Home Code 4 Home Code 3 PIR Input Low Battery INPUT: DC 4.5V FUNDAMENTAL OPERATION FREQUENCY IS 433.92 MHz

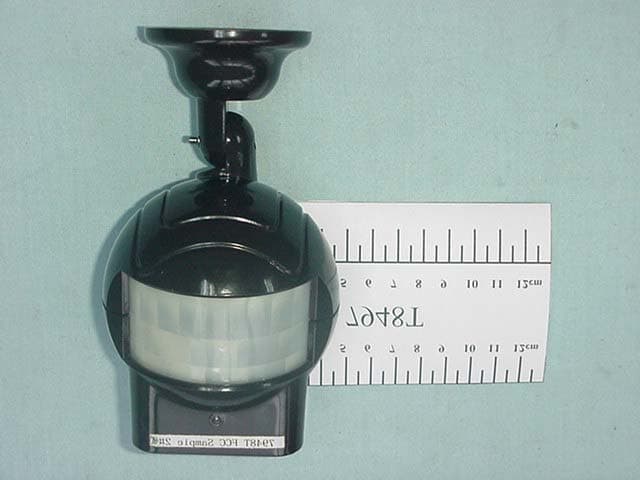

F IGURE 1 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) G ENERAL A PPEARANCE F IGURE 2 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) G ENERAL A PPEARANCE (T OP V IEW )

Label Location Information Refer to the below red arrow: (For example)

Label Drawing MODEL#: 7948T FCC ID: S8M9N10000A

F IGURE 1 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) C OVER R EMOVED F IGURE 2 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) M AIN B OARD 1 (C OMPONENT S IDE ) F IGURE 3 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) M AIN B OARD 1 (S OLDERED S IDE ) F IGURE 4 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) M AIN B OARD 2 (C OMPONENT S IDE ) F IGURE 5 M OTION SENSOR WITH RF REMOTE (M/N: 7948T) M AIN B OARD 2 (S OLDERED S IDE )

Operational description for Motion sensor with RF remote 1. Block Diagram Step: 1) The IR motion signal picked up by the PIR (PIR1) is amplified by the U2. 2) The U2 converts the IR motion signal to a DC level and couples to MCU. 3) Here, MCU shall send the data with codes out to the RF module. 2. Specification: RF module can be operated with 100 feet in open field. U2 MCU RF module PIR

7948T_B.sch-1 - Sun Feb 27 11:19:10 2005 7948T_B.sch-2 - Sun Feb 27 11:19:22 2005 ItemQtyReferencePart NameValue 11D1 D3 D4DIODE LL4148LL4148 21Q1 Q2NPN TRANSISTOR SOT232SC1623-L6 42C3 C5CERAMIC CAPACITOR 08051U 20% 52C10 C16CERAMIC CAPACITOR 0805220p 5% 61C4独石电容 0805 400ppm300p 73C1 C8 C13CERAMIC CAPACITOR 080547n 10% 91DIP4 POSITIONS SILDE SWITCH 101C2ELEC. CAPACTOR 6*12220U/6.3V 20% 105°C 112C7 C14ELEC. CAPACTOR 4*822U/6.3V 20% 105°C 121C18ELEC. CAPACTOR 6*12220U/6.3V 20% 105°C 131U1EM78P156NM SOP18EM78P156NM 141D2LED RED 3MM ROUND 151U2低耗电LM324 SOP16LM324 (N,D,J) 161PIR1PIR 171R35SMT RESISTOR 08051.5M 5% 184R32 R34 R36-37SMT RESISTOR 080510K 5% 191R26SMT RESISTOR 0805150K 5% 201R45SMT RESISTOR 0805200K 5% 211R33SMT RESISTOR 0805220K 5% 221R25SMT RESISTOR 080539K 5% 231R44SMT RESISTOR 0805430K 5% 242R13 R27SMT RESISTOR 0805470K 5% 253R6-7 R31SMT RESISTOR 080547K 5% 261R43SMT RESISTOR 08055.1K 5% 271R5SMT RESISTOR 08052K 5% 2812R3 R8-11 R14 R16 R18-22SMT RESISTOR 0805100K 5% 291R17SMT RESISTOR 080510K 5% 301R12SMT RESISTOR 080510K/1% 311R2SMT RESISTOR 0805220K 5% 321R4SMT RESISTOR 080556K 5% 331M1RF MODULE TX 351R1VR0902

APEK SECURE LITE CO., LTD. FCC ID: S8M9N10000A Page 1 of 25 Audix Technology (Shanghai) Co., Ltd. Report No. ACI-F05024 Prepared For : APEK SECURE LITE CO., LTD. NO.171, 13F/2, SUNGTEH ROAD, TA I P E I , TA I WA N Prepared By : Audix Technology (Shanghai) Co., Ltd. 3 F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F05024 Date of Test : Apr 11-14, 2005 Date of Report : Apr 15, 2005 Application for FCC Certification On behalf of APEK SECURE LITE CO., LTD. Motion sensor with RF remote Model No.: 7948T Serial No.: F05020103 FCC ID : S8M9N10000A APEK SECURE LITE CO., LTD. FCC ID: S8M9N10000A Page 2 of 25 Audix Technology (Shanghai) Co., Ltd. Report No. ACI-F05024 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results......................................................................................... 4 2 GENERAL INFORMATION.......................................................................................................... 5 2.1 Description of Equipment Under Test........................................................................................5 2.2 Description of Test Facility ........................................................................................................ 5 2.3 Measurement Uncertainty .......................................................................................................... 5 3 RADIATED EMISSION TEST....................................................................................................... 6 3.1 Test Equipment........................................................................................................................... 6 3.2 Block Diagram of Test Setup ..................................................................................................... 6 3.3 Radiated Emission Limit ............................................................................................................ 7 3.4 Test Configuration...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 7 3.6 Test Procedures .......................................................................................................................... 7 3.7 Test Results ................................................................................................................................ 8 4 FUNDAMENTAL AND SPURIOUS EMISSIONS TEST ......................................................... 12 4.1 Test Equipment......................................................................................................................... 12 4.2 Block Diagram of Test Setup ................................................................................................... 12 4.3 Fundamental and Spurious Emission Limit ............................................................................. 12 4.4 Test Configuration.................................................................................................................... 12 4.5 Operating Condition of EUT .................................................................................................... 13 4.6 Test Procedures ........................................................................................................................ 13 4.7 Test Results .............................................................................................................................. 14 5 BANDWIDTH MEASUREMENT................................................................................................ 18 5.1 Test Equipment......................................................................................................................... 18 5.2 Bandwidth Limit....................................................................................................................... 18 5.3 Test Results .............................................................................................................................. 18 6 OPERATION DESCRIPTION ..................................................................................................... 18 APPENDIX I P LOT OF THE P ULSE T RAIN .................................................................................... 19 APPENDIX II PLOT OF THE OCCUPIED BANDWIDTH................................................................. 23 APEK SECURE LITE CO., LTD. FCC ID: S8M9N10000A Page 3 of 25 Audix Technology (Shanghai) Co., Ltd. Report No. ACI-F05024 TEST REPORT FOR FCC CERTIFICATION Applicant : APEK SECURE LITE CO., LTD. Manufacturer : NINGBO LUXPERT ELECTRONICS INDUSTRIAL CO., LTD. FOUNDTON INDUSTRIAL CO., LTD. EUT Description : Motion sensor with RF remote (A) Model No. : 7948T (B) Serial No. : F05020103 (C) Power Supply : DC 4.5V (D) Crystal Frequency : 433.92MHz Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C OCTOBER 2004 AND ANSI C63.4:2001 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits radiated emission. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: 7948T; S/N: F05020103), which was tested in 3m anechoic chamber on Apr 11-14, 2005 to be technically compliant with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains …

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Radiated Emission Test F RONT V IEW OF T EST (S IDE D IRECTION ) B ACK V IEW OF T EST (S IDE D IRECTION ) S ETUP WITH M AXIMUM D ETECTED E MISSION AT H ORIZONTAL P OLARIZATION S ETUP WITH M AXIMUM D ETECTED E MISSION AT V ERTICAL P OLARIZATION 2. Fundamental And Spurious Emissions Test H IGH F REQUENCY AT H ORIZONTAL P OLARIZATION (L YING D IRECTION ) H IGH F REQUENCY AT V ERTICAL P OLARIZATION (L YING D IRECTION )
