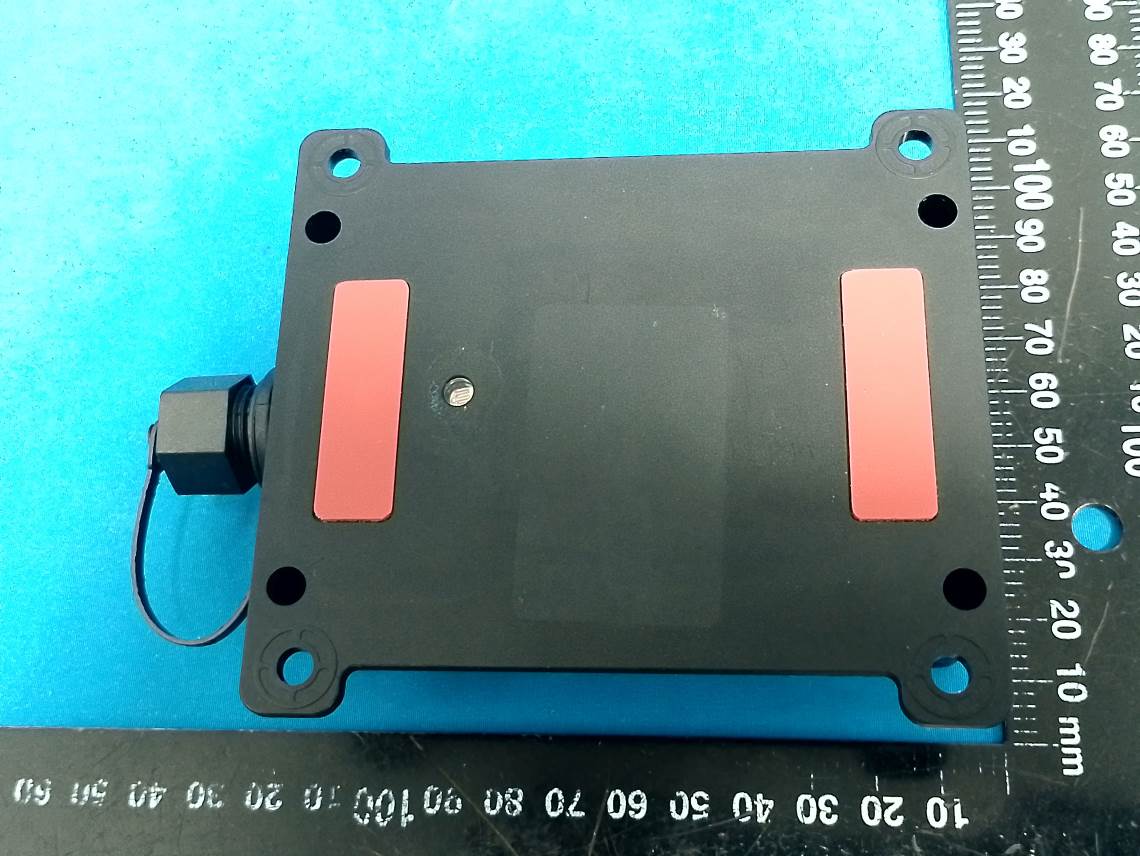

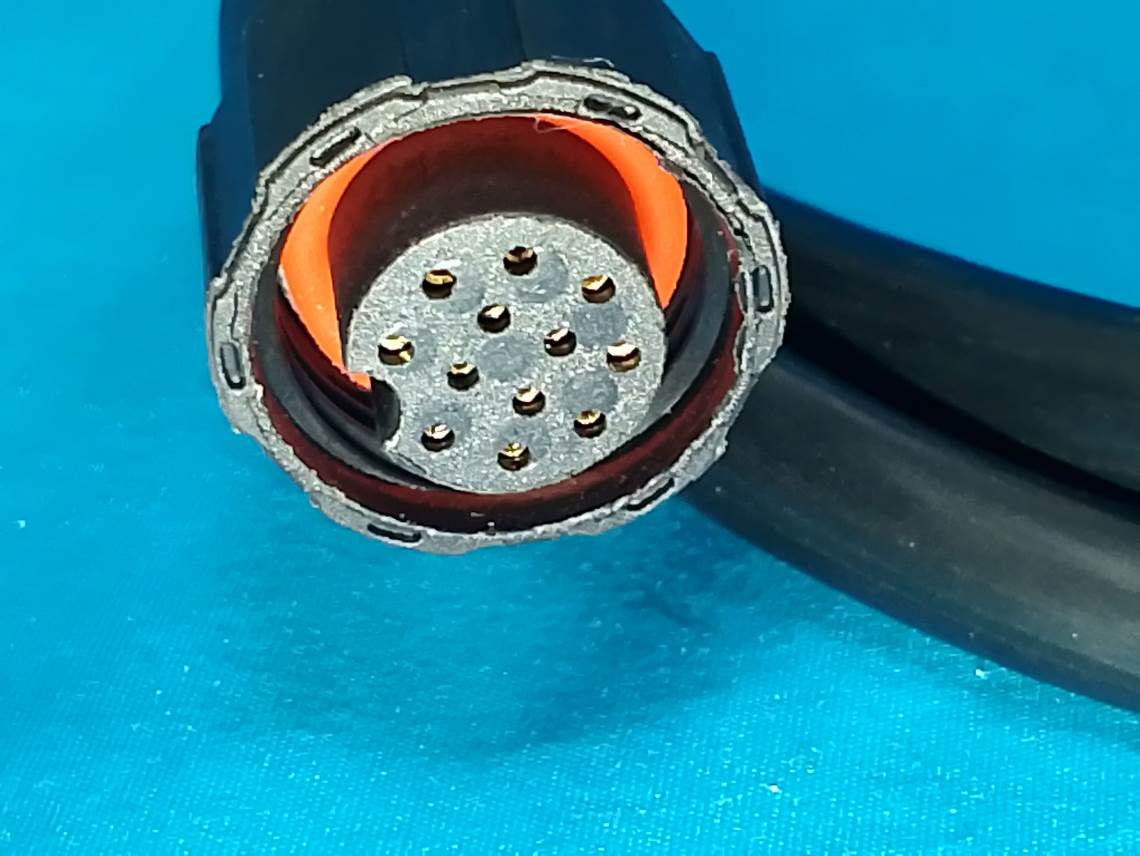

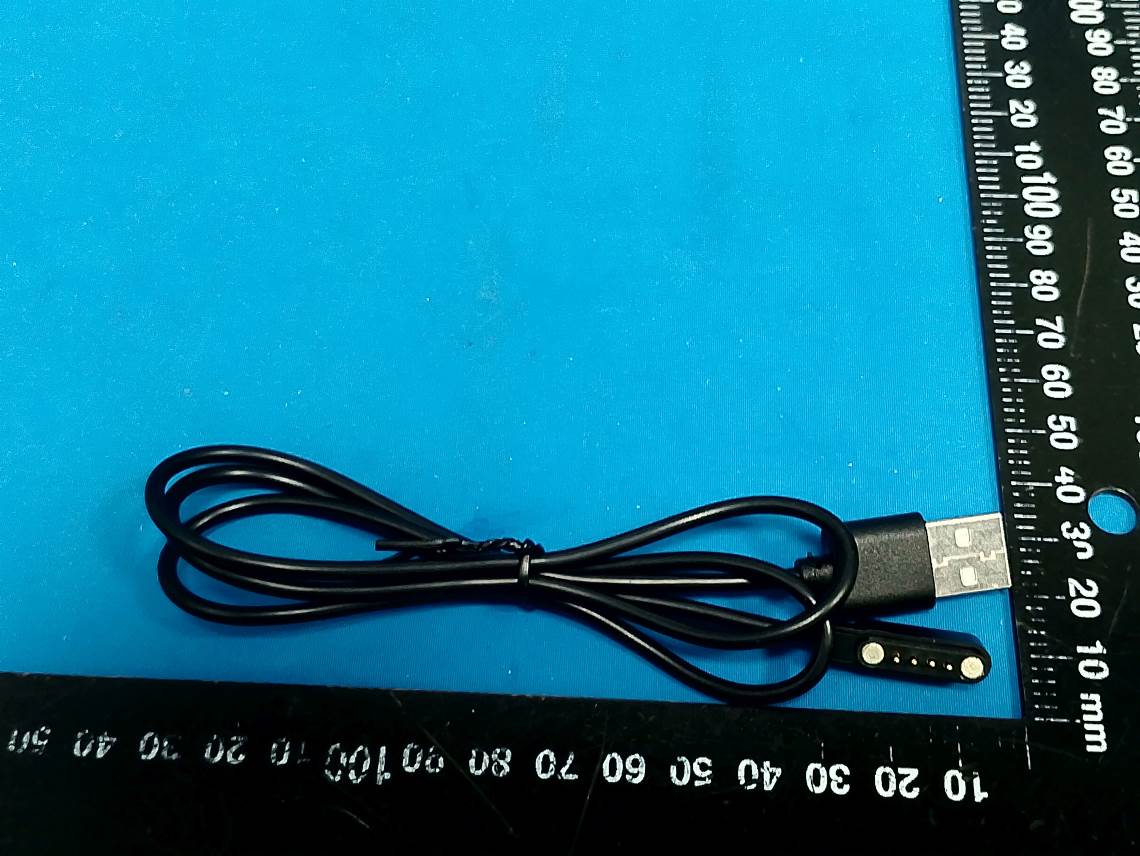

S8U-T-235LSAAsset GPS Tracker

T-235LSA User Manual T-235LSA User Manual May, 2020 T-235LSA User Manual 2 Regulatory Compliance FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. RF Exposure Information This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. T-235LSA User Manual 3 1、Introduction 1、Description T-235LSA is a long standby asset tracker with built in rechargeable 10000mAH battery and 4G connectivity. It comes with cost effective solutions for wide range of applications such as fleet management, container and trailer tracking, valuable asset tracking, auto finance and car rental etc. Packing List Parts Name quantity Remark T-235LSA Terminal 1 ● USB data cable 1 ● Power Cable 1 ● 2、Technical Specification 1.Profile T-235LSA User Manual 4 2.Technical Specification Mechanical Size 108mm (L) x 65mm (W) x 35mm (H) Weight 200g Interface M16-12 male connector 3 digital inputs 2 analog inputs 3 digital outputs 1 RS-485 interface with voltage output Magnetic 4 pin port Charging and configuration Data transmission LTE and SMS Positioning method GNSS/A-GNSS/LBS Storage 8MB FLASH Power Working Voltage 9-36VDC Working Current Average: <100mA Sleep mode: <10mA Backup battery Rechargeable lithium battery, 10000mAH/3.7V GNSS System: GPS/BDS/GLONASS/Galileo Channels: 66 Sensitivity: -165dBm Accuracy: 2.5m CEP Time to first fix: Cold start: <35s Hot start: <1s Cellular T-235LSA (LTE Cat 1, Latin America/Australia) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM/GPRS: 850/900/1800/1900MHz T-235LSA User Manual 5 Network protocol: Embedded TCP/IP stack Bluetooth BLE 5.3, universal BLE sensor support Light sensor Removal detection 3-axis Accelerometer Motion detection, driving behavior detection LED Indication GNSS/Cellular/Battery indication Antenna Cellular Internal GNSS Internal Bluetooth Internal Optional accessories Relay Ultrasound fuel sensor BLE tag BLE temperature sensor BLE relay Environment Working Temperature -30°C ~ +70°C Storage Temperature -40°C ~ +85°C Humidity 5%～95%（no fog） 3、Device Configuration 3.1、Driver Installation After downloading the driver, select the appropriate installation program according to your computer's operating system to install the driver. 3.2、PC Tool Configuration Download PC Tool from https://www.sinocastel.com/support and install them. Connect the terminal and computer via the USB setting cable. Open the OBD PC Tool and click "Help->User Manual" to set relevant parameters according to the user manual. 4、SMS Instructions SMS command is mainly for remote maintenance. The message content is text format. Default secret key is the last 6 digits of the device ID. The key can only be changed through PC Tool, SMS format is defined as follows. No. Description SMS Command Format 1 Set Server network Parameters (IP model) Send:*SecretKey#set gprs#APN,User,Password,IP,Port* e.g.: *123456#set gprs#cmnet,,,172.18.2.106,8008* secret key=123456, IP address= 172.18.2.106, port=8008, APN=cmnet, username and password are T-235LSA User Manual 6 empty. Response:*set gprs#ok* :success *set gprs#fail* : failed 2 Get Server network Parameters (IP model) Send:*SecretKey#get gprs#* Response:*get gprs#APN,User,Password, IP,Port* E.g.: *123456#get gprs#* 3 Set Server network Parameters (Domain model) Send:*SecretKey#set domain#APN,User,Password,IP,Port* Response:*set domain#ok* or *set domain#fail* E.g.:*123456#set domain#cmnet,,,OBD.livetelematics.com,11088* *set domain#ok* or *set domain#fail* 4 Get Server network Parameters (Domain model) Send: *SecretKey#get domain#* Response: *get domain#APN,User, Password,domain,Port* E.g.: *123456#get domain#* 5 Get Current Location Send: *SecretKey#position#* Response:*position#http://maps.google.com /?q=latitude,longitude* E.g.: *123456#position# *123456#position#*http://maps.google.com/?q=2 2.536934,114.021425* 6 FTP remote upgrade Send SMS command: *SecretKey #upgrade#username,password,url* The correct format terminal response: *upgrade#ready/fail* End of the upgrade terminal response: *upgrade#done/fail* For example: *123456#upgrade#admin,123456,ftp://58.58.58.58/IDD- 213L/IDD-213L_V1.0.0.tb* 7 Restart Send SMS command: *SecretKey#restart#* Correctly formatted terminal response: *restart#ready* The terminal responds when it is in the upgrade downloading state: *restart#fail* Response after restart: *restart#ok* Example: …
