S8UT-229LATelematics Unit

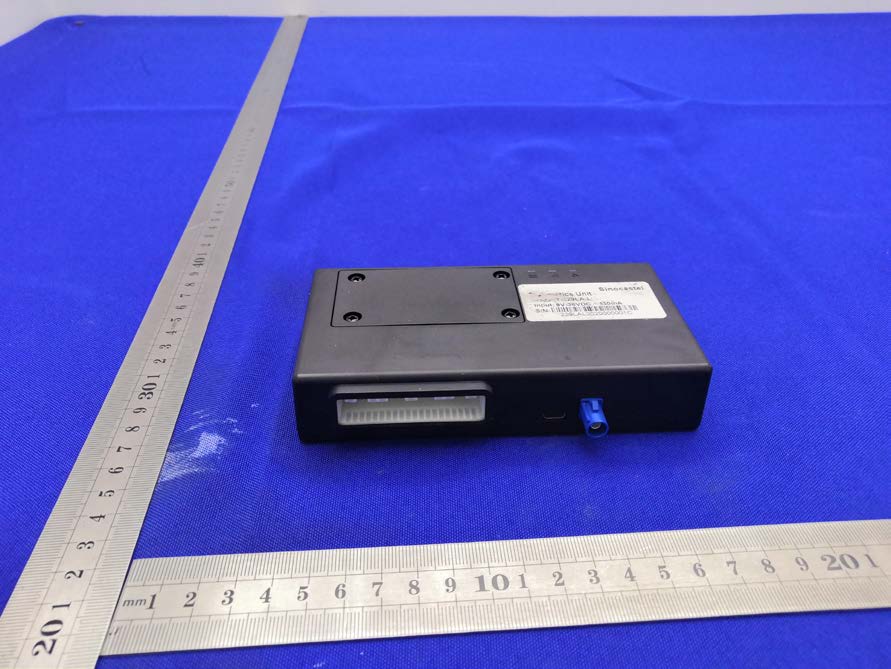

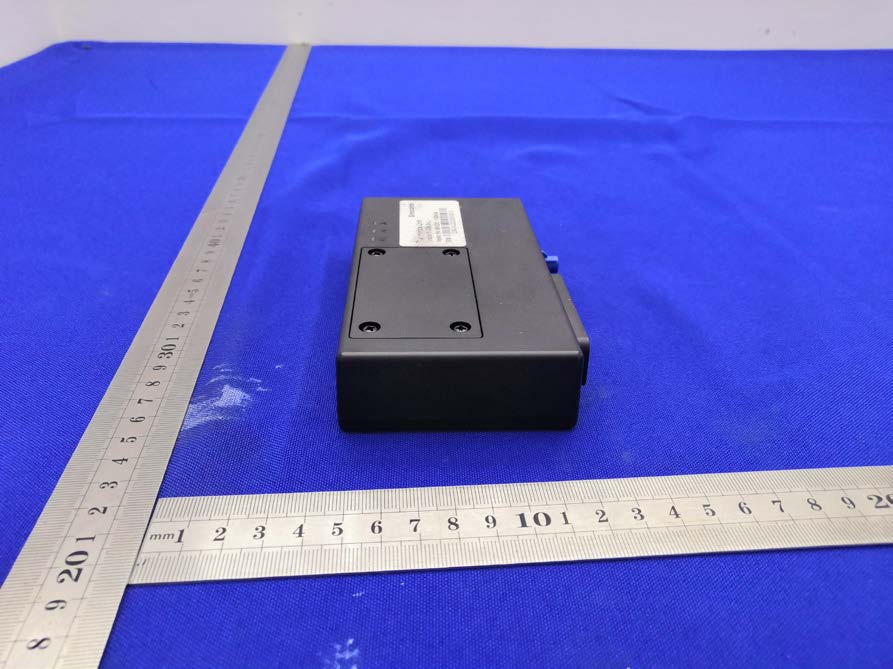

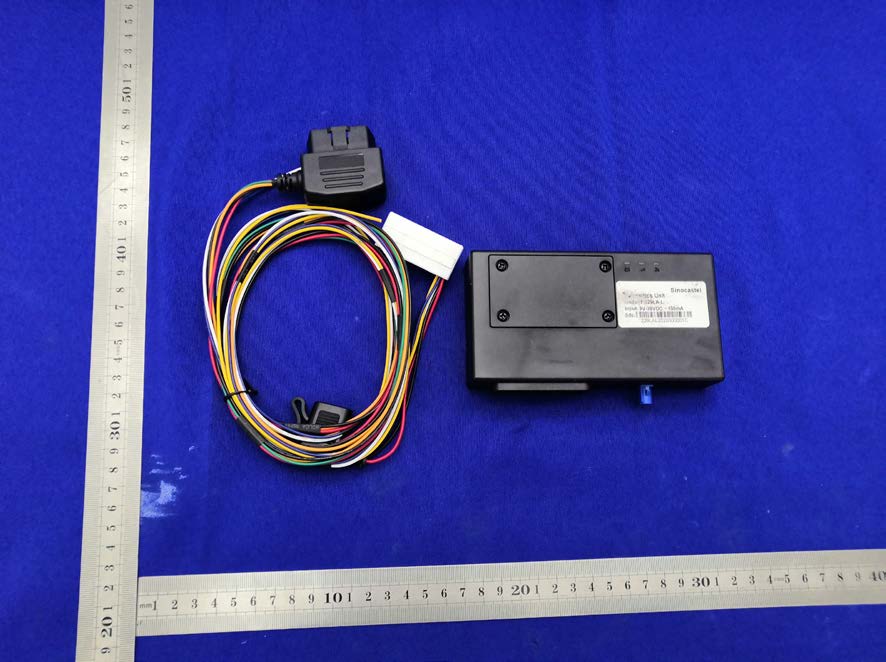

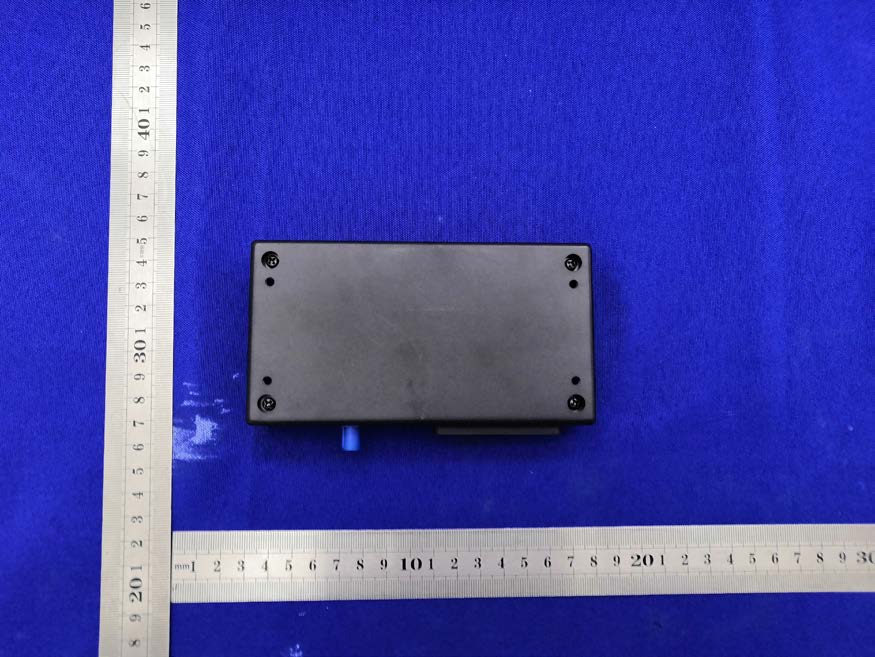

T-229LA-L User manual (Rev.1.0) Sinocastel Co., Ltd. 1. Product description The T-229LA-L terminal can provide passenger car and commercial vehicle customers with a variety of Telematics services including location, security, diagnosis, driving behavior analysis, on-board access points, etc., and can provide data accumulation for vehicle manufacturers and related supporting enterprises. At the same time, it can also meet the requirements of government departments for monitoring and remote emission monitoring of new energy vehicles. Packing List Packing List Accessory name Quantity Remarks T-229LA-L terminal 1 ● Device connection line 1 ● OBD interface extension cable 1 ○ USB setting cable 1 ○ ●Standard configuration ○ Optional configuration (If the optional configuration is not selected when ordering, the accessory will not be included in the box) 2. Technical index 2.1 External interface OBD standard connector Used to connect to the vehicle standard 16-pin diagnostic interface. The vehicle-mounted OBD system can communicate with external devices that follow the same communication protocol through this interface. Micro USB interface Connect to the computer via USB cable. SIM card holder This interface is used to install the SIM card. 2.2 Status indication Indication type colour Working status Remarks power supply /OBD red Flashing (on for 0.5s, off for 0.5s): not entering the car system Strobe: the platform issues control commands Steady bright: successfully entered the car system Off: sleep state Flashing when power off LTE blue Fast flashing (on for 0.5s, off for 0.5s): SIM card is not detected or network is not registered Slow flashing (on for 0.5s, off for 2.5s): Network registered Constant light: Successfully logged in to the service platform Off: GSM is off GPS green Blinking (on for 1s, off for 1s): GPS signal is good Steady on: searching for GPS signal Off: GPS is off 2.3 technical parameter Mechanical parameters size 140mm (length) x 74mm (width) x 28mm (height) weight 200 g interface 2x20P connector: TE 1318384-2 SIM card interface: Micro SIM, Push-Push Type storage 8MB FLASH, can store up to 96,000 GPS data Data transmission method GPRS/HSPA/LTE/SMS Targeting GPS Diagnostic protocol ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 GB-17691 power supply Operating Voltage 9-36V DC Working current Average working current: <[email protected]/27.6VDC Sleep working current: <5mA@12V Built-in battery 500mAH Six -axis acceleration sensor/gyro Driving behavior detection GPS Receiving satellite frequency: 1575.42MHZ Receiving sensitivity: -165dBm定位精度：3m CEP Cold start: <23s Hot start: <1s Support frequency band Working frequency band (T-229LA, North America): FDD LTE B2/B4/B12 WCDMA B2/B4/B5 Network communication protocol: embedded TCP/IP protocol stack Indicator light GPS/LTE/OBD indication Antenna 4G antenna Built-in GPS antenna Built-in or external Environment al parameters Operating temperature -30°C ~ +70°C storage temperature -40°C ~ +85°C humidity 5%～95% (no frost) 3. Setting parameters 3.1 PC Tool parameter setting Download the USB driver and PC Tool from http://www.sinocastel.com/Support/ and install it. Connect the USB setting cable to the terminal and the computer, open the OBD PC Tool, click "Help -> User Manual" and refer to the user manual to set the relevant parameters. 4. Installation Guide 4.1 Install SIM card 1. Remove the equipment cover 2. Locate the SIM card cover and insert the SIM card according to the indicated direction 3. Replace the SIM card cover 4.2 OBD interface The OBD interface is generally located in the cockpit and generally has an obvious "OBD" logo. 4.3 Install terminal 1. Before installing the terminal, make sure that the network parameters, working mode and other parameters are configured correctly; 2. When the vehicle is turned off, align the terminal with the OBD interface of the vehicle through the cable and insert it in place; 3. For vehicles that will affect the cover after the connector is inserted, please use an OBD extension cable and fix the terminal in a suitable position; 4. Start the engine, the terminal will start OBD communication, GPS positioning and GPRS networking, and indicate the working status of the terminal through the indicator light; 5. It is recommended to drive for more than 10 minutes after installation for the first time. note: *When the terminal is plugged in for the first time, it scans the OBD protocol according to the preset working mode (such as passenger car or commercial vehicle mode). The maximum scanning time is 10 minutes. If the OBD protocol is not detected during this period, the terminal will automatically change the working mode In the tracker mode, if the OBD protocol is detected, the terminal maintains the preset working mode. After that, the terminal always works in a certain working mode. Even if it is plugged in again, the working mode will not change unless the working mode is modified through PC tools, SMS or service platform. If the terminal is preset to tracker mode, it will not scan the OBD protocol. *If GPS cannot be located for a long time, please use an OBD extension cable and fix the terminal at a suitable location in the car to ensure good GPS signal reception. *During the use of the terminal, when there is an abnormal indication of the meter, please remove the terminal and contact the Aerospace Wireless Technical Support hold. *Please do not plug or unplug the device when the engine is running, otherwise the vehicle may work abnormally. *The terminal enters the dormant state after the flame is turned off, but the battery power is still consumed. The terminal dormant current is 5mA. In order to avoid battery loss, it is recommended to unplug the terminal before parking the vehicle for a long time (such as more than 5 days). Vehicle test platform 5. Product features 5.1 Communication protocol This product supports all OBD II standard protocols and is compatible with SAE J1939 protocol. ISO 9141-2 ISO 1423…
