S94VTA0800ITablet PC

User Manual This manual contains important safety precautions and information of correct use. Please be sure to read this manual carefully before use so as to avoid any accidents. Do not place the product in hot, wet or dusty envi ronment, especially in summer, do not leave the product inside a car with all windows closed. Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions. Select a proper volume to avoid ear problem when using earphones. Be sure to use the provided chargers and accessories in the package. Be sure to charge the product when t he following situations take place, - The battery icon shows lower or empty. - Operation keys do not respond properly. - The device shows on the top right corner. Page 1 1. Power On/Off 2 . Desktop After turning on the device, desktop displays with shortcut icons and arrow panel at the right side 3 . Standby mode(Screen off mode) / Unlock the screen After standby mode o , slide the lock icon in order to unlock the screen. 4 . System settings On the desktop, press menu butt on and select system settings. Press System Settings 1.Wireless & networks Set up each setting as you like. Wi-Fi settings - Press Wi-Fi settings, then the device will automatically search the availabl e Wi-Fi signals. Select the network you want to connect with. 2.Bluetooth 3.Data usage Pag 4.More... 5. Sound 6. Display 7. Storage Set up each setting as you like. Check device memory and microSD card status. Unmount SD card – Unmount the SD card for safe removal. 8. Battery 9. Apps Check battery usage status. Manage downloaded or running applications. Downloaded All installed application are listing. 10. Location 11. Security Screen lock – Protect your device from unaut horized use by creating a personal screen unlock pattern. Make passwords visible – Show password as you type. Unknown sources - If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK. 12. Language&input Language – Choose your preferable language. Keyboard & input method – Change keyboard & keyboard settings. On Language & input settings, if you need other languages besides English on keyboard, press the relevant keyboard and enter the chosen Keyboard settings, select Keyboards, press the language you need. 13. Backup&reset 14. Add account 15. Date&time 16. Accessibility 17. printing 18. Developer options 19. About tablet How to connect/disconnect the device with/from the computer On main desktop, connect the device with the PC, touch right side of the status bar on t he bottom of desktop Press “USB connected”, select “Turn on USB storage”. The device is recognized at Explorer of the computer. Now you can use it as an external storage. Page 17 Arter Afterfinishingyourwork,Press “ TurnonUSBstorage ” tounmountit. How to install Applications(.apk file) into the device Method 1. 1. Connect the device with internet. See above [1.Wireless & networks] in order to connect internet. 2. Run “Getjar” and search th e applications you want to install. 3. Follow the instruction on t he screen for installation. Method 2. 3. Connect the device with your computer. See above [How to connect/disconnect the device with/from the computer.] 5. Run “File browser” and nd .apk le that was copied into the device. How to make desktop icons Press the upper right side icon of desktop, the pop-up displays. Shortcuts Long press your desired APK icon and put it on the desktop. Widgets Press Widgets and press your desired icon to put it on the desktop. FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC RF warning statement: the device has been evaluated to meet general RF exposure requirement , The device can be used in portable exposure condition without restriction.

General Procurement, Inc 800 E Dyer Rd Santa Ana, CA 92705 United States TEL: 1-949-679-7960 ext:126 DOC ATTESTATION LETTER FCC ID: S94VTA0800I Date: Nov. 04, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the personal computer. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Sandy Boukai/ President We are applying FCC DOC at FCC recognized and authorized MRA lab FCC DOC will be got before sell.

General Procurement, Inc 800 E Dyer Rd Santa Ana, CA 92705 United States TEL: 1-949-679-7960 ext:126 DATE : 11-04-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: S94VTA0800I Product Name: Tablet PC Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11-04-2014 By: Sandy Boukai Signature Printed Title: President On behalf of : General Procurement, Inc Telephone: 1-949-679-7960 ext:126

General Procurement, Inc 800 E Dyer Rd Santa Ana, CA 92705 United States TEL: 1-949-679-7960 ext:126 Series Models Description FCC ID: S94VTA0800I Date: Nov. 04, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: Tablet PC) Models Name: VTA0800I, WI8001Q, WI800XX have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Sandy Boukai/ President

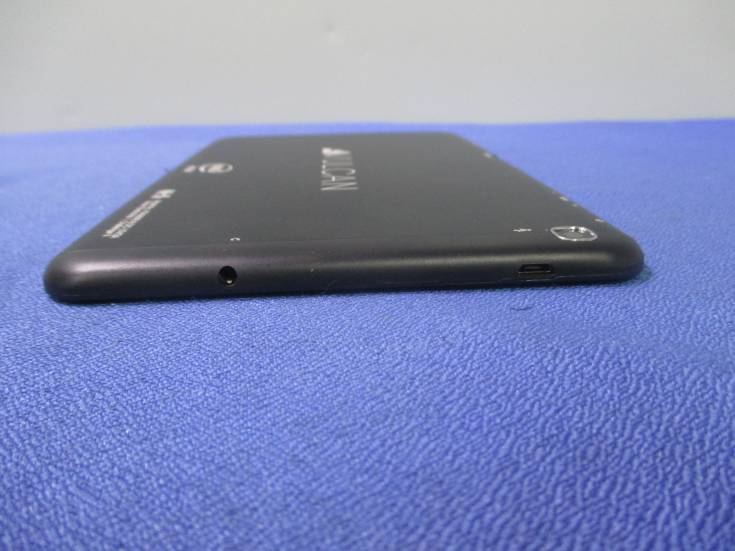

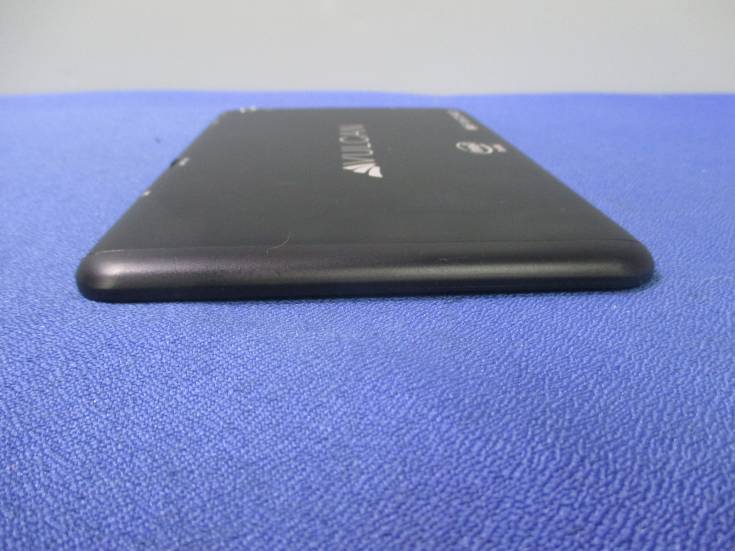

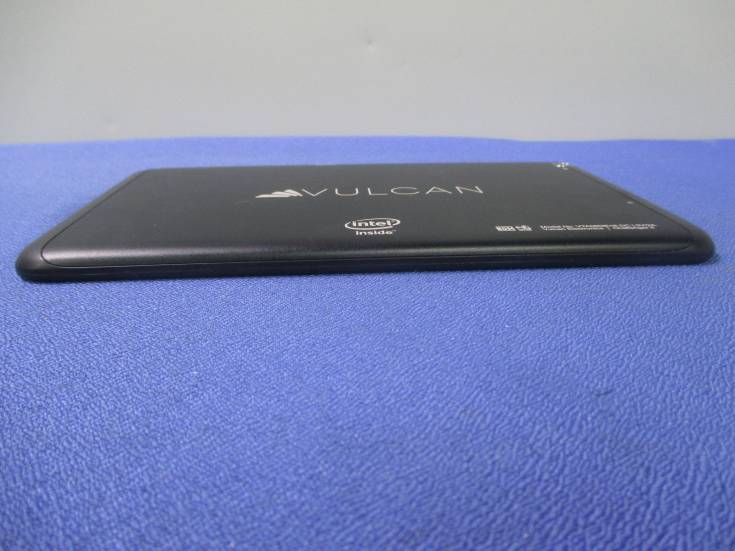

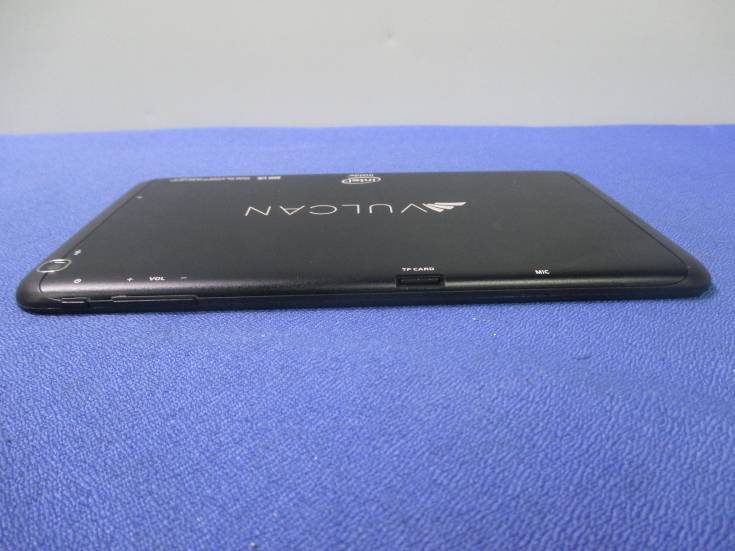

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: General Procurement, Inc Tablet PC Model: VTA0800I FCC ID: S94VTA0800I This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 73.01 dBuV/m @3m Ant gain 0.5dBi ;so Ant numeric gain=1.12 So pt={ [10 (73.01 /20) /10 6 x3] 2 /30x1.12 }x1000 mW =0.0054 mW So ( 0.0054mW/5mm)x √2.480GHz = 0.0017 < 3 Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT FCC Part 15.249 Report Reference No......................: CTL1409012189-WF03 Compiled by ( position+printed name+signature)..: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature)..: Test Engineer Tracy Qi Approved by ( position+printed name+signature)..: Manager Tracy Qi Date of issue.....................................: Oct. 24, 2014 Test Firm..........................................: Shenzhen CTL Testing Technology Co., Ltd. Address.............................................: Floor 1-A, Baisha Technology Park, No. 3011, Shahexi Road, Nanshan, Shenzhen 518055 China. Applicant’s name............................: General Procurement, Inc Address.............................................: 800 E Dyer Rd Santa Ana, CA 92705 United States Test specification: Standard ...........................................: FCC Part 15.249: Operation within the bands 920-928 MHz, 2400- 2483.5 MHz, 5725-5850 MHz and 24.0 - 24.25 GHz. TRF Originator ..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Tablet PC Trade Mark .......................................: N/A Models/Type reference.....................: VTA0800I, WI8001Q, WI800XX Modulation .......................................: FHSS Work Frequency...........................: 2402 MHz~2480 MHz Antenna Type..............................: internal Antenna Gain....................................: 0.5dBi FCC ID .............................................: S94VTA0800I Result................................................: Positive V1.0 Page 2 of 38 Report No.: CTL1410112481-WF03 T E S T R E P O R T Test Report No. :CTL1410112481-WF03 Oct. 24, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test : Tablet PC Model /Type : VTA0800I Listed Modes : WI8001Q, WI800XX Difference Description : Only the color and model's name is different Applicant : General Procurement, Inc Address : 800 E Dyer Rd Santa Ana, CA 92705 United States Manufacturer : Jiangxi Wei Heng Digital Company Limited Address : National High-tech Industrial Development Zone, Xinyu City, Jiangxi Province, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 38 Report No.: CTL1410112481-WF03 Contents 1.TEST STANDARDS .................................................................. 4 2.SUMMARY............................................................................. 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.Related Submittal(s) / Grant (s) 6 2.7.Modifications 6 3. TEST ENVIRONMENT............................................................... 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS ............................................ 10 4.1.Conducted Emissions Test 10 4.2.Radiated Emission Test 14 4.3.Band Edge Measurement 19 4.4.Occupied Bandwidth Measurement 24 5. ANTENNA REQUIREMENT ....................................................... 26 6.TEST SETUP PHOTOS OF THE EUT .......................................... 27 7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ....................... 30 V1.0 Page 4 of 38 Report No.: CTL1410112481-WF03 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 15.249: Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz. ANSI C63.4-2009 V1.0 Page 5 of 38 Report No.: CTL1410112481-WF03 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Oct. 11, 2014 Testing commenced on : Oct. 11, 2014 Testing concluded on : Oct. 24, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz o 115V / 60Hz o 12 V DC o 24 V DC o Other (specified in blank below) DC 3.7V from battery 2.3. Short description of the Equipment under Test (EUT) The EUT is a Tablet PC work at 2402~2480 MHz support Bluetooth 3.0. Channel List: Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 2402 27 2429 54 2456 01 2403 28 2430 55 2457 02 2404 29 2431 56 2458 03 2405 30 2432 57 2459 04 2406 31 2433 58 2460 05 2407 32 2434 59 2461 06 2408 33 2435 60 2462 07 2409 34 2436 61 2463 08 2410 35 2437 62 2464 09 2411 36 2438 63 2465 10 2412 37 2439 64 2466 11 2413 38 2440 65 2467 12 2414 39 2441 66 2468 13 2415 40 2442 67 2469 14 2416 41 2443 68 2470 15 2417 42 2444 69 2471 16 2418 43 2445 70 2472 17 2419 44 2446 71 2473 18 2420 45 2447 72 2474 19 2421 46 2448 73 2475 20 2422 47 2449 74 2476 21 2423 48 2450 75 2477 22 2424 49 2451 76 2478 23 2425 50 2452 77 2479 24 2426 51 2453 78 2480 25 2427 52 2454 26 2428 53 2455 Modulation: 1Mbps(GFSK), 2Mbps(Pi/4 DQPSK), 3Mbps(8DPSK) For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 38 Report No.: CTL…
