S9C-3064SafePlug Outlet Control Board

3064 Control Board User Guide Author Nick Jones Document Revision 001 Revision Date 11/15/10 Page 1 of 3 ©2010 OFI, Inc. If you received this document in electronic format, you may print one hardcopy. Duplication or distribution of this document in hardcopy or electronic format, and printing of more than one hardcopy is prohibited without written permission from OFI, Inc.. This document contains Confidential and Proprietary Information of OFI, Inc. which may only be used as and when specifically authorized by OFI, Inc.. The information in this document is believed to be accurate and reliable. However, OFI Inc. assumes no responsibility for the consequences of use of such information. Specifications in this publication are subject to change without notice. OFI Inc. products are not authorized for use as critical components of life support systems. Introduction This document is a user guide for the 3064 outlet control board assembly. Description The 3064 circuit board assembly is a general purpose main control board for smart outlets manufactured by OFI, Inc. Assembly no. 3064 incorporates a third-party 802.15.4 transceiver module and co-located ISO14443B RFID reader. Dimensions & Markings 81.3 (3.20) 63.1 (2.49) FCC ID: S9C-3064IC: 5850A-3064 Tuning The 3064 has no tunable components and no tuning requirements. Connections Pad Signal Pad Signal P1 Relay 2 Drive Out (open collector drive) P8 DC common P2 Relay 2 Drive Out (open collector drive) P9 No connection P3 Current Sense 2 Analog Input (0-5V) P10 Analog Test Signal Output (5V TTL) P4 Current Sense 1 Analog Input (0-5V) P11 Relay 12V Out P5 No connection P12 Relay 12V Out P6 Voltage Sense 1 Analog Input (0-5V) P13 12Vdc input P7 Regulated 5Vdc input P14 No connection 3064 Control Board Page 2 of 3 User Guide © 2010 OFI, Inc. CONFIDENTIAL Agency Certifications FCC 15.225, FCC 15.247, FCC 15B, Canada RSS-210 Limited Modular Approval (pending) FCC ID: S9C-3064 IC: 5850A-3064 This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications not expressly approved by OFI, Inc. could void the user’s authority to operate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been designed to operate only with the integral antennas. External antennas and modification to the included integral antenna are strictly prohibited for use with this device. Application Limitations The 3064 Control Board (module) shall be sold only as a component of products designed by or for OFI, Inc.: • with the antennas integral to the 3064 module, • that provide the 3064 module with a regulated 5V power supply compliant with the Recommended Operating Conditions, • such that, under normal use, the radiating structure(s) of the device is/are not within 20 centimeters of the body of the user, • subject to further FCC part 15B and ICES-003 unintentional radiator testing • subject to any other applicable FCC or Industry Canada testing Products incorporating the 3064 Control Board shall bear the marking: Contains FCC ID: S9C-3064, IC: 5850A-3064 Products incorporating the 3064 Control Board shall be evaluated for compliance with any applicable RF exposure requirements. 3064 Control Board Page 3 of 3 User Guide © 2010 OFI, Inc. CONFIDENTIAL Ratings Absolute Maximum Ratings Description Min Typ Max Units Logic Supply -0.3 6.5 Vdc Relay Drive Supply -0.3 16 Vdc Temperature -40 125 ºC 802.15.4 RF Input Level 10 dBm Exceeding the maximum ratings may result in permanent damage. Recommended Operating Conditions Description Min Typ Max Units Logic Supply 4.75 5 5.25 Vdc Relay Drive Supply 11 12 13 Vdc Temperature -40 80 ºC Logic Supply Current 100 mA Relay Drive Current 70 mA 802.15.4 RF CHARACTERISTICS (@ 25°C, VCC = 5.0V) Description Min Typ Max Units Frequency Band (16 – 5MHz wide channels) 2.405 2.480 GHz RX Sensitivity for 1% PER DCD -95 -90 dBm RX Sensitivity for 1% PER NCD -99 dBm TX Output Power 3 5 5.5 dBm ISO14443B Reader (@ 25°C, VCC = 5.0V) Description Min Typ Max Units Read Range 8 16 mm Read range specified for RightPlug compliant encoded plugs

OFI, INC „ 100 HANSON AVENUE KITCHENER, ONTARIO N2C 2E2 CANADA „ P (519) 884-3100 F (519) 884-9800 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 November 1, 2010 SUBJECT: FCC Application for S9C-3064 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Verification Authorization procedure to the Part 15B - Unintentional Radiator portion of this composite filing. Regards, ___________________________ Nick Jones, V.P. Technology

OFI, INC „ 100 HANSON AVENUE KITCHENER, ONTARIO N2C 2E2 CANADA „ P (519) 884-3100 F (519) 884-9800 Monday, November 1, 2010 To whom it may concern: This letter is an application by OFI, Inc. for limited modular approval of the OFI No. 3064 control circuit board assembly (S9C-3064) according to FCC 15.212. FCC 15.212 Requirements: Manufacturer Attestation 15.212 Modular transmitters. (a) Single modular transmitters consist of a completely self-contained radio frequency transmitter device that is typically incorporated into another product, host or device. Split modular transmitters consist of two components: a radio front end with antenna (or radio devices) and a transmitter control element (or specific hardware on which the software that controls the radio operation resides). All single or split modular transmitters are approved with an antenna. All of the following requirements apply, except as provided in paragraph (b) of this section. S9C-3063 is a single modular transmitter Two single modular transmitters are co-located in the same module: a 13.56 MHz near-field RFID reader and a 2.4 GHz 802.15.4 transceiver. (1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements The 2.4 GHz 802.15.4 transceiver has its own shielding enclosing all radio elements including the crystal and tuning capacitors. The 13.56 MHz near-field RFID reader is not shielded due to ineffectiveness of a shield at these frequencies. This module shall be used only in products designed by OFI and subject to further investigation according to FCC Part 15B therefore excessive unintended emissions due to interactions between the 13.56MHz RFID reader module and incorporating product can be avoided. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The 2.4 GHz 802.15.4 transceiver has no modulation inputs, and has buffered data inputs. The 13.56 MHz near-field RFID reader has no modulation inputs, and has buffered data inputs. (iii) The modular transmitter must have its own power supply regulation. The 2.4 GHz 802.15.4 transceiver has its own power supply regulation. The 13.56 MHz near-field RFID reader does not have its own power supply regulation and relies on suitable regulated power being supplied. External power supply regulation is a condition of use as stated in the user guide. This module shall be used only in products designed by OFI, therefore a regulated power supply meeting the requirements stated in the user guide is assured. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The 2.4 GHz 802.15.4 transceiver has an integral chip antenna and has no antenna connector. The 13.56 MHz near-field RFID reader has integral PCB trace antennas and has no antenna connector. OFI, INC „ 1351 STRASBURG RD. KITCHENER, ONTARIO N2R1H2 CANADA „ P (519) 884-3100 F (519) 884-9800 (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see § 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see § 15.31(i)). The module was tested in a stand-alone configuration. During testing, unless otherwise required for a particular test, both co-located transmitters were simultaneously active. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The module is permanently marked with its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: ‘‘Contains Transmitter Module FCC ID: XYZMODEL1’’ or ‘‘Contains FCC ID: XYZMODEL1.’’ Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The module user guide contains the necessary end- product marking requirements. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the mod…

Text truncated - open the document above for the full version.

November 12, 2010 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Limited Modular Approval Certification Application Testing under FCC Part 15, Subpart C - Unlicensed Low Power Transmitter operating in the frequency band 13.110-14.010 MHz. Product: SafePlug Outlet Control Board Model No.: 3064 FCC ID: S9C-3064 Dear Sir/Madam: As appointed agent for OFI, Inc. (subsidiary of 2D2C Inc.), we submit the application for equipment certification of the above product. Please review all required documents uploaded to your E-Filing Site. Note: This module use two co-located radios (13.56 MHz RF ID reader & 802.15.4 DTS radio). Applicable tests were performed with both radios transmitting simultaneously as worst case to show compliance with FCC co- located Tx requirements. If you have any queries, please do not hesitate to contact us. Yours truly, Dharmajit Solanki Dharmajit Solanki, Authorized Agent UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

OFI, INC „ 100 HANSON AVENUE KITCHENER, ONTARIO N2C 2E2 CANADA „ P (519) 884-3100 F (519) 884-9800 November 1 2010 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: OFI, Inc. FCC ID: S9C-3064 Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards Nick Jones, V.P. Technology OFI, Inc.

OFI, INC „ 100 HANSON AVENUE KITCHENER, ONTARIO N2C 2E2 CANADA „ P (519) 884-3100 F (519) 884-9800 November 5, 2010 To Whom It May Concern Subject: Confidentiality Letter Applicant: OFI, Inc. FCC ID: S9C-3064 Dear Sir/Madam: The applicant would like to request the following documents submitted with this application for certification be withheld from public disclosure as per Section 0.457 & 0.459 of FCC Rules. 1. Operational Description 2. Block Diagram 3. Schematics 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Regards Nick Jones, V.P. Technology OFI, Inc.

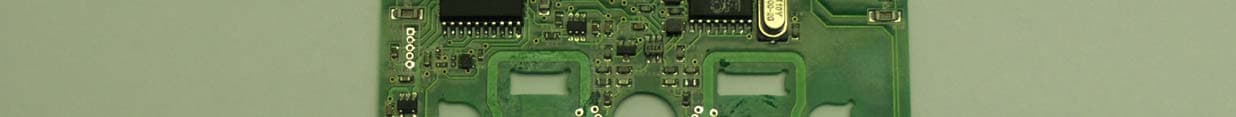

ANNEX 2 – External Photographs OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 1 ANNEX 2 – External Photographs OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 2 ANNEX 2 – External Photographs OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 3

OFI Inc , . Nick JonesOFI Part No. 30641of1ProjectDrawn BySheet DateRevision Title ©2005 OFI Inc. If you received this document in electronic format, you may print onehardcopy. Duplication or distribution of this document in hardcopy or electronic format,and printing of more than one hardcopy is prohibited without written permission from OFIInc.. This document contains Confidential and Proprietary Information of OFI Inc. whichmay only be used as and when specifically authorized by OFI Inc.. CONFIDENTIAL All dimensions in mm (inch), scale 1:1 unless otherwise noted The frame of this drawing is 406.4mm (16.00) by 254.0mm (10.00) Portable Outlet Control PCB Assy. Dimensions 2010-11-05 002 81.3 (3.20) 63.1 (2.49) FCC ID: S9C-3064 IC: 5850A-3064 FCC/ICLabelLocation

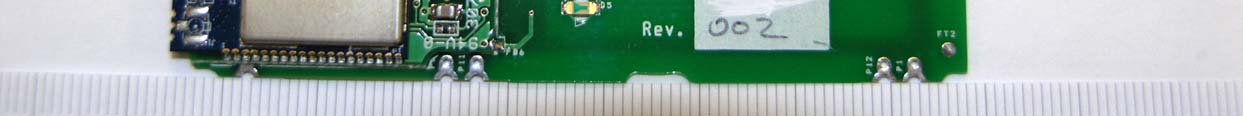

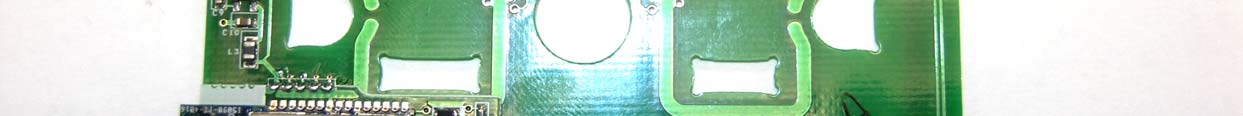

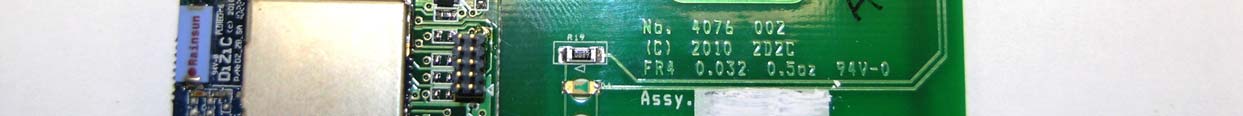

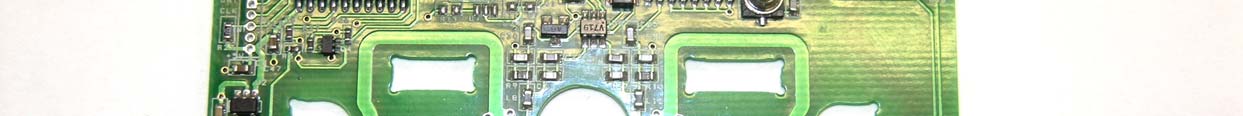

ANNEX 2 – Internal Photographs OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 1

SafePlug Outlet Control Board Model No.: 3064 FCC ID: S9C-3064 Applicant: OFI, Inc. (subsidiary of 2D2C Inc.) 100 Hanson Avenue Kitchener, Ontario Canada N2C 2E2 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C Unlicensed Low Power Transmitter Operating in the Band 13.110-14.010 MHz UltraTech's File No.: OFI-015_F15C225 This Test report is Issued under the Authority of Tri M. Luu, B.A.Sc, Vice President of Engineering UltraTech Group of Labs Date: November 12, 2010 Report Prepared by: Dharmajit Solanki Issued Date: November 12, 2010 Tested by: Hung Trinh, EMC/RFI Technician Test Dates: October 25-28 & June 04, 2010  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.225 – Unlicensed Low Power Transmitter SafePlug Outlet Control Board, Model: 3064 FCC ID: S9C-3064 ULTRATECH GROUP OF LABS File #: OFI-015_F15C225 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 November 12, 2010 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ......................................................................................................................................... 1 1.1. SCOPE......................................................................................................................................................................... 1 1.2. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................................. 1 1.3. NORMATIVE REFERENCES ................................................................................................................................... 1 EXHIBIT 2. PERFORMANCE ASSESSMENT .............................................................................................................. 2 2.1. CLIENT INFORMATION .......................................................................................................................................... 2 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION ............................................................................................ 2 2.3. EUT’S TECHNICAL SPECIFICATIONS ................................................................................................................. 3 2.4. LIST OF EUT’S PORTS............................................................................................................................................. 3 2.5. ANCILLARY EQUIPMENT ...................................................................................................................................... 4 2.6. GENERAL TEST SETUP BLOCK DIAGRAM ........................................................................................................ 4 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................... 5 3.1. CLIMATE TEST CONDITIONS ............................................................................................................................... 5 3.2. OPEPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS ....................................................... 5 EXHIBIT 4. SUMMARY OF TEST RESULTS ............................................................................................................... 6 4.1. LOCATION OF TESTS.............................................................................................................................................. 6 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ............................................................. 6 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES....................................... 6 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS............................... 7 5.1. TEST PROCEDURES................................................................................................................................................. 7 5.2. MEASUREMENT UNCERTAINTIES ...................................................................................................................... 7 5.3. MEASUREMENT EQUIPMENT USED ................................................................................................................... 7 5.4. COMPLIANCE WITH FCC PART 15 – GENERAL TECHNICAL REQUIREMENTS ......................................... 7 5.5. OCCUPIED BANDWIDTH ....................................................................................................................................... 8 5.6. FIELD STRENGTH OF EMISSIONS INSIDE & OUTSIDE THE PERMITTED BAND 13.110-14.010 MHZ [47 CFR 15.225 (A) TO (D)]........................................................................................................................................... 10 5.7. FREQUENCY STABILITY [47 CFR 15.225(E)] .................................................................................................... 13 5.8. POWERLINE CONDUCTED EMISSIONS [47 CFR 15.107(A) & 15.207]........................................................... 14 EXHIBIT 6. TEST EQUIPMENT LIST ......................................................................................................................... 17 EXHIBIT 7. MEASUREMENT UNCERTAINTY..........................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 1 Power Line Conducted Emissions ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 2 Radiated Emissions at 10 m Distance (for frequencies below 30 MHz) ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 3 Radiated Emissions at 3 m Distance (for frequencies at or above 30 MHz) ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 4 Radiated Emissions at 3 m Distance (for above 1 GHz) ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 5 Radiated Emissions at 3 m Distance (EUT was placed in 3 different orthogonal positions for all scans) Orthogonal Position #1 ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 6 Orthogonal Position #2 ANNEX 1 - TEST SETUP PHOTOGRAPHS OFI, Inc. (subsidiary of 2D2C Inc.) SafePlug Outlet Control Board, Model 3064 FCC ID: S9C-3064 IC: 5850A-3064 A1 - 7 Orthogonal Position #3
