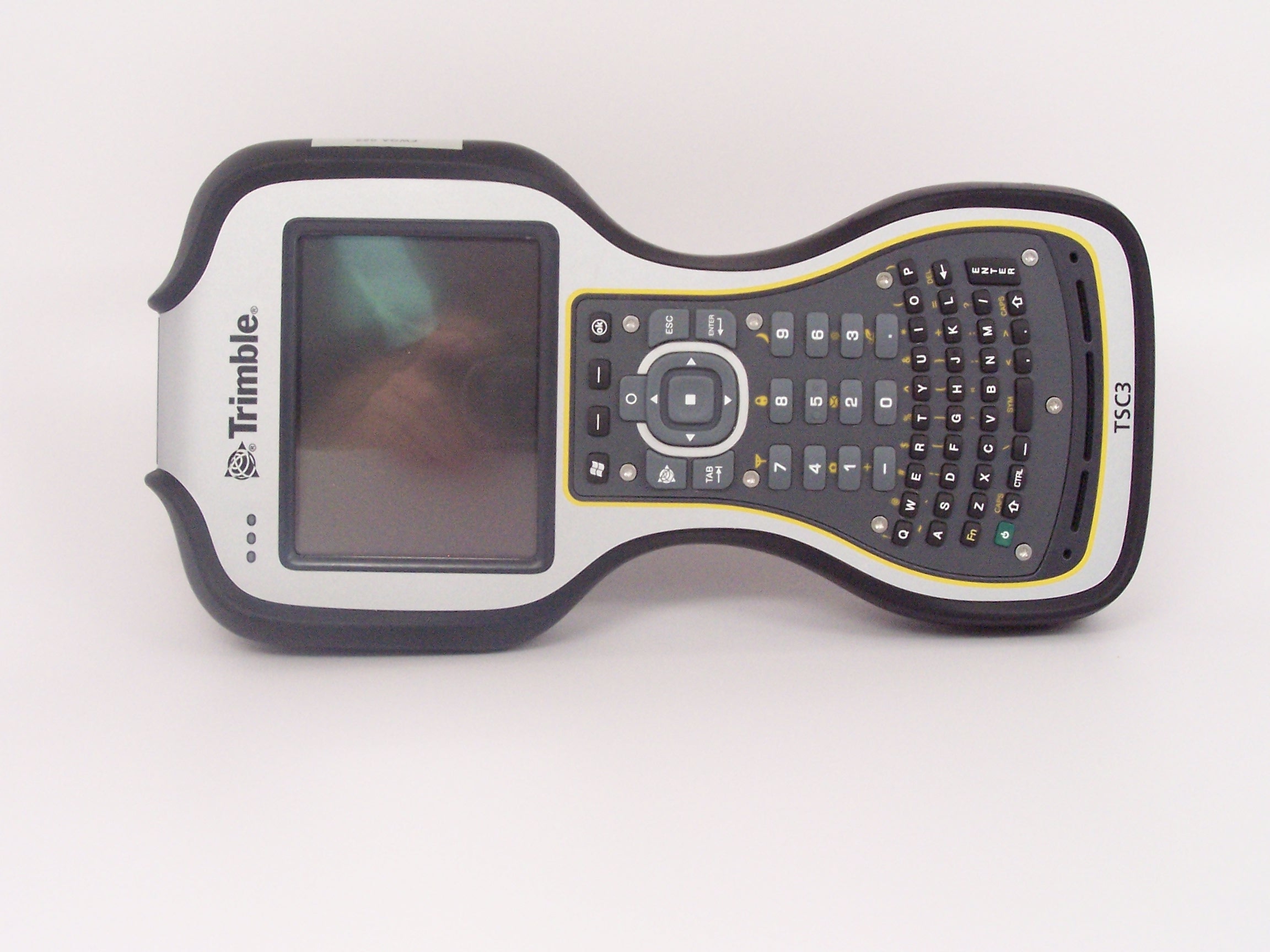

S9E-RGTSC3BWRanger/TSC3

GETTING STARTED GUIDE Ranger ® Series data collector September 2010 2 Limited Warranty & Liability Limitations This unit and battery are limited warranted against defects in materials and workmanship for twelve (12) months from the original date of purchase. All other accessories and peripherals are limited warranted against defects in materials and workmanship for ninety (90) days from the original date of purchase. If notice is received of such defects during the limited warranty period, the proven defective product(s) will either be repaired or replaced, at the manufacturer’s option. Replacement products may be either new or like new. The manufacturer does not warrant that the operation of the products will be uninterrupted or error free. If the product is not, within a reasonable time, repaired or replaced to a condition as limited warranted, the customer will be entitled to a refund of the purchase price upon prompt return of the product. Limited warranty does not apply to defects resulting from (a) improper or inadequate maintenance or calibration, (b) software, interfacing, parts, or supplies not supplied by manufacturer, (c) unauthorized modification, or misuse, (d) operation outside of the published environmental specifications for the product, or (e) physical damage due to external causes, including accident, abuse, misuse or problems with electrical power. Water damage caused by improper installation of the accessories and service parts is not covered by warranty. Removal of the back case or X-bay lid voids the limited warranty. There are important seals that will break and the unit will no longer be waterproof. To the extent allowed by local law, the above limited warranties are exclusive and no other warranty or condition, whether written or oral, is expressed or implied, specifically disclaiming any implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. To the extent allowed by local law, the remedies in this limited warranty statement are the customer’s sole and exclusive remedies. Except as indicated above, in no event will the manufacturer or its suppliers be liable for loss of data or for direct, special, incidental, consequential (including lost profit or data), or other damage, whether based in contract, tort, or otherwise. 3 Contents Welcome......................................................................................3 Device Hardware.........................................................................4 Unit Setup....................................................................................6 Working with the Unit and the Battery......................................10 Status indicators.........................................................................15 Settings on your Unit.................................................................16 Communication..........................................................................19 Connecting to a PC....................................................................19 Working with Bluetooth............................................................20 Working with Wi-Fi (Wireless Lan, WLAN or 802.11)...........22 Working with the Camera..........................................................24 Working with the Barcode Scanner...........................................27 Working with the GPS...............................................................28 SatViewer..................................................................................29 Working with the Wireless WAN..............................................30 Troubleshooting.........................................................................34 Caring for your Unit..................................................................35 Environmental Considerations...................................................36 Environmental Specifications....................................................37 Hardware Specifications............................................................37 Regulatory Information.............................................................38 Declaration of Conformity.........................................................39 Safe Use of your Unit................................................................40 Appendix A................................................................................43 Using SatViewer........................................................................43 Welcome Congratulations on your purchase of the most powerful and advanced handheld computer available on the market today. Its rugged design allows you to work in harsh outdoor environments. You can operate your unit in blazing heat, subzero cold, driving rain or dusty job sites – places you could not take a consumer-grade handheld computer. NOTE: Not all the features discussed in this manual will apply to every unit, as some of the features are offered as options. If the feature described does not apply to your unit, please disregard that section. 4 Device Hardware Front View Back View NOTE: Some features are offered as options and may not apply to your unit. Be sure to read the warranty and safety information in this manual prior to using your unit. Notification LEDs Enter Power Battery Door Latch (under hand strap) Battery Door Hand Strap Stylus 2.4 GHz Antenna (if present) Navigation Pad Enter Dual LED Camera Flash Qwerty Keypad Camera 5 Top View Bottom View I/O The I/O has a mini-USB client (to connect to Microsoft Windows Mobile Device Center used on Microsoft Windows Vista ® and Windows 7 ® or connect to Microsoft ActiveSync ® used on Microsoft Windows XP ® ), a USB host port (to connect to USB client devices) and a DB9 RS-232 connector (for use with serial devices). NOTE: COM1 is always reserved in software for the 9-pin port. Many USB host peripheral devices supported by personal computers (Microsoft Windows XP, Microsoft Vista, Microsoft Windows 7, et…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 TRPO0054 Information about the Applicant Grantee (Company Name) Trimble Navigation Limited FCC Contact Person Bob Grant Address 345 SW Avery Ave City, State, Zip Corvallis, OR 97333 Job Number TRPO0054 Model RANGER/TSC3BW FCC ID S9E-RGTSC3BW Agent Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15C (15.247) Overview This application is for an original approval of a Bluetooth- Wi-Fi combination radio under FCC ID: S9E-RGTSC3BW. A limited modular approval is requested for the radio installed in the Trimble Handheld Computer, model Ranger/TSC3. The Ranger \TSC3 will also contain FCC ID: S93- RGTSC3WN and FCC ID: S93-RNGR2410. Test reports and RF exposure reports have been submitted in support of this application. Confidentiality requested for allowed files. Request is properly addressed and referenced. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 10/27/2010 Dave Tolman, TCB Committee

Trimble Navigation Limited MCS 345 SW Avery Corvallis, OR 97333 September 15, 2010 To whom it may concern, Trimble Navigation Limited MCS is submitting this application for an Original certification for FCC ID: S9E-RGTSC3BW. It is a combination Wi-Fi / Bluetooth radio module. It is seeking limited modular approval for co-location with other radios in the Trimble Handheld computer Model Ranger/TSC3. The Ranger/TSC3 also contains a WWAN module (FCC ID: S9E-RGTSC3WN) and a FHSS module (FCC ID: S9E-RNGR2410). This application contains an EMC test report for the Wi-Fi / Bluetooth module and RF safety information for the co-located radios. All of the modules are installed by the client and are not user accessible. The modules will not be sold individually. Your attention to this matter is greatly appreciated and please contact me if you have any questions. Best regards, Bob Grant Regulatory Engineer Trimble Navigation [email protected]

Trimble Navigation Limited MCS 345 SW Avery Corvallis, OR 97333 September 15, 2010 Dear Application Examiner: We, Trimble Navigation Limited, are seeking limited modular approval for Ranger/TSC3 (FCC ID S9E-RGTSC3BW). The radio meets the requirements for modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. Also, the technical report exhibit contains AC power line conducted emissions data taken with the EUT powered from a linear power supply that contains no EMC suppression components. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration. The module was greater than 10 cm from the host device. Please see test setup photos exhibit and technical report exhibit. 6. “The modular transmitter must be labeled with its own FCC ID number.” Although the host device is labeled with “Contains FCC ID: S9ERGTSC3BW” The module itself is not labeled with its own FCC ID number. The module will always be installed by Trimble in their host device. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Bob Grant Regulatory Engineer Trimble Navigation [email protected]

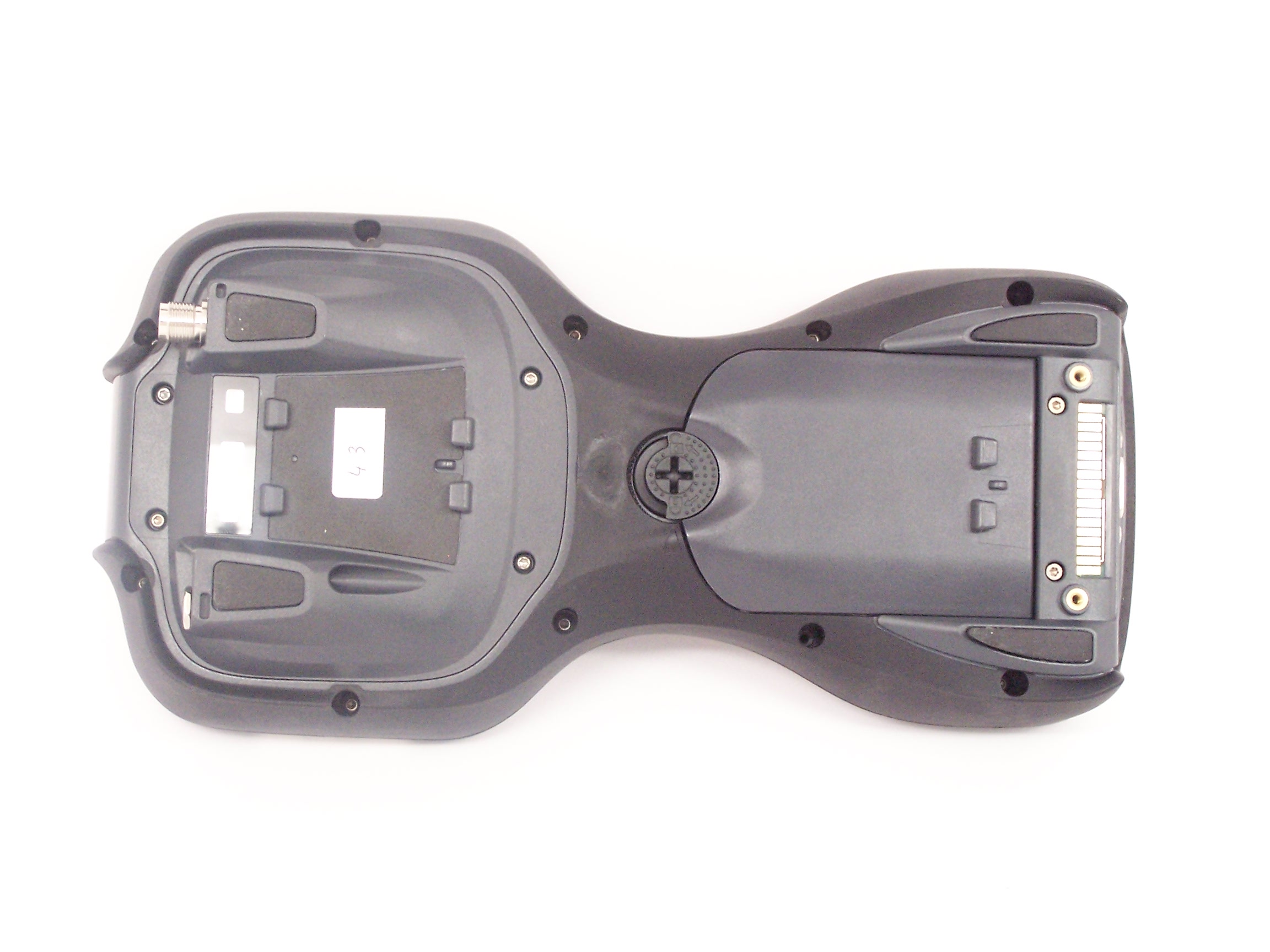

Cell Radio Cell Antenna WiFi Bluetooth Radio WiFi Bluetooth Antenna Cirronet Radio Cirronet Antenna

ANT-2.45-CHP-x 2.45GHz ULTRA COMPACT CHIP ANTENNA DATA GUIDE Revised 02/17/05 AAnnyy 22..44GGHHzz wwiirreelleessss pprroodduucctt iinncclluuddiinngg:: ■Bluetooth ■802.11 ■ZigBee ■Wireless PCMCIA Cards ■Telemetry ■Data Collection ■Industrial Process Monitoring ■Compact Wireless Products ■External Antenna Elimination APPLICATIONS ■Incredibly compact SMD package ■Superior LTCC technology ■50Ωcharacteristic impedance ■Low loss ■Wide bandwidth ■Favorable linear polarization ■> Unity gain ■No external matching required ■Highly stable over temperature and humidity ■Fully hand- and reflow-assembly compatible ■Cost-effective FEATURES The exciting ANT-2.45-CHP is one of the world’s smallest high-performance 2.4GHz Chip Antennas. It is ideal for all 2.4GHz applications including Bluetooth, 802.11, Home RF, ZigBee and other popular standards. The antenna uses advanced Low Temperature Co-fired Ceramic (LTCC) technology and a proprietary element to achieve superior size and performance characteristics. The tiny SMD package measures a mere 6.5mm (L) x 2.2mm (W) x 1.0mm (H) and is compatible with hand- and reflow-assembly. Favorable electrical specifications, stability, and outstanding cost-effectiveness make it the logical choice for a wide variety of applications. DESCRIPTION PHYSICAL DIMENSIONS 2.45GHz ULTRA COMPACT CHIP ANTENNA DATA GUIDE Actual Size PART #DESCRIPTION ANT-2.45-CHP-x2.45GHz Ultra-Compact Chip Antenna x= “T” for Tape/Reel, “B” for Bulk Standard Reel is 3,000 pcs. Quantities less than 3,000 pcs. supplied in bulk. ORDERING INFORMATION 1.00mm 2.20mm 6.50mm SPECIFICATIONS Page 2 Dimensions (mm)6.5(L) x 2.2(W) x 1.0(H) Operating/Storage Temperature-40~+85°C ConstructionLTCC PHYSICAL SPECIFICATIONS Center Frequency2.45GHz Bandwidth180.0MHz PatternOmni-directional PolarizationLinear VSWR<2.0 (Max.) Maximum Gain+0.5dBi Impedance50Ω Power Handling3W (Max.) ELECTRICAL PERFORMANCE PAD LAYOUT PIN CONFIGURATIONLAYOUT DETAILS 2.4 Pin No. 1 1 Feed Termination Solder Termination Pin connects to the transmitter or receiver. Pin is soldered for physical support. There is no electrical connection. 2 2 Pin Description 2.4 No ground plane or traces under the antenna Ground plane on bottom layer for counterpoise 50 ohm microstrip line No electrical connection. For physical support only PCB pads for the CHP 2.54mm 1.02mm 6.60mm Page 3 REFLOW SOLDERING PROFILE ASSEMBLY CONSIDERATIONS The antenna is designed to support hand or automated assembly. To avoid damage to the part, the reflow/solder guidelines found below should be carefully followed. The antenna is single ended meaning that one pad is electrically connected while the other is for mechanical support only. The antenna terminals are not interchangeable so polarity must be observed during assembly. Hand Soldering This antenna is designed for high-volume automated assembly, however, it may be successfully attached by hand assembly techniques. A hand-solder temperature of 225° or lower should be used. Do not exceed a 10 sec. heating time. Reflow Temperature Profile The single most critical stage in the automated assembly process is the reflow process. The reflow profile below should be closely followed since excessive temperatures or transport times during reflow will irreparably damage the antennas. Assembly personnel will need to pay careful attention to the oven's profile to ensure that it meets the requirements necessary to successfully reflow all components while still meeting the limits mandated by the antennas themselves. Absolute Maximum Solder Times Hand-Solder Temp. TX +225°C for 10 Sec. Hand-Solder Temp. RX +225°C for 10 Sec. Recommended Solder Melting Point +180°C Reflow Oven: +220°C Max. (See adjoining diagram) Page 4 LAYOUT CONSIDERATIONS The antenna’s wide bandwidth and good stability allow it to perform well and accommodate differing layout requirements. Despite this, proper layout is vital to ensure correct operation. Improper placement of planes, traces or system components will result in nulls or complete detuning. Failure by the designer to respect and account for these requirements will result in unsatisfactory performance. Ideally the antenna will be mounted on the board in such a way as to allow an unobstructed field of view. The area under the backside of the antenna must be free of components, traces, and planes. Components may be placed to the rear of the antenna in the ground plane counterpoise area. The feed trace from the RF stage to the antenna must be a microstrip trace or coax transmission line and should be kept as short as practical. Two sample layouts and their associated data are illustrated on the following pages. They are intended to be representative and it is not necessary to follow them precisely. They do however, exhibit layout techniques and the differences that occur with differing size PCB’s and layouts. After your own layout is complete the performance of the antenna in your specific product should be carefully checked using tools like a network analyzer. In some cases the size of the product’s PCB, proximity of the case or other factors may make a custom version of the antenna necessary. You may contact Antenna Factor for more information. Effective DielectricWidth/HeightDielectricCharacteristic Constant(W/d)ConstantImpedance 4.81.83.5950.0 423.0751.0 2.5532.1248.0 Microstrip Formulas (Er = Dielectric constant of PC board material) MICROSTRIP CALCULATIONS Page 5 TEST BOARD PATTERNS RETURN LOSS Test Board 1 Test Board 2 35 40 5 10 50Ω Transmission Line (Top Layer) Ground plane (Bottom Layer) Test board-2 30 30 14 20 14 50Ω Transmission Line Ground plane (Top and Bottom Layers) Test Board 1 Unit: mm Board Thickness: 0.023” Board Material: FR4 Test Board 2 Unit: mm Board Thickness: 0.031” Board Material: FR4 50ΩMicrostrip trace (Top layer) 50ΩMicrostrip trace Ground plane (Bottom layer) Ground plane (Top and bottom layers) Page 6 PATTERN TEST PCB 1 2.45GHz H-Plane Vertical Horizontal 2.45GHz H-Plane Vertical 2.…

Text truncated - open the document above for the full version.

NORTHWEST EMC OVERVIEW COMPLIANCE WITH 2.1091 All other mobile and unlicensed transmitting devices are categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use, except as specified in §§1.1307(c) and 1.1307(d) of this chapter. Applications for equipment authorization of mobile and unlicensed transmitting devices subject to routine environmental evaluation must contain a statement confirming compliance with the limits specified in paragraph (d) of this section as part of their application.” “Mobile devices that operate in the Cellular Radiotelephone Service, the Personal Communications Services, the Satellite Communications Services, the General Wireless Communications Service, the Wireless Communications Service, the Maritime Services and the Specialized Mobile Radio Service authorized under subpart H of part 22 of this chapter, parts 24, 25, 26 and 27 of this chapter, part 80 of this chapter (ship earth stations devices only) and part 90 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. Unlicensed personal communications service devices, unlicensed millimeter wave devices and unlicensed NII devices authorized under §§15.253, 15.255, and 15.257, and subparts D and E of part 15 of this chapter are also subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if their ERP is 3 watts or more or if they meet the definition of a portable device as specified in §2.1093(b) requiring evaluation under the provisions of that section. The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearb y persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). Per 47 CFR Maximum Permissible Exposure (MPE) XMit 2008.12.29 2 **4 * R GP S   Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply non-compliance if the spatial average of spatially averaged RF fields over the exposed portions of a person’s body does not exceed the limits. COMPLIANCE WITH FCC KDB 447498 D01 Mobile Portable RF Exposure V04 FCC LIMITS FOR MPE Limits for General Population /Uncontrolled Expsoure: 47 CFR 1.1310 METHOD OF EVALUATION The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: 1500 - 100000 f = frequency in MHz the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091(b). Per 47 CFR 1.1310, the EUT meets the General Population / Uncontrolled exposure limits listed in Table 1. 30 30 - 300 * = Plane-wave equivalent power density 30 0.3 - 1.34 1 300 - 1500f/1500 1.34 - 30824/f 1.63*(100) 2.19/f*(180/f 2 ) 27.50.0730.2 Power Density 30 30 30 (MHz)(V/m)(A/m)(mW/cm 2 ) 614 The cellular, WiFi / Bluetooth, and Cirronet radio transceivers are mobile transmitters and are greater than 5 cm from each other and all other simultaneous transmitting antennas. "KDB 447498 D01 Mobile Portable RF Exposure v04" provides the procedures, requirements, and authorization policies for mobile and portable devices. Item #8 best fits the exosure condition described in this report. Since these mobile devices are categorically excluded from routine evaluation; per footnotes 1 and 32 of KDB 447498, simple calculations may be used to estimate the power density to demonstrate compliance with 47 CFR 1.1310 requirements. The attached estimate shows MPE limits are met for simultaneous transmission at a 20 cm boundary. Averaging Time (minutes) Frequency RangeStrength g Strength 2 **4 * R GP S   Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed person…

Text truncated - open the document above for the full version.

Trimble Navigation Limited Ranger/TSC3 Bluetooth Radio Report No. TRPO0054.1 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2010 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: January 5, 2010 Trimble Navigation Limited Model: Ranger/TSC3 Bluetooth Radio Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.247:2010 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.247:2010 ANSI C63.10:2009 Pass Output Power FCC 15.247:2010 ANSI C63.10:2009 Pass Power Spectral Density FCC 15.247:2010 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2010 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2010 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2010 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Phone: (503) 844-4066 Fax: (503) 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-2). Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 NVLAP LAB CODE 200881-0 Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. NEMKO Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Accreditations and Authorizations Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T-1658, and R-2318, Irvine: R-1943, G-85, C- 2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, C-3464, and T- 1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). License No.SL2-IN-E-101…

Text truncated - open the document above for the full version.

Trimble Navigation Limited Ranger/TSC3 802.11 Radio Report No. TRPO0054 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2010 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: January 5, 2010 Trimble Navigation Limited Model: Ranger/TSC3 802.11 Radio Emissions Test Description Specification Test Method Pass/Fail Spurious Radiated Emissions FCC 15.247:2010 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.247:2010 ANSI C63.10:2009 Pass Output Power FCC 15.247:2010 ANSI C63.10:2009 Pass Power Spectral Density FCC 15.247:2010 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2010 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2010 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2010 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW E…

Text truncated - open the document above for the full version.
