S9E-RNGR2410Ranger X Series

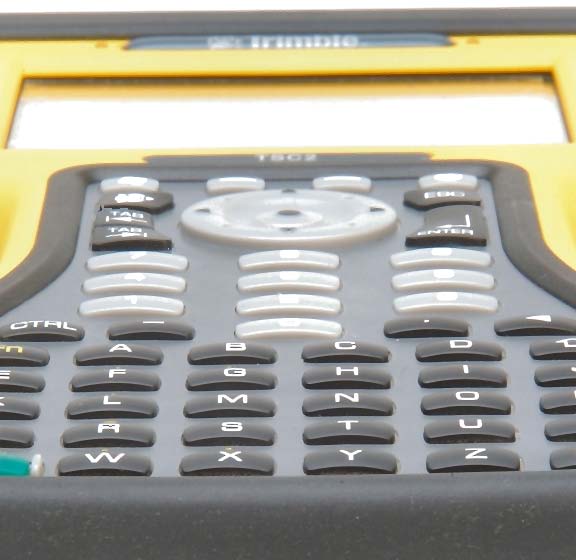

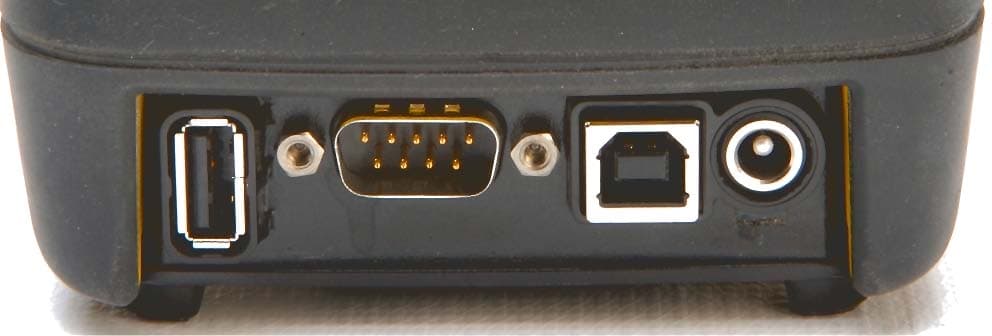

1 Contents Welcome 1 Device Hardware 2 Unit Set Up 3 Working with Your Unit 6 Settings on Your Unit 17 Connecting to Your PC 18 Communication 19 Caring for Your Unit 29 Environmental Considerations 31 Hardware Specifications 33 Environmental Specifications 33 Safe Use of Your Unit 34 Troubleshooting and FAQs 35 Regulatory Information 39 Declaration of Conformity 40 Welcome Congratulations on your purchase of one of the most advanced handheld computers available on the market today. The rugged design of your handheld allows you to work in harsh outdoor environments. You can operate your unit in blazing heat, subzero cold, driving rain or dusty job sites – places you could not take a consumer-grade handheld computer. NOTE: Not all the features discussed in this manual will apply to every unit, as many of the features are offered as options. If the feature described does not apply to your unit, please disregard that section. 2 Device Hardware Front Panel Back Panel Removable CF-Cap covers two CompactFlash slots and one SD slot CF-Cap Top View- without Cap Bottom View CompactFlash and SD card slots NOTE: Be sure to read the warranty and safety information in this manual prior to using your unit. PowerBoot coin screws PowerBoot Module Stylus holder Power Serial port USB host CF slot #1 type I External power USB client CF slot #2 type I & II SD Notification LED Hand strap 3 Unit Set Up 1. Attach the PowerBoot Module The PowerBoot Module TM that contains the batteries is shipped detached from the unit. Align the PowerBoot Module with the contacts facing down. Insert the top end of the PowerBoot Module first as shown, and then drop the PowerBoot Module into the unit. Secure by tightening the two screws with the stylus, a coin, or a screwdriver. 2. Attach the hand strap Insert the strap as shown onto the two small bolts located on the back of the unit, near the bottom of the PowerBoot Module. Now stretch the hand strap and insert the other end of the strap onto the two bolts at the top of the unit. 3. Charge your unit The AC charger that ships with your unit comes with adapters to fit almost every electrical outlet and voltage. Connect the correct adapter to the charger, plug the charger into an electrical outlet and plug the DC jack barrel end of the charger into the external power port on the PowerBoot Module. Charge the PowerBoot Module for approximately 4.5 hours. Warning! Be sure to always use the charger included with your unit. Use of other chargers will void your warranty. 4 4. Turning your unit on and off To turn your computer on, press the green Power key on the lower left hand corner of the keypad. To turn the computer off, press the Power key again. One of the most convenient features of the unit is “instant on” and “instant off” that happens every time the Power key is pressed. Also known as “suspend/resume”, it means that there is no waiting for the computer to boot up every time the unit is turned on. “Instant on” does not occur on the first boot-up. 5. Align the touchscreen When the unit first turns on (or after a hard reset) the touchscreen may require alignment. A series of targets is displayed in sequence on the screen. Use the stylus to tap the targets firmly and accurately to align the touchscreen. Sometimes it is necessary to repeat the alignment procedure more than once to provide a satisfactory calibration. 6. Using the CF and SD expansion slots Your unit contains two CompactFlash (CF) slots and one Secure Digital (SD) expansion slot. The SD slot is located within the walls of one of the CF slots. The SD slot is for memory cards only. SDIO devices such as cameras or GPS receivers will not operate in this slot. To access the CF and SD expansion slots, remove the CF-Cap TM . To do this, unscrew the screw on the top of the CF-Cap using the stylus, a coin or a screwdriver as shown, and slide the cap off the main unit. NOTE: When using smaller CF cards (such as memory or Bluetooth), it is critical that you attach a CF Card Pull Tab to the CF card before sliding the card into the slot. A Pull Tab will allow you to easily remove the CF card from the slot. Pull Tabs are part of the accessories included with your unit. Power 5 CF Slot #1 T ype I CF Slot #2 T ype I & II SD With the CF-Cap removed, the 2 CF and 1 SD expansion slots are visible. The CF slots are side by side, and the SD slot can be seen inside the CF slot #2 cavity. To insert a CF or SD card: - CF cards must be inserted with the front of the card facing toward the display side of the unit. CF slot #1 supports Type I cards. CF slot #2 supports Type I and II cards. - SD cards must be inserted with the front of the card facing away from the display. - Again, be sure to attach a Pull Tab to the smaller CF cards (such as memory or Bluetooth) before sliding the cards into the slots. - Gently insert the CF card or SD memory card into one of the two CF slots. Do not force the card into the slot. The pins can be damaged if the card is not aligned correctly. When replacing the CF-Cap, first be sure it is oriented correctly. The stylus holder in the CF-Cap is towards the front of the unit. Replace the CF-Cap and tighten the screw to reseal. The cap should be securely tightened, but do not over-tighten the screw. NOTE: Be sure to correctly orient the CF-Cap when you are reattaching it. The unit is NOT sealed when the cap is off or attached backwards. Water damage caused by improper installation of the CF-Cap is not covered by warranty. 6 Working with Your Unit Using the stylus The touchscreen on your unit works like a mouse on a PC. Use the stylus to navigate and select objects on the screen. Tap: Tap the screen with the stylus to select or open an item. Tapping is equivalent to clicking an item with the left mouse on your PC. Touch and hold: When you touch and hold, a circle of blue dots appears around the stylus to indicate that a pop-up menu will soon appear. Touching and holding is equivalent to right-clicking your PC mouse b…

Text truncated - open the document above for the full version.

L LL 7DSTM THEWAYTOGO TRIPODDATASYSTEMS ATRIMBLECOMPANY 345SWAveryAve. Corvallis,OR97333 541.753.9322 Fax541.757.7439 www.tdsway.com May19,2005 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Towhomit mayconcern, We,theundersigned,herebyauthorizeNorthwestEMC,Inc.,toactonourbehalf,asouragent, inthefollowingmattersrelatedtotheFCCapprovalofourproducts:reportsubmittal,related correspondence,thesigningofalldocumentsrelatingtothesematters,andanyotherlawful activitynecessarytoobtainsuchcertification.AnyactcarriedoutbyNorthwestEMC,Inc.within thescopeof thisauthorizationshallhavethesameaffectasourown. Thisauthorizationshallexpire12monthsfromoriginaldate. Sincerely, ~oc(~ HardwareDevelopmentManager TripodDataSystems,Inc.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 July 10, 2005 Dear Application Examiner: On behalf of Tripod Data Systems, Inc., Northwest EMC, Inc. is submitting this application for the certification of Tripod’s Cirronet radio module, FCC ID: S9E- RNGR2410. It is a frequency hopping spread spectrum radio operating in the 2.4 GHz band. The radio module is installed in Tripod’s Ranger X Series handheld computer and is seeking limited modular approval for that mobile host configuration. Ranger X handheld computer will also contain a second radio module (USI) that is currently seeking limited modular approval under FCC ID: S9E-RNGR80BT. It is an 802.11b / Bluetooth combo radio. All radios in the Ranger X can transmit simultaneously – each radio through its own antenna. The Cirronet radio utilizes a single integral antenna. This configuration satisfies the requirements of 47 CFR 15.203. The Cirronet radio was previously certified under FCC ID: HSW-2410M. This new application for certification is required for the co-located exposure condition in Tripod’s Ranger X handheld. However, all the antenna direct connect test data from the previous certification continues to be representative, and is used in support of this application. New radiated spurious emissions data and AC powerline conducted emissions data was taken for Tripod’s Ranger X configuration and is documented in the Northwest EMC test report. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 as a frequency hopping transmitter. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 July 10, 2005 Dear Application Examiner: Tripod’s Cirronet radio module, FCC ID: S9E-RNGR2410 is seeking limited modular approval. The radio meets the requirements for limited modular approval as detailed in FCC Public Notice DA00-1407. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was not tested in a stand-alone configuration. The module was installed in Tripod’s Ranger X Series handheld computer. The Ranger X also contains a 802.11b / Bluetooth combo radio module, FCC ID: S9E-RNGR80BT, that is currently seeking certification. This is why Tripod is seeking limited modular approval of their Cirronet radio module in this host-specific configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is not labeled with its own FCC ID number since it will always be factory installed by Tripod into their Ranger X Series handheld computer. The exterior of the Ranger X is labeled with the EUT’s FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see the RF Exposure exhibit and the User Manual. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

L LL 7DSTM THEWAYTOGO TRIPODDATASYSTEMS ATRIMBLECOMPANY 345SWAveryAve. Corvallis,OR97333 541.752.9000 Fax541.750.7931 www.tdswoy.com June8, 2005 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,Maryland21046 Towhomit mayconcern, Weherebyrespectfullyrequestthatundertheprovisionof 47CFR0.459,thedocumentslisted belowandattachedwiththisapplicationforcertificationbeprovidedwithconfidentialstatus. . Productschematics Frequencyblockdiagrams Theoriesofradiooperation . . Anyexhibit/ informationforwhichwehaverequestedconfidentiality,butwhichmaynotbe accordedsuchtreatmentbytheFCC,shouldbereturnedtous. Thedocumentslistedabovecontaintradesecretsthataretreatedasconfidentialbyus. Substantialcompetitiveharmtouscouldresultshouldtheybemadeavailabletothepublic. Sincerely, ~ DennisYork HardwareDevelopmentManager tfti

Northwest EMC TCB Compliance Opinion Revision 05//02 TRPD0007 - Cirronet Information about the Applicant Applicant: Tripod Data Systems, Inc. Address: 345 SW Avery Ave City, State, Zip Corvallis, OR 97333 Test Requested By: Dennis York Model: Cirronet installed in the Pocket PC Handheld Data Collector FCC ID: S9E-RNGR2410 Agent Northwest EMC, Inc. Approval Type Certification Equipment Type Low power intentional radiator Rule Part 15.247 Overview This application for the certification of Tripod’s Cirronet radio module, FCC ID: S9E-RNGR2410. It is a frequency hopping spread spectrum radio operating in the 2.4 GHz band. The radio module is installed in Tripod’s Ranger X Series handheld computer and is seeking limited modular approval for that mobile host configuration. Ranger X handheld computer will also contain a second radio module (USI) that is currently seeking limited modular approval under FCC ID: S9E-RNGR80BT. It is an 802.11b / Bluetooth combo radio. All radios in the Ranger X can transmit simultaneously – each radio through its own antenna. The Cirronet radio utilizes a single integral antenna. This configuration satisfies the requirements of 47 CFR 15.203. The Cirronet radio was previously certified under FCC ID: HSW-2410M. This new application for certification is required for the co-located exposure condition in Tripod’s Ranger X handheld. However, all the antenna direct connect test data from the previous certification continues to be representative, and is used in support of this application. New radiated spurious emissions data and AC powerline conducted emissions data was taken for Tripod’s Ranger X configuration and is documented in the Northwest EMC test report. . Findings Finding: The FCC ID in the form 410 is missing the hyphen Resolution: Corrected document (with client approval) Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Northwest EMC TCB Compliance Opinion Revision 05//02 TRPD0007 - Cirronet Opinion Specification Requirements Description 15.207 Conducted Power Line Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.247( d ) Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 2.1091/15.247 RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted MPE estimates demonstrating compliance. Reference: RF Exposure Exhibit Specification Requirements Description Additional Requirements FCC Compliance requirements for Limited Modular Approval Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted the required information in the test report. Reference: Letter supporting Limited Modular Approval

The information contained in this drawing is the sole property of Tripod Data Systems.Any reproduction in part or whole without the written permission of Tripod Data Systems is prohibited. REVISIONS DESCRIPTION PARTS LIST ITEM NO. PART NO. NOMENCLATURE OR DESCRIPTION MATERIAL SPECIFICATION QTY REQ'D Unless otherwise specified dimensions are in mm tolerances are: Tripod Data Systems A TrimbleCompany DO NOT MANUALL Y UPDATE ST BCase Lbl BT Wireless Artwork SCALE: FILE NAME: SHEET 1 of 1 SIZE: DWG. NO.: APPROVALS DATE MATERIAL: FINISH: DO NOT SCALE DRAWING DECIMALSANGLES .X + 0.1 + 1 DATE APPROVED REV. Preliminary Added “Contains Transmitter Module” Moved Bluetooth logo M750-0022-ART Notes: See ST Back Case Label mechanical drawing for specifications. Dimensions 1X: Text -- Arial Narrow Black CYMK 0 0 0 100 Graphics Contact: Jeanie Wenning 541-752-9000 � M750-0022-ART ST BCase Lbl BT Wireless Art.ai/pdf 1 2 3 6/2/05 6/7/05 6/8/05 Dennis York Dennis York Dennis York -50mm ruler 0 mm +50mm PRELIMINARY - NOT RELEASED YET Label w/BT Wireless Radio combo 2 3 RANGER X Series by Tripod Data Systems, Inc. TM Phone: 1-541-753-9322 www.tdsway.com ! See manual for battery, adaptor and regulatory information. Assembled in Mexico with foreign and domestic parts N324 0981 Tested to comply with FCC standards FOR HOME OR OFFICE USE 50.95±0.30 56.88±0.30 - + Input: DC 5.0 V Max 4.5 A X Contains Transmitter Module FCC ID: S9E-RNGR80BT IC: 5817A-RNGR80BT The information contained in this drawing is the sole property of Tripod Data Systems.Any reproduction in part or whole without the written permission of Tripod Data Systems is prohibited. REVISIONS DESCRIPTION PARTS LIST ITEM NO. PART NO. NOMENCLATURE OR DESCRIPTION MATERIAL SPECIFICATION QTY REQ'D Unless otherwise specified dimensions are in mm tolerances are: Tripod Data Systems A TrimbleCompany DO NOT MANUALL Y UPDATE ST Back Case Label Artwork SCALE: FILE NAME: SHEET 1 of 1 SIZE: DWG. NO.: APPROVALS DATE MATERIAL: FINISH: DO NOT SCALE DRAWING DECIMALSANGLES .X + 0.1 + 1 DATE APPROVED 3 3 REV. Preliminary Revised and Redrawn. Added add’l FCC Transmitter mod. Removed Radio info. Changed DC voltage to 5.0 V and symbol; Removed p/n from artwork. Changed “made in ...”. Changed p/n and file name to M750-0005-ART per mfg request M750-0005-ART Notes: See ST Back Case Label mechanical drawing for specifications. Dimensions 1X: Text -- Arial Narrow Black CYMK 0 0 0 100 Graphics Contact: Jeanie Wenning 541-752-9000 � M750-0005-ART ST Back Case Label Artwork.ai/pdf 1 2 3 5/4/05 5/18/05 5/26/05 Dennis York Dennis York Dennis York -50mm ruler 0 mm +50mm PRELIMINARY - NOT RELEASED YET 3 3 RANGER X Series by Tripod Data Systems, Inc. TM Phone: 1-541-753-9322 www.tdsway.com ! See manual for battery, adaptor and regulatory information. Assembled in Mexico with foreign and domestic parts N324 0981 Tested to comply with FCC standards FOR HOME OR OFFICE USE 50.95±0.30 56.88±0.30 - + Input: DC 5.0 V Max 4.5 A X Label w/no radios The information contained in this drawing is the sole property of Tripod Data Systems.Any reproduction in part or whole without the written permission of Tripod Data Systems is prohibited. REVISIONS DESCRIPTION PARTS LIST ITEM NO. PART NO. NOMENCLATURE OR DESCRIPTION MATERIAL SPECIFICATION QTY REQ'D Unless otherwise specified dimensions are in mm tolerances are: Tripod Data Systems A TrimbleCompany DO NOT MANUALL Y UPDATE ST BCase Lbl BT Wrelss Cir Artwork SCALE: FILE NAME: SHEET 1 of 1 SIZE: DWG. NO.: APPROVALS DATE MATERIAL: FINISH: DO NOT SCALE DRAWING DECIMALSANGLES .X + 0.1 + 1 DATE APPROVED REV. Preliminary Added “Contains Transmitter Module” Added second “Contains Transmitter Module” & moved Bluetooth logo M750-0023-ART Notes: See ST Back Case Label mechanical drawing for specifications. Dimensions 1X: Text -- Arial Narrow Black CYMK 0 0 0 100 Graphics Contact: Jeanie Wenning 541-752-9000 � M750-0023-ART ST BCase Lbl BT Wrelss Cir Art.ai/pdf 1 2 3 6/8/05 6/2/05 6/7/05 Dennis York Dennis York\ Dennis York 2 3 -50mm ruler 0 mm +50mm PRELIMINARY - NOT RELEASED YET RANGER X Series by Tripod Data Systems, Inc. TM Phone: 1-541-753-9322 www.tdsway.com ! See manual for battery, adaptor and regulatory information. Assembled in Mexico with foreign and domestic parts N324 0981 Tested to comply with FCC standards FOR HOME OR OFFICE USE 50.95±0.30 56.88±0.30 - + Input: DC 5.0 V Max 4.5 A X Contains Transmitter Module FCC ID: S9E-RNGR80BT IC: 5817A-RNGR80BT Label w/BT Wireless & Cirronet Contains Transmitter Module FCC ID: S9E-RNGR2410 IC: 5817A-RNGR2410

Compliance with 47 CFR 15.247(i) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091 (b). Up to two radio modules can be installed in the EUT – each operating in the 2.4 GHz band: A FHSS radio module, and an 802.11b/Bluetooth combo module. The radios can transmit simultaneously. Each radio transmits through its own antenna. The total transmit power is less than 1.5 W (ERP), therefore the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population. The exposure level at a 20 cm distance from the EUT’s transmitting antenna is calculated using the general equation: S = (PG)/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = numeric power gain relative to an isotropic radiator R = distance to the center of the radiation of the antenna (20 cm = limit for MPE estimates) PG = EIRP Solving for S, the maximum power densities 20 cm from the transmitting antennas are summarized in the tables on the following pages: MPE Estimates for Self Co-located Device Antenna Type Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 Ratio of Power Density to the Exposure Limit (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) OmniPW5S-2400-02-04240047.86200.01510.01509 Worst Case Ratio of Power Density to the Exposure Limit = 0.01509 Antenna T ype Antenna Part No.Transmit Max Peak Antenna GainMinimum Power General Ratio of Power (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) ChipANT-2.45-CHP-X240028.180.500.00610.00629 Worst Case Ratio of Power Density to the Exposure Limit = 0.00629 Antenna T ype Antenna Part No.Transmit Max Peak Antenna GainMinimum Power General Ratio of Power (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) ChipANT-2.45-CHP-X24001.760.500.0003910.00039 Worst Case Ratio of Power Density to the Exposure Limit = 0.00039 Per Note 24 shown below, the Sum of Worst Case Power Ratios cannot exceed 1.0 FHSS Radio Worst Case Ratio of Power Density to the Exposure Limit 802.11b Radio Worst Case Ratio of Power Density to the Exposure Limit Bluetooth Radio Worst Case Ratio of Power Density to the Exposure Limit Sum of Worst Case Ratios (Power Density to the Exposure Limit) FCC Limit for Sum of Worst Case Ratios 0.015090.006290.000390.021771.0PASS FHSS Radio Bluetooth Radio FCC ID: S9E-RNGR2410 FCC ID: S9E-RNGR80BT The results shown in the above table are equivalent to the Sum of the EIRP of the Two Co-located Transmitters (EIRP TX1 + EIRP TX2) compared to the exposure limit. The benefit of this method, is that accounts for transmitters operating at different frequencies against different exposure limits. Worst Case Co-located Exposure Condition 802.11 (b) Radio Excerpts from TCB Training, April 3, 2002, “Mobile Transmitters”, Slide 6: “Devices operating in multiple frequency bands ‰ When RF exposure evaluation is required for TCB approval o Separate antennas – estimated minimum separation distances may be considered for the frequency bands that do not require evaluation or TCB approval, however, the estimated distance should take into account the effect of co-located transmitters. (Note 24) Note 24 According to multiple frequency exposure criteria, the ratio of field strength or power density to the applicable exposure limit at the exposure location should be determined for each transmitter and the sum of these ratios must not exceed 1.0 for the location to be compliant .” The sum of the ratios (power density to the exposure limit) does not exceed 1.0; therefore, the exposure condition is compliant with FCC rules.

Tripod Data Systems, Inc. Cirronet Radio Module installed in the Ranger X Series Handheld Computer May 23, 2005 Report No. TRPO0007.2 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2005 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: May 23, 2005 Tripod Data Systems, Inc. Cirronet Radio Module installed in the Ranger X Series Handheld Computer Emissions Specification Test Method Pass Fail FCC 15.207 AC Powerline Conducted Emissions:2005-04 ANSI C63.4:2003 FCC 15.247(d) Spurious Radiated Emissions:2005-04 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. 200629-0 200630-0 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment, Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas acc…

Text truncated - open the document above for the full version.
