S9LALX92X-DPM-PEMRFID Label Printer

11/04 Rev. 3.01-01OPERATOR / SERVICE MANUAL All Printers Safe Operation of Thermotransfer Label Printers Information and qualifications ....................... 2 Where are warnings given? ...................... 2 Warnings in the text .................................. 2 General safety notes ................................. 3 Information must be made available ......... 3 Ensure necessary qualifications ................ 4 Machine operating safety .............................. 5 Appropriate use ......................................... 5 Protect against injuries that can result from electrical current ........................................ 5 Protect against injuries that can result from mechanical actions .................................... 5 Disposal measures ........................................ 6 11/04 Rev. 3.01-01OPERATOR / SERVICE MANUALSafety All Printers 2 Information and qualifications Where are warnings given? General notes on safety are found in this section. Special safety notes and warnings are provided at the at the top of descripti- ons of possibly dangerous operations in the user and service manual of the printer. ̄Warning notes and warning symbols are also attached directly to the de- vices and device components. Pay attention to these safety notes as well! Warnings in the text Important text passages which must absolutely be followed are particularly marked for special attention: WARNING! A warning notice indicates risks which could result in death or serious injury of the personnel! «The notice contains safety instructions on how to safeguard possibly affec- ted personnel. The instructions must be followed. CAUTION! A caution notice indicates risks which, if unheeded, could lead to material damage or bodily injury (minor injuries). «The notice contains instructions on how to prevent damage or injury. The instructions must be followed. 11/04 Rev. 3.01-01OPERATOR / SERVICE MANUALSafety All Printers 3 General safety notes Information must be made available This operating manual «is to be stored at the machine operating location and made accessible to the operator. «is to be maintained in legible condition. «Safety and warning notices attached to the machine must be kept clean and legible. Missing or damaged warning labels and plates are to be replaced. WARNING! Safe and efficient operation of the printer can only be guaranteed if you observe all necessary information. «Before operating the printer, read the operating instructions and all other notes carefully. «Observe the additional safety and warning notes on the machine. «Only operate the printer using the system voltage indicated on the name- plate! «Only connect the printer to a grounded power socket fitted to authorized standards! «Make sure that the power supply socket for the printer is readily accessible! «Only use the printer in enclosed areas with normal environmental conditi- ons (standard office temperatures)! «Only operate the printer when the cover is closed! «Only trained and authorized personnel should operate the printer! «During operation, the printhead can become hot! Care should be taken when touching the printhead! «Do not make any modifications or any additional casing for the printer! «Do not allow any liquids to enter into the printer! «Repairs to the printer may only be performed by authorized specialists who are aware of the risks involved! «In case of emergency, switch off the printer and disconnect the power supply cable! «Before cleaning, switch off the printer and disconnect from the power! «Only use original accessories! «Connect the printer only to devices that fulfil SELV (safety extra-low voltage) circuit requirements to EN 60950! «Keep long hair, loose jewellery, long sleeves, etc. away from rotating parts of the printer! 11/04 Rev. 3.01-01OPERATOR / SERVICE MANUALSafety All Printers 4 Ensure necessary qualifications «Only allow the machine to be operated, adjusted and serviced by instructed and authorised personnel. «Train at least 2 persons to operate the machine. Instruction of the operating personnel must ensure – that operating personnel can use the machine independently and without posing a danger. – that operating personnel can remedy minor operational malfunctions them- selves. «Make label materials for test purposes available in sufficient quantities. «Moreover, personnel are to be regularly instructed about work safety and en- vironmental protection issues. «The responsibilities for operation, adjustment and servicing of the machine must be clearly defined and consistently maintained. «Only make adjustments to the machine in accordance with this manual and with all due care. ServiceSpecial servicing, fault searching and fault correction are to be carried out by the manufacturer, his appointees or other authorised service agents. This also includes the optional installation and refitting of components. 11/04 Rev. 3.01-01OPERATOR / SERVICE MANUALSafety All Printers 5 Machine operating safety Appropriate use Thermotransfer label printers are designed for printing label material, using the thermal or thermal transfer printing process. It is possible to use a wide range of label materials and thermal transfer ribbons, which must both be supplied in shape of rolls. The actual stipulated usage is detailed in the technical specifications of the respective devices. PFor details refer to topic section „Specifications“ in the user manual of the printer. Avery Dennison assumes no liability for damage due to improper use of the printer. Protect against injuries that can result from electrical current Protect against injuries that can result from mechanical actions WARNING! The printer is connected with the mains supply! Contact with energised components can result in life-endangering currents through the body as well as burns. «Only put the machine into operation when installed in a correctly installed housing. «The housing may only be removed by trained personnel when the machine is …

Text truncated - open the document above for the full version.

10/04 Rev. 3.00-01 USER + SERVICE MANUAL All devices Using the Documentation Copyright........................................................ 2 Documentation structure................................ 3 Datapool, documentation object................. 3 Documentation concept.............................. 3 Documentation format ................................ 6 Printing the documentation ............................ 7 Navigation aids .............................................. 8 Symbols and note signs................................. 9 Safety notes ............................................... 9 Symbols ..................................................... 9 Text appearance .......................................10 Title page ..................................................11 Abbreviations ................................................12 Printer names............................................15 Display messages.....................................15 Parameters ...............................................16 Index .............................................................17 ̄ The documentation is an essential part of the device it belongs to. Operating and service personnel must have access to the documentation and all other device documents supplied by the manufacturer at all times. ̄ Read topic section "Safety Notes". This contains general safety instructions and other general, but important information. How to use the device properly, possible operating dangers and general operating instructions are also described. In addition, this is where you can find information regarding the use and application areas of each individual manual. 10/04 Rev. 3.00-01 USER + SERVICE MANUAL Using the Documentation All devices 2 Copyright © 1997-2003 by Avery Dennison Deutschland GmbH. All rights reserved. Reprinting and reproduction of these documents, including extracts, is only allowed with the express permission of the manufacturer. More detailed information is available from your supplier. Copyright The documentation is subject to copyright. The copyright claims include all forms and types of material and information which may be protected by current copyright laws. No part of the documentation may be copied, reproduced in any other manner, processed or translated into another language, irrespective of the manner and fashion or with which means this takes place. Copy Electronically stored device information (CD ROM, Internet) supplied by the manufacturer may be printed out by the user, provided that the print medium serves the use or servicing of the described product. Protected rights Names are generally given without any mention of existing patents, registered designs or trademarks. The absence of a corresponding remark does not give any implication that the name can be used at will. All trademarks are recognised. Alterations No liability is assumed for the accuracy of the contents of this documentation. The manufacturer reserves the right to alter technical or other specifications with no prior notice. Deviations in the documentation from prevailing conditions do not represent an obligation to redeliver. Guarantee The manufacturer does not guarantee the existence or non-existence of properties with the description of subject contents. Nor does the manufacturer give any express or tacit guarantee declarations whatsoever. 10/04 Rev. 3.00-01 USER + SERVICE MANUAL Using the Documentation All devices 3 Documentation structure Datapool, documentation object The overall documentation is a part of the datapool, which is provided for the printer user and the service personnel on CD or other electronic media. Datapool This datapool includes: – this printer documentation, – the printer drivers and – the software Adobe Acrobat Reader for reading and printing the documentation elements. Printer doc Here the overall documentation (abbr.: documentation) is to be understood as the printer documentation. The printer documentation contains all the information which is required for using the product. Using the product means preparing it for use, putting it into operation, setting it up, the operation, servicing and maintenance, fault searching and the service for optional extensions, settings and repairs. Doc object The documentation object includes – various printer families (printer series), consisting of different printer models (devices), – standard and optional additions for the printer (options) and – the printer language Easy Plug. Documentation concept The wide range of products which must be documented and the demand for documentation distribution and use, both in electronic form (CD/Internet, PC) as well as in paper form, have resulted in the following documentation concept: Structure The documentation consists of • topic sections (generally comparable to chapters), • manuals (handbooks, instructions), • link pages and the • start page (start page of the CD documentation). Ë 10/04 Rev. 3.00-01 USER + SERVICE MANUAL Using the Documentation All devices 4 Subject section Thematically-related subject contents are described in each topic section. A topic section is the smallest unit of information with its own – page numbering, – header bar, – list of contents, – index, – device classification and – its own revision status. Subject sections form the basis of the manual. A topic section can be simultaneously assigned to several manuals. Subject sections are in one, in some cases two, languages. Fig. 1 Example: First page of topic section "Specifications" Manual A manual is composed of different topic sections. The following features characterize a manual: – Title page with a list of contents, device classification and revision status (see Fig. 2). – The list of contents contains the designations of the topic sections and also serves as a link distributor to these topic sections. – The contents of a manual refer to a certain device, a device family or an option (documentation object). – A manual is…

Text truncated - open the document above for the full version.

11/03 Rev. 2.18-01 USER MANUAL DPM – ALX 92x Commissioning and Operation Transport........................................................ 2 DPM ........................................................... 2 ALX 92x...................................................... 2 Installing......................................................... 3 DPM ........................................................... 3 ALX 92x...................................................... 4 Operating panel ............................................. 7 Layout of the operating elements ............... 7 Meanings of the buttons ............................. 8 Connecting..................................................... 9 Device connections DPM ........................... 9 Mains connection DPM ............................ 10 Device connections ALX 92x.................... 11 Mains connection ALX 92x....................... 11 Connecting the data cable........................ 12 Operating modes ......................................... 14 Off-line mode............................................ 14 On-line mode............................................ 14 Report status ............................................ 15 Basic operating procedures ..........................16 Starting the DPM.......................................16 Reset.........................................................16 Starting a print job.....................................17 Operation in off-line mode.........................18 Operation in on-line mode.........................20 Status reports ...............................................21 General display format..............................21 Special status messages ..........................22 Handling of plug-in cards ..............................23 Compatible plug-in cards ..........................23 Inserting the plug-in cards.........................24 Removing the plug-in card ........................24 Assembling Accessories...............................25 Application roller .......................................25 Appendix.......................................................26 Support Stands .........................................26 Index .............................................................27 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 2 Transport DPM ̄ Grasp the DPM at the rear hood (1)! Front hood (2) and print module (3) are taboo for grasping! ̄ Place the DPM carefully and in operating position (see title image) on a flat surface! Fig. 1: Two good ways to grasp the DPM – but never use the front hood (2) or the print module (3) as a handle! ALX 92x The ALX 92x offers larger surfaces to grasp on, nevertheless obbey the same rules as with the DPM: ̄ Never grasp at front hood or print module, but at rear hood and basic plate! ̄ The ALX 92x weighs nearly 30 kg! – better carry it in twos! ̄ Place the machine carefully in operating position (see title image) on a flat surface. 2 3 1 1 2 3 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 3 Installing DPM The DPM is ought to be mounted on a plate with the following attributes: • Thickness: max. 20 mm • Mounting cutout matching the measures indicated on Fig. 2: • Fixing with 7 M4 screws Fig. 2: Measures of the DPM and of the required mounting cutout (right below). P A dimensioned drawing of the DPM (LH) in DXF format (Autocad) is contained on the documentation CD in directory \Massblaetter. 300 250 96 24 Fixing Screws M4 206 222 34,50 265 223,60 131,60 5,50 117,50117,50 145 120 145 120 5,50 223 11,50 117,50117,50 145 120 120 145 225 5 289 MOUNTING CUT OUT THREAD M4 (7X) Z0115. cdr 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 4 ALX 92x Tools – Allen key 5 mm Assembling the unwind unit £ Screw the unwind unit (1) to the base plate, using both tapped holes (2) in the top margin of the plate. ̄ A hole (3) in the guiding disk gives access to the screws! ̄ Swivel the rocking arm (4) slightly to the right, to make the brake (5) press on the rim of the disk. Assembling the swivel lever £ Shift the swivel lever (6) onto the axle (7) as illustrated. Tighten the thumb screw. 1 2 2 6 7 5 4 3 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 5 The ALX 92x normally comes with a standard flange. The flange fixes the machine inclinable and turnable to a tube end with an outer diameter of 60 mm, which matches the support stands of the Avery Dennison system. P Refer to the appendix, section Support Stands . P Dimensioned drawings of the ALX 92x in DXF format (Autocad) are contained on the documentation CD in directory \Massblaetter. Adjustment unit Optionally, an adjustment unit can be ordered instead of the standard flange. The unit allows easier positioning of the machine. Changing the side of the conveyor belt to reach the settng elements is not necessary with this option. The adjustment can be done from the "operator-side" of the ALX 92x. Fig. 3: ALX 92x, mounted by means of the optional adjustment unit. Fig. 4: ALX 92x, mounted by means of the standard flange. 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 6 Fig. 5: Mounting of the ALX 92x by means of the standard flange to a support stand.. MOUNTING TUBE ID Ø 52 F7 MM CONNECTION JOINT OD Ø 52 h7 MM Z0132E.cdr 11/03 Rev. 2.18-01 USER MANUAL Commissioning and Operation DPM – ALX 92x 7 Operating panel The control panel of the DPM is rotatable by 180 degrees. In this way, the customer can adapt to a large extent the position of the control panel to the built-in position of the DPM. Layout of the operating elements Operating elements (1) Remote on/off switch (2) Power-on-LED (3) Error-LED (4) Display (5) APPLY-button (6) ONLINE-button (7) FEED-button (8) PROG-button Display The display shows the operating modes, parameters, values, status and malfunctions using 32 characters in two lines. The operator can alternate the display according to his preferr…

Text truncated - open the document above for the full version.

Request for Confidentiality in accordance with 47 CFR 0.459 Date: 14 July 2005 PHOENIX TEST-LAB GmbH Königswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: S9LALX92X-DPM-PEM Please be advised that the following information is to be held confidential on behalf of Avery Dennison Deutschland GmbH: • Schematics • Technical Description • Block Diagram The application contains technical information which Avery Dennison Deutschland GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter.

FCC ID: S9LALX92X-DPM-PEM FCC ID: S9LALX92X-DPM-PEM FCC ID: S9LALX92X-DPM-PEM FCC ID: S9LALX92X-DPM-PEM FCC ID: S9LALX92X-DPM-PEM

FCC ID: S9LALX92X-DPM-PEM FCC ID: S9LALX92X-DPM-PEM

EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 1 of 57 Pages Straubing, 29 June 2005 T E S T - R E P O R T No. 50531-050145-2 for Avery 64-05 RFID Label Printer Applicant: Avery Dennison Deutschland GmbH Purpose of testing: To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section 15.247 RSS 210, Issue 5, November 2001, Section 6.2.2. (o) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 2 of 57 Pages Table of Contents 1. Administrative Data.....................................................................................3 2. Identification of Test Laboratory .................................................................4 3. Summary of Test Results ...........................................................................5 4. Operation Mode of EUT..............................................................................6 5. Configuration ..............................................................................................7 6. Measuring Methods ....................................................................................8 6.1. Maximum Transmitter Power ...............................................................8 6.2. Conducted powerline emissions.........................................................10 6.3. Radiated Emissions 30 MHz ñ 1 GHz ................................................11 6.4. Radiated Emission > 1 GHz ...............................................................12 7. Photographs Taken During Testing ..........................................................13 8. List of Measurements ...............................................................................17 9. Referenced Regulations ...........................................................................56 Charts taken during testing ...............................................................................57 EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 3 of 57 Pages 1. Administrative Data Test item (EUT) Type designation Avery 64-05 Serial number(s): 001 Type of equipment: RFID Label Printer Parts/accessories: --- FCC-ID: Technical data Frequency range 902 - 928 MHz Operational frequencies FHSS Statement: The power was set to the maximum possible Type of modulation ASK Pulse frequency N/A Pulse width N/A Antenna New Version Power supply AC 110 V Applicant: (full address) Avery Dennison Deutschland GmbH Ohmstrafle 3 D-85386 Eching Contract identification: --- Contact person: Mr. Markus Biberger (EMV-Testhaus GmbH) Manufacturer: Avery Dennison Deutschland GmbH Application details Receipt of EUT: March 17 th , 2005 Date of test: March ñ May 2005 Note: --- Responsible for testing: Martin Steindl Responsible for test report: Martin Steindl EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 4 of 57 Pages 2. Identification of Test Laboratory DETAILS OF THE TEST LABORATORY COMPANY NAME: Senton GmbH EMI/EMC Test Center ADDRESS: Aeussere Fruehlingsstrasse 45 D-94315 Straubing Germany LABORATORY ACCREDITATION: DAR-Registration No. DAT-P-171/94-02 FCC TEST SITE LISTING 90926 INDUSTRY CANADA TEST SITE REGISTRATION IC 3050 NAME FOR CONTACT PURPOSES: Mr. Johann Roidt TELEPHONE: (+49) (0)9421 5522-0 FAX: (+49) (0)9421 5522-99 PERSONNEL INVOLVED IN THIS TEST REPORT LABORATORY MANAGER: ÖÖÖÖÖÖÖÖÖÖÖÖÖ.. Mr. Johann Roidt RESPONSIBLE FOR TESTING: .................................................. Mr. Martin Steindl RESPONSIBLE FOR TEST REPORT: Mr. Martin Steindl EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 5 of 57 Pages 3. Summary of Test Results SUMMARY OF TEST RESULTS The tested sample is in compliance with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section 15.247 of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 5, Sections 6.2.2 (o) of Industry Canada (IC). EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 6 of 57 Pages 4. Operation Mode of EUT Transmitter operating continuously, full tests were performed on lowest, middle and highest RF channel EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 7 of 57 Pages 5. Configuration Configuration of the EUT A full test setup was supplied by the applicant Cables connected to the EUT Not Applicable Peripheral devices connected to the EUT Not Applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 8 of 57 Pages 6. Measuring Methods 6.1. Maximum Transmitter Power 6.1.1. Conducted Maximum Transmitter Power Rules and Specifications: Section 15.247 Guide: ANSI C63.4-2003 Measurement Procedure: A spectrum analyzer / EMI test receiver is connected to the output of the transmitter power amplifier (conducted measurement) via dummy load while EUT was operating in transmit mode using the assigned frequency. The trace mode of the spectrum analyzer was set to max hold with: RBW = 100 kHz, VBW = 100 kHz, span = 1 MHz, sweep = 20 ms (auto mode) 5 8 3 1 6 4 7 2 Figure 1: Measurement setup for testing on antenna connector Test instruments used: No. Type Model Serial Number Manufacturer 01 Spectrum Analyzer FSP 30 100063 Rohde & Schwarz 08 Power Meter NRVS 836856/015 Rohde & Schwarz 09 Power Sensor NRV-Z52 837901/030 Rohde & Schwarz 18 Attenuator 20 dB 4776-20 9503 Narda 19 Attenuator 10 dB 4776-10 9412 Narda EMV-Pr ̧fzentrum EMI/EMC-Testcenter FCC-ID: Test Report No. 50531-050145-2 Page 9 of 57 Pages 6.1.2. Radiated Maximum Transmitter Power Radiated Maximum Transmitter Power was measured with detector-function of the spectrum analyzer set to positive peak and trace mode max hold: RBW = 100 kHz, VBW = 100 k…

Text truncated - open the document above for the full version.

The test result refer exclusively to the model tested. This report must not be copied without the written authorization by the lab. TTI-P-G 101/95-20 / RegTP-CAB-02/21-02 EMC test report 265.135 Avery Dennison Printer ALX926 / DPM6 / PEM6 prototype Applicant: Avery Dennison Deutschland GmbH Ohmstrasse 3 D-85386 Eching Tel.: +49 (0) 8165 / 925 –0 Fax.: +49 (0) 8165 / 3143 Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 2 of 23 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Tel.: +49 9421 / 923033 Fax: +49 9421 / 923035 Email: [email protected] Accreditation: Registration number: TTI-P-G 101/95-20 Valid until 08.06.2006 CAB (EMC) registration number: RegTP-CAB-02/21-02 Valid until 27.11.2005 FCC facility registration number: 221458 Valid until 23.07.2005 Place of Inspection: EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing The technical accuracy is guaranteed through the quality management of the EMV Testhaus GmbH. Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 3 of 23 Table of contents 1. Test regulation ........................................................................................................4 2. Equipment under test ..............................................................................................5 3. Product labeling ......................................................................................................7 4. Equipment modifications .........................................................................................8 5. Test configuration and mode of operation ..............................................................9 6. Measurement of conducted emission....................................................................10 7. Measurement of radiated emission .......................................................................17 8. Summary...............................................................................................................23 Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 4 of 23 1. Test regulation Regulation: United States Code of Federal Regulations 47, Part 15 – Digital Devices, Subpart B – Unintentional Radiators, Class A (9 / 21 / 04). Standard: ANSI C63.4-2003 Methods of Measurement of Radio- Noise Emissions from Low Voltage Electrical Equipment in the Range of 9 kHz to 40 GHz. Limit: DIN EN 55022:1999-05 Information Technology Equipment Radio Disturbance Characteristics - Limits and Methods of Measurement Including:
Measurement of the conducted emission in the frequency range from 150 kHz to 30 MHz (generated frequency more than 9 kHz)

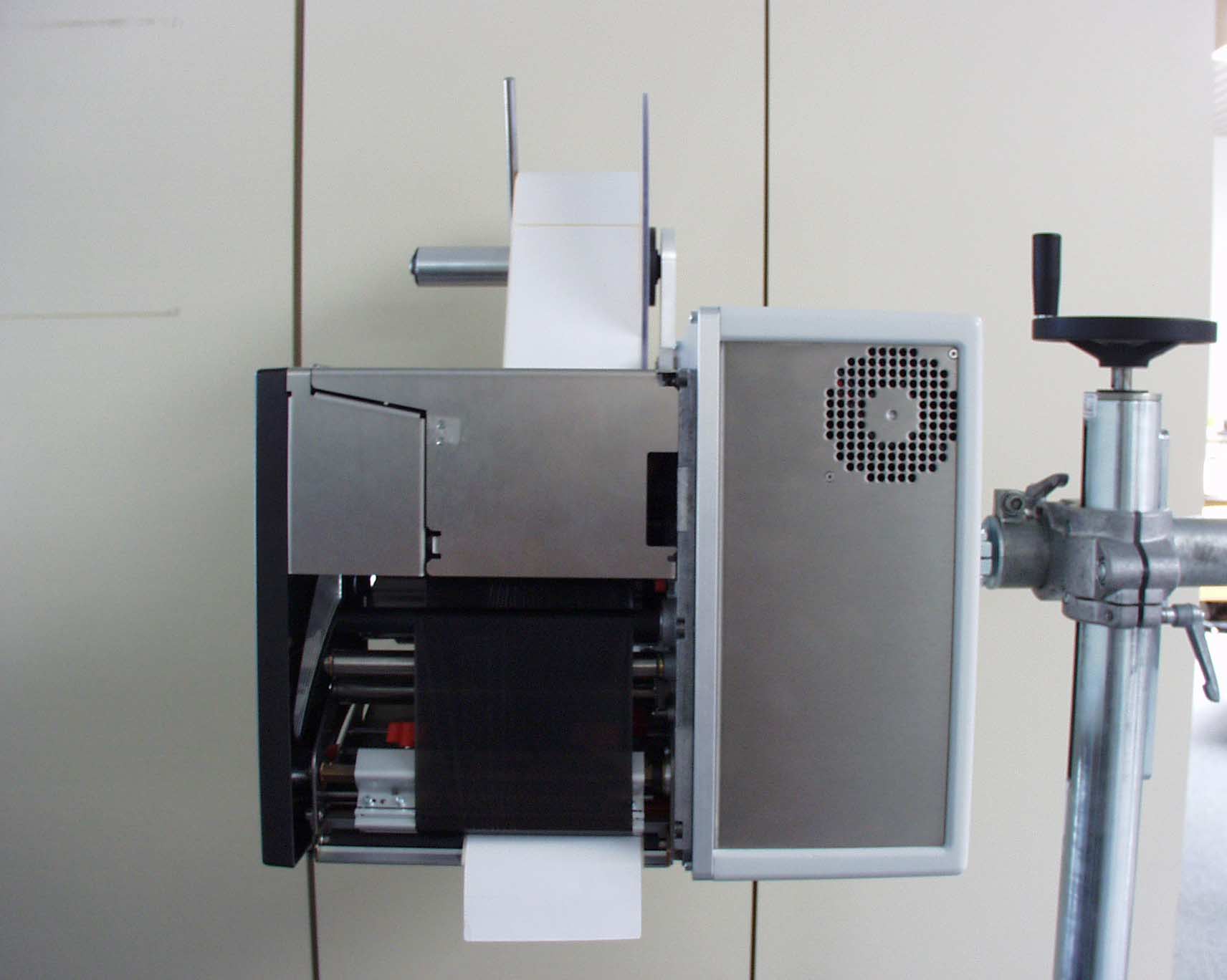

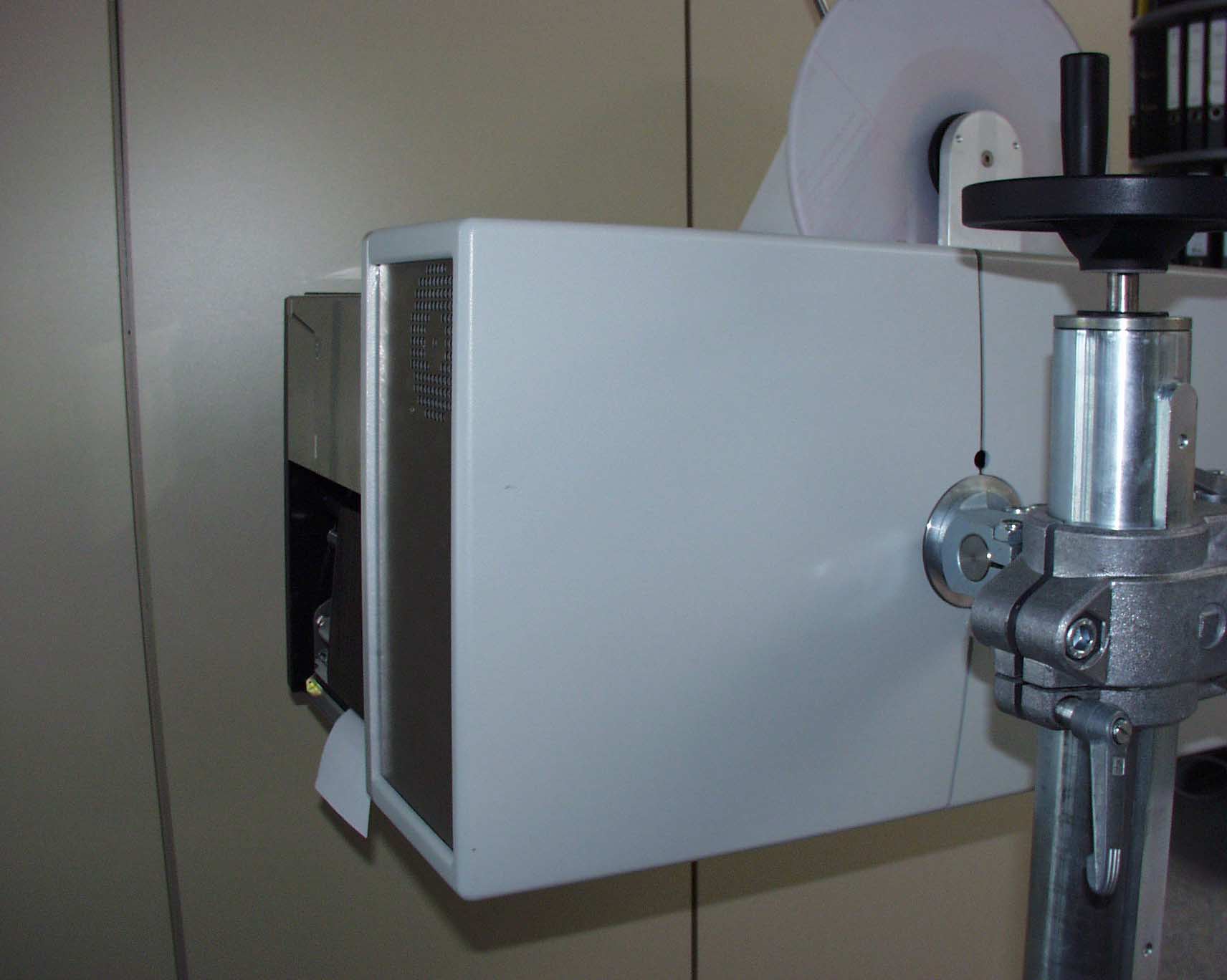

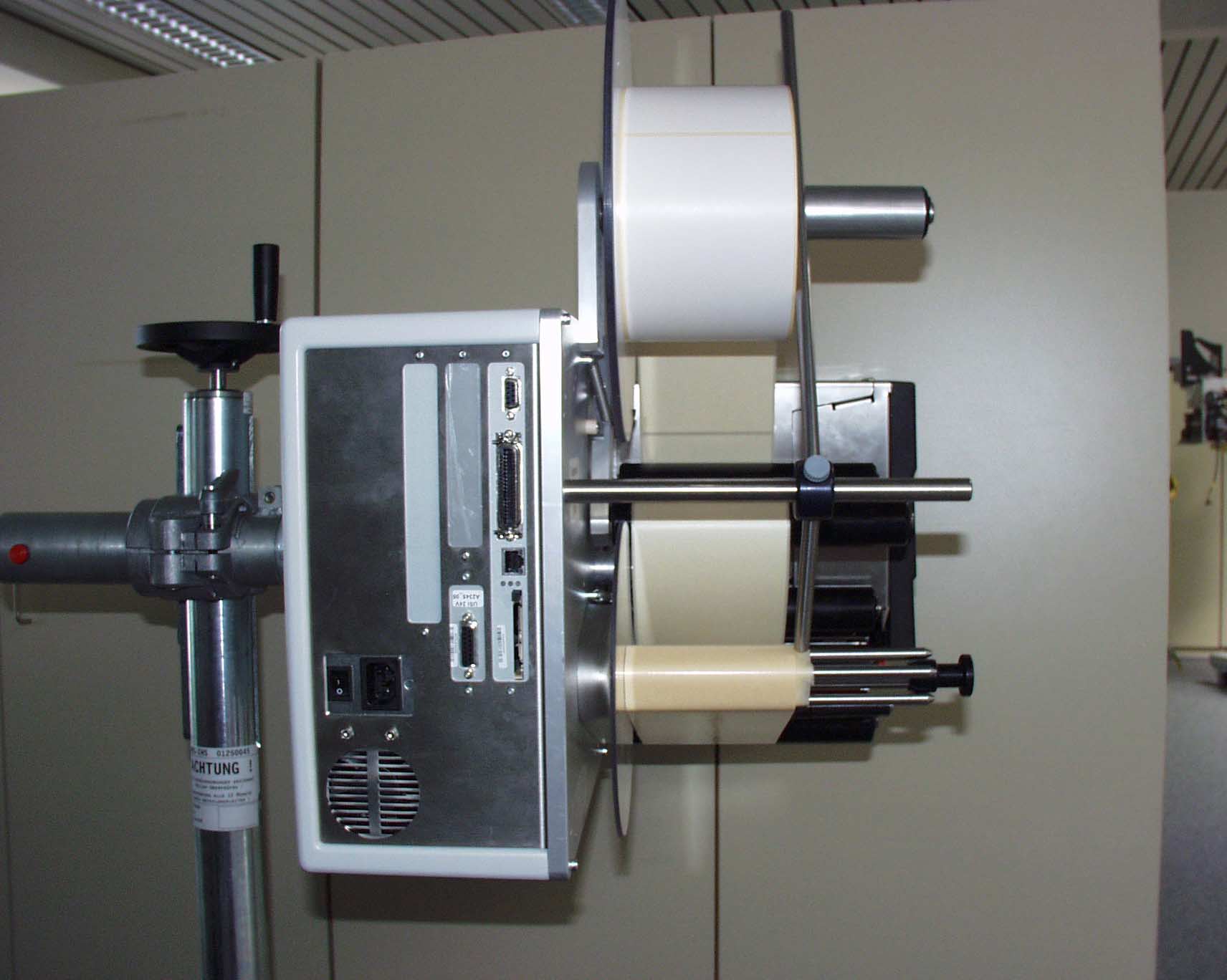

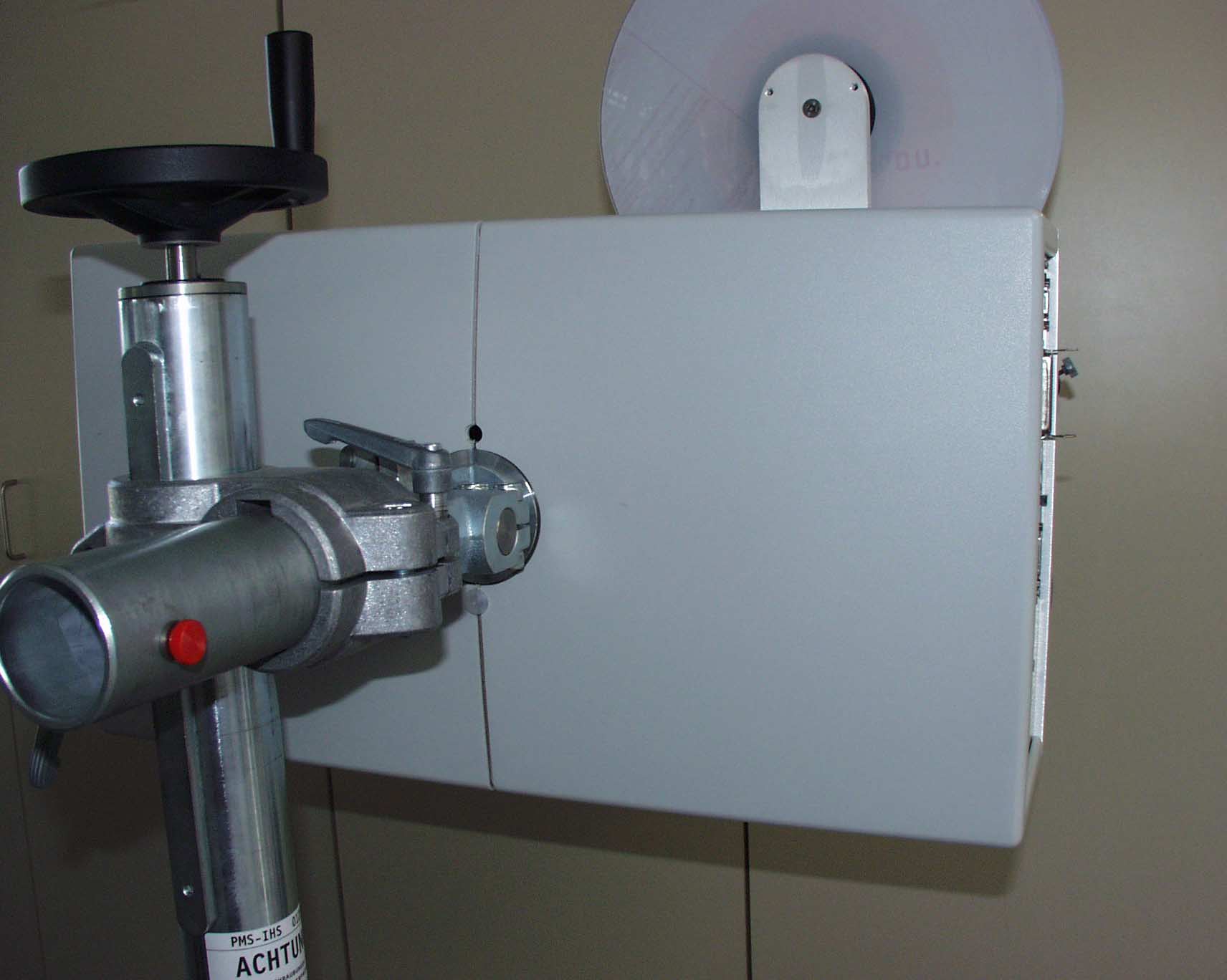

Measurement of the radiated emission in the frequency range from 30 MHz to 1GHz. (generated frequency: 1.705 – 108.0 MHz)  Measurement of the radiated emission in the frequency range from 30 MHz to 2GHz. (generated frequency: 108.0 – 500.0 MHz) Deviation of Regulations and Standards: No Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 5 of 23 2. Equipment under test Responsible Party: Avery Dennison Deutschland GmbH (Manufacturer) Ohmstrasse 3 D-85386 Eching Germany Device name: Printer Tested Model Number: ALX926 / DPM6 / PEM6 Other Model (Option): ALX924, ALX925, DPM4, DPM5, PEM4, PEM5 Serial Number: prototype Remark: The EUT is an industrial printer with integrated RFID radio module Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 6 of 23 Photo documentation of EUT picture 2.1: equipment under test Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 7 of 23 3. Product labeling FCC Label and Location This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Information to the user: Class A Statement: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. Avery Dennison Deutschland GmbH ALX926 / DPM6 / PEM6 EMV Testhaus GmbH Gustav-Hertz-Strasse 35 94315 Straubing Germany 265.135 Page 8 of 23 4. Equipment modifications To achieve …
