SARMW505BT/Wi-Fi Module

The user manual of TV’s WIFI、Bluetooth module 1. The product description The user can achieve TV connection WIFI net and Bluetooth, through this module This equipment may be operated in all European countries. 2. Basic parameters Feature Description Feature Description Model MW505 Product Name WiFi 11a/b/g/n 2T2R and BT5.0 Model Major Chipset MTK7638BU WLAN Standard IEEE 802.11a/b/g/n BT Standard BT2.1/3.0/4.0/5.0 WLAN Frequency Range 2.4GHz~2.4835GHz,5.15~5.85GHz BT Frequency Range 2402MHz~2480MHz Spread Spectrum IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum) IEEE802.11a/g/n/ac: OFDM (Orthogonal Frequency Division Multiplexing) Modulation Method DSSS/DBPSK/DQPSK/16-QAM/ 64-QAM/256QAM Data Transfer Rate 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60, 90,120 and maximum of 867Mbps Antenna Reference WIFI1/BT Internal Printed ANT,WIFI external ANT Interface USB2.0 Supply Voltage 3.3V±0.2V Dimension 45（mm）*30（mm）*2.85（mm） Operating Temperature -10°C to 70°C Storage Temperature -40°C to 85°C 3. RF output power Banda Limited power BT 2402MHZ-2480MHZ 0-20 WlAN 2412MHZ-2472MHZ <20 5150MHZ-5850MHZ 4. The display method of Model approved code In the factory，the model approve code is pasted on the back shell in a label. 5. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures：  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 6. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of FCC RF Rules. This equipment should be installed and operated with minimum distance of 20 in (50cm)between the radiator and yourbody. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter CAUTION: To comply with the limits of the Class B digital device pursuant to Part 15 of the FCC Rules, this device is compliant with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may results in interference to radio or reception MODIFICATION To assure continued compliance, Any changes or modifications not expressly approved by the grantee of this device could void the users authority to operate the device. 7. Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 50 cm(8 in )between the radiator and your body NOTE To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product Contains Transmitter module FCC ID: ******* To satisfy IESD exterior labeling requirements, the following text must be placed on the exterior of the end product " Contains Transmitter module IC: ******* This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. Manufacturer: QingdaoHisense Communication Co., Ltd. Address: 218 Qianwangang Road, Qingdao Economic & Technological Development Zone, Qingdao, China Importers: Hisense France SAS Address: 9 Rue des 3 Soeurs, 93420 Villepinte, France Hisense Iberia, S.L.U Address: Ronda Auguste y Louis Lumiere. 23 Nave 12. Edificio Lumiere - Parque Tecnológico 46980 Paterna (Valencia) - Spain Hisense Italia S.r.l Address: Via Montefeltro, 6/A, 20156 MILANO Hisense South Africa Address: The Estuaries, Building 17 Oxbow Crescent, Century City, Cape Town, SouthAfrica

Hisense Communications Co., Ltd. 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China Tel: 0532-55756937 Authorization Letter FCC ID:SARMW505 Date:7April, 2021 To whom it may concern: We, the undersigned, hereby authorize The State Radio_monitoring_centerTestingCenter (SRTC) to act on our behalf, as our agent, in the followingmatters related to the FCC approval of our product: Product Name: BT/Wi-Fi Module Product Model:MW505 FCC ID:SARMW505 Report submittal, related correspondence, the signing of all documents relatingto these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by The State Radio_monitoring_center Testing Center (SRTC) within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Thank you. Sincerely, wanghaining Hisense Communications Co., Ltd. 218 Qianwangang Road, Economic & Technological Development Zone, Qingdao, China Tel: 0532-55756937

Hisense Communications Co., Ltd. 218 Qianwangang Road, Economic & Technological Development Zone, Qingdao, China Tel: 0532-55756937 Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: BT/Wi-Fi Module Product Model:MW505 FCC ID: SARMW505 The following information should be held confidential: All Schematics/block diagrams/BOM All Parts list for the above schematic diagram Tune-Up Procedure Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. wanghaining Hisense Communications Co., Ltd. 218 Qianwangang Road, Economic & Technological Development Zone, Qingdao, China Tel: 0532-55756937

Hisense Communications Co., Ltd. 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China Tel: 0532-55756937 PHOENIX TESTLAB GmbH Date: 7 April 2021 Product Certification Königswinkel 10 D 32825 Blomberg Subject: Declaration Operating Channel Limitation Product Name: BT/Wi-Fi Module Product Model: MW505 FCC ID: SARMW505 To Whom it may concern, The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely wanghaining Title：:Certification Manager Hisense Communications Co., Ltd. 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China Tel: 0532-55756937

Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. DistrictQingdaoChina Tel:0532-55756937 UNII Declaration Letter We have declared below featured for FCC equipment authorization, device FCC ID:SARMW505 (1) DFS Device --Master, Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452 MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825 MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795 MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240 MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230 MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320 MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310 MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700 MHzYes, No Yes, No Yes, No Yes, No 5510 – 5670 MHz Yes, No Yes, No Yes, No Yes, No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : use Microsoft network utility (4) Meet 15.202 requirement -Yes , No , pls check below : A master device is defined as a device operating i n a mode i n which it has the capability to transmit without receiving an enabling signal. I n this mode i t i s able to select a channel and initiate a network by sending enabling signals t o other devices A client device is defined as a device operating i n a mode i n which the transmissions of the device are under control o f the master. A device in client mode i s not able to initiate a network. (5) For client devices that have software configuration control t o operate i n different modes (active scanning i n some and passive scanning i n others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on ho w th e software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) Applicant: Hisense Communication Co., Ltd. Address: Hisense Infor. Industrial Park Economic Technology Dev. DistrictQingdaoChina Signature:2021-4-8 Name: Job Title: Certification Manager

Hisense Communication Co., Ltd. 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China Tel: 0532-55756937 PHOENIX TESTLAB GmbH Date: 29 March 2021 Product Certification Königswinkel 10 D 32825 Blomberg Attn:Reviewing Engineer Subject:PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To Whom It May Concern: We,Hisense Communication Co., Ltd., hereby requests for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name:Hisense Model name: MW505 FCC ID:SARMW505 In FCC Public Notice DA 00-1407 released June 26,2000 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own shielding. Yes,it has a metal shielding. 2. The modular transmitter must have buffered modulation/data inputs Yes,it has a buffer for modulation and data input.The highly integrate single-chip is MT7638BUN. 3. The modular transmitter must have its own power supply regulation Yes,it has a power supply regulation for transmitter inside the chip. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c Yes, the module is 2*2 MIMO of WiF0 and WiF1.All WiFi antenna are pcb antenna on the module board by pcbtrace. 5. The modular transmitter must be tested in a stand-alone configuration Yes,it has been tested in a stand-alone configuration ,not inside another device . 6. The modular transmitter must be labelled with its own FCC ID number Yes,FCC ID: SARMW505 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Yes, our module has complied the FCC spec and operating requirements . The manufacturer has corresponding module installation instructions. 8. The modular transmitter must comply with any applicable RF exposure requirements. Yes,our module has detailed application notes for users,installers and other interested parties to ensure that it comply with any applicable RF exposure requirements . Hisense Communication Co., Ltd. 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China Tel: 0532-55756937 Yours sincerely， Signatory Name: Wang Haining Job Title: Certification Manager

The Description of No software version on MW505 Hisense MW505 wireless model is a highly integrated single-chip that support 2-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) USB2.0 network interface controller，which is designed for communicating with intelligent terminal products like TV etc. It just transfers the data from model to intelligent terminal by USB2.0 and some control signals as the transmission function module only. The software development is all in the TV terminal, and the WiFi module only has data transmission function, so the module itself has no software version, and the working mechanism is similar to the camera module of mobile phone products. That’s stated above all. Hisense Communication Co., Ltd 2021-4-2

MW505 ANT details 2021-04 2/8 WIFI1： BT： CH 效率% 增益 dBi 2.4G L 45 0.5 M 57 0.8 H 61 1.2 Wifi ANT gain ： 2.4GHz 1.2dBi（max）；5GHz 1.0dBi（max）BT ANT gain ： 2.4GHz 1.2dBi（max）；Manufacture:HisenseFCC ID:SARMW505 CH 效率% 增益 dBi 2.4G L 60 0.8 M 63 1.0 H 65 1.2 5G L 50 0.5 M 65 0.8 H 55 1.0 ANT Efficiency\Gain Isolation WIFI1 ANT22.5*12mm BT ANT35*11mm 3/8 WIFI 2.4G： L M H PhiSection ThetaSection ANT Efficiency\Gain Isolation 4/8 WIFI 5G： L M H PhiSection ThetaSection ANT Efficiency\Gain Isolation 5/8 BT： L M H PhiSection ThetaSection ANT Efficiency\Gain Isolation 6/8 WIFI 12.4G: L:-10 M:-9 H:-6.65G: L:-6.4 M:-10 H:-10.5 BT2.4G: L:-10 M:-23 H:-9.7 ANT Efficiency\Gain Isolation 7/8 WIFI 1with BT isolation：2.4G: L:-23 M:-24 H:-225G: L:-28 M:-24 H:-25 天线效率\增益 回波损耗 ANT Efficiency\Gain Isolation thanks

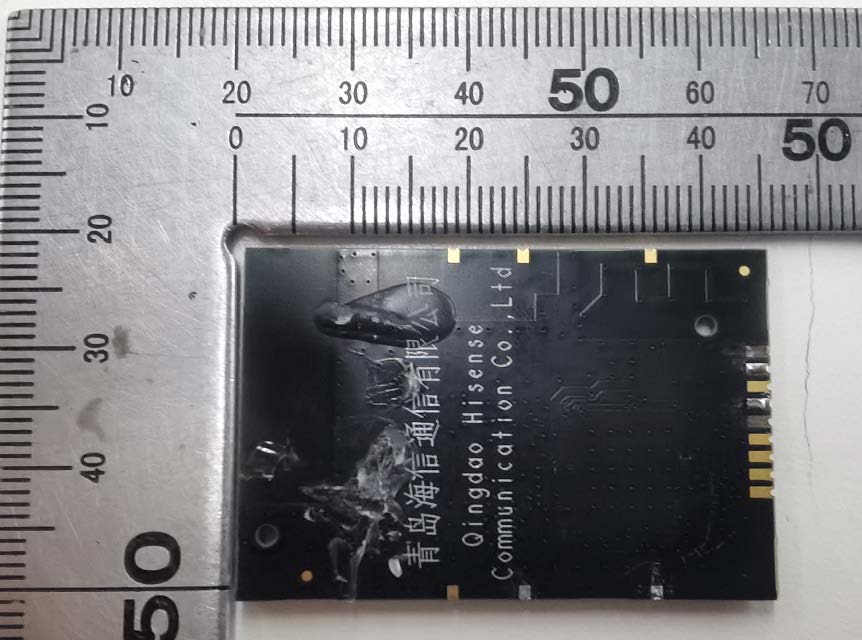

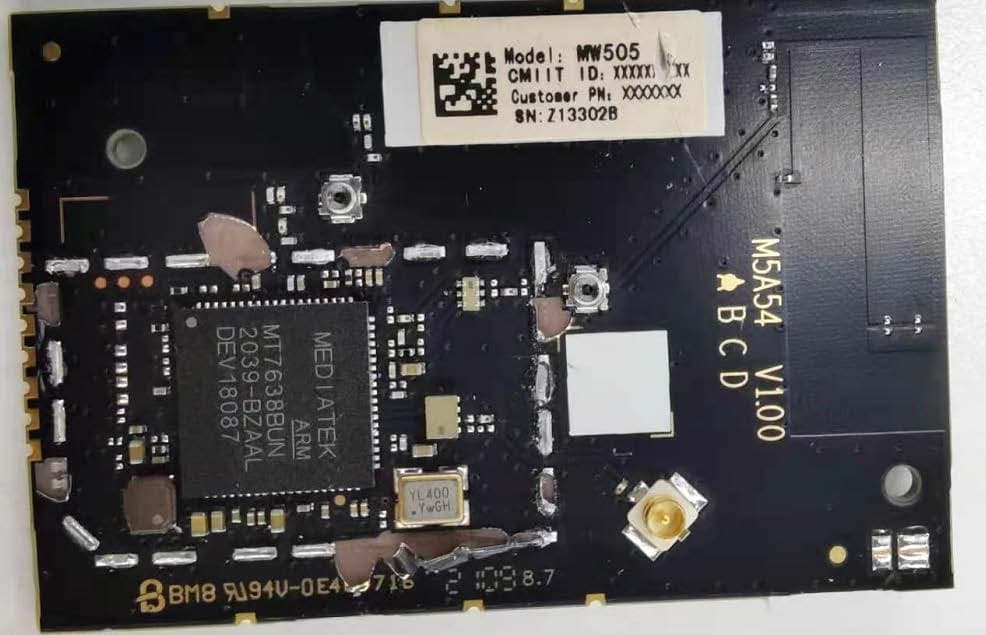

Internal Photo 1 / 2 Internal Photo 2 / 2

Internal Photo 1 / 2 Internal Photo 2 / 2

Certificate Number: 5055.02 MPE REPORT Report No.: SRTC2021 -9004(F)-21031102(I ) Product Name: BT/Wi-Fi Module Product Model: MW505 Applicant: Hisense Communications Co., Ltd. Manufacturer: Hisense Communications Co., Ltd. Specification: FCC Part §2.1091, §2.1093, §1.1307(b), §1.1310 (2019) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)- 21031102(I) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 8 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1 GENERAL INFORMATION .....................................................................................................................................2 1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2 1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2 2 DESCRIPTION OF THE DEVICE UNDER TEST ..................................................................................................3 2.1 FINAL EQUIPMENT BUILD STATUS ............................................................................................................................. 3 3 REFERENCE SPECIFICATION .............................................................................................................................4 4 RESULT SUMMARY ...............................................................................................................................................5 5 TEST RESULTS.......................................................................................................................................................6 5.1 AVERAGE POWER OUTPUT TEST RESULT ................................................................................................................ 6 5.2 CALCULATION RESULT ............................................................................................................................................... 7 No.: SRTC2021-9004(F)- 21031102(I) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 8 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1 GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested.The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P.R.China City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Te l : +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] 1.3 Applicant’s details Company: Hisense Communications Co., Ltd. Address: 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China City: Qingdao Country or Region: China Contacted person: Wang Haining Te l : 0532-55756937 Fax: --- Email: [email protected] 1.4 Manufacturer’s details Company: Hisense Communications Co., Ltd. Address: 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China City: Qingdao Country or Region: China Contacted person: Wang Haining Te l : 0532-55756937 Fax: --- Email: [email protected] No.: SRTC2021-9004(F)- 21031102(I) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 8 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 2 DESCRIPTION OF THE DEVICE UNDER TEST 2.1 Final Equipment Build Status Frequency Bands BT/BLE: 2400MHz – 2483.5MHz WIFI2.4GHz: 2400MHz – 2483.5MHz WIFI5GHz UNII-1: 5150MHz – 5250MHz WIFI5GHz UNII-2A: 5250MHz – 5350MHz WIFI5GHz UNII-2C: 5470MHz – 5725MHz WIFI5GHz UNII-3: 5725MHz – 5850MHz Mode BT:GFSK/π/4DQPSK/8DPSK BLE: GFSK WIFI2.4GHz: 802.11b/g/n HT20/n HT40 WIFI5GHz: 802.11a/n HT20/n HT40 Power Supply DC Adapter Hardware Version V1.00 Software Version --- IMEI or Sample #1 No.: SRTC2021-9004(F)- 21031102(I) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 8 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 3 REFERENCE SPECIFICATION Specification Version Title 2.1091 2019 Radio frequency radiation exposure evaluation: mobile devices. 2.1093 2019 Radio frequency radiation exposure evaluation: portable devices. 1.1307(b) 2019 Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. 1.1310 2019 Radio frequency radiation exposure limits. KDB447498 October 23, 2015 RF exposure procedures and equipment authorization policies for mobile and portable devices No.: SRTC2021-9004(F)- 21031102(I) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 8 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 4 RESULT SUMMARY No. Test case FCC reference 1 MPE Calculation FCC Part §2.1091, FCC Part §2.1093, FCC P…

Text truncated - open the document above for the full version.

Certificate Number: 5055.02 TEST REPORT FOR BLUETOOTH TESTING Report No.: SRTC2021-9004(F)-210231102(D) Product Name: BT/Wi-Fi Module Product Model: MW505 Applicant: Hisense Communications Co., Ltd. Manufacturer: Hisense Communications Co., Ltd. Specification: FCC Part 15 Subpart C (2019) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)-21031102D) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 74 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1. GENERAL INFORMATION ............................................................................................... 2 1.1 NOTES OF THE TEST REPORT ............................................................................................ 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ............................................................... 2 1.3 APPLICANT’S DETAILS ...................................................................................................... 2 1.4 MANUFACTURER’S DETAILS .............................................................................................. 2 1.5 TEST ENVIRONMENT ........................................................................................................ 2 2 DESCRIPTION OF THE DEVICE UNDER TEST ............................................................... 4 2.1 FINAL EQUIPMENT BUILD STATUS ..................................................................................... 4 2.2 DESCRIPTION OF TEST MODES ......................................................................................... 5 2.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................................. 5 2.3 DUTY CYCLE OF TEST SIGNAL .......................................................................................... 7 2.4 EUT OPERATING CONDITIONS ........................................................................................... 7 2.5 SUPPORT EQUIPMENT ..................................................................................................... 7 3 REFERENCE SPECIFICATION ......................................................................................... 8 4 KEY TO NOTES AND RESULT CODES ........................................................................... 8 5 RESULT SUMMARY .......................................................................................................... 9 6 TEST RESULT ................................................................................................................. 10 6.1 20DB BANDWIDTH ......................................................................................................... 10 6.2 CHANNEL SEPARATION .................................................................................................. 11 6.3 PEAK TRANSMITTER OUTPUT POWER ............................................................................. 12 6.4 DWELL TIME ................................................................................................................. 13 6.5 NUMBER OF HOPPING FREQUENCIES .............................................................................. 14 6.6 CONDUCTED OUT OF BAND EMISSION MEASUREMENT ........................................................ 15 6.7 BAND-EDGE MEASUREMENT ........................................................................................... 16 6.8 SPURIOUS RADIATED EMISSIONS .................................................................................... 17 6.9 AC POWER LINE CONDUCTED EMISSION ......................................................................... 22 7 MEASUREMENT UNCERTAINTIES ................................................................................ 24 8 TEST EQUIPMENTS ........................................................................................................ 25 APPENDIX A – TEST DATA OF CONDUCTED EMISSION .............................................. 26 APPENDIX B – TEST DATA OF RADIATED EMISSION .................................................... 41 No.: SRTC2021-9004(F)-21031102D) FCC ID: SARMW505 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 74 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested.The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P.R.China City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Tel: +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] 1.3 Applicant’s details Company: Hisense Communications Co., Ltd. Address: 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China City: Qingdao Country or Region: China Contacted person: Wang Haining Tel: 0532-55756937 Fax: --- Email: [email protected] 1.4 Manufacturer’s details Company: Hisense Communications Co., Ltd. Address: 218 Qianwangang Road, Qingdao Economic& Technological Development Zone, Qingdao, China City: Qingdao Country or Region: China Contacted person: Wang Haining Tel: 0532-55756937 Fax: --- Email: wanghaining@…

Text truncated - open the document above for the full version.

TEST SETUP RF Conducted Test setup (BT/BLE/WIFI) Spurious Radiated Emissions Test setup Spurious Radiated Emissions Test setup Spurious Radiated Emissions Test setup Conducted Emissions Test Setup
