SARMWH519BWi-Fi Module

The user manual of TV’s WIFI module 1. The product description The user can achieve TV connection WIFI net, through this module and the voltage supplied by the system to the module needs to be transmitted by a voltage regulator or circuit This equipment may be operated in all European countries. The module installation method is as follows: pass the large round hole of the module through the limit column of the bracket of the TV, and fix the module by the snap-fit on the bracket. Connect the external IPEX antenna to the antenna pedestal of the module 2. Basic parameters Feature Description Feature Description Model MWH519B Product Name WiFi Module FCC ID SARMWH519B IC ID 27123- MWH519B Interface USB2.0 Supply Voltage 3.3V±0.2V Dimension 30（mm）*47（mm）*6.2(mm) Operating Temperature -10°C to 70°C Storage Temperature -40°C to 85°C 3. RF output power Band Limited power WlAN 2412MHZ-2472MHZ <20 5150MHZ-5850MHZ 4. The display method of Model approved code In the factory，the model approve code is pasted on the back shell in a label. 5. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures： Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 6 . Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of FCC RF Rules. This equipment should be installed and operated with minimum distance of 20 in (50cm)between the radiator and yourbody. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter CAUTION: To comply with the limits of the Class B digital device pursuant to Part 15 of the FCC Rules, this device is compliant with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may results in interference to radio or reception MODIFICATION To assure continued compliance, Any changes or modifications not expressly approved by the grantee of this device could void the users authority to operate the device. 7. Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 50 cm(8 in )between the radiator and your body NOTE To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product Contains Transmitter module FCC ID: ******* To satisfy IESD exterior labeling requirements, the following text must be placed on the exterior of the end product " Contains Transmitter module IC: ******* This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. 8. IC Statement i、the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;Footnote4 ii、 for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; iii、 for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits as appropriate; and iv、 where applicable, antenna type(s), antenna models(s), and worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in section 6.2.2.3 shall be clearly indicated. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: "Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device." Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence…

Text truncated - open the document above for the full version.

Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747 Authorization Letter FCC ID:SARMWH519B Date:February 15, 2022 To whom it may concern: We, the undersigned, hereby authorize The State Radio_monitoring_centerTestingCenter (SRTC) to act on our behalf, as our agent, in the followingmatters related to the FCC approval of our product: Product Name: Wi-Fi Module Product Model:MWH519B FCC ID:SARMWH519B Report submittal, related correspondence, the signing of all documents relatingto these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by The State Radio_monitoring_center Testing Center (SRTC) within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Thank you. Sincerely, wanghaining Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747

UNII DeclarationLetter We have declared below featured for FCC equipment authorization, device FCC ID: SARMWH519B (1)DFSDevice--Master, ClientwithRadardetectioncapability, Client without radar detectioncapability, N/A (2)Active / Passive Scanning , adhoc mode access pointcapability FrequencyBand (MHz) Active Scanning (the device can transmit aprobe (beacon)) passivescanning (where thedevice is can listenonly withnoprobes) Ad HocMode capability Accesspoint capability 2412 – 2462MHz Yes, No Yes, No Yes, No Yes, No 2422 – 2452MHz Yes, No Yes, No Yes, No Yes, No 5745 – 5825MHz Yes, No Yes, No Yes, No Yes, No 5755 – 5795MHz Yes, No Yes, No Yes, No Yes, No 5180 – 5240MHz Yes, No Yes, No Yes, No Yes, No 5190 – 5230MHz Yes, No Yes, No Yes, No Yes, No 5260 – 5320MHz Yes, No Yes, No Yes, No Yes, No 5270 – 5310MHz Yes, No Yes, No Yes, No Yes, No 5500 – 5700MHz Yes, No Yes, No Yes, No Yes, No 5510 – 5670MHz Yes, No Yes, No Yes, No Yes, No (3)Country code selection ability- Yes, No If no, pls explain how was implemented : use Microsoft networkutility (4)Meet 15.202 requirement-Yes, No , pls check below: A master devi ce is defined as a devi ce operating in a mod e in whi ch it ha s th e capabilityto transmit without receiving an enabling signal. In thi s mod e it is abl e to sele ct a channel an d initiatea network by sending enabling signals to otherdevices A clien t devi ce is defined as a devi ce operating in a mod e in whi ch th e transmissions of thedevice are unde r control of th e master. A devi ce in clien t mod e is no t abl e to initiat e anetwork. (5) Fo r clien t devices tha t ha ve software configuration control to operate in different modes(active scanning in some an d passi ve scanning in othe rs) in different band s (devices wit h multipleequipment classes or tho se tha t operate on non-DFS frequencies) or modular devices whi ch configure themodes of operations through software, th e application must provide software an d operations descriptionon ho w th e software an d / or hardware is implemented to ensu re tha t proper operations modes cannot be modified by en d use r or aninstaller. Appl y, No Apply, (Ifapply,plshelptoprovideexplanationonhowitwasimplement(Byhardwareorsoftware,andhowsoftwarewascontrolled) Applicant: Hisense Communication Co., Ltd. Address: Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Signature:2022-2-15 Name:Wang Haining Job Title: CertificationManager Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747

PHOENIX TESTLAB GmbH Date: 15 February2022 Product Certification Königswinkel 10 D 32825 Blomberg Subject: Declaration Operating Channel Limitation Product Name: Wi-Fi Module Product Model: MWH519B FCC ID: SARMWH519B To Whom it may concern, The operating channels in 802.11 b/g/n mode for the device marketed to the US/Canada are firmware limited to channel 1 ~ 11 (2412 ~ 2462 MHz). The end-user has no possibility to select any other operating channels. If you have any questions, please feel free to contact me. Thank you. Sincerely wanghaining Title：CertificationManager Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747 Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747

Request of Confidentiality Federal Communications Commission Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: Wi-Fi Module Product Model:MW H519B FCC ID: SARMWH519B The following information should be held confidential: All Schematics/block diagrams/BOM All Parts list for the above schematic diagram Operational description and technical overview of product The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. wanghaining Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747 Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747

Modular Approval Request Letter February 15, 2022 Dea r Application Examiner, Company Name Hisense Communication Co., Ltd. Product name Wi-Fi Module, model name：MWH519B, FCC ID: SARMWH519B would like to have your authorization as a modular approval. The requirements of Public Notice DA00- 1407 have been met and shown on the following statements. Requirement of Public Notice DA00-1407 / part 15.212 Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, it has its own RF shielding. Please refer to external photos. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes, it has buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. 3. The modular transmitter must have its own power supply regulation. No. Host device should provide a regulated 3.3V power supply to guarantee the module’s RF performance meeting FCC requirement. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes, the requirements of antenna connector and spurious emissions have been fulfilled. Please refer to Test Report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes, it was tested in a stand- alone configuration. Please refer to Setup Photo. Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes, it is labelled with its own FCC ID number. Labelling instructions for host devices are stated in the use manual under “FCC warning” 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes, it complies with any specific rules or operating requirements. Instructions are provided in the user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes, it complies with RF exposure requirements. Please refer to MPE calculation for the exposure information. Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Ec onomic Technology Dev. District, Qingdao, China Tel: 0532-6761747 Yours sincerely， Signatory Name: Wang Haining Job Title: Certification Manager Hisense Communication Co., Ltd. Hisense Infor. Industrial Park Economic Technology Dev. District, Qingdao, China Tel: 0532-6761747

External Photo FCC ID：SARMWH519B IC Number：27123-MWH519B 1 / 1

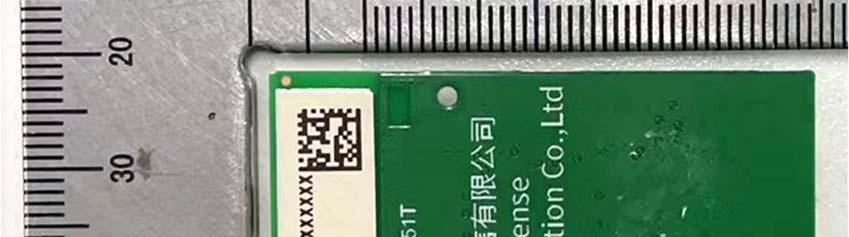

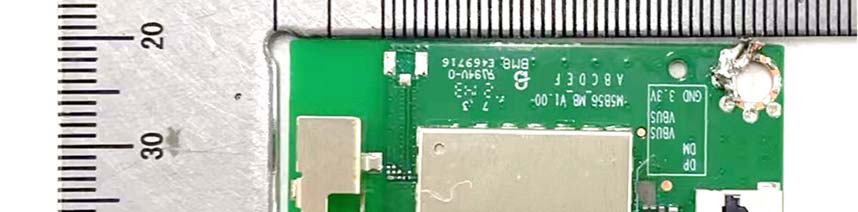

Internal Photo FCC ID：SARMWH519B IC Number：27123-MWH519B 1 / 2 Internal Photo FCC ID：SARMWH519B IC Number：27123-MWH519B 2 / 3 Internal Photo FCC ID：SARMWH519B IC Number：27123-MWH519B 3 / 3

Certificate Number: 5055.02 MPE REPORT Report No.: SRTC2021-9004(F)-21122303(I) Product Name: Wi-Fi Module Product Model: MWH519B Applicant: Hisense Communication Co., Ltd. Manufacturer:Hisense Communication Co., Ltd. Specification: FCC Part §2.1091, §2.1093, §1.1307(b), §1.1310 (2019) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)- 21122303(I) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC)Page number: 1 of 15 Tel: 86-10-5799 6183 Fax: 86-10-57996388V3.0.0 CONTENTS 1 GENERAL INFORMATION ................................................................................................................................. 2 1.1 NOTES OF THE TEST REPORT .................................................................................................................................... 2 1.2 INFORMATION ABOUT THE TESTING LABORATORY ..................................................................................................... 2 1.3 APPLICANT’S DETAILS ................................................................................................................................................ 2 1.4 MANUFACTURER’S DETAILS ....................................................................................................................................... 2 1.5 TEST ENVIRONMENT ................................................................................................................................................... 3 2 DESCRIPTION OF THE DEVICE UNDER TEST ............................................................................................... 4 2.1 FINAL EQUIPMENT BUILD STATUS ............................................................................................................................. 4 3 REFERENCE SPECIFICATION .......................................................................................................................... 5 4 RESULT SUMMARY ........................................................................................................................................... 6 5 TEST RESULTS ................................................................................................................................................... 7 5.1 AVERAGE POWER OUTPUT TEST RESULT ................................................................................................................ 7 5.2 CALCULATION RESULT ............................................................................................................................................. 14 No.: SRTC2021-9004(F)- 21122303(I) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC)Page number: 2 of 15 Tel: 86-10-5799 6183 Fax: 86-10-57996388V3.0.0 1 GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested.The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P.R.China City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Tel: +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] Registration Number 239125 Designation Number CN1267 1.3 Applicant’s details Company: Hisense Communication Co., Ltd. Address: No.218, Qianwangang Road, Economic and Technological Development Zone, Qingdao, Shandong Province,China 1.4 Manufacturer’s details Company: Hisense Communication Co., Ltd. Address: No.218, Qianwangang Road, Economic and Technological Development Zone, Qingdao, Shandong Province,China No.: SRTC2021-9004(F)- 21122303(I) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 15 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 1.5 Test environment Date of Receipt of test sample at SRTC: 2021-12-28 Testing Start Date: 2021-12-29 Testing End Date: 2022-02-13 Environmental Data: Temperature (°C) Humidity (%) Ambient 22 35 Normal Supply Voltage (V d.c.): 3.3 No.: SRTC2021-9004(F)- 21122303(I) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 15 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 2 DESCRIPTION OF THE DEVICE UNDER TEST 2.1 Final Equipment Build Status Frequency Bands WIFI2.4GHz: 2400MHz – 2483.5MHz WIFI5GHz UNII-1: 5150MHz – 5250MHz WIFI5GHz UNII-2A: 5250MHz – 5350MHz WIFI5GHz UNII-2C: 5470MHz – 5725MHz WIFI5GHz UNII-3: 5725MHz – 5850MHz Mode WIFI2.4GHz: 802.11b/g/n HT20/n HT40 WIFI5GHz: 802.11a/n HT20/n HT40/ac VHT20/ac VHT40 /ac VHT80 Antenna Gain WLAN2.4GHz Ant0:2.6dBi / Ant1:3.72dBi WLAN5GHz Ant0:1.5dBi / Ant1:4.07dBi Power Supply DC Adapter Hardware Version V1.00 Software Version --- IMEI or Sample #1 No.: SRTC2021-9004(F)- 21122303(I) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 15 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V3.0.0 3 REFERENCE SPECIFICATION Specification Version Title 2.1091 2019 Radio frequency radiation exposure evaluation: mobile devices. 2.1093 2019 Radio frequency radiation exposure evaluation: portable devices. 1.1307(b) 2019 Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. 1.1310…

Text truncated - open the document above for the full version.

Certificate Number: 50 55.02 TEST REPORT FOR WLAN TESTING Report No.: SRTC2021-9004(F)-21122303(F) Pr oduct Name: Wi-Fi Module Applicant: Hisense Communication Co., Ltd. Manufacturer: Hisense Communication Co., Ltd. Specification: FCC Part 15 Subpart C (2020) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-57996388 No.: SRTC2021-9004(F)-21122303(F) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC)page 1 of 58 Tel: 86-10-57996183 Fax: 86-10-57996388V3.0.0 CONTENTS 1. GENERAL INFORMATION ............................................................................................................................. 2 1.1 Notes of the test report .............................................................................................................................. 2 1.2 Information about the testing laboratory .................................................................................................... 2 1.3 Applicant’s details ...................................................................................................................................... 2 1.4 Manufacturer’s details ................................................................................................................................ 2 1.5 Test Environment ....................................................................................................................................... 3 2 DESCRIPTION OF THE DEVICE UNDER TEST ............................................................................................ 4 2.1Final Equipment Build Status ...................................................................................................................... 4 2.2 Description of Test Modes .......................................................................................................................... 5 2.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................... 5 2.3 EUT Operating conditions .......................................................................................................................... 6 2.4 Support Equipment .................................................................................................................................... 6 3 REFERENCE SPECIFICATION ....................................................................................................................... 7 4 KEY TO NOTES AND RESULT CODES ......................................................................................................... 7 5 RESULT SUMMARY ........................................................................................................................................ 8 6 TEST RESULT ................................................................................................................................................. 9 6.1 Peak Power Output .................................................................................................................................... 9 6.2 6dB Bandwidth ......................................................................................................................................... 10 6.3 Transmitter Power Spectral Density ......................................................................................................... 11 6.4 Conducted Out of band emission measurement ..................................................................................... 12 6.5 Band-edge measurement ........................................................................................................................ 13 6.6 Spurious Radiated Emissions .................................................................................................................. 14 6.7 AC Power line Conducted Emission ........................................................................................................ 19 7 MEASUREMENT UNCERTAINTIES ............................................................................................................. 21 8 TEST EQUIPMENTS ...................................................................................................................................... 22 APPENDIX A – TEST DATA OF CONDUCTED EMISSION..............................................................................23 APPENDIX B – TEST DATA OF RADIATED EMISSION ................................................................................. 45 No.: SRTC2021-9004(F)-21122303(F) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC)page 2 of 58 Tel: 86-10-57996183 Fax: 86-10-57996388V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Address: 15th Building, No.30 Shixing Street, Shijingshan District, P.R.China City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Tel: +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] Designation Number: CN1267 Registration number: 239125 1.3 Applicant’s details Company: His ense Communication Co., Ltd. Address: No.218, Qianwang…

Text truncated - open the document above for the full version.

No.: SRTC2021-9004(F)-21122303(G) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 2 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V1.0.0 TEST SETUP RF Conducted Test setup (BT/WIFI) 9KHz~30MHz No.: SRTC2021-9004(F)-21122303(G) FCC ID: SARMWH519B The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 2 Tel: 86-10-5799 6183 Fax: 86-10-57996388 V1.0.0 30MHz~1GHz >1GHz
