TEM Consulting, LP 1 TEM Consulting, LP www.temconsulting.com 140 River Rd. Georgetown, Tx. 78628 Tel: (512) 864-3365 Mobile (512) 466-0833 Fax: (512) 869-8709 E-MAIL [email protected] Certificate of Compliance ______________________________ Applicant: Siemens VDO Automotive Corporation Applicant’s Address: 4905 Tilghman St., Suite 120 Allentown, PA 18104 Model: FM DECT Vehicle Unit USA M/N: X10-723-002-035 FCC ID: SD9X10723002035 Test Dates: September 2005 I, H. Stephen Berger, for TEM Consulting, LP, being familiar with the FCC rules and test procedures have reviewed the test setup, measured data and this report. I believe them to be true and accurate. The Siemens FM DECT Vehicle Unit USA, M/N X10-723-002-035 was tested to and found to be in compliance with FCC Part 15 Subpart D for an Intentional Radiator. The highest emissions generated by the above equipment are listed below: Peak Transmit Power Frequency (MHz) Level (dBm) Limit (dBm) Margin (dB) Fundamental 1924.99 18.70 20.70 -2.00 Occupied Bandwidth Frequency (MHz) BW (MHz) Limit (MHz) Margin (MHz) Bandwidth 1924.99 1.40 2.50 -1.10 ___________________________________ H. Stephen Berger

S 1 Siemens VDO Automotive Corporation 4905 Tilghman St., Suite 120 Allentown, PA 18104 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 11, 2005 TO WHOM IT MAY CONCERN Siemens Communications request confidentiality for portions of this application and that the equipment grant not be publicly disclosed until after its public announcement by Siemens. Pursuant to Paragraph §0.475(d) of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens Communications requests confidentiality for the following products: FCC ID Number Product Title/Model SD9X10723002035 FM DECT Vehicle Unit USA We request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Board Layout No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Siemens' trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. We further request that the equipment grant not be publicly announced until Siemens has made its public announcement of the product. If you have any questions, please feel free to contact me at the address shown below. Sincerely,

Photos of FM DECT Vehicle Unit USA FM DECT Vehicle Unit USA FM DECT Vehicle Unit with Antenna

Label and Label Location FCC ID: SD9X10723002035 FM DECT Vehicle Unit USA Model Number X10-723-002-035 Siemens VDO Automotive Corp. 4905 Tilghman St., Suite 120 Allentown, PA 18104 By TEM Consulting, LP 140 River Rd. Georgetown, TX 78628 December 2005 TYPE CERTIFICATION

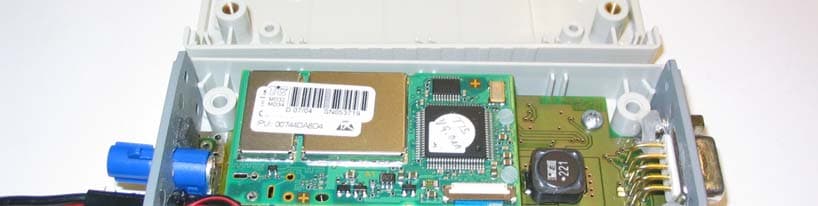

FM DECT Vehicle Unit Top of PCB 1 Bottom of PCB 1 Top of RF PCB Bottom of RF PCB

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 1 of 33 \\Ut55\2_PROJEKTE\05\4079_1\Task2(SRD)\2-4079-01-02_05.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 2-4079-01-02/05 Applicant : Siemens AG Model Name Portable Part : Model Name Fixed Part : FM DECT Vehicle Unit USA FM DECT Base Station USA Test Standard : FCC Part 15.209 / 207 / RSS210 FCC ID Portable Part : FCC ID Fixed Part : SD9X10723002035 SD9X10723002036 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 2 of 33 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1 Identification of the testing laboratory ............................................................................................................... 3 1.2. NOTES......................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT............................................................................................................................................... 4 1.4 APPLICATION DETAILS................................................................................................................................................ 4 1.5 TEST ITEM................................................................................................................................................................... 5 1.6 TEST SETUP................................................................................................................................................................. 6 1.7 TEST SPECIFICATIONS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE ................................................................................................................................ 6 2.1 SUMMARY OF MEASUREMENT RESULTS...................................................................................................................... 6 2.1.1 CFR 47 Part 15 Radio frequency devices ........................................................................................................... 6 3 MEASUREMENTS AND RESULTS ............................................................................................................................. 7 3.1 DESCRIPTION OF TEST SET-UP...................................................................................................................................... 7 3.1.1 Radiated measurements ...................................................................................................................................... 7 4 ANNEX A: FCC PART 15 SUBPART C........................................................................................................................ 8 4.1 RADIATED LIMITS MOBILE STATION........................................................................................................................... 8 4.2 RADIATED LIMITS BASE STATION............................................................................................................................. 14 5 ANNEX B: FCC PART 15 SUBPART B ...................................................................................................................... 20 5.1 RADIATED LIMITS MOBILE STATION – RX / STAND-BY MODE.................................................................................. 20 6 ANNEX C: PHOTOGRAPHS OF TEST SITE ........................................................................................................... 27 7 ANNEX D: PHOTOGRAPHS OF THE EQUIPMENT............................................................................................. 31 7.1 EXTERNAL PHOTOGRAPS........................................................................................................................................... 31 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 3 of 33 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Harro Ames / Michael Berg Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduc…

Text truncated - open the document above for the full version.

Test Report FM DECT SYSTEM Manufacturer: Siemens VDO Automotive Corp. 4905 Tilghman St., Suite 120 Allentown, PA 18104 United States By TEM Consulting, LP 140 River Rd. Georgetown, TX 78628 December 2005 TYPE CERTIFICATION TEST REPORT FM DECT Vehicle Unit USA Model Number X10-723-002-035 TEM Consulting, LP FCC ID: SD9X10723002035 Page 2 of 66 TABLE OF CONTENTS 1. EUT Description ......................................................................................................... 6 2. Testing Summary ........................................................................................................ 6 3. Test Facilities ..............................................................................................................9 3.1. Siemens AG Test Laboratory.............................................................................. 9 3.2. Recognized FCC Test Facility ............................................................................ 9 3.3. Test Equipment at Siemens AG Test Laboratory ............................................... 9 3.4. Test Conditions ................................................................................................. 10 4. Technical Specification............................................................................................. 10 5. Detailed Test Procedures and Results....................................................................... 11 5.1. Antenna Requirements...................................................................................... 11 5.2. Use digital modulation ...................................................................................... 12 5.3. Peak transmit power.......................................................................................... 13 5.4. Power Spectral Density..................................................................................... 15 5.5. Power adjustment for antenna gain ................................................................... 17 5.6. Automatically discontinue transmission ........................................................... 19 5.7. Spurious emissions & Out of Band Emissions ................................................. 21 5.8. RF Exposure...................................................................................................... 27 5.9. Emission Bandwidth ......................................................................................... 28 5.10. Listen Before Talk ........................................................................................ 31 5.11. Monitoring Time ........................................................................................... 32 5.12. Monitoring Threshold ................................................................................... 35 5.13. Maximum Transmit Time ............................................................................. 36 5.14. System Acknowledgement............................................................................ 38 5.15. Least Interfered Channel............................................................................... 40 5.16. Channel Confirmation................................................................................... 44 5.17. Power Measurement Resolution ................................................................... 45 5.18. Segment Occupancy...................................................................................... 46 5.19. Random Waiting ........................................................................................... 47 5.20. Monitoring Bandwidth.................................................................................. 48 5.21. Monitoring Reaction Time............................................................................ 49 5.22. Monitoring Antenna...................................................................................... 51 5.23. Monitoring Threshold Relaxation................................................................. 52 5.24. Duplex System LBT ..................................................................................... 53 5.25. Alternate Monitoring Interval ....................................................................... 57 5.26. Fair Access .................................................................................................... 60 5.27. Frame Period ................................................................................................. 61 5.28. Frequency Stability ....................................................................................... 65 TEM Consulting, LP FCC ID: SD9X10723002035 Page 3 of 66 LIST of TABLES Table 1: Testing Summary for VU ..................................................................................... 8 Table 2: List of Test Equipment ......................................................................................... 9 Table 3: Test Conditions ................................................................................................... 10 Table 4: List of Specifications .......................................................................................... 10 Table 5: List of Frequency Channels ................................................................................ 10 Table 6: Spectrum Analyzer Settings for Peak Transmit Power Measurement................ 13 Table 7: Measured Peak Transmit Power of VU .............................................................. 14 Table 8: Spectrum Analyzer Settings for Power Spectral Density Measurement ............ 15 Table 9: Measured Power Spectral Density of VU........................................................... 16 Table 10: Test Result of VU Antenna Measurement........................................................ 18 Table 11: Test Procedure for Transmission Interruption .................................................. 19 Table 12: Test Results for Transmission Interruption of VU .............................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 27 of 33 6 Annex C: Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 28 of 33 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 29 of 33 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 30 of 33 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 31 of 33 7 Annex D: Photographs of the Equipment 7.1 External Photograps Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 32 of 33 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4079-01-02/05 Date: 2005-09-20 Page 33 of 33 Photo 3:
