SDL-PR3XR01Rotating Laser

PR35 Bedienungsanleitungde Operatinginstructionsen Moded’emploifr 1 56 7 2 3 4 910 8 1 5 6 4 3 2 1 7 8 9 2 5 6 1 3 2 4 4 4 5 1 2 3 5 8 7 9 4 5 61 2 3 3 1 2 6 1 1 2 89 2 7 0 7 5 0 7 4 0 7 3 0 7 2 0 7 1 0 7 0 0 6 9 0 6 8 0 6 7 0 6 6 0 6 5 0 6 4 0 6 3 0 6 2 0 6 1 0 6 0 0 5 9 0 5 8 0 5 7 0 5 6 0 5 5 0 5 4 0 5 3 0 5 2 0 5 1 0 5 0 0 4 9 0 4 8 0 4 7 0 4 6 0 4 5 0 7 6 0 7 7 0 7 8 1 4 3 1 4 4 1 4 5 2 0 8 2 0 9 2 1 0 2 7 1 2 7 2 2 7 3 3 3 9 3 3 8 3 3 7 3 4 2 1 6 6 5 11 10 2 3 1 12 13 14 180° 20m20m 15 B A R 1 0 m [ 3 0 ' ] 2 0 m [ 6 0 ' ] 16 B A 1 . 5 m m [ 1 / 1 6 " ] C R 17 * 0 0 0 0 0 0 * 0 0 0 0 0 0 Hilti Corporation LI-9 494Schaa n Tel.:+42 3 / 2342111 Fax :+423 / 2342965 www.hilti .c om Hi lti = re gist eredtrademarkof HiltiCorp.,SchaanW 00000310 00-Pos.11Printedin Liechtenstein© 2010 Ri gh t of technicalandprogramme changesreservedS. E. & O. 000 000 / A ORIGINAL OPERATING INSTRUCTIONS PR 35 rotating laser It is essential that the operating instructions are read before the tool is operated for the first time. Always keep these operating instructions together with the tool. Ensure that the operating instructions are with the tool when it is given to other persons. ContentsPage 1. General information2 2. Description2 3. Accessories5 4. Technical data5 5. Safety instructions7 6. Before use9 7. Operation10 8. Care and maintenance14 9. Troubleshooting15 10. Disposal16 11. Manufacturer’s warranty - tools17 12. EC declaration of conformity17 1These numbers refer to the corresponding illustra- tions. The illustrations can be found on the fold-out cover pages. Keep these pages open while studying the operating instructions. In these operating instructions, the designation “the tool” or “the rotating laser” always refers to the Hilti PR 35. The designation “remote control / laser receiver” always refers to the Hilti PRA 35. Rotating laser1 @ Laser beam (plane of rotation) ; Rotating head = Grip % Control panel & Battery ( Battery compartment ) Base plate with 5/8" thread Rotating laser control panel2 @ On / off button ; Auto-leveling LED = Direction buttons % Shock warning deactivation LED & Monitoring mode LED ( Slope LED ) Line function button + Speed of rotation button § Battery status PRA 35 control panel (on the front of the receiver)3 @ On / off button ; Special line function = Units button % Volume button & Automatic alignment button ( Monitoring mode button ) Receiving area + Marking notch § Display PRA 35 control panel (on the rear of the remote control)4 @ Sleep mode button ; Speed of rotation button = Line function button % Direction buttons (up/down) & Direction buttons (left/right) ( Button lock PRA 35 display5 @ Position of the receiver relative to the height of the laser plane ; Battery status = Signal tone volume % Button lock & Distance of receiver from laser plane en 1 >1/4s 35 +LOWL WUDGHPDUNRIWKH+LOWL&RUSRUDWLRQ6FKDDQ/, 0DGHLQ*HUPDQ\   1PXFS 7OPN N" /$6(55$',$7,21'2127 67$5(,172%($0 QPP:PD[ &/$66,,/$6(5352'8&7 $"65*0/  (1 1. General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that could lead to serious bodily injury or fatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality. CAUTION Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property. NOTE Draws attention to an instruction or other useful information. 1.2 Explanation of the pictograms and other information Symbols Read the operating instructions before use. General warning Return waste material for recycling. Do not look into the beam. Symbol for Laser Class II / Class 2 Laser class II according to CFR 21, § 1040 (FDA) Laser class 2 according to EN60825:2008 Type identification plate PR 35 Location of identification data on the tool The type designation and serial number can be found on the type identification plate on the tool. Make a note of this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: Generation: 01 Serial no.: 2. Description 2.1 Use of the product as directed The tool is designed to be used to determine, transfer and check levels, verticals, slopes and right angles. Examples of its uses are: transferring datums and height marks, determining right angles for walls, vertical alignment on reference points and setting out slopes. Use of tools or AC adapters which show visible signs of damage is not permissible. Operation outdoors or in damp conditions in “Charging during operation mode” is not permissible. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. en 2 Take the influences of the surrounding area into account. Do not use the appliance where there is a risk of fire or explosion. Modification of the tool is not permissible. 2.2 PR 35 rotating laser The Hilti PR 35 is a rotating laser tool with a visible rotating laser beam and a reference beam set at 90° to the main beam. The PR 35 can be used for alignment in the vertical, horizontal and inclined planes. 2.3 Features The tool makes it possible for a single person to level or align in any plane quickly and with great accuracy. The tool features automatic leveling (within 10° (±5°)). The tool levels itself automatically after switching on. The laser beam is emitted only when the specified accuracy has been achieved. LEDs indicate the tool’s current operating status. The tool is powered by a rechargeable Li‑ion battery which can be charged while the tool is in operation. The PR 35 has a number of useful features: Monitoring mode, auto-alignment, sleep mode and button lock. 2.4 PRA 35 combined remote control and laser receiver The PRA 35 is a combined remote control unit and…

Text truncated - open the document above for the full version.

09.08.2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: SDL-PR3XR01 Schematics, Parts List, Operating Description, Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thomas Ring Manager certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany

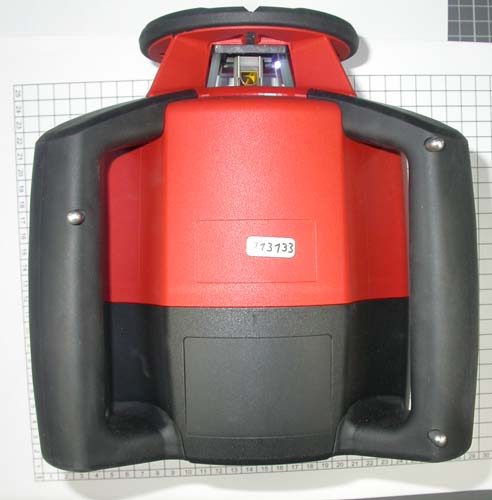

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 5 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT External view: FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 6 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 5 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT External view:

355RWDWLRQVODVHU$XIGUXFN  2.4 XX 8 Model Name: PR35 FCC ID: SDL-PR3XRO1 IC: 5228A-PR3XR01 This device complies with Part 15 of the FCC Rules and RSS-210 of IC. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 0 2 N Y 2 3 8 8 6 2 0 5 R N4025

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 7 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Internal views: RF PCB FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 8 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 9 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 10 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 1 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 EMI -- T E S T R E P O R T - FCC Part 15.249 - Test Report No. : T33893-01-02HS 03. August 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : PR35 Product Description : Rotating laser Applicant : Hilti AG Address : Feldkirchnerstrasse 100 9494 SCHAAN, LICHTENSTEIN Manufacturer : HILLOS GmbH Address : 07745 JENA, GERMANY Prüssingstrasse 41 Licence holder : Hilti AG Address : Feldkirchnerstrasse 100 9494 SCHAAN, LICHTENSTEIN Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. DAT-P-207/05-00 Registration No. DAT-P-207/05 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 2 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT 5 3.2 Power supply system utilised 11 3.3 Short description of the equipment under test (EUT) 11 4 TEST ENVIRONMENT 12 4.1 Address of the test laboratory 12 4.2 Environmental conditions 12 4.3 Statement of the measurement uncertainty 12 4.4 Measurement protocol for FCC 13 4.5 Determination of worst case measurement conditions 14 5 TEST CONDITIONS AND RESULTS 15 5.1 Conducted emissions 15 5.2 Radiated emission of the fundamental wave 21 5.3 Spurious emissions radiated 24 5.4 20 dB bandwidth 29 5.5 Antenna application 31 5.6 Receiver radiated emissions 32 6 USED TEST EQUIPMENT AND ACCESSORIES 35 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 3 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2009) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (October, 2009) Part 15, Subpart B, Section 15.107 AC Line conducted emissions Class A device Class B device Part 15, Subpart B, Section 15.109 Radiated emissions, general requirements Part 15, Subpart B, Section 15.111 Antenna power conduction FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 929 kHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 4 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 2 SUMMARY GENERAL REMARKS: The EUT is equipped with a RF transceiver operating within the free 2.4 GHz ISM band that enables the user to control the whole alignment system remote. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 26 June 2010 Testing concluded on : 30 June 2010 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Hermann Smetana Dipl.-Ing.(FH) Radio Expert FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 5 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT External view: FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 6 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 7 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Internal views: RF PCB FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 8 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 9 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 10 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 11 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3.2 Power supply system utilised Power supply voltage : 100 – 240 VAC, 7.2 VDC Lithium ion battery 3.3 Short description of the equipment under te…

Text truncated - open the document above for the full version.

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 15 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5 TEST CONDITIONS AND RESULTS 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Applicable standard According to FCC Part 15, Section 15.207(a): Except as shown in paragraphs (b) and (c) of this Section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the given limits. 5.1.4 Description of Measurement The measurements are performed following the procedures set out in ANSI C63.4 described under item 4.4.3. If the minimum limit margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 21 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.2 Radiated emission of the fundamental wave For test instruments and accessories used see section 6 Part CPR 3. 5.2.1 Description of the test location Test location: Anechoic Chamber A2 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.249(a): The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the effective limits. 5.2.2 Description of Measurement The radiated emission of the fundamental wave from the EUT is measured using a spectrum analyser and appropriate linear polarized antennas. Analyser settings: Peak measurement: RBW: 1 MHz VBW: 1 MHz Detector: Max peak AV measurement: RBW: 1 MHz VBW: 10 Hz Detector: Max peak FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 24 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.3 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER1, SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS 1 Test location: Anechoic Chamber A2 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up OATS1 (9 kHz - 30 MHz) OATS1 (30 - 1000 MHz) FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 25 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Anechoic chamber 5.3.3 Applicable standard According to FCC Part 15C, Section 15.249 (d): Emission radiated outside of the specified frequency bands, except harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limit in FCC Part 15C, Section 15.209, whichever is the lesser attenuation. 5.3.4 Description of Measurement The radiated emissions from the EUT are measured in the frequency range of 9 kHz to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. The set up of the EUT will be in accordance to ANSI C63.4. In the frequency range above 1 GHz a spectrum analyser is used with appropriate linear polarized antennas. If the emission level in peak mode complies with the average limit then testing will be stopped and peak values of the EUT will be reported, otherwise, the emission will be measured in average mode again and reported. During the test, the EUT was set into continuous transmitting mode modulated. Instrument settings: 9 kHz - 150 kHz RBW: 200 Hz 150 kHz - 30 MHz RBW: 9 kHz 30 MHz – 1000 MHz: RBW: 120 kHz 1000 MHz – 25 GHz RBW: 1 MHz 5.3.5 Test result f < 1 GHz Channel 1 Frequency (MHz) Reading level QP (dBμV) Reading level AV (dBμV) RBW (kHz) Correction factor (dB/m) Corrected level QP dB(μV/m) Corrected level AV dB(μV/m) Limit dB(μV/m) Delta (dB) 111.5 12.2 120 12.3 24.5 43.5 -19.0 Note: The correction factor includes cable loss and antenna factor. FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 29 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.4 20 dB bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: Anechoic Chamber A2 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.215(c): Intentional radiators operating under the alternative provisions to the general emission limits, as contained in Section 15.217 through Section 15.257, must be designed to ensure that the 20 dB bandwidth of the emission is contained within the frequency band designated in the rule section under which the equipment is operated. 5.4.4 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest signal amplitude observed from the transmitter at the fundamental frequency. Alternative is the x-dB-down function of the analyser used. The EBW is than directly shown in the marker display. The measurement is performed with normal modulation and a transfer rate means the worst case. Spectrum analyser settings: RBW: 100 kHz VBW: 300 kHz Span: 10 MHz Sweep time: 2.5 ms Detector: peak Trace: max hold FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 32 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.6 Receiver radiated e…

Text truncated - open the document above for the full version.
