SDL-PR3XR02Rotating Laser

PR 30-HVS Operating Instructions en *0000000* 0000000 ௾ ௺௹ ௻ ௼ ௽ 1   ௹ ௻ ௺    ௺ ௹  ௹ ௻ ௺  ௾ ௿ ఀ ௽ ௼ ௺ ௹ ௻   ௻ ௺ ௹ ௼ ௽ ௾ ఁ ఀ ௿ 2 3 4 56 ௻ ௺ ௹ ௼               35$35$35$    7 8 9     ƒ $ % $ [ $ % $      [  10 11 12 13 14 P D ƒ E ƒ ƒ F ƒ ƒ G ƒ ƒ P P P P 5 $ P % 15 16 5 P 5 $ & % PP 555555 17 ORIGINAL OPERATING INSTRUCTIONS PR 30‑HVS rotating laser It is essential that the operating instructions are read before the tool is operated for the first time. Always keep these operating instructions to- gether with the tool. Ensure that the operating instructions are with the tool when it is given to other persons. ContentsPage 1 General information2 2Description2 3 Accessories5 4 Technical data5 5 Safety instructions7 6Beforeuse9 7 Operation10 8 Care and maintenance14 9 Troubleshooting15 10 Disposal16 11 Manufacturer’s warranty - tools17 12 FCC statement (applicable in US) / IC statement (applicable in Canada)17 1These numbers refer to the corresponding illustra- tions. The illustrations can be found on the fold-out cover pages. Keep these pages open while studying the oper- ating instructions. In these operating instructions, the designation “the tool” or “the rotating laser” always refers to the PR 30-HVS. The designation “remote control / laser receiver” always refers to the PRA 30 (03). Rotating laser1 @ Laser beam (plane of rotation) ; Rotating head = Grip % Control panel & Battery compartment ( Base plate with ⁵/₈" thread ) PRA 84 Li‑ion battery + Charging activity LED § Catch / Charging cord socket Rotating laser control panel2 @ On/off button ; Auto-leveling LED = LED arrow for electronic inclination alignment % Electronic inclination alignment button (only in con- junction with inclined plane mode) & Shock warning function button and LED ( Inclined plane mode button and LED ) Surveillance mode LED (only with automatic vertical alignment) + Battery charge status LED PRA 30 control panel4 @ On/off button ; Inclination entry button “Plus” / direction button “Right” (with the PRA 90: “Up”) = Units button % Volume button & Inclination entry button “Minus” / direction button “Left” (with the PRA 90: “Down”) ( Button for automatic alignment / vertical surveil- lance mode (double click) ) Receiving window + Marking notch § Display PRA 30 display5 @ Display showing the position of the receiver relative to the height of the laser plane ; Battery status = Volume % Display showing the distance of the receiver from the laser plane en 1 >1/4s /$6(55$',$7,21'2127 67$5(,172%($0 QP3RP:Õ530 &/$66,,/$6(5352'8&7 &$87,21 1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to seriousbodilyinjuryorfatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality. CAUTION Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property. NOTE Draws attention to an instruction or other useful informa- tion. 1.2 Explanation of the pictograms and other information Symbols Read the operating instructions before use. General warning Warning: caustic substances Warning: electricity For indoor use only Return waste material for recycling. Do not look into the beam. On the tool Laser class 2 according to EN 60825:2008 On the tool Laser Class II according to CFR 21, § 1040 (FDA) Location of identification data on the tool The type designation and serial number can be found on thetypeidentificationplateonthetool.Makeanoteof this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: Generation: 01 Serial no.: 2 Description 2.1 Use of the product as directed The Hilti PR 30-HVS is a rotating laser tool with a visible rotating laser beam and a reference beam set at 90° to the main beam. The PR 30-HVS can be used for alignment in the vertical, horizontalandinclinedplanes. The tool is designed to be used to determine, transfer and check levels, verticals, slopes and right angles. Examples of its uses are: transferring datums and height marks, determining right angles for walls, vertical alignment on reference points and setting out slopes. The tool is designed for professional use and may be operated, serviced andmaintained only by trained, authorized personnel. This personnel must be informed of any special hazards that maybe encountered. The tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed. Hilti supplies various accessories which allow the tool to be used with maximum efficiency. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. Take the influences of the surrounding area into account. Do not use the appliance where there is a risk of fire or explosion. Modification of the tool is not permissible. en 2 2.2 Features Thetoolmakesitpossibleforasinglepersontoleveloraligninanyplanequickly and with great accuracy. The tool levels itself automatically after switching on. The laser beam isemitted only when the specified accuracy has been achieved. LEDs indicate the current operating status. The tool is powered by a rechargeable Li‑ion battery which can be charged while the tool is in operation. 2.3 PRA 30 combined remote control and laser receiver The PRA 30 is a combined remote control unit and laser receiver. It can be used to control the PR 30-HVS rotating laser over great distances. The PRA 30 also serves as a laser receiver and can thus be used to detect and indicate the laser beam at great distance. 2.4 Digital distance measurement display The PRA 30 displays digitally the distance between the laser pla…

Text truncated - open the document above for the full version.

Request for Confidentiality Date: 07.05.2013 Subject: Confidentiality Request for: FCC ID: SDL-PR3XR02 IC: 5228A-PR3XR02 ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Hilti Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of (0) days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Manager Certification Thomas Ring 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.”

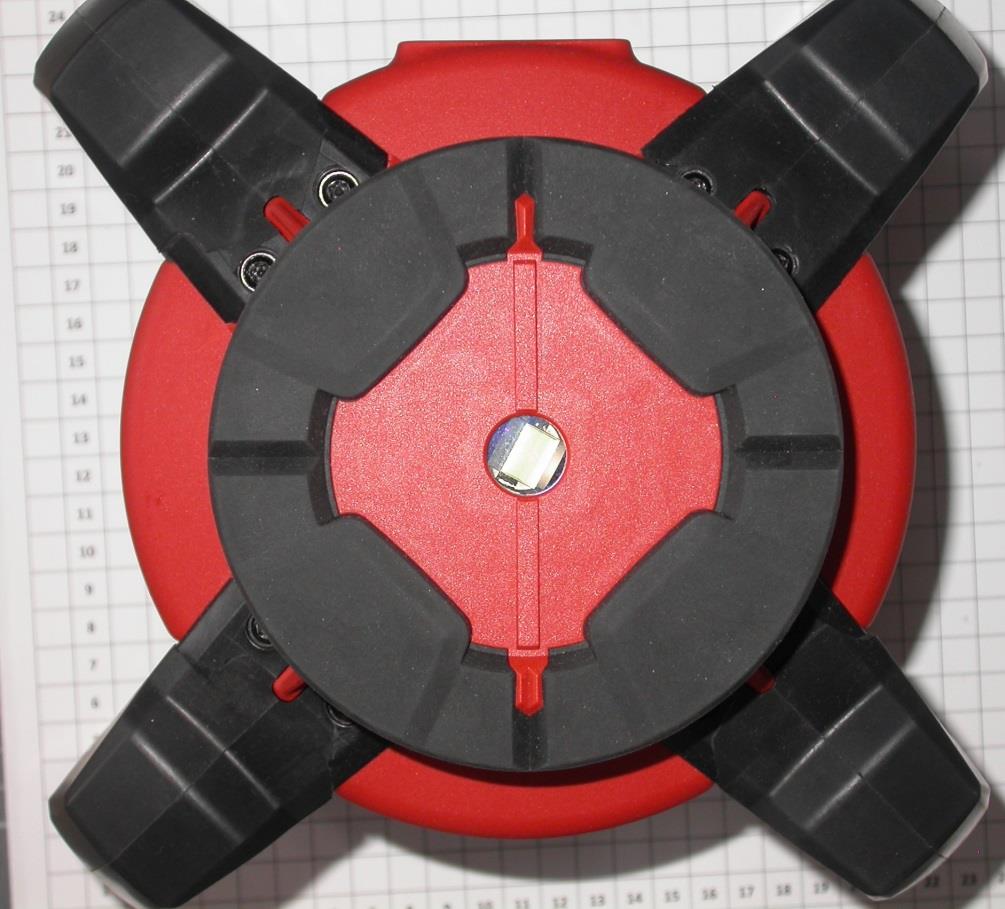

FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 6 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT External view: FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 7 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04

Label Location

FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 8 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Internal views: RF PCB FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 9 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 10 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 11 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 1 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 EMI -- T E S T R E P O R T - FCC Part 15.249 - Test Report No. : T33893-01-02HS 03. August 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : PR35 Product Description : Rotating laser Applicant : Hilti AG Address : Feldkirchnerstrasse 100 9494 SCHAAN, LICHTENSTEIN Manufacturer : HILLOS GmbH Address : 07745 JENA, GERMANY Prüssingstrasse 41 Licence holder : Hilti AG Address : Feldkirchnerstrasse 100 9494 SCHAAN, LICHTENSTEIN Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. DAT-P-207/05-00 Registration No. DAT-P-207/05 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 2 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT 5 3.2 Power supply system utilised 11 3.3 Short description of the equipment under test (EUT) 11 4 TEST ENVIRONMENT 12 4.1 Address of the test laboratory 12 4.2 Environmental conditions 12 4.3 Statement of the measurement uncertainty 12 4.4 Measurement protocol for FCC 13 4.5 Determination of worst case measurement conditions 14 5 TEST CONDITIONS AND RESULTS 15 5.1 Conducted emissions 15 5.2 Radiated emission of the fundamental wave 21 5.3 Spurious emissions radiated 24 5.4 20 dB bandwidth 29 5.5 Antenna application 31 5.6 Receiver radiated emissions 32 6 USED TEST EQUIPMENT AND ACCESSORIES 35 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 3 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2009) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15 Subpart B - Unintentional Radiators (October, 2009) Part 15, Subpart B, Section 15.107 AC Line conducted emissions Class A device Class B device Part 15, Subpart B, Section 15.109 Radiated emissions, general requirements Part 15, Subpart B, Section 15.111 Antenna power conduction FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 929 kHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:1992 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 4 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 2 SUMMARY GENERAL REMARKS: The EUT is equipped with a RF transceiver operating within the free 2.4 GHz ISM band that enables the user to control the whole alignment system remote. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 26 June 2010 Testing concluded on : 30 June 2010 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Hermann Smetana Dipl.-Ing.(FH) Radio Expert FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 5 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT External view: FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 6 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 7 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Internal views: RF PCB FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 8 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 9 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 10 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 11 of 35 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 3.2 Power supply system utilised Power supply voltage : 100 – 240 VAC, 7.2 VDC Lithium ion battery 3.3 Short description of the equipment under te…

Text truncated - open the document above for the full version.

FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 1 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 EMI − T E S T R E P O R T - FCC Part 15.249, RSS210 - Test Report No. : T36776-01-00TK 05. July 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name : PR30-HVS Product Description : Rotating Laser Applicant : Hilti AG Address : Feldkircherstrasse 100 9494 SCHAAN, LIECHTENSTEIN Manufacturer : HILLOS GmbH Address : Prüssingstraße 41 07745 JENA, GERMANY Licence holder : Hilti AG Address : Feldkircherstrasse 100 9494 SCHAAN, LIECHTENSTEIN Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 2 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 2.1 GENERAL REMARKS: 4 2.2 Test result summery 4 2.3 FINAL ASSESSMENT: 5 3 EQUIPMENT UNDER TEST 6 3.1 Photo documentation of the EUT 6 3.2 Power supply system utilised 12 3.3 Short description of the equipment under test (EUT) 12 4 TEST ENVIRONMENT 13 4.1 Address of the test laboratory 13 4.2 Environmental conditions 13 4.3 Statement of the measurement uncertainty 13 4.4 Measurement protocol for FCC and IC 14 4.5 Determination of worst case measurement conditions 14 5 TEST CONDITIONS AND RESULTS 15 5.1 Radiated emission of the fundamental wave 15 5.2 Spurious emissions radiated 17 5.3 Correction for pulse operation (duty cycle) 30 5.4 Antenna application 33 6 USED TEST EQUIPMENT AND ACCESSORIES 34 FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 3 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September, 2012) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 4 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 2 SUMMARY 2.1 GENERAL REMARKS: The EUT is equipped with a RF transceiver operating within the free 2.4 GHz ISM band that enables the user to control the whole alignment system remote. The EUT is modified to use one of three fixed frequencies with a LBT mechanism to use the free frequency which isn ́t occupied. Update testing The EUT is tested and compliant according CFR 47, Part 15.249, FCC ID: SDL-PR3XR01 with the Test Report No. T33893-01-02HS, 2010-08-02 and RSS 210, IC ID: 5228A-PR3XR01 with the Test Report No. T33893-01-03HS, 2010-08-03 by mikes testing partners GmbH. The EUT has only got a re-configuration of the transmission frequency. All other devices are in position and value the same. This Test Report shows the further compliance with CFR 47, Part 15.249 by re-measurement of the most concerned tests to the RF-part. The following tests are selected for re-measurement: - Equivalent isotropic radiated power - Transmitter spurious emissions Variants of the EUT During the tests one EUT worked with the fixed frequency of 2405 MHz, the second EUT worked with 2440 MHz and the third worked with 2480 MHz. The fourth sample was tested in live mode to test the frequency selection function and to measure duty cycle to calculate a correction factor. 2.2 Test result summery Operating in the 2400 MHz – 2483.5 MHz band: FCC Rule Part RSS Rule Part Description Result 15.35(c) RSS-Gen, 4.5 Pulsed operation not tested 15.203 RSS Gen, 7.1.2 Antenna requirement not tested 15.204 RSS Gen, 7.1.1 External radio frequency power amplifiers not tested 15.205(a) RSS-Gen, 7.2.2 Emissions in restricted bands not tested 15.207(a) RSS Gen, 7.2.4 AC power line conducted emissions not tested 15.215(c) -20 dBc EBW not tested RSS-Gen, 4.6.1 Occupied Bandwidth not tested 15.249(a) RSS-210, A2.9(a) Field strength of fundamental passed 15.249(d) RSS Gen, 7.2.5 Out-of-band emission, radiated passed RSS-Gen, 7.2.6 Transmitter frequency stability not tested The mentioned RSS Rule Parts in the above table are related to: RSS Gen, Issue 3, December 2010 RSS 210, Issue 8, December 2010 RSS 102, Issue 4, March 2010 FCC ID: SDL - PR3XR02 IC ID: 5228A – PR3XR02 mikes-testingpartners gmbh File No. T36776-01-00TK, page 5 of 3…

Text truncated - open the document above for the full version.

American Certification Body, Inc. 6731 Whittier Ave. Suite C110 McLean, VA 22101 Model PR 30HVS; FCC ID: SDL-PR3XR02 / IC: 5228A-PR3XR02 Model PR35, certied 2010 under FCC ID: SDL-PR3XR01 / IC: 5228A-PR3XR01 We confirm that the power supply section of the devices is identical and that the main device does not provide a different ‘loading’ or ‘current rating’, due to the changes in electronics. There are no new clocks or generated signals below 30 MHz. The changes of the equipment since 2010 as described in document „ 13-03-11-Lukic-Differences-PR30HVS- PR35.pdf” does not influence the test results in the test reports no. T33893-01-02HS and T33892-01-03HS. By: __________________________ Thomas Ring (Signature) (Print name) Title: Manager Certification email: [email protected] On behalf of: mikes-testingpartners gmbh (Company Name) Telephone: +49 9424 9481-214

Addition to transmitter fundamental signal level test The transmitter fundamental level was measured in test report T36776‐01‐00TK with averaging method (10 Hz VBW), giving a measurement result of 40 dBμV/m This inherently takes into account the long term duty cycle of one pulse per 600 mS period For completeness, the measurement is here compared to the FCC and IC requirements to average over a 100 mS period, using the peak level and the duty cycle correction factor As per section 5.3 of test report T36776‐01‐00TK is ‐36.1 dB As per section 5.1.3 of test report T36776‐01‐00TK, the peak fundamental level is 98.6 dBμV/m Therefore, the average fundamental level according to the FCC and IC requirements for a pulsing signal is: 98.6 – 36.1 = 62.5 dBμV/m

FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 15 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up 5.1.3 Applicable standard According to FCC Part 15, Section 15.207(a): Except as shown in paragraphs (b) and (c) of this Section, for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies within the band 150 kHz to 30 MHz shall not exceed the given limits. 5.1.4 Description of Measurement The measurements are performed following the procedures set out in ANSI C63.4 described under item 4.4.3. If the minimum limit margin appears to be less than 20 dB with a peak mode measurement, the emissions are remeasured using a tuned receiver with quasi-peak and average detection and recorded on the data sheets. FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 21 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.2 Radiated emission of the fundamental wave For test instruments and accessories used see section 6 Part CPR 3. 5.2.1 Description of the test location Test location: Anechoic Chamber A2 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up 5.2.1 Applicable standard According to FCC Part 15C, Section 15.249(a): The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the effective limits. 5.2.2 Description of Measurement The radiated emission of the fundamental wave from the EUT is measured using a spectrum analyser and appropriate linear polarized antennas. Analyser settings: Peak measurement: RBW: 1 MHz VBW: 1 MHz Detector: Max peak AV measurement: RBW: 1 MHz VBW: 10 Hz Detector: Max peak FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 24 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.3 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER1, SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS 1 Test location: Anechoic Chamber A2 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up OATS1 (9 kHz - 30 MHz) OATS1 (30 - 1000 MHz) FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 25 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 Anechoic chamber 5.3.3 Applicable standard According to FCC Part 15C, Section 15.249 (d): Emission radiated outside of the specified frequency bands, except harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limit in FCC Part 15C, Section 15.209, whichever is the lesser attenuation. 5.3.4 Description of Measurement The radiated emissions from the EUT are measured in the frequency range of 9 kHz to 1000 MHz using a tuned receiver and appropriate broadband linearly polarized antennas. The set up of the EUT will be in accordance to ANSI C63.4. In the frequency range above 1 GHz a spectrum analyser is used with appropriate linear polarized antennas. If the emission level in peak mode complies with the average limit then testing will be stopped and peak values of the EUT will be reported, otherwise, the emission will be measured in average mode again and reported. During the test, the EUT was set into continuous transmitting mode modulated. Instrument settings: 9 kHz - 150 kHz RBW: 200 Hz 150 kHz - 30 MHz RBW: 9 kHz 30 MHz – 1000 MHz: RBW: 120 kHz 1000 MHz – 25 GHz RBW: 1 MHz 5.3.5 Test result f < 1 GHz Channel 1 Frequency (MHz) Reading level QP (dBμV) Reading level AV (dBμV) RBW (kHz) Correction factor (dB/m) Corrected level QP dB(μV/m) Corrected level AV dB(μV/m) Limit dB(μV/m) Delta (dB) 111.5 12.2 120 12.3 24.5 43.5 -19.0 Note: The correction factor includes cable loss and antenna factor. FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 29 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.4 20 dB bandwidth For test instruments and accessories used see section 6 Part MB. 5.4.1 Description of the test location Test location: Anechoic Chamber A2 5.4.2 Photo documentation of the test set-up 5.4.3 Applicable standard According to FCC Part 15, Section 15.215(c): Intentional radiators operating under the alternative provisions to the general emission limits, as contained in Section 15.217 through Section 15.257, must be designed to ensure that the 20 dB bandwidth of the emission is contained within the frequency band designated in the rule section under which the equipment is operated. 5.4.4 Description of Measurement The bandwidth is measured at an amplitude level reduced from the reference level by a specified ratio of -20 dB. The reference level is the level of the highest signal amplitude observed from the transmitter at the fundamental frequency. Alternative is the x-dB-down function of the analyser used. The EBW is than directly shown in the marker display. The measurement is performed with normal modulation and a transfer rate means the worst case. Spectrum analyser settings: RBW: 100 kHz VBW: 300 kHz Span: 10 MHz Sweep time: 2.5 ms Detector: peak Trace: max hold FCC ID:SDL-PR3XR01 mikes-testingpartners gmbh File No. T33893-01-02HS, page 32 of 35 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.1, 13.4.2010 5.6…

Text truncated - open the document above for the full version.

FCC ID: SDL - PR3XR…
