PR 30-HVS Operating Instructions en *0000000* 0000000 ௾ ௺௹ ௻ ௼ ௽ 1   ௹ ௻ ௺    ௺ ௹  ௹ ௻ ௺  ௾ ௿ ఀ ௽ ௼ ௺ ௹ ௻   ௻ ௺ ௹ ௼ ௽ ௾ ఁ ఀ ௿ 2 3 4 56 ௻ ௺ ௹ ௼               35$35$35$    7 8 9     ƒ $ % $ [ $ % $      [  10 11 12 13 14 P D ƒ E ƒ ƒ F ƒ ƒ G ƒ ƒ P P P P 5 $ P % 15 16 5 P 5 $ & % PP 555555 17 ORIGINAL OPERATING INSTRUCTIONS PR 30‑HVS rotating laser It is essential that the operating instructions are read before the tool is operated for the first time. Always keep these operating instructions to- gether with the tool. Ensure that the operating instructions are with the tool when it is given to other persons. ContentsPage 1 General information2 2Description2 3 Accessories5 4 Technical data5 5 Safety instructions7 6Beforeuse9 7 Operation10 8 Care and maintenance14 9 Troubleshooting15 10 Disposal16 11 Manufacturer’s warranty - tools17 12 FCC statement (applicable in US) / IC statement (applicable in Canada)17 1These numbers refer to the corresponding illustra- tions. The illustrations can be found on the fold-out cover pages. Keep these pages open while studying the oper- ating instructions. In these operating instructions, the designation “the tool” or “the rotating laser” always refers to the PR 30-HVS. The designation “remote control / laser receiver” always refers to the PRA 30 (03). Rotating laser1 @ Laser beam (plane of rotation) ; Rotating head = Grip % Control panel & Battery compartment ( Base plate with ⁵/₈" thread ) PRA 84 Li‑ion battery + Charging activity LED § Catch / Charging cord socket Rotating laser control panel2 @ On/off button ; Auto-leveling LED = LED arrow for electronic inclination alignment % Electronic inclination alignment button (only in con- junction with inclined plane mode) & Shock warning function button and LED ( Inclined plane mode button and LED ) Surveillance mode LED (only with automatic vertical alignment) + Battery charge status LED PRA 30 control panel4 @ On/off button ; Inclination entry button “Plus” / direction button “Right” (with the PRA 90: “Up”) = Units button % Volume button & Inclination entry button “Minus” / direction button “Left” (with the PRA 90: “Down”) ( Button for automatic alignment / vertical surveil- lance mode (double click) ) Receiving window + Marking notch § Display PRA 30 display5 @ Display showing the position of the receiver relative to the height of the laser plane ; Battery status = Volume % Display showing the distance of the receiver from the laser plane en 1 >1/4s /$6(55$',$7,21'2127 67$5(,172%($0 QP3RP:Õ530 &/$66,,/$6(5352'8&7 &$87,21 1 General information 1.1 Safety notices and their meaning DANGER Draws attention to imminent danger that will lead to seriousbodilyinjuryorfatality. WARNING Draws attention to a potentially dangerous situation that could lead to serious personal injury or fatality. CAUTION Draws attention to a potentially dangerous situation that could lead to slight personal injury or damage to the equipment or other property. NOTE Draws attention to an instruction or other useful informa- tion. 1.2 Explanation of the pictograms and other information Symbols Read the operating instructions before use. General warning Warning: caustic substances Warning: electricity For indoor use only Return waste material for recycling. Do not look into the beam. On the tool Laser class 2 according to EN 60825:2008 On the tool Laser Class II according to CFR 21, § 1040 (FDA) Location of identification data on the tool The type designation and serial number can be found on thetypeidentificationplateonthetool.Makeanoteof this data in your operating instructions and always refer to it when making an enquiry to your Hilti representative or service department. Type: Generation: 01 Serial no.: 2 Description 2.1 Use of the product as directed The Hilti PR 30-HVS is a rotating laser tool with a visible rotating laser beam and a reference beam set at 90° to the main beam. The PR 30-HVS can be used for alignment in the vertical, horizontalandinclinedplanes. The tool is designed to be used to determine, transfer and check levels, verticals, slopes and right angles. Examples of its uses are: transferring datums and height marks, determining right angles for walls, vertical alignment on reference points and setting out slopes. The tool is designed for professional use and may be operated, serviced andmaintained only by trained, authorized personnel. This personnel must be informed of any special hazards that maybe encountered. The tool and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed. Hilti supplies various accessories which allow the tool to be used with maximum efficiency. To avoid the risk of injury, use only genuine Hilti accessories and insert tools. Observe the information printed in the operating instructions concerning operation, care and maintenance. Take the influences of the surrounding area into account. Do not use the appliance where there is a risk of fire or explosion. Modification of the tool is not permissible. en 2 2.2 Features Thetoolmakesitpossibleforasinglepersontoleveloraligninanyplanequickly and with great accuracy. The tool levels itself automatically after switching on. The laser beam isemitted only when the specified accuracy has been achieved. LEDs indicate the current operating status. The tool is powered by a rechargeable Li‑ion battery which can be charged while the tool is in operation. 2.3 PRA 30 combined remote control and laser receiver The PRA 30 is a combined remote control unit and laser receiver. It can be used to control the PR 30-HVS rotating laser over great distances. The PRA 30 also serves as a laser receiver and can thus be used to detect and indicate the laser beam at great distance. 2.4 Digital distance measurement display The PRA 30 displays digitally the distance between the laser pla…

Text truncated - open the document above for the full version.

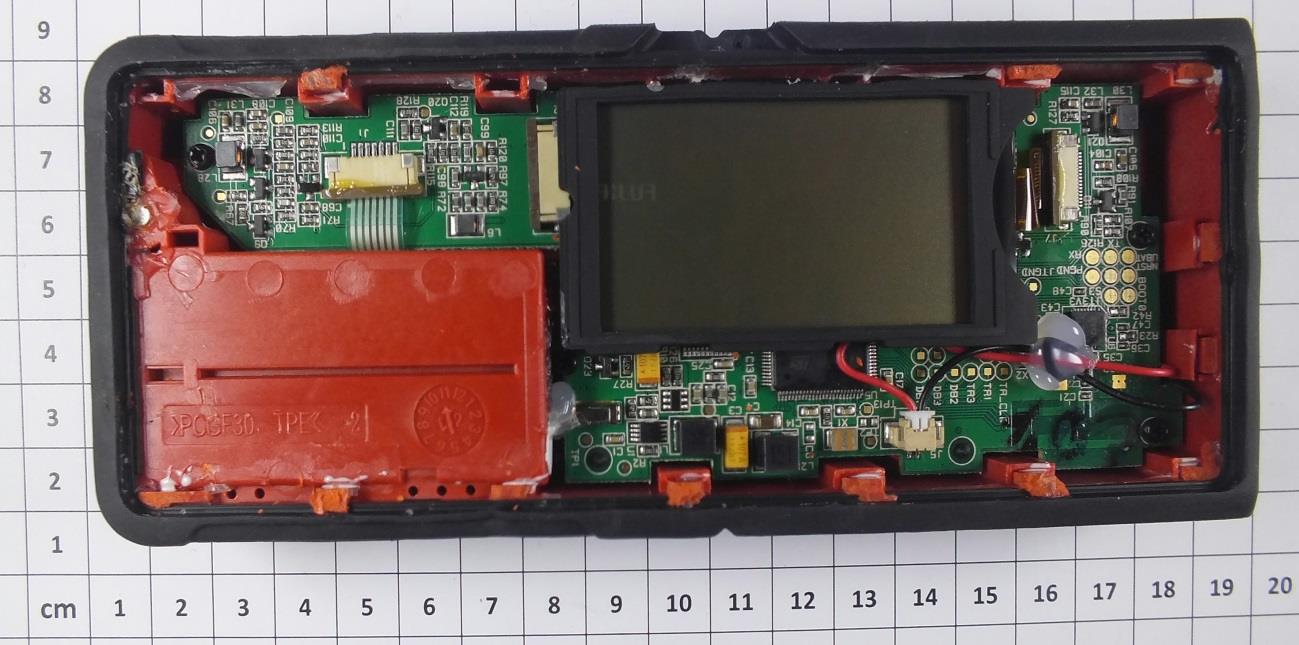

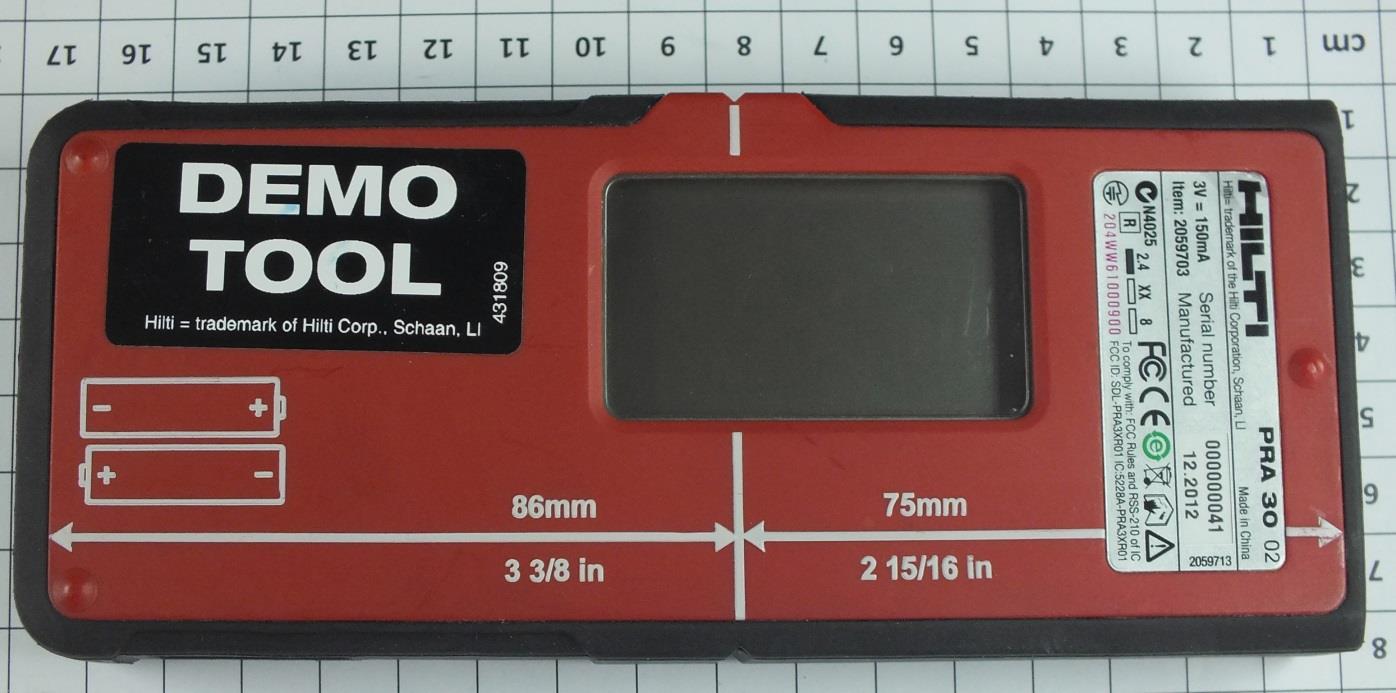

FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 6 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 3 E Q U I P M E N T U N D E R T E S T 3.1 Photo documentation of the EUT External view: FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 7 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Internal view:

FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 7 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Internal view: FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 8 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04

FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-00-00TK, page 1 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 EMI − T E S T R E P O R T - FCC Part 15.249, RSS210 - Test Report No. : T36940-00-00TK 27. August 2013 ______________________________________________________________________________________________ Date of issue Type / Model Name :PRA30 Product Description : Radio remote control for Laser detector Applicant : Hilti AG Address : Feldkircherstrasse 100 9494 SCHAAN, LIECHTENSTEIN Manufacturer : HILLOS GmbH Address : Prüssingstraße 41 07745 JENA, GERMANY Licence holder : Hilti AG Address : Feldkircherstrasse 100 9494 SCHAAN, LIECHTENSTEIN Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-00-00TK, page 2 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 2.1 GENERAL REMARKS: 4 2.2 Test result summery 4 2.3 FINAL ASSESSMENT: 5 3 EQUIPMENT UNDER TEST 6 3.1 Photo documentation of the EUT 6 3.2 Power supply system utilised 9 3.3 Short description of the equipment under test (EUT) 9 4 TEST ENVIRONMENT 10 4.1 Address of the test laboratory 10 4.2 Environmental conditions 10 4.3 Statement of the measurement uncertainty 10 4.4 Measurement protocol for FCC and IC 11 4.5 Determination of worst case measurement conditions 11 5 TEST CONDITIONS AND RESULTS 12 5.1 Field strength of fundamental 12 5.2 Spurious emissions radiated 14 5.3 Correction for pulse operation (duty cycle) 27 5.4 Occupied Bandwidth 30 5.5 Antenna application 33 6 USED TEST EQUIPMENT AND ACCESSORIES 34 FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-00-00TK, page 3 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2012) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (September, 2012) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-00-00TK, page 4 of 34 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 2 SUMMARY 2.1 GENERAL REMARKS: The EUT is equipped with a RF transceiver operating within the free 2.4 GHz ISM band that enables the user to control the whole alignment system remote. The EUT is modified to use one of three fixed frequencies with a LBT mechanism to use the free frequency which isn ́t occupied. Update testing The EUT is tested and compliant according CFR 47, Part 15.249, FCC ID: SDL-PR3XR01 with the Test Report No. T33893-01-07HS, 2010-08-03 and RSS 210, IC ID: 5228A-PR3XR01 with the Test Report No. T33893-01-08HS, 2010-08-03 by mikes testing partners GmbH. The EUT has only got a re-configuration of the transmission frequency. All other devices are in position and value the same. This Test Report shows the further compliance with CFR 47, Part 15.249 by re-measurement of the most concerned tests to the RF-part. The following tests are selected for re-measurement: - Equivalent isotropic radiated power - Transmitter spurious emissions Variants of the EUT During the tests one EUT worked with the fixed frequency of 2405 MHz, the second EUT worked with 2440 MHz and the third worked with 2480 MHz. The fourth sample was tested in live mode to test the frequency selection function and to measure duty cycle to calculate a correction factor. 2.2 Test result summery Operating in the 2400 MHz – 2483.5 MHz band: FCC Rule Part RSS Rule Part Description Result 15.35(c) RSS-Gen, 4.5 Pulsed operation not tested 15.203 RSS Gen, 7.1.2 Antenna requirement not tested 15.204 RSS Gen, 7.1.1 External radio frequency power amplifiers not tested 15.205(a) RSS-Gen, 7.2.2 Emissions in restricted bands not tested 15.207(a) RSS Gen, 7.2.4 AC power line conducted emissions not tested 15.215(c) RSS-Gen, 4.6.1 Occupied Bandwidth passed 15.249(a) RSS-210, A2.9(a) Field strength of fundamental passed 15.249(d) RSS Gen, 7.2.5 Out-of-band emission, radiated passed RSS-Gen, 7.2.6 Transmitter frequency stability not tested The mentioned RSS Rule Parts in the above table are related to: RSS Gen, Issue 3, December 2010 RSS 210, Issue 8, December 2010 RSS 102, Issue 4, March 2010 FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-00…

Text truncated - open the document above for the full version.

FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 12 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 5 T E S T C O N D I T I O N S A N D R E S U L T S 5.1 Field strength of fundamental For test instruments and accessories used see section 6 Part CPR 3. 5.1.1 Description of the test location Test location: Anechoic chamber 2 Test distance: 3 m 5.1.2 Photo documentation of the test set-up 5.1.1 Applicable standard According to FCC Part 15C, Section 15.249(a): The field strength of emissions from intentional radiators operated within these frequency bands shall comply with the effective limits. 5.1.2 Description of Measurement The radiated emission of the fundamental wave from the EUT is measured using a spectrum analyser and appropriate linear polarized antennas. The set up of the EUT and the measurement procedure is in accordance to ANSI C63.4, Item 8.3. The EUT is measured in TX continuous mode unmodulated under normal conditions. Analyser settings: Peak measurement: RBW: 1 MHz VBW: 3 MHz Detector: Max peak AV measurement: RBW: 1 MHz VBW: 10 Hz Detector: Max peak FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 14 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 5.2 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER1, SER 2, SER 3. 5.2.1 Description of the test location Test location: OATS 1 Test location: Anechoic chamber 2 Test distance: 3 m 5.2.2 Photo documentation of the test set-up Test setup 9 kHz – 30 MHz: Test setup 30 MHz – 1000 MHz: FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 15 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 Test setup 1 GHz – 18 GHz: FCC ID: SDL - PRA3XR02 IC ID: 5228A - PRA3XR02 mikes-testingpartners gmbh File No. T36940-01-00TK, page 27 of 31 Ohmstrasse 2-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481240 Rev. No. 1.3, 2013-04-04 5.3 Correction for pulse operation (duty cycle) For test instruments and accessories used see section 6 Part CPR3. 5.3.1 Description of the test location Test location: Anechoic chamber 2 5.3.2 Photo documentation of the test set-up 5.3.3 Applicable standard According to FCC Part 15A, Section 15.35(c): When the radiated emission limits are expressed in terms of average value and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete puls train, including blanking intervals, as long as the pulse train does not exceed 0.1s. In cases where the puls train exceeds 0.1s, the measured field strength shall be determined from the average absolute voltage during a 0.1s interval during which the field strength is at its maximum. The exact method of calculating the average field strength shall be submitted.
