SDNB020548Bluetooth Stereo Speaker

1. button 2. button 3. VOL(Volume) - button 4. VOL(Volume) + button 5. (Skip Backward) button 6. (Skip Forward) button 6 3 5 4 1 2 6 1. POWER ON/OFF switch 2. button 3. VOL (Volume) + button 4. VOL (Volume) - button 5. USB port (For DC IN) 6. LINE IN jack AC/USB Adaptor In fist time use, slide the insulation film from the battery door and discard it as the figure on right: Approx.12 feet Pairing: DC 5V, 1.5A Through MINI USB Port Maximum 7.5W The button cell was consumed, replace by new one. USB adapter Connection Cable Connection cable (For Charging Only) 1.5A,) 0.4A; (Included, Already installed) Craig warrants this product to be free from manufacturing defects in material and workmanship under normal use for a period of 90 days from date of purchase. If service is required, please return the product to the store where it was purchased for exchange; or , pack the unit in the original packing material with all accessories if applicable, a copy of your sales receipt and a Cashier’s check or Money Order for $7.00 (to cover shipping and handling costs) payable to Craig Electronics Inc. For consumers in Canada, please make sure that the cashier check or money order is redeemable through a U.S. bank. Ship your product freight pre-paid. Your unit will be repaired, replaced or if the unit can not be repaired or replaced, a refund will be forwarded to you within four weeks of receipt of your unit. Please ship your unit to: Craig Electronics Inc. 1160 NW 163 Drive Miami, Fl 33169 This warranty is void if the product has been: a) Used in a commercial application or rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by anyone other than an authorized Craig service center. d) Damaged because it is improperly connected to any other equipment. Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s Manual which can be performed by the customer. b) Damage to equipment not properly connected to the product. c) Any cost incurred in shipping the product for repair. d) Damage to the product not used in the USA. This warranty is not transferable and only applies to the original purchase. Any implied warranties, including the warranty of merchantability, are limited in duration to the period of this expressed warranty and no warranty whether expressed or implied shall apply to the product thereafter. Under no circumstance shall Craig be liable for any loss or consequential damage arising out of the use of this product. This warranty gives specific legal rights. However, you may have other rights which may vary from state to state. Some states do not allow limitations on implied warranties or exclusion of consequential damage. Therefore, these restrictions may not apply to you. To Obtain Service on your Product email:[email protected] Printed in China CHT913_WC_E0FG1_B0US LIMITED WARRANTY 1. Connect the Headphone/Earphone; AUX out; Line out jacks from the external audio player (such like MP3 player; Discman . . . etc) to the LINE IN jacks on the unit by the supplied Line In connection cable as the figure on right : 2. Slide the POWER ON/OFF Switch of the unit to ON position to power on the unit. The STANDBY Indicator will turn on. 3. Press the button on the unit or Remote Control to turn the unit ON from standby mode. The STANDBY indicator will blink. Press again to turn to STANDBY mode. Note: If unplug the Line In Connection Cable from the Line In Jack. The unit will turn to BT mode automatically and the color of STANDBY Indicator will turn to blue. 4. Press the VOL +/- buttons to adjust volume levels (When the volume level turned to maximum or minimum, two shot tones will be heard from speaker). 5. Press the button on the Remote Control to mute the sound temporary, press again to resume. 6. When finished listening, press the button to turn off (standby mode) the unit. NOTE: To saving the electric power, unplug the AC/USB Adaptor from wall outlet if long period of time will not use. 1. Make sure the Line In Connection Cable is Unplug from the LINE IN jack. 2. Slide the POWER ON/OFF Switch of the unit to ON position to power on the unit. The STANDBY Indicator will turn on. 3. Press the button on the unit or Remote Control to turn the unit ON from standby mode. The BT Indicator (Blue) will light and blink. Notes: ~ When the external BT Device searched the unit, our model number “CHT 913” will appear on the display of external BT Device. ~ Pairing code “0000” may need to enter. Normal operation after paired: 1. Turn on the BT function of the external BT Device. 2. Power on the unit and enter to BT mode as previous procedures. 3. Wait a few seconds unit the unit paired to the external BT Device automatically. (The BT Indicator will stop blinking). 4. Plays the music in the connected BT Device as usual. 5. During playback: ~ Press the button on the Remote Control to pause; press again to resume normal playback. ~ Press and release the VOL +/- buttons on the unit or / buttons on the Remote Control to skip tracks. ~ Press and hold the VOL +/- buttons on the unit or press the VOL +/- buttons on the Remote Control to adjust volume level. (When the volume level turned to maximum or minimum, two shot tones will be heard from speaker). Follow these precautions when using a battery in this device: 1. Use only the size and type of battery specified. 2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment A reversed battery may cause damage to the device. 3. If the battery in the device is consumed or the device is not to be used for a long period of time. remove the batteries to prevent damage or injury from possible battery leakage. 4. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture 5. The batteries shall not be exposed to excessive heat such as sunshine. fire or the like 6. Clean the battery contacts and also those of the device prior to battery insta…

Text truncated - open the document above for the full version.

PAGE 2 OF 7 Tonika Electronics Technology (Shenzhen) Co., Ltd. Company Name: Tonika Electronics Technology (Shenzhen) Co., Ltd. Address: No.55 Busha Road No.2 Shanwei Industrial Estate, Zhangshubu Commune, Nanwan Town, Longgang district, Shenzhen, Guangdong, China Date : 2013-07-16 FCC ID: SDNB020548 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Specifically, “Tonika Electronics Technology (Shenzhen) Co., Ltd.” requests that the following materials be withheld from public inspection under 47CFR 0.459 because they are confidential trade secrets and technical data which would be guarded from competitors. (1) detailed circuit schematic of unit under test (2) parts list (3) block diagram (4) Circuit Description Therefore, in accordance with 47CFR Sections 0.457 and 0.459 we request that the above listed materials, copies of which are attached here, be withheld from public inspection.

Tonika Electronics Technology (Shenzhen) Co., Ltd. To : STC (DongGuan) COMPANY LIMITED DECLARATION OF IDENTITY Hereby we: Tonika Electronics Technology (Shenzhen) Co., Ltd. (Name of Manufacturer) Basic Model Number: Basic Brand Name: Basic Product Name: Bluetooth Stereo Soeaker TA-323 CRAIG Basic Test Report Application DMl11940, DMIll941 Number: Declare the Circuit, PCB Layout, Electrical Parts and Outlook of the followins product(s) are identical to the basic model: I Ne* / X Additional Model Number(s): I New / X Additional Brand Name(s): Except the following(s) : CHT913 Signature with Company Chop : q6#ffit Updated on2005/02/07 by Kally Chan

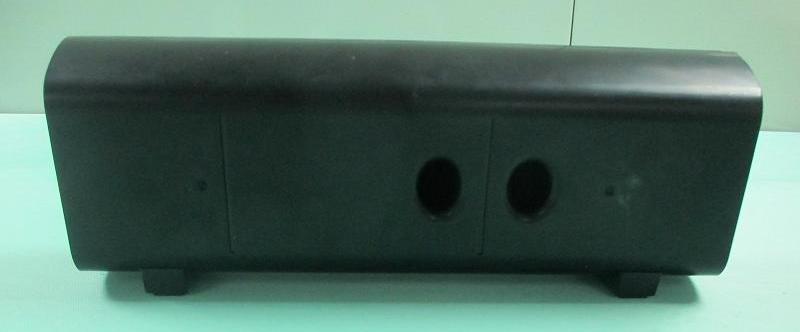

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

SDN

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2013-08-15 Page 1 of 83 No.: DM111940 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre Ltd. For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of Homepage. Applicant (LEH002): Tonika Electronics Technology (Shenzhen) Co., Ltd. No.55 Busha Road No.2 Shanwei Industrial Estate, Zhangshubu Commune, Nanwan Town, Longgang district, Shenzhen, Guangdong, China Manufacturer: Tonika Electronics Technology (Shenzhen) Co., Ltd. No.55 Busha Road No.2 Shanwei Industrial Estate, Zhangshubu Commune, Nanwan Town, Longgang district, Shenzhen, Guangdong, China Description of Sample(s): Product: Bluetooth Stereo Speaker Brand Name: CRAIG Model Number: TA-323 FCC ID: SDNB020548 Date Sample(s) Received: 2013-07-23 Date Tested: 2013-08-03 to 2013-08-07 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): For additional model(s) details, see page 3 LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2013-08-15 Page 2 of 83 No.: DM111940 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage CONTENT: Cover Page 1 of 83 Content Page 2 of 83 1.0 General Details 1.1 Test Laboratory Page 3 of 83 1.2 Equipment Under Test [EUT] Page 3 of 83 Description of EUT operation 1.3 Date of Order Page 3 of 83 1.4 Submitted Sample Page 3 of 83 1.5 Test Duration Page 3 of 83 1.6 Country of Origin Page 3 of 83 1.7 RF Module Details Page 4 of 83 1.8 Antenna Details Page 4 of 83 2.0 Technical Details 2.1 Investigations Requested Page 5 of 83 2.2 Test Standards and Results Summary Page 5 of 83 2.3 Table for Test Modes Page 6 of 83 3.0 Test Results 3.1 Emission Page 7 - 74 of 83 Appendix A List of Measurement Equipment Page 75 of 83 Appendix B Ancillary Equipment Page 75 of 83 Appendix C STC Test Report Date: 2013-08-15 Page 3 of 83 No.: DM111940 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage Photographs Page 76 - 83 of 83 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth Stereo Speaker Manufacturer: Tonika Electronics Technology (Shenzhen) Co., Ltd. Brand Name: CRAIG Model Number: TA-323 Additional Model Number(s): CHT913 Input Voltage: 5Vd.c. with Jack The AC/DC adaptor was provided by the applicant with following details: Brand name: N/A; Model no.: HB10-050150USPA; Input: 100-240Va.c. 50/60Hz 0.4A; Output: 5Vd.c. 1500mA. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Bluetooth Stereo Speaker of Tonika Electronics Technology (Shenzhen) Co., Ltd., it is Audio System, modulation by IC; and type is frequency hopping speed spectrum Modulation. 1.3 Date of Order 2013-07-23 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2013-08-03 to 2013-08-07 1.6 Country of Origin China STC Test Report Date: 2013-08-15 Page 4 of 83 No.: DM111940 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 1.7 RF Module Details Module Model Number: CT8853 Module FCC ID: Module Transmission Type: Bluetooth V2.1+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB layout internal antenna Antenna Gain: 2dBi STC Test Report Date: 2013-08-15 Page 5 of 83 No.: DM111940 The Hong Kong Standards and Testing Centre Ltd. 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] This report shall not be reproduced unless with prior written approval from The Hong Kong Standards and Testing Centre Ltd. For Conditions of Issuance of this test report, please refer to the overleaf or Homepage 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certi…

Text truncated - open the document above for the full version.

PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP PHOTOGRAPH OF THE PRODUCT
