SDNB061231Bluetooth Speaker

1. button 2. button 3. VOL(Volume) - button 4. VOL(Volume) + button 5. (Skip Backward) button 6. (Skip Forward) button 6 3 5 4 1 2 6 1. POWER ON/OFF switch 2. button 3. VOL (Volume) + button 4. VOL (Volume) - button 5. USB port (For DC IN) 6. LINE IN jack AC/USB Adaptor In fist time use, slide the insulation film from the battery door and discard it as the figure on right: Approx.12 feet Pairing: DC 5V, 1.5A Through MINI USB Port Maximum 7.5W The button cell was consumed, replace by new one. USB adapter Connection Cable Connection cable (For Charging Only) 1.5A,) 0.4A; (Included, Already installed) Craig warrants this product to be free from manufacturing defects in material and workmanship under normal use for a period of 90 days from date of purchase. If service is required, please return the product to the store where it was purchased for exchange; or, pack the unit in the original packing material with all accessories if applicable, a copy of your sales receipt and a Cashier’s check or Money Order for $7.00 (to cover shipping and handling costs) payable to Craig Electronics Inc. For consumers in Canada, please make sure that the cashier check or money order is redeemable through a U.S. bank. Ship your product freight pre-paid. Your unit will be repaired, replaced or if the unit can not be repaired or replaced, a refund will be forwarded to you within four weeks of receipt of your unit. Please ship your unit to: Craig Electronics Inc. 1160 NW 163 Drive Miami, Fl 33169 This warranty is void if the product has been: a) Used in a commercial application or rental. b) Damaged through misuse, negligence, or abuse. c) Modified or repaired by anyone other than an authorized Craig service center. d) Damaged because it is improperly connected to any other equipment. Note: This warranty does not cover: a) Ordinary adjustments as outlined in the Owner’s Manual which can be performed by the customer. b) Damage to equipment not properly connected to the product. c) Any cost incurred in shipping the product for repair. d) Damage to the product not used in the USA. This warranty is not transferable and only applies to the original purchase. Any implied warranties, including the warranty of merchantability, are limited in duration to the period of this expressed warranty and no warranty whether expressed or implied shall apply to the product thereafter. Under no circumstance shall Craig be liable for any loss or consequential damage arising out of the use of this product. This warranty gives specific legal rights. However, you may have other rights which may vary from state to state. Some states do not allow limitations on implied warranties or exclusion of consequential damage. Therefore, these restrictions may not apply to you. To Obtain Service on your Product email:[email protected] Printed in ChinaCHT913_WC_E0FG1_B0US LIMITED WARRANTY 1. Connect the Headphone/Earphone; AUX out; Line out jacks from the external audio player (such like MP3 player; Discman . . . etc) to the LINE IN jacks on the unit by the supplied Line In connection cable as the figure on right : 2. Slide the POWER ON/OFF Switch of the unit to ON position to power on the unit. The STANDBY Indicator will turn on. 3. Press the button on the unit or Remote Control to turn the unit ON from standby mode. The STANDBY indicator will blink. Press again to turn to STANDBY mode. Note: If unplug the Line In Connection Cable from the Line In Jack. The unit will turn to BT mode automatically and the color of STANDBY Indicator will turn to blue. 4. Press the VOL +/- buttons to adjust volume levels (When the volume level turned to maximum or minimum, two shot tones will be heard from speaker). 5. Press the button on the Remote Control to mute the sound temporary, press again to resume. 6. When finished listening, press the button to turn off (standby mode) the unit. NOTE: To saving the electric power, unplug the AC/USB Adaptor from wall outlet if long period of time will not use. 1. Make sure the Line In Connection Cable is Unplug from the LINE IN jack. 2. Slide the POWER ON/OFF Switch of the unit to ON position to power on the unit. The STANDBY Indicator will turn on. 3. Press the button on the unit or Remote Control to turn the unit ON from standby mode. The BT Indicator (Blue) will light and blink. Notes: ~ When the external BT Device searched the unit, our model number “CHT 913” will appear on the display of external BT Device. ~ Pairing code “0000” may need to enter. Normal operation after paired: 1. Turn on the BT function of the external BT Device. 2. Power on the unit and enter to BT mode as previous procedures. 3. Wait a few seconds unit the unit paired to the external BT Device automatically. (The BT Indicator will stop blinking). 4. Plays the music in the connected BT Device as usual. 5. During playback: ~ Press the button on the Remote Control to pause; press again to resume normal playback. ~ Press and release the VOL +/- buttons on the unit or / buttons on the Remote Control to skip tracks. ~ Press and hold the VOL +/- buttons on the unit or press the VOL +/- buttons on the Remote Control to adjust volume level. (When the volume level turned to maximum or minimum, two shot tones will be heard from speaker). Follow these precautions when using a battery in this device: 1. Use only the size and type of battery specified. 2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment A reversed battery may cause damage to the device. 3. If the battery in the device is consumed or the device is not to be used for a long period of time. remove the batteries to prevent damage or injury from possible battery leakage. 4. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture 5. The batteries shall not be exposed to excessive heat such as sunshine. fire or the like 6. Clean the battery contacts and also those of the device prior to battery install…

Text truncated - open the document above for the full version.

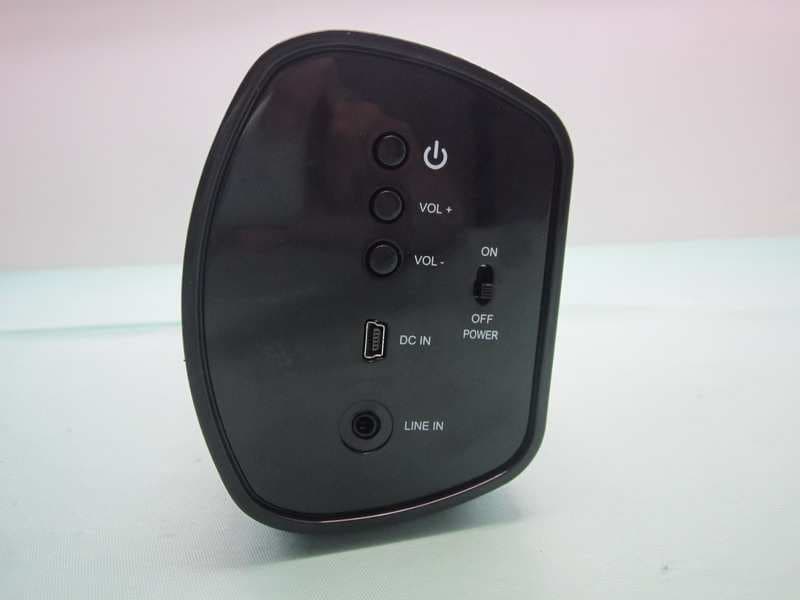

FCC ID: SDNB061231 PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT FCC ID: SDNB061231 PHOTOGRAPH OF THE PRODUCT LEFT VIEW OF THE PRODUCT RIGHT VIEW OF THE PRODUCT FCC ID: SDNB061231 PHOTOGRAPH OF THE PRODUCT TOP VIEW OF THE PRODUCT BTTOM VIEW OF THE PRODUCT

DEC 2014 FCC ID: SDNB061231

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT BOTTOM VIEW PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT PHOTOGRAPH OF THE PRODUCT

STC Test Report Date: 2014-11-24 Page 1 of 88 No.: DM117566 Applicant: TONIKA ELECTRONICS TECHNOLOGY(SHENZHEN) CO., LTD Shanwei Industrial Estate, Zhangshubu Commune, Nanwan, Longgang District, Shenzhen, Guangdong, China Manufacturer: TONIKA ELECTRONICS TECHNOLOGY(SHENZHEN) CO., LTD Shanwei Industrial Estate, Zhangshubu Commune, Nanwan, Longgang District, Shenzhen, Guangdong, China Description of Sample(s): Product: Bluetooth Stereo Speaker Brand Name: Craig Model Number: TA-323 FCC ID: SDNB061231 Date Sample(s) Received: 2014-11-11 Date Tested: 2014-11-12 to 2014-11-22 Investigation Requested: Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2013 and ANSI C63.4: 2009 for FCC Certification. Conclusion(s): The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remark(s): Bluetooth DSS (GFSK / π/4-DQPSK / 8DPSK) LONG Yun Jian, Along Authorized Signatory ElectroMagnetic Compatibility Department For and on behalf of STC (Dongguan) Company Limited STC Test Report Date: 2014-11-24 Page 2 of 88 No.: DM117566 CONTENT: Cover Page 1 of 88 Content Page 2-3 of 88 1.0 General Details 1.1 Test Laboratory Page 4 of 88 1.2 Equipment Under Test [EUT] Page 4 of 88 Description of EUT operation 1.3 Date of Order Page 4 of 88 1.4 Submitted Sample Page 4 of 88 1.5 Test Duration Page 4 of 88 1.6 Country of Origin Page 4 of 88 1.7 RF Module Details Page 5 of 88 1.8 Antenna Details Page 5 of 88 2.0 Technical Details 2.1 Investigations Requested Page 6 of 88 2.2 Test Standards and Results Summary Page 6 of 88 2.3 Table for Test Modes Page 7 of 88 3.0 Test Results 3.1 Emission Page 8 - 82 of 88 STC Test Report Date: 2014-11-24 Page 3 of 88 No.: DM117566 Appendix A List of Measurement Equipment Page 83 of 88 Appendix B Ancillary Equipment Page 84 of 88 Appendix C Photographs Page 85-88 of 88 STC Test Report Date: 2014-11-24 Page 4 of 88 No.: DM117566 1.0 General Details 1.1 Test Laboratory STC (Dongguan) Company Limited EMC Laboratory 68 Fumin Nan Road, Dalang, Dongguan, Guangdong, China Telephone: (86 769) 81119888 Fax: (86 769) 81116222 1.2 Equipment Under Test [EUT] Description of Sample(s) Product: Bluetooth Stereo Speaker Manufacturer: TONIKA ELECTRONICS TECHNOLOGY(SHENZHEN) CO., LTD Brand Name: Craig Model Number: TA-323 Additional Model Number(s): CHT913 Rating: 5.0Vd.c. with jack The AC/DC adaptor was provided by the applicant with following details: Brand name: N/A; Model no.: HB10-050150USPA; Input: 100-240Va.c. 50/60Hz 0.4A; Output: 5Vd.c. 1.5A. 1.2.1 Description of EUT Operation The Equipment Under Test (EUT) is a Bluetooth speaker, it is Audio System, modulation by IC; and type is frequency hopping spread spectrum Modulation. 1.3 Date of Order 2014-11-11 1.4 Submitted Sample(s): 1 Sample 1.5 Test Duration 2014-11-12 to 2014-11-22 1.6 Country of Origin China STC Test Report Date: 2014-11-24 Page 5 of 88 No.: DM117566 1.7 RF Module Details Module Model Number: F-6588 Module FCC ID: N/A Module Transmission Type: Bluetooth V2.1+EDR Modulation: FHSS (GFSK / π/4-DQPSK / 8DPSK) Data Rates: 1MBps: GFSK 2 MBps: π/4-DQPSK 3 MBps: 8DPSK Frequency Range: 2400-2483.5MHz Carrier Frequencies: 2402MHz – 2480MHz Module Specification (specification provided by manufacturer) 1.8 Antenna Details Antenna Type: PCB Layout Meanderline antenna Antenna Gain: 0dBi STC Test Report Date: 2014-11-24 Page 6 of 88 No.: DM117566 2.0 Technical Details 2.1 Investigations Requested Perform Electromagnetic Interference measurements in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2012 Regulations. FCC Pubic Notice DA 00-705 and ANSI C63.4: 2009 for FCC Certification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test Condition Test Requirement Test Method Class / Test Result Severity Pass Fail N/A Maximum Peak Conducted Output Power FCC 47CFR 15.247(b)(1) FCC Pubic Notice DA 00-705 N/A Radiated Spurious Emissions FCC 47CFR 15.209 ANSI C63.4:2009 N/A AC Mains Conducted Emissions FCC 47CFR 15.207 ANSI C63.4:2009 N/A Number of Hopping Frequency FCC 47CFR 15.247(a)(2)(b)(1) FCC Pubic Notice DA 00-705 N/A 20dB Bandwidth FCC 47CFR 15.247(a)(2) FCC Pubic Notice DA 00-705 N/A Hopping Channel Separation FCC 47CFR 15.247(a)(1) FCC Pubic Notice DA 00-705 N/A Band-edge measurement (Radiated) FCC 47CFR 15.247(c) FCC Pubic Notice DA 00-705 N/A Pseudorandom Hopping Algorithm FCC 47CFR 15.247(a)(1) N/A N/A Time of Occupancy (Dwell Time) FCC 47CFR 15.247(a)(1)(iii) FCC Pubic Notice DA 00-705 N/A Antenna requirement FCC 47CFR 15.203 N/A N/A RF Exposure FCC 47CFR 15.247(i) N/A N/A Note: N/A – Not Applicable STC Test Report Date: 2014-11-24 Page 7 of 88 No.: DM117566 2.3 Table for Test Modes Preliminary tests were performed in different data rate to find the worst radiated emission. The data rate in the table below is the worst case rate with respect to the specific test item. Investigation has been done on all the possible configurations for searching the worst cases. The following table is a list of the test modes shown in this test report. Test Items Mode Data Rate Maximum Peak Conducted Output Power GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Hopping Channel Separation GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Number of Hopping Frequency GFSK / π/4-DQPSK / 8DPSK 2MBps Time of Occupancy(Dwell Time) 8DPSK (DH1 / DH3 / DH5) 2MBps Radiated Spurious Emissions GFSK / π/4-DQPSK / 8DPSK 1MBps / 2MBps / 3MBps Band-edge compliance of Conducted Emission GFSK / π/4-DQPSK / 8DPSK 2MBps STC Test Report Date: 2014-11-24 Page 8 of 88 No.: DM117566 3.0 Test Results 3.1 Emission 3.1.1 Maximum Peak Conducted Output Power Test Requirement: FCC 47CFR 15.247(b)(1) Test Method: FCC Pubic Notice DA 00-705 Test Date: 2014-11-17 Mode of Operation: Tx mode Test Method: The RF o…
