SE4BP100BLUETOOTH PERSONAL AUDIO LINK

BluPAL Bluetooth Personal Audio Link User Manual Contents: Introduction ................................................................................................................... .............................................................................. 3 Contents of Package............................................................................................................ ........................................................................ 4 Main Features.................................................................................................................. ............................................................................ 5 Operation...................................................................................................................... ............................................................................... 6 Charging the Battery: .......................................................................................................... .................................................................... 6 Switching Profiles ............................................................................................................. ...................................................................... 8 Pairing and Connecting to a Bluetooth Headset or Handsfree device: ............................................................. ...................................... 9 Pairing and Connecting to Stereo Headphones:.................................................................................. ................................................. 10 Using with your TV: ............................................................................................................ ................................................................. 11 Use the microphone: ............................................................................................................ ............................................................. 11 Use the headphone jack: ........................................................................................................ ........................................................... 11 Use the RCA audio output: ...................................................................................................... ......................................................... 11 Using as a Companion Microphone................................................................................................ ...................................................... 12 In Conversation: ............................................................................................................... ................................................................. 12 In a Meeting: .................................................................................................................. ................................................................... 12 In a Lecture Hall: ............................................................................................................. ................................................................. 12 Specifications ................................................................................................................. ........................................................................... 13 Regulatory..................................................................................................................... ............................................................................ 13 Introduction BluPAL - your Bluetooth Personal Audio Link - brings you closer to the sounds you want to hear. In microphone mode, your BluPAL brings you closer to people – in conversation in a noisy environment, in a meeting at a conference table, or in a crowded lecture hall. In Auxiliary Input mode, BluPAL brings you closer to your electronics – your TV, your iPod ™ , or even your computer can all stream wireless audio straight to your headset. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Contents of Package • BluPAL Module • Base • AC/DC Power Converter • Outlet Adapters for USA, EU, UK, and Australia • 3.5 mm stereo input cable • RCA to 3.5 mm adapter cable • Lanyard • User Manual and Quick Start Guide 3.5 mm stereo in p ut cable RCA to 3.5 mm ada p ter cable AC Outlet Ada p ters AC/DC Power Converter Base Main Features Master Control Omni Microphone LED Volume Down (-) Volume Up (+) Ad j ustable Tilt Cradle Base Audio Input Three-way Input Selector Directional Micro p hone Base Power Input Operation Charging the Battery: BluPAL uses a rechargeable lithium-ion polymer battery. Unlike earlier rechargeable batteries, its performance and operating time are not compromised by partial charging or discharging. BluPAL will charge completely in two hours, and a full charge will provide up to five hours of streaming audio To c…

Text truncated - open the document above for the full version.

421 Wonchon-dong, Yongtong-gu, Suwon-City, Gyeonggi-Do, Korea 442-823 TEL No : +82-31-243-8283 FAX No : +82-31-243-3089 September 15, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : INSUNG Electronics Co., Ltd. FCC ID : SE4BP100 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Bum-Min Yoo Manager

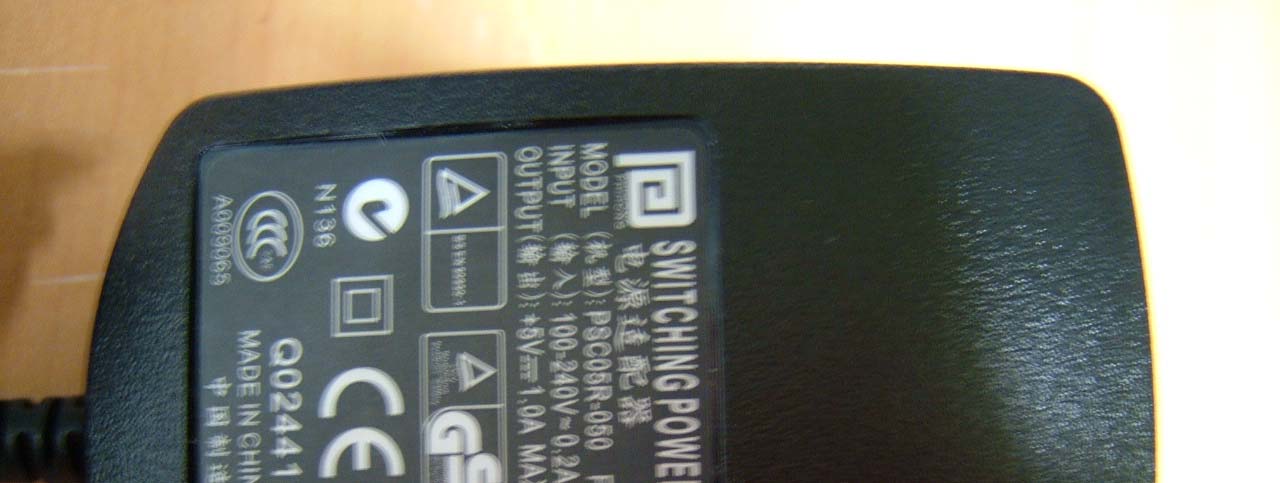

FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 7 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 7 of 7

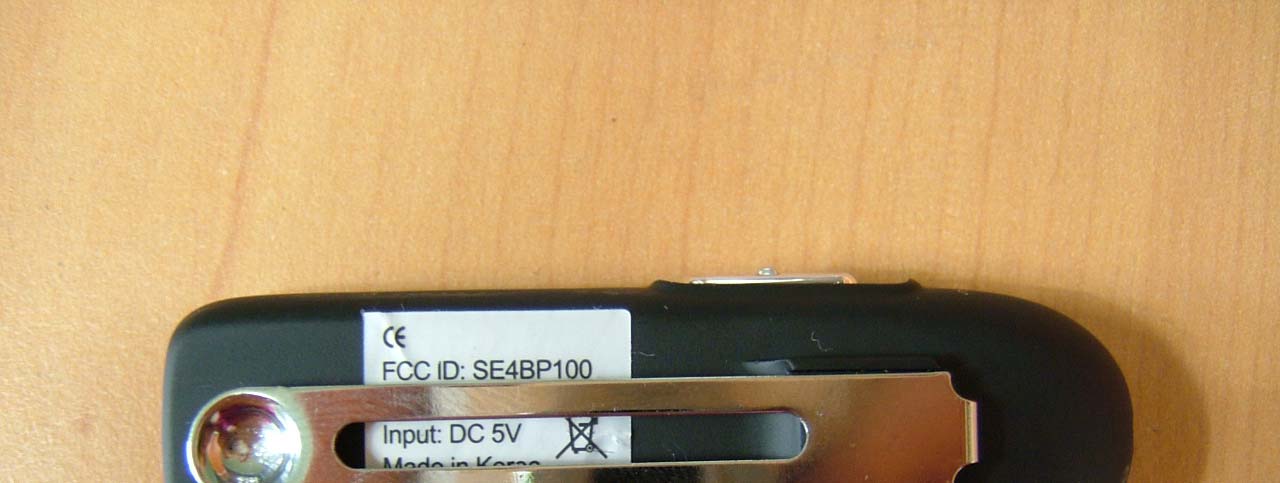

FCC ID: SE4BP100 Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION - R&TTE class 2 products must additionally be marked with an alert symbol as well. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user's manual.

FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 5 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 5 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 5 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 5 FCC ID: SE4BP100 Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 5

ATTACHMENT FCC ID: SE4BP100 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 2.54 dBm + 4.4 dBi EIRP = 6.94 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (1.79 * 2.75) / (4 * 20 2 * π) S = 0.001 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(1.79 * 2.75 / 4π) R = 0.63 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 (4.4 / 10) G = 2.75

Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 33 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: July 20 ~ 25, 2006 Test Report S/N: LR500110607G Test Site : LTA C O . , LT D . CERTIFICATIO OF COMPLIANCE FCC ID. / IC APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Personal Audio Link Manufacturer : INSUNG Electronics Co., Ltd. Model name : BP-100 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 2.54dBm - Conducted Data of issue : July 31, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 SE4BP100 INSUNG Electronics Co., Ltd. Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 28 31 Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 33 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2006-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 33 2. Information’s about test item 2-1 Client & Manufacturer Company name : INSUNG Electronics Co., Ltd. Address : 421 Wonchon-dong, Yongtong-gu, Suwon-City, Gyeonggi-Do, Korea 442-823 Tel / Fax : +82-31-243-8283/ +82-31-243-3089 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Personal Audio Link FCC ID : SE4BP100 Model name : BP-100 Serial number : Identification Date of receipt : July 03, 2006 EUT condition : Pre-production, not damaged Antenna type : Chip antenna Gain 4.4dBi Frequency Range : 2402 ~ 2480MHz RF output power Range : 2.54 dBm - Conducted Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.7V (Polymer Lithium-Ion Battery) 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - - - - - Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 33 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110607G Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 33 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channels) RBW = 30 kHz (1% of the span or more) Sweep = auto VBW = 30 kHz Dete…
