BSP-C5220/ C6210 /C6230/C7520/C7525 INSTRUCTION MANUAL FCC Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Caution: 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1 ■ Product View LED INDICATOR Antenna Front View LED INDICATOR POWER SWITCH VOLUME LINE IN DC IN Side View ■ Connections 1. Connect the Bluetooth USB Dongle to the USB inlet of PC 2. Connect the adapter wire to the DC IN jack on the side of speaker 2 3. Connect audio line to audio source and LINE IN jack on the side of speaker ■ Operation Step 1. Push POWER switch to ON position on the side of speaker to turn on the power, the blue LED indicator is flashing that meaning the power is ON and Bluetooth receive in normal. 2. Prepare audio source such as MP3、PDA、PC/NB、Bluetooth mobile phone, or with Bluetooth Dongle or Bluetooth TX on MP3、iPod、PC/NB etc, this product can search paring match automatically. 3. For PC, please first install the driver program on the disk attached, screen will shows the BlueSoleil icon when finished. 4. Double click this icon , open the BlueSoleil picture, select 「My Bluetooth」、 「Search Bluetooth Device」, all Bluetooth devices appear when find them, double click on your device icon, the speaker icon will be highlight, and press the right button of mouse, select「Connecting」, then red dot appear as shooting, it’s meaning that connecting is finished, or you can repeat step 4. if connection fail. 5. Open the program of「Windows Media Player」or likely Audio Player program, to play the music, rotate the VOL+ / VOL- on the side of speaker to a desirable listening level, enjoy the best music. ■ Pairing Procedure 1. BSP-C6210 with a Bluetooth cell phone Set the BSP-6210 into pairing mode. In your cell phone, enter the Bluetooth menu and select “search devices” option, these two devices will start to pair automatically, if pairing is completed, blue LED will flash four times in every two second, then you can connect your cell phone to BSP-C6210. Pairing Password: 0000 2. BSP-C6210 with a PC Set the BSP-C6210 into pairing mode. Start the Bluetooth software (for example IVT BlueSoleil 1.6.2 ir Windcomm) on your PC and select :search device”. After pairing is completed, you will be able to connect BSP-6210 and listen to all the music from PC. Pairing Password: 0000 3. BSP-C6210 with another Bluetooth headset 3 Set the BSP-6210 and your Bluetooth headset to pairing mode, these two devices will start to pair automatically. If pairing is completed, blue LED will flash four times in every two second. Pairing Password: --- ■ Specification ● Receiver Sensitivity: -85dBm @ 0.1% BER ● Class 1 RF Output Power: ＜+20dBm ● Class 2 RF Output Power: ＜+4dBm ● Operation Range: Class 1 up to 30m；Class 2 up to 10m ● Audio Output Power: 5W x 2 (RMS) ● Frequency Response: 150Hz ~ 20KHz ● Speaker: 2 inch x 2 ● Dimension (W x H x D): 280 x 150 x 100 mm ■ Important Notes 1. Away the unit to a place of moisture or dusty 2. Do not expose the unit to rain or sunlight 3. Do not impact or fall the unit 4. This unit only in simply anti-magnetism design, always place beside display, you can disposal as below steps if disturbance happen: First press the display power switch OFF, put this unit power ON for 15~30 minutes, then press the display power switch ON again, enlarge the distance between unit and display, until the disturbance do not be happened no more. 5. Make sure that the power supply is proper and audio wire connection alright before power ON. ■ Accessory 1. Build in Bluetooth function 2.0 or 2.1 CH speakers 2. Audio wire X 1 3. User Manual X 1 4. Warranty Card X 1 4

Juster Co., Ltd. Date: August 23, 2007 Power of Attorney Dear Regulatory Authority, Please be notified that we, the undersigned, Juster Co., Ltd., hereby authorize Global Compliance Co., Ltd. as our agent to act on our behalf in carrying out all the matters of FCC ID certification approval, authority contact and signing FCC Documentary related to our Radio Equipment Marketing certification in accordance with Article FCC 47 CFR Part 15. Any response related to the certification, please communicate directly with our agent. Moreover, please be advised that Global Compliance Co., Ltd. is not our affiliation or USA Representative, its responsibility extends only to the FCC ID Approval, and it is free from any product-related legal issue. If you have any question regarding this authorization, please do not hesitate to contact us. Sincerely yours, Signature: Andy Hsieh Vice Manager／R&D Dept. Juster Co., Ltd.

Juster Co., Ltd. 10F., No. 373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C. Confidentiality Request FCC ID : SETBSPC6210 Product : Bluetooth Speaker Model : BSP-C6210; BSP-C5220; BSP-C6230; BSP-C7520; BSP-C7525 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Andy Hsieh Vice Manager／R&D Dept. Juster Co., Ltd.

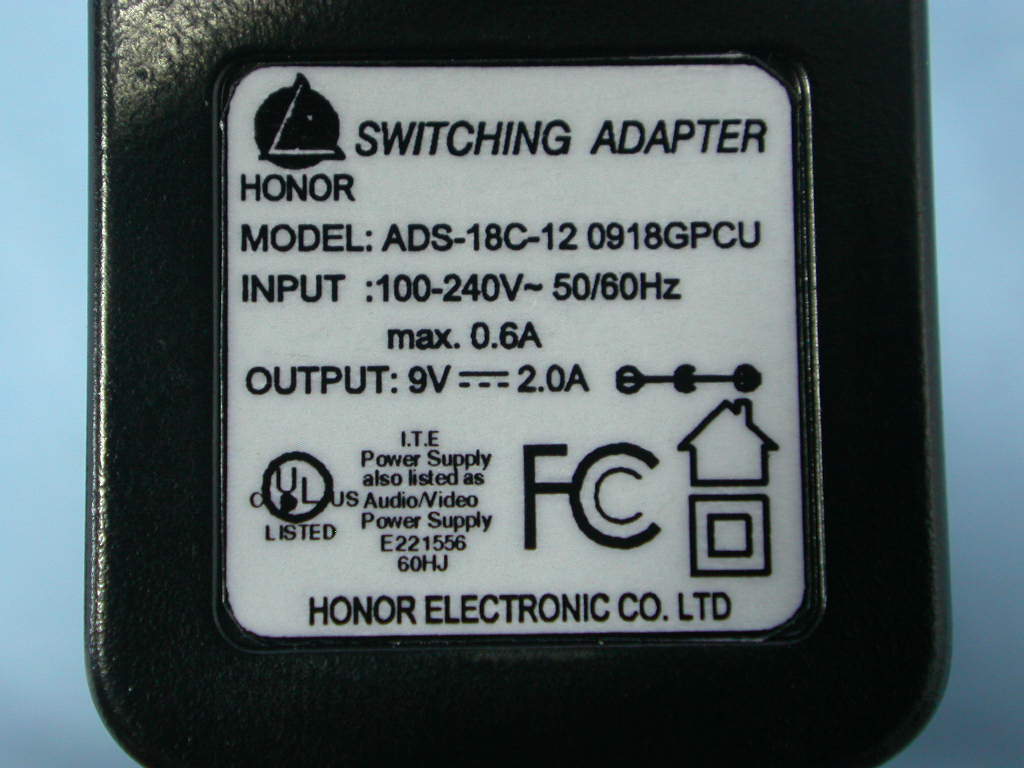

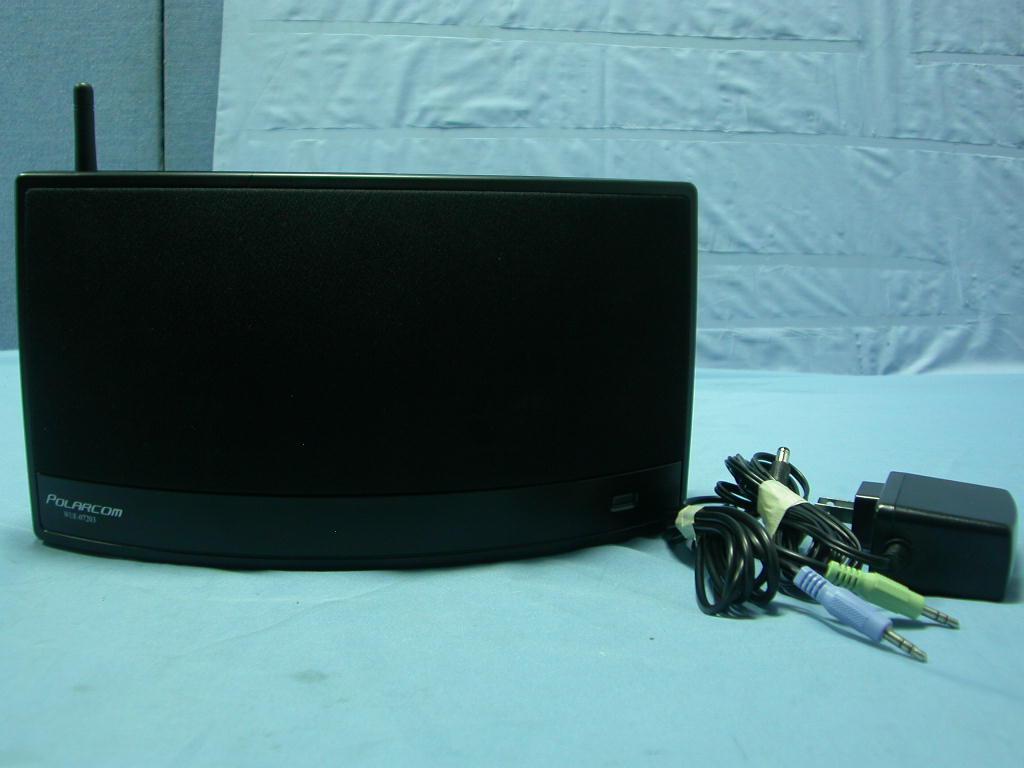

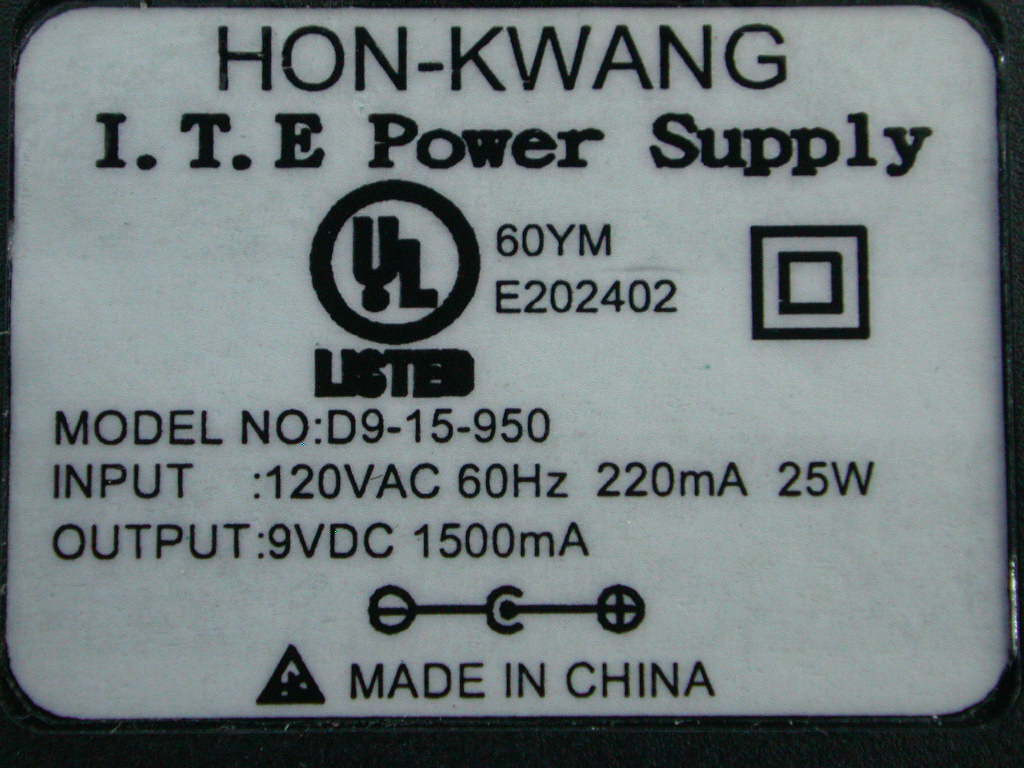

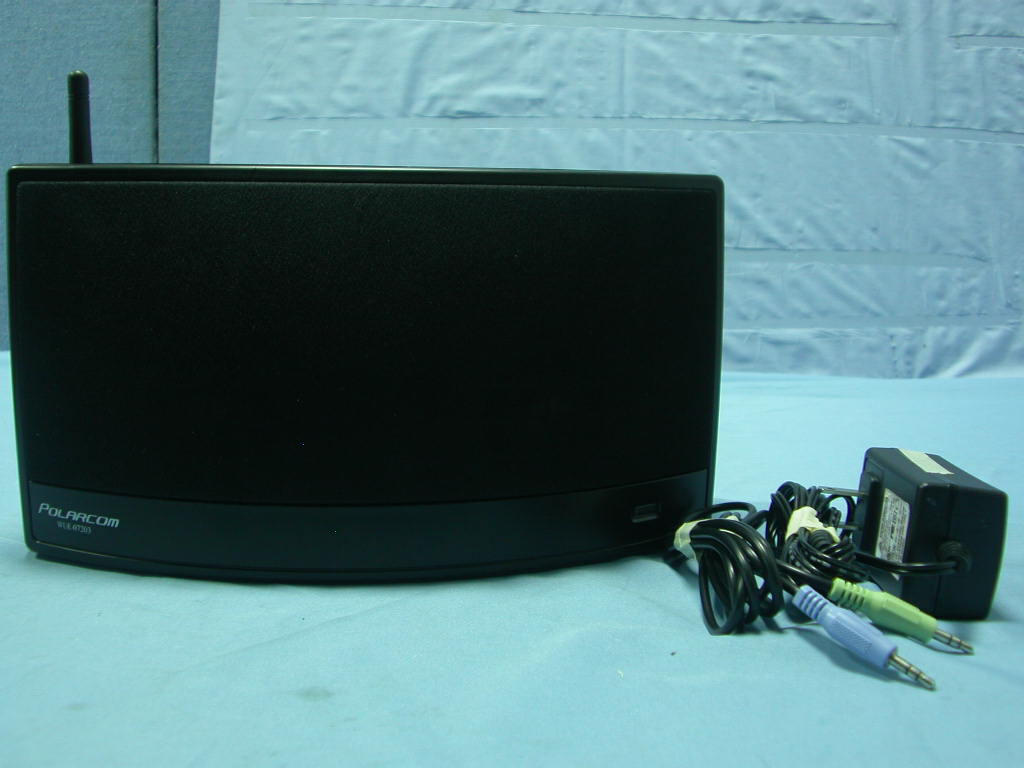

Compliance Certification Services Inc. Report No.：70426405-RP1 External Photo ( Model : BSP-C6210 ) Compliance Certification Services Inc. Report No.：70426405-RP1 Adapter (M/N: D9-15-950) Compliance Certification Services Inc. Report No.：70426405-RP1 Adapter (M/N:ADS-18C-12 0918GPCU) Compliance Certification Services Inc. Report No.：70426405-RP1 Adapter (M/N:HK-I118-A09)

Company : Juster Co., Ltd. Model: BSP-C6210; BSP-C5220; BSP-C6230; BSP-C7520; BSP-C7525 Product : Bluetooth Speaker Label Here Bluetooth Speaker Trade Name: JUSTER Model No：BSP-C6210; BSP-C5220; BSP-C6230; BSP-C7520; BSP-C7525 FCC ID：SETBSPC6210 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N： Made in Taiwan

Compliance Certification Services Inc. Report No.：70426405-RP1 Internal Photo Compliance Certification Services Inc. Report No.：70426405-RP1 Compliance Certification Services Inc. Report No.：70426405-RP1 Compliance Certification Services Inc. Report No.：70426405-RP1 Compliance Certification Services Inc. Report No.：70426405-RP1 Compliance Certification Services Inc. Report No.：70426405-RP1 Compliance Certification Services Inc. Report No.：70426405-RP1

Compliance Certification Services Inc. Report No: 70426405-RP1 FCC ID: SETBSPC6210 Date of Issue: August 21, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Total Page: 65 Page 1 FCC 47 CFR PART 15 SUBPART C ANSI C63.4 (2003) TEST REPORT For Bluetooth Speaker Model Number: BSP-C6210 Data Applies To : BSP-C5220; BSP-C6230; BSP-C7520; BSP-C7525 Brand Name : JUSTER Issued to Juster Co., Ltd. 10F., No. 373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No: 70426405-RP1 FCC ID: SETBSPC6210 Date of Issue: August 21, 2007 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 August 20, 2007 Initial Issue ALL Selena.Chong Compliance Certification Services Inc. Report No: 70426405-RP1 FCC ID: SETBSPC6210 Date of Issue: August 21, 2007 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 4 2. TEST RESULT SUMMARY ........................................................................................................ 5 3. EUT DESCRIPTION .................................................................................................................... 6 4. TEST METHODOLOGY ............................................................................................................. 7 4.1 EUT CONFIGURATION.....................................................................................................................7 4.2 EUT EXERCISE.................................................................................................................................7 4.3 GENERAL TEST PROCEDURES..........................................................................................................7 4.4 MODIFICATION...............................................................................................................................7 4.5 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS......................................................8 4.6 DESCRIPTION OF TEST MODES........................................................................................................8 5. INSTRUMENT CALIBRATION................................................................................................. 9 6. FACILITIES AND ACCREDITATIONS ................................................................................. 10 6.1 FACILITIES 10 6.2 EQUIPMENT...................................................................................................................................10 6.3 LABORATORY ACCREDITATIONS AND LISTING.............................................................................10 6.4 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................11 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 7.1 SETUP CONFIGURATION OF EUT....................................................................................................12 7.2 SUPPORT EQUIPMENT ............................................................................................................12 8. FCC PART 15.247 REQUIREMENTS...................................................................................... 13 8.1 PEAK POWER.................................................................................................................................13 8.2 BAND EDGES MEASUREMENT .............................................................................................16 8.3 FREQUENCY SEPARATION ....................................................................................................22 8.4 NUMBER OF HOPPING FREQUENCY....................................................................................25 8.5 TIME OF OCCUPANCY (DWELL TIME) ................................................................................27 8.6 RADIO FREQUENCY EXPOSURE.....................................................................................................31 8.7 SPURIOUS EMISSIONS..............................................................................................................32 8.8 POWERLINE CONDUCTED EMISSIONS............................................................................................56 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ....................................................................... 63 Compliance Certification Services Inc. Report No: 70426405-RP1 FCC ID: SETBSPC6210 Date of Issue: August 21, 2007 Page 4 1. TEST RESULT CERTIFICATION Applicant ：Juster Co., Ltd. Address ： 10F., No. 373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C. Manufacture ：Juster Co., Ltd. Address ：Jiao Yi Tang Management District, Dong Guan City, Guang Dong Province, China Equipment Under Test ：Bluetooth Speaker Model Number ：BSP-C6210 Data Applies To ：BSP-C5220; BSP-C6230; BSP-C7520; BSP-C7525 Brand Name ：JUSTER Date of Test ：June 25, 2007 ~ July 17, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C ANSI C63.4 (2003) No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.2…
