SETHP-240Wireless Headphone

Users Manual Before operating the units, please read this manual thoroughly. DIGITAL AUDIO Headphone USB Transmitter 2.4GHz Wireless CAUTION RISK OF ELECTRONIC SHOCK DO NOT OPEN CAUTION: DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GENERAL SAFETY SUMMARY WARNING To prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. 1. 2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. 5. All warnings on the product and in the operating instructions should be adhered to. 3. All operating and use instructions should be followed. 4. Do not use attachments not recommended by the products manufacturer if they may cause hazards. 6. Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. 7. 8. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any kind on the product. 9. Unplug the USB transmitter from the computer and refer servicing to qualified service personnel under the following conditions. When the computer or USB transmitter is damaged. If liquid have been spilled, or objects have fallen into the computer. If the product does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other control, may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. If the products has been dropped or damaged in any way. When the product exhibits a distinct change in performance - this indicates a need for service. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 10. 11. Upon completion of any service or repair to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition. The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. 12. Overview Features Package Contents Names of parts Getting Started Table of Contents 1 1 2 2 3 ...................................................... ................................................... ................................... ........................................ .......................................... Specification 5 ......................................... Trouble Shooting 4........................................ Overview The wireless stereo headphone using the state-of-the-art digital audio technology to receive 2.4GHz signals from USB transmitter which is designed to simply plug into a desktop PC or Notebook. The high quality sound playing on a computer is easily transmitted through the USB transmitter, eliminating the cable hassle, perfect interference resistance, suitable for crystal music listening when you are travelling, doing housework or working in a quiet environment. 1 Features Operating at 2.4GHz ISM band with 8 selectable channels 92dB audio dynamic range Non-compression for high sound quality with delay time 0.5ms FSK digital modulation/demodulation Power-on function to prevent pop noise Low power consumption Application distance up to 30m (L.O.S.) with perfect reception Improving performance in fading environment by antenna diversity Muting function when suffering interference or at poor receiving conditions USB transmitter compatible with Windows OS 98SE/ Me/2000/XP Package Contents Check the package before you enjoy the product. Headphone (X1) USB Transmitter (X1) Users Manual (X1) 1.5V AA battery (X2) + _ + _ Names of parts USB Transmitter 2 Channel Selector LED indicator for power and audio signal Headphone Volume control Power LED Power On/Off Battery compartment cover Length adjustment 3 Getting Started Open the battery compartment cover. Insert 2X AA batteries into battery compartment. Make sure the plus and minus poles of battery was correctly touched their contacts. Close the battery compartment cover with a click. 1. 2. 3. Plug the USB transmitter into USB input socket on PC or Notebook, and LED indicator of USB transmitter should light up in blue. 4. Open the software for CD or MP3 media player and play the songs you would like to listen. 5. Power on the wireless headphone. 6. Press the channel selector of USB to find a best channel (8 channel selectable),which you can clearly listen to the music through the headphone speaker. 8. 3 1 2 + + 45 7. Check the power LED rightly light up red. 6 VOLPOWERON/OFF 7 VOLPOWERON/OFF 8 CH 1,2......8 The LED indicator of USB transmitter will flash if USB transmitter receives the audio signal from computer. 4 Trouble Shooting No audio at headphones Make sure the battery rightly inserted into the battery compartment. Check the battery voltage or replace new batteries. Check the headphone and computer volume control not at minimum. 1. 2. 3. If the headphone hung up, power off and on the headphone. 4. Set up the channel of USB and headphone at the same one, the channel has to be different from other 2.4GHz electronic products 5. Audio is distorted or noisy Check the battery voltage or replace new batteries. 1. If the audio level at audio source(PC/Notebook) is too high, turn down audio source volume. 2. Turn off other 2.4GHz electrical appliances, s…

Text truncated - open the document above for the full version.

Juster Co., Ltd. 10F, No.373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ETS Dr. Genz Taiwan PS Co., Ltd. to act on our behalf in all matters relating to application for“ W IRELESS HEADPHONE ( Model : HP-240 , FCC ID : SETHP-240 ) ” authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr. Genz Taiwan PS Co., Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By: Mr. Andy Hsieh (Signature) (Printed) Title : Applicant : Juster Co., Ltd. Address : 10F, No.373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O. C Tel : +886-2-2278-2588 Ext 28 Fax: +886-2-8511-4232 Date : August 23, 2004

Juster Co., Ltd. 10F, No.373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C. Federal Communications Commission FCC ID : SETHP-240 Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: By: By: Mr. Andy Hsieh ( Signature ) ( Printed ) Title: Applicant: Juster Co., Ltd. Address: 10F, No.373, Zhongshan Rd., Sanchong City, Taipei 241, Taiwan, R.O.C. Tel : +886-2-2278-2588 Ext 28 Fax : +886-2-8511-4232 Date: August 23, 2004

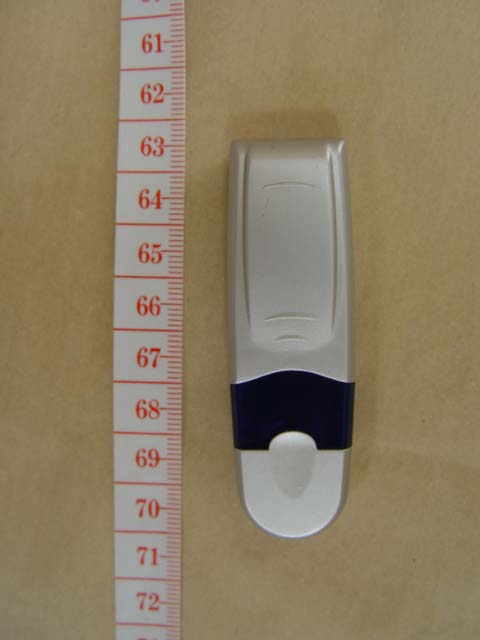

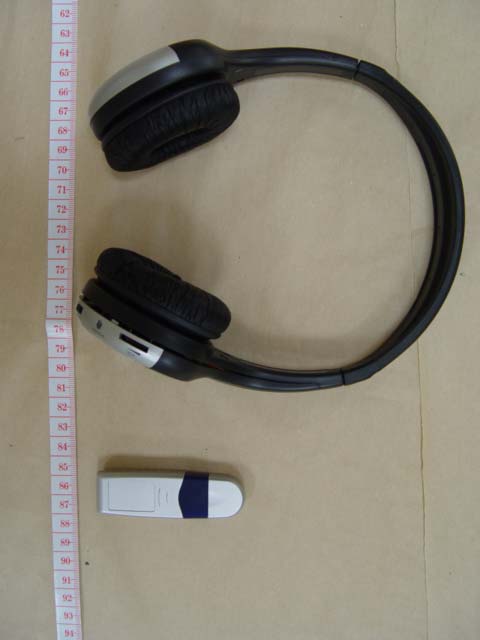

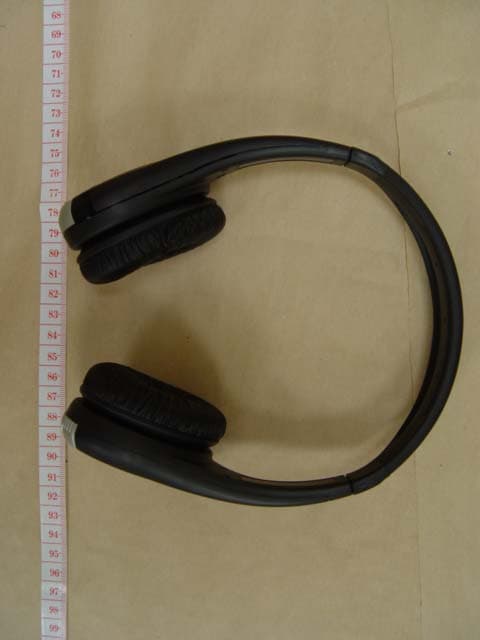

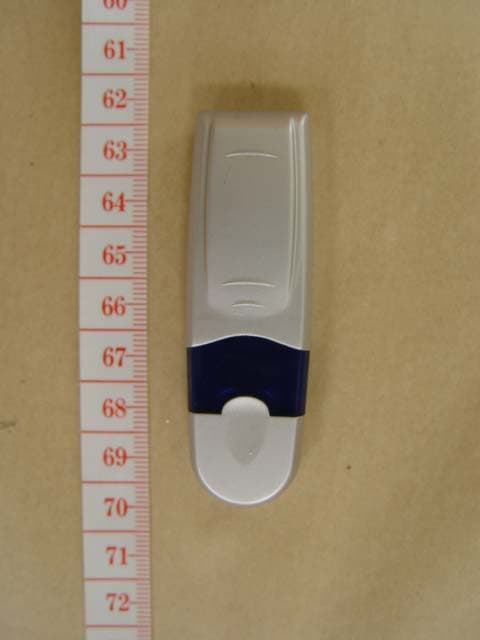

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 37 of 58 External Photo (TX) ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 38 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 39 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 48 of 58 External Photo (RX) ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 49 of 58 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 58 of 58 (TX + RX)

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 14.44 (dBm) Maximum peak output power at antenna input terminal: 27.797 (mW) Antenna gain(maximal): 1 (dBi) Prediction distance: 5 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.088480 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC TEST - REPORT FCC Part 15 C § 15.247 FCC ID : SETHP-240 Test report no.: W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 1 of 58 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 N OTES ................................................................................................................................... 2 1.2 T ESTING LABORATORY ......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 D ETAILS OF APPROVAL HOLDER ............................................................................................ 3 1.4 A PPLICATION DETAILS .......................................................................................................... 4 1.5 G ENERAL INFORMATION OF T EST ITEM ................................................................................. 4 1.5.1 Test configuration ........................................................................................................ 5 1.6 T EST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT .............................................................................................................. 7 2.3 T EST E QUIPMENT L IST .......................................................................................................... 8 2.4 G ENERAL T EST P ROCEDURE ............................................................................................... 15 3 TEST RESULTS (ENCLOSURE).......................................................................................... 17 3.1 P EAK O UTPUT P OWER ( TRANSMITTER ) ............................................................................... 18 3.2 E QUIVALENT ISOTROPIC RADIATED POWER ......................................................................... 19 3.2.1 Transmitter................................................................................................................. 19 3.3 RF E XPOSURE C OMPLIANCE R EQUIREMENTS ..................................................................... 19 3.4 T RANSMITTER R ADIATED E MISSIONS IN R ESTRICTED B ANDS ............................................. 20 3.5 S PURIOUS E MISSIONS ( TX ) .................................................................................................. 21 3.7 M INIMUM 6 D B B ANDWIDTH .............................................................................................. 25 3.9 P OWER LINE CONDUCTED EMISSION.................................................................................. 27 APPENDIX.................................................................................................................................... 28 Appendx A....................................................................................................................................29 Appendx B....................................................................................................................................30 Appendx C....................................................................................................................................31 Appendx D....................................................................................................................................32 Appendx E ....................................................................................................................................33 Appendx F........ ............................................................................................................................34 Appendx G....................................................................................................................................35 Appendx H.....................................................................................................................................36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number: W6M20408-5387-C-1 FCC ID: SETHP-240 ETS Dr. Genz GmbH, Germany 2 of 58 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TEC…

Text truncated - open the document above for the full version.

Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Set Up Photo Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Registration number : W6M20408-5387-C-1 ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH
