SF2-JH-PMID921X9 inch Tablet PC

- 1 - PMID921X User Manual Read me first ‹ Please read this manual before operating your tablet, and keep it for future reference. ‹ The descriptions in this manual are based on the default settings. ‹ Images and screenshots used in this manual may differ from the actual product. ‹ Available features and additional services may vary by device, software or service provider. ‹ Our company is not liable for performance issues caused by third-party applications. - 2 - CONTENTS Assembling...............................................................................................................................- 3 - Unpack ................................................................................................................................. - 3 - Charge the battery ................................................................................................................ - 3 - Install the memory card........................................................................................................- 3 - Getting started......................................................................................................................... - 4 - Turn your device on and off ................................................................................................. - 4 - Device layout ....................................................................................................................... - 4 - Home screen......................................................................................................................... - 4 - Add items to the home screen .............................................................................................. - 5 - Task bar ................................................................................................................................ - 6 - Notification panel................................................................................................................. - 6 - Auto rotation ........................................................................................................................ - 7 - Lock & unlock the screen .................................................................................................... - 7 - Enter text .............................................................................................................................. - 7 - Customize your device......................................................................................................... - 8 - Manage applications ............................................................................................................- 8 - Security ................................................................................................................................ - 8 - Reset tablet........................................................................................................................... - 9 - Web............................................................................................................................................. - 9 - Email .................................................................................................................................... - 9 - Gmail.................................................................................................................................. - 10 - Browser .............................................................................................................................. - 11 - Entertainment......................................................................................................................... - 12 - Super-HD Player ................................................................................................................- 12 - Music.................................................................................................................................. - 14 - Camera ............................................................................................................................... - 15 - Tools......................................................................................................................................... - 16 - Calendar ............................................................................................................................. - 16 - Alarm ................................................................................................................................. - 16 - File Manager ...................................................................................................................... - 17 - Calculator ........................................................................................................................... - 17 - Connectivity............................................................................................................................ - 17 - USB Connection ................................................................................................................ - 17 - Wi-Fi .................................................................................................................................. - 18 - Safety Precautions................................................................................................................ - 18 - Care & Maintenance............................................................................................................. - 19 - - 3 - Assembling Unpack Check your product box for the following items. z Tablet z User manual z Adapter z USB Cable z Earphone z OTG Cable z Warranty Card z Silicon case z screen protector You can purchase additional accessories from your local retailer. Charge the battery Before using the device for the first time, you must charge the battery. 1． You can charge the device with a travel adapter or by connecting the device to a PC with a USB cable. 2． Battery full icon …

Text truncated - open the document above for the full version.

Date:2013-8-22 FCC ID: SF2-JH-PMID921X Subject: Ad Hoc Mode Function Declaration To Whom it may concern, This device is acting as slave and operating in the 2.4 GHz (2412 – 2462 MHz) band. Ad Hoc function is supported but not able to operate on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Yours sincerely, Signatory Signature Name: Andy Chen Title: Project Manager Tel: +86-755-61156588

Shenzhen 3nod information tecnology Co.,Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-8-22 SUBJECT: FCC Application for (FCC ID:SF2-JH-PMID921X ) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Date:2013/8/22 Name: Andy Chen Title: Project Manager Tel: +86-755-61156588

Shenzhen 3nod information tecnology Co.,Ltd. . SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 Shenzhen 3nod information tecnology Co.,Ltd. . SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/8/22 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shenzhen 3nod information tecnology Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： 9 inch Tablet PC Trade Name： N/A Model Name：PMID921X Serial Model： N/A FCC ID : SF2-JH-PMID921X We affirm that between SIEMIC and __ Shenzhen 3nod information tecnology Co.,Ltd. __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Name: Andy Chen Title: Project Manager Address: 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd. No.2, Nanshan District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen 3nod Information Tecnology Co., Ltd. 2013-8-22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SF2-JH-PMID921X We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Andy Chen / Project Manager Contact information / address : 6/F, Building 11, Shenzhen, Software Park , Kejizhong Rd, No.2, Nanshan District, Shenzhen, China

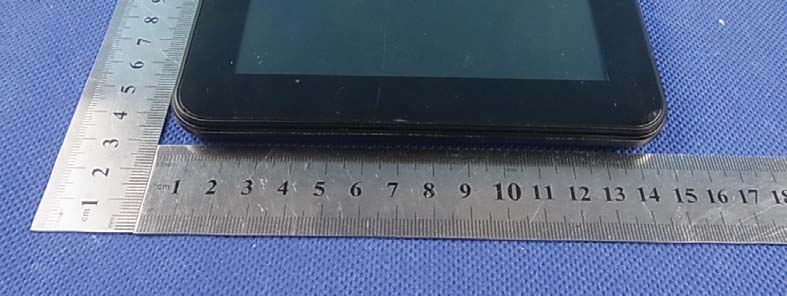

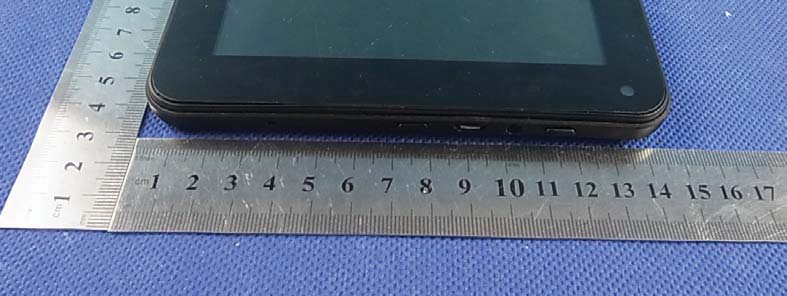

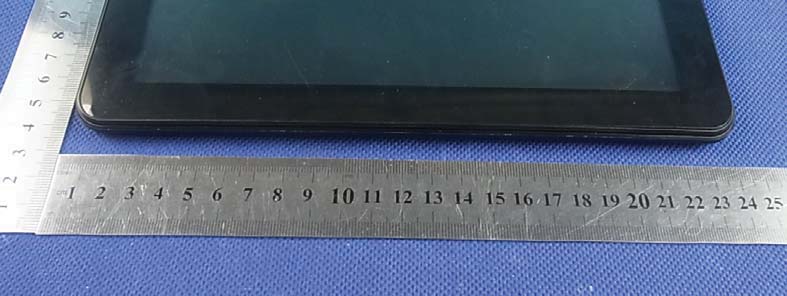

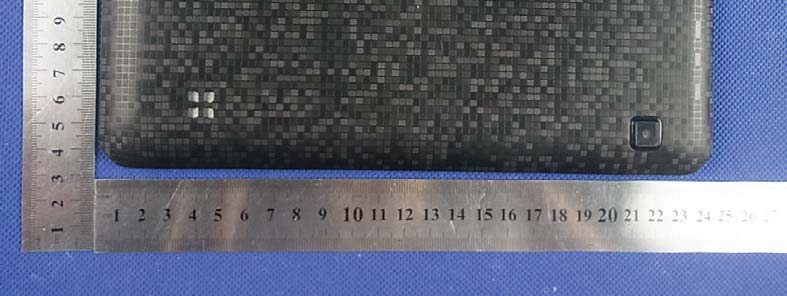

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

FCC ID LABELING AND LOCATION FCC ID Label 9 inch Tablet PC Model NO.:PMID921X Battery:3.7V/ 4000mAh FCC ID: SF2-JH-PMID921X Shenzhen 3nod Information Technology Co.,Ltd. Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Wifi antenna Photo 3 Photo 4 Photo 5

RF EXPOSURE EVALUATION METHOD FCC ID：SF2-JH-PMID921X SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. frequency Maximum AV Conducted Output Power Max Antenna Gain GHz dBm dBi 2.462 9.73 1.0 Remark: The best case gain of the antenna is 1.0dBi. 1.0dBi logarithmic terms convert to numeric result is nearly 1.26 9.73dbm=9.39mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 9.39/5*√2.462=2.95≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: SF2- JH-PMID921X Product： 9 inch Tablet PC Trade Name： N/A Model Name： PMID921X Serial Model： N/A Report No.： NTEK-2013NT0813946F Prepared for Shenzhen 3nod information tecnology Co.,Ltd 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd,No.2, Nanshan District, Shenzhen,518057 P.R.China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 65 Report No.: NTEK-2013NT0813946F TEST RESULT CERTIFICATION Applicant’s name........ Shenzhen 3nod information tecnology Co.,Ltd Address ........................ 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd,No.2, Nanshan District, Shenzhen,518057 P.R.China Manufacture's Name... Shenzhen 3nod information tecnology Co.,Ltd Address ........................ 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd,No.2, Nanshan District, Shenzhen,518057 P.R.China Product description Product name .................9 inch Tablet PC Model and/or type reference ..................... PMID921X Serial Model .................... N/A Standards.................... FCC Part15.247 Test procedure ................ ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test...................................... Date (s) of performance of tests ....... 16 Aug. 2013 ~21 Aug. 2013 Date of Issue..................................... 21 Aug. 2013 Test Result......................................... Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 65 Report No.: NTEK-2013NT0813946F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 23 4 . POWER SPECTRAL DENSITY TEST 36 4.1 APPLIED PROCEDURES / LIMIT 36 4.1.1 TEST PROCEDURE 36 4.1.2 DEVIATION FROM STANDARD 36 4.1.3 TEST SETUP 36 4.1.4 EUT OPERATION CONDITIONS 36 4.1.5 TEST RESULTS 37 5 . BANDWIDTH TEST 45 5.1 APPLIED PROCEDURES / LIMIT 45 5.1.1 TEST PROCEDURE 45 Page 4 of 65 Report No.: NTEK-2013NT0813946F Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 45 5.1.3 TEST RESULTS 46 6 . PEAK OUTPUT POWER TEST 54 6.1 APPLIED PROCEDURES / LIMIT 54 6.1.1 TEST PROCEDURE 54 6.1.2 DEVIATION FROM STANDARD 54 6.1.3 TEST SETUP 54 6.1.4 EUT OPERATION CONDITIONS 54 6.1.5 TEST RESULTS 55 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 56 7.1 DEVIATION FROM STANDARD 56 7.2 TEST SETUP 56 7.3 EUT OPERATION CONDITIONS 56 7.4 TEST RESULTS 57 8 . ANTENNA REQUIREMENT 63 8.1 STANDARD REQUIREMENT 63 8.2 EUT ANTENNA 63 9 . EUT TEST PHOTO 64 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 65 Report No.: NTEK-2013NT0813946F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 65 Report No.: NTEK-2013NT0813946F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 65 Report No.: NTEK-2013NT0813946F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment 9 inch Tablet PC Trade Name N/A Model Name PMID921X Serial Model N/A Model Difference N/A Product Description The EUT is a 9 inch Tablet PC Operation Frequency: 802.11b/g/n(20MHz):2412~2462 MHz 802.11n(40MHz):2422~2452 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20MHz):150/144.44/130/117/ 115.56/104/86.67/78/52/6.5Mbps 802.11n(40MHz):300/270/240/180/150 /120/108/90/54 Mbps Number Of Channel 802.11b/g/n20MHz:11CH 802.11n40MHz:7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 12.78 dBm (Max.) 802.11g: 11.98 dBm (Max.) 802.11n(20M): 11.44dBm (Max.) 802.11n(40M): 11…

Text truncated - open the document above for the full version.

Page 64 of 65 Report No.: NTEK-2013NT0813946F 9. EUT TEST PHOTO Radiated Measurement Photos Page 65 of 65 Report No.: NTEK-2013NT0813946F Conducted Measurement Photos
