SF2PMID901Tablet PC

- 1 - PM ID 901 User Manual Read me first ‹ Please read this manual before operating your tablet, and keep it for future reference. ‹ The descriptions in this manual are based on the default settings. ‹ Images and screenshots used in this manual may differ from the actual product. ‹ Available features and additional services may vary by device, software or service provider. ‹ Our company is not liable for performance issues caused by third-party applications. - 2 - CONTENTS Assembling ............................................................................................................................... - 3 - Unpack ................................................................................................................................. - 3 - Charge the battery ................................................................................................................ - 3 - Install the memory card ........................................................................................................ - 3 - Getting started ......................................................................................................................... - 4 - Turn your device on and off ................................................................................................. - 4 - Device layout ....................................................................................................................... - 4 - Home screen ......................................................................................................................... - 4 - Add items to the home screen .............................................................................................. - 5 - Task bar ................................................................................................................................ - 6 - Notification panel ................................................................................................................. - 6 - Auto rotation ........................................................................................................................ - 7 - Lock & unlock the screen .................................................................................................... - 7 - Enter text .............................................................................................................................. - 7 - Customize your device ......................................................................................................... - 8 - Manage applications ............................................................................................................ - 8 - Security ................................................................................................................................ - 8 - Reset tablet ........................................................................................................................... - 9 - Web ............................................................................................................................................. - 9 - Email .................................................................................................................................... - 9 - Gmail .................................................................................................................................. - 10 - Browser .............................................................................................................................. - 11 - Entertainment ......................................................................................................................... - 12 - Super-HD Player ................................................................................................................ - 12 - Music .................................................................................................................................. - 14 - Camera ............................................................................................................................... - 15 - Tools ......................................................................................................................................... - 16 - Calendar ............................................................................................................................. - 16 - Alarm ................................................................................................................................. - 17 - File Manager ...................................................................................................................... - 17 - Calculator ........................................................................................................................... - 17 - Connectivity ............................................................................................................................ - 17 - USB Connection ................................................................................................................ - 17 - Wi-Fi .................................................................................................................................. - 18 - Safety Precautions ................................................................................................................ - 18 - Care & Maintenance ............................................................................................................. - 19 - - 3 - Assembling Unpack Check your product box for the following items. z Tablet z User manual z Adapter z USB Cable z Earphone z OTG Cable z Warranty Card z Silicon case z screen protector You can purchase additional accessories from your local retailer. Charge the battery Before using the device for the first time, you must charge the battery. 1． You can charge the device with a travel adapter or by connecting the device to a PC with a USB cable. 2…

Text truncated - open the document above for the full version.

Shenzhen 3nod Information Tecnology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013-4-10 SUBJECT: FCC Application for ( FCCID: SF2PMID901) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory Signature Client’s name / title : Andy Chen / Project Manager Contact information / address : 6/F, Building 11, Shenzhen, Software Park , Kejizhong Rd, No.2, Nanshan District, Shenzhen, China

Shenzhen 3nod Information Tecnology Co., Ltd. Model Difference FCC ID: SF2PMID901 Model : PM ID 901, PMID 901X, PMID 906KB All the model have the same circuit and RF module,except surface shell is color difference. Regards, Client’s signature Client’s name / title : Andy Chen / Project Manager Contact information / address : 6/F, Building 11, Shenzhen, Software Park , Kejizhong Rd, No.2, Nanshan District, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Shenzhen 3nod Information Tecnology Co., Ltd. 2013-4-10 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: SF2PMID901 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Client’s name / title : Andy Chen / Project Manager Contact information / address : 6/F, Building 11, Shenzhen, Software Park , Kejizhong Rd, No.2, Nanshan District, Shenzhen, China

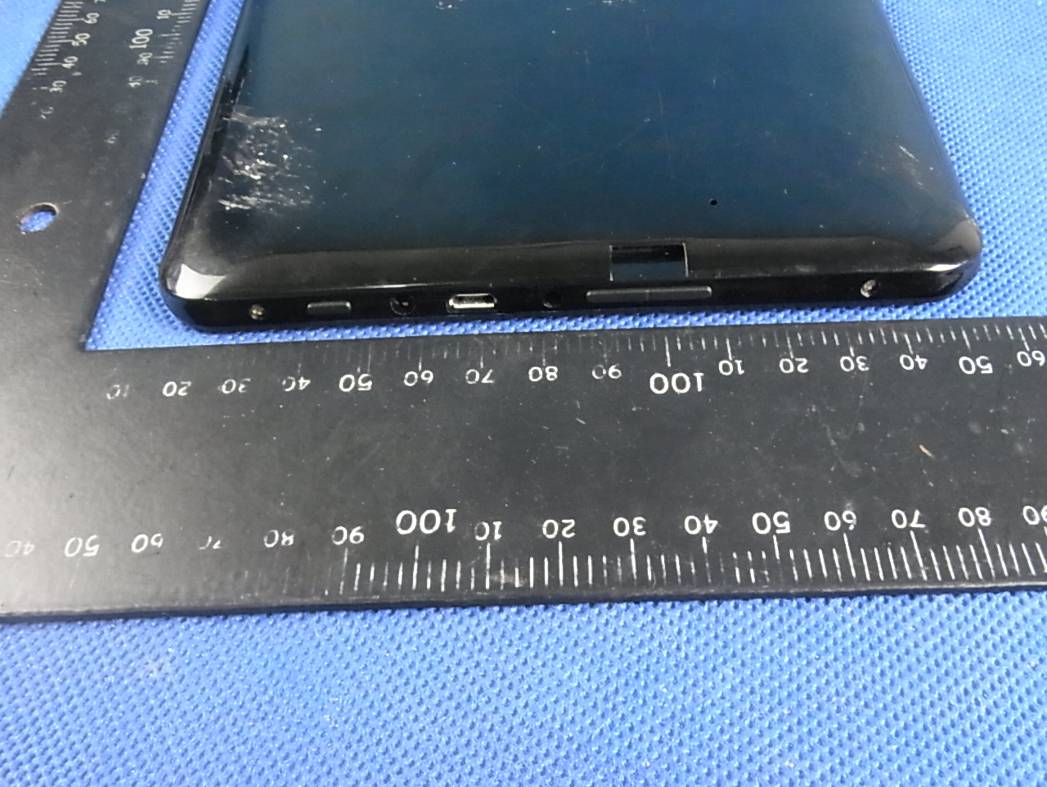

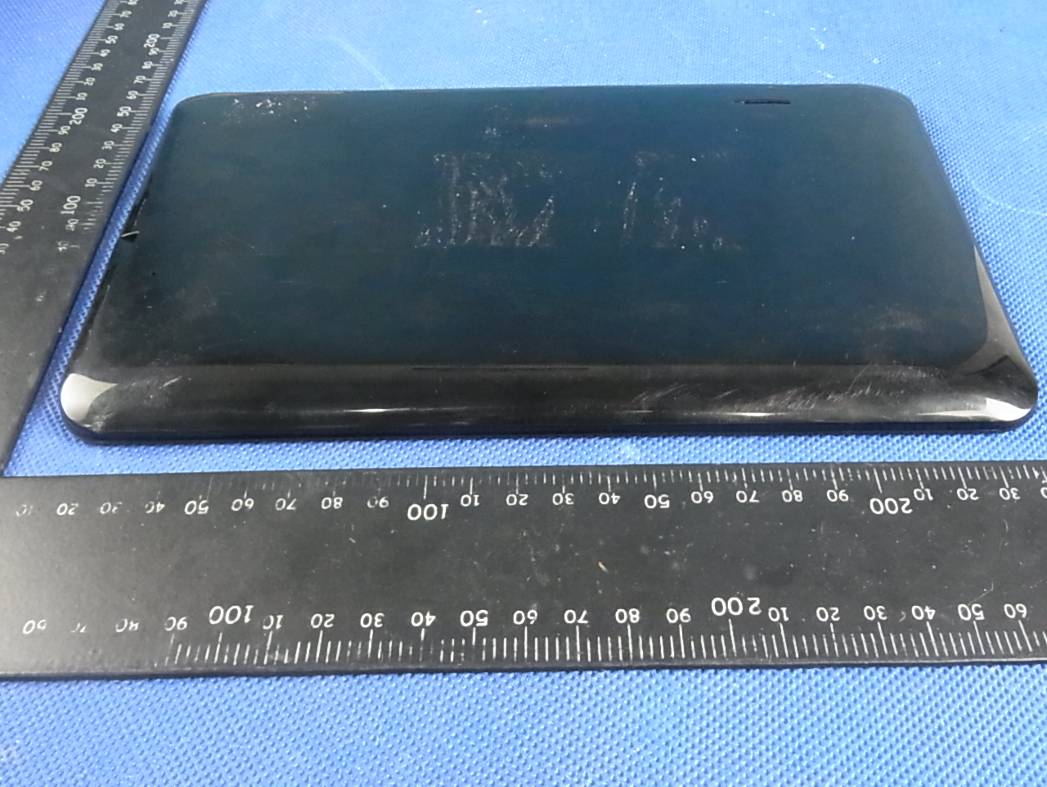

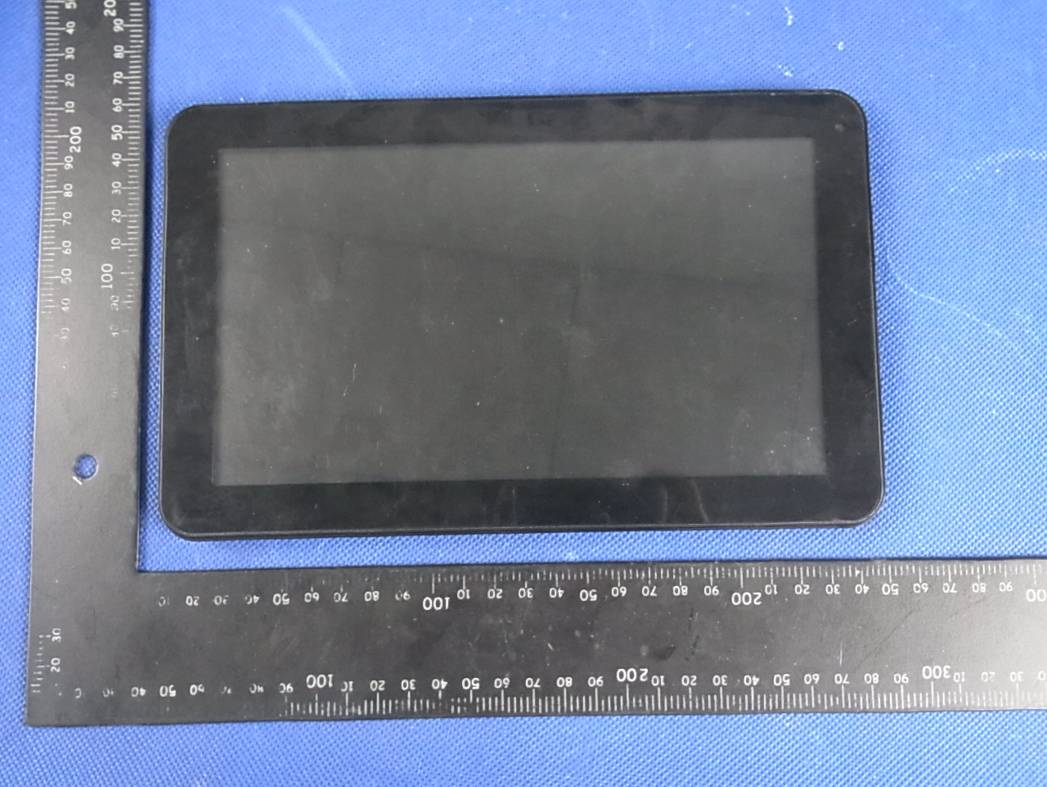

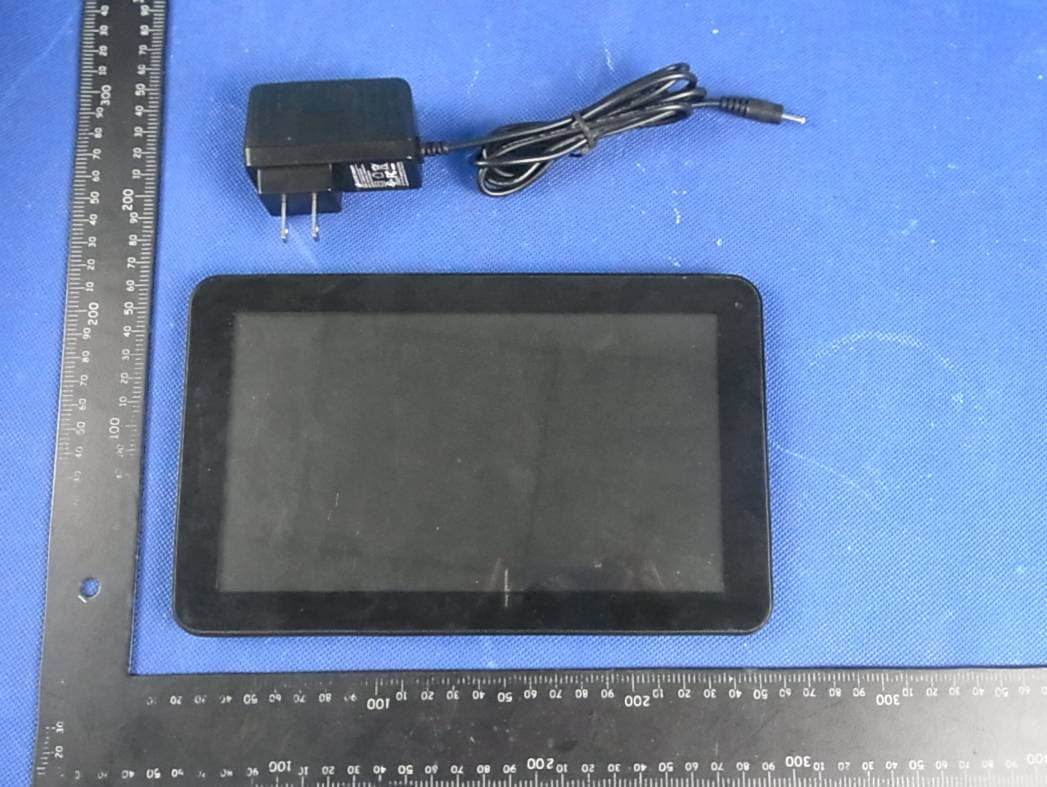

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7

4.4*4.6cm Label 2 Label 3

Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 Photo 17

FCC ID: SF2PMID901 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Maximum measured transmitter power. Te s t Channe Frequency Maximum Peak Conducted Output Power Maximum Conducted Output Power(AV) LIMIT (MHz) (dBm) (dBm) dBm CH01 2412 12.44 9.21 30 CH06 2437 12.23 9.34 30 CH11 2462 12.13 9.57 30 Referto44749825D01GeneralRFExposureGuidancev05AppendixA, youseethatfor Maximum Conducted Output Power9.57dBm=9.06mW(<10mW), sonoSAR is required.

FCC RADIO TEST REPORT FCC ID: SF2PMID901 Product： Tablet PC Trade Name： N/A Model Name： PM ID 901 Serial Model： PMID 901X, PMID 906KB Report No.： NTEK-2013NT0422561F Prepared for Shenzhen 3nod Information Tecnology Co., Ltd. 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd. No.2, Nanshan District, Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 86 Report No.: NTEK-2013NT0422561F TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen 3nod Information Tecnology Co., Ltd. Address ................................. : 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd. No.2, Nanshan District, Shenzhen, China, 518057 Manufacture's Name ............ : Shenzhen 3nod Information Tecnology Co., Ltd. Address ................................. : 6/F, Building 11, Shenzhen Software Park, Kejizhong Rd. No.2, Nanshan District, Shenzhen, China, 518057 Product description Product name ........................... : Tablet PC Model and/or type reference : PM ID 901 Serial Model .............................. : PMID 901X, PMID 906KB Standards ............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 22 Apr. 2013 ~28 Apr. 2013 Date of Issue ........................................... : 28 Apr. 2013 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 86 Report No.: NTEK-2013NT0422561F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 64 4.1 APPLIED PROCEDURES / LIMIT 64 4.1.1 TEST PROCEDURE 64 4.1.2 DEVIATION FROM STANDARD 64 4.1.3 TEST SETUP 64 4.1.4 EUT OPERATION CONDITIONS 64 4.1.5 TEST RESULTS 65 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 TEST PROCEDURE 73 Page 4 of 86 Report No.: NTEK-2013NT0422561F Table of Contents Page 5.1.2 DEVIATION FROM STANDARD 73 5.1.3 TEST SETUP 73 5.1.4 EUT OPERATION CONDITIONS 73 5.1.5 TEST RESULTS 74 6 . PEAK OUTPUT POWER TEST 82 6.1 APPLIED PROCEDURES / LIMIT 82 6.1.1 TEST PROCEDURE 82 6.1.2 DEVIATION FROM STANDARD 82 6.1.3 TEST SETUP 82 6.1.4 EUT OPERATION CONDITIONS 82 6.1.5 TEST RESULTS 83 7 . ANTENNA REQUIREMENT 84 7.1 STANDARD REQUIREMENT 84 7.2 EUT ANTENNA 84 8 . EUT TEST PHOTO 85 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 86 Report No.: NTEK-2013NT0422561F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 86 Report No.: NTEK-2013NT0422561F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 86 Report No.: NTEK-2013NT0422561F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet PC Trade Name N/A Model Name PM ID 901 Serial Model PMID 901X, PMID 906KB Model Difference All the same,Only model name is different. Product Description The EUT is a Tablet PC Operation Frequency: 802.11b/g/n:2412~2462 MHz 802.11n(40):2422~2452MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6 Mbps 802.11n(20/40MHz):150/144.44/130 /117/115.56/104/86.67/78/52/6.5 Mbps Number Of Channel 802.11b/g/n20: 11CH 802.11n 40: 7CH Antenna Designation: Please see Note 3. Output Power(AV): 802.11b: 12.44dBm (Max.) 802.11g: 11.67 dBm (Max.) 802.11n20: 11.85 dBm (Max.) 802.11n40: 10.54 d…

Text truncated - open the document above for the full version.

Page 85 of 86 Report No.: NTEK-2013NT0422561F 8. EUT TEST PHOTO Radiated Measurement Photos Page 86 of 86 Report No.: NTEK-2013NT0422561F Conducted Measurement Photo
