SFKWF196Tri-band 4x4 Wi-Fi 6E Wireless AP

1 High-end Tri-band 4x4 Wi-Fi 6E Wireless AP WF-196 Product Datasheet VERSION0.3 August, 2022 www.cigtech.com 2  Overview WF-196 is a tri-band 4x4 MU-MIMO 802.11ax indoor Wi-Fi AP, which is designed for high- density deployments in large offices, schools, hospitals and hotels that require premium performance. WF-196 supports 802.11ax advanced Wi-Fi technologies, OFDMA, MU-MIMO and 1024-QAM. It can provide up to 11Gbps aggregated data rates. It helps you to establish the high speed and stable wireless network. You can access to internet with the phone, pad or laptop in any place. The enhanced transmission power and receive sensitivity make it deliver the high throughput and reliable coverage required. WF-196 has perfect compatibility. It works with most wireless terminals to build a high capacity Wi-Fi network. WF-196 supports PoE power supply or with USB type-c adapter, and is very easy to install. Just connect the Ethernet cables to the PoE interface and mount it on either ceiling or wall. 3  Key Features  Ceiling installation  2.4G 4x4 Wi-Fi (802.11b/g/n/ax), 20/ 40MHz  5G 4x4 Wi-Fi (802.11a/n/ac/ax), 20/ 40/ 80MHz  6G 4x4 Wi-Fi (802.11ax), 20/ 40/ 80/ 160MHz  4 x dual-band 2.4G/5G Integrated antennas  4 x 6G Integrated single-band antennas  1 x BLE integrated antenna  1 x Bluetooth 5.0  1 x 2.5GbE LAN  1 x 5GE WAN with 802.3bt PoE(Full functionality) or 802.3at PoE(USB disabled)  1 x Reset button  1 x Tri-color LEDs for visual indicators  1 x USB type-c 15V@2A 4  Specification Item WF-196 Dimension (W x D x H) 225mm × 225mm × 38mm Weight 1600g Installation Ceiling mount or Wall mount LEDs 1x tri-color(Red/Green/Blue) status LED Interface  1 x RJ45 2.5GbE LAN  1 x RJ45 5GbE WAN with 802.3bt Poe(PD) or 802.3at (USB disabled)  1 x Reset button  1 x USB type-c Jack 15V@2A Input Voltage  42.5V ~ 57V, 802.3bt PoE (PD)  AC/ DC adapter, 15V@2A Power consumption < 30W Environmental Specification Temperature Operation: 0°C～+40°C Storage: -30°C～+70°C Operating Humidity 5%～95% (non-condensing) Elevations 86kPa～106kPa altitude Dustproof and Waterproof IP20 Safety  NRTL Listed 62368 (US & CA) 5 Item WF-196  CB with IEC/EN 62368-1 (Basic safety certificate for worldwide marketing)  EN 60601-1-1: 2001 (medical directive compliance)  UL2043 (Plenum rating)  GB 9254 -2008(Class B of Product) , EN55032, CISPR 32:2015 , EN55035, CISPR 25  Shall be RoHS 2011/65/EU compliant (RoHS 6 compliant, no Pb)  WEEE 2002/96/EC recyclable materials requirements Chipset SoC Qualcomm chipset Flash 128MB SPI Nor Flash + 1GB NAND Flash DDR 2GB DDR3L RAM Wi-Fi Interface Operating frequency 2.4G radio:2.4000GHz~2.4835GHz 5G radio:5.150~5.250,5.250~5.350,5.470~5.725, 5.725~5.850 GHz 6G radio: 5.925 ~ 7.125GHz Maximum Transmit power (per chain) 2.4G radio:18dBm@MCS0; 16dBm@MCS7 HT40; 14dBm@MCS11 HE40 5G radio:17dBm@MCS0; 15dBm@MCS7 HT40;14dBm@MCS9 VHT80; 13dBm@MCS11 HE80 6G radio:17dBm@MCS0; 14dBm@MCS11 HE20;14dBm@MCS11 HE40; 14dBm@MCS11 HE80/160 Data Rate 802.11b: 1, 2, 5.5, and 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mb/s 802.11n: MCS0~MCS7 802.11ac: MCS0 ~ MCS9 802.11ax: MCS0 ~ MCS11 Receive Sensitivity 802.11g: -90dBm@6Mbps -74dBm@54Mbps 6 Item WF-196 802.11n: 802.11a: -90dBm@6Mbps -74dBm@54Mbps 802.11ac: 802.11ax: Antenna Pattern (Built-in Antennas) Frequency(MHz) 2400 ~ 2500 4940 ~ 5850 Polarization Vertical/Horizontal Vertical/Horizontal Gain(dBi) ≥3 ≥3 HT20 HT40 MCS0 -90dBm -87dBm MCS7 -71dBm -68dBm VHT20 VHT40 VHT80 MCS0 -90dBm -87dBm -84dBm MCS8 -67dBm / / MCS9 / -61dBm -58dBm EH20 EH40 EH80 MCS0 -90dBm -87dBm -84dBm MCS11 -56dBm -53dBm -50dBm 7 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. FCC regulations restrict operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trans, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10000 feet. Operation of transmitters in the 5.925- 7.125 GHz band is prohibited f…

Text truncated - open the document above for the full version.

Confidentiality Request Letter Federal Communications Commission Authorization and Evaluation Division FCC ID: SFKWF196 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _________________ Name: Ma Zhonghua Position: Certification Manager Date: 2022-08-28

Declaration of Authorization We Name: CIG SHANGHAI CO., LTD. Address: 5F, Building 8, No.2388 Chenhang Road, Minhang District, Shanghai, China Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Tri-band 4x4 Wi-Fi 6E Wireless AP FCC ID: SFKWF196 Model: WF-196/API7340 Brand: CIG/Actiontec Sincerely, _________________ Name: Ma Zhonghua Position: Certification Manager Date: 2022-08-28

Declaration of Conformity We Name: CIG SHANGHAI CO., LTD. Address: 5F, Building 8, No.2388 Chenhang Road, Minhang District, Shanghai, China Declare that: Product: Tri-band 4x4 Wi-Fi 6E Wireless AP FCC ID: SFKWF196 Model: WF-196/API7340 Brand: CIG/Actiontec Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Ma Zhonghua Position: Certification Manager Date: 2022-08-28

Declaration letter For our business issue and marketing requirement, we would like to list different model numbers as following: Model No.: WF-196, API7340 Model Difference: there is no any hardware or software differences between WF-196 and API7340, only for different brand name. _________________ Name: Ma Zhonghua Position: Certification Manager Date: 2022-08-31

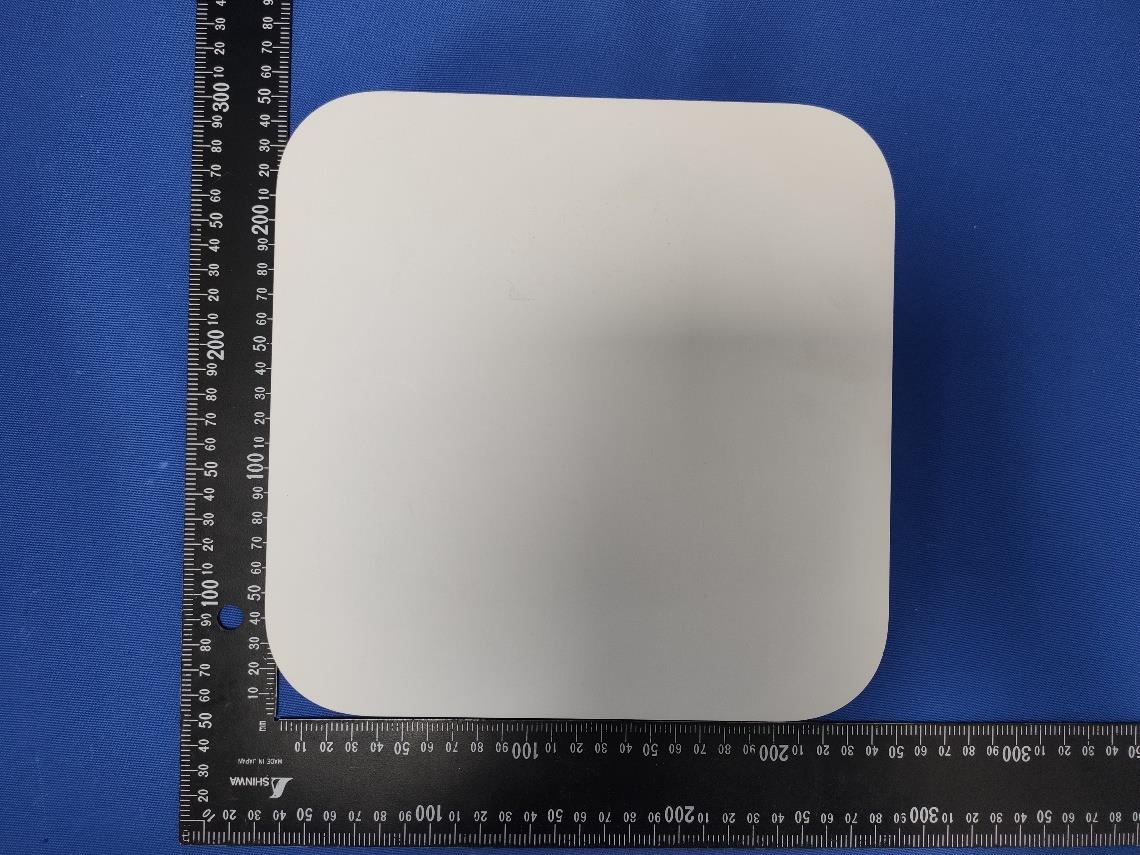

Report No.: 2207RSU033-UE 1 of 4 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2207RSU033-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2207RSU033-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2207RSU033-UE 4 of 4 (7) EUT Photo (8) EUT Photo

Label Label Location Label

Report No.: 2207RSU033-UE 1 of 11 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2207RSU033-UE 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 2207RSU033-UE 3 of 11 (5) EUT Photo (6) EUT Photo Report No.: 2207RSU033-UE 4 of 11 (7) EUT Photo (8) EUT Photo Report No.: 2207RSU033-UE 5 of 11 (9) EUT Photo (10) EUT Photo Report No.: 2207RSU033-UE 6 of 11 (11) EUT Photo (12) EUT Photo Report No.: 2207RSU033-UE 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 2207RSU033-UE 8 of 11 (15) EUT Photo (16) EUT Photo Report No.: 2207RSU033-UE 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 2207RSU033-UE 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 2207RSU033-UE 11 of 11 (21) EUT Photo (22) Antenna Information Location: X15 → Bluetooth-LE) X5 (Ant 0) / X6 (Ant 1) / X8 (Ant 2) / X9 (Ant 3) → Wi-Fi 2.4G/5G X3 (Ant 0) / X4 (Ant 1) / X7 (Ant 2) / X10 (Ant 3) → Wi-Fi 6G

MRT Technology (Suzhou) Co., Ltd Report No.: 2207RSU033-U6 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2022-09-02 Template Version:0.0 1 of 10 RF Exposure Evaluation Declaration FCC ID: SFKWF196 Applicant: CIG Shanghai Co., Ltd. Product: Tri-band 4x4 Wi-Fi 6E Wireless AP Model No.: WF-196, API7340 Brand Name: CIG, Actiontec FCC Classification: Digital Transmission System (DTS) Unlicensed National Information Infrastructure (NII) 15E 6GHz Low Power Indoor Access Point (6ID) FCC Rule Part(s): FCC Part 2.1091 Result: Complies Reviewed By: Kevin Guo Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2207RSU033-U6 2 of 10 Revision History Report No. Version Description Issue Date Note 2207RSU033-U6 Rev. 01 Initial Report 2022-09-02 Valid Report No.: 2207RSU033-U6 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Applied Standards ......................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.2. MPE Exemptions ........................................................................................................................... 8 2.3. Calculated Result ......................................................................................................................... 11 Report No.: 2207RSU033-U6 4 of 10 1. General Information 1.1. Applicant CIG Shanghai Co., Ltd. 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI 1.2. Manufacturer CIG Shanghai Co., Ltd. 5F, Building 8, NO.2388 CHENGHANG ROAD, MINHANG DISTRTCT, SHANGHAI 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2207RSU033-U6 5 of 10 1.4. Product Information Product Name Tri-band 4x4 Wi-Fi 6E Wireless AP Model No. WF-196, API7340 Wi-Fi Specification 802.11a/b/g/n/ac/ax Bluetooth Specification V5.0 (BLE only) Antenna Information Refer to Section 1.5 Power Type AC Adapter Input or PoE Input Operating Environment Indoor Use Remark: 1. The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. 2. Different models correspond to different brands, and the others are exactly the same. 1.5. Antenna Details Antenna Type Frequency (MHz) TX Path Antenna Gain (dBi) Directional Gain (dBi) Ant 0 Ant 1 Ant 2 Ant 3 Correlated Uncorrelated Wi-Fi Antenna PIFA 2412 ~ 2462 4 4.1 3.2 4.4 3.7 8.3 2.3 5150 ~ 5850 4 4.4 4.2 3.7 4.1 9.0 3.0 5925 ~ 7125 4 6.6 6.2 3.3 6.1 8.8 3.1 Bluetooth Antenna PIFA 2402 ~ 2480 1 4.2 -- Remark: 1. The antenna gain and directional gain refer to manufacturer’s antenna specification. 2. The device supports CDD Mode and STBC mode, details refer to the table as below. 3. CDD signals are correlated, the directional gain as follows, For power measurements: Array Gain = 0 dB for N ANT ≤ 4, the directional gain = max antenna gain + array gain For power spectral density (PSD) measurements: the max directional gain (each angle) = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ] 4. STBC signals are uncorrelated, the directional gain as follows, the max directional gain (each angle) = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 )/N ANT ] Report No.: 2207RSU033-U6 6 of 10 Test Mode T X Paths CDD Mode STBC Mode Wi-Fi 2.4G 802.11b/g 4 √ X 802.11n/ax 4 X √ Wi-Fi 5G 802.11a 4 √ X 802.11n/ac/ax 4 X √ Wi-Fi 5G 802.11ax 4 X √ Remark: “√” means “Support”, “X” means “Not support”. 1.6. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General …

Text truncated - open the document above for the full version.

CIG Measured Antenna Data Package Performance Data & Compliance September 14, 2022 Rev 5 2 Measurement Equipment, Port Assignments, & Cable Management •S-parameters measured on Keysight E5071C network analyzer and radiation patterns measured in MVG SG-24 anechoic chamber •Antenna cables lengthened to route out the ethernet ports on the bottom of the access point; this means that the efficiency data is “worst-case” Single-Band Antenna Data Single-Band Antenna 6 GHz Data Summary Antenna Detail X3: 6GX4: 6GX7: 6GX10: 6G Frequency 2.4G-2.5G5.925G6.525G7.125G5.925G6.525G7.125G5.925G6.525G7.125G5.925G6.525G7.125G Efficiency %656665646364545953666666 Peak Gain dBi6.65.94.86.25.44.83.03.33.26.15.34.9 S11 <-10dB-14-13-15-13-12-13-11-14-14-15-13-14 Frequency 5.925G6.525G7.125G Max. Uncorrelated Gain 3.1 dBi2.8 dBi2.6 dBi Max. Correlated Gain 8.8 dBi8.6 dBi8.4 dBi Updated at Rev. 5 Note: Details refer to Correlated Gain Calculation-Wi-Fi 6G and Uncorrelated Gain Calculation-Wi-Fi 6G files. 5 X3 Return Loss 6 X3 Radiation Patterns 7 X3 Efficiency and Peak Gain Over Frequency 8 X4 Return Loss 9 X4 Radiation Patterns 10 X4 Efficiency and Peak Gain Over Frequency 11 X7 Return Loss 12 X7 Radiation Patterns 13 X7 Efficiency and Peak Gain Over Frequency 14 X10 Return Loss 15 X10 Radiation Patterns 16 X10 Efficiency and Peak Gain Over Frequency Dual-Band Antenna Data Dual-Band Antenna 2.4 GHz Data Summary Antenna Detail X5: 2.4GX6: 2.4GX8: 2.4GX9: 2.4G Frequency 2.4G-2.5G2.4G2.44G2.484G2.4G2.44G2.484G2.4G2.44G2.484G2.4G2.44G2.484G Efficiency %707171676662676970677170 Peak Gain dBi3.33.74.13.13.22.94.44.04.13.43.73.6 S11 <-10dB-19-24-18-16-15-13-15-16-15-14-15-15 Frequency 2.4G2.44G2.484G Max. Uncorrelated Gain 2.3 dBi2.2 dBi2.1 dBi Max. Correlated Gain 8.3 dBi8.1 dBi8.0 dBi Note: Details refer to Correlated Gain Calculation-Wi-Fi 2.4G & 5G and Uncorrelated Gain Calculation-Wi-Fi 2.4G & 5G files. Dual-Band Antenna 5 GHz Data Summary Antenna Detail X5: 5GX6: 5GX8: 5GX9: 5G Frequency 2.4G-2.5G5.17G5.5G5.835G5.17G5.5G5.835G5.17G5.5G5.835G5.17G5.5G5.835G Efficiency %616766636056605958636257 Peak Gain dBi4.44.44.24.23.53.63.73.23.14.13.63.0 S11 <-10dB-15-20-23-21-17-13-15-16-14-16-17-14 Frequency 5.17G5.5G5.835G Max. Uncorrelated Gain 3.0 dBi2.4 dBi1.4 dBi Max. Correlated Gain 9.0 dBi8.4 dBi7.2 dBi Note: Details refer to Correlated Gain Calculation-Wi-Fi 2.4G & 5G and Uncorrelated Gain Calculation-Wi-Fi 2.4G & 5G files. 20 X5 Return Loss 21 X5 Radiation Patterns 22 X5 Efficiency and Peak Gain Over Frequency 23 X6 Return Loss 24 X6 Radiation Patterns 25 X6 Efficiency and Peak Gain Over Frequency 26 X8 Return Loss 27 X8 Radiation Patterns 28 X8 Efficiency and Peak Gain Over Frequency 29 X9 Return Loss 30 X9 Radiation Patterns 31 X9 Efficiency and Peak Gain Over Frequency Bluetooth Antenna Data Bluetooth Antenna Data Summary Antenna Detail X15: ble Frequency 2.4G-2.5G2.4G2.44G2.484G Efficiency %687071 Peak Gain for 3D dBi4.14.24.0 S11 <-10dB-17-19-16 34 Bluetooth Return Loss 35 Bluetooth Radiation Patterns 36 Bluetooth Efficiency and Peak Gain Over Frequency Summary of Isolation Data Isolation in 2.4 GHz band Isolation X5: 2.4+5G X6: 2.4+5G X8: 2.4+5GX9: 2.4+5GX3: 6GX4: 6GX7: 6GX10: 6GX15: BLE X5: 2.4+5G \-24-21-22-29-37-39-40-17 X6: 2.4+5G \\-24-25-37-31-36-37-17 X8: 2.4+5G \\\-23-46-32-56-33-30 X9: 2.4+5G \\\\-28-40-38-30-28 X3: 6G \\\\\-55-59-50-33 X4: 6G \\\\\\-61-50-34 X7: 6G \\\\\\\-60-45 X10: 6G \\\\\\\\-42 X15: BLE \\\\\\\\\ Isolation in 5 GHz band Isolation X5: 2.4+5GX6: 2.4+5GX8: 2.4+5GX9: 2.4+5GX3: 6GX4: 6GX7: 6GX10: 6GX15: BLE X5: 2.4+5G \-35-32-33-26-31-34-30-24 X6: 2.4+5G \\-35-34-32-28-39-30-28 X8: 2.4+5G \\\-32-32-30-32-27-38 X9: 2.4+5G \\\\-30-32-31-33-38 X3: 6G \\\\\-29-37-30-35 X4: 6G \\\\\\-37-30-35 X7: 6G \\\\\\\-38-33 X10: 6G \\\\\\\\-28 X15: BLE \\\\\\\\\ Isolation in 6 GHz band Isolation X5: 2.4+5GX6: 2.4+5GX8: 2.4+5GX9: 2.4+5GX3: 6GX4: 6GX7: 6GX10: 6GX15: BLE X5: 2.4+5G \-36-31-33-25-30-31-32-25 X6: 2.4+5G \\-32-34-29-27-36-31-27 X8: 2.4+5G \\\-32-31-28-33-26-38 X9: 2.4+5G \\\\-29-33-32-28-38 X3: 6G \\\\\-29-40-30-31 X4: 6G \\\\\\-40-31-30 X7: 6G \\\\\\\-35-32 X10: 6G \\\\\\\\-30 X15: BLE \\\\\\\\\ Isolation Between Dual-Band Antennas 42 X5, X6 Isolation 43 X5, X8 Isolation 44 X5, X9 Isolation 45 X6, X8 Isolation 46 X6, X9 Isolation 47 X8, X9 Isolation Isolation Between Single-Band Antennas 49 X3, X1 Isolation 50 X3, X4 Isolation

FREQUENCYMAX. CORRELATED GAINS [dBi] 2402 MHz8.3 2443 MHz8.1 2484 MHz8.0 5170 MHz9.0 5503 MHz8.4 5835 MHz7.2 FrequencyPhiThetaX5 Gain DataX6 Gain DataX8 Gain DataX9 Gain Data 24020000000-3.141592654-20.78073494-20.83728074-16.50798677-18.488222550.09140360.09081050.1494860.1190115-12.94263 24020000000-3.089232776-18.6839751-16.58079142-14.44999333-25.124966080.11635930.14823830.18945250.0554309-11.87804 24020000000-3.036872899-16.20482363-14.15928783-12.29476261-23.149628730.15479570.19590050.24280740.0695855-9.589163 24020000000-2.984513021-14.47570939-12.92410886-10.66206619-17.506429960.18889240.22583670.29301960.1332535-7.524657 24020000000-2.932153143-13.56214593-12.33996961-9.565772317-13.930297210.20984210.24154690.33243860.2011338-6.152215 24020000000-2.879793266-13.37591706-11.93661409-8.905757507-11.524417620.21438980.25302840.35868410.2653256-5.260699 24020000000-2.827433388-13.80664364-11.29798555-8.560174425-9.89047030.20401770.27233330.37324270.3202407-4.658113 24020000000-2.775073511-14.63939639-10.28654874-8.390199105-8.8528244710.1853660.30596560.38061860.3608766-4.202558 24020000000-2.722713633-15.37202547-9.096965598-8.246884305-8.2964092170.17037220.35087440.38695080.3847508-3.788977 24020000000-2.670353756-15.29981991-7.988444384-8.008161988-8.1031012160.17179440.39863720.39773330.3934096-3.339772 24020000000-2.617993878-14.34147855-7.103603566-7.63066627-8.1274389050.19183420.44138730.41540020.3923088-2.847739 24020000000-2.565634-13.14201183-6.471080928-7.161437472-8.2108974410.22024160.47472920.43845810.3885573-2.372385 24020000000-2.513274123-12.20978687-6.05116466-6.691533224-8.2418469260.24519450.49824360.4628320.3871753-1.973856 24020000000-2.460914245-11.72322482-5.768705873-6.300371063-8.2146005930.25932160.51471250.48415170.3883917-1.688956 24020000000-2.408554368-11.69006888-5.538576025-6.029379535-8.2125014030.26031340.52853190.49949490.3884856-1.530841 24020000000-2.35619449-12.01364332-5.291838244-5.88036356-8.3289408390.25079440.5437610.50813820.3833125-1.483417 24020000000-2.303834613-12.45182544-4.995994013-5.823195856-8.5993594690.23845630.56260070.51149360.3715626-1.493174 24020000000-2.251474735-12.57552462-4.655741688-5.806791852-8.9658181590.23508440.58507690.51246050.3562124-1.46886 24020000000-2.199114858-12.00132377-4.294238587-5.774157456-9.2680032690.25115040.60994130.51438950.3440328-1.312485 24020000000-2.14675498-10.81234194-3.930838685-5.680618908-9.2989883520.28799360.63600140.51995890.3428077-0.979267 24020000000-2.094395102-9.414222055-3.569190462-5.507670136-8.9576940010.33828980.66304110.53041580.3565458-0.499214 24020000000-2.042035225-8.111217955-3.19778304-5.263344923-8.3525707490.39304210.69200760.54554770.38227110.0557083 24020000000-1.989675347-7.021502775-2.798279176-4.969400755-7.7058556460.44557920.72457950.56432590.41181980.6132261 24020000000-1.93731547-6.157627851-2.35585428-4.645517114-7.2079939740.49217390.76244280.5857660.43611431.1247418 24020000000-1.884955592-5.487355573-1.866635328-4.299939108-6.9710414060.53165780.80661860.60954120.44817531.5691107 24020000000-1.832595715-4.961448452-1.339434765-3.928923137-7.0438587490.56484280.85709360.63614170.44443381.9469229 24020000000-1.780235837-4.526902145-0.792276795-3.522396741-7.4279168180.59382010.91282210.66662280.42521072.2737733 24020000000-1.72787596-4.136278796-0.246651345-3.071816437-8.0694998810.62113510.97200260.70211650.39493442.5750548 24020000000-1.675516082-3.7558762460.277494416-2.576425877-8.8192742640.64894251.03246350.74332490.36227332.8821525 24020000000-1.623156204-3.3708583550.764630175-2.045417344-9.3813010060.67835511.09202230.79018560.33957443.2277717 24020000000-1.570796327-2.9847730261.204465233-1.495829378-9.387424580.7091881.1487440.84179920.33933513.6342036 24020000000-1.518436449-2.6136273991.591450722-0.948116177-8.7082410750.74014811.20108170.89659060.3669344.0952951 24020000000-1.466076572-2.2776961091.923655898-0.421788615-7.590771270.76933451.24790860.95260.41731254.5761032 24020000000-1.413716694-1.9945598982.201503750.067434855-6.3702131070.79482591.28847261.00779390.48027435.0360891 24020000000-1.361356817-1.7750864762.4266169270.508724023-5.2541187390.81516531.32230261.06031820.54612755.4459163 24020000000-1.308996939-1.6222985972.60085360.895897887-4.3314018490.82963121.34909551.10865110.60733725.7889137 24020000000-1.256637061-1.532400942.7255795881.226390225-3.6297030040.83826231.36860771.15164730.65843796.0573401 24020000000-1.204277184-1.4972160672.8011788851.499862272-3.1484110430.84166491.38057161.18848340.69595236.2492007 24020000000-1.151917306-1.5072809282.8268831391.716807598-2.870051160.84069011.38466321.21854170.71861696.3665099 24020000000-1.099557429-1.5546914642.8009818121.877417877-2.760937850.83611391.38054031.24128320.72770126.4146347 24020000000-1.047197551-1.6347568862.7214839381.980910991-2.7685284420.82844211.36796251.25616170.72706566.4021607 24020000000-0.994837674-1.745897572.5872320242.025402014-2.822566030.81790931.34698141.26261250.72255636.3404866 24020000000-0.942477796-1.8879626442.3994100862.008261948-2.8483167710.80464051.31816721.26012350.72041736.2421681 24020000000-0.890117919-2.0597317872.1633712891.926802968-2.7942333670.78888451.28282841.24836090.72491716.1177509 24020000000-0.837758041-2.2564341041.8906119961.779084052-2.6585811630.771221.24317021.22730980.73632745.9727555 24020000000-0.785398163-2.4678230311.6004676741.564692044-2.4903311830.75267741.20232921.19738720.75072945.8076451 24020000000-0.733038286-2.6771468921.3205621581.285431862-2.3614012970.73475521.16420141.15950220.76195615.6216106 24020000000-0.680678408-2.8616728681.0843794680.9459778-2.3322459340.71931041.13297151.11506170.7645185.4179106 24020000000-0.628318531-2.9959184340.9244874480.554605697-2.4271714090.70827851.11230621.06593390.75620835.2079325 24020000000-0.575958653-3.058363030.8621545070.124171992-2.6187020410.70320481.10435251.01439850.73971585.0124777 24020000000-0.523598776-3.0400968030.898017061-0.32659267…

Text truncated - open the document above for the full version.

51700000001.675516082-0.4712388981.3420627554.006671831.4727215272.0588630211.16708671.58611111.18477551.26748598.3085811 51700000001.675516082-0.418879022.5081162694.0930532251.3825006882.4019253381.33476811.60196371.17253291.3185498.6718986 51700000001.675516082-0.3665191433.0542578064.1000958991.34616382.6355761681.42138881.60326311.16763791.35449948.8602333 51700000001.675516082-0.3141592652.5411580173.931787841.6326672512.5427659011.33985531.57249541.20679461.34010348.7220577 51700000001.675516082-0.2617993881.3593030783.5633344812.1974285892.1071845871.16940561.50718561.28786821.27455698.364395 51700000001.675516082-0.209439510.513661613.0700874352.7130702371.5799094711.06092111.42398161.36663811.19948688.0469948 51700000001.675516082-0.1570796330.4723524972.6066492092.8638485111.3349515361.05588741.34999591.39056861.16613167.8935569 51700000001.675516082-0.1047197550.4918591592.334164382.5638224541.5320666111.05826141.30830261.3433561.19289817.7883157 51700000001.675516082-0.0523598780.0810497172.324508522.0967562222.0180543181.00937491.3068491.27302761.26154497.695661 51700000001.675516082-4.44E-16-0.4936074272.5186951572.0381468222.5602343870.94475591.33639471.26446651.34280127.7627675 51700000001.6755160820.052359878-0.6915071152.7804173892.5279217093.0265723540.92347391.37727571.33781511.41686558.0545624 51700000001.6755160820.104719755-0.4667580992.9891711522.9943674653.4050103180.94768081.41077761.41162191.47996188.3826558 51700000001.6755160820.157079633-0.1993217413.0981758362.9196558833.7232707240.97731351.42859391.39953191.5351958.5312569 51700000001.6755160820.20943951-0.0713631743.135905992.1719656673.9607123630.99181771.4348131.28409831.57774078.4460004 51700000001.6755160820.261799388-0.0311426923.1659669960.9895475984.047849050.9964211.43978731.12066911.59364828.216431 51700000001.6755160820.314159265-0.0643796363.231764042-0.002474673.9492599990.99261541.45073540.99971511.57566187.9912728 51700000001.6755160820.366519143-0.2448147413.324238988-0.2305291883.72838410.97220821.46626320.97380851.5360997.8686589 51700000001.6755160820.41887902-0.51587423.3971346290.074767823.5083200730.94233711.47862051.00864511.49766967.8315314 51700000001.6755160820.471238898-0.6521252653.4081298330.284037843.3574156750.92767051.48049351.03324161.47187457.8068305 51700000001.6755160820.523598776-0.63017993.345449821-0.0217089373.2389454390.93001731.46984820.99750381.45193537.6929893 51700000001.6755160820.575958653-0.7314189543.224420228-1.052488733.0812068980.91924031.44950930.88588141.42580577.3851275 51700000001.6755160820.628318531-1.0936326323.063968707-2.7534156322.8797915820.8816951.42297880.72833171.39312346.8998812 51700000001.6755160820.680678408-1.4892974352.862226398-4.2099807662.7245176120.84243251.3903090.61588691.36844046.4796137 51700000001.6755160820.733038286-1.641058642.589515364-3.8988348292.6927734740.82784131.34733550.63834911.36344836.396636 51700000001.6755160820.785398163-1.6237438072.204737384-2.6590703042.7341744060.82949321.28895240.73628591.36996266.4953054 51700000001.6755160820.837758041-1.6614342941.681912255-1.9651854722.7215130650.82590161.2136560.79751841.36796716.4548091 51700000001.6755160820.890117919-1.7646732831.027176506-2.0745884162.5714993950.81614311.12553450.78753631.34454386.1793042 51700000001.6755160820.942477796-1.8235489020.278093936-2.5739341572.2931632120.81062981.03253480.74353821.30214145.775811 51700000001.6755160820.994837674-1.941738139-0.510339344-2.8163213381.9560404070.79967420.94293780.7230761.252575.3861905 51700000001.6755160821.047197551-2.410707848-1.285391702-2.6088007461.6141459730.7576430.8624430.74055951.20422415.020273 51700000001.6755160821.099557429-3.355155505-2.01219742-2.3341342451.2700810510.67958260.79321360.76435181.15745484.5951792 51700000001.6755160821.151917306-4.513033302-2.669860774-2.2742043520.9079763790.5947690.73537180.76964381.11019394.1094425 51700000001.6755160821.204277184-5.308114518-3.223527395-2.3884448190.531787542…
