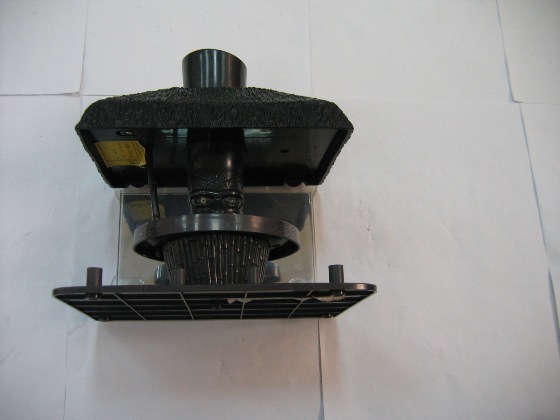

SGQBSTTOTR49MHz Radio Transmitter

Item number BSTTO-NI / BSTTO-RM

FCC ID.: SGQBSTTOTR

Circuit Description for IMA Bird Feeder Date: 5/31/2005 A) TransmitterTransmitter including I/R transmitter, I/R receiver, I/R signal detector and driver, R/F transmitter encoder IC, R/F local osc illator and R/F signal transmitter amplifier : 1) Power on -- I/R transmitter LED (D2) turn on by driver (Q3).2) While something moving face to I/R LED (D2) , the I/R signal reflect and receive by I/R photo transistor (Q4) and send sign al to IC (RX2) 3) I/R signal detector and driver IC (RX2) received I/R signal then trigger the R/F transmitter IC (GTX2) 4) R/F transmitter IC (GTX2) send out signal modulate with loca l oscillation frequency by circuit (Crystal 49.86MHz and Q1) 5) R/F signal sending out through R/F power output transistor ( Q2) B) ReceiverReceiver including R/F oscillation and R/F front end amplifier (Q1), R/F decoder IC (RX2C), voice chip (V03) and speaker: 1) Power on -- Q1 stand-by to receive R/F signal2) While receive R/F signal then de-modulate through Q1 to deco der IC (RX2C) 3) Decoder IC trigger voice IC (V03) then speaker output bird s ound.

Report No.: GLEMO050501477RFF (I) Page : 1 of 11 FCC ID : SGQBSTTOTR Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. Member of the SGS Group (SGS SA) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : GLEMO050501477RF Applicant : Summit Financial Products, Inc. FCC ID : SGQBSTTOTR Fundamental Frequency : 49.860MHz Equipment under Test (EUT): Name : BACKYARD SAFARI TIKI TAKEOUT BIRD FEEDER Model No. : BSTTO-NI, BSTTO-RM♣ Serial No. : Not supplied by client ♣ : Please refer to section 2 of this report which indicates which model was actually tested and which models are electrically identical. Standards : FCC PART 15, SUBPART C : 2004 Section 15.235 Date of Receipt : 26 May 2005 Date of Test : 2 to 8 June 2005 Date of Issue : 18 June 2005 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID.: SGQBSTTOTR Report No.: GLEMO050501477RFF (I) Page : 2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2004 Section 15.235 PASS Occupied Bandwidth FCC PART 15 :2004 Section 15.235 PASS Remark: Model No.: BSTTO-NI, BSTTO-RM♣. Only one model was tested as above since their electrical circuit design, layout, components used and internal wiring are identical. Only the packing and model number are different. FCC ID.: SGQBSTTOTR Report No.: GLEMO050501477RFF (I) Page : 3 of 11 SGS-CSTC Standards Technical Services Ltd. 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 DETAILS OF E.U.T............................................................................................................................................ 4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 4 4.4 TEST LOCATION................................................................................................................................................ 4 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.6 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS.......................................................................................................................................... 6 5.2 E.U.T. OPERATION........................................................................................................................................... 6 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 6 5.3.1 Radiated Emissions...................................................................................................................................6 5.3.2 Occupied Bandwidth.................................................................................................................................8 6 PHOTOGRAPHS.....................................................................................................................................................9 6.1 RADIATED EMISSION TEST SETUP................................................................................................................... 9 6.2 EUT CONSTRUCTIONAL DETAILS................................................................................................................9-11 FCC ID.: SGQBSTTOTR Report No.: GLEMO050501477RFF (I)…
