SGQYLNF1MULost Finder

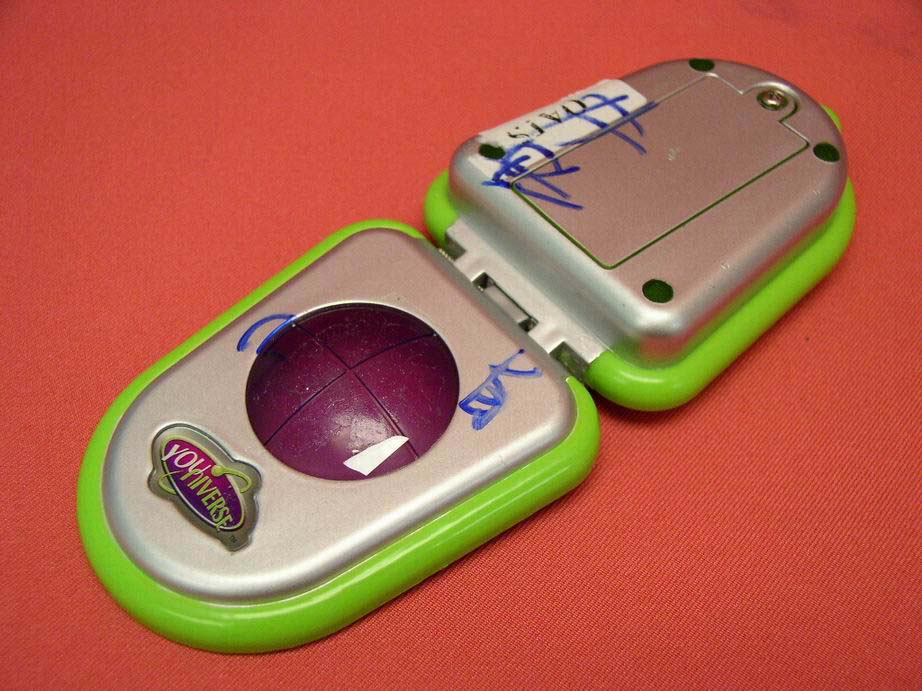

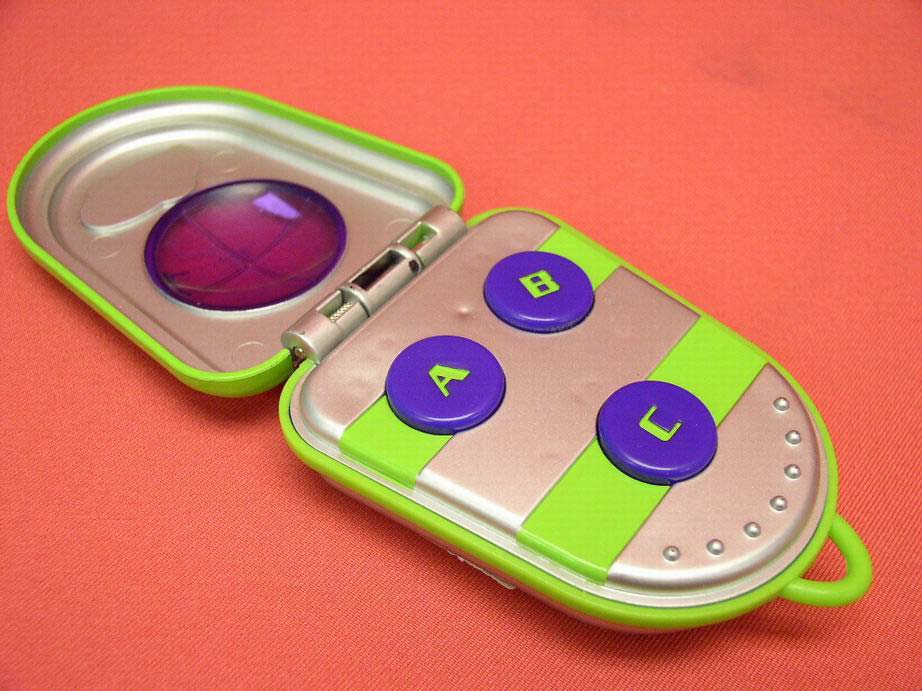

FCC ID: SGQYLNF1MU Ophoto1 Ophoto2 FCC ID: SGQYLNF1MU Ophoto3 Ophoto4

(B) Main Unit Battery Door ©2005 Summit Products, Inc. Trussville, AL 35173 DC 3V ‘AAA’ size Battery X 2 Around the Cabinet - This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. - FCC ID: SGQYLNF1MU Made in China Label Size:

FCC ID: SGQYLNF1MU Iphoto1 Iphoto2 FCC ID: SGQYLNF1MU Iphoto3 Iphoto4

FCC ID: SGQYLNF1MU Technical Description : The brief circuit description is listed as follows : - X1, Q2 and associated circuit act as 433.92MHz Oscillator - X, UITM6814-538 and associated circuit act as Encoder - Q1 and associated circuit act as Modulator - A, B, C and associated circuit act as Switches Antenna Used : A internal integral antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : SGQYLNF1MU Summit Financial Products, Inc. Application For Certification (FCC ID: SGQYLNF1MU) Transmitter Sample Description : Lost-n-Found Model : YLNF1-NI Additional Model : YLNF1-RM We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [12-8-2003] 0508973 TL/at May 24, 2005 INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU ii MEASUREMENT/TECHNICAL REPORT Summit Financial Products, Inc. - MODEL: YLNF1-NI FCC ID: SGQYLNF1MU May 24, 2005 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-8- 2003 Edition] provision. Report prepared by: Tommy Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8538 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation.................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf Test Report Timing diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: SGQYLNF1MU 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a transmitter for a RF Device for Finding Lost Object op…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Front View Back View
