SGRS311A0001MULTI-SCREEN INTERACTIVE DEVICE

Product Manual (产品说明书) 感谢您选用本公司生产的产品，本手册包含重要的安全措施和 正确使用产品的信息，以避免事故发生，确信在使用该产品之 前仔细阅读该手册； 请不要将产品放在高温度、潮湿或粉尘多的地方； 避免摔落或强烈碰撞该产品； 设备在格式化或正在进行上传和下载时请不要忽然断开连接， 否则可能导致程序出错； 请勿自行拆卸产品，勿使用酒精、稀释剂或苯类产品； 本公司保留改进产品的权利，产品规格及设计如有变更，恕不 另行通知； 免责申明：本公司只负责产品本身的服务与维修，对于产品使 用过程中造成的数据损失及连带责任，本公司概不负责； 本机无防水功能； 本操作手册所列图片仅供参考。 ！ ！ ！ ！ ！ ！ ！ ！ ！ 注意事项 设备连接 1.将多屏分享器的HDMI插头接入电视HDMI接口。 HDMI转接线 USB数据线 电源适配器 2.使用USB数据线的Micro端口插入多屏分享器。数据线另一接口 插入电视USB接口为其供电。（如电视无USB接口，可接入手机或 其它设备的5V电源适配器。）接入电源后多屏分享器会自动开 机。 开始使用 镜像（MIRACAST）模式： 设备首次开机默认进入MIRACAST模式，此时请打开手机 （Android4.2或4.2以上）的Miracast功能，搜索并选择设备连 接。目前，不同品牌的手机激活MIRACAST功能的路径或者名称 不完全一样。以三星galaxy S4手机为例，依次选择设置—屏幕 共享—打开屏幕共享。选择你的设备，连接成功后手机的屏幕 显示内容将在接上多屏分享器的显示器上同步显示。 MIRACAST模式转DLNA模式：请通过设备上的转换键一键转换。 媒体输出（DLNA）模式： (1)AP模式： 在DLNA模式下，初始默认为AP模式，打开手机/平板的Wi-Fi，搜 索并连接到多屏分享器(名称在显示器上，一般为WFD-XXXXXX （6个数字）)。连接成功后，即可通过自带播放器上的一键推送 将手机/平板上的照片、音乐、视频推送至大屏幕上显示。 如果手机自带的媒体播放器没有DLNA分享功能，可通过下载第三 方软件例如我们公司的S+share.apk或者iMediashare来实现此 功能。 (2)Client模式： 进入Clinet模式操作：在AP模式下，先用手机连接上多屏分享 器，然后在手机自带浏览器输入显示器屏幕上显示的IP地址 （192.168.49.1），进入网页管理，选择Wi-FI管理，然后扫描 并选择Wi-Fi连接。 选择设备 我的设备 S+941215-DMR 取消 刷新 0000:14: 0003:33: S MSUNG V 可用设备 192.168.49.1/cg 192.168.49.1/cg DLINK link NETGEAR46 cisco-tena CMCC-AUTO OPEN tplinkqzy CMCC ALI-ZSZ(2) OPEN CMCC-AUTO CMCC OPEN OPEN OPEN *** ** * **** *** *** *** *** ** * Back Scan Results: 在Client模式下，还可以把在线视频推送到多屏分享器上播放， 目前支持DLNA的视频客户端有腾讯视频、PPTV、搜狐视频。操作 方法，以腾讯视频为例，在播放视频时，触摸屏幕激活控制栏， 点击控制栏的分享按钮，选择对应的设备即可。 (3)Airplay模式: 在DLNA模式下，同样支持苹果的Airplay协议（镜像除外），操 作方式跟安卓产品大同小异。 Client模式转AP模式： 在Client模式下，用手机浏览器输入屏幕上显示与之连接的路由 器的IP地址,进入到多屏分享器的操控界面，选择Disconnect后 即可转为AP模式。 DLNA转MIRACAST模式： 方法1、可通过设备上的转换键一键转换。 方法2、进入网页操作界面，选择 SWITCH MODE。 Thank you for purchasing this product, the operational guidelines below contains important information about safe and proper use of this device to avoid accidents, so please read the instructions carefully before use. Store the unit away from high temperature, extreme moisture or dust. Avoid strong impact or any collision with the product. Do not interrupt the power while in the process of upgrading or uploading/downloading the firmware, to avoid data loss or program error. This product is a high precision electronic product, do not disassemble or clean it with alcohol, thinner and benzene solution. The maker reserves the right to upgrade the product, product specification and design is subject to change without prior notice. Disclaimer: The maker assumes responsibility for warranty service of the product itself and assume no responsibility for the data loss. The unit is not water-proof. Pictures contained in this manual are for reference only. ！ ！ ！ ！ ！ ！ ！ ！ ！ Opening Note HDMI cable USB cable Power adapter Connect the unit 1. Insert the HDMI plug of the device into HDMI port on TV. 2.Insert the micro plug of USB cable into the device, and the other end into the USB port on TV to power the device. After connection, the device will be turned on automatically. If there is no USB port on TV, connect the USB cable to a mobile phone or a 5V power adapter. Get started Mirror mode（MIRACAST）： The Miracast mode will be enabled by default when the device is switched on the first time. Then please turn on the Miracast feature on a mobile phone powered with Android 4.2 or above version, search for the device and establish connection. This process of enabling Miracast feature varies a lot for different mobile phone brands. Here is a example for Samsung Galaxy S4, go to settings - screen sharing - turn on screen sharing, and then select the device. After connection, the contents on mobile phone display will be streamed to TV display. Mirror mode to Media Output Mode (DLNA/Airplay) Switch mode between Mirror to Media Output mode: press “RST” button on the device. Media output mode(DLNA)： If a DLNA push or stream feature is not incorporated in the media player, please download and install a third-party APK to do this, such as S+share.apk from Tena or iMediashare. 2.Client modeTo switch to Client from AP mode, please establish connection first between mobile phone and the device, input into mobile phone browser the IP address （192.168.49.1）that is shown on TV display, go to web manager, open Wi-Fi manager, and click on Wi-Fi connection after scanning. 选择设备 我的设备 S+941215-DMR 取消 刷新 0000:14: 0003:33: S MSUNG V 可用设备 1. AP mode When DLNA is enabled , the device will enter AP mode by default. Please turn on Wi-Fi on a mobile phone or tablet PC, search for the device ( an ID of WFD-xxxxxx(6 digits) will be found) and establish connection. After connection, the media contents on the display of a mobile phone or tablet PC can be streamed to TV display by clicking on “ DLNA push” button on media player in the mobile phone or tablet PC. 192.168.49.1/cg 192.168.49.1/cg DLINK link NETGEAR46 cisco-tena CMCC-AUTO OPEN tplinkqzy CMCC ALI-ZSZ(2) OPEN CMCC-AUTO CMCC OPEN OPEN OPEN *** ** * **** *** *** *** *** ** * Back Scan Results: In Client mode, internet video can be streamed to TV display via the device, and currently, online video clients supporting DLNA feature. 3.Airplay mode In DLNA mode, Airplay protocol from Apple is supported as well, and the operation is similar to that for Android devices. Client to AP mode In Client mode, input into mobile phone browser IP address of the wireless router as shown on TV display, then go to operation interface of the device, select “Disconnect” and then AP mode will be enabled. Media Output Mode to Mirror Mode Switch mode between Media Output to Mirror mode: 1. Press “RST” button on the device. 2 . Go to web manager, and click on “switch mode”. Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used …

Text truncated - open the document above for the full version.

SHENZHEN TENA ELECTRONIC CO., LTD. Date: November 3, 2013 Federal Communications Commission Authorization and Evaluation Division FCC ID: SGRS311A0001 ATTESTATION FCC ID: SGRS311A0001 Product: Multi-Screen Interactive Device Model: S311A We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, __________________ Jerome Pan SHENZHEN TENA ELECTRONIC CO., LTD. Annex I J Series J001, J002, J003, J004, J005, J006, J007, J008, J009, J010, J011, J012, J013, J014, J015, J016, J017, J018, J019, J020, J021, J022, J023, J024, J025, J026, J027, J028, J029, J030, J031, J032, J033, J034, J035, J036, J037, J038, J039, J040, J050, J052, J055, J058, J060, J065, J068, J070, J080, J090, J095, J098, S Series S001, S002, S003, S004, S005, S006, S007, S008, S009, S010, S011, S012, S013, S014, S015, S016, S018, S020, S022, S024, S028, S030, S036, S040, S050, S058, S060, S070, S080, S090, S198, S1000，S298, S398, S498, S598, S698, S798, S898, S518, S700, S900, S1000, S2000 ,S998, K Series K1000, K2000, K3000, K4000, K5000, K6000, K7000, K8000, K9000 T Series T1, T2, T4, T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T17, T18, T19, T20, T21, T22, T23, T24, T25, T26, T27, T28, T29, T30, T40, T50, T60, T70, T80, T90, X Series X1, X2, X3, X4, X5, X6, X7, X8, X9, X10, X11, X12, X13, X14, X15, X16, X17, X18, X19, X20, X22, X24, X25, X28, X35, X40, X50, X60, X70, X80, X90, A Series A001, A002, A003, A004, A005, A006, A007, A008, A009, A010, A011, A012, A013，A014, A015, A016, A017， A018, A019, A020, A030, A040, A050, A060, A070, A080, A090, D Series D001, D002, D003, D004, D005, D006, D007, D008, D009, D010, D010, D012, D013, D014, D015, D016, D017, D018, D019, D020, D030, D040, D050, D060, D070, D080, D090, F Series F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, F13, F14, F16, F18, F20, F30, F40, F50, F60, F70, F80, F90,

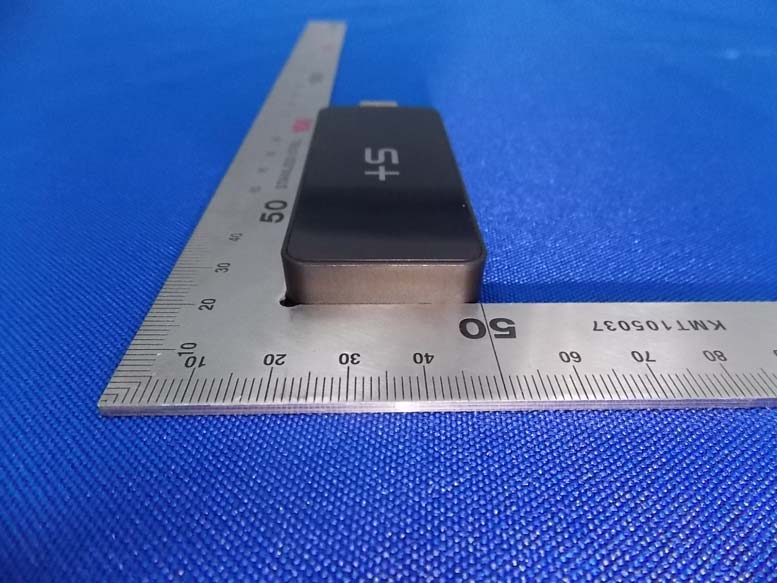

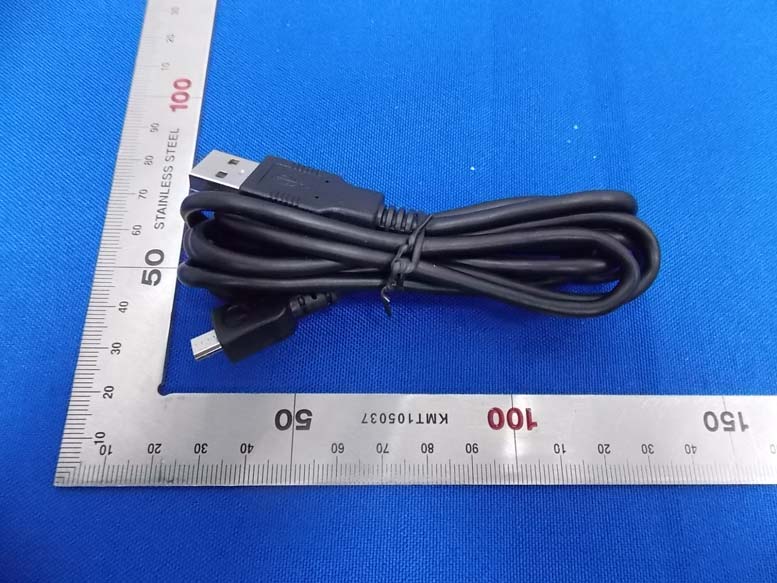

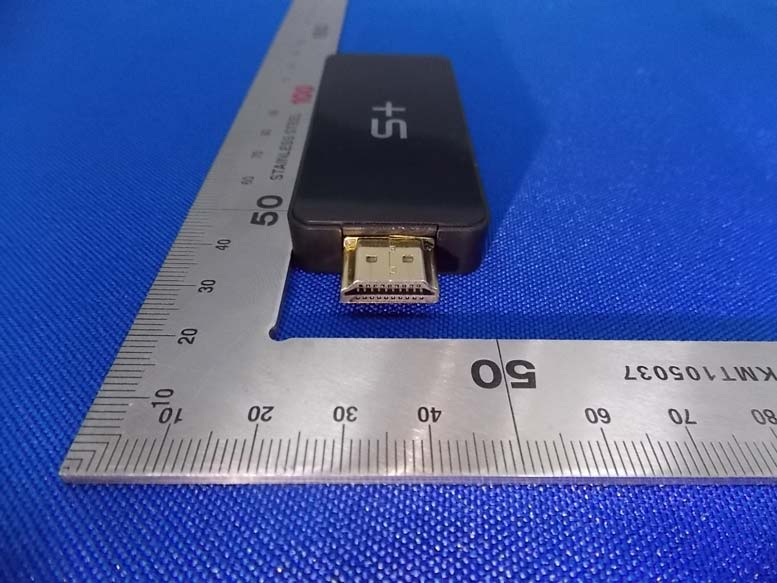

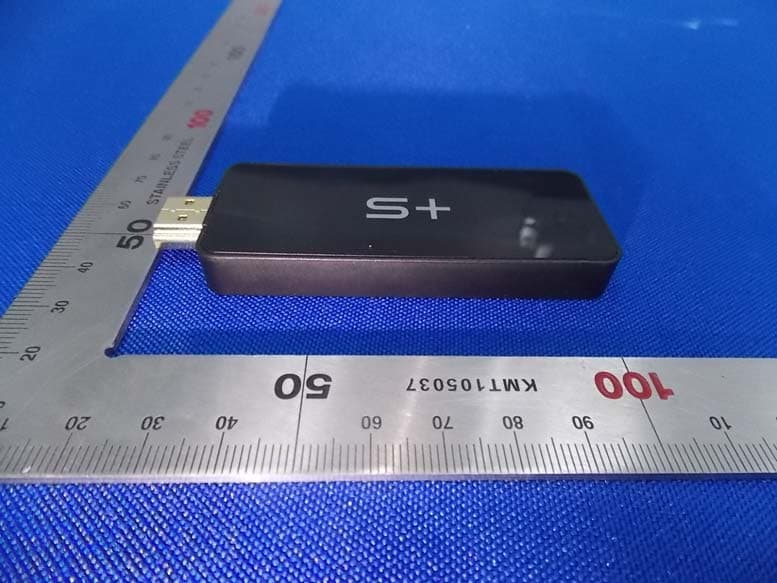

1 of 4 External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo

1 of 5 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

1 of 5 Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1309RSU00502 Phone: +86-512-66308358 Fax: +86-512-66308368 Report Version: V01 www.mrt-cert.com RF Exposure Evaluation Declaration Applicant : SHENZHEN TENA ELECTRONIC CO., LTD. Product : Multi-Screen Interactive Device Model No. : S311A FCC ID : SGRS311A0001 Standards : FCC Oet65 Supplement C June 2001 Test Date : September 30, 2013 ~ November 01, 2013 Reviewed By : ( Engineer: Sunny Sun ) Approved By : ( Manager: Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1309RSU00502 Page: 2 of 4 Revision History Report No. Version Description Issue Date 1309RSU00502 Rev. 01 Initial report 2013-11-04 Report No.: 1309RSU00502 Page: 3 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1mW/cm². If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No.: 1309RSU00502 Page: 4 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. 1.3. Test Result of RF Exposure Evaluation Product Multi-Screen Interactive Device Test Item RF Exposure Evaluation Antenna Gain: The maximum Gain measured in fully anechoic chamber is -2.0dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum output power to antenna (mW) Limit of Power Density S(mW/cm²) 802.11b/g/n(20MHz) 2412~2462 8.26 10 802.11n(40MHz) 2422~2452 9.04 10 Per FCC KDB 447498 D01v05r01, the SAR exclusion threshold for distances<50mm is defined by the following equation: Based on the maximum conducted power of Wi-Fi and the antenna to use separation distance, Wi-Fi SAR was not required; [(9.04mW/5)* √2.437] = 2.82 < 3.0. Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1309RSU00501 Phone: +86-512-66308358 Fax: +86-512-66308368 Report Version: V01 www.mrt-cert.com 1 of 96 FCC15.247 Test Report Applicant : SHENZHEN TENA ELECTRONIC CO., LTD. Product : Multi-Screen Interactive Device Model No. : S311A FCC ID : SGRS311A0001 Standards : FCC CFR Title 47 Part 15 Subpart C: 2013 ANSI C63.4: 2009 ANSI C63.10: 2009 Test Date : September 30, 2013 ~ November 01, 2013 Reviewed By : ( Engineer: Sunny Sun ) Approved By : ( Manager: Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1309RSU00501 2 of 96 Revision History Report No. Version Description Issue Date 1309RSU00501 Rev. 01 Initial report 2013-11-02 Report No.: 1309RSU00501 3 of 96 Test Summary FCC Part Section(s) Test Description Test Result (Pass/Fail) Reference 15.207 Conducted Emission Pass Section 3 15.205 15.209 Radiated Emission Pass Section 4 15.247(d) RF Antenna Conducted SpuriousPass Section 5 15.247(d) Radiated Emission Band Edge Pass Section 6 15.215(c) Operation Frequency Range of 20dB Bandwidth Pass Section 7 15.247(a)(2) Occupied Bandwidth Pass Section 8 15.247(b)(3) Power Output Pass Section 9 15.247(e) Power Spectral Density Pass Section 10 Report No.: 1309RSU00501 4 of 96 CONTENTS Description Page 1. General Information .................................................................................................................. 6 1.1. Applicant .......................................................................................................................... 6 1.2. Manufacturer ................................................................................................................... 6 1.3. Feature of Product ........................................................................................................... 6 1.4. Testing Facility ................................................................................................................. 7 2. Test Configuration of Equipment Under Test ......................................................................... 8 2.1. Test Mode ........................................................................................................................ 8 2.2. Configuration of Tested System ...................................................................................... 8 2.3. Test System Details ......................................................................................................... 9 2.4. Test Software ................................................................................................................... 9 3. Conducted Emission .............................................................................................................. 10 3.1. Limit of Conducted Emission ......................................................................................... 10 3.2. Test Setup ..................................................................................................................... 10 3.3. Test Procedure .............................................................................................................. 11 3.4. Test Result ..................................................................................................................... 12 4. Radiated Emission .................................................................................................................. 14 4.1. Limit ............................................................................................................................... 14 4.2. Test Setup ..................................................................................................................... 15 4.3. Test Procedure .............................................................................................................. 17 4.4. Test Result ..................................................................................................................... 18 5. RF Antenna Conducted Spurious ......................................................................................... 25 5.1. Limit ............................................................................................................................... 25 5.2. Test Setup ..................................................................................................................... 25 5.3. Test Procedure .............................................................................................................. 25 5.4. Test Result ..................................................................................................................... 26 6. Radiated Emission Band Edge .............................................................................................. 34 6.1. Limit ............................................................................................................................... 34 6.2. Test Setup ..................................................................................................................... 34 6.3. Test Procedure .............................................................................................................. 34 6.4. Test Result ..................................................................................................................... 35 7. Operation Frequency Range of 20dB Bandwidth ................................................................ 67 Report No.: 1309RSU00501 5 of 96 7.1. Limit ............................................................................................................................... 67 7.2. Test Setup .............................................…
