Kc-1201D 2.4GHZ WIRELESS GAME PAD INSTRCTIOIN MANUAL Thank you very much for purchasing the RF game-pad. The RF game-pad is one of peripheral equipments for Sony Playstaion2 console. It has vibration function to provide you more realistic feelings, and complete function keys to set your game-pad more powerful. Before using this controller, please read this manual and retain it for future reference. Specification 1. Compatible with PSX, PS-one, ps2 console 2. This is a ps2 dual shock rumble full analogue RF game pad 3. The pad will come with one host unit. One host unit can use for one controller. 4. This product will have 8 channels, All channels are stand-alone. 5. Range up to 10M 6. Battery life-4XAA size alkaline battery – we estimate battery life of approx 60hrs, time will be affect by the shock status and the quality of battery 7. D-pad, X,○,□,△,L1,L2,R1,R2, left and right 3D sticks have analog function 8. Vibration can enable or disable by the user for increase the battery life 9. Designed for short range wireless communication in 2.4ghz – world wide license free band. 10. Power switch and vibration switch for save your power. 11. Dual vibration motor 12. Operation voltage: 3.3V 13. Operation current: 15MA 14. Vibration voltage: 4.5V 15. Vibration voltage: ≤70MA 16. Rechargeable battery 1.2V 750 mAh *4pcs 17. Low power indication: analog LED flash (Dark green LED) 18. Including AC/DC adaptor 19. Recharge LED indication: red LED is recharging Green LED is on and the red LED is off, The batteries is full. Setting the frequency channel Before using your playfree controller, please setting the frequency channel on the controller and receiver so that they match. Controller channel setup 1. Set the switches as shown as shown Receiver setup 1. Set the switches on the side of the receiver as shown Frequency switch configuration 1 PLAYER 2 PLAYER 3 PLAYER 4 PLAYER 5 PLAYER 6PLAYER 7PLAYER 8 PLAYER Battery install 1. Remove battery compartment cover from the controller 2. Insert 3x1.5V AAA size batteries, observing the correct polarity, we recommend alkaline batteries 3. Refit the battery compartment cover Charge operation 1. When the Analog Light is flashing, which means the power is low. 2. Insert the AC/DC adaptor into the socket.. 3. Insert the DC plug into the controller input socket, the red LED is on 4. The green LED will be on and the red LED will be off when the battery is full after 4 hours. 5. Recharging the controller, you can play the game. Receiver connection 1. Ensure that your ps2 console is switched off 2. Plug the receiver unit into a controller port on your ps2 controller 3. Turn on your ps2 console Using your playfree controller Switch on the controller by sliding the power on/off, switch to on. Saving battery life, please turn off the controller when you have finished playing BRIEF EXPLANATION OF KEY 1. Q-PAD Manipulates the moving direction of your role in games. 2. FUNCTIONAL KEYS (1) START key can start a game or let game pause. (2) SELECT key allows you to select weapons or tools. 3. VIBRATION MOTOR There is a vibration motor in the D-stick, when you play the feedback games, you feel more real and more comfortable. 4. RIGHT AND LEFT 3D STICKS The sticks has analog function, when you play the games that need analog controller, you feel more real and more comfortable. 5. ANOLOG FUNCTION When you press the analog button one time, the ANALOG display LED IS ON, the next button have analog function: D-pad, X,○,□,△,L1,L2,R1,R2, left and right 3D sticks Precaution of Usage & Storage ● Do not use or store this joystick in an area where is highly moist, dangerous hot, extra- cold or full of dust. ● Do not expose this joystick to direct sunlight for a long time. ● Do not lay this joystick on a surface that is slanted or unstable. ● Do not apply a strong force upon this joystick or drop it roughly from a high place. ● If you want to clean this joystick, you can use a soft cloth, sock it in clean water or diluted neutral detergent, wring out it thoroughly before wiping the dirt from the case. Never use chemicals such as benzene or paint thinner to clean this joystick. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

2.4G Game Pad Block Diagram Transmitter DC6.0V/500MA 6MHZ Receiver 6MHZ CHARGE CIRCUIT VOLTAGE REGULATE MICRO PRECESSER LOW BATT DETECT OSCILLATORLOGIC CONTROL 2.4G RFMODULE 8CHANEL AUTO SELECT PAD KEYS 2.4G RFMODULE 8CHANEL AUTO SELECT MICRO PROCESSER DECODE CONSOLE

FCC ID Location FCC ID Label Sample FCC ID: SH7GS250R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: SH7GS250R FCC ID: SH7GS250R FCC ID: SH7GS250R

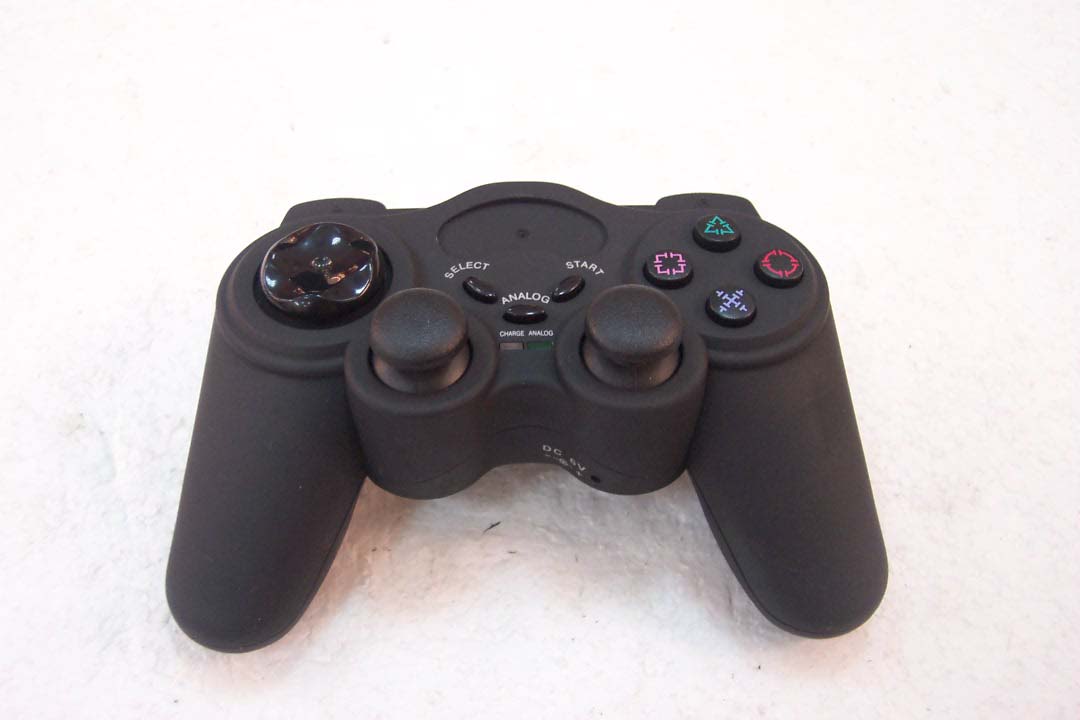

Function Description of GS250R This RF 2.4G Wirless Gamepad is for PS2 Console(GS250R). As for the GS25R , this gamepad could be used without the limit of the cable , that means you could play the game and control the gamepad as far as ten meters away form you TV and console. And this gamepad has the function of recharge. So you could use rechargeable batteries instead of common batteries. It has the function of analog as well, which could make the player have the real feeling when they are playing the game.

Title Number Revision Size A3 Date: 30-Aug-2004 Sheet of File: C:\PROGRAM FILES\DESIGN EXPLORER 99 SE\EXAMPLES\1201D-1.DDB Drawn By: LED1RED Q88050 D1D4148 C6100nF 12 M1B_MTR MTR_VCC R24100K R111K Q28051 D2D4148 C7100nF 12 M2S_MTR R23100K R131K Joy Stick Right2 RV2B Joy Stick Right1 RV2C Joy Stick Left2 RV1B Joy Stick Left1 RV1C VCCVCC VCCVCC RV1 JoyStick_Left RV2 JoyStick Right R524K R724K R924K R1124K R201.5K R211.5K R141.5K R101.5K R124K R224K R324K R424K R241K5 R271K5 R261K5 R221K5 VCC 1234 8765 J2SW DIP Y1 6MHz C1422pF C1322pF R191M SW3 SELECT SW4 START 1 2 3 CN2 R151K5 R81K5 JSR_BTN 1 2 3 CN1 R71K5 R161K5 C131000p C11 100nF C140.1 C170.1uF C1647uF C161uF L1220nH VCC R11M ET44R510 RF24PS2_Remote VCC RF_VCC VCC MTR_VCC VCC VCC VCC VCC VCC ( 2222A ) ( 2222A ) R18100 123456 J1RF Module Connector GNDVCCTX/RXRSSITXD/RXDRF_ACT C15100nF R281R L3 LXLY L1 L2 R1 R2 R3 RXRY 1 of 2 C120.1 PF1 2 AVDD 52 DVDD 20 PA0/KWU8 3 PA1/KWU9 4 PA2/KWUA 5 PA3/KWUB 6 /RST 7 PA4 8 PA5 9 PA6 10 PA7/PWM0 11 PB0/KWU0 12 PB1/KWU1 13 PB2/KWU2 14 PB3/KWU3 15 PB4/KWU4 16 PB5/KWU5 17 PB6/KWU6 18 PB7/KWU7 19 RF_ACT 21 TX/RX 22 RFIO 23 DVSS 24 AVSS 34 PC0/SDI 25 PC1/SD0 26 PC2/SCK 27 PC3/INT0 28 PC4/INT1 29 PC5/PWM1 30 PLCC 31 OSCO1 32 OSCI 33 PD0/ADC0 35 PD1/ADC1 36 PD2/ADC2 37 PD3/ADC3 38 PD4/ADC4 39 PD5/ADC5 40 PD6/ADC6 41 PF0/OSCO2 1 PD7/ADC7 42 Vref 43 PE0/ADC8 44 PE1/ADC9 45 PE2/ADCA 46 PE3/ADCB 47 PE4/ADCC 48 PE5/ADCD 49 PE6/ADCE 50 PE7/ADCF 51 ET44R510A VCC MODE C3100nF +C1 47UF +C2 220UF VCC +VBAT V_IN 2 V_OUT 1 GND 3 U4APL5883 12 BAT1GND MTR_VCC BAT_GND MTR_GND +VBAT ON VIBRATION ON POWER SW7Analog Low Power detect. Pls see the function decriptionWakeup from joystick. Pls see the function description Sleep time choose. Pls see the function descriptionTP4TP3 low batt R352K R301.5K R295.1 R17 470 R36220 R3710K R31100K Q5 8550 H LM-324-B Q68050 Q78050 led2 LED GREEN led2 LED RED D54148 D34001 D44148 R32,R33,R34 860K BAT1OUT BATTBATOUT-BATT CHARGE R910K R381K CHARGE Q?8050 Q?8050 R?2M7R?360KR?10K R?2M2 R?22M R?330K VCC 65 11 7 4 LOW BATT Title Number Revision Size A3 Date: 30-Aug-2004 Sheet of File: C:\PROGRAM FILES\DESIGN EXPLORER 99 SE\EXAMPLES\1201D-2.DDB Drawn By: LED1GRN LED2RED 1234 8765 SW1SW DIP-1 123456789 CN2PS2 Connector Y1 6MHz C822pFC722pF OSCIOSCO C2 102 C1100pF C60.1 R251M C110.1uF C1047uF C91uF L1220nH R261R VCC R141M ET30RF24PS2_Host V2.0 MTR_VCC VCC RF_VCC VCC VCC 123456 CN1RF Module Connector GNDVCCTX/RXRSSITXD/RXDRF_ACT R202K2 R212K2 C12100nF VCC ID0ID1ID2ID3 PF1 2 AVDD 52 DVDD 20 PA0/KWU8 3 PA1/KWU9 4 PA2/KWUA 5 PA3/KWUB 6 /RST 7 PA4 8 PA5 9 PA6 10 PA7/PWM0 11 PB0/KWU0 12 PB1/KWU1 13 PB2/KWU2 14 PB3/KWU3 15 PB4/KWU4 16 PB5/KWU5 17 PB6/KWU6 18 PB7/KWU7 19 RF_ACT 21 TX/RX 22 RFIO 23 DVSS 24 AVSS 34 PC0/SDI 25 PC1/SD0 26 PC2/SCK 27 PC3/INT0 28 PC4/INT1 29 PC5/PWM1 30 PLCC 31 OSCO1 32 OSCI 33 PD0/ADC0 35 PD1/ADC1 36 PD2/ADC2 37 PD3/ADC3 38 PD4/ADC4 39 PD5/ADC5 40 PD6/ADC6 41 PF0/OSCO2 1 PD7/ADC7 42 Vref 43 PE0/ADC8 44 PE1/ADC9 45 PE2/ADCA 46 PE3/ADCB 47 PE4/ADCC 48 PE5/ADCD 49 PE6/ADCE 50 PE7/ADCF 51 ET44R510A VCC C?104 VCC C?104

Report No.: GLEMO040801090RFI Page: 1 of 20 FCC ID: SH7GS250R Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 E-Mail: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040801090RF (SGS SZ NO.:SZTYR040804548/TS) Applicant: Prism Technology Limited FCC ID: SH7GS250R Fundamental Carrier Frequency : 2.441 GHz Equipment Under Test (EUT): Name: PS2 2.4G Wireless Gamepad Model: GS250R Standards: FCC PART 15, SUBPART C : 2002 Date of Receipt: 06 August 2004 Date of Test: 10 to 20 August 2004 Date of Issue: 12 September 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO040801090RFI Page: 2 of 20 FCC ID: SH7GS250R 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION............................................................................................................................................ 3 3.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................3 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 STANDARDS APPLICABLE FOR TESTING.................................................................................................................. 3 3.5 TEST LOCATION...................................................................................................................................................... 3 3.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.7 TEST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Conducted Emissions, 150KHz to 30MHz ................................................................................................ 11 4.3.3 Occupied Bandwidth .................................................................................................................................. 12 5 PHOTOGRAPHS - TEST SETUP........................................................................................................................ 13 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................16-19 SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO040801090RFI Page: 3 of 20 FCC ID: SH7GS250R 3 General Information 3.1 Client Information Applicant Name: Prism Technology Limited Applicant Address: Room 713, 7 Floor, Block A, Hoplite Industrial Centre, 3-5 Wang Tai Road, Kowloon Bay, Hong Kong 3.2 General Description of E.U.T. Product Name: PS2 2.4G Wireless Gamepad (2.4G) Model: GS250R Power Supply: 4.8V DC (4 x ‘AAA’ Size Rechargeable Batteries) for Transmitter, Receiver powered by host PS2. Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as a PS2 (model: SCPH-30006 R of SONY) & TCL 14” TV monitor. 3.4 Standards Applicable for Testing The customer requested FCC tests for a PS2 2.4G Wireless Gamepad The standard used was FCC PART 15, SUBPART C (2003) section 15.249. 3.5 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou S…

Text truncated - open the document above for the full version.

Radiated Emission Transmitting mode Charging mode Conducted Emission
