SH7GX300RWireless Gamepad

XBOX RF 2.4GHZ WIRELESS Advanced Controller KC-7201D RF Welcome Thank you very much for purchasing the RF game-pad. The RF game-pad is one of peripheral equipments for XBOX console. It has vibration function to provide you more realistic feelings, and complete function keys to set your game-pad more powerful. It can convenience charge the rechargeable battery while playing. Before using this controller, please read this manual and retain it for future reference. Yo u r X b o x TM RF Advanced Controller Package Includes: Xbox TM RF Advanced Controller Instruction Manual Warning: Before using this product please read the Xbox video game system instruction manual for safety, health other information. Important Ergonomic Information Some medical studies have suggested that long periods of repetitive motion, coupled with poor habits and an uncomfortable environment may be linked to certain types of physical discomfort or injuries. These include carpal tunnel syndrome, tendonitis, and tenosynovitis. It is important to take frequent breaks during game play, and if you feel aching, numbness, or tingling in your arms, wrists, or hands, Please consult a qualified health professional. Specification 1. For XBOX console 2. This is a dual shock rumble full analogue RF game pad 3. This product will have 8 channels; Channels must be matched on both RF pad and the host unit. User can use any channel for any port. All channels are stand-alone. 4. Range up to 10M 5. Vibration can enable or disable by the user for increase the battery life 6. Designed for short range wireless communication in 2.4ghz – world wide license free band. 7. Power switch and vibration switch for save your power. 8. Dual vibration motor 9. Operation voltage: 3.3V 10. Operation current: 15MA 11. Vibration voltage: 4.2V 12. Vibration voltage: ≤80MA 13. Charge input: 6VDC 500MA 14. Rechargeable battery 1.2V 750mAh *4pcs Setting the frequency channel Before using your playfree controller, please setting the frequency channel on the controller and receiver so that they match. Controller channel setup 1. Set the switches as shown as shown Receiver setup 1. Set the switches on the side of the receiver as shown Frequency switch configuration 1 PLAYER 2 PLAYER 3 PLAYER 4 PLAYER 5 PLAYER 6PLAYER 7PLAYER 8 PLAYER Battery install 1. Remove battery compartment cover from the controller 2. Insert 4x1.2V AAA size batteries, observing the correct polarity, we recommend alkaline batteries 3. Refit the battery compartment cover Receiver connection 1. Ensure that your ps2 console is switched off 2. Plug the receiver unit into a controller port on your ps2 controller 3. Turn on your ps2 console Using your playfree controller Switch on the controller by sliding the power on/off, switch to on. Saving battery life, please turn off the controller when you have finished playing Usage of all button 1. Start button It has start and pause in the games 2. Back button Back to the previous menu. 3. Turbo button When you press turbo button, press the fire button at the same time, then undo the turbo and fire button, finally press the fire button, the fire button has turbo function and led flash. 4. Clear button When you press the clear button, press a fire button at the same time to clear the fire button`s turbo function, 5. Fire button Including X, Y, A, B, white, black. These button have different in different games, you can set them function in some game according your liking 6. D-pad Move leading actor direction or select option menu in the game 7. L-STICK Function is same with the D-pad, but, it has analog function, using analog function is more real in same games,racing flight games 8. R-stick It has analog function, you set it in different games 9. L, R button They have analog function, you set it in different games 10. Vibration If you want vibration function, please set vibration ON status in option menu in the game. Charge operation When the yellow LED flash, It means batteries power are low, we must charge it now, Insert adapter into the socket of your home, insert other end of the adapter into charge port on the game controller, and the red LED should light, and after four hour the green LED will on, the red LED go out. It means batteries charge enough. We can charge the battery while playing. Precaution of Usage & Storage ● Do not use or store this joystick in an area where is highly moist, dangerous hot, extra- cold or full of dust. ● Do not expose this joystick to direct sunlight for a long time. ● Do not lay this joystick on a surface that is slanted or unstable. ● Do not apply a strong force upon this joystick or drop it roughly from a high place. ● If you want to clean this joystick, you can use a soft cloth, sock it in clean water or diluted neutral detergent, wring out it thoroughly before wiping the dirt from the case. Never use chemicals such as benzene or paint thinner to clean this joystick. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT

2.4G Game Pad Block Diagram Transmitter DC6.0V/500MA 6MHZ Receiver 6MHZ CHARGE CIRCUIT VOLTAGE REGULATE MICRO PRECESSER LOW BATT DETECT OSCILLATORLOGIC CONTROL 2.4G RFMODULE 8CHANEL AUTO SELECT PAD KEYS 2.4G RFMODULE 8CHANEL AUTO SELECT MICRO PROCESSER DECODE CONSOLE

FCC ID Location FCC ID Label Sample FCC ID: SH7GX300R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: SH7GS250R FCC ID: SH7GS250R FCC ID: SH7GS250R

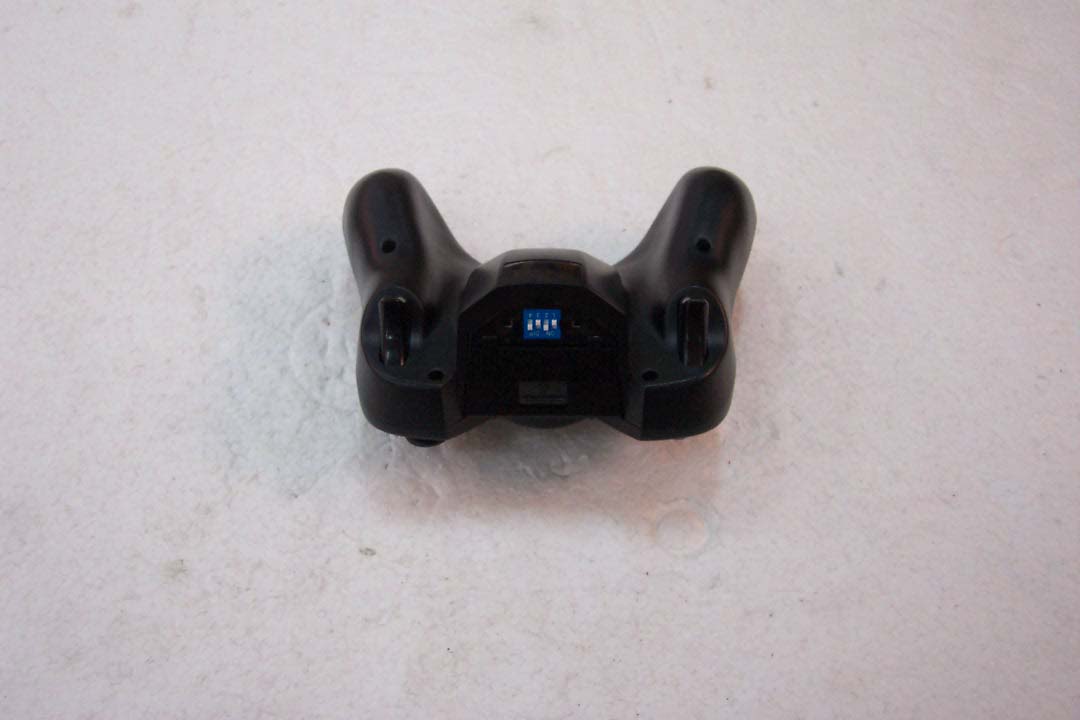

Function Description of GX300R This RF 2.4G Wirless Gamepad is for XBOX Console(GX300R). As for the GX300R, this gamepad could be used without the limit of the cable , that means you could play the game and control the gamepad as far as ten meters away form you TV and console. And this gamepad has the function of recharge. So you could use rechargeable batteries instead of common batteries. It has the function of analog as well, which could make the player have the real feeling when they are playing the game. In addition it has a function of Turbo which makes the fire buttons have turbo function, so you need put the fire buttons again and again.

KC-7201c-1c.sch-1 - Mon Aug 30 16:17:55 2004 KC-7201c-2b.sch-1 - Mon Aug 30 16:18:34 2004

Report No.: GLEMO040801088RFI Page: 1 of 19 FCC ID: SH7GX300R Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 E-Mail: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO040801088RF (SGS SZ NO.:SZTYR040804549/TS) Applicant: Prism Technology Limited FCC ID: SH7GX300R Fundamental Carrier Frequency : 2.441 GHz Equipment Under Test (EUT): Name: XBox 2.4G Wireless Gamepad Model: GX300R Standards: FCC PART 15, SUBPART C : 2002 Date of Receipt: 06 August 2004 Date of Test: 10 to 20 August 2004 Date of Issue: 12 September 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO040801090RFI Page: 2 of 19 FCC ID: SH7GX300R 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION............................................................................................................................................ 3 3.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................3 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 STANDARDS APPLICABLE FOR TESTING.................................................................................................................. 3 3.5 TEST LOCATION...................................................................................................................................................... 3 3.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.7 TEST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Conducted Emissions, 150KHz to 30MHz ................................................................................................ 11 4.3.3 Occupied Bandwidth .................................................................................................................................. 12 5 PHOTOGRAPHS - TEST SETUP........................................................................................................................ 13 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................15-19 SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO040801090RFI Page: 3 of 19 FCC ID: SH7GX300R 3 General Information 3.1 Client Information Applicant Name: Prism Technology Limited Applicant Address: Room 713, 7 Floor, Block A, Hoplite Industrial Centre, 3-5 Wang Tai Road, Kowloon Bay, Hong Kong 3.2 General Description of E.U.T. Product Name: XBox 2.4G Wireless Gamepad Model: GX300R Power Supply: 4.8V DC (4 x ‘AAA’ Size Rechargeable Batteries) for Transmitter, Receiver powered by host PS2. Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as a Microsoft X-Box & TCL 14” TV monitor. 3.4 Standards Applicable for Testing The customer requested FCC tests for a XBox 2.4G Wireless Gamepad The standard used was FCC PART 15, SUBPART C (2003) section 15.249. 3.5 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory…
